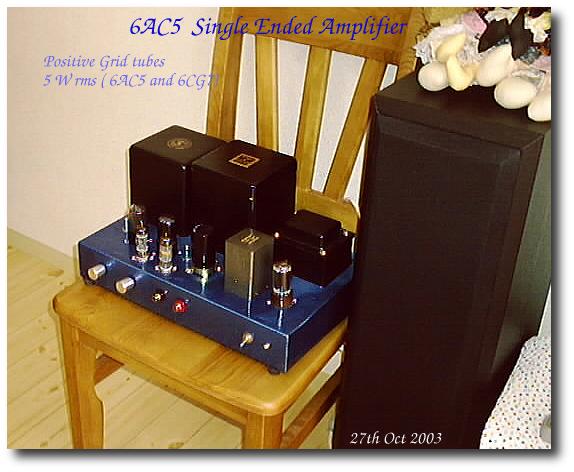

6AC5 Single Ended Amplifier



Just tell you very simple circuit,if you can get for diver
of 6AC5 is 76 and 6P5 better than 6CG7 Noval.because 76 and 6P5 has already -13.5V
grid bias.at 250 V plate voltage.so you can get easily into 1st grid of 6AC5 P+
+13.5 V.you can get very sweet sound like a RCA 45 .out put transformer is 7 k ohm

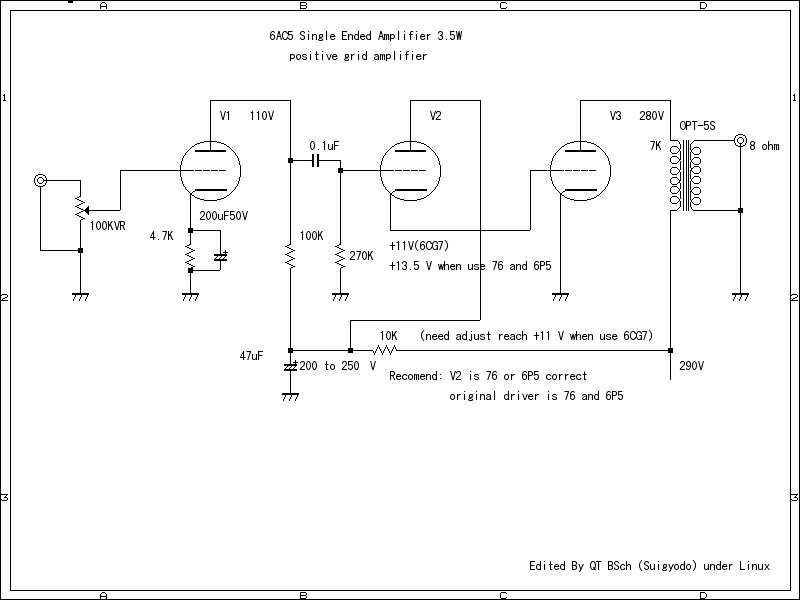

or 5 k ohm.circuit is indicated next.
