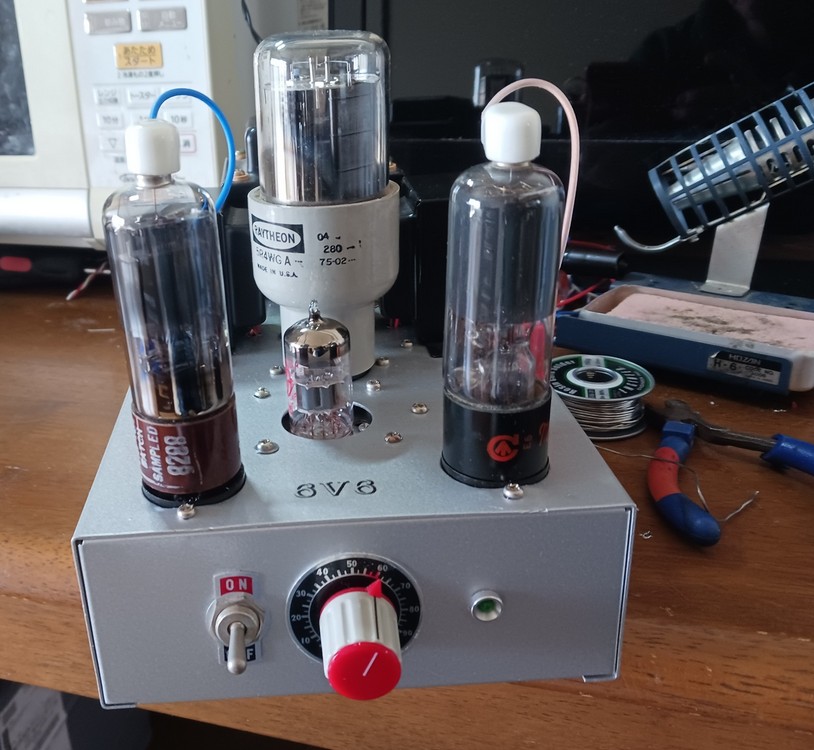

I just installed the parts, and now I'm going to make it into a shape. Marlhori V1 All new products come with Marlhori



It's a GT tube. It's a vacuum tube. According to the literature, it's a vacuum tube used in car stereos. Here's the circuit diagram


I guess I have to make something. I'll make the amplifier I made before. The European name for this vacuum tube is EL2. What was it used for?
The top grid means it's a transmitting tube or a home radio. The tank circuit is on the chassis, and the tuning circuit was probably on top of the chassis for detection.
It has a maximum output of 2W, so I think it was used as an output for a home radio, but it's actually a vacuum tube for a car radio.
I'm modifying a 6V6 single, so the modification is easy. After this, I'll put in a transistor
ripple filter. There will be no hum even with a smoothing circuit with a single resistor.

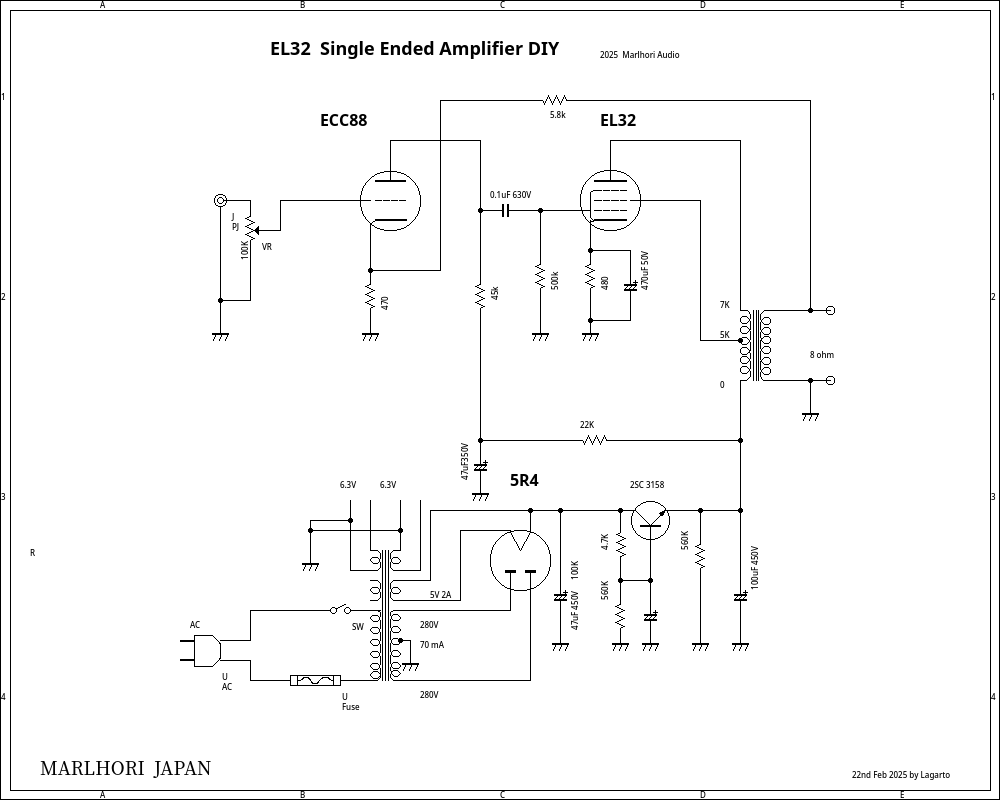

schematic diagram

It's a GT tube. It's a vacuum tube. According to the literature, it's a vacuum tube used in car stereos. Here's the circuit diagram
