How to use Music server 音楽サーバーの使い方 By 🍓　Raspberrypi 3A+

How to use Volumio2 and Moodeaudio

your OS is
indicated X11 and U,Linux,BSD means BSD/Linux/Unix family OS
smartphone are Linux or BSD(UNIX)

This counter started 17th Dic 2020

this counter started 4th Mar 2023

and add 2 of adaptor for Music Server this is Raspberrypi 3 A+

Raspberypi を使った場合はVolumio2若しくはMoodeaudioが使えます If you use Raspberrypi, you can use Volumio2 or Moodeaudio
Nanopi-neo2やNanopi-neoの場合はmpd music server mympd 若しくは　Volumio2が使えます

Raspberrypi3 A+ 若しくはRaspberrypi　Zero　W　にはこの２つが必要です。 Needed 2 component USB LAN and USB HUB

これは2790 円です、ヨドバシは送料無料なので2790 円で購入出来ます、USB-HUBですがLAN付きです

Raspberrypi やNanopi-neo2を使うと意図も簡単にNASサーバーや音楽サーバーを製作出来るのです。OSを使う限り比較的容易にMusic　Serverやファイルサーバーの製作が出来ます。
ヨーロッパではStreaming Server として私が製作したMusicサーバーが使われています。基本的にしっかりしたADSL以上の安定した電話回線が必要になります。
しかしながら良質なストリーミング・サーバーを製作出来ます。DACは自作　DACで十分で音の質は数百ドル以上の音響機器に負けないほどの音を出してくれます。

Using Raspberrypi or Nanopi-neo2, you can easily create a NAS server or music server. As long as you use the OS, you can create a music server or file server relatively easily.
In Europe, the Music server I made is used as a Streaming Server. Basically you need a stable phone line with more than solid ADSL.
However, you can make a good streaming server. As for the DAC, the self-made DAC is sufficient and the sound quality is comparable to audio equipment costing several hundred dollars or more.

私の場合は２万円ほどで提供致します。外国からのオーダーは USD $ 270　ドルとなります。この中には送料が入っています。世界中どこからオーダーしても$ 270 ドルです。

音楽サーバーにはDACを搭載してあります。OSや、CPU基板によってはWifiやブルーツースで音楽を再生出来ます。音はサーバーに搭載してあるDACから出ます。
基板によって、USB　ポートが出ていますので　USB　DACも使えます。勿論　ファイルサーバーとしても使える事になります。
Volumio2は一種のクラウドですし、ブルーツースは有料になっています。Moodeaudio は基本的にはmpd サーバーですのでオープンで使用が出来ます。ブルーツースもオープンで使用が出来ます。
Volumio2 は　有料になります。一種のクラウドですので、使用の範囲が限られています。そこが違います。
現在　2023年　3月　販売されているraspberrypi はA+のみです。スイッチサイエンス様でのみ正規の価格で販売されています　3000円です、秋月では 5800 円　になっています。
A+の場合は以下の様な付加　アクセサリーを追加して、普通のB+と同じ様に使用が出来ます。性能はrap 3となります。Raspberrypi 3A+ となります。性能はアップグレードしていますが、
LAN PORT が無く、USBも１つしかありません。その為に２つの追加コンポーネントが必要です。USBはHUBを追加することでRaspberrypi 3B+の様に使えます。日本ではこの機種しか販売されていません
また、その他の機種は異様に価格が上昇して経済的ではありません、Raspberrypiの販売戦略の崩壊と思います。これらは全て赤の国中華人民共和国の責任です。コロナ発生国に責任が全くないのは国連の崩壊です。
第2次世界大戦の時に中国国民と朝鮮半島国民を全て抹殺しなかった日本軍隊の大きなエラーです。あの時すべてを抹殺すればこんな事にはなっていなかったと思います。秩序のない国を残したのは日本とUSAの過失です。
過激な考えですが、私はそう思います。ちなみにRaspberrypi３A+ の矛盾ですが、Wifiが付いているのでLANは付いていないのはオカシナアイデアです。
モニターを持っていない場合　SSHとなりますし、SSHはWifiでは出来ないのです。また最初にLANで繋がないとWifiの設定は出来ませんし、また音楽サーバーでWifiでは音が悪いと言う結果が出ています。
装備を簡素化して値段を下げた意味はありません、フル装備で＋3,000円となります。この正価は4000円ですが、＋3000円（HUB) = 7000 円です。結局は7000円のRaspberrypi B+の価格と同じ位となります。
現在　Raspberrypi 3B+は事実上販売されていませんので、無意味のSBCとなります。Amazon や多くのネットショップではRaspberrypi の購入を控えて下さい。正規の値段の２倍から５倍ほどで値がついているのが
ネット上の価格です。絶対　購入しないで下さい。正規版は5000円ほどだったのですから、無意味な価格設定のRaspberry piは絶対購入しないことです。数万円で購入して性能以下と言う事ですし数万円で購入するので
あれば、Intel Atomの製品を購入出来ます。

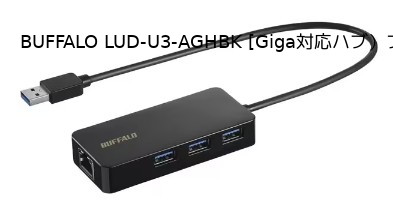

1) USB LAN ケーブル
2) USB HUB
若しくは　USB　HUB　LAN付きが最低価格です。
の２点が追加アクセサリーとなります。これでRaspberrypi B+と同じ様に使用出来ます。性能的にはRaspberrypi Zero　Wと同様になります。
Raspberrypi 系の　ワンボードPCを使いますと簡単にNAS若しくはMusicサーバーを作成出来ます。大変簡単に作成が出来ます。
使用するOSはRaspbian　若しくは　Volumio2　、MoodeAudioとなります。これらが使えれば十分なNASや音楽サーバーを作成が出来ます。
音を出すには付加基板として自作のDACや製品化されたHATと言うDACを追加する必要があります。勿論　USBポートに余裕があればUSA　DACを使うことも出来ます。
推奨はRasspberrypi　B+です。それは既にLAN　ポートと４つのUSBポートが既に装備しているからです。世界的のこれらの製品の販売数が低下してしまったために
変則的な使い方になります。販売されているワンボードPCを使います。勿論　推奨機種は　Raspberypi B+となります。
世界中で100以上の人達が私の製作した音楽サーバーを使っています。手作業で作った音楽サーバーですが十分貴方のオーディオ機器の仲間に入っています。

Using Raspberrypi or Nanopi-neo2, you can easily create a NAS server or music server. As long as you use the OS, you can create a music server or file server relatively easily.
In Europe, the Music server I made is used as a Streaming Server. Basically you need a stable phone line with more than solid ADSL.
However, you can make a good streaming server. As for the DAC, the self-made DAC is sufficient and the sound quality is comparable to audio equipment costing several hundred dollars or more.
In my case, I will provide it for about 20,000 yen. For foreign orders he will be USD $270. This includes shipping. $270 dollars to order from anywhere in the world.

The music server is equipped with a DAC. Depending on the OS and CPU board, you can play music with Wifi or Bluetooth. The sound comes out of the DAC installed in the server.
Depending on the board, there is a USB port, so you can also use a USB DAC. Of course, it can also be used as a file server.
Volumio2 is a kind of cloud, and Bluetooth is charged. Moodeaudio is basically an mpd server and can be used openly. Bluetooth can also be used openly.
Volumio2 is charged. Since it is a kind of cloud, the range of use is limited. That's the difference.
As of March 2023, only A+ raspberrypi is on sale. It's only sold at the regular price at Switch Science, it's 4000 yen, but it's the price 6000 in Akizuki.
In the case of A+, the following additional accessories can be added and used in the same way as a normal B+. Performance is A+.
1) USB LAN cable
2) USB HUB
The two points are additional accessories. Now you can use it in the same way as Raspberrypi B+. In terms of performance, it will be the same as Raspberrypi Zero W.
Using his Raspberrypi one-board PC, you can easily create a NAS or Music server. It is very easy to create.
The OS to use is Raspbian or he Volumio2, MoodeAudio. If you can use these, you can create enough NAS and music servers.
In order to produce sound, you need to add a self-made DAC or a commercialized DAC called HAT as an additional board. Of course, USA DAC can also be used if there is room in the USB port.
We recommend the Raspberrypi B+. Because it already has a LAN port and four USB ports. Due to declining sales of these products worldwide
It will be used irregularly. Use a one-board PC that is on sale. Of course, the recommended model is the Raspberrypi B+.
More than 100 people around the world are using the music server I made. A hand-crafted music server that's enough to be part of your audio equipment.

When Volumio2 is launched for the first time, the default will be "volumio.local".
It will be set after that. passwd will be volumio. First, after install, look for the IP of volumio.local.

First setup please see setup Gear icon at right side menu

(1) turn on your PC and connect your LAN line
Please wait few minute .about 2-5 minute when turn on switch by USB switch near of power supply adapter .this case is alex local is IP
then watch by some kind of internet browser like Slimjet or Firefox etc. type in alex.local some time can not see IP .so turn off switch then few minute later turn on USB Switch.
then watch browser make type in alex.local. if you can get see main menu . please make click Browse where left down .you can see as Browser. make click
hen you can see main menu .

then click Music library . after click you can see the other menu of directly.

so then make click USB which indicated. click again you can see music which save music library in USB Memory.

you can see music library on internet browser then you can choose music

if do you have NAS or PC connected internet line and LAN .witin same modem you can share music from NAS and windows or MacOS.
if you can not see alex.local , then 5 minute after turn on make click volumio.local same as first time access your music server.
almost nothing problem to use this volumio music server .please enjoy music .if would like to add the other NAS or PC music. please make clicl Gear mark right up side.
then you can see the other menu for set up music library .from NAS and your PC.as ADD New Drive.you can mount the other NAS library.
Even you can use M.A.L.P by smartphone .this app can do control of volumio2 music server and many things from so far way if LAN Modem is same line.

adding the NAS music server or mount the other music source.

When Volumio2 is launched for the first time, the default setting will be "volumio.local". It will be configured after that.and always passed is volumio after installed.

alex.local is the IP of the music server. we use DHCP, which automatically assigns an IP, but that IP gets lost when it is moved. There is a field in the system to name the server.
In this case, I named it "tacoma.local" after tacoma's name. I think it's best to keep it simple. alex's music server is set to the classical type. There are other contemporary types. In the application section.
It is easy to set up. The image above is Contemporary, but it is basically the same server. To configure the settings, click on the gear mark ⚙ mark in the upper right corner to bring up the menu, and click on each setting.
At first, just click on the gear mark to finish. In addition to the above, you can use the following functions The following is the classic version of the WebUI. Of course, there is also a Japanese version, though it is set to Japanese.
You can change the language to Japanese when you get used to it, but please leave it in English because the translation doesn't match. The wallpaper can be changed freely, and you can easily copy it by preparing an image of less than 1 megabyte and linking it from your PC. When you click on an item
When you click on an item, it will refer you to the link and you can select the image. You will need a workstation PC.
The disadvantage of volumio2 is that the mpd version is low and DSF playback may not work as expected.

Raspberrypi Zero +W music server

MoodeAudio 8.x Music Server by Raspberrypi A+ or Raspberrypi Zero +W are can use by Wifi mode and Blue tooth from Smart phone

using bluetooth by Moodeaudio 8.x from Smartphone

⚙　mark right side up .you can see and click audio playback option then setup audio position.then set up audio. this case is I2S Master some time you can use USB positon when connect
USB DAC automatically detected USB DAC. show figure.

when connected USB DAC automatically configure USB DAC

First: Prepare your LAN. Make sure you have a good connection. It must be connected to the Internet.
1) Connect the LAN cable provided to the LAN port on your music server.
2) Now supply the power cable USB B type with voltage from the AC adapter.
3) First of all, please wait like this for 3-5 minutes.
4) Get your PC ready and open your internet browser as follows
5) Type "tacoma.local" in the URL field.　If it doesn't lock, try several times. If you are lucky, you should be able to get a connection after one try.
If you still can't find tacoma.local, disconnect the AC adapter and reconnect it.　Do the same thing again. If you can't find tacoma.local, disconnect the AC adapter and reconnect it.

Make your selection

Setup Audio Driver for I2S DAC

Basically using DAC is Hifiberry DAC but this case is using SPDIF because this volumio 2 is not for Raspberrypi 3. I am using Pine64 Volumio2 so choosed SPDIF driver.in general
Raspberrypi does not have any port of SPDIF so if would like to use SPDIF must be use digi hat of Hifiberry or Justboom digi hat.doughter board.if use I2S DAC like hifiberry DAC
have to choose I2S driver and Hifiberry DAC for position of driver.The latest version of mpd for Volumio2 is 0.20.18. And moodeaudio is 0.21.5 ,Dietpi is 0.21.5 21 walls sound very different.
mpd latest version is 22.3. dic 2020.

It is very easy to use. you can get sound from RCA terminal at back side of music server.

If you click on "Brows", the screen above will appear. If you don't see this screen, click the gear symbol and click SOURCE to update your library. Before doing so, click on the network and select "Network".
Look at the IP of volumio2 just in case. Make a note of that IP. This will be the IP of Volumio2. The Music Library has music stored in its internal memory.
you need more space, install a larger memory in the USB port or a hard disk.　WebRadio has over 50,000 stations for you to choose from.
Burn it to a Micro SD. To burn a Micro SD, use the following free application.
Download the Etcher application from here Down load Etcher
Panasonic Micro SD Format Application Format Application Panasonic
It is very easy to operate. You can now test it on any other operating system. If you want to load music from another machine, you can use windows share, or in Linux, Samba.
If you want to load music from a NAS or other server, you can do so as shown in the following screenshot.

Open the share on your PC and burn the music to an external USB flash drive.

To load an external PC or NAS server, click on Source and scan it to see the servers on the same LAN as shown above. You can mount it using the net application. Now you can use this music server to
You can now use this music server to play music stored on other servers. You can also use it to play Sporty. You can also use Sporty.automatically mount NAS music server on your volumio2.
no need add nothing only choose whcich directly mound would like to.please click each Server menu. then show directly .then choose one of them.
I have also published a Linux site. I know how to use it, but I can't write C, so it doesn't help me.

wall paper easy to replace from images on workstation

sale for out of Japan

simple DAC and music server price is USD $ 270 dollars.include shipping .DAC incorporated.you can use as Music Server and Steream player only USD $ 270 dollars .
More than 100 people around the world are using the music server I made. A hand-crafted music server that's enough to be part of your audio equipment.
日本国内の場合は2万円ほどで提供しています。基板が入手出来れば２週間ほどでお届けします

How to add album art

If you are using a Linux-based music server, you can save the album art as a folder.jpg in the music holder. These contain the album information.
This will automatically pull in the album details from the internet search site. This is not always possible, but it makes a big difference. When you rip a song, you basically import the music information from the CDDB site and add the song title.
I'm not sure if this is a good idea or not. I'm not sure if this is a good idea or not.
I feel uncomfortable about this. If you are listening to internet broadcasting, the music you have listened to recently may be leaking from these music servers. I don't think it's a coincidence. It's a strange phenomenon.

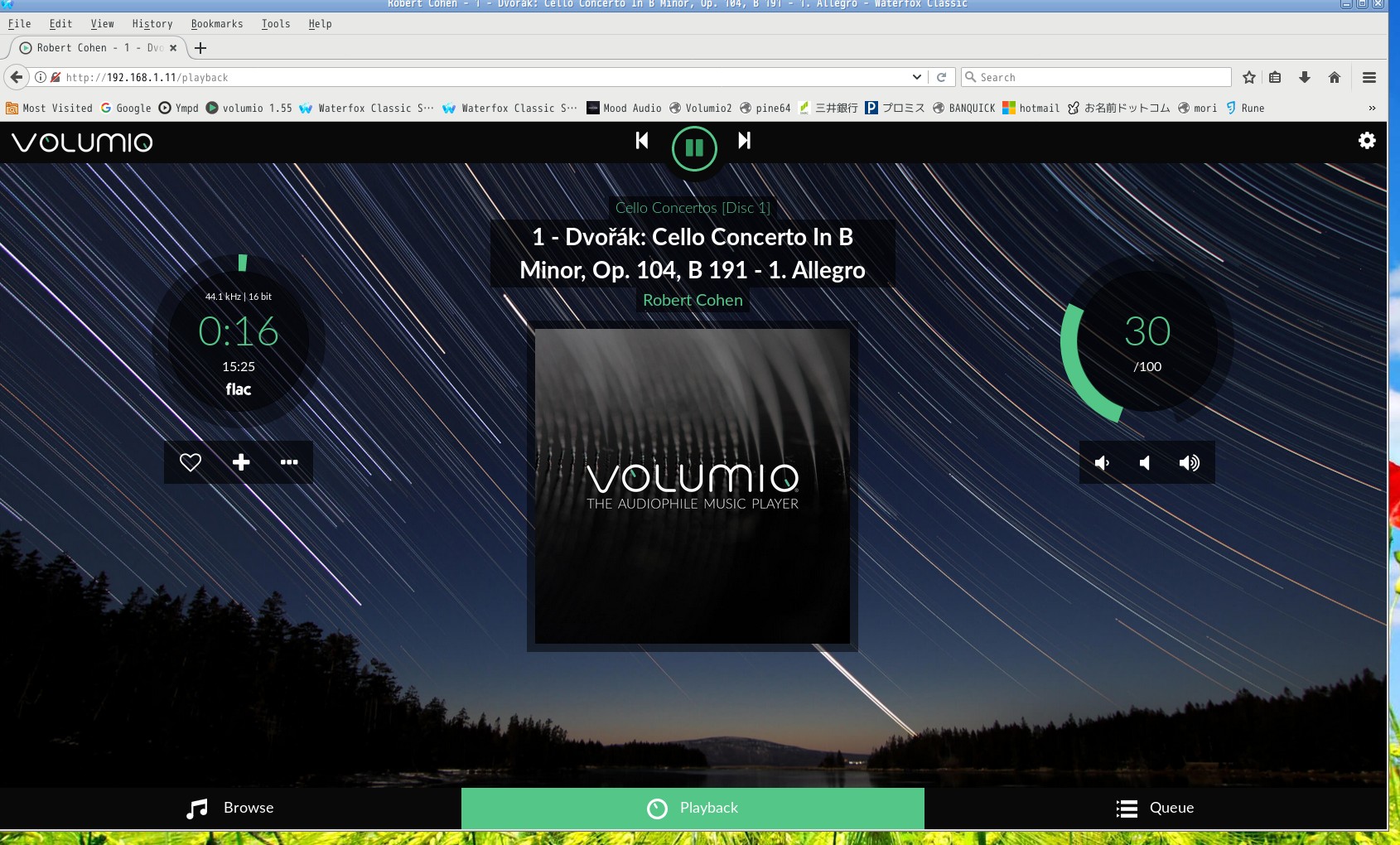

This is an example of the Volumi2 display. It shows the library.

I've been using Linux on my workstation for quite some time. Therefore, it is quite easy to use a music server with Linux.

I have heard that Sony is helping to develop an application called MPD for music servers.
I've heard that Sony is helping to develop an application called MPD, which is used in music servers, and it's well known that Raspberrypi is also made at Sony's factory in the UK and at an industry in the Kansai region of Japan. I'll post a link to the Volumio2 and MoodeAudio, which have a GUI called WEBUI.
You can also install mpd and samba to create a music server without a WEBUI. For display, you can use Ympd, or there is an application called mpd Clients to control the contents of MPD. In my case, I used
I use Cantata. It is very easy to use and can display information about the music you are listening to. You can also use Cantata with Volumio2, Moodeaudio, Runeaudio, etc. Search for MPD Client.

The RaspberryPi is a SONY product.

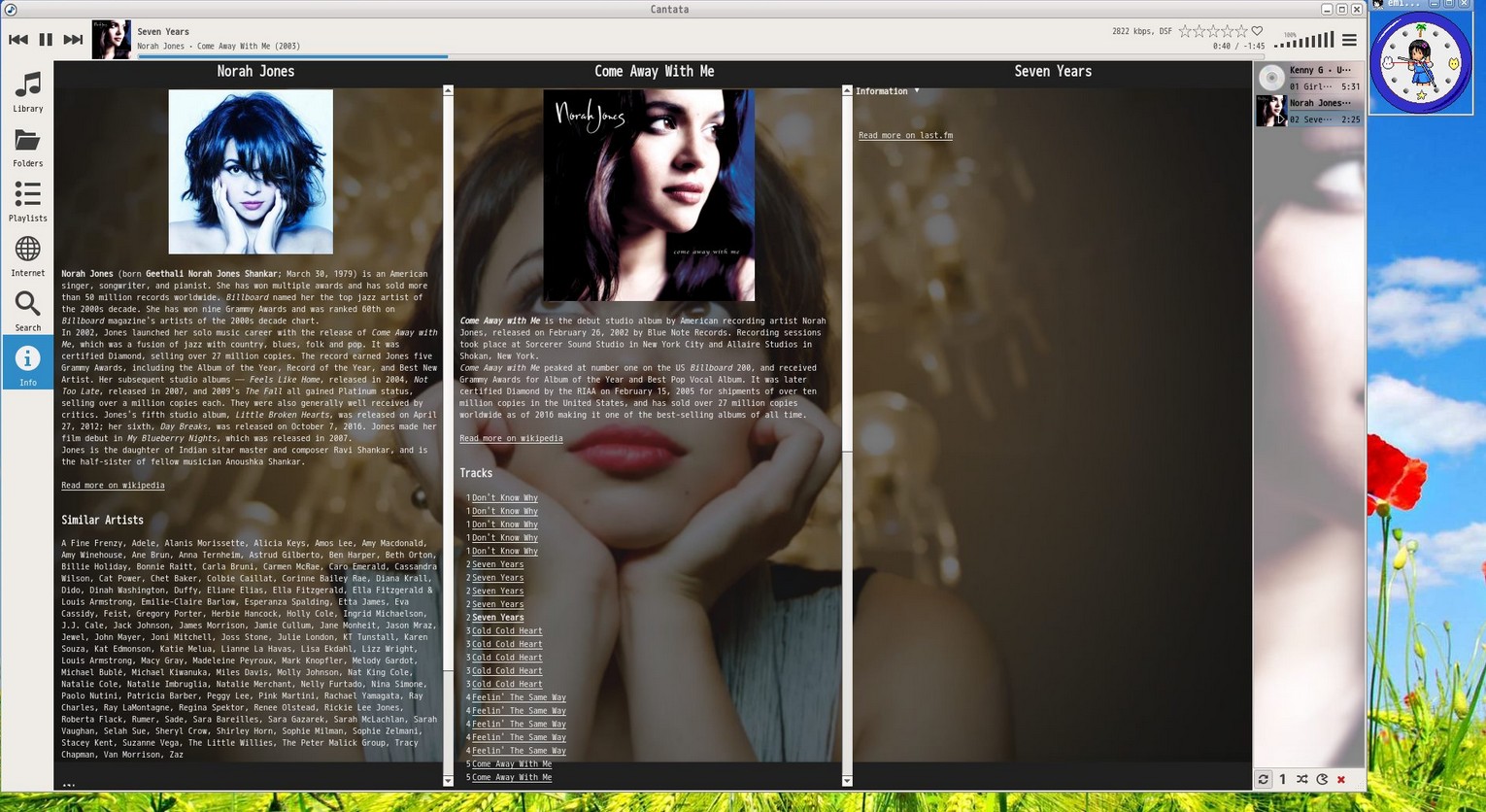

DSF as DoP showing playback status Cantata for Linux

.

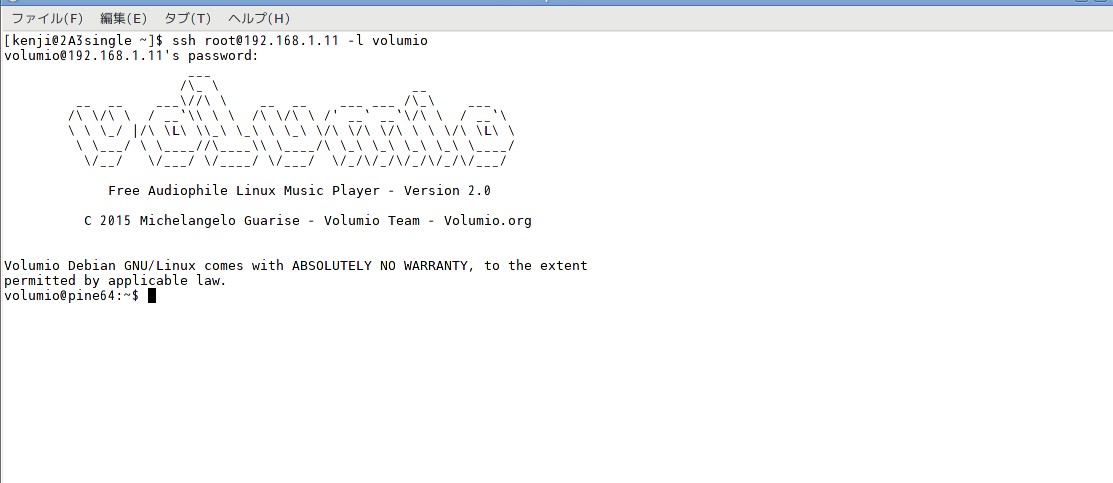

Basically, $ ssh root@192.168.1.11 -l volumio This icon is 2D, so nothing will change when you click it, but trust me, it will. It will be enabled. After that, you can ssh into the system as shown above. ssh is used for detailed configuration and application installation.
This is basically a normal Linux system, so it will work as a PC without Linux X.

You will need to configure and install the software.passwd is volumio

以下の様な音楽サーバーを2万6千円程度で提供しています。Nanopi-neo2が入手出来ればそれを使いますが現在ではNanopi-neo又はRaspberrypiA+となります。OSはVolumio2/Moodeaudio/Dietpiとなります

In my case, I will provide it for about 20,000 yen. For foreign orders he will be USD $270. This includes shipping. $270 dollars to order from anywhere in the world.

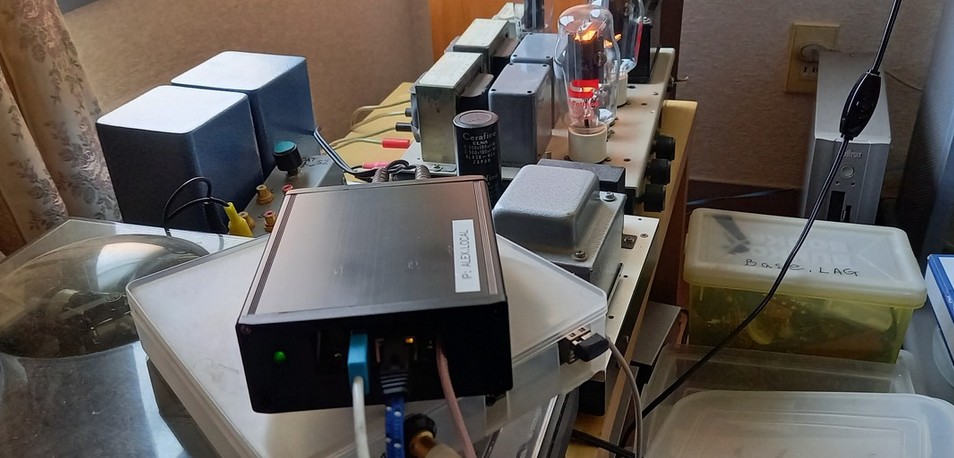

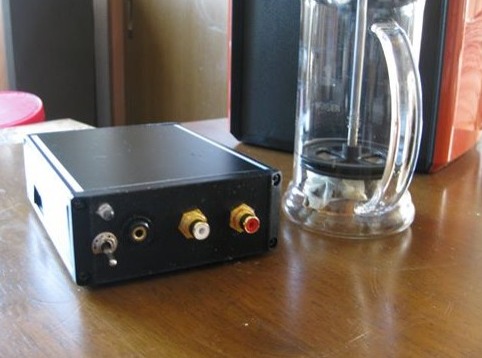

Music　Server 音楽サーバーの販売

music server at home 2023

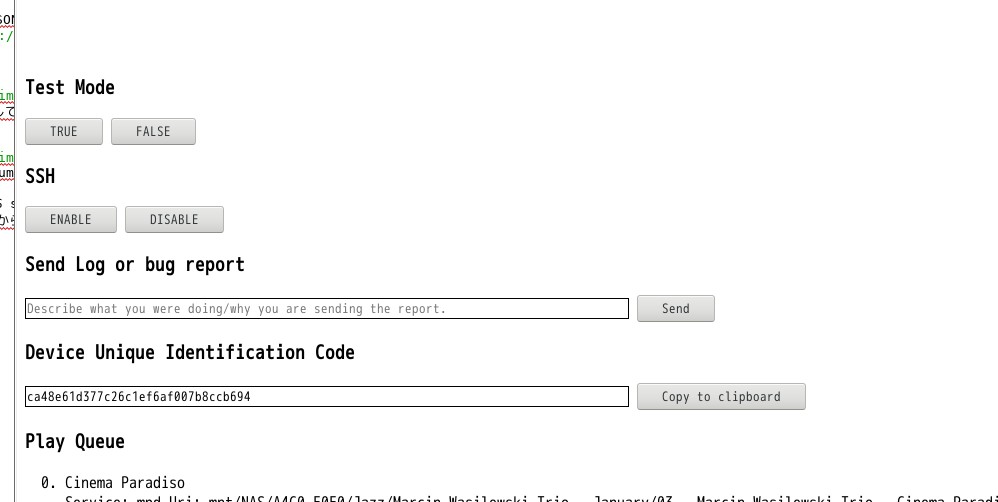

SSH Effective

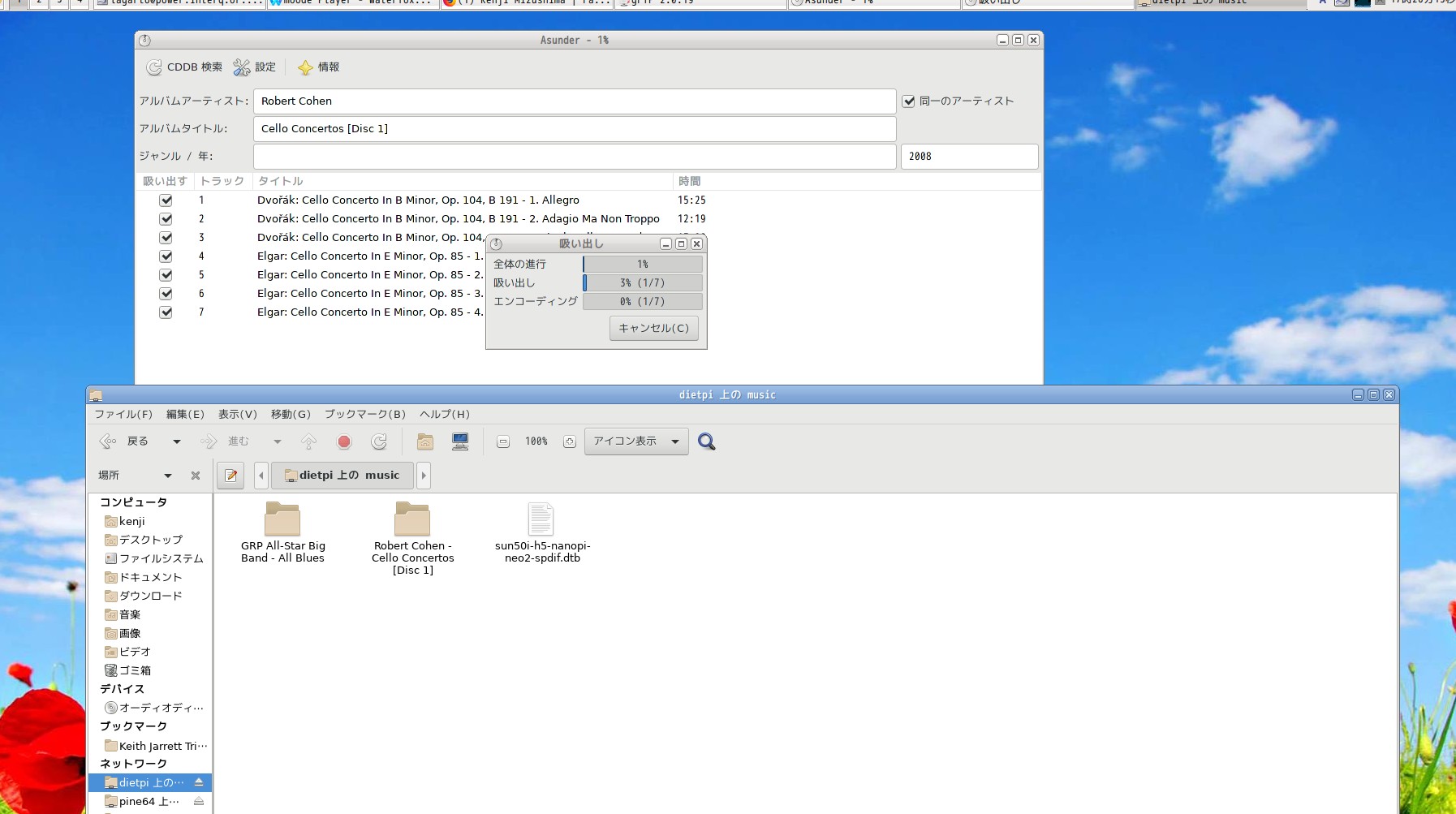

Ripping and save music

doing ripping CD

In my case, ripping is using Linux Asunder. If your home LAN is secure, your workstation can see where it is stored through the share. If you have enough memory, you can use a home LAN line.

Sound through a home LAN line

In my case, I use Linux Asunder for ripping. If the home LAN is working stable, the workstation can see the destination through the share. If you have enough memory, you can use a home LAN line.
If you have enough memory, you can store your music through your home LAN line. nothing problem to use .

You can see that the cello music has been saved. Let's listen to it with Volumio2 on a Pine64, and you can see below that we are listening to music saved to the Music share in Dietpi.

since 17th Dic 2020 How to use volumio2 last update 16th Mar 2023

Single Ended Amplifier D.I.Y edited with BlueFish By JH1 DAS ex WB4ACI from Yachiyo Chiba Japan

How to build up Amplifier Single Ended Amplifier 2023
