Trans-Drive 45/2A3 Single Ended Amplifier


220V use,45 and 2A3 compatible, only one input, Volume control are CP-2500,power supply use
4 of Black Gate condensors,2 chorke for separatin of power supply,Resistance are AMRG
power supply use film capacitor 47uF 800V and all nichikon.1st bias are using MUSE.
wire are Belden for valve amplifier.silicon cable etc.

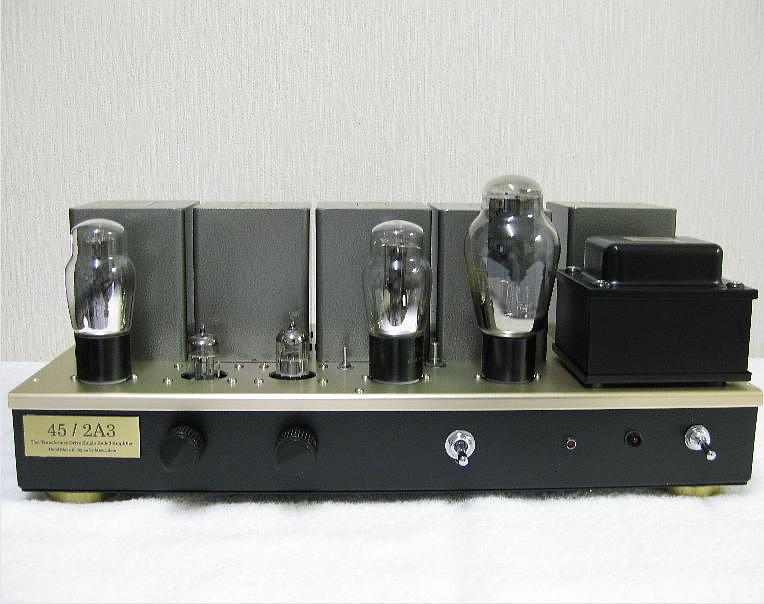

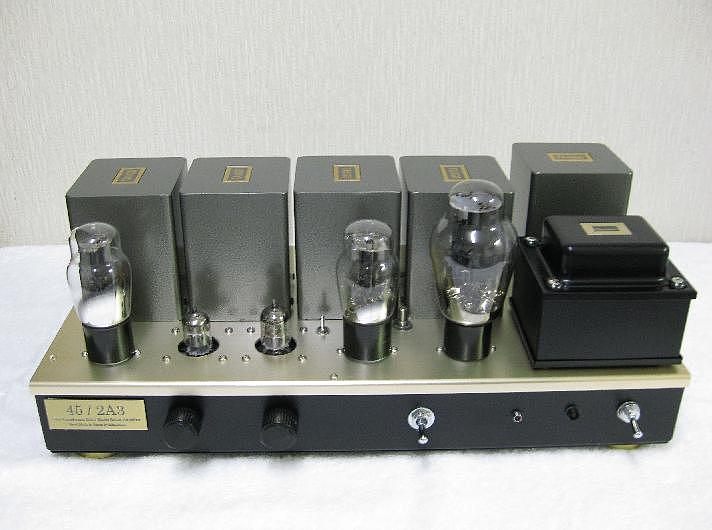

front

Front side:XE20S and NC-20F

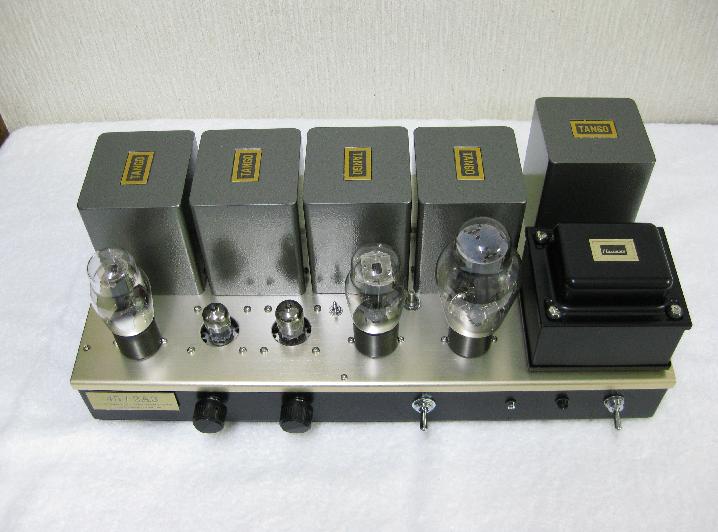

up side

up side of Amplifier

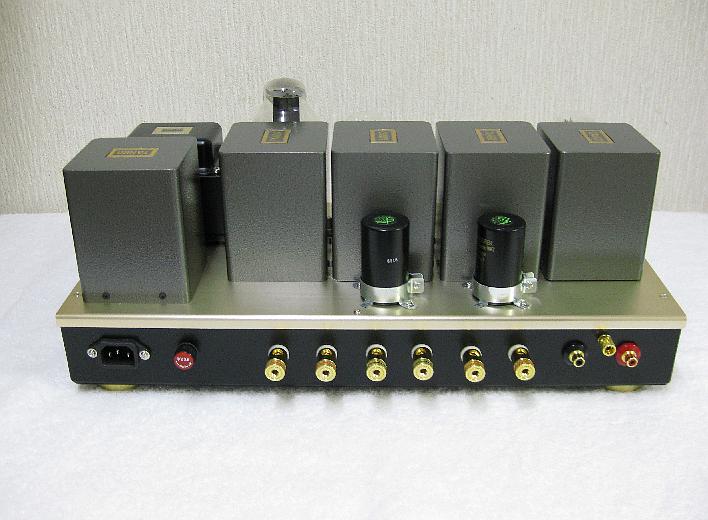

back side

back side, 220V use and you can see 2 of Black Gate condensors



8th Sep 2010 Kenji Mizushima
