High Re-Solution Audio with Raspberry Pi2 B+ I2S DAC DIY
*  Raspberry Pi B+ for Sound source

Let's try to use Raspberry Pi B+ Pi2 Pi3 for Audio source ,flac,DSD HiReso Audio DAC DIY


But "Dont see big Dream with Raspberry Pi 2 ,this is one of Toy Arm MPU board

Raspberry Pi 2 and Raspberry Pi family are ,impossible run with Windows 10 even Linux with X

Almost Toy and not PC ...much better use Intel Atom or x86 with Linux or Windows but ,,,this is small system is only can use Linux for Arm.
But Not for Linux x86 x11 .
Actually Arm Linux are not Native Linux Smart phone too, just family of Linux and have to use x86 Linux

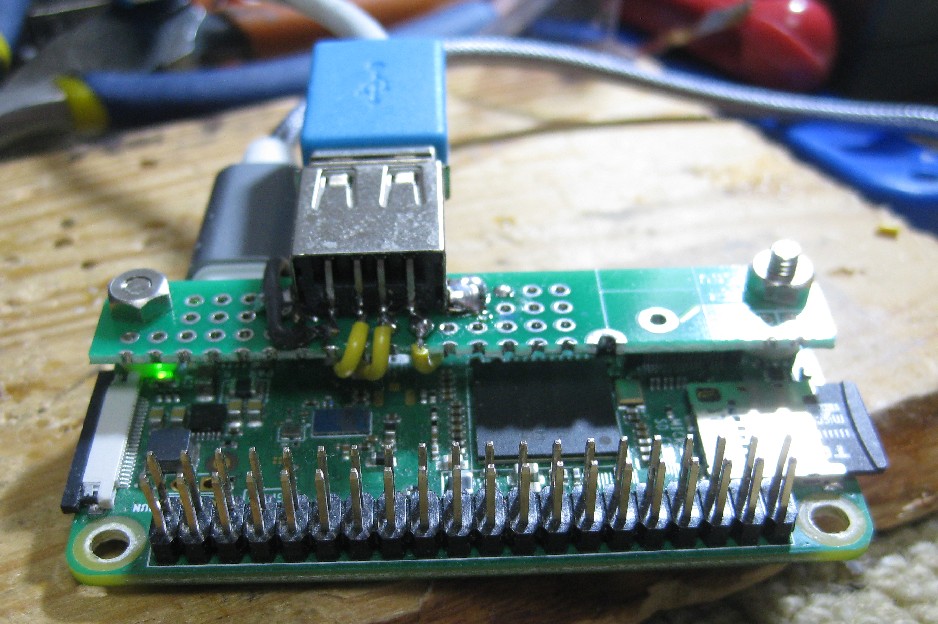

right now we can buy Pi Zero. actually Pi Zero A + but I think much better for hand held Music server
Note:in Japan any one can not buy only Pi-Zero,Pi-Zero-W PC board.so price is more than USD $ 30.Market of Japan is funny.

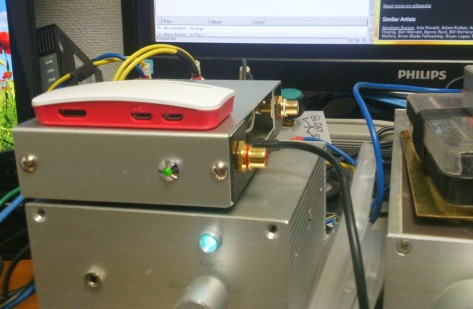

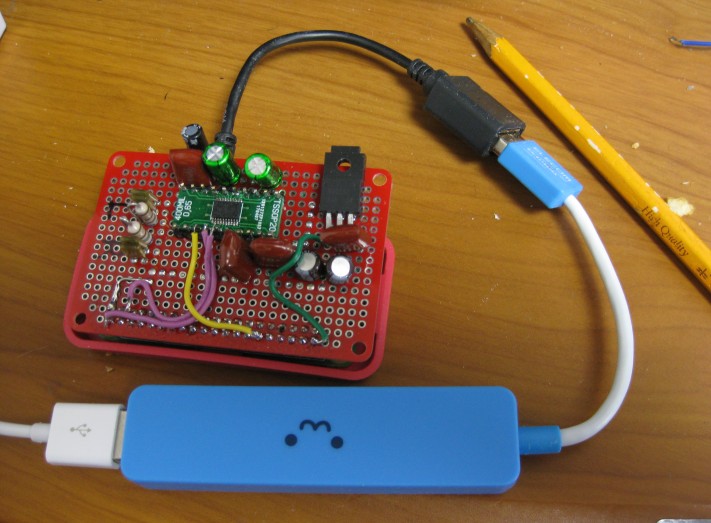

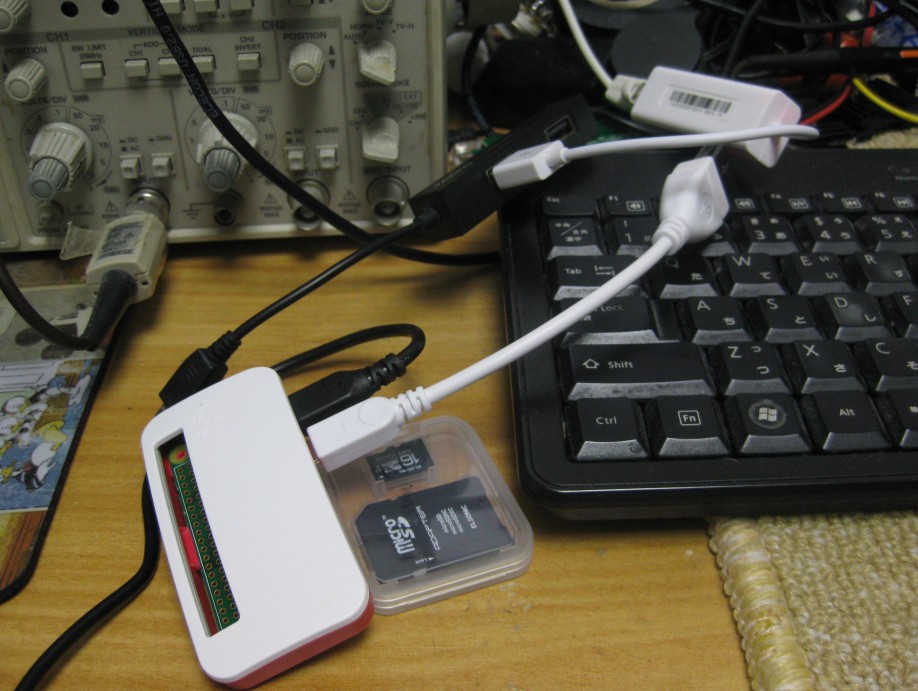

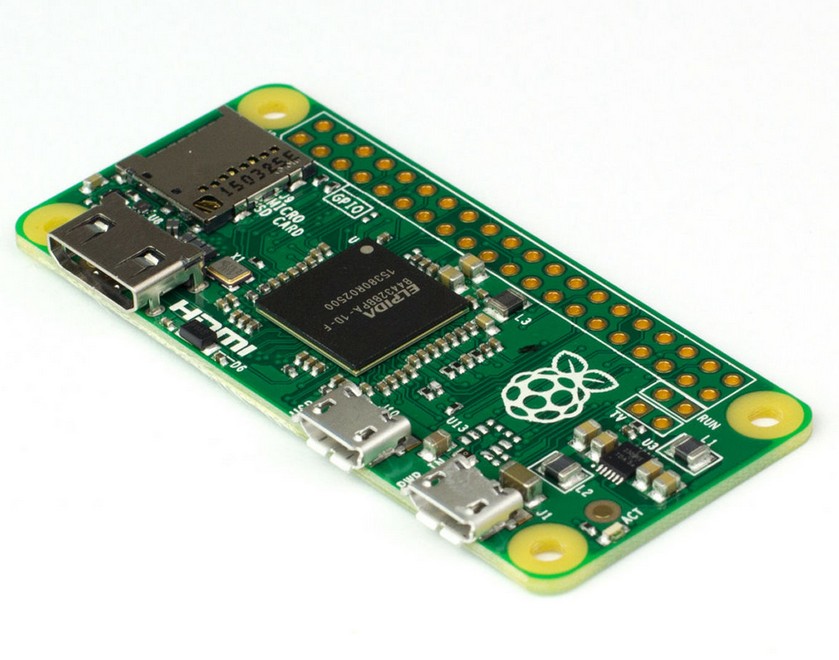

Pi2 zero

Pi Zero Made by Sony Japan but Arm 6

Access all site in a Day

Your OS of PC is
If did you see X11 means family of UNIX and Navigator.


home アクセスカウンター

counter started 15th Feb 2015

in Japanese

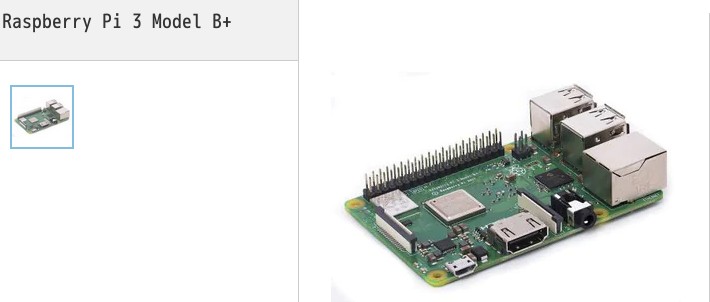

Rp3 B+ 1G

on 2018 Mar Debut New Raspberry Pi 3 B+ New RP3 B+ on 2018 Mar


Please see above links for New Raspberry Pi3 B+ correct SPEC. and you can see new port of addtional 4 pin for PoE" Power over Ethernet" PoE is please see Wikipedia.



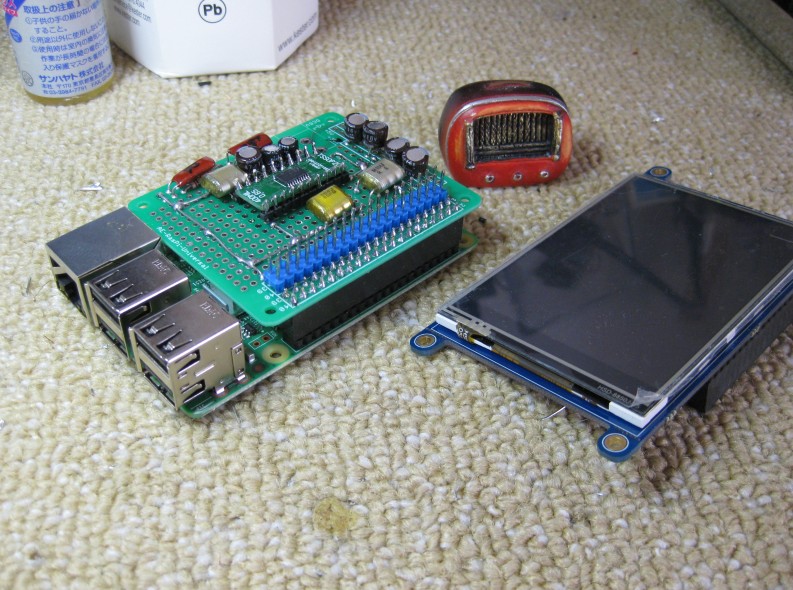

Raspberry Pi B+

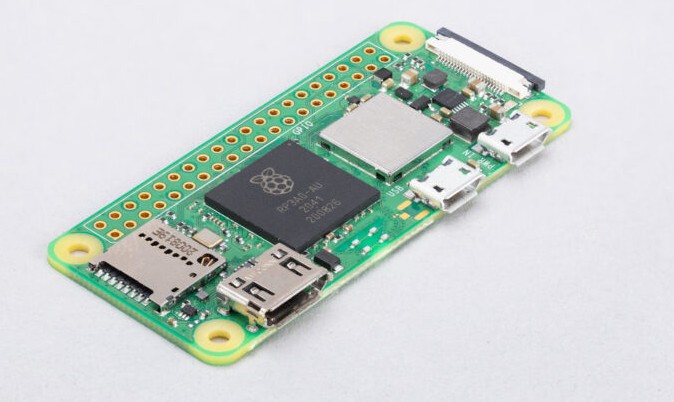

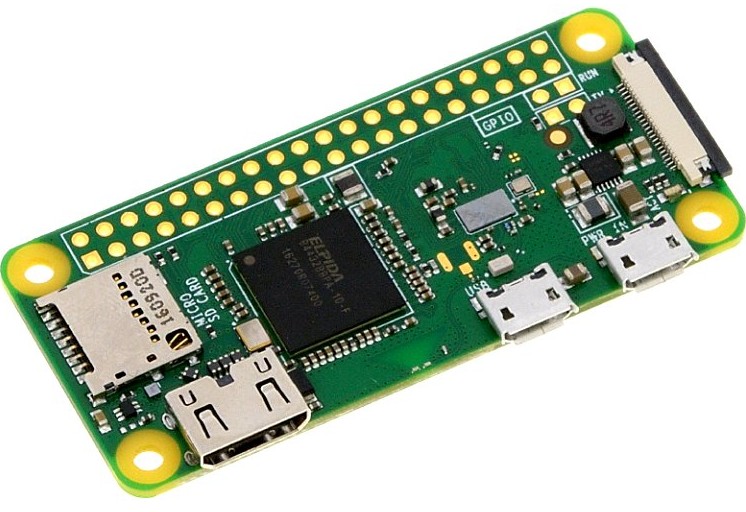

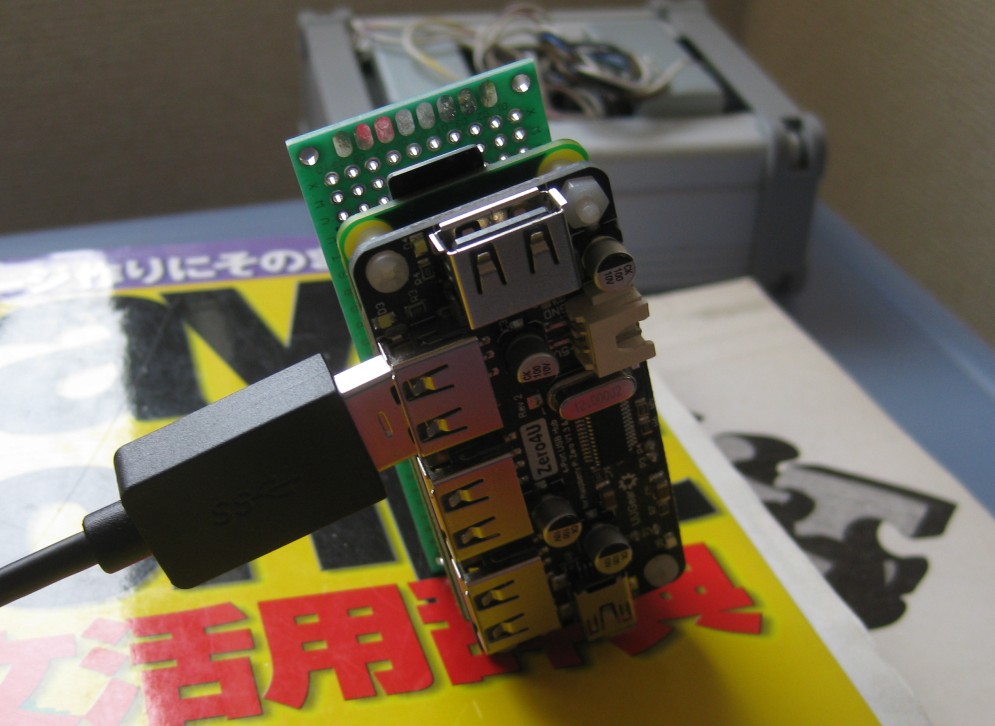

And Pi zero W Feb 2017


Flag Counter
Start 18th Mar 2015

Debut Pi Zero W

And Debut Pi Zero W USD $ 10 (Wifi and Bluethoooth),But Arm6


In Japan,,,,market , we can not buy only one of Pi zero and Pi Zero W.. shop does not make sale only Pi Zero and Pi Zero-W .so many kids could not buy
Raspberry Pi Zero family.big shop prefer sale AC Adaptor and some small connector and USB LAN and micro USB Memory include Box.so price is going up
to USD 40 dollars.who care ? problem of who ? . so many kid going other type of one board PC. very serious problem in Japan. why why ,,,I do not understand///


RPi 3 is now available 2016 end of Feb, USD $39. they said 10 times more high speed than RP2 B Type.
and has Bluetooth so consumption power is 2.5A.
Raspberry Pi Foundation is why still do not use Intel Processor ? ARM is Kind of TOY as you know.
Wifi and Bluetooth Model is can not sale in Japan, I think in USA too under FCC license .Rap Foundation hold FCC ?
so many country can not sale ... one thing ,, Raspberry Pi are until Pi2. even Pi3 is kind of TOY PC. not value to buy.
Problem of Lazy Arm Processor..Do not buy bad performance of Product any more.Pi3 can not install native Windows 10, Windows 7,8 ?
Answer is never.only Linux for Arm. Linux for Arm does not install WINE. so only element of small server system or Robot .
nothing special .
there are kind of TOY. if would like to buy as PC ,,much better buy MOUSE PC.or Intel Edison
much better PC is AM1I-A mother Board
C/P is Very Best.and very low cost.if buy Pi3 Arm ,I will buy AM1I-A PC still expensive for one of pocket money.
And Powerfull new PC isCall it's UDOO x86This is supported x86 ,Lunux ,Windows Made by Intel and Best C/P.
do not buy any more Raspberry Pi 3 ~ ,enough to buy until Pi2 or B+.Raspberry Pi is stop because only Arm is very slow.you can use for very small system.
and now you can use new system from Udoo.one thing very good for Audio because has SPDIF out and any thing can do ,you would like to use .......even can use as Work Station.
so you can watch Internet TV too.is not kind of Toy any more.

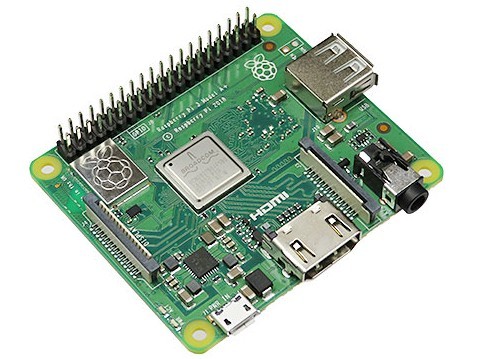

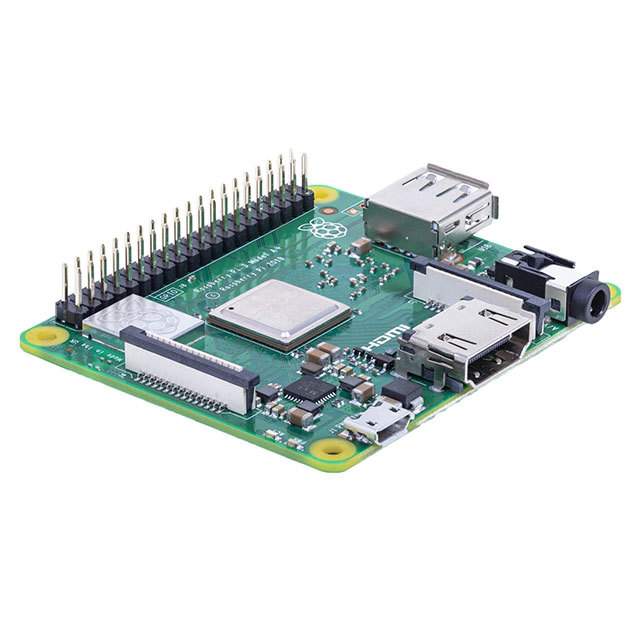

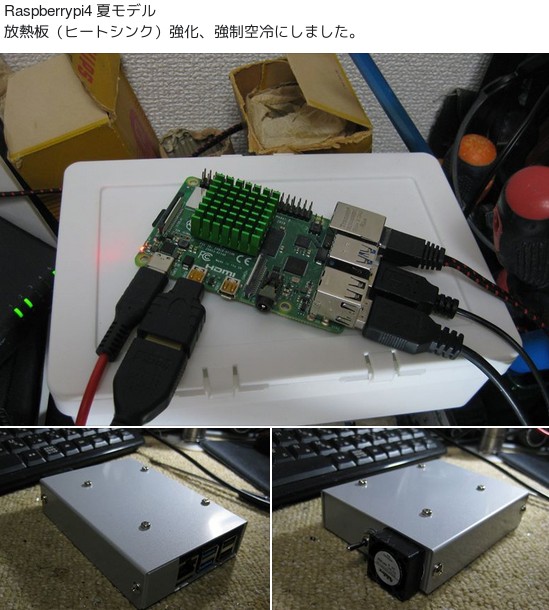

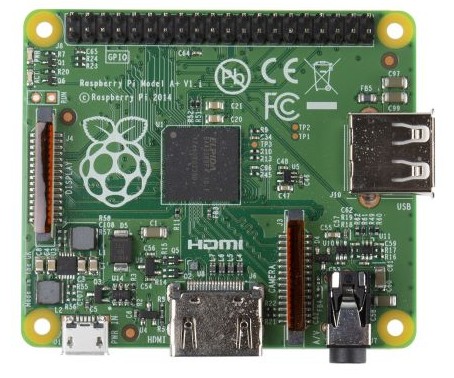

raspberrypiA+plus

Raspberrypi A + plus isnt type A .new one type of Raspberrypi A upgrade model.

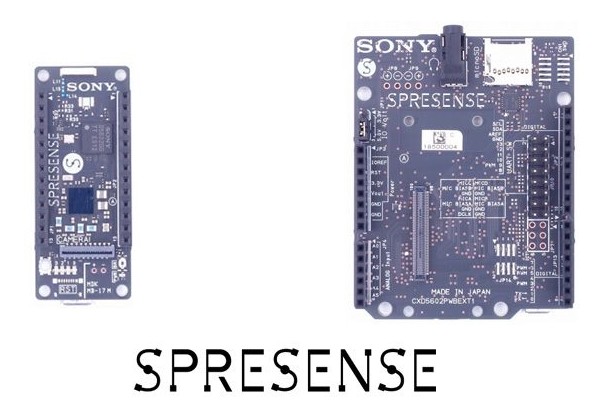

Spresense by Sony 2018

this is new product by Sony(Made in Japan) ,see Sony Spresense on Aug 2018



UP Core

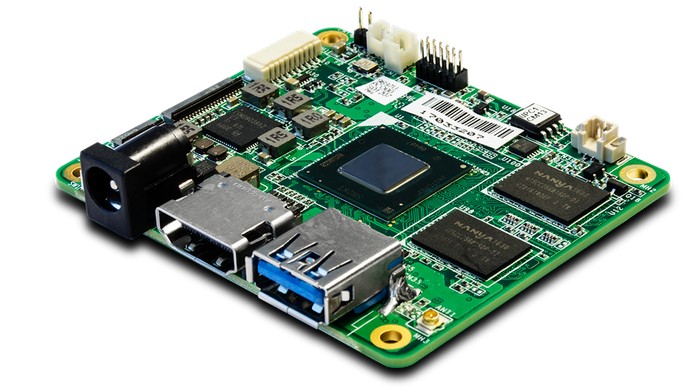

UP core by Intel ,very small one board PC for x86 and WindowsUP Board


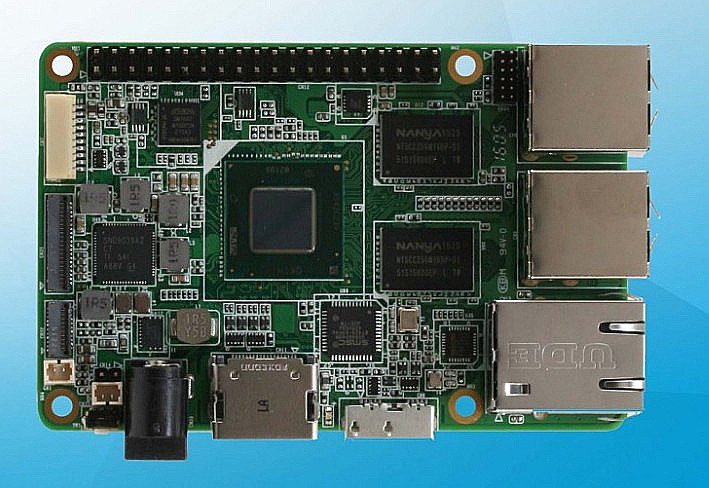

up board 2018

UP BOARD ==> Same Size of Raspberry Pi 3 UP COARD is  x86 Intel ONE Board PC on 2018



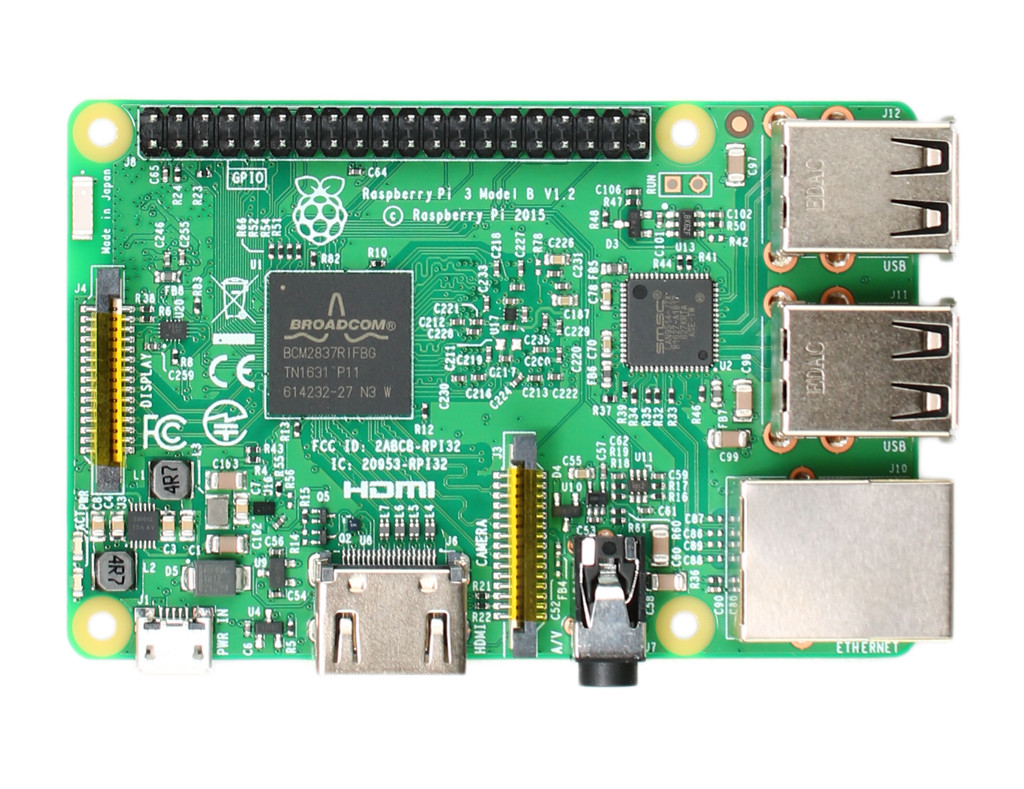

RP 3 made in Japan

Raspberry Pi 3 Made in Japan by Sony ,just show you above

Made by Sony UK


Raspberry pi

Introduce Raspberry Pi




But Raspberry Pi is good for Small Music Server in your house



BB(Ti) PCM5102A I2S DAC LSI can play from 32Khz to 358 Khz of PCM sound and DSF into DoP (PCM), DSD Music can play as DoP (PCM) of all Music.easy to configure
and easily to build up D.I.Y and sound is quite good.you can get high end sound from your small gear.

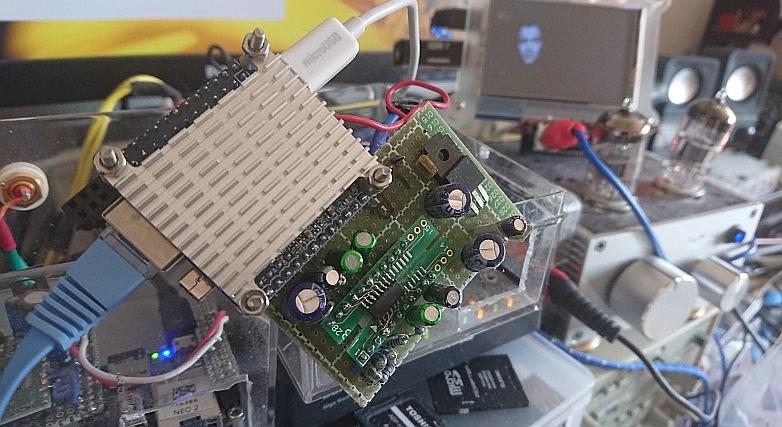

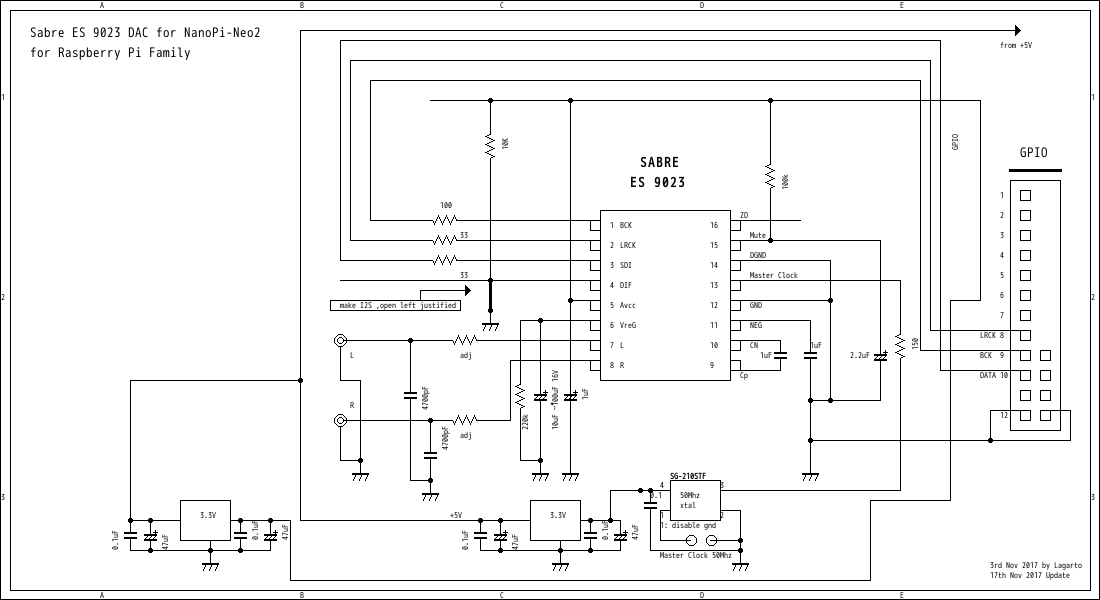

Recommend to USE ES9018 family DAC and ES9023 DAC for DoP,DSD playone thing important ..Raspberry Pi I2S DAC can not play 24,32bit
Sound.is this only problem of Raspberry Pi Music Server.??????? Kind of Toy ?????? 16bit Player no Hireso....???????big question ..I have.now 1st Mar 2016.
I do not have ES9018 DAC so I can not get correct answer...if PCM5102a I2S DAC Using 16bit sound either indicated DSD, 24 bit 48 Khz.etc.




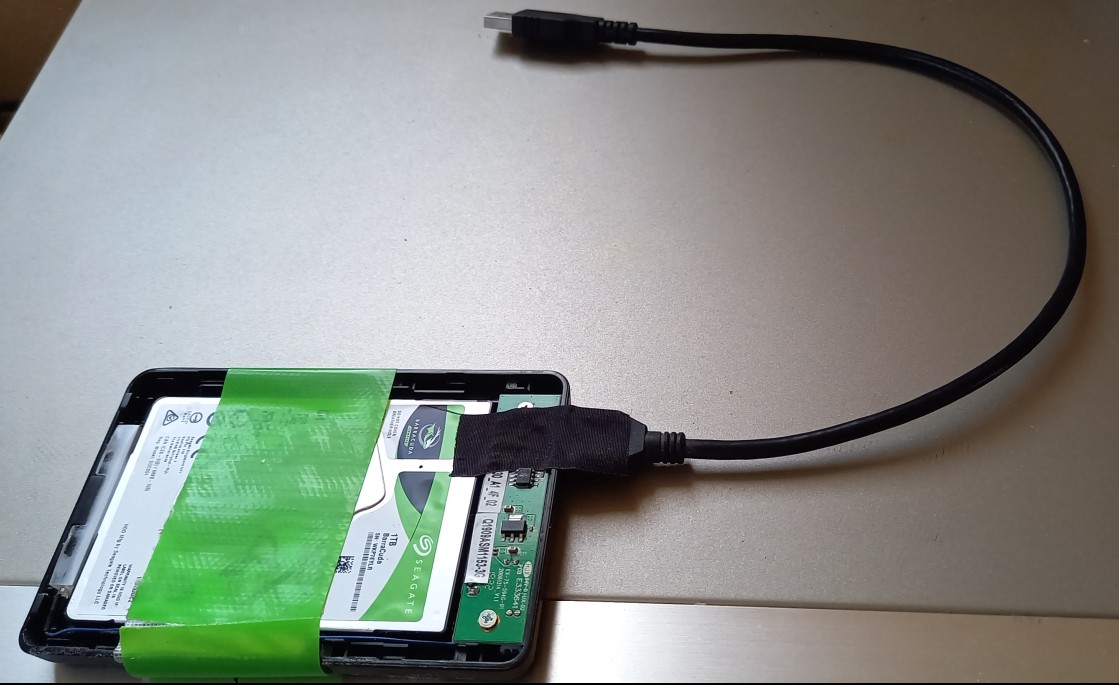

USB HDD(SATA)

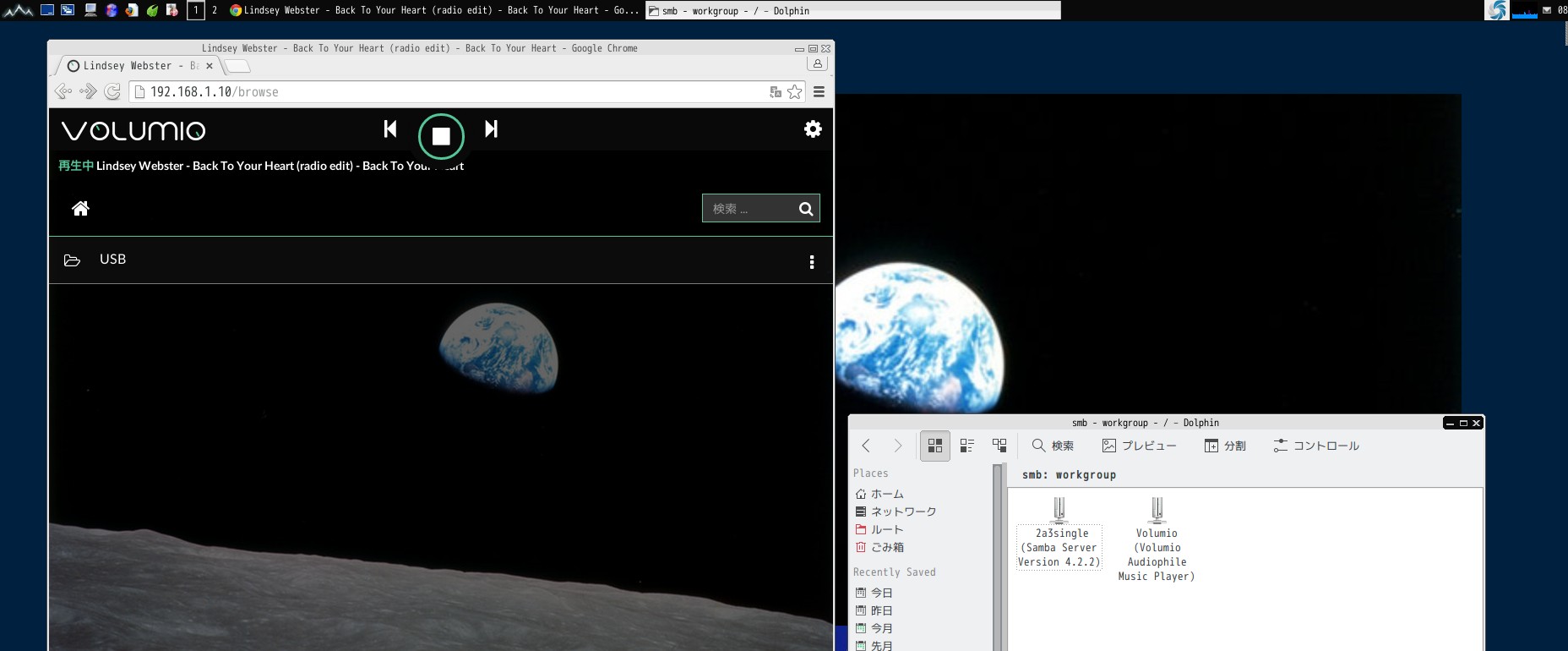

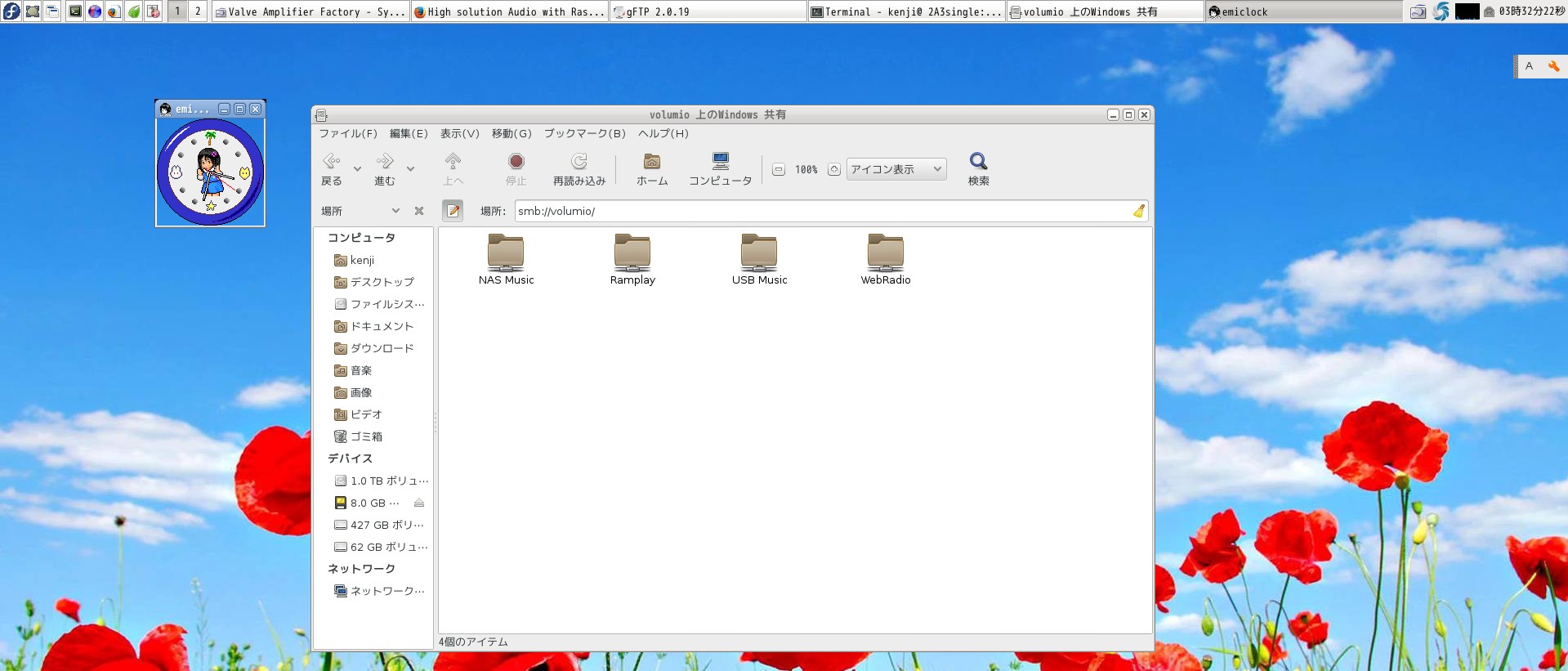

Inside of Volumio ,USB means HDD on USB(SATA= 1 Tera)just connected USB Port on Rasp +B


Black box is 1 Tera HDD = hook up with Raspberry Pi B+ USB Port.USB HDD is SATA inside of Black box. Black box is one of adapter of SATA to USB.
not expensive,around USD $20 you can buy PC local shop.SATA is 2.5 inch 1 tera HDD(about USD$ 50 ). off course necessary power supply of 5V(small one for smart phone)can be use.
and with USB HUB for connected with Raspberry Pi B+ and USB HDD.
there are small Music Station in room. not difficults.can be use as small NAS with Raspberry Pi B+. any one can do.

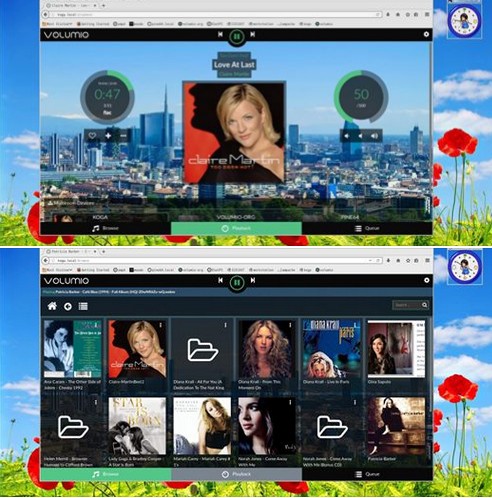

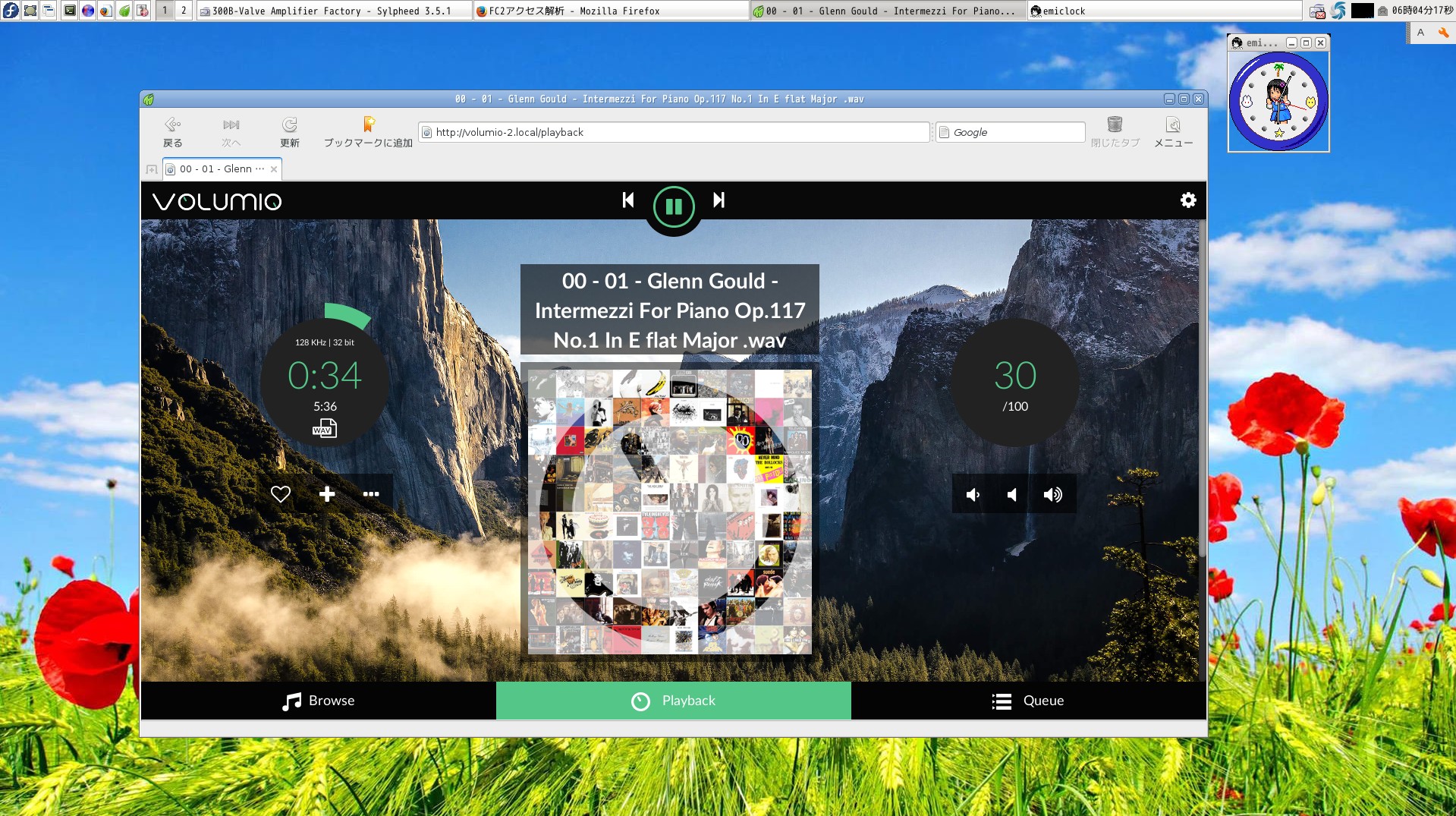

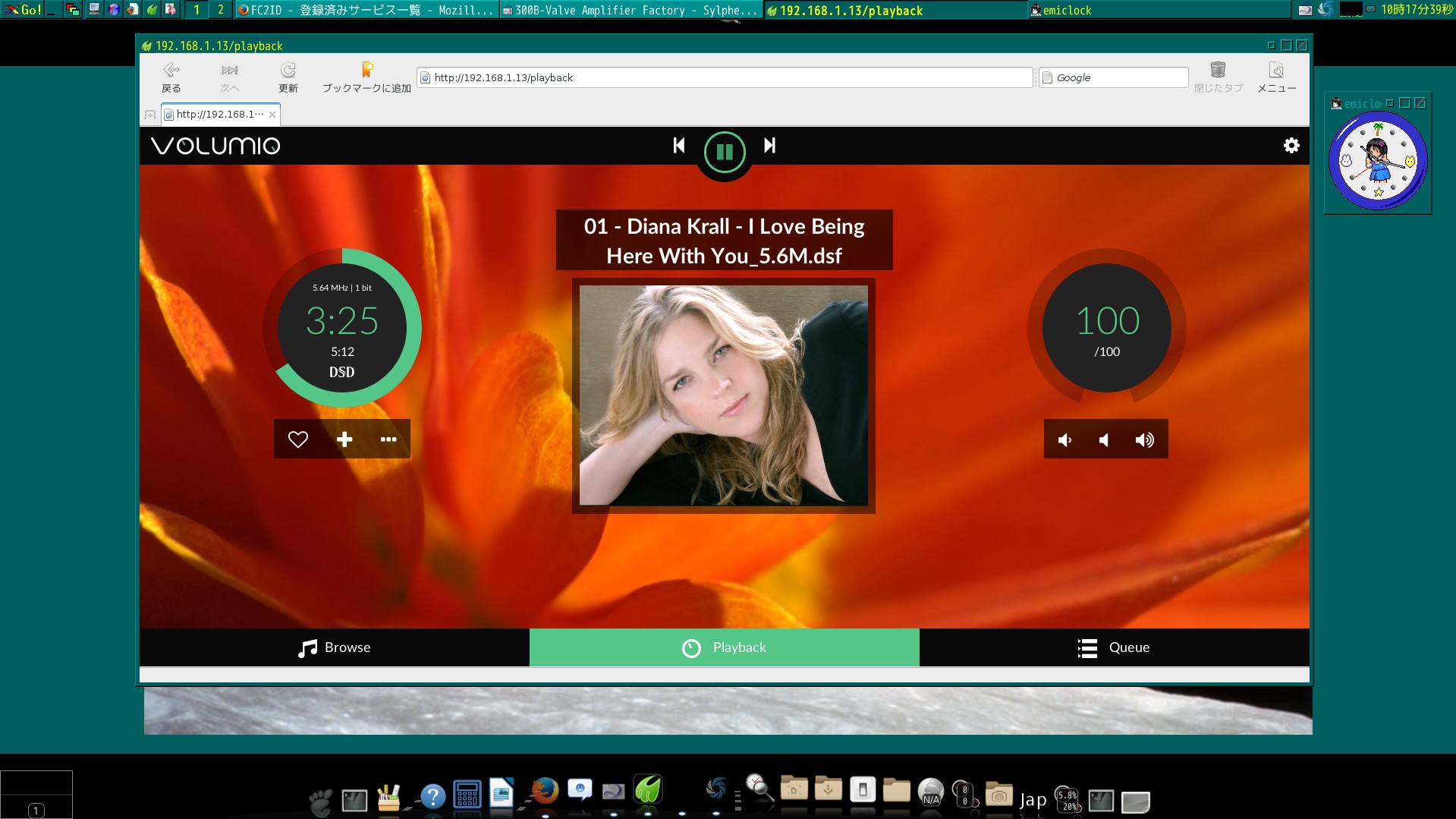

Volumio 1.55

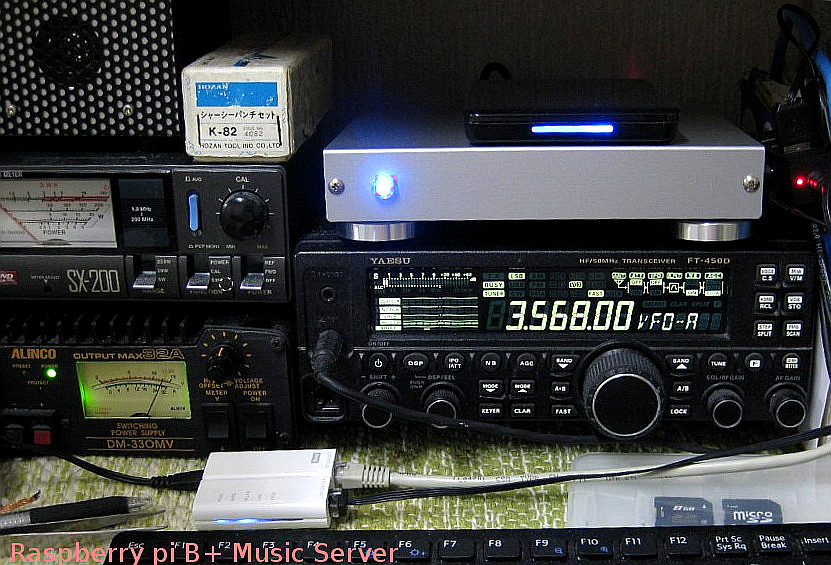

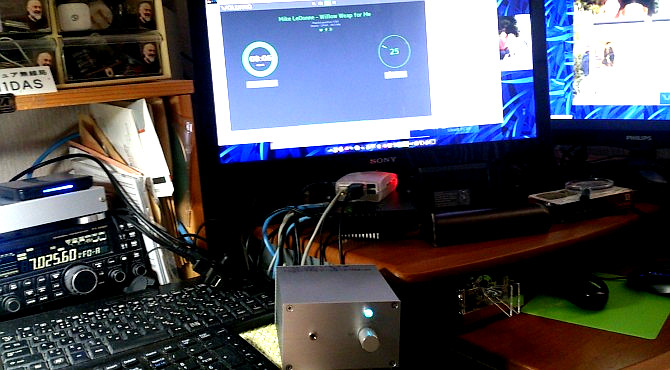

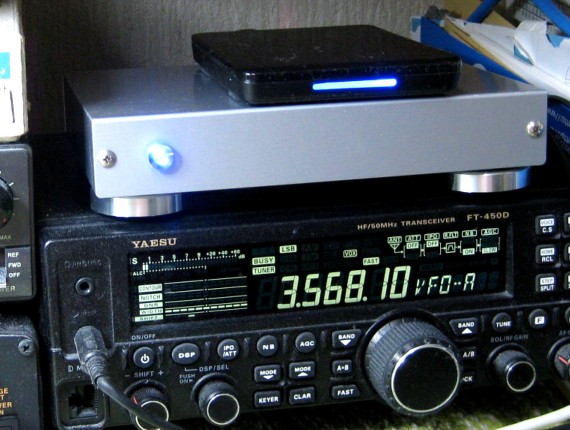

Raspberry Pi B+ Music Server on Yaesu FT450D



Playing Web Radio by The Groove Jazz under Volumio 1.55 + PCM5102A/PCM5142 I2S DAC show you from "YouTube"

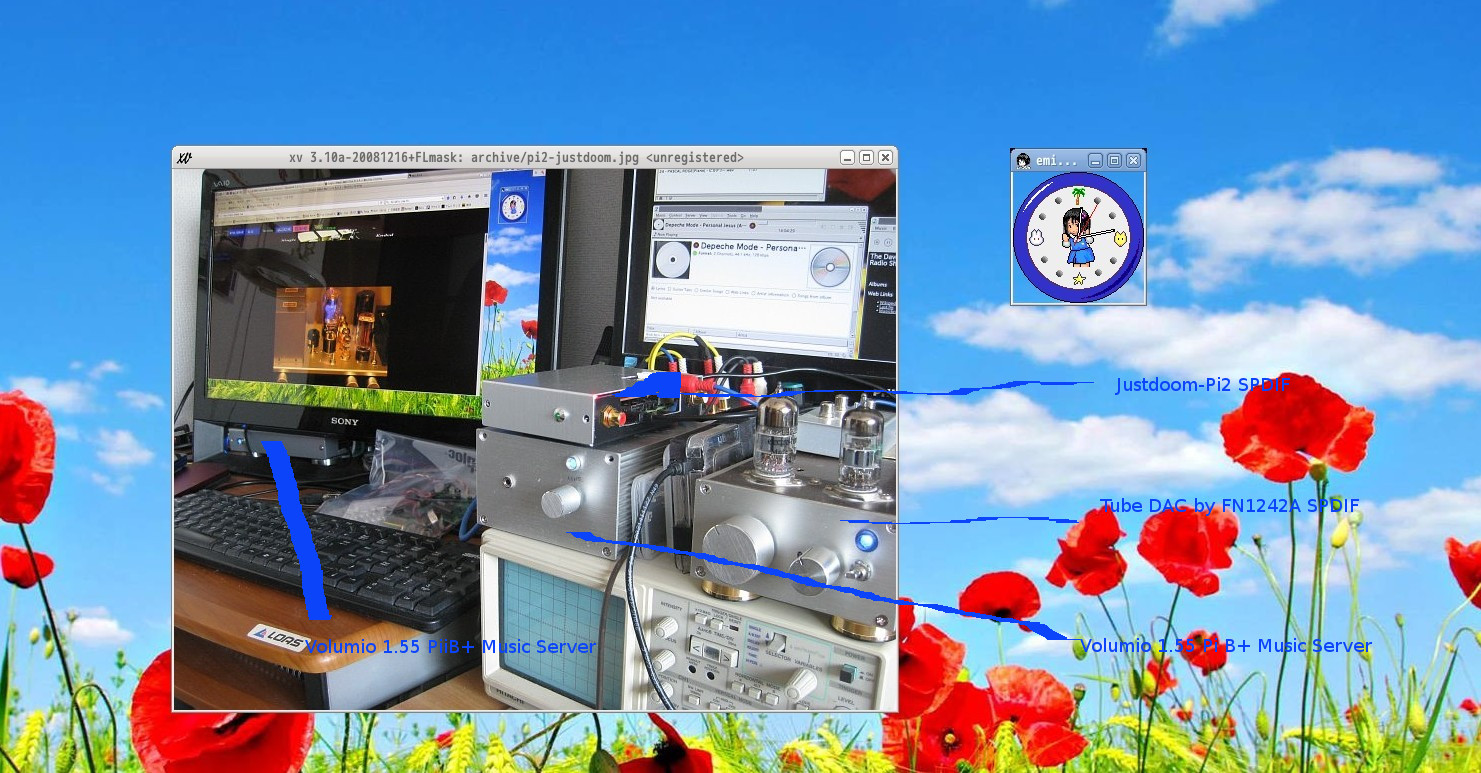

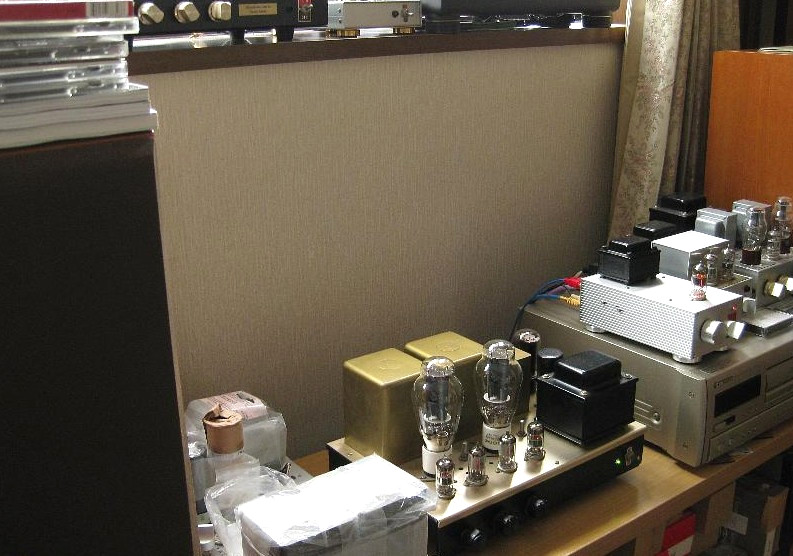

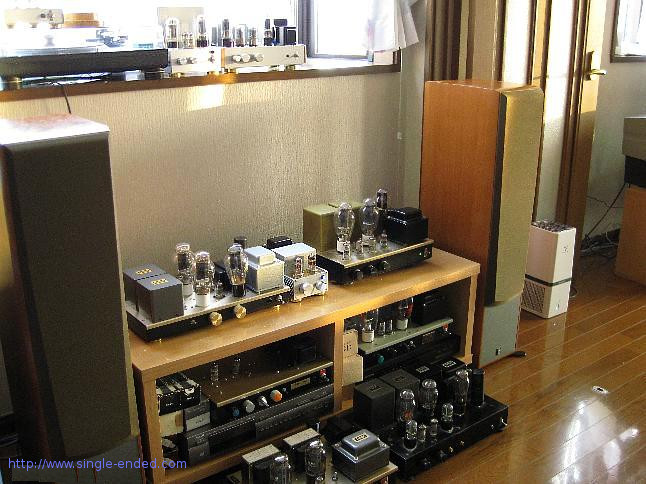

Spec: Vertical Twin Speaker by Yamaha , Power Amplifier is 300B Single Ended Amplifier , Valves are PSVANE 300B ,Audio Transformer is H20-3.5U hashimoto
Music server is Raspberry Pi B+ Volumio 1.55 (Music Player Daemon 0.19.9) DAC is I2S PCM5142
and USB port connected external USB DAC (6DJ8 +FN1242A 24bit DIY/DAC)
This is not special ,,any one can do build up one Music server into your house.any one can do !!! not expensive




Note:on 18th Mar 2016...The Jazz Groove was replace protocol so from yesterday can not catch correctly webradio under volumio.
I am doing ask to The Groove Jazz Station ,,very good station but can not catch now.from them...very sad....but you can get playlist from site
then source can get herethen can get information of URL
The Groove Jazz can replace for moment from $wget http://www.single-ended.com/rasp/archive/webradio/WEBRADIO.tar.gz for Volumio so you can install into volumio.
and later I got mail from the Groove Jazz/ Mr Paul G and gave me next link http://thejazzgroove.com/listen/thejazzgroove-west-mp3-128.pls for replace but only Volumio does not play.
can play from $ xine http://thejazzgroove.com/listen/thejazzgroove-west-mp3-128.pls . but under mpd could not play with volumio.
thank you Paul ... any way can play my edited file are $wget http://www.single-ended.com/rasp/archive/webradio/WEBRADIO.tar.gz please try and enjoy.
Zip file is here http://www.single-ended.com/rasp/archive/webradio/GrooveJazz.zip

The Groove Jazz,playList are

the Groove Jazz


Note: up date 3rd Dec 2016 a part of Audio Phile Jazz Classic file up date
wget http://www.single-ended.com/rasp/archive/AudioPhile.tar.gz
into
$ mkdir tmp
cd tmp
tmp $wget http://www.single-ended.com/rasp/archive/AudioPhile.tar.gz
sudo tar xvzf AudioPhile.tar.gz -C /var/lib/mpd/music/WEBRADIO



Why still are you using,, high end audio equipments and they are super expensive,,,but Raspberry Pi B+ can be use for Music server and
Reproduce high quality of sound like flac, Wav and DSD Audio(Diff and DSX convert DoP PCM) through if do you have good DAC much better.even Raspbeery Pi can
do PCM5142/5102A BB high end DAC until 384Khz 32Bit sound, made by small PCB.not expensive.

Raspberry Pi B+ 2014 Dec

Still I need good PC for ripping and have to buy source from internet(online). if do you have Good DAC probably reproduce good sound from Raspberry Pi B+ Music
server.Raspberry Pi B+ is very small PCB actually small PC for kids in UK.but for Audiophile can be use for Music source.
how much cost ? only around USD $ 30 dollars and micro SD memory, and connection cables. if would like big capacity of memory , you can use USB SATA HDD of few Tera Byte.
I am using one(1 Tera)byte of USB HDD and 2 of NAS. 2 of NAS are using old PC. old PC located corner of room etc.only need one PC for work station.

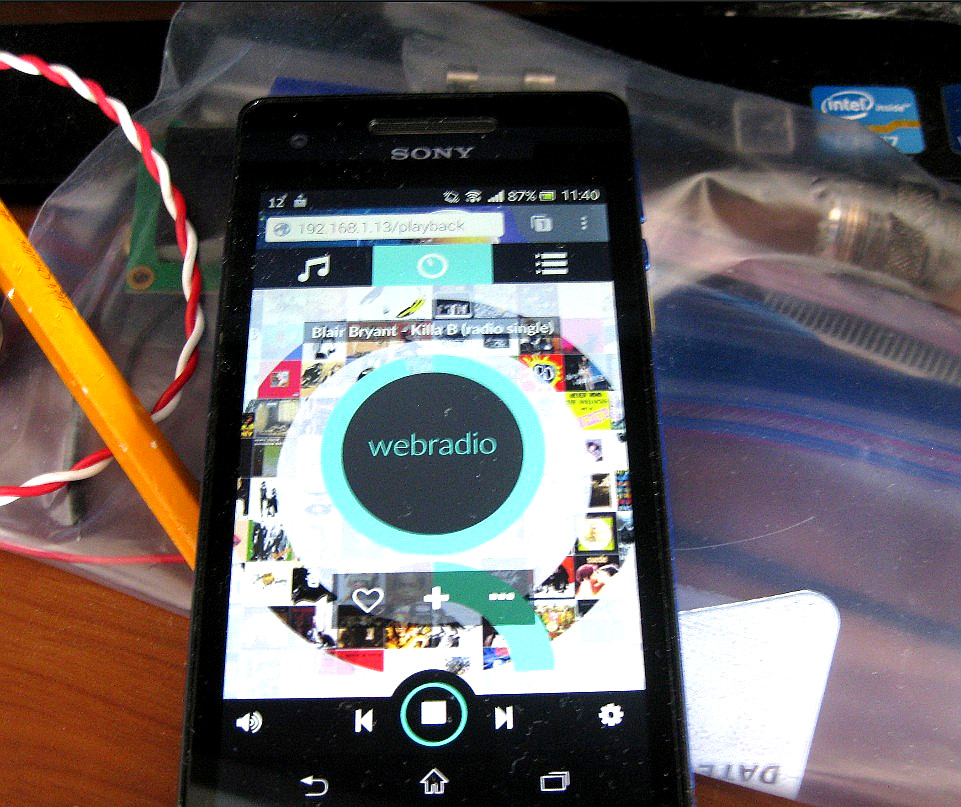

even can be use control by Wifi smartphone. what is Music server and Music server using Linux OS. distrobution 2 of them are famous .Volumio and RuneAudio.
please try to use Raspberry Pi B+ in your audio room.
OS where get from ?

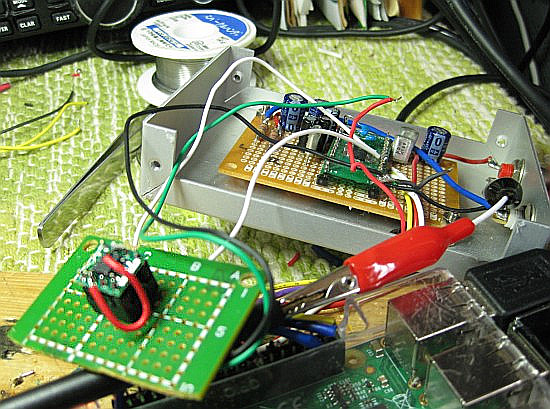

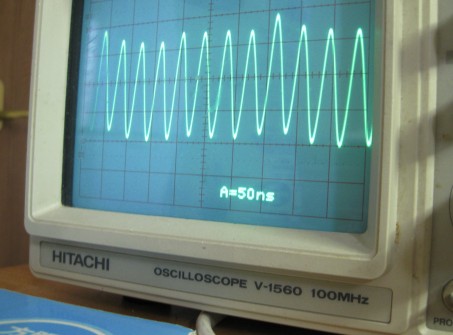

one thing Raspberry Pi does not have master clock for I2S (The Inter-IC Sound Bus)DAC without general DAC so must be made Master clock ,, idea have some mulifier IC using and will be get master clock from

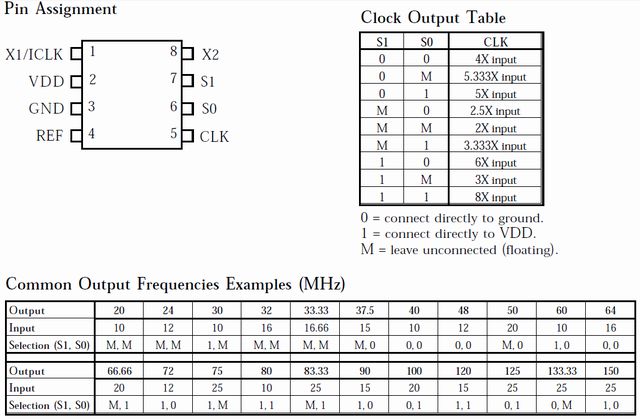

Bck which is using NB3N2302, PI6C4511WE-ND ,ICS570, LTC1799 so some day I will try hookup my DAC with Raspberry Pi B+..

PCM5102a Single DAC is very nice sound to getting. please try to build up.less than USD $ 15 dollars cost if do you build up by your self.

If easy to get master clock ,,,,not difficult connect any DAC with Raspberry pi with I2C and I2S .so what can I do to..........
this is my home work right now.


Feb 2015 ,,,Now we can get 900 Mhz 4 core Raspberry pi P2 ,,,,and in future MS will be support with Windows 10 ...what's will be....

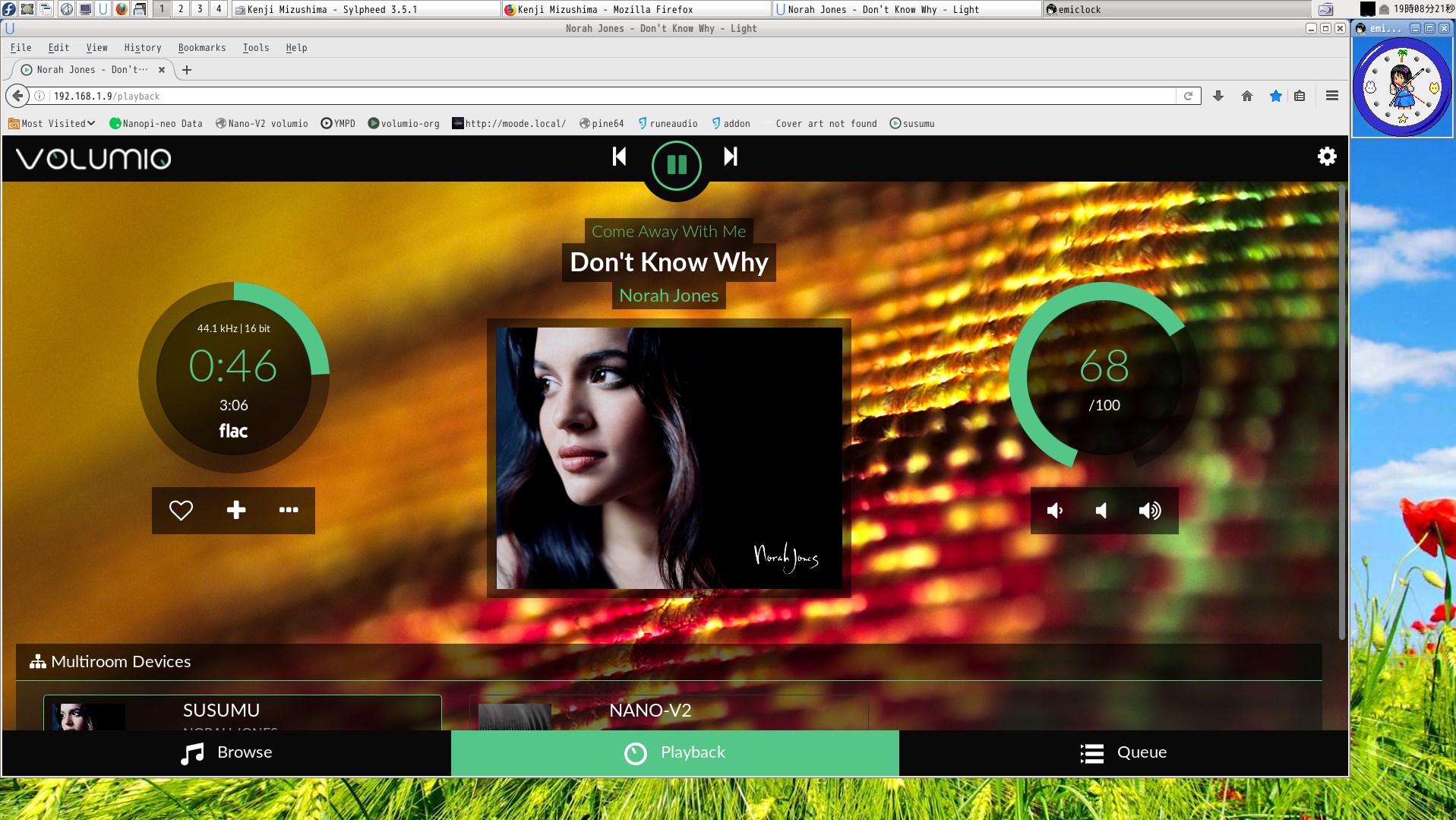

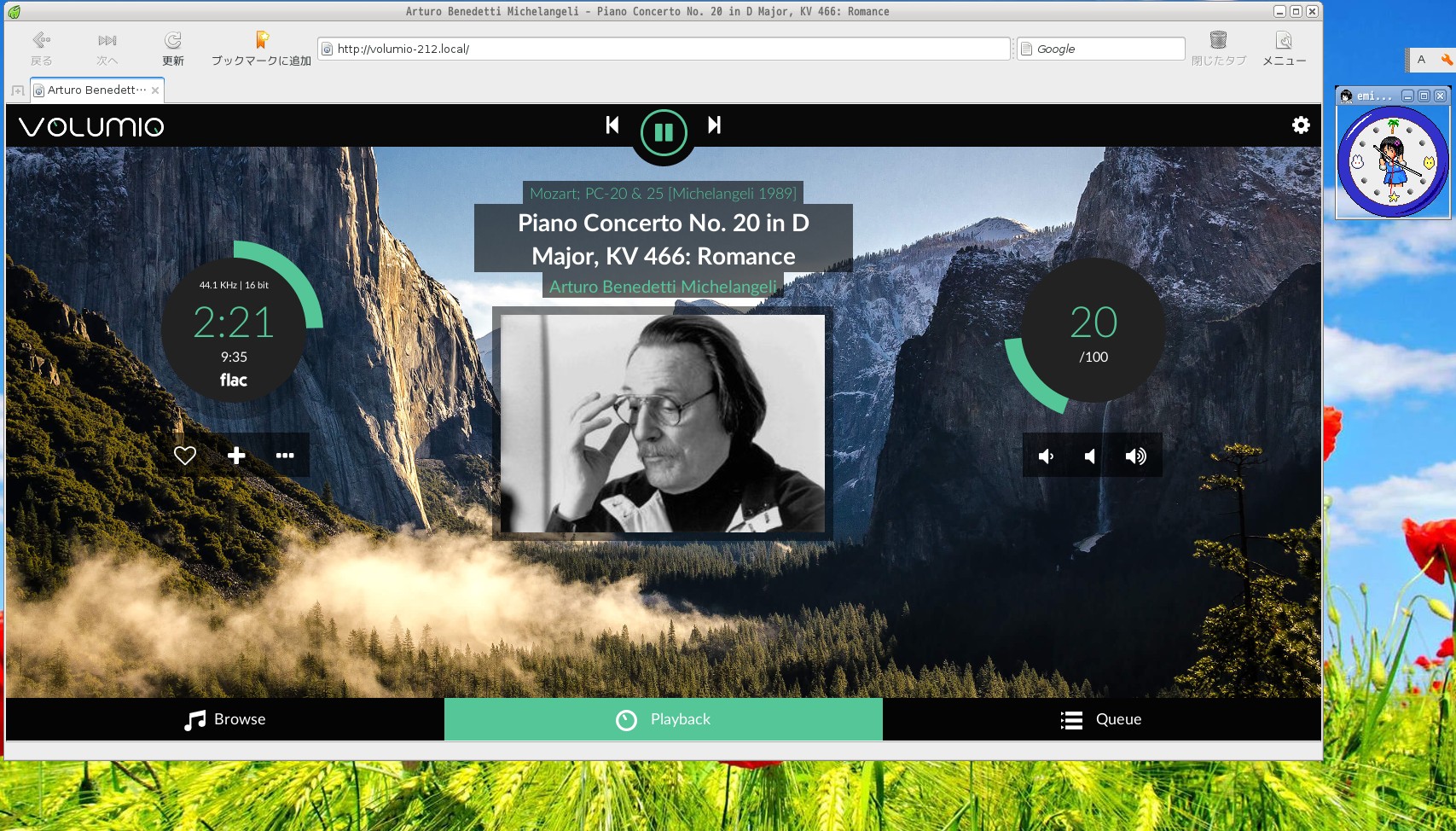

Volumio 1.55

Volumio ORG

initial of Volumio

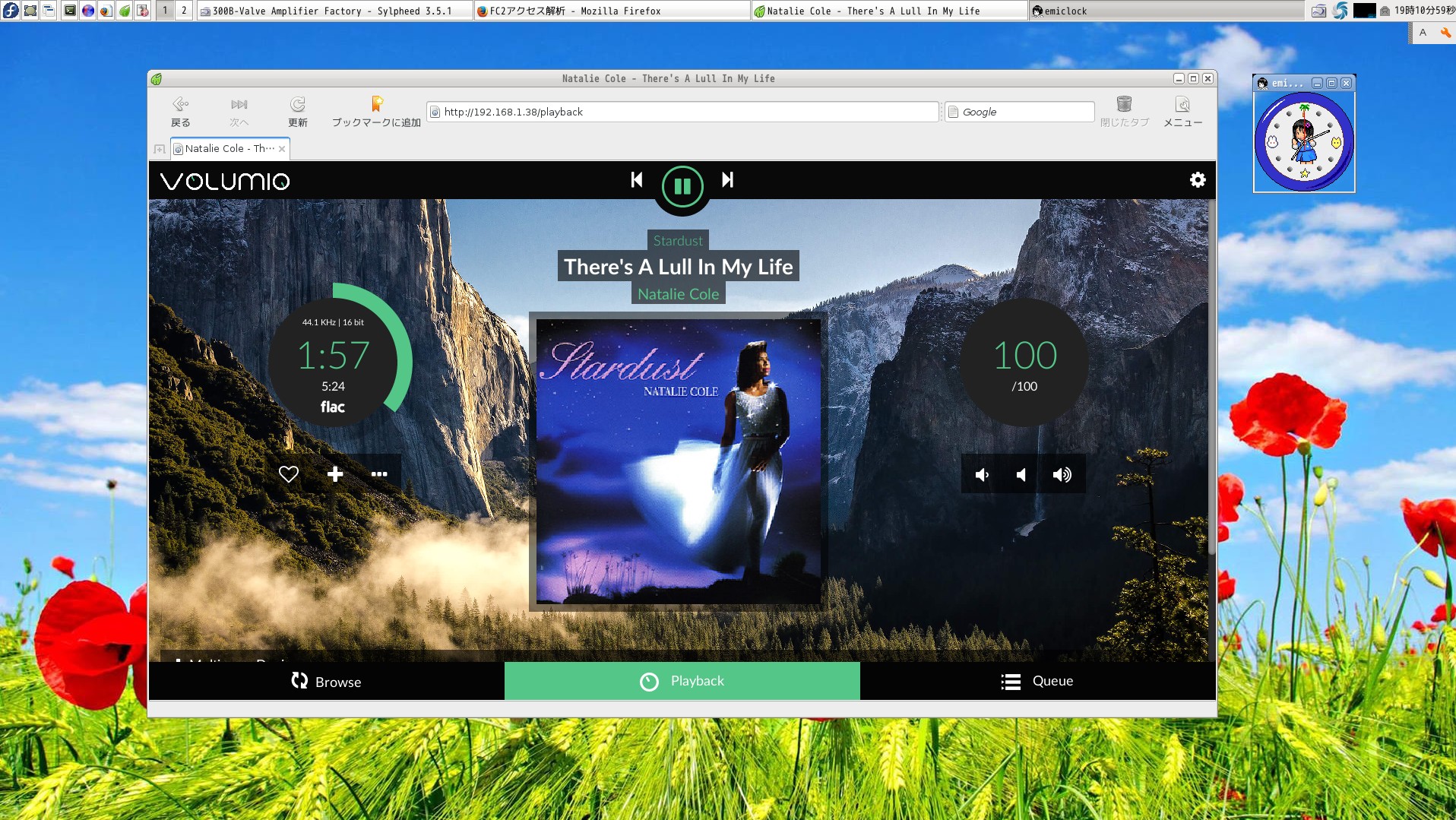

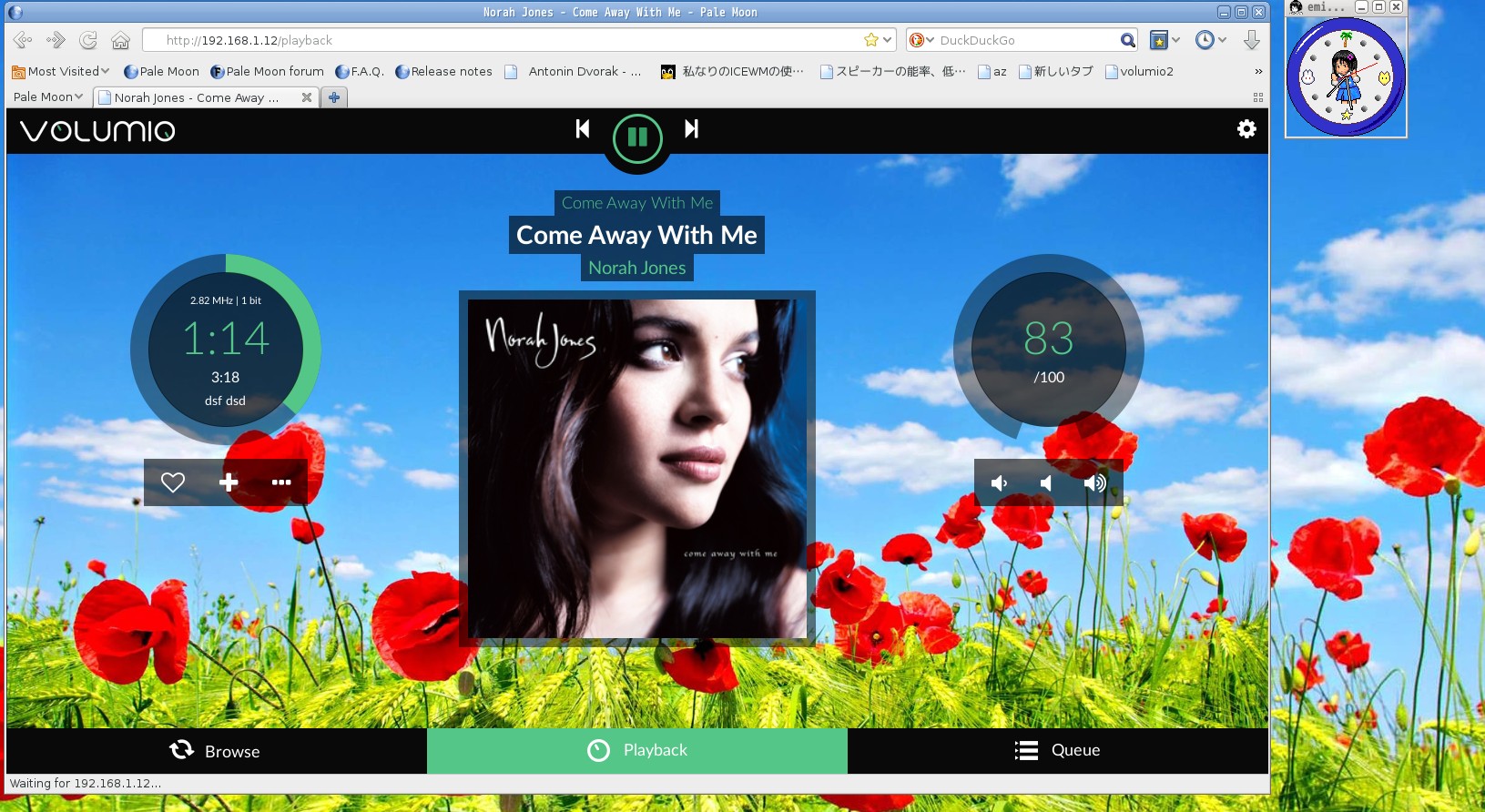

Volumio2 support x86 so you can use Intel from July 2016 and support many plat home

Note: Volumio 2 does not work fine from after Volumio-2.185-2017-6-03.zip so no more new version of Volumio2 and new version is not support dsd file name
ssh and so many thing are limited new version of Volumio 2 ,please use until Volumio-2.185-2017-6-03.zip if Volumio 2 new one does not work fine.
and New Version are not free.going down quality but non free...



and can use BeagleBone Black with Master Clock by I2S.

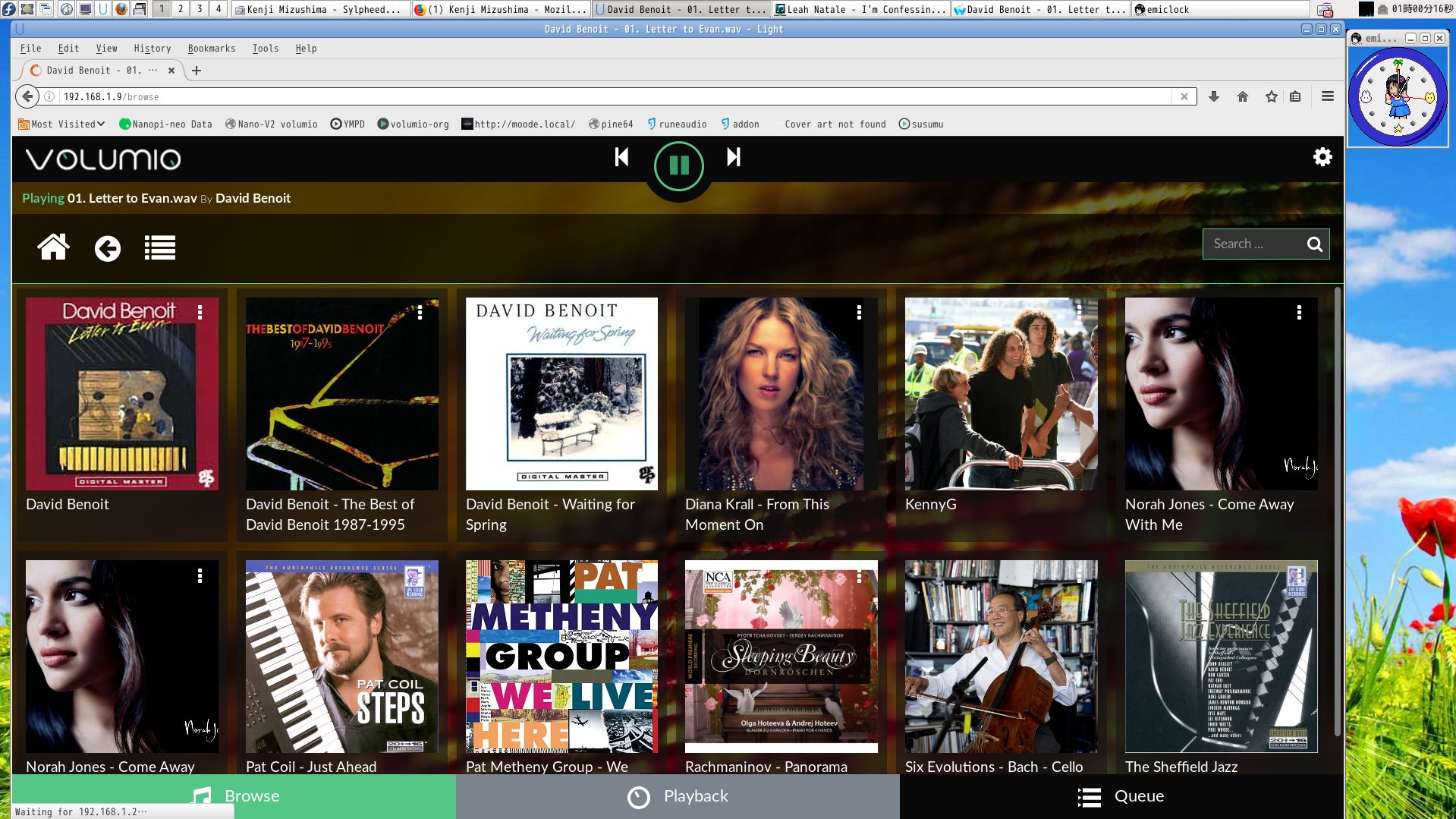

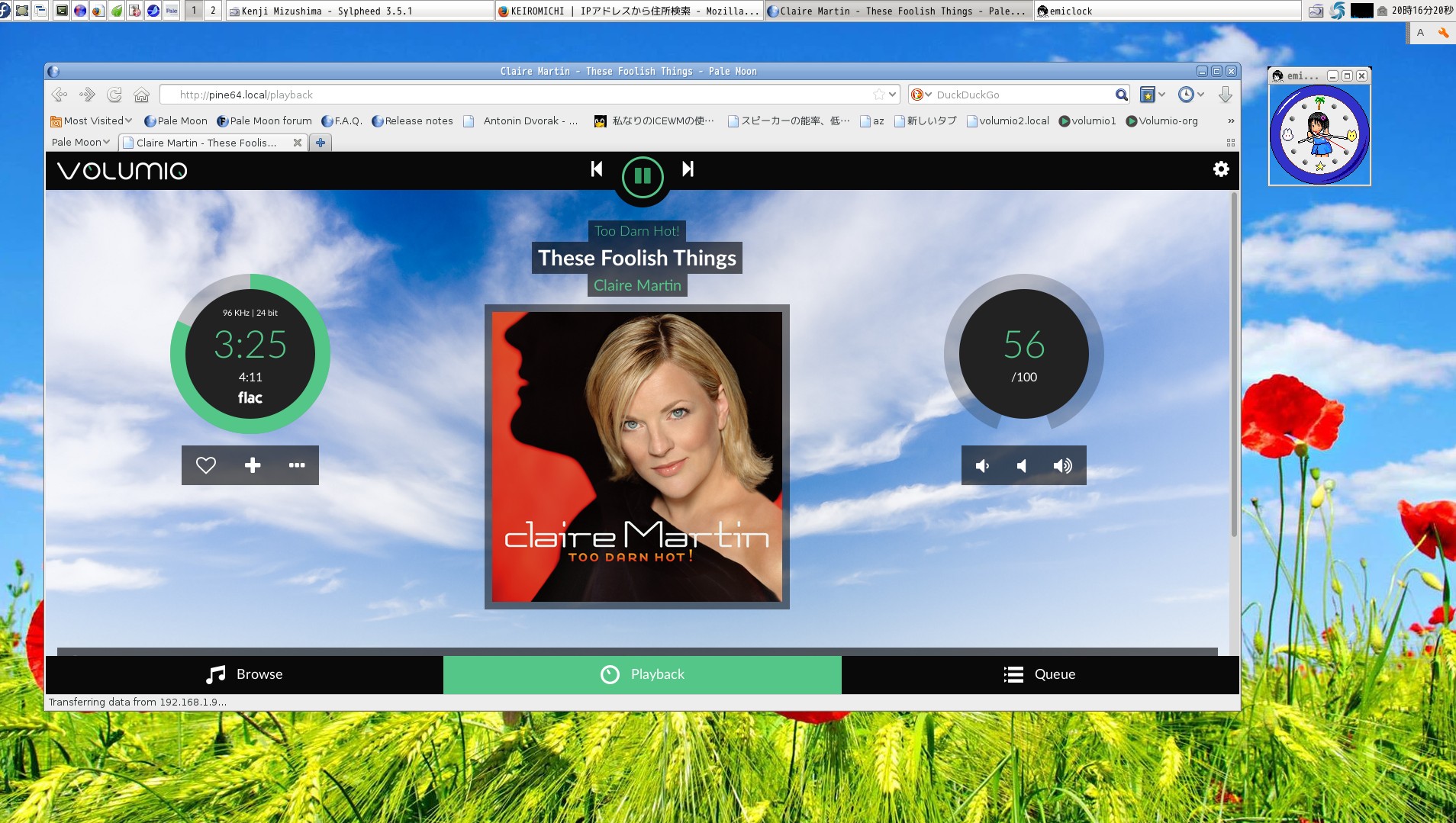

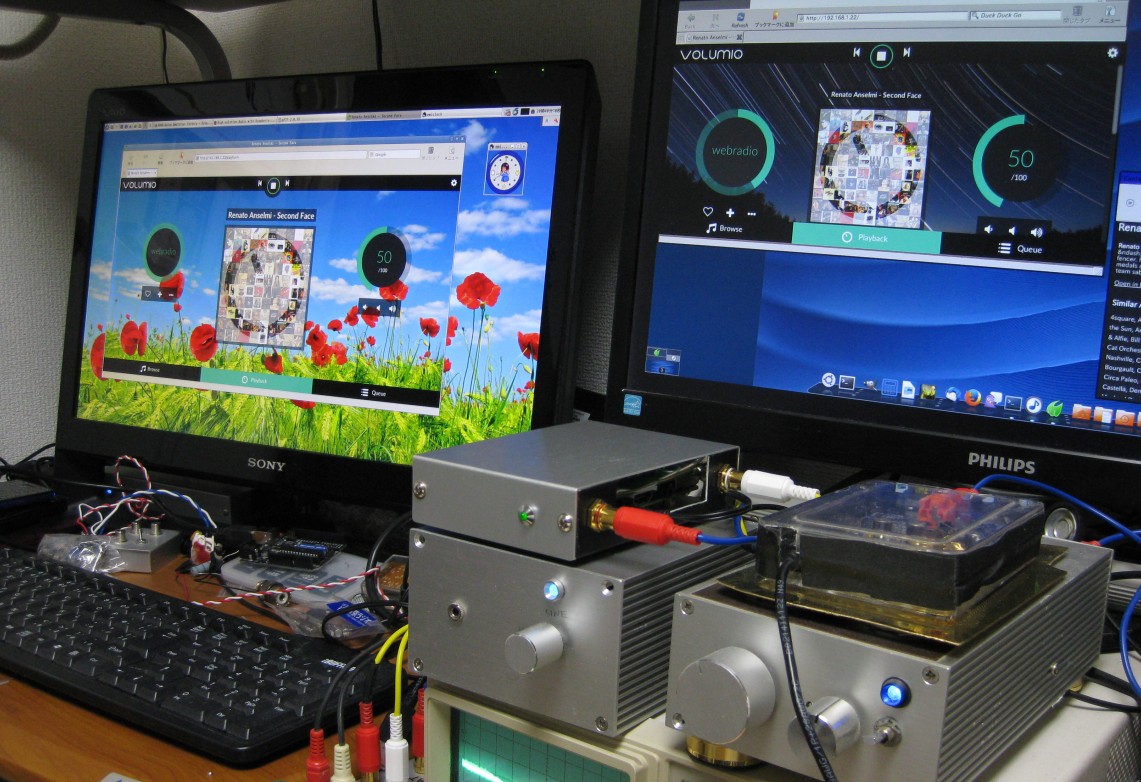

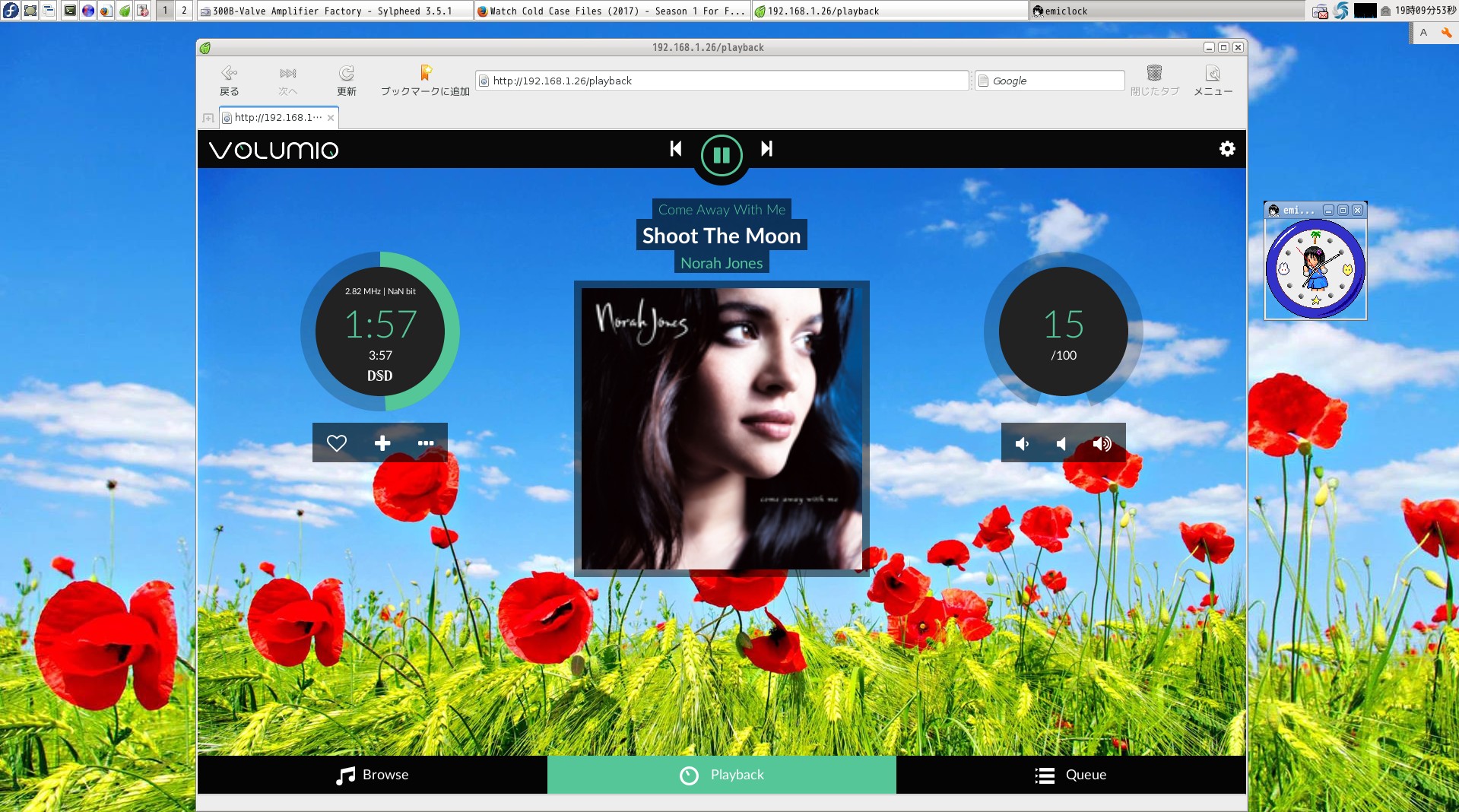

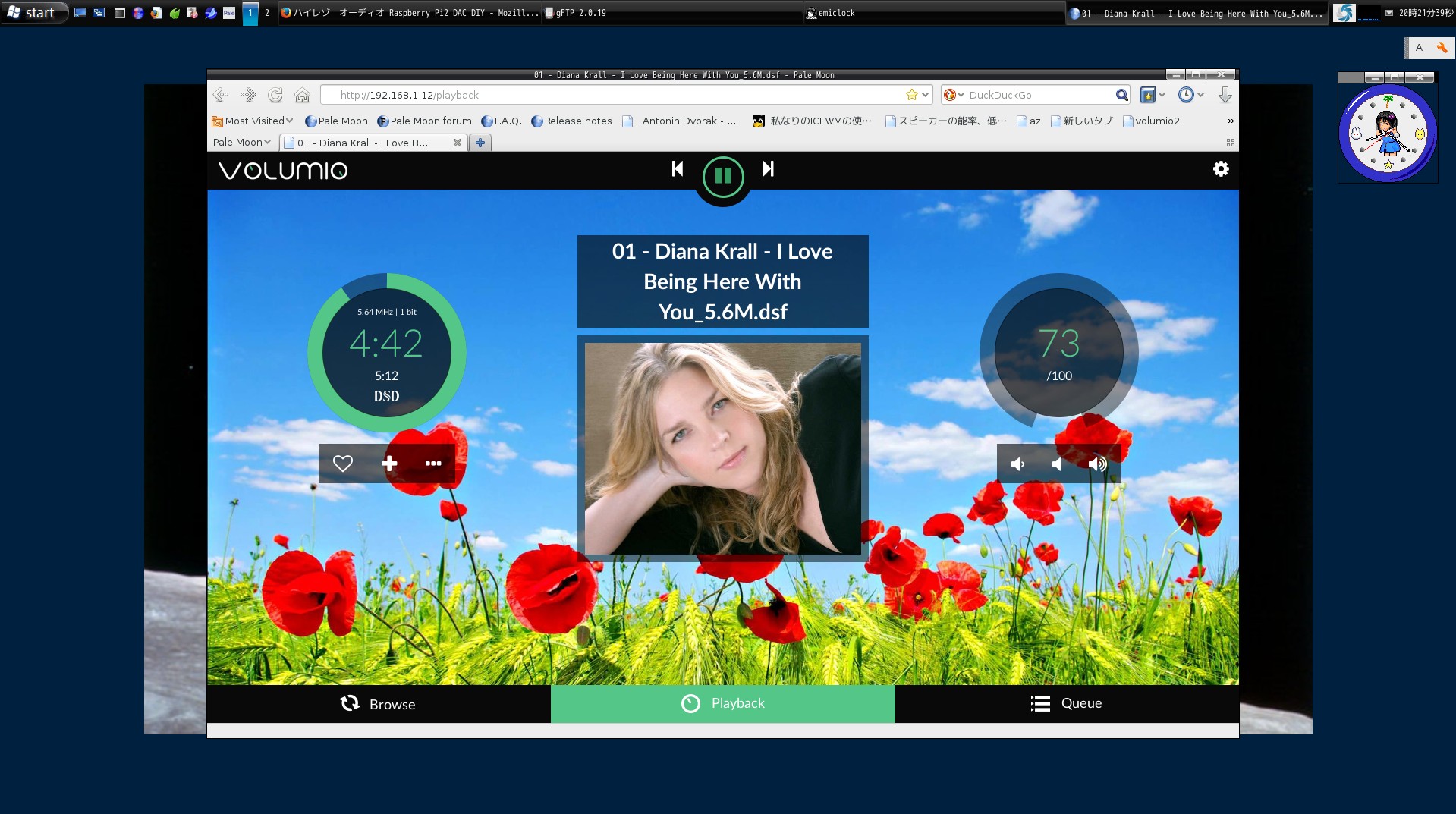

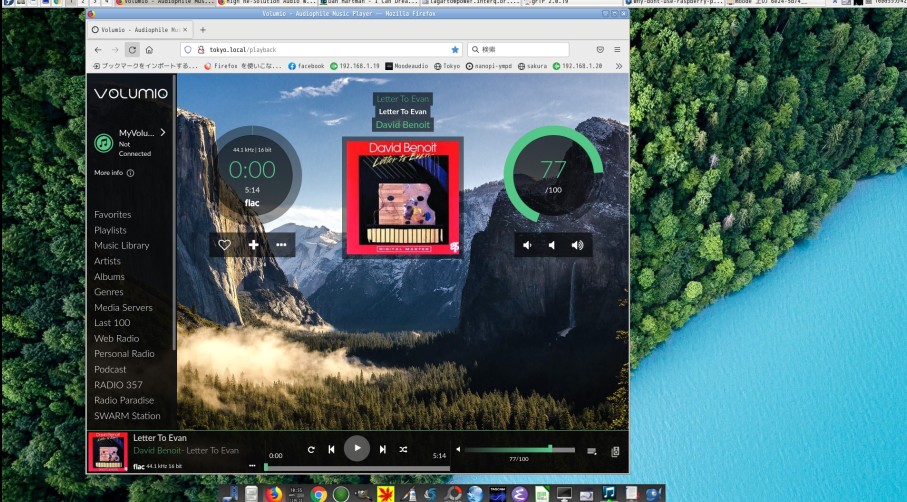

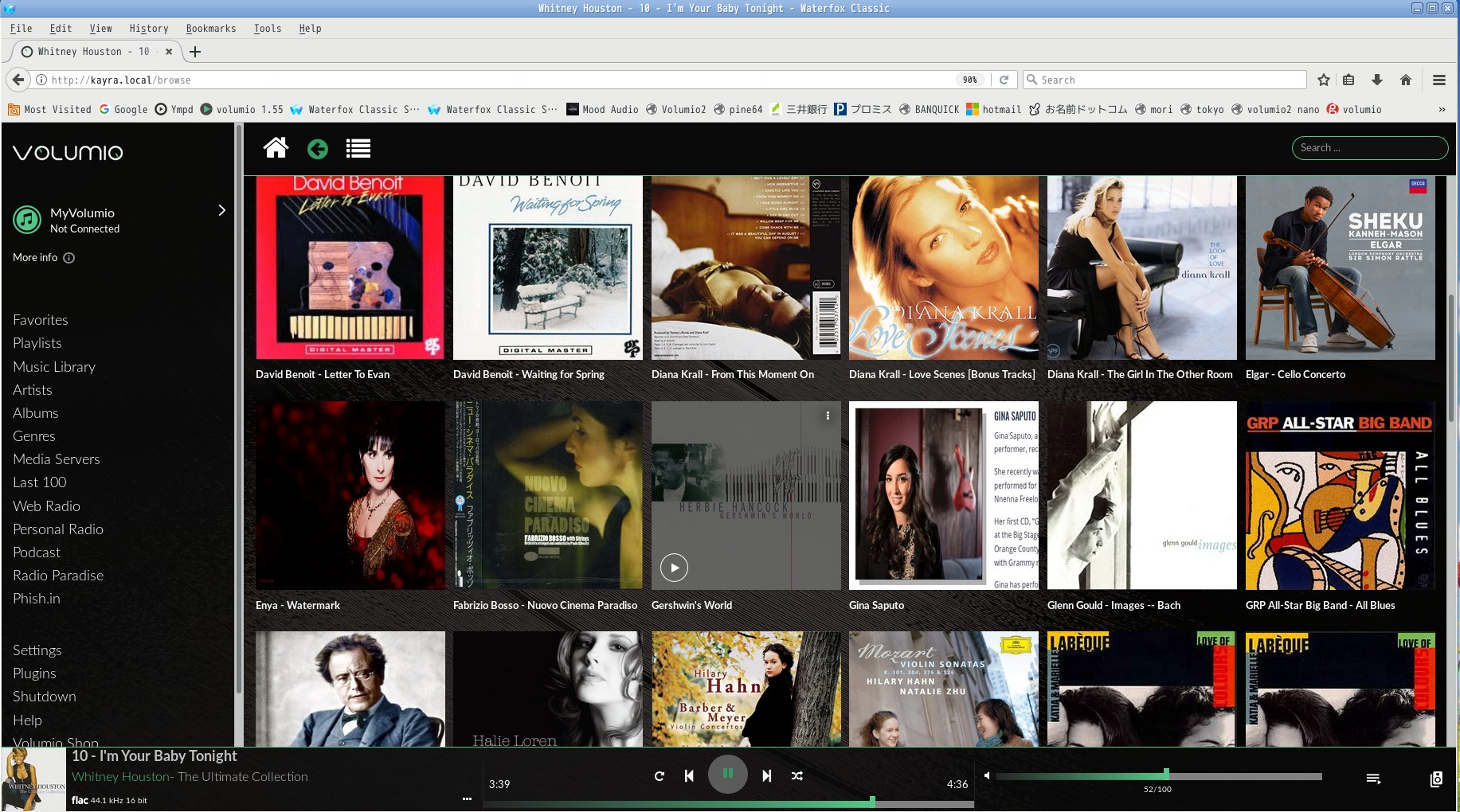

Volumio2 wall paper on 2016

This is New Volumio can choose any your images for wall paper




HDD Detect

forum said ,plugin USB connector few times take out and in when Start Volumio2 then can use USB HDD

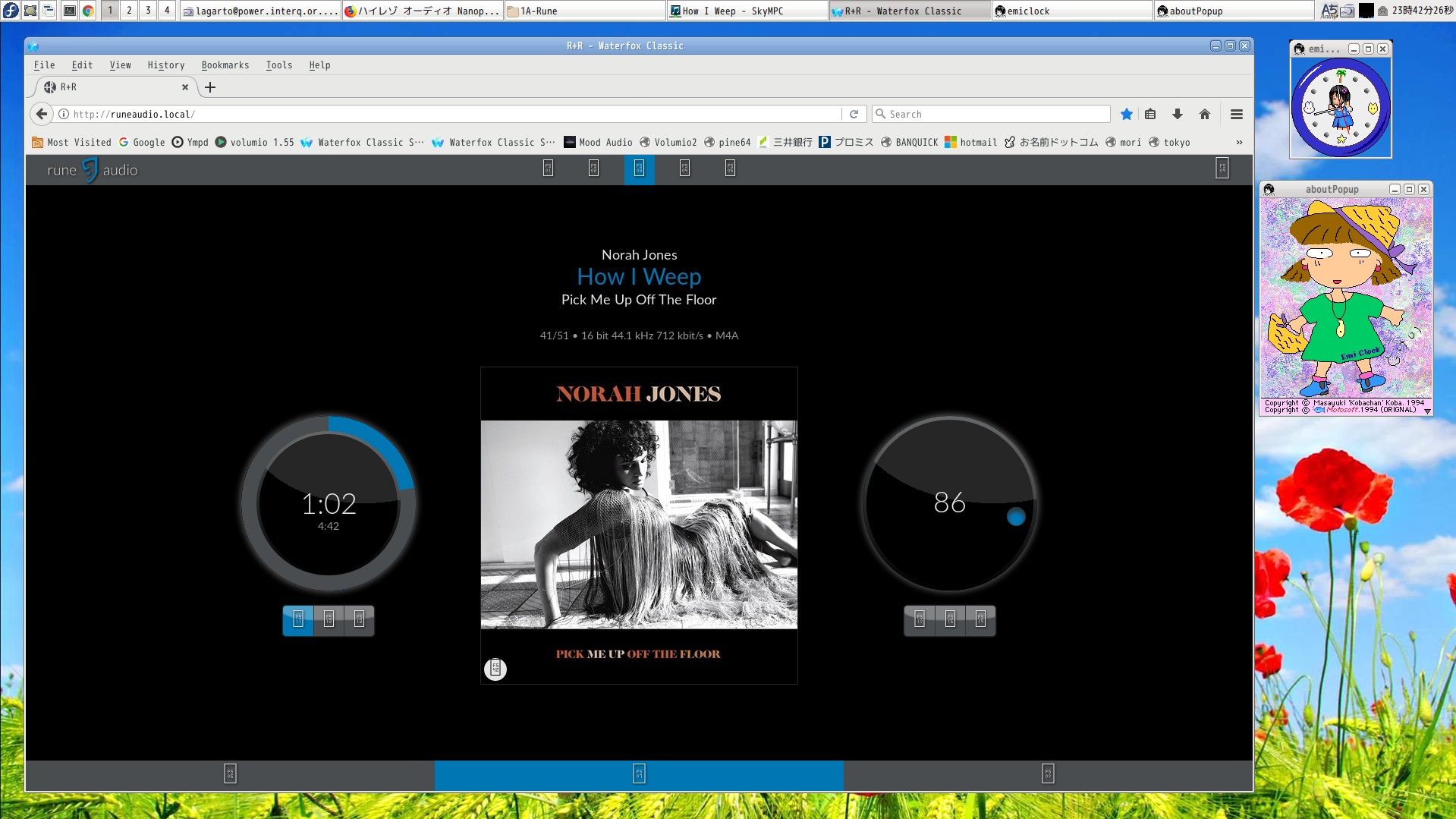

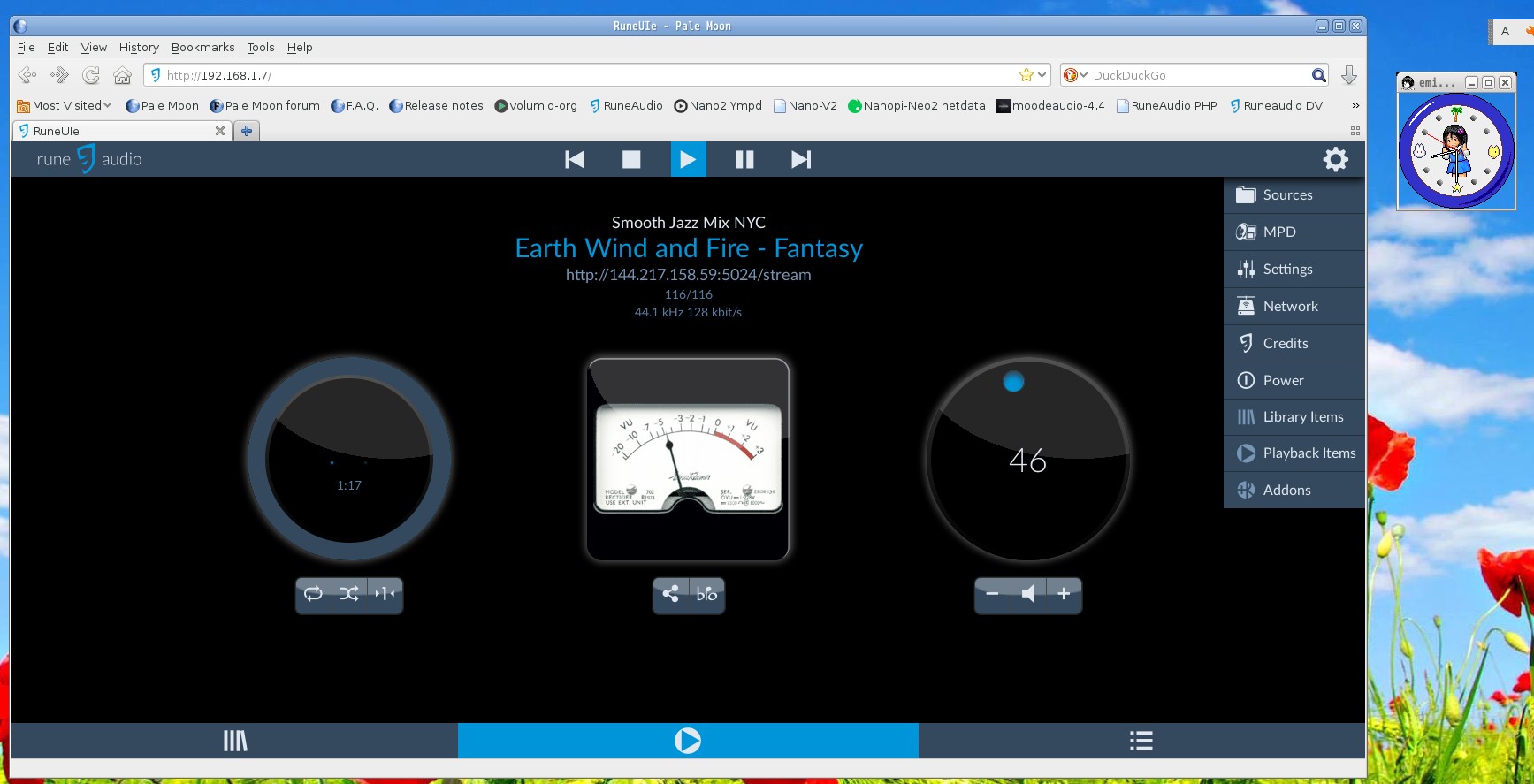

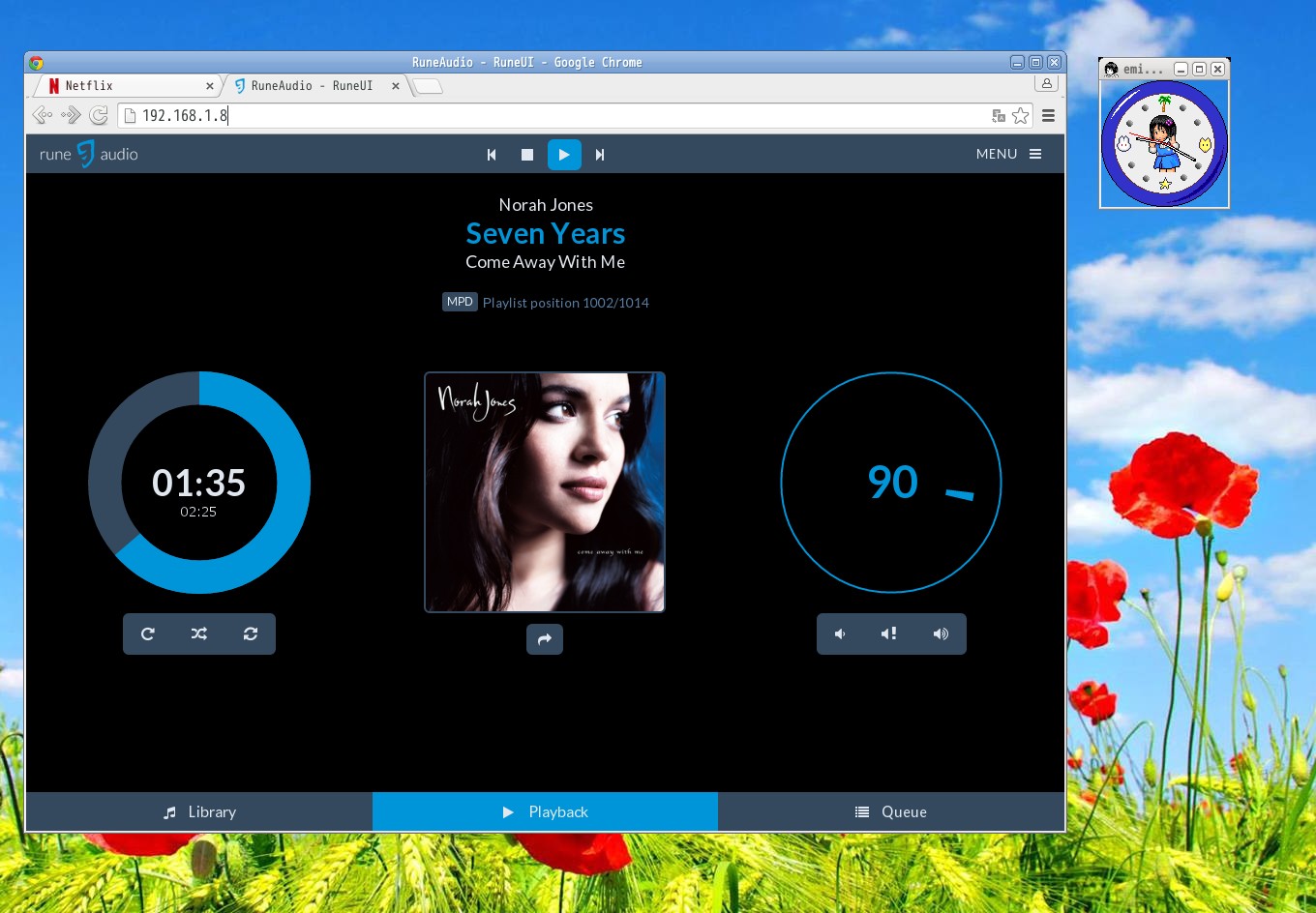

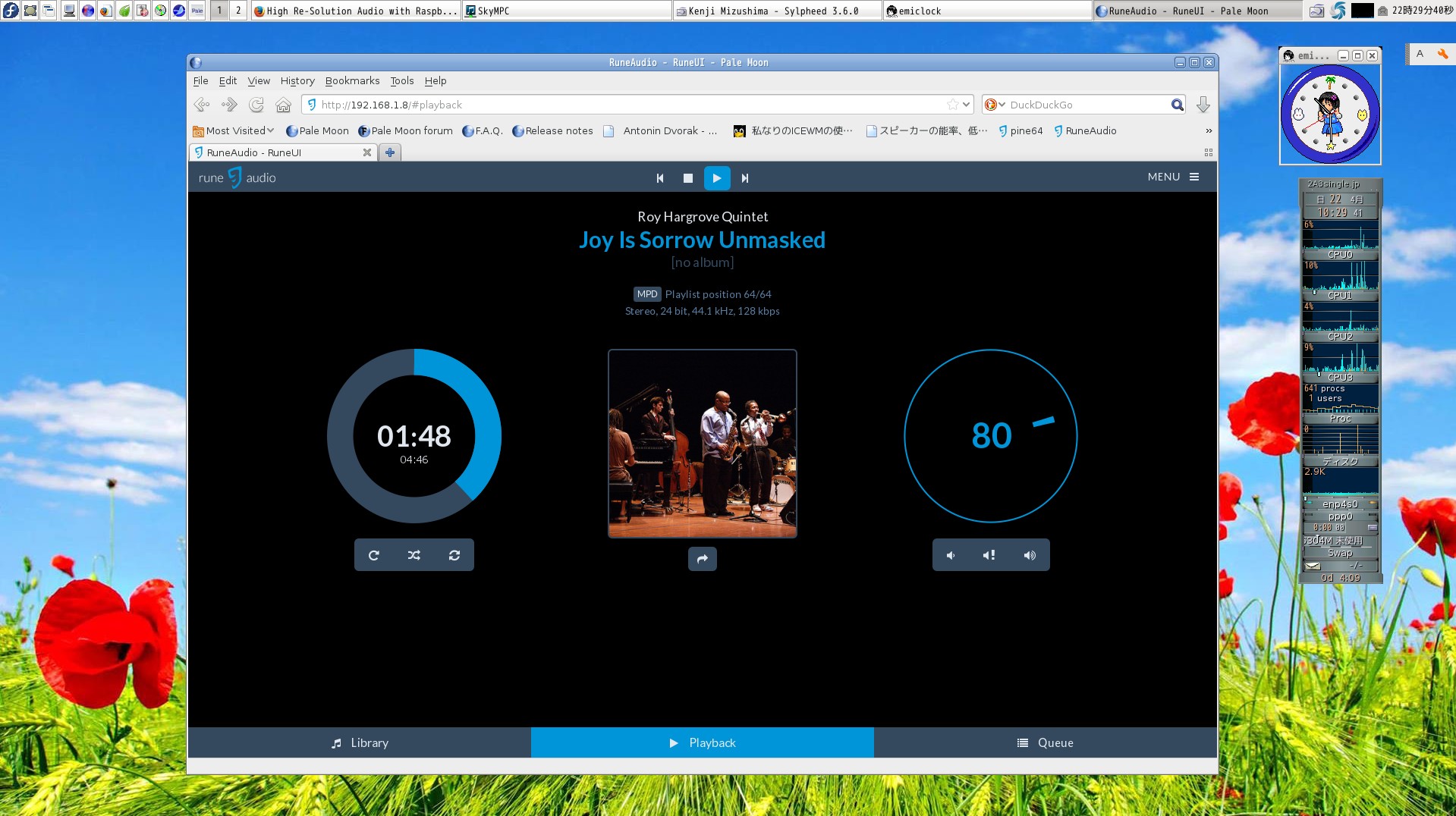

Rune Audio Player Version indicated 03 but actually 0.4 and MPD 0.20.18 by ArchiLinux

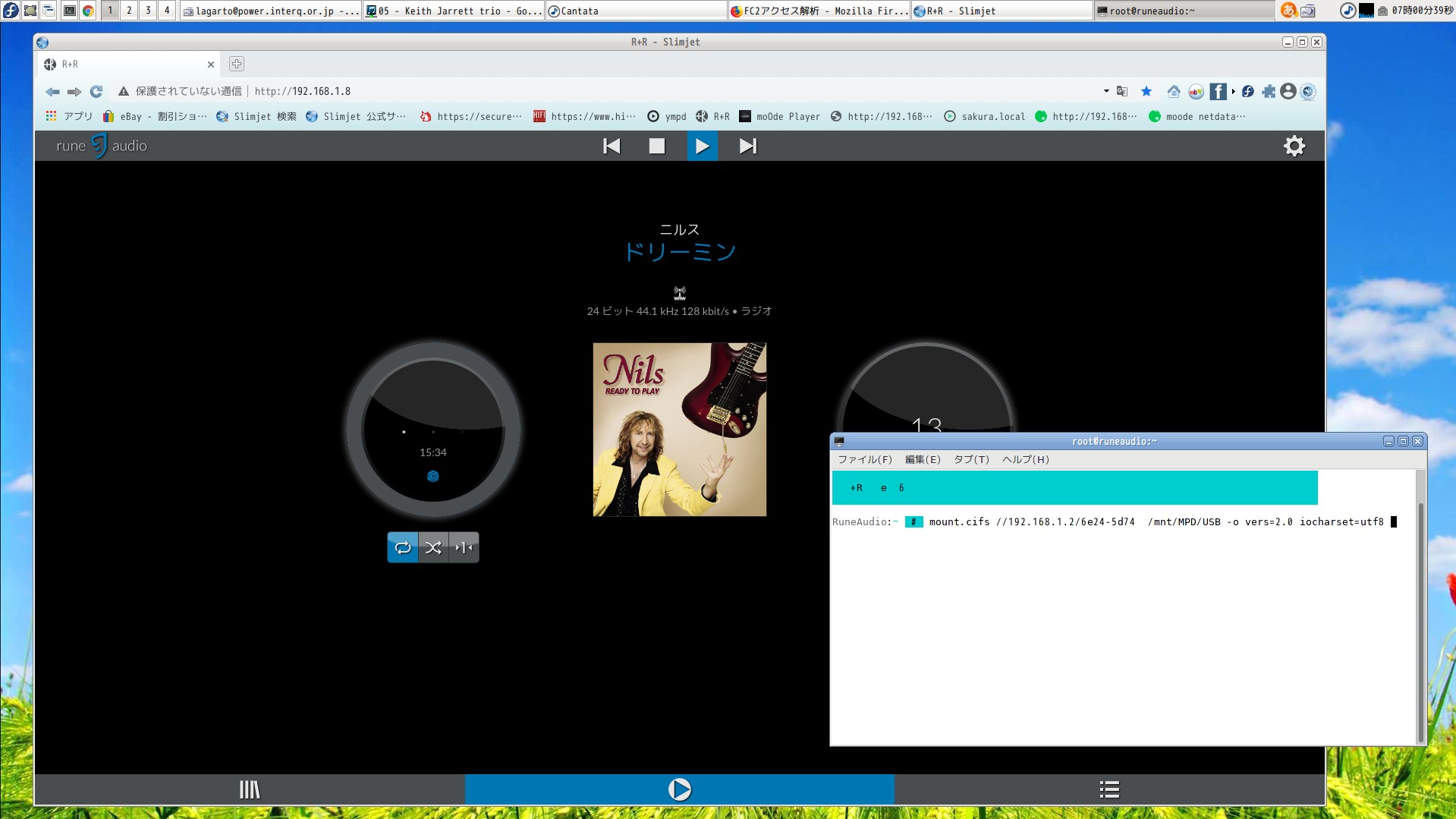

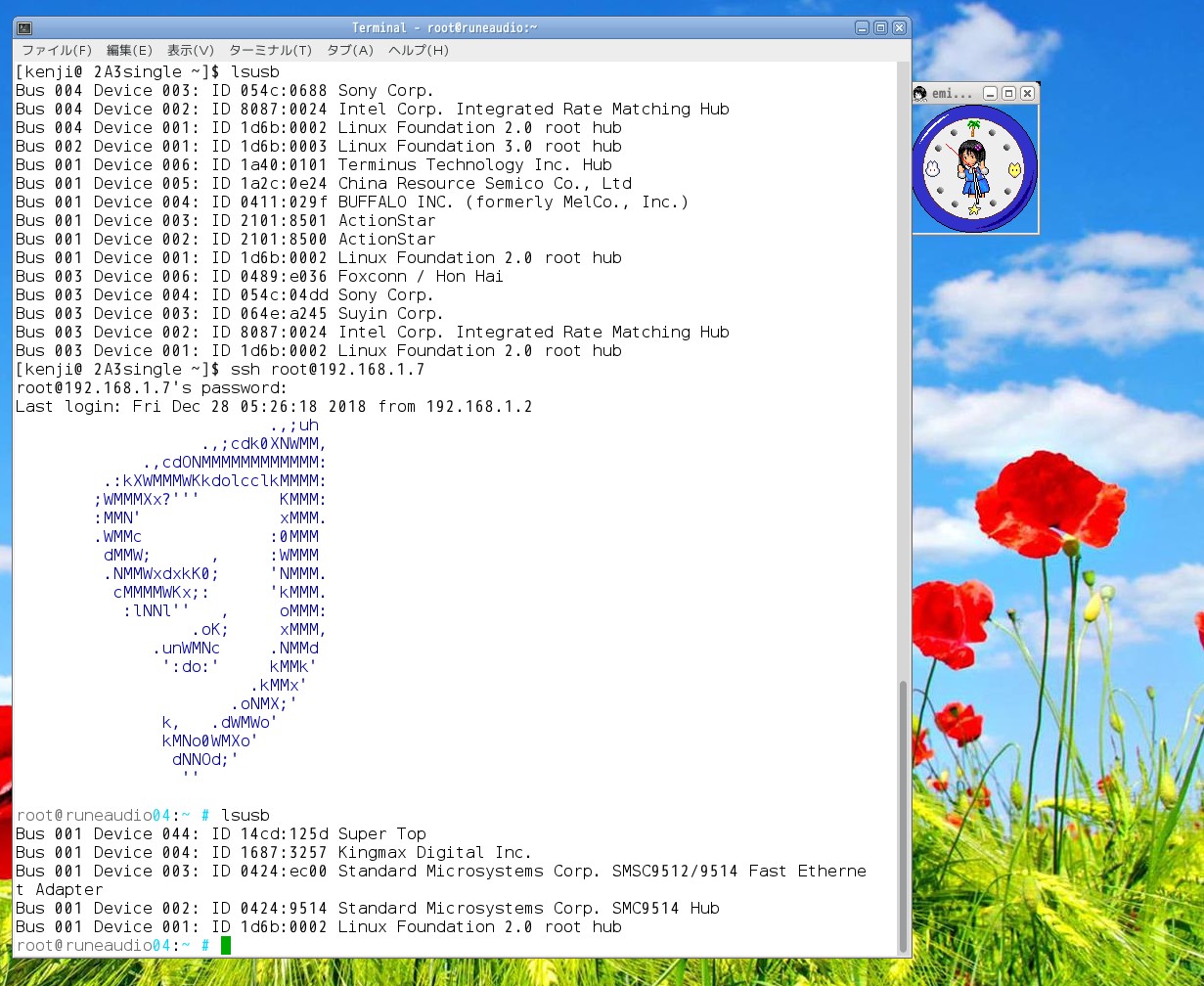

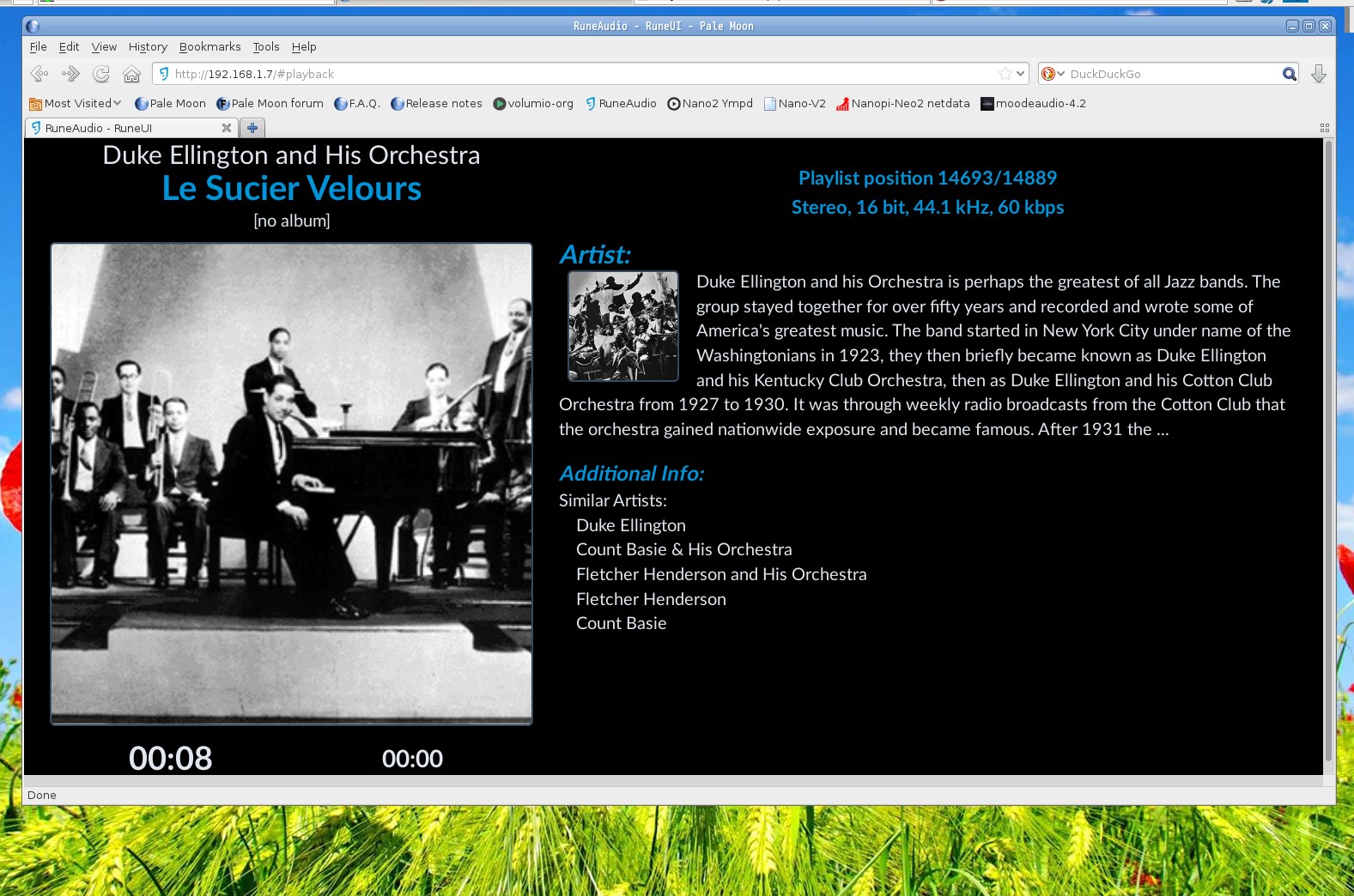

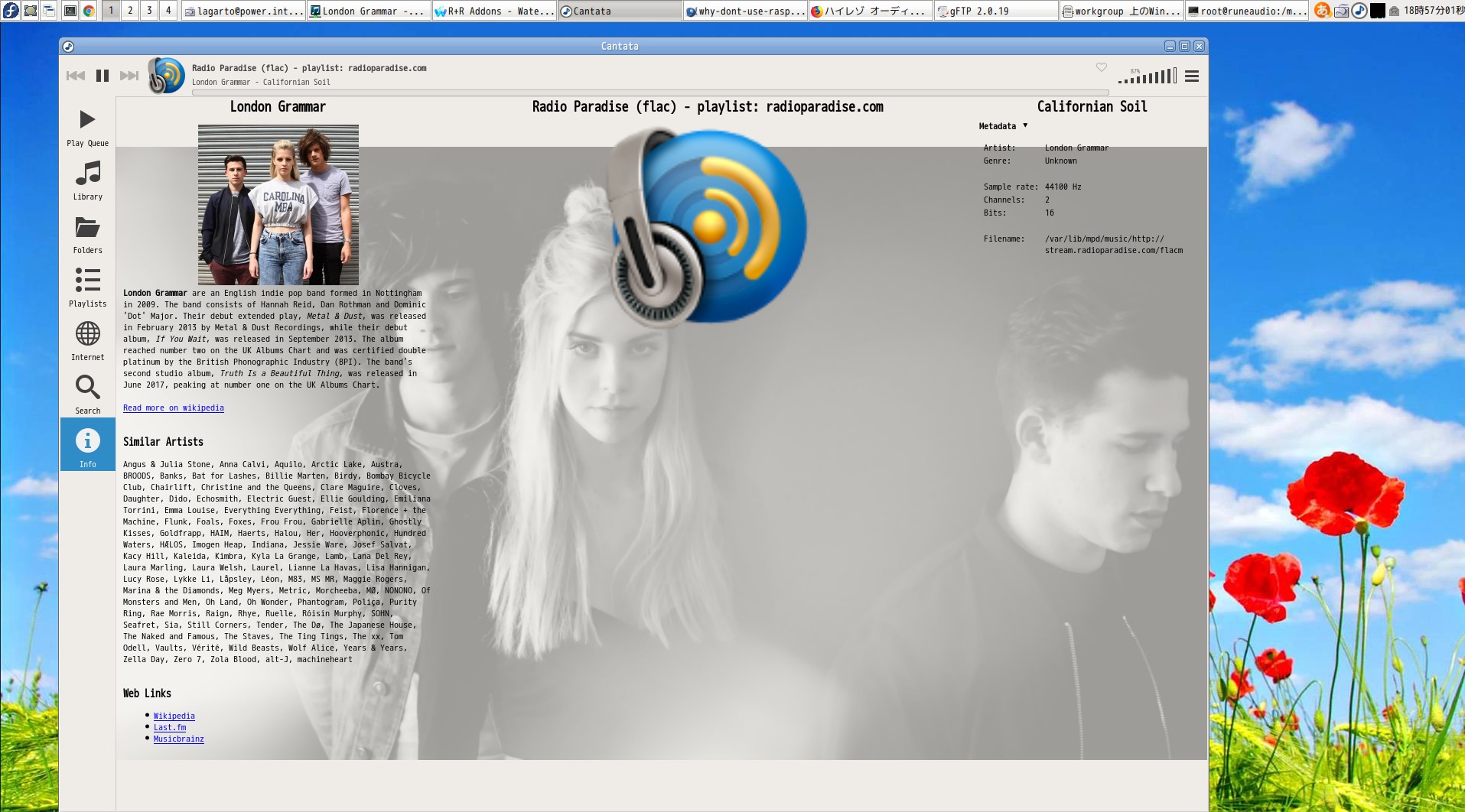

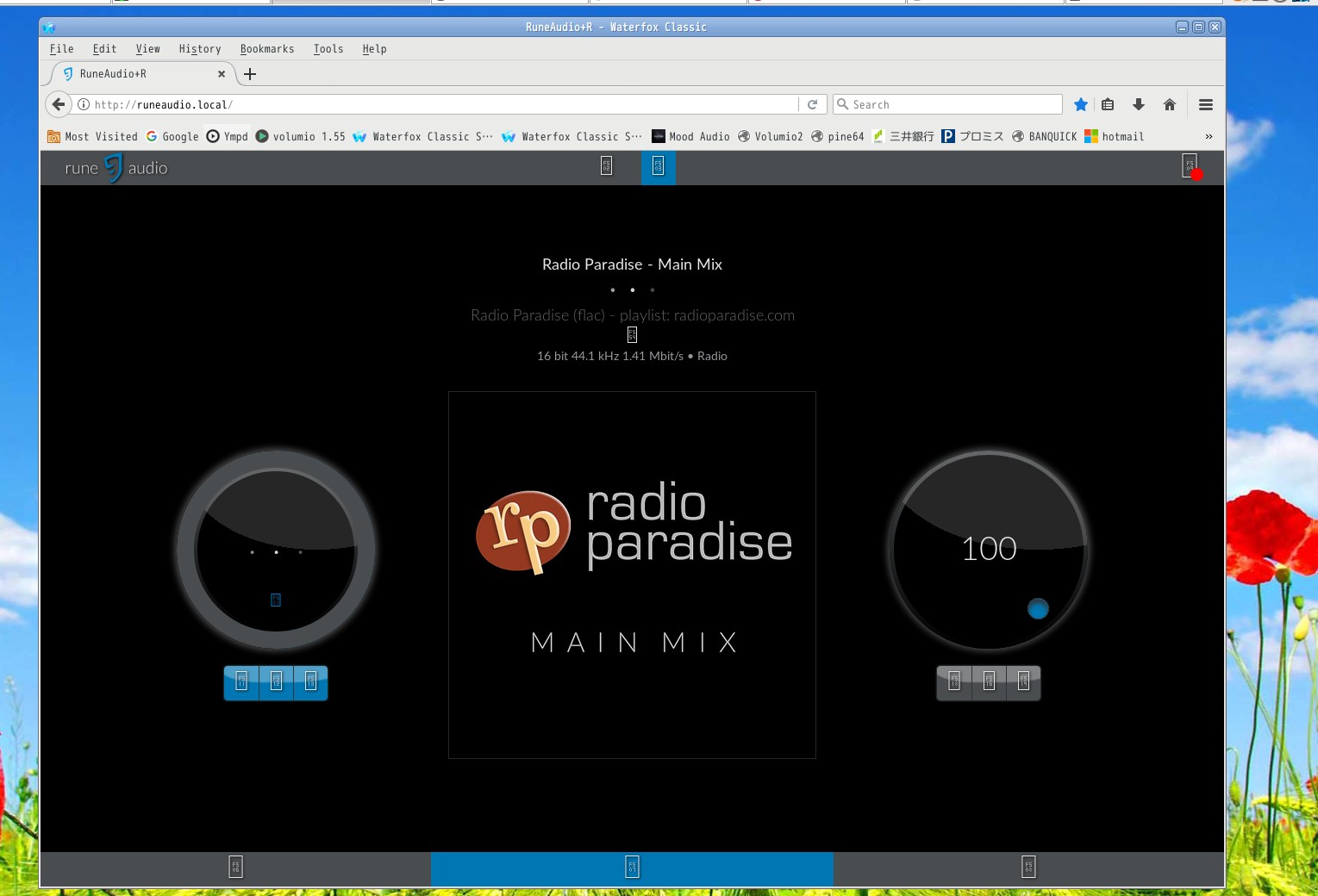

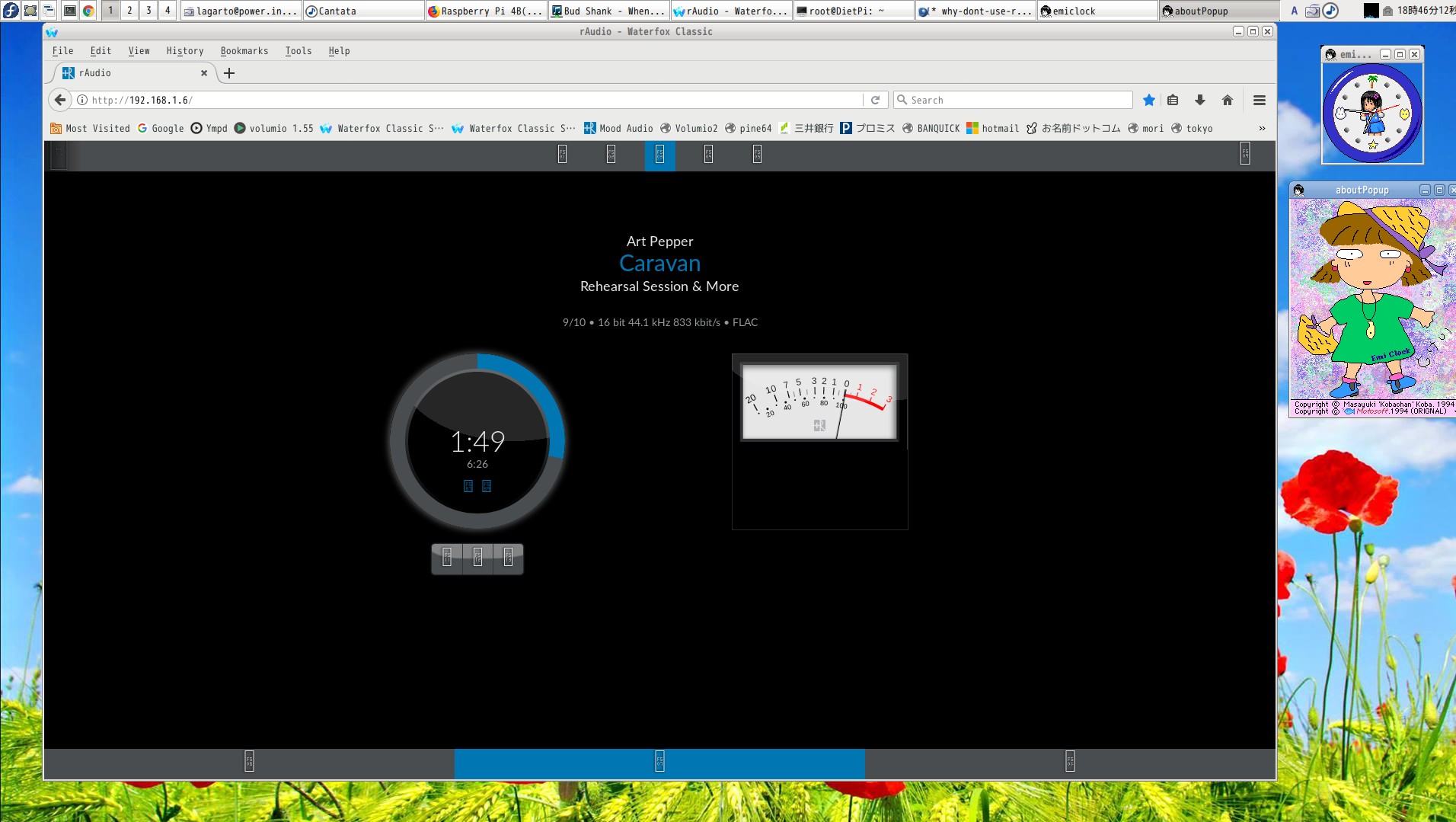

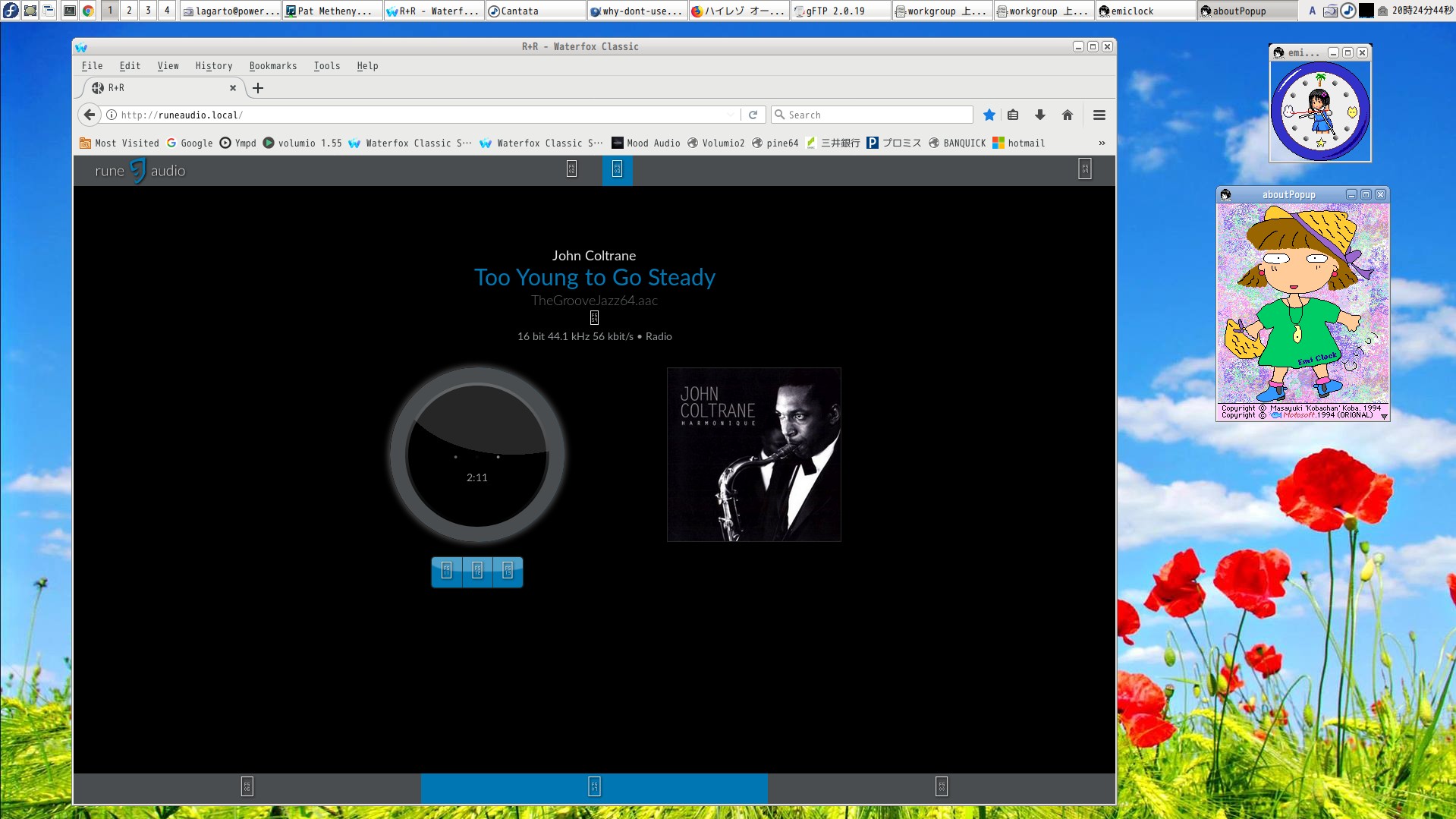

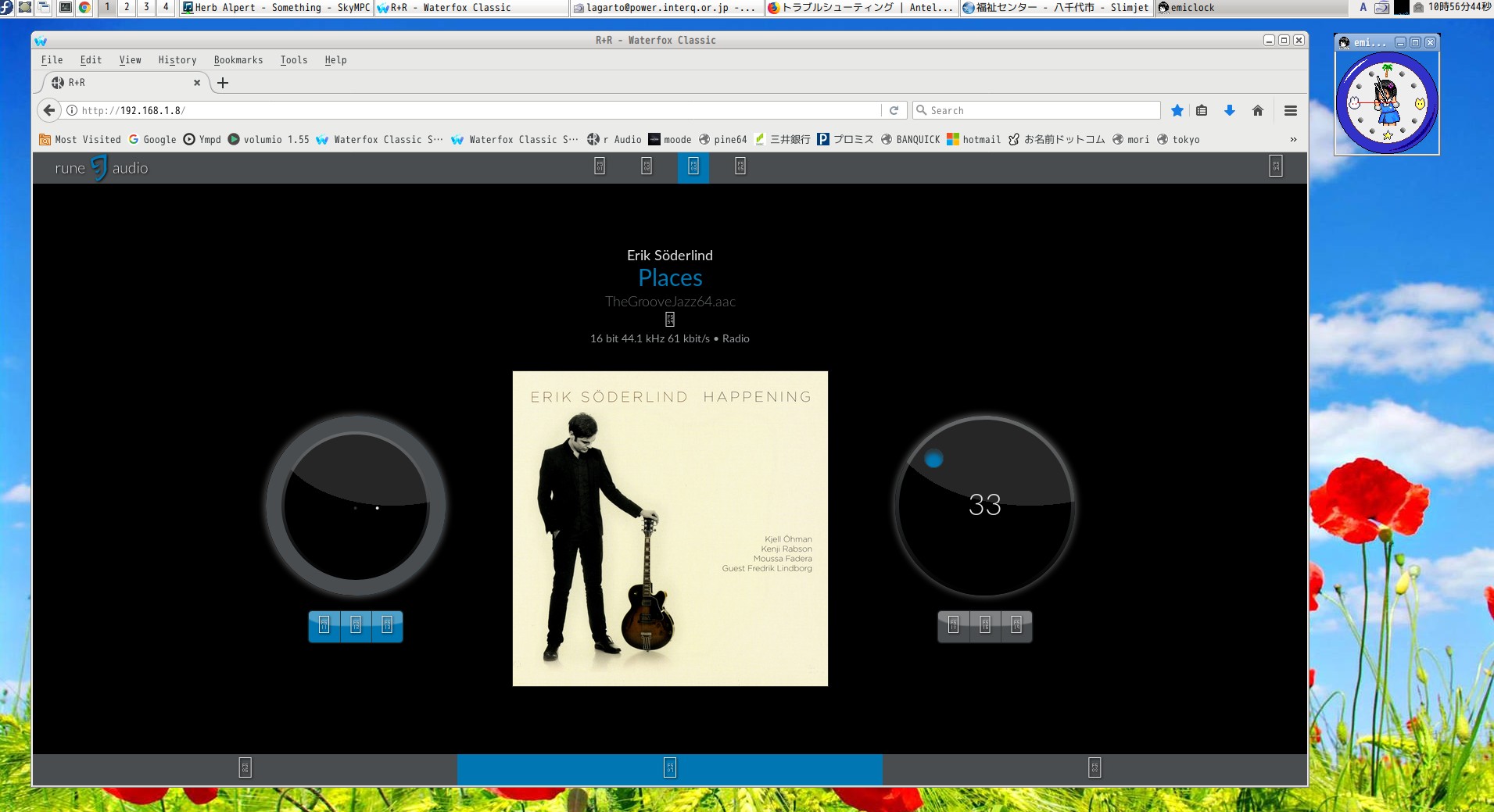

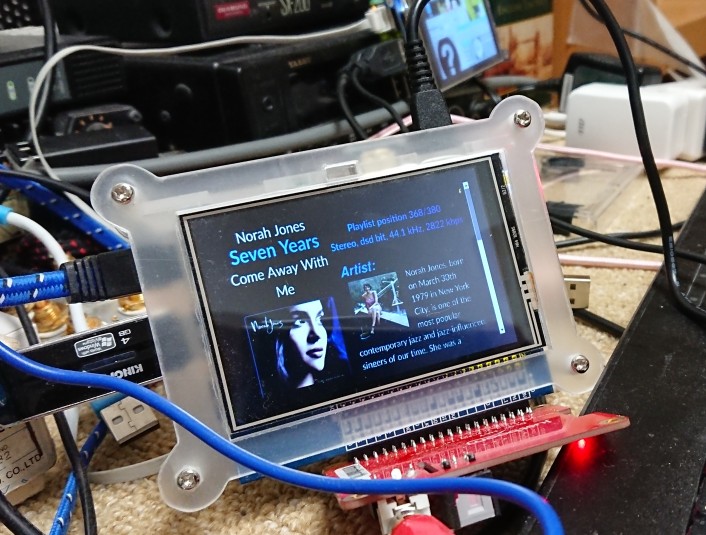

Rune Audio

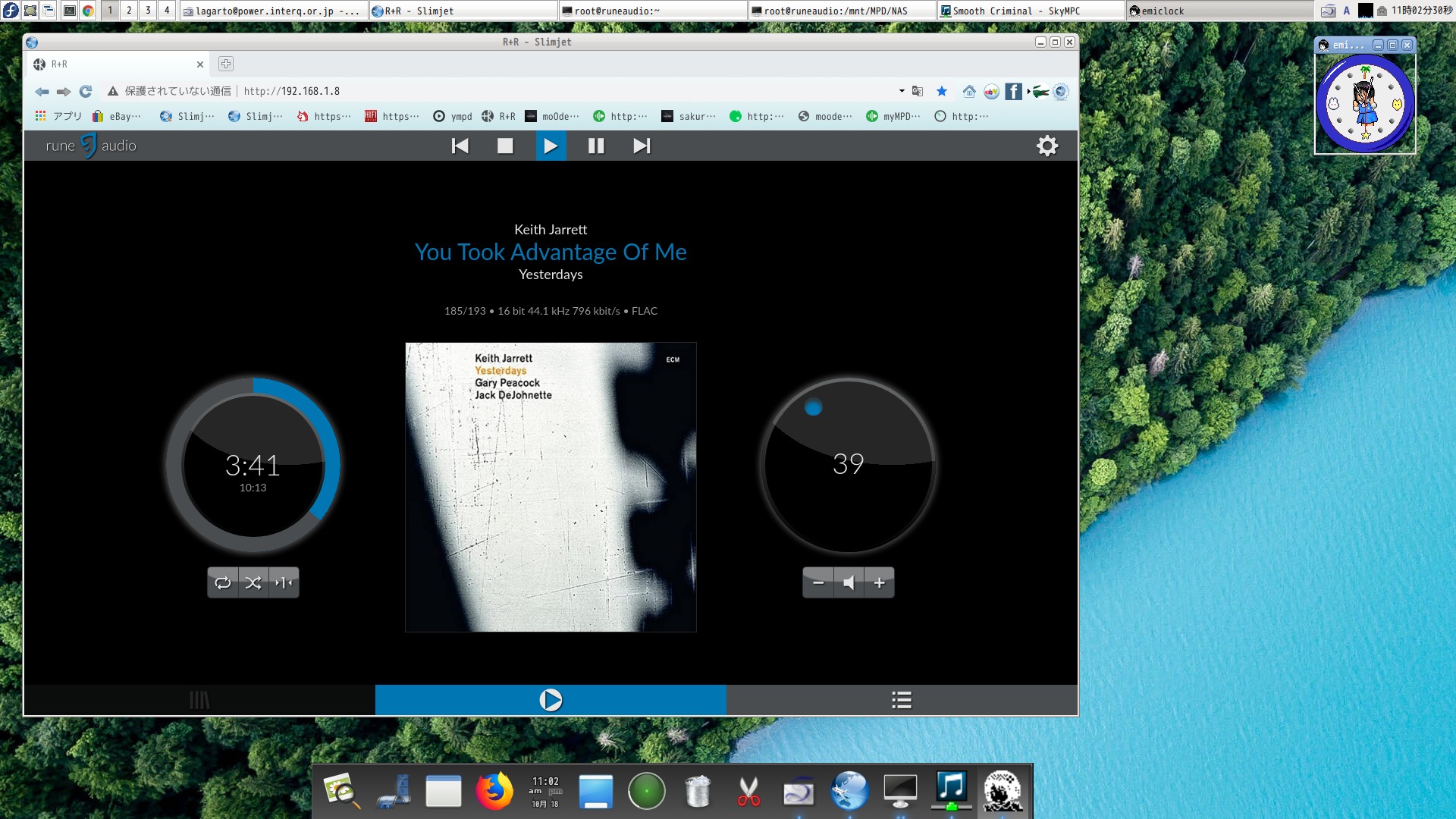

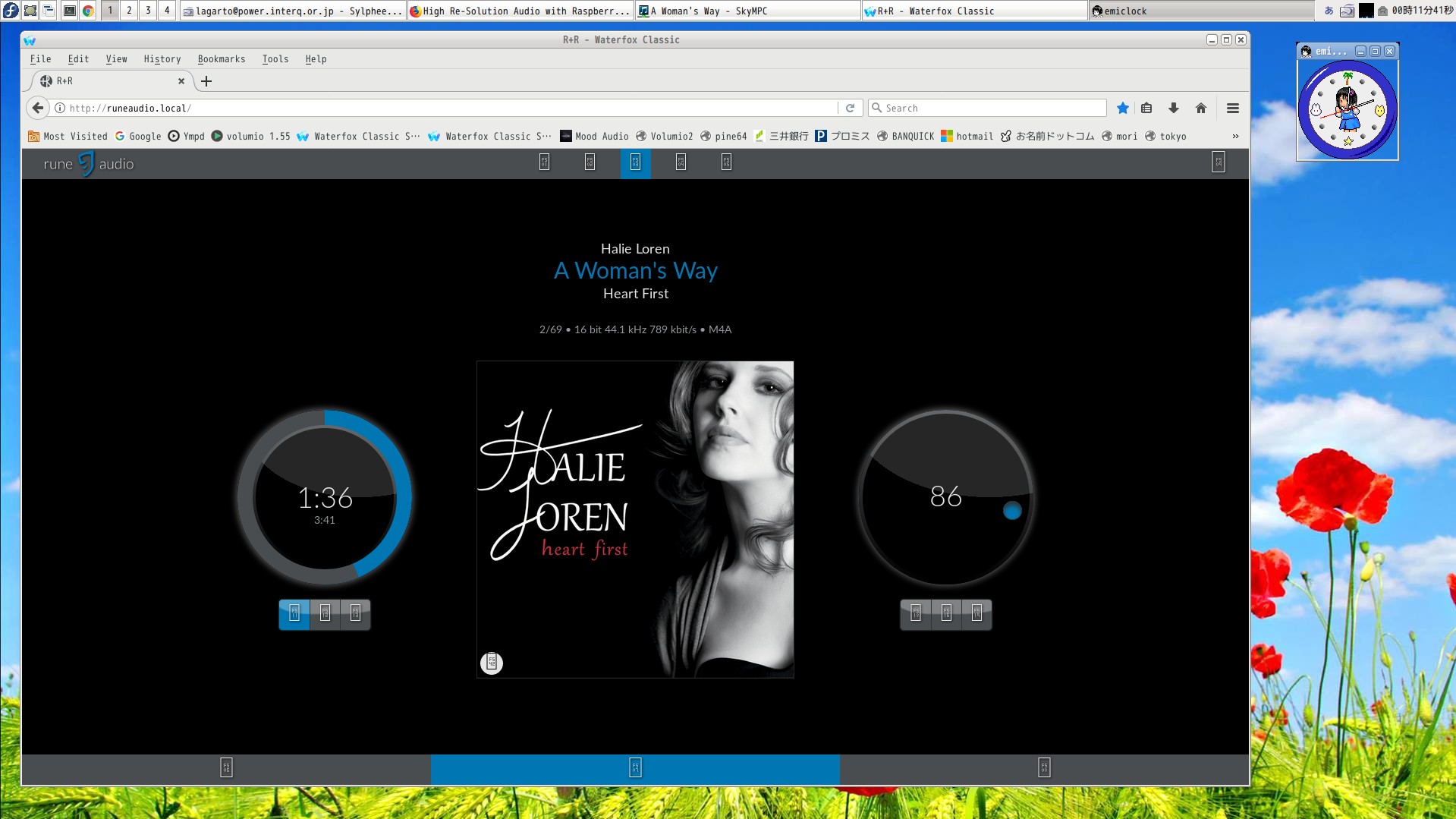

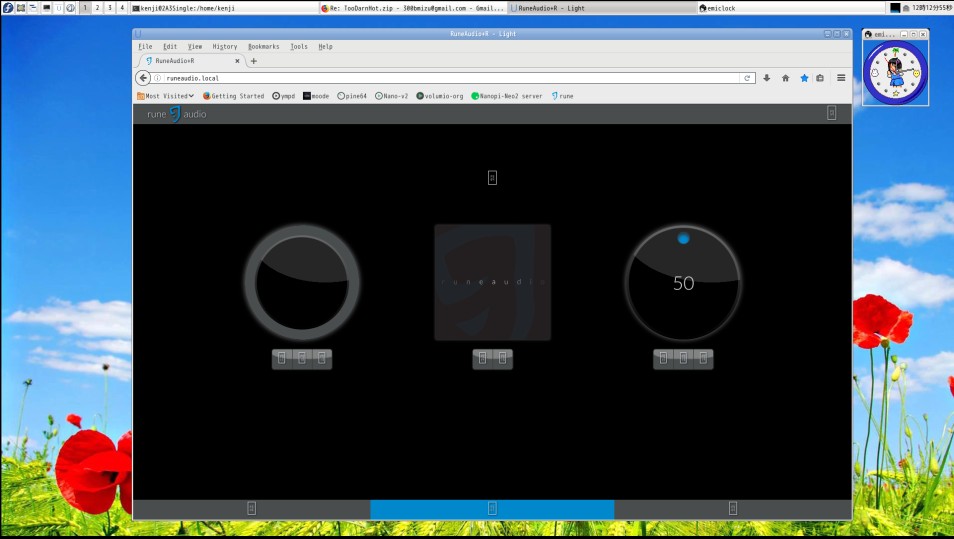

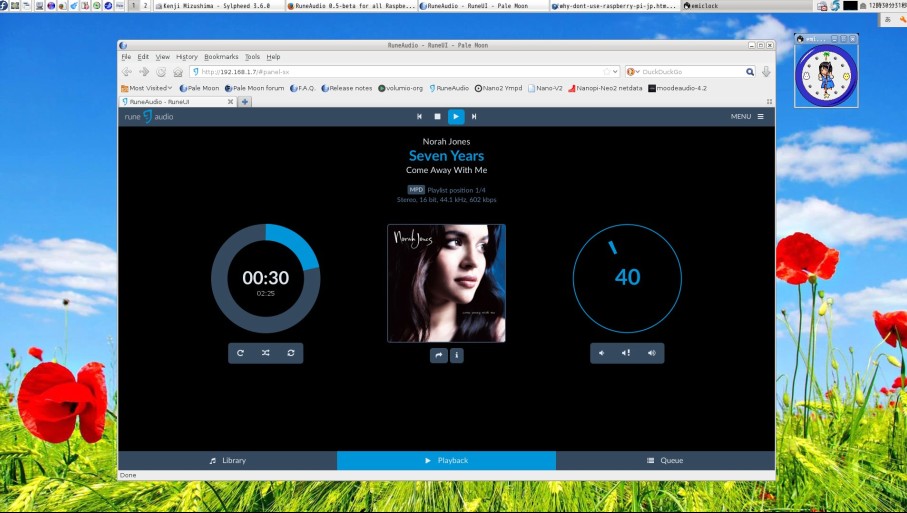

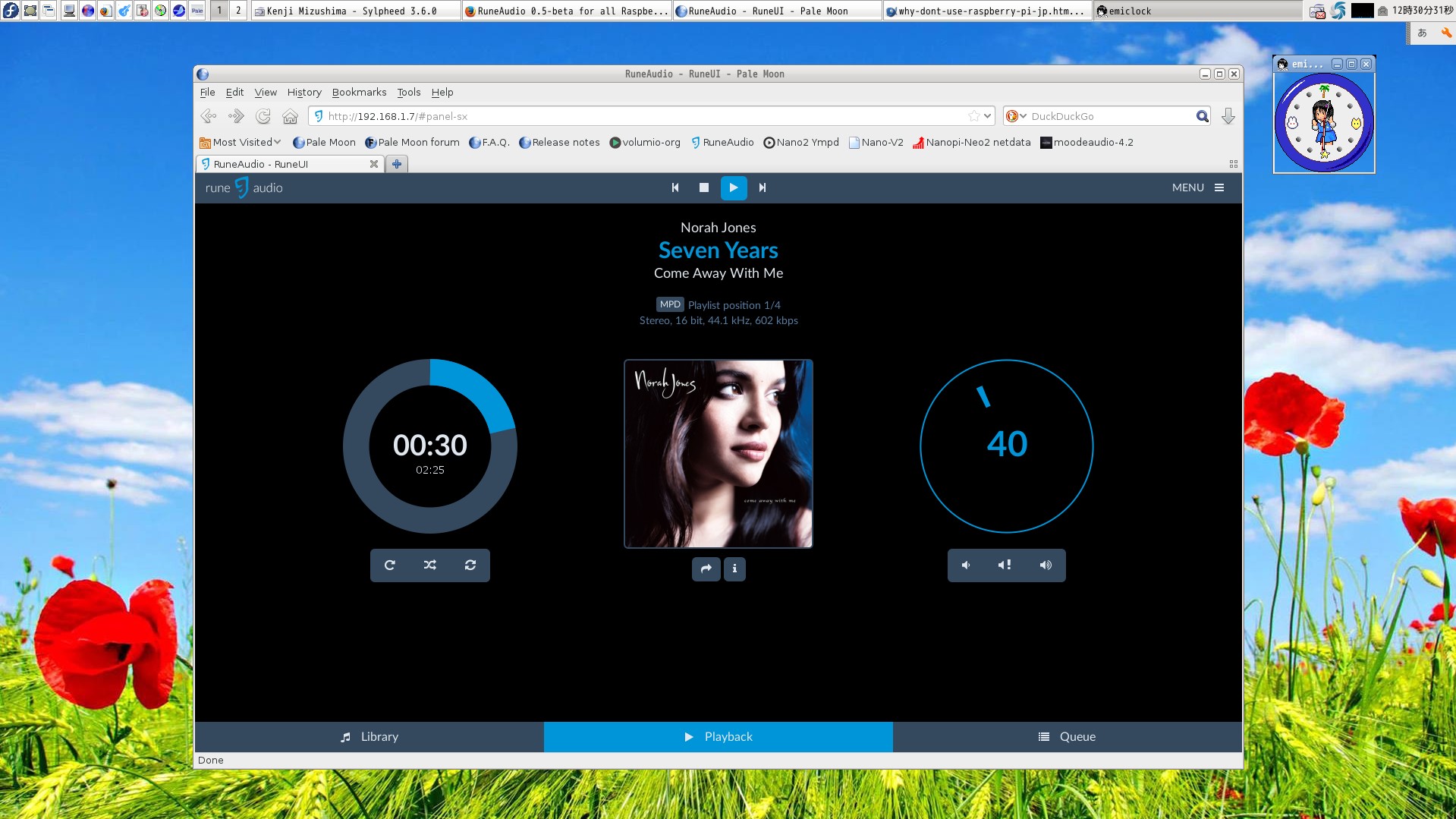

RuneAudio last version but does not play DoP by I2S and PCM is fine.



Runa Audio

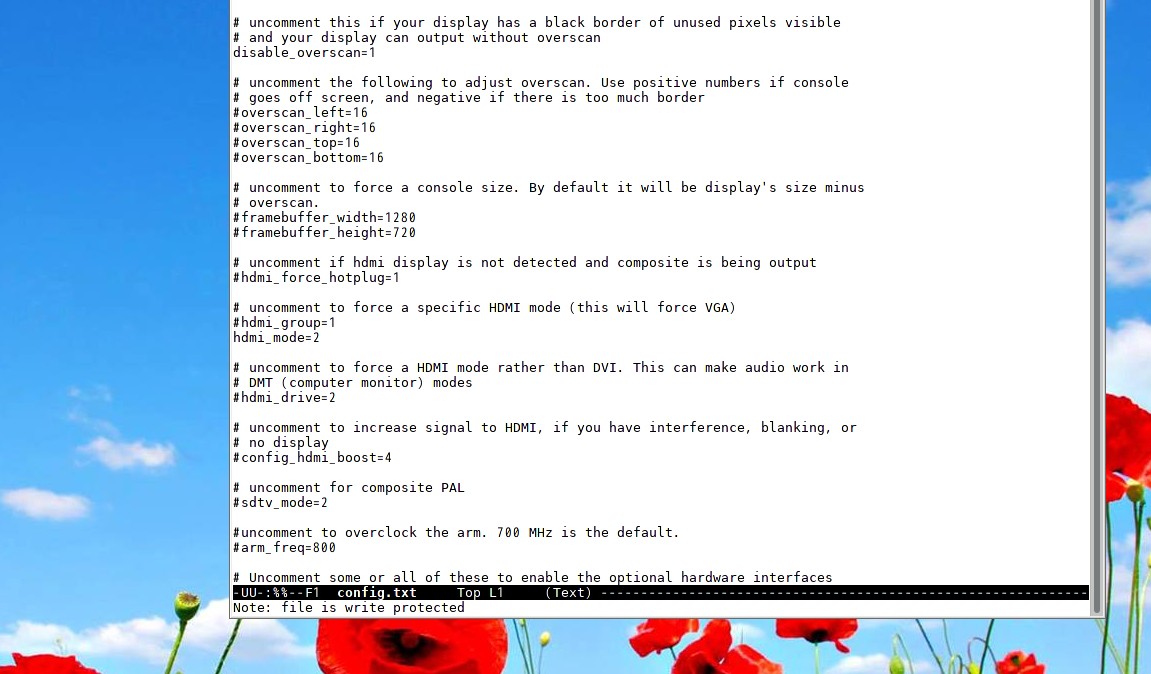

Actually does not indicated driver for sound so please edit /boot/config.txt by ssh.then you can get sound from your DAC.I am using Justboom Digi HAT

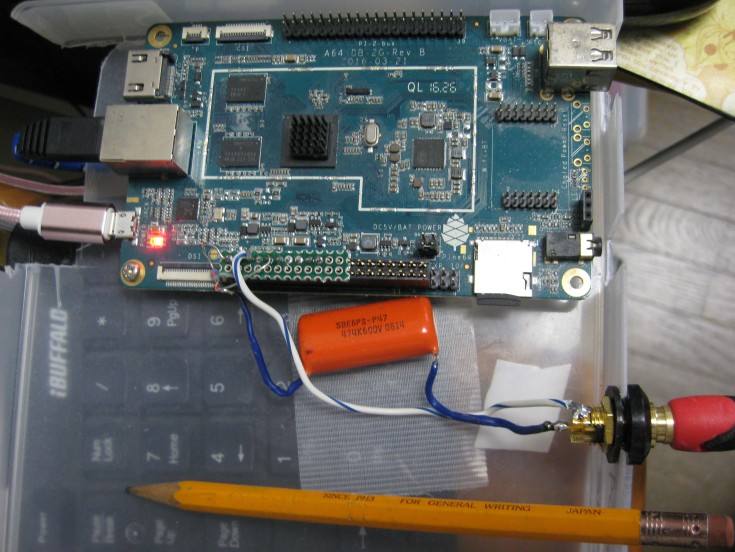

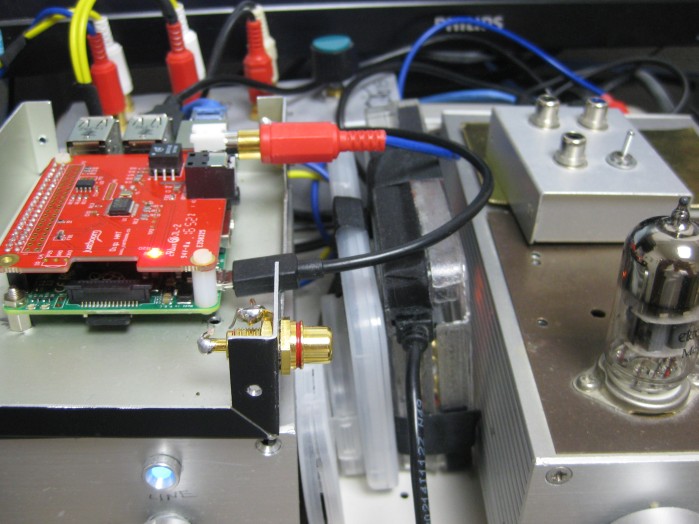

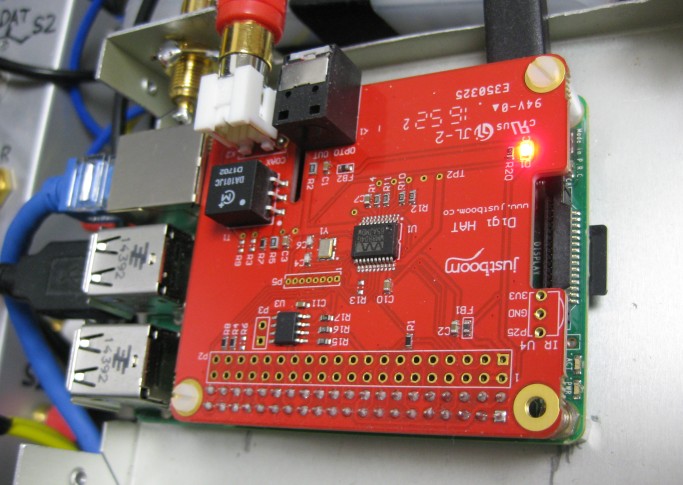

then connected SPDIF to DIY DAC. JustBoom are Compatible of HifiBerry.

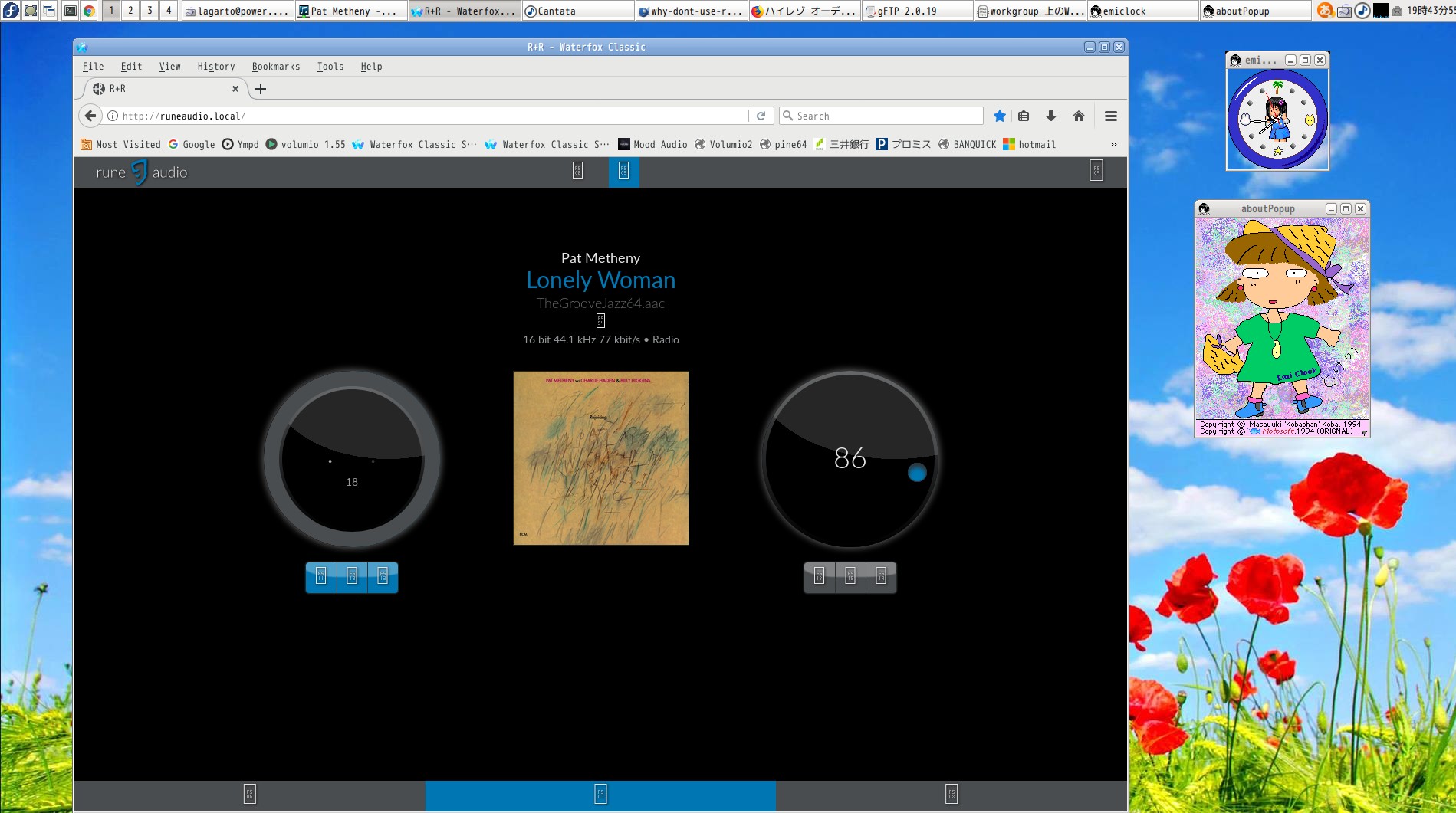

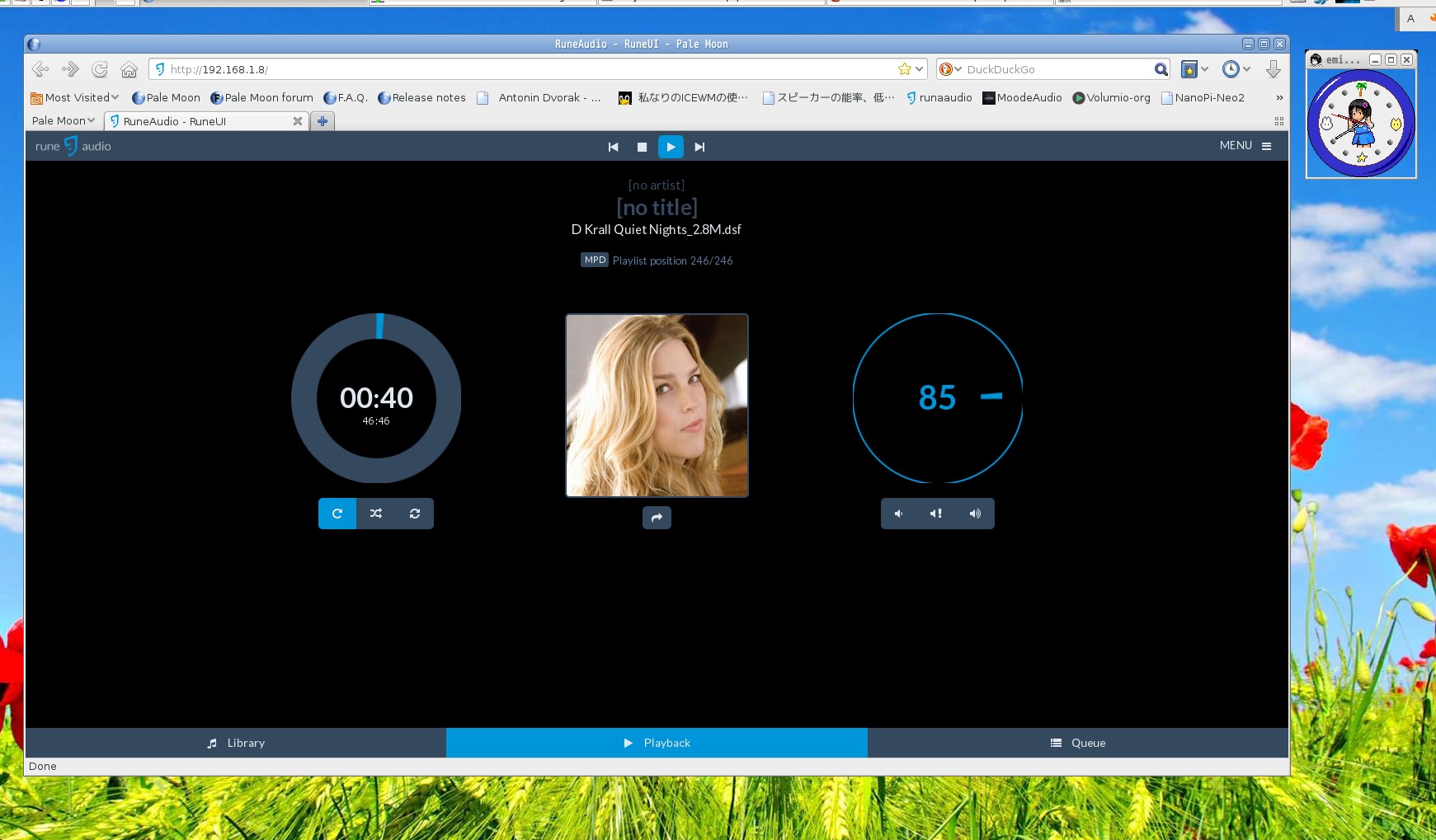

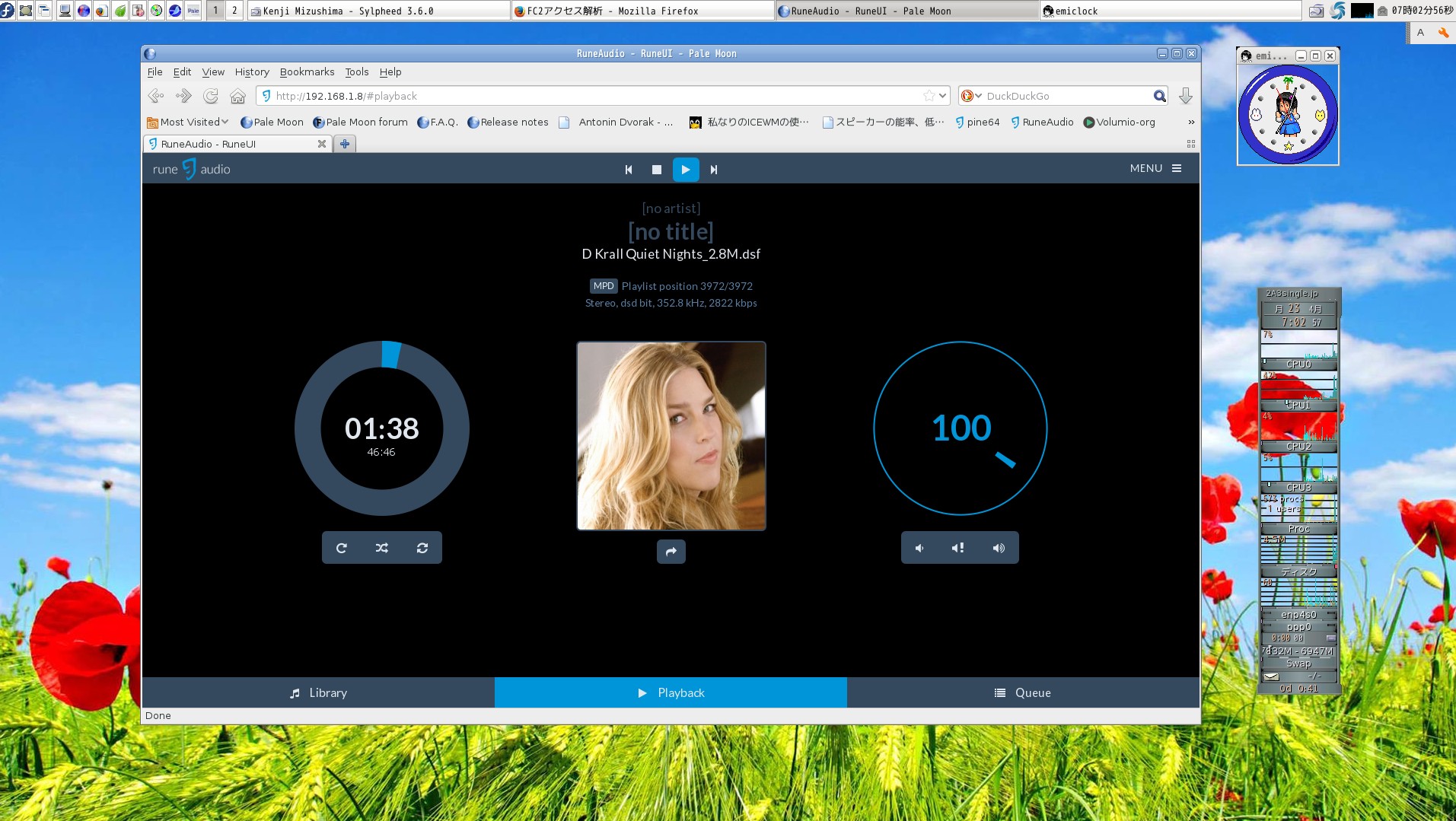

DSF play RuneAudio

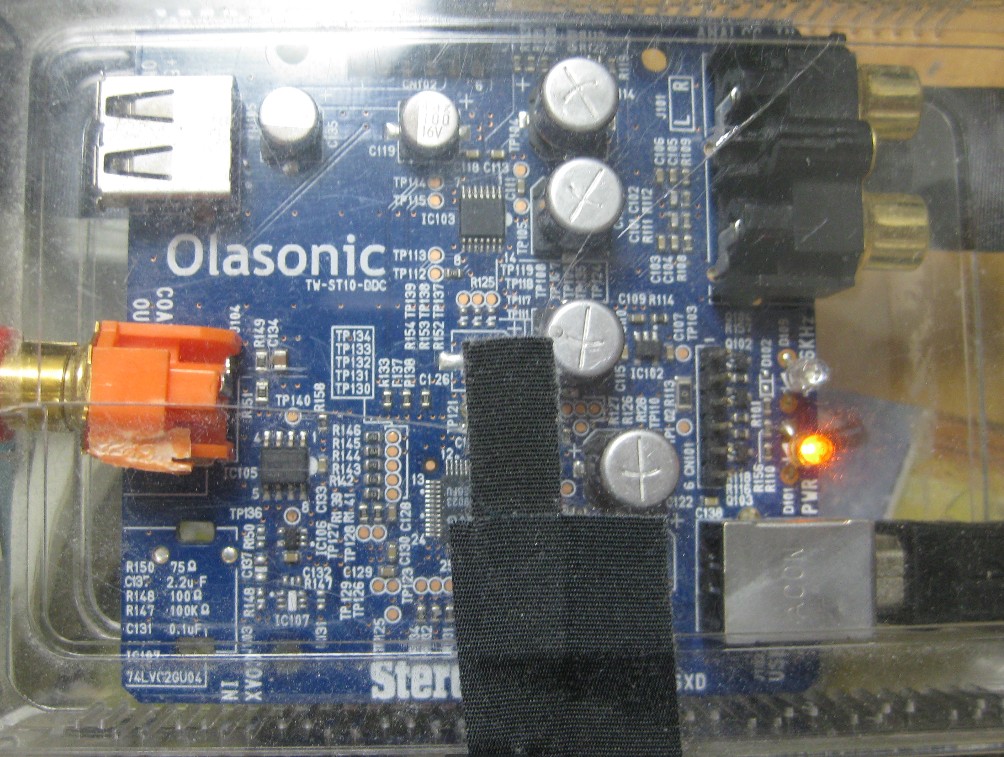

DSF doing play by Olasonic DDC USB SPDIF converter and DIY DAC 198Khz 24 bit



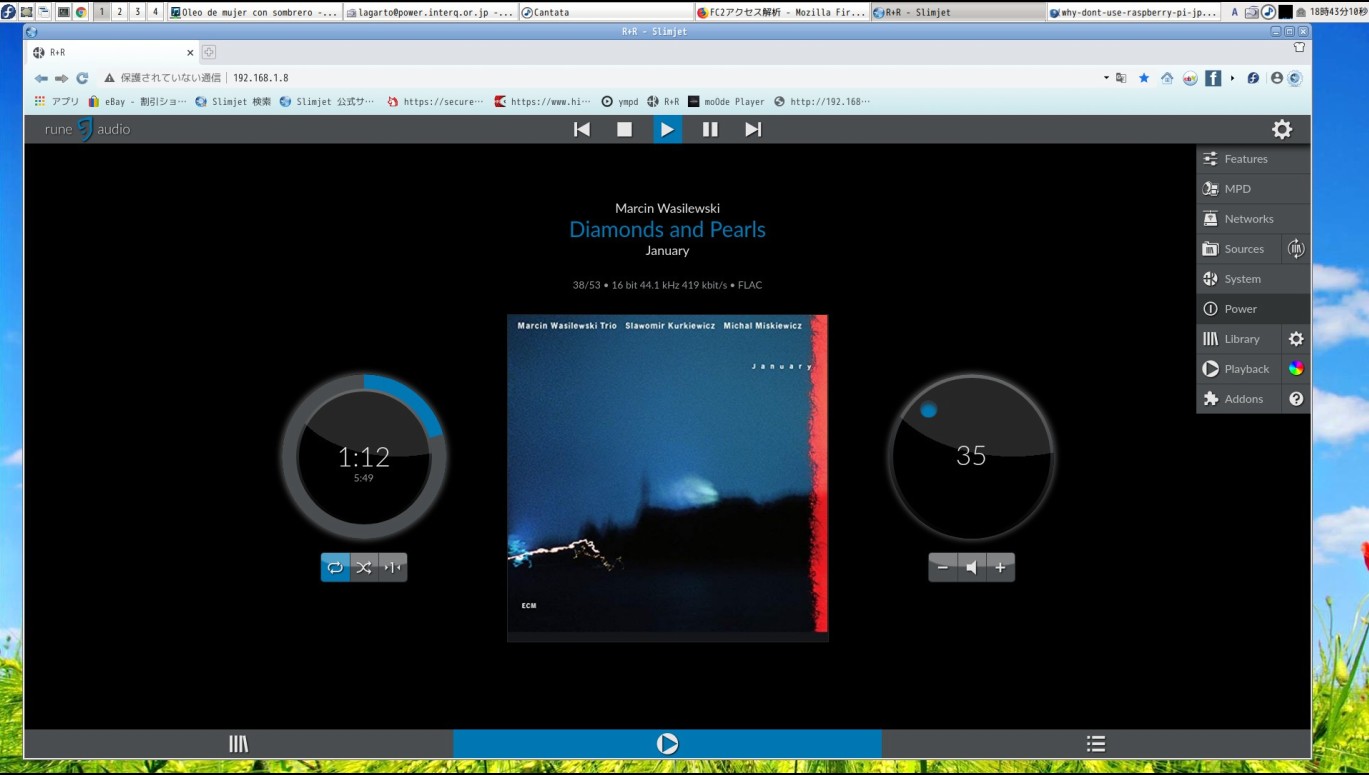

Upgrade of RUNEAUDIO


Add ADDONS on MENU by ssh

--------------------------------------------------------
rm /usr/local/bin/uninstall_addo.sh
redis-cli hdel addons addo
# reinstall
wget -qN --show-progress https://github.com/rern/RuneAudio_Addons/raw/master/install.sh; chmod +x install.sh; ./install.sh
--------------------------------------------------------
you can add ADDONS on MENU. but need expand memory of micro SD with RUNRAUDIO OS.using # fdisk
you can get a lot of information from CARIBE-RED.COM ,just from A to Z.
Please access next URL for Get Many Informations



ADDONS from RuneAudio Forum
CARIBE-RED.COM

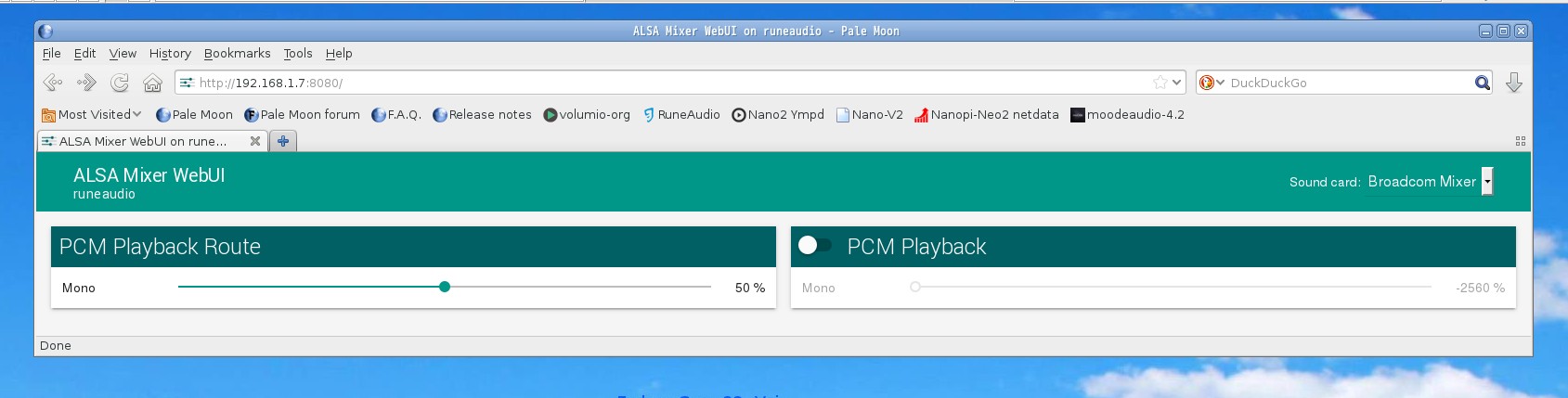

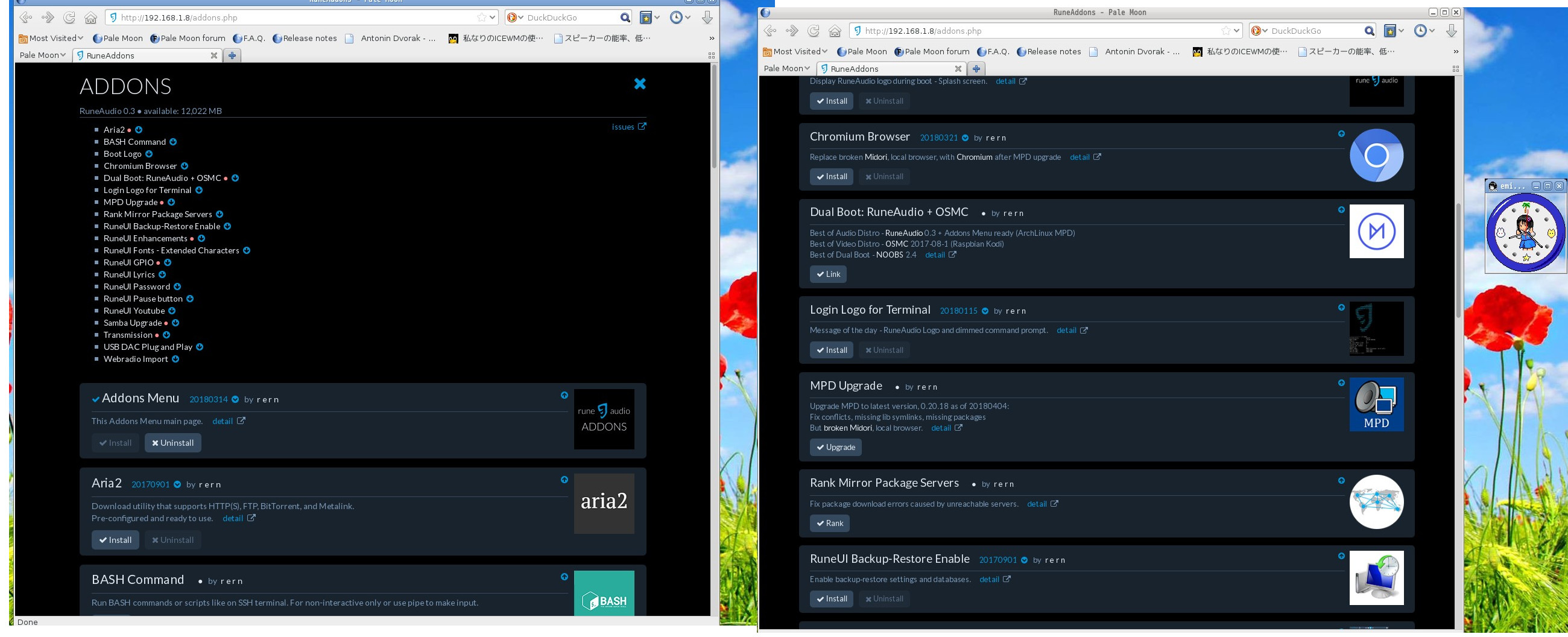

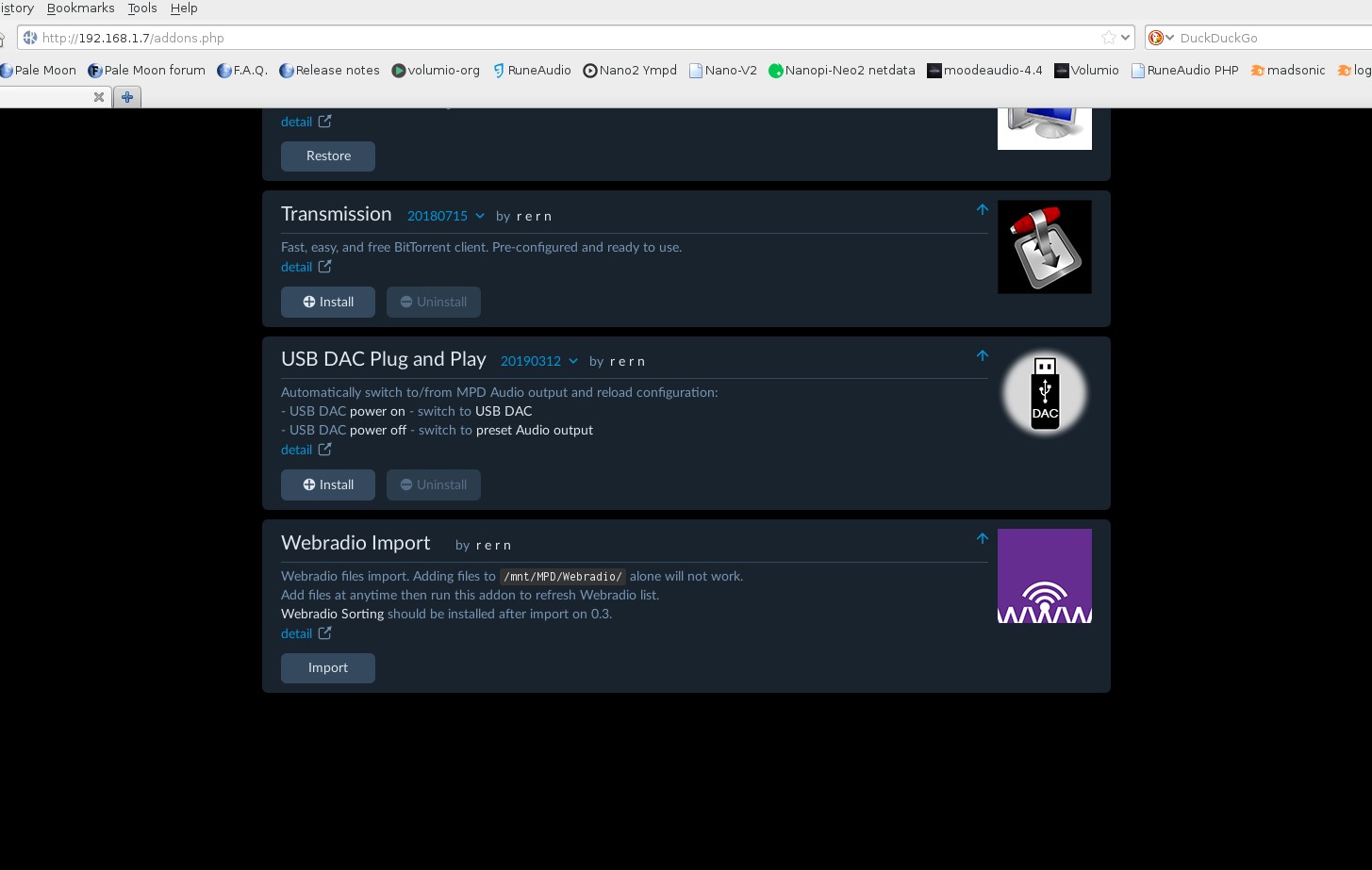

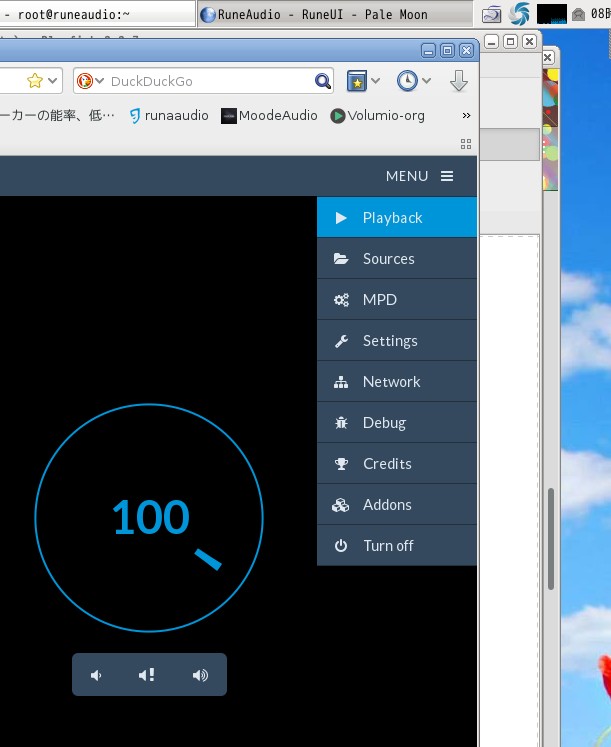

Addons RuneAudio

ADDONS for UpGrade of RuneAudio



mpd update

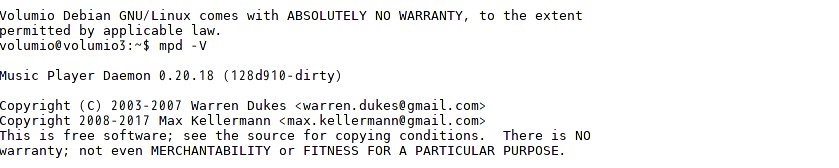

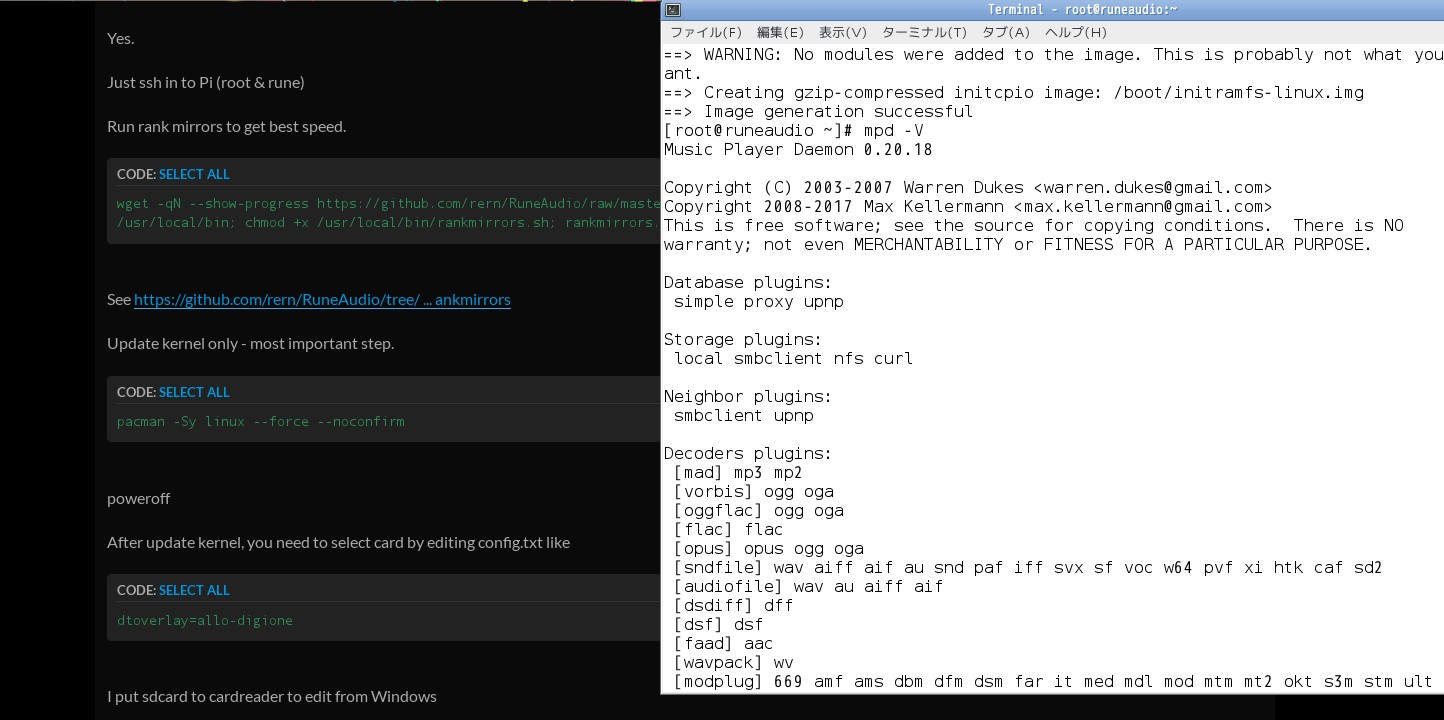

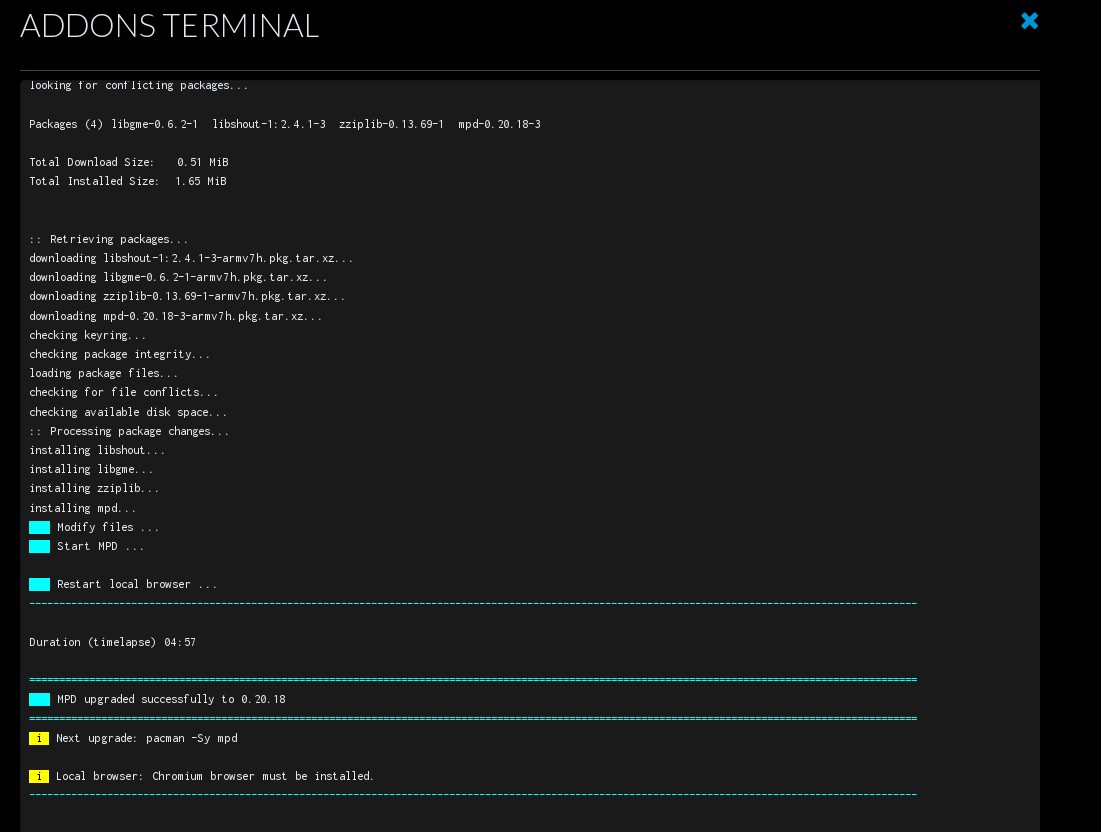

MPD 0.20.18 indicated



mpd

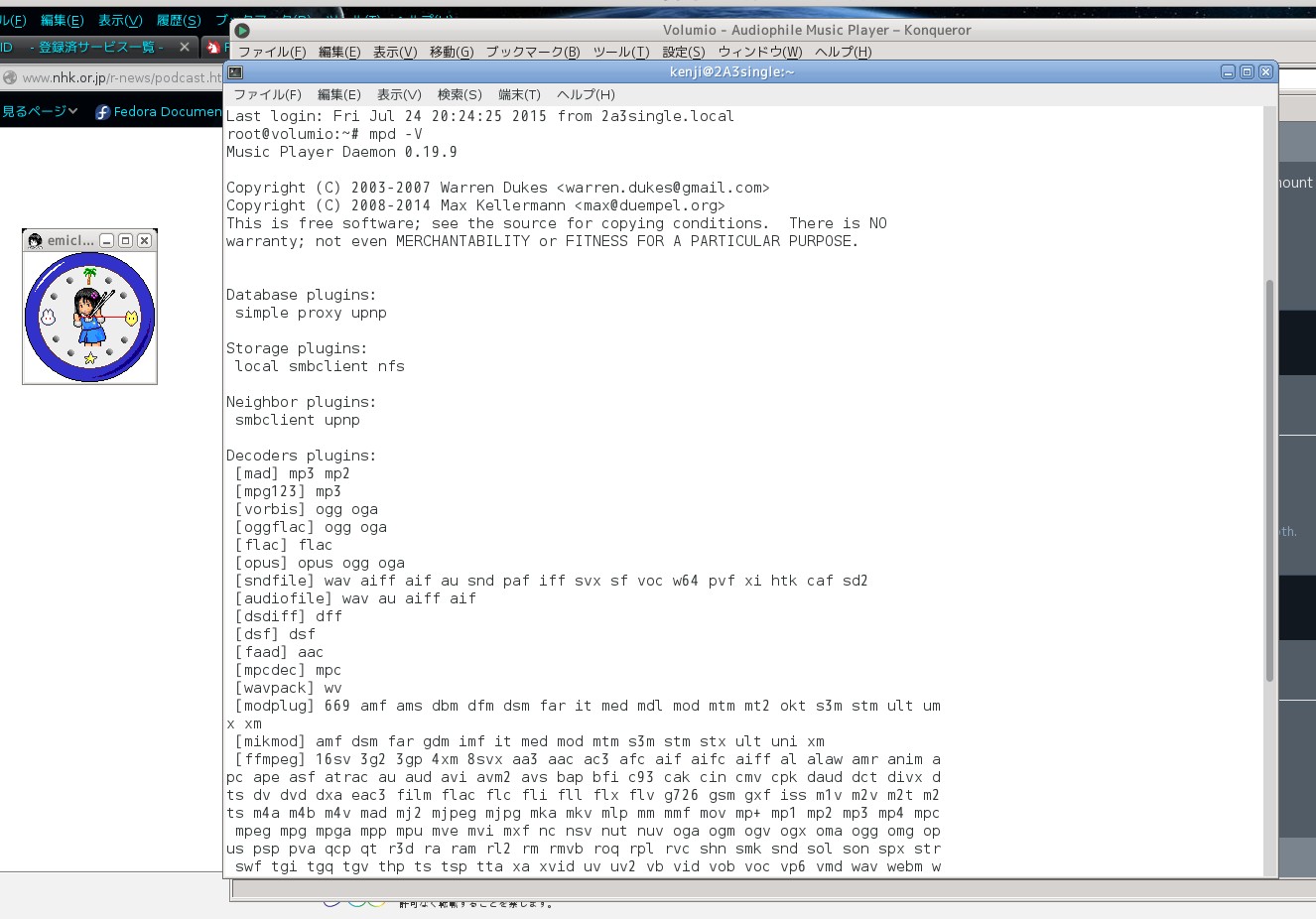

mpd -V ,you can see mpd is upgraded .and please see more detail of next URL. very important add repository and add files for upgrade RUNEAUDIO

Ref:about resampler setup from mpd 0.20.18

you can play DSD as DoP now by RuneAudio much fun !!!!! :)

Ref:ADDONS on RuneAudio mpd up grade ,etc Ref:ADDONS on RuneAudio mpd up grade ,etc

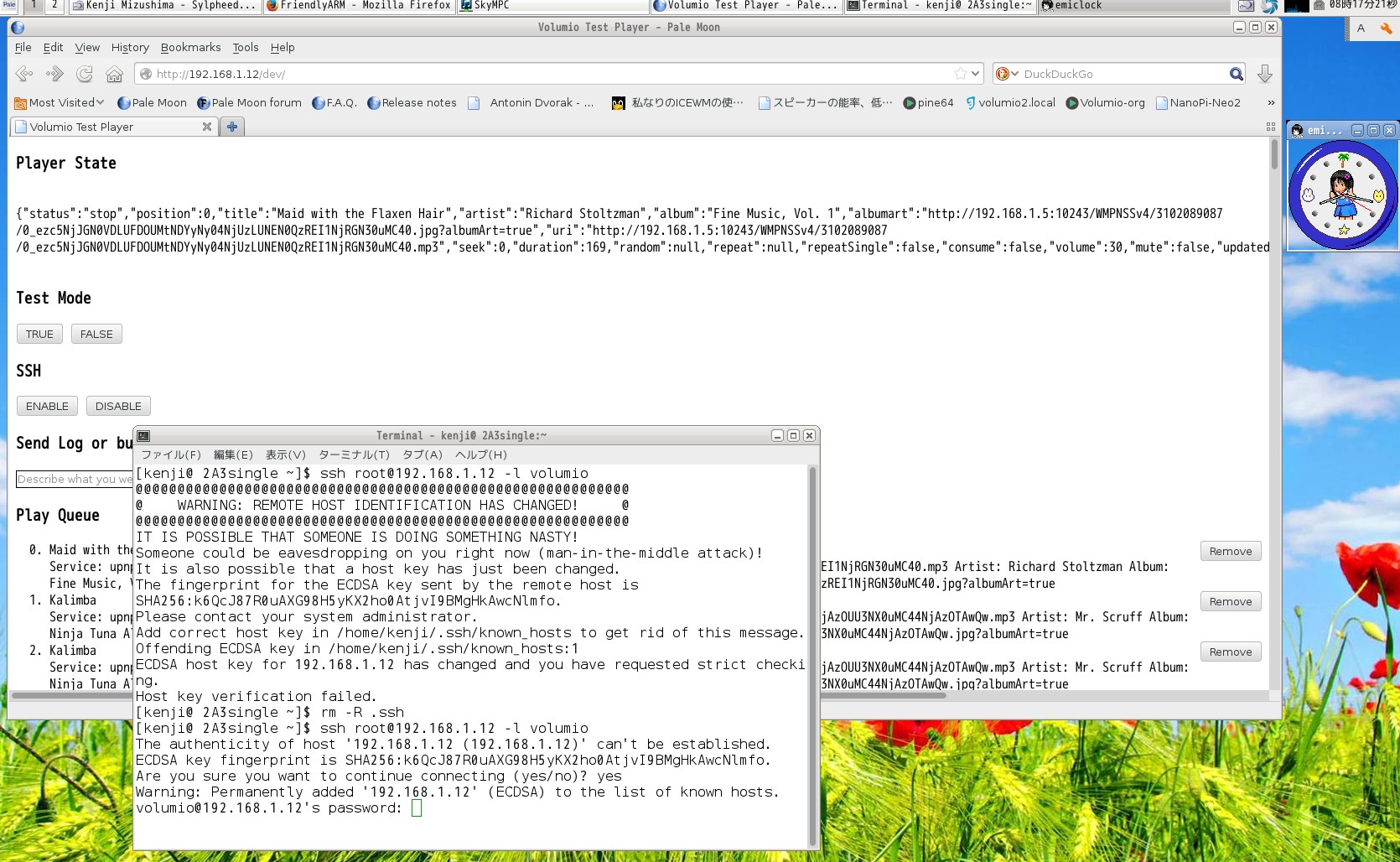

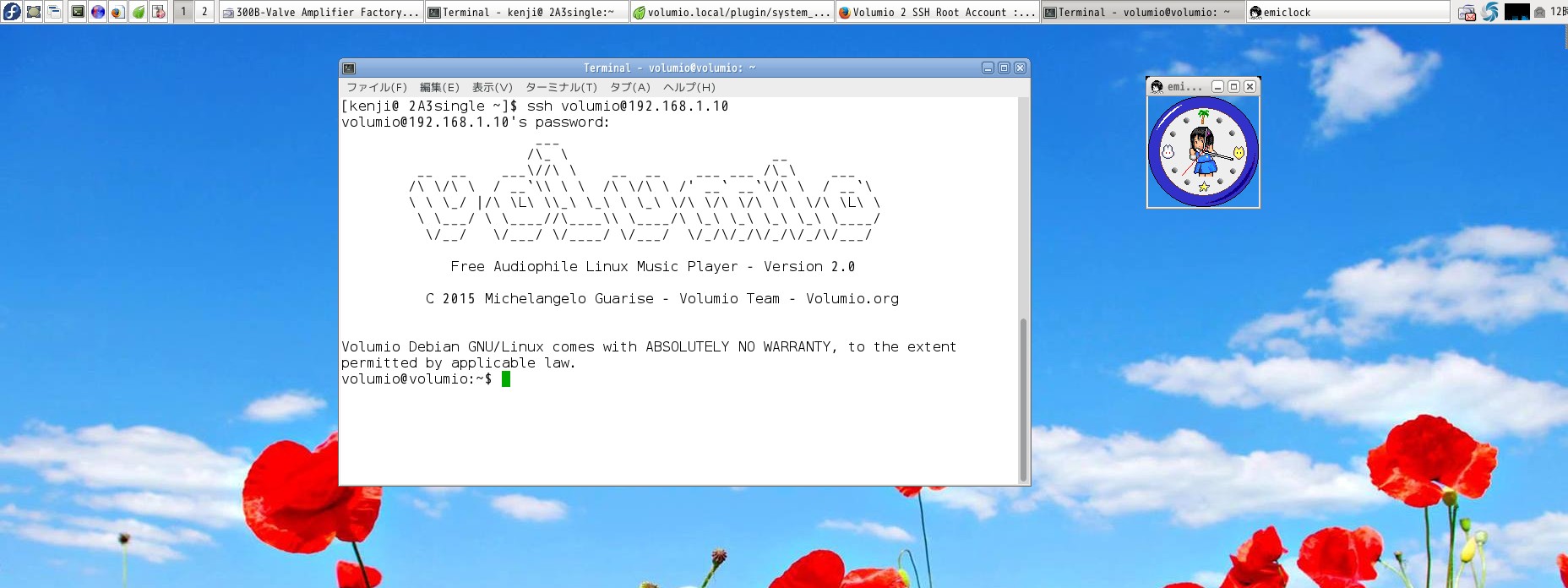

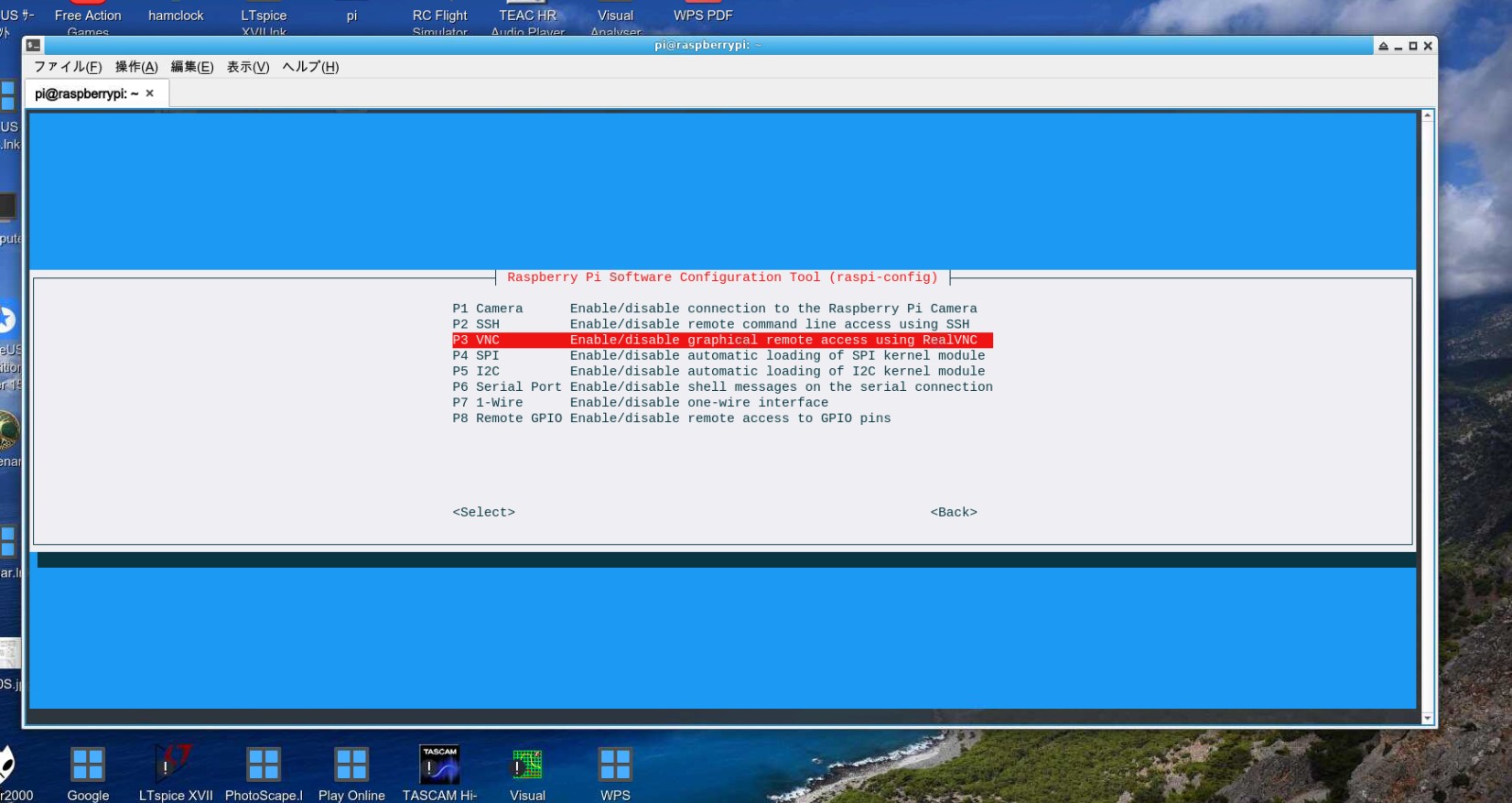

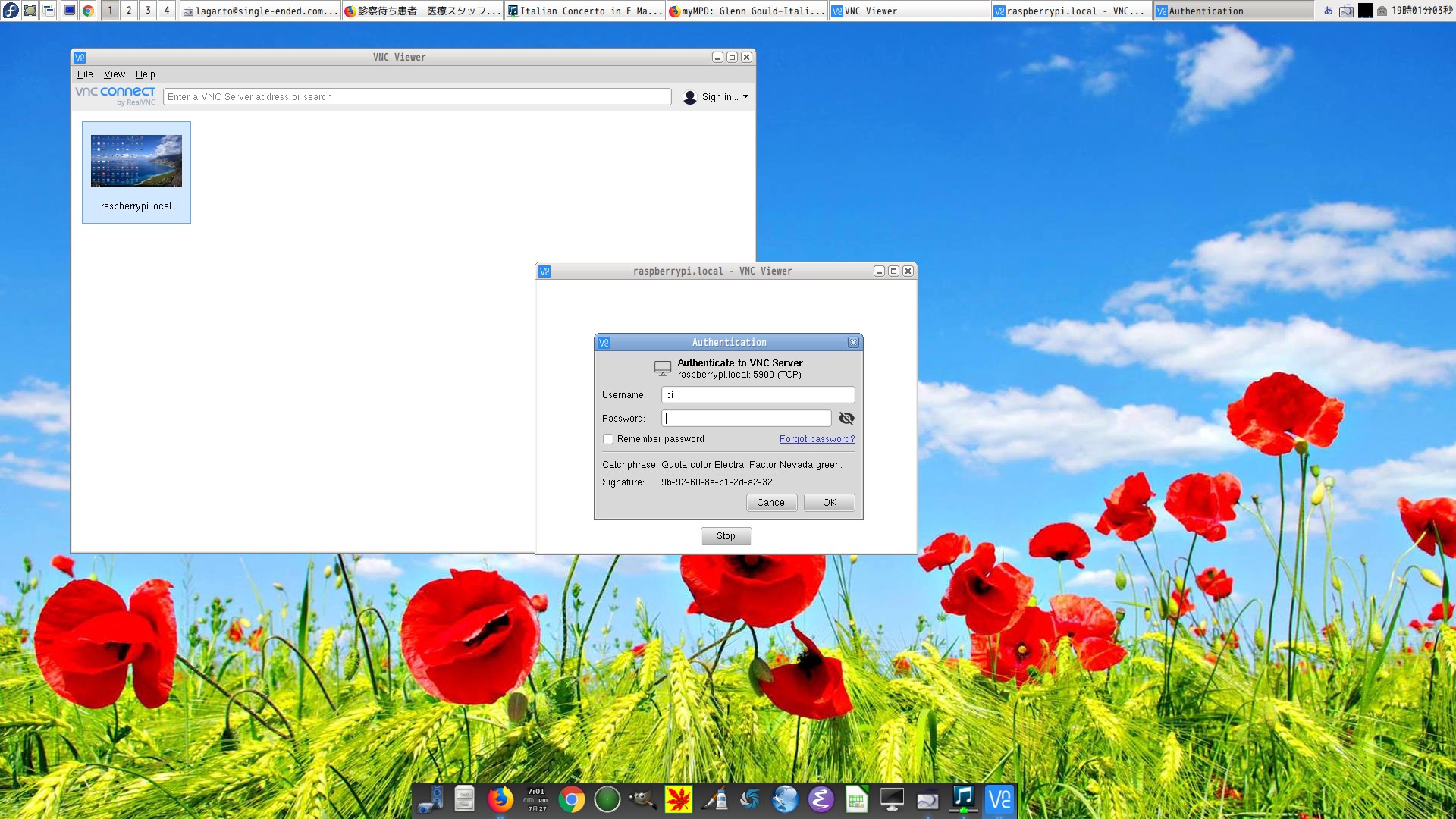

ssh login

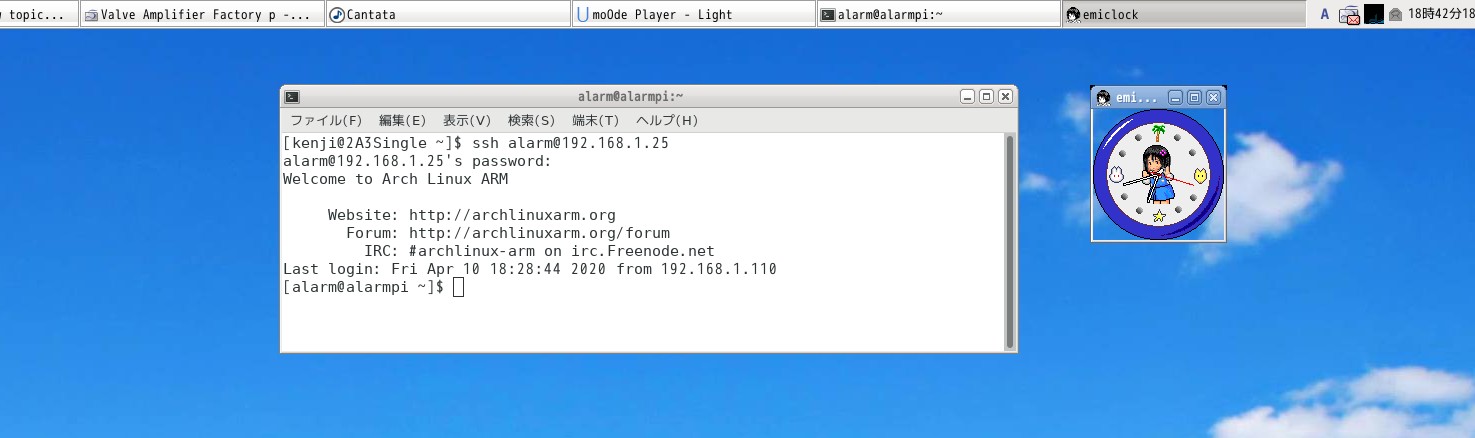

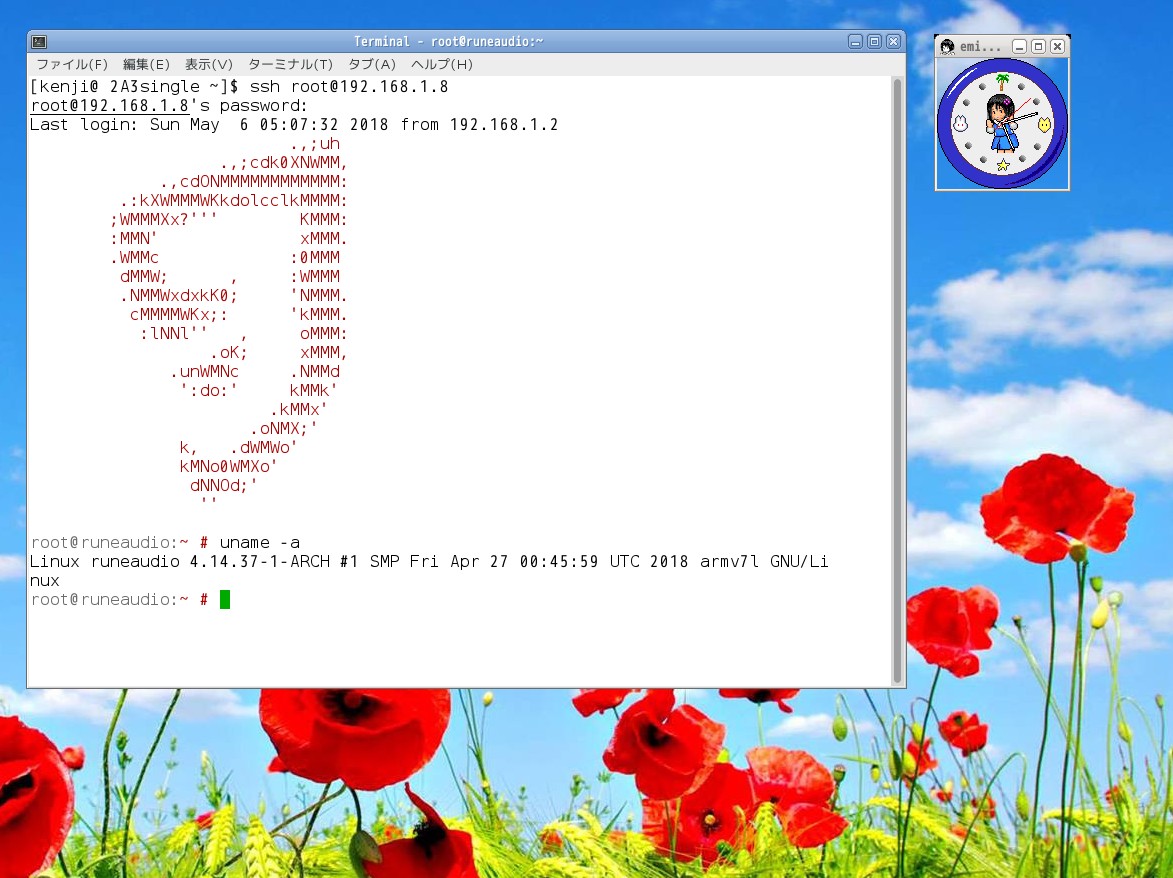

Log in by SSH on 5th May 2018

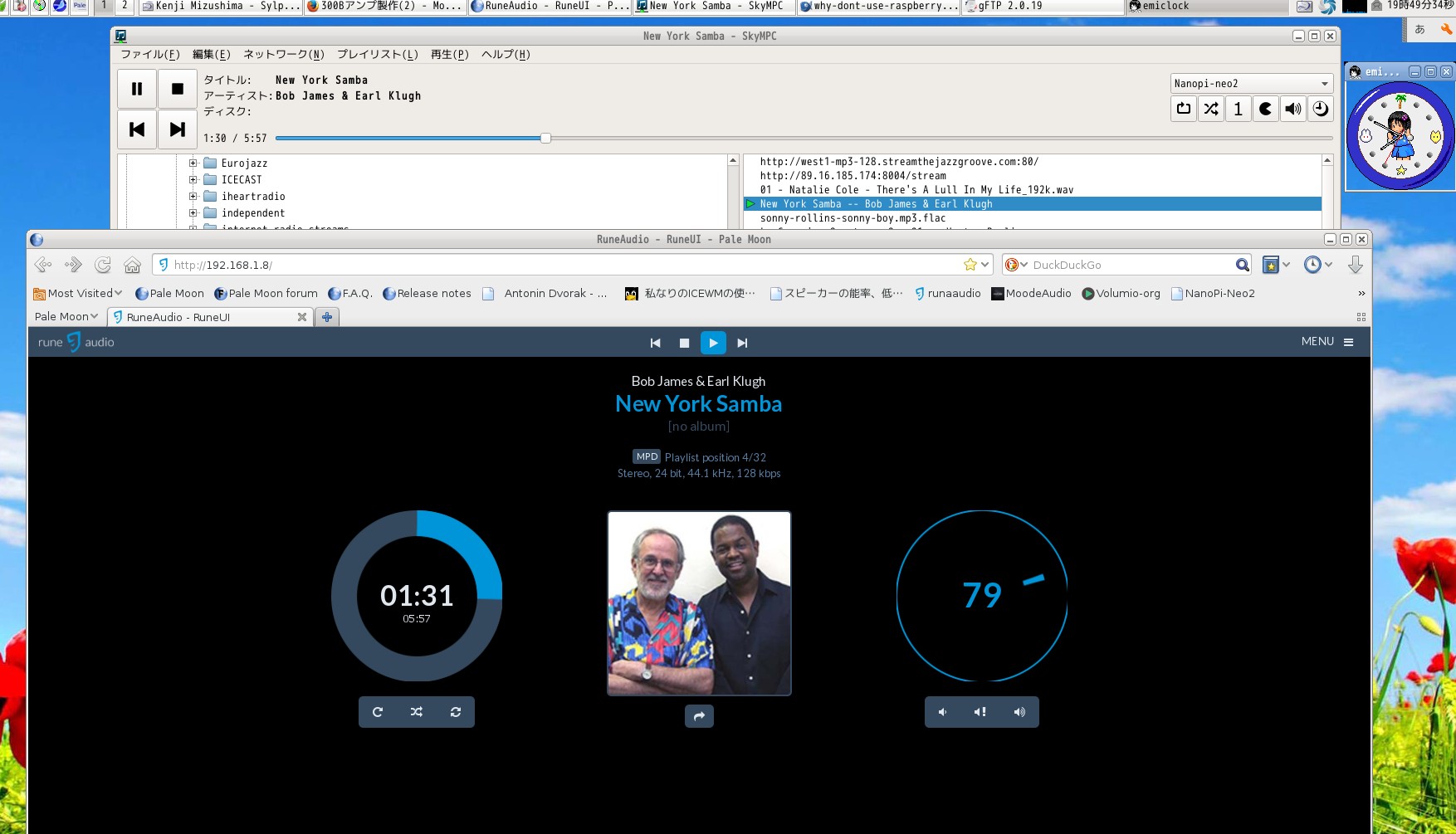

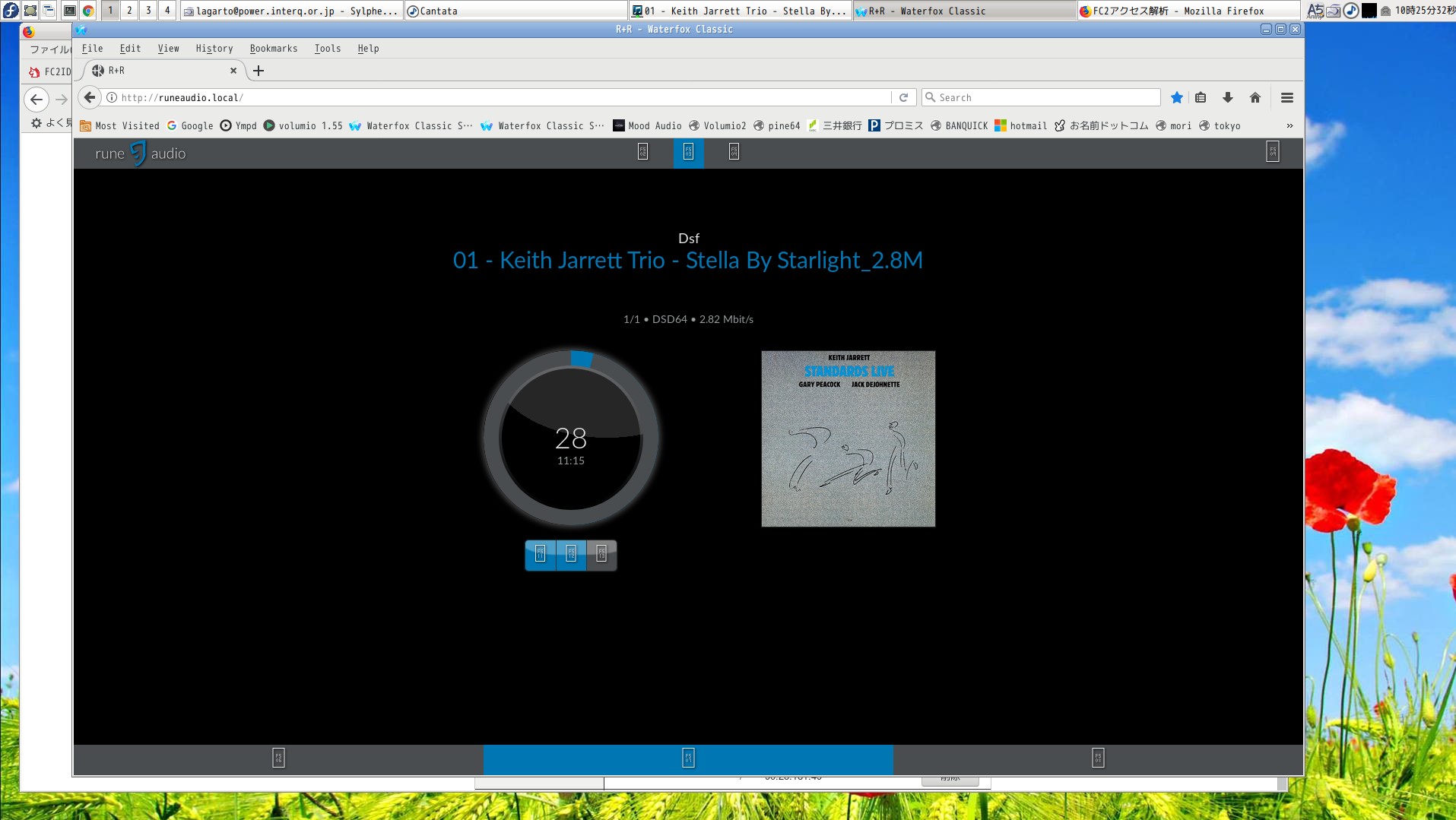

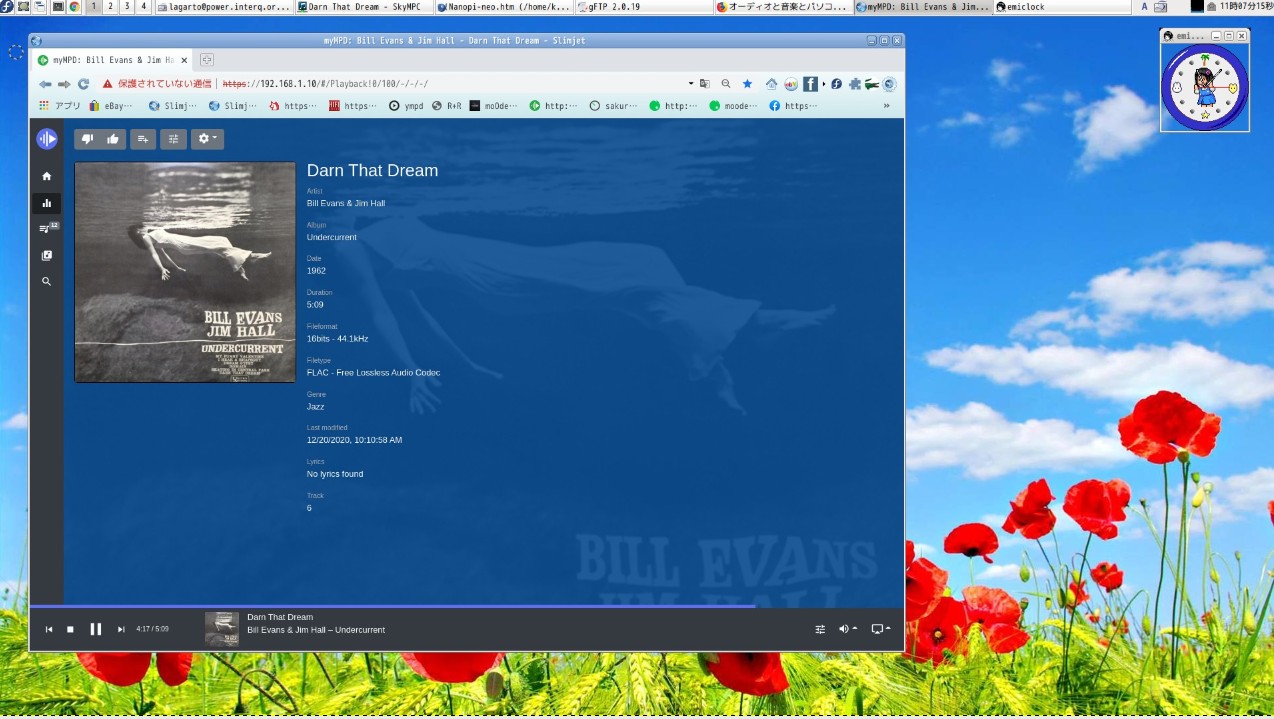

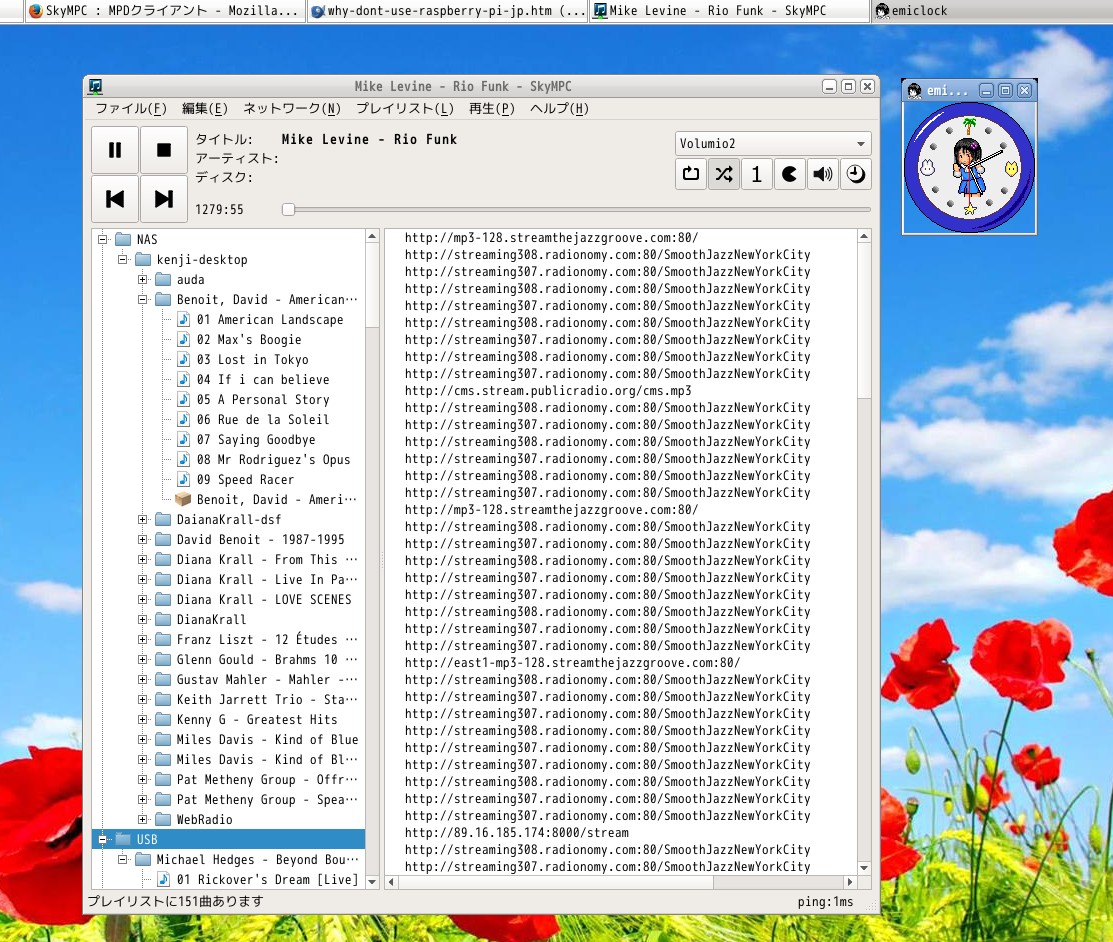

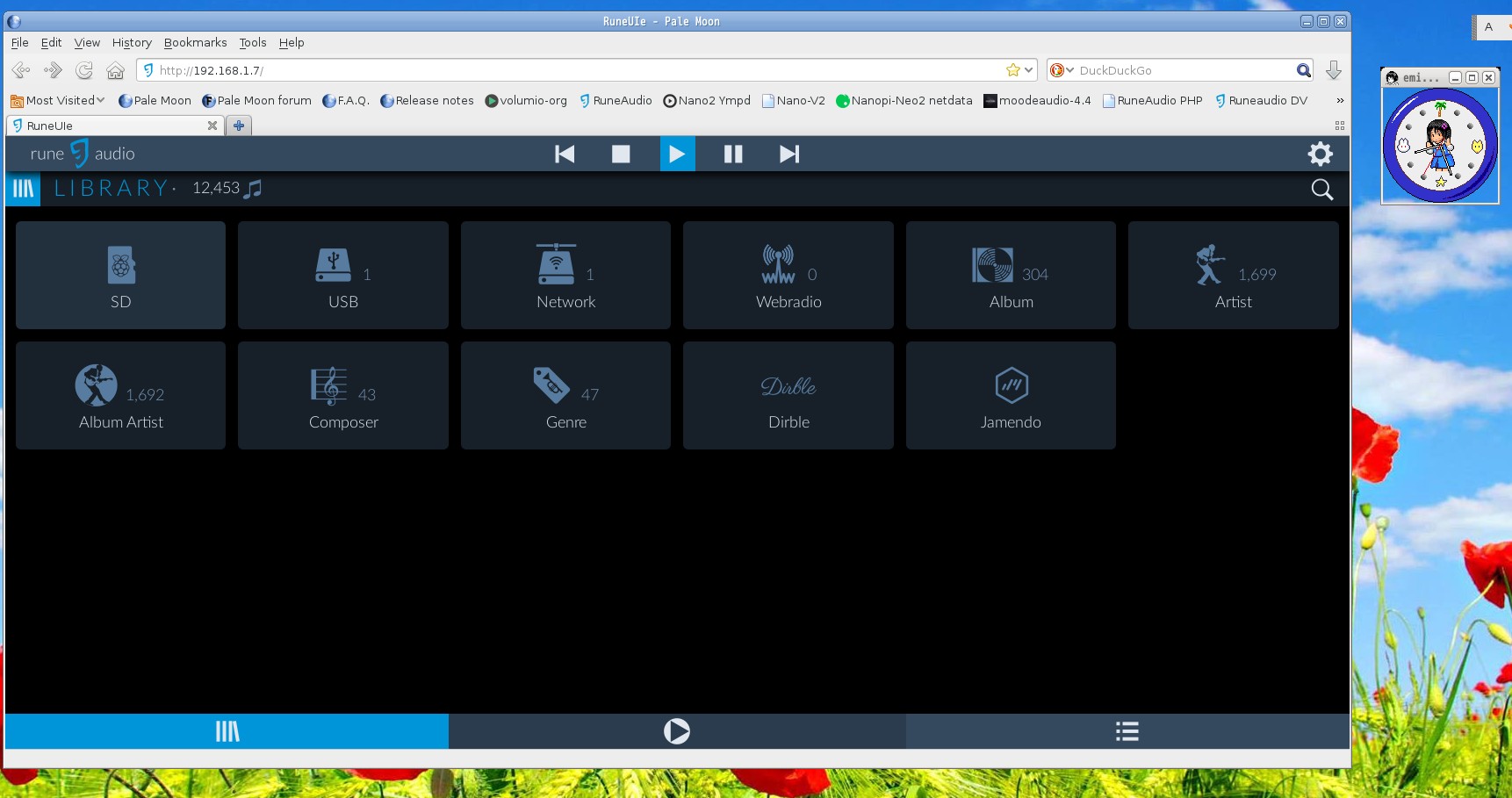

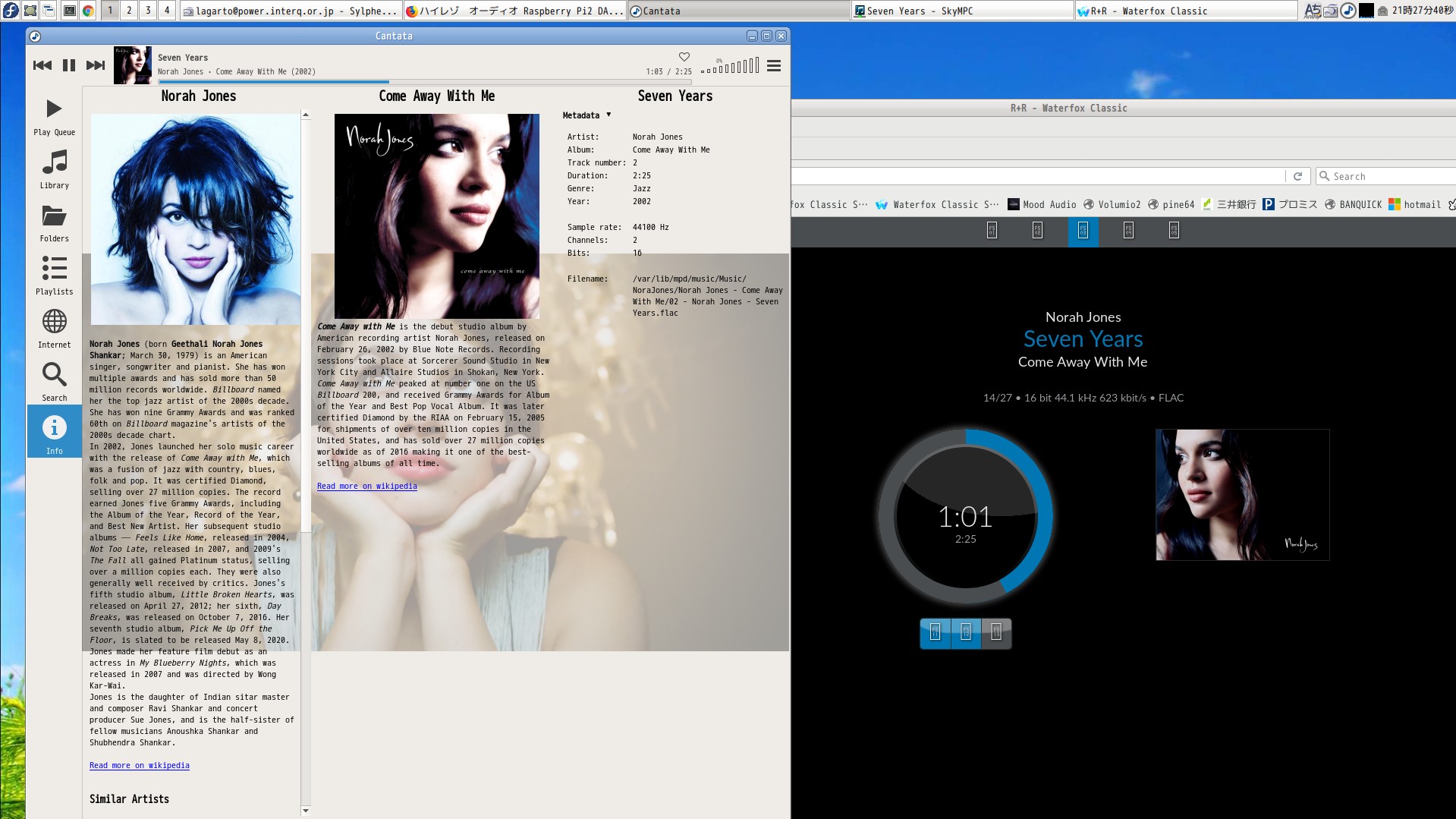

WEBUI  RuneAudio + SKMPC

Rune Audio + SKY MPC ,WebUI is very heavy to use so using by SKY MPC(mpd Client) .very useful for MPD Server



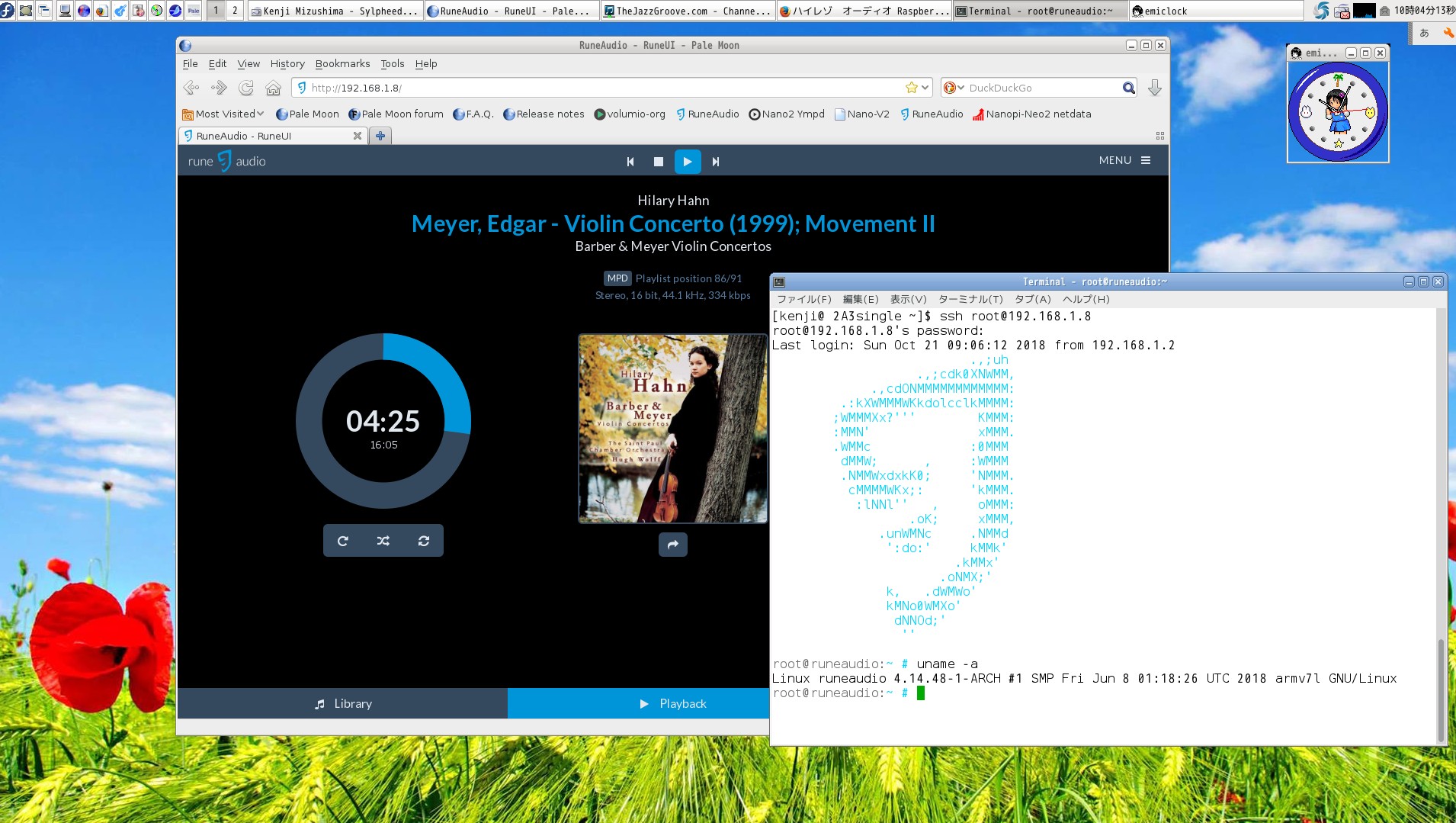

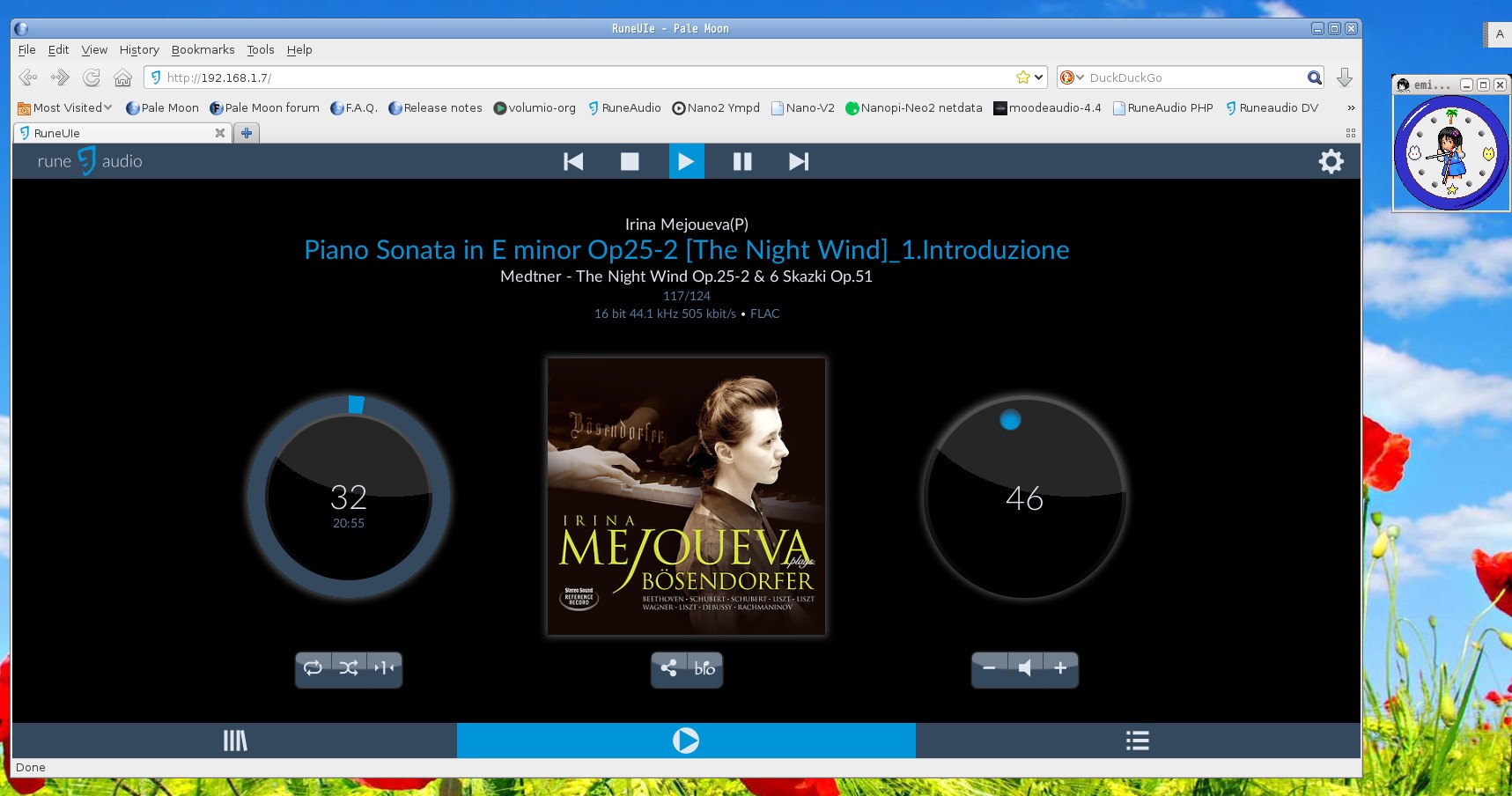

New RuneAudio mpd 0.20.18

RuneAudio mpd 0.20.18 on May 2018 and Play DSD as DoP nothing problem

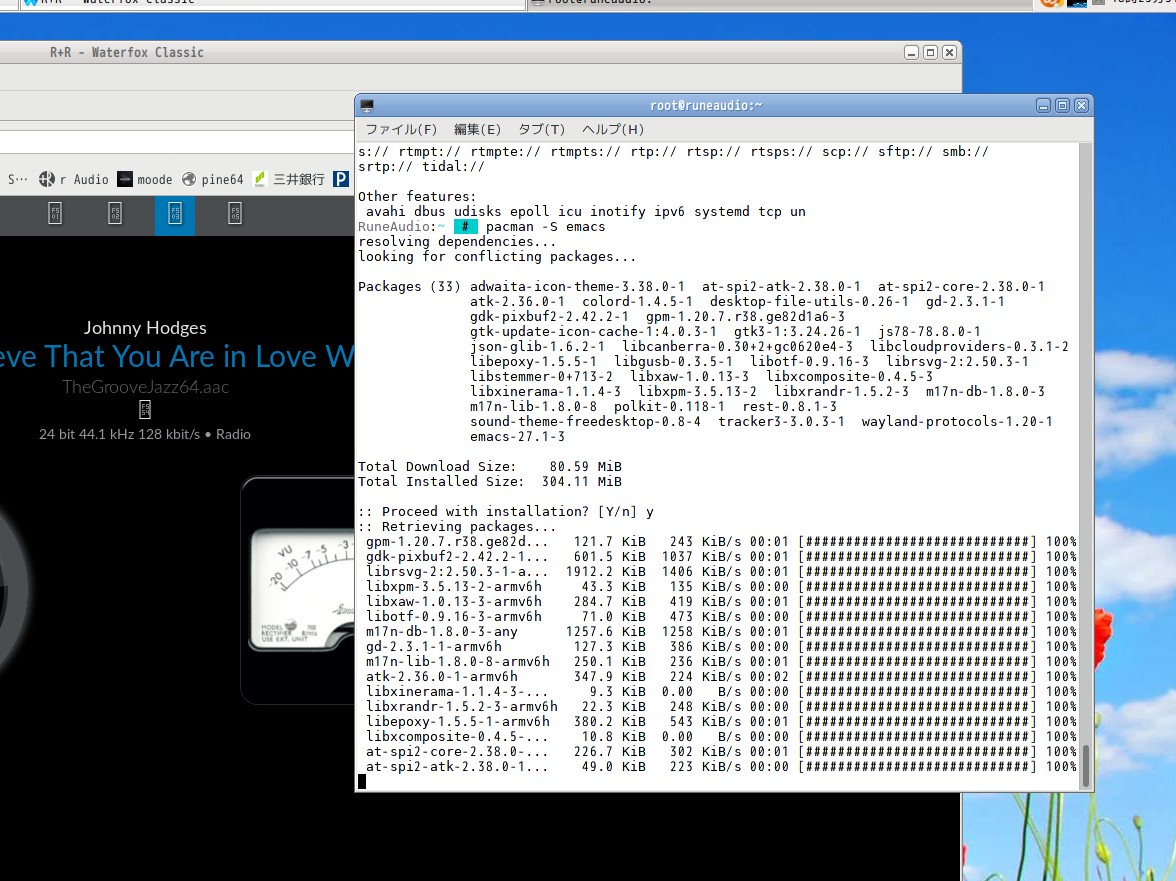

after add Addons option and update mpd you can use # pacman -Sy mpd for upgrade mpd



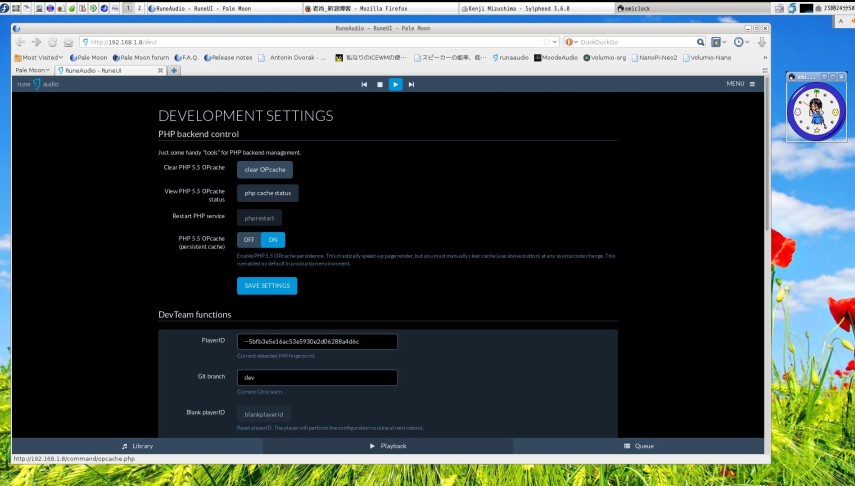

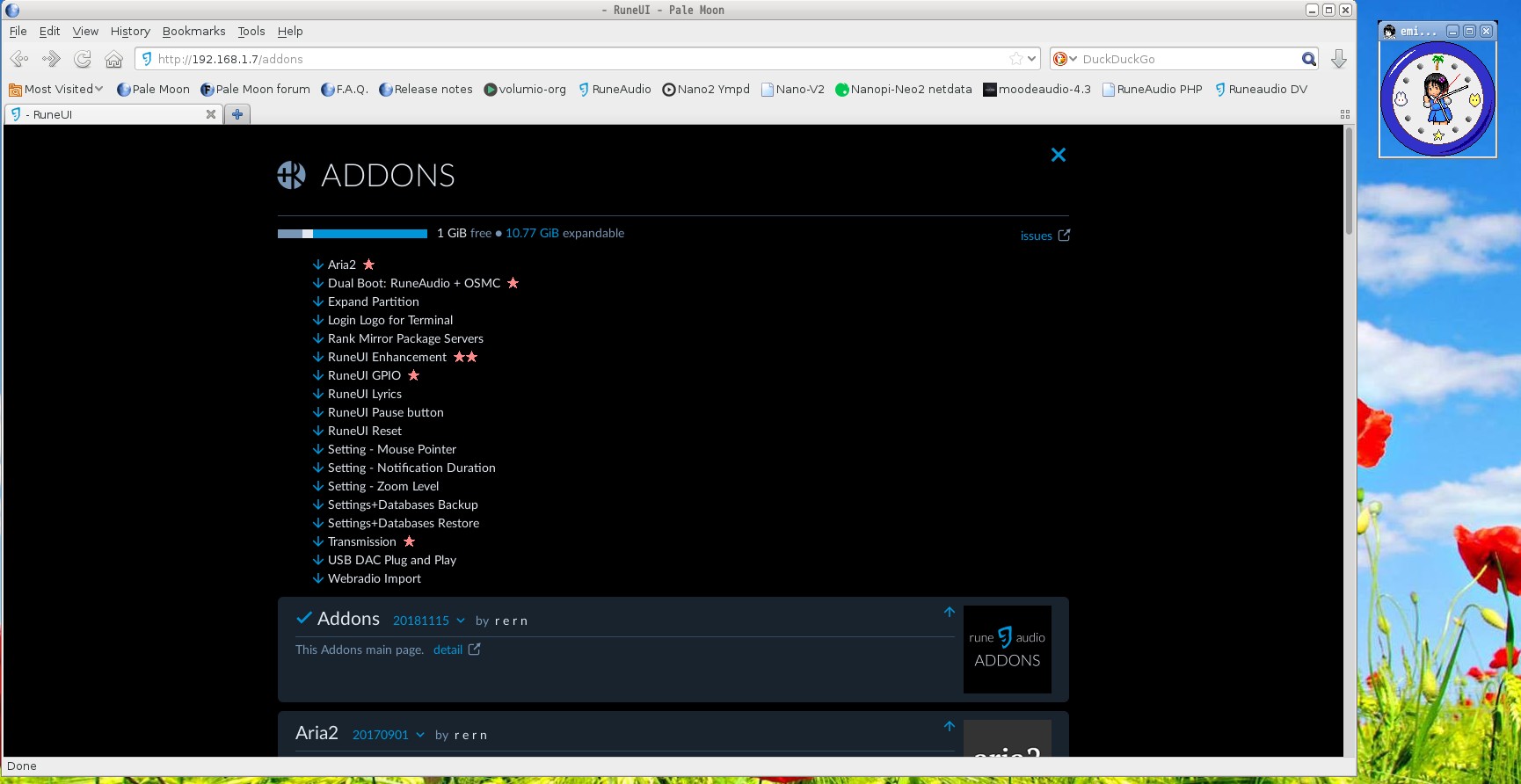

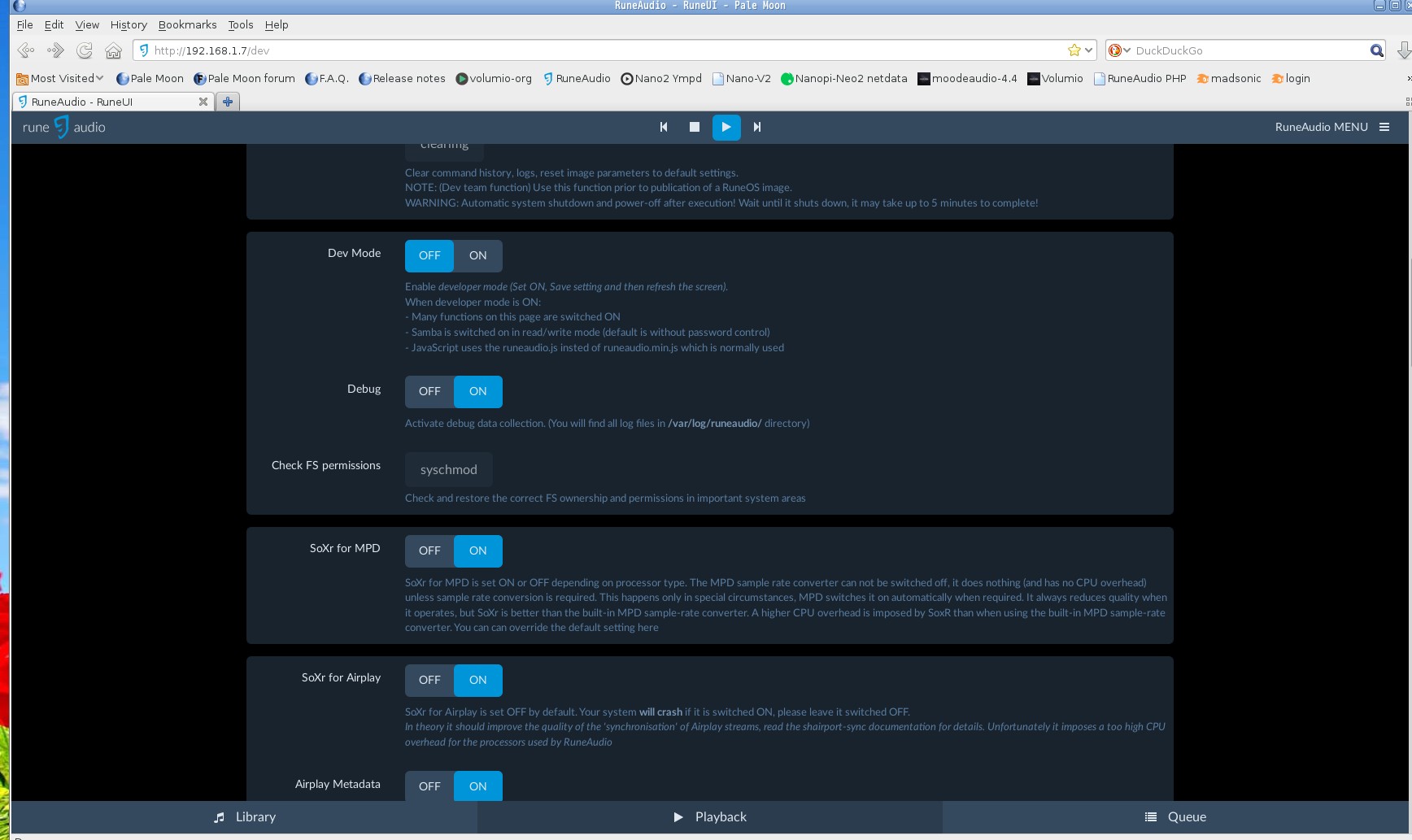

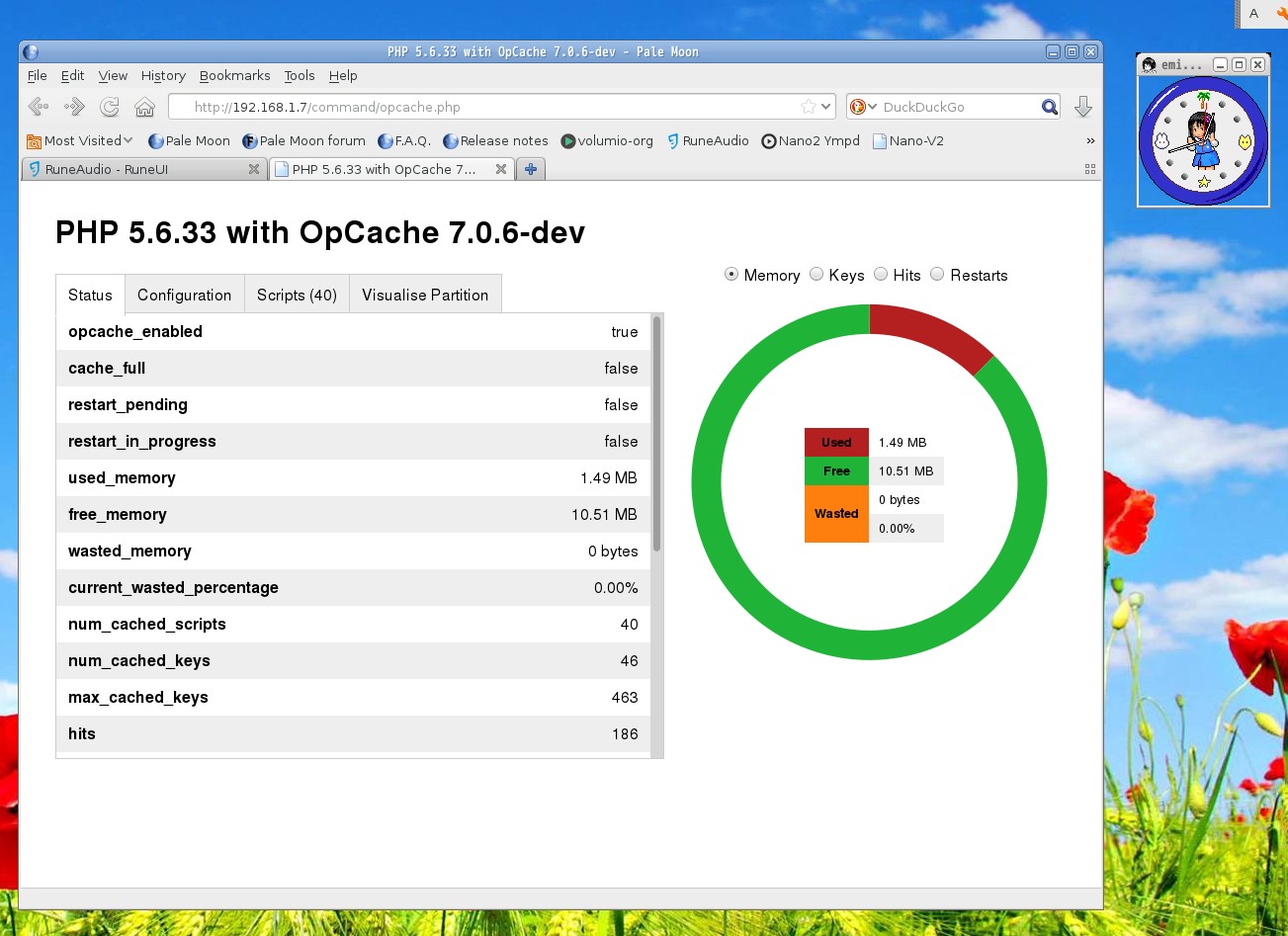

deveroper position

you can see add dev on webUI then you can see developer position





-----------------------------------------------------------------------------------------------------------
Mr Holriy 's Archives3rd Party Volumio 1.55 with Master Clock
**Mr Horly Web SiteNew Volumio 1.55 please see by tradiction site
this version does produce master clock so can use any DAC with I2S,detail is ,,,will you visit his site please but only Japanese .
this volumio has much option include indicate IP by LCD.left justfi 24bit etc.Master Clock put out from GPIO4.he said any kind of DAC will be get sound.

and Raspberry Pi from

Raspberry Pi

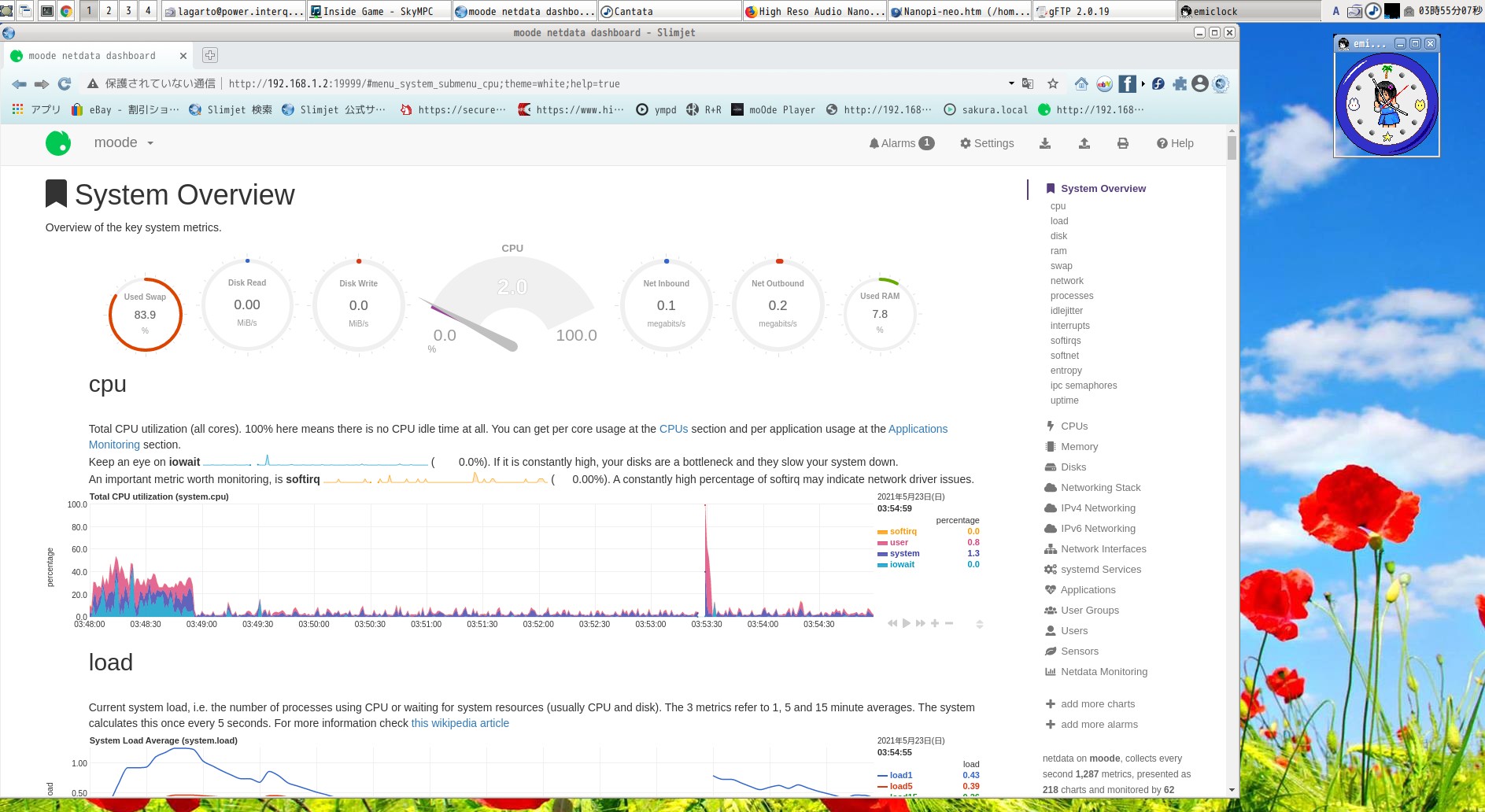

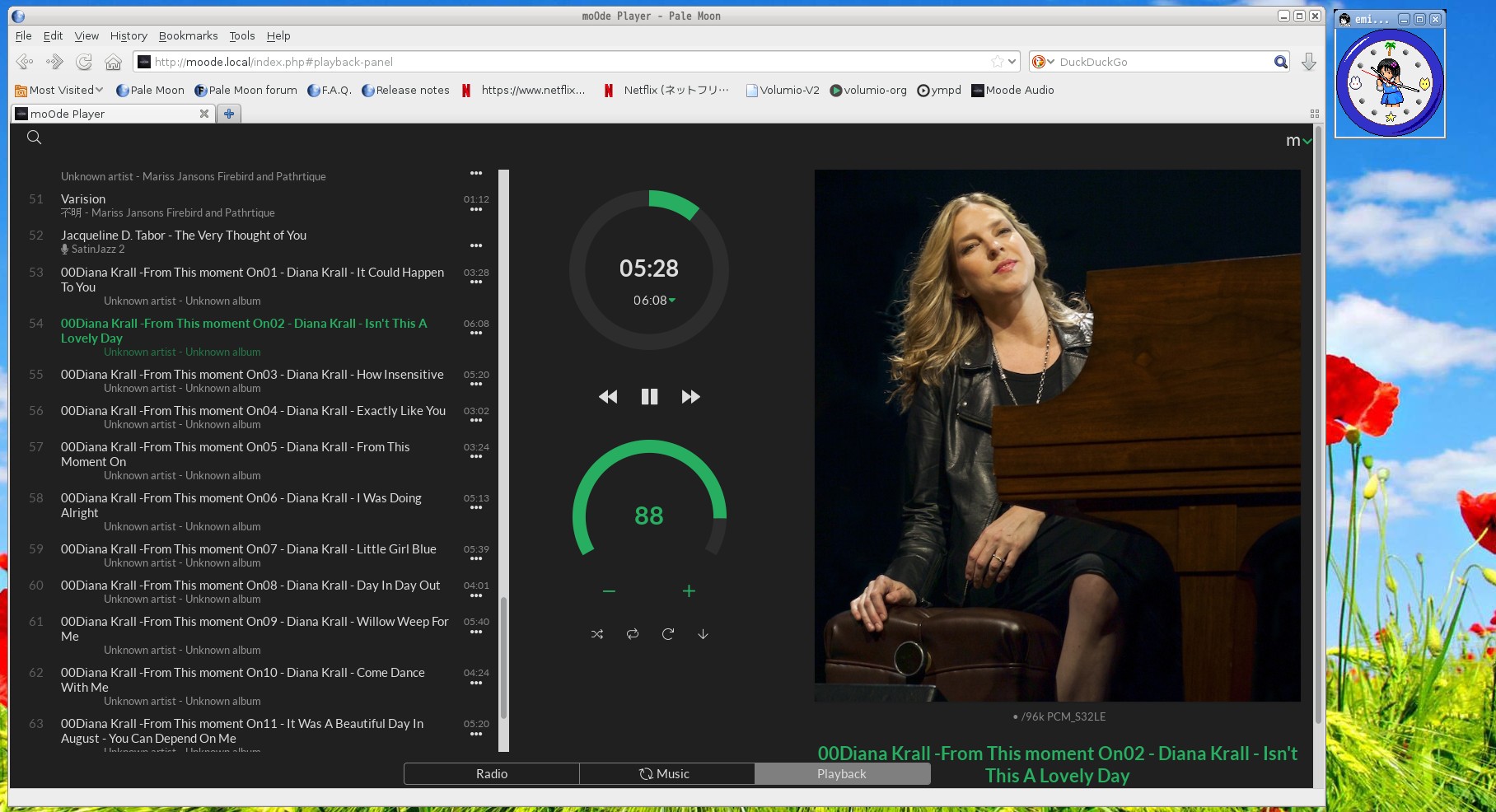

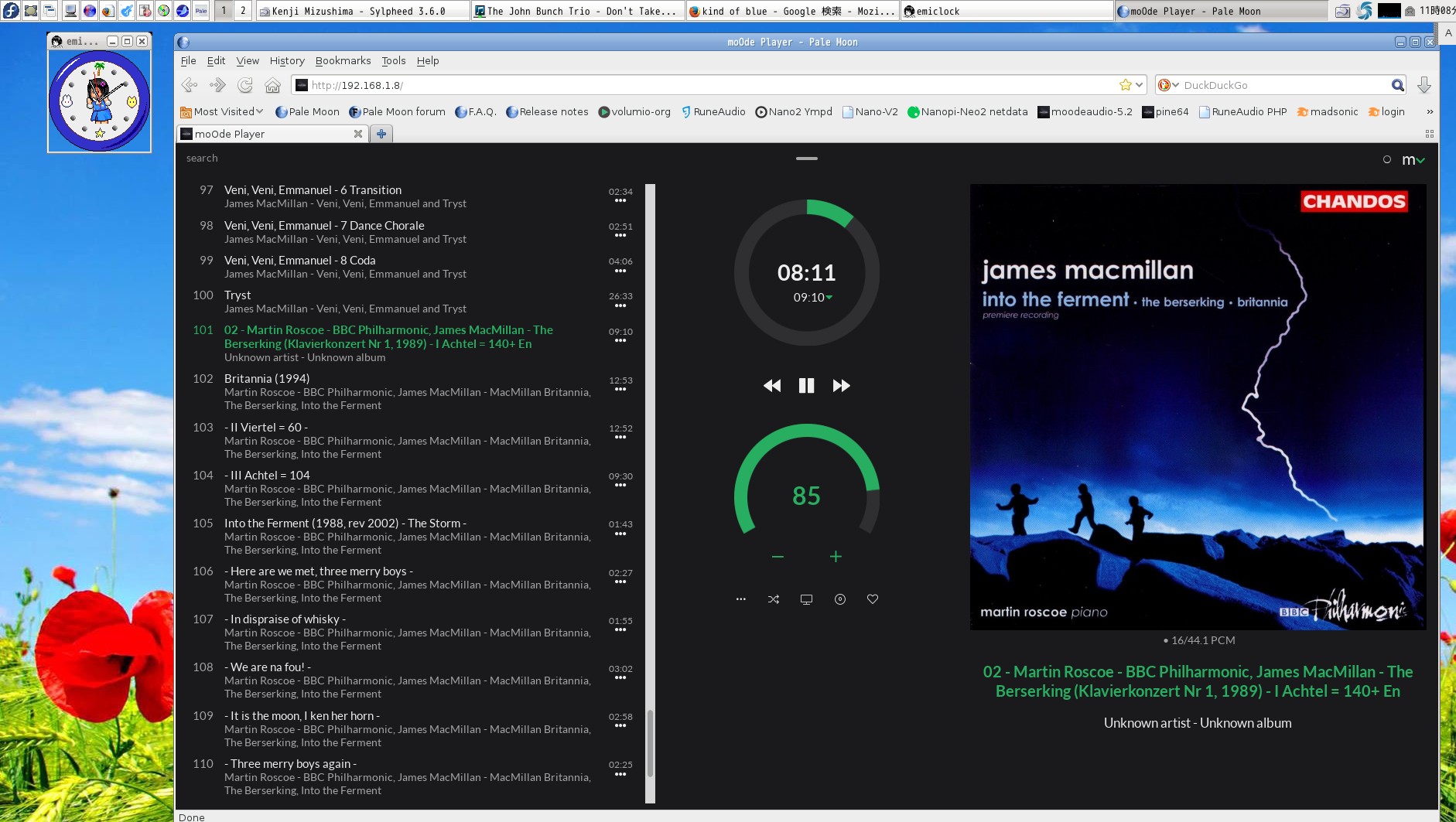

Introduce MOODE Audio Player
mood

This is other side of Volumio and RuneAudio..Call it's MOODE AUDIO for RaspberryPi .Down load is MOODE AUDIO
just like Rune Audio.some one said very stable.forum is Here is Moode-Audio

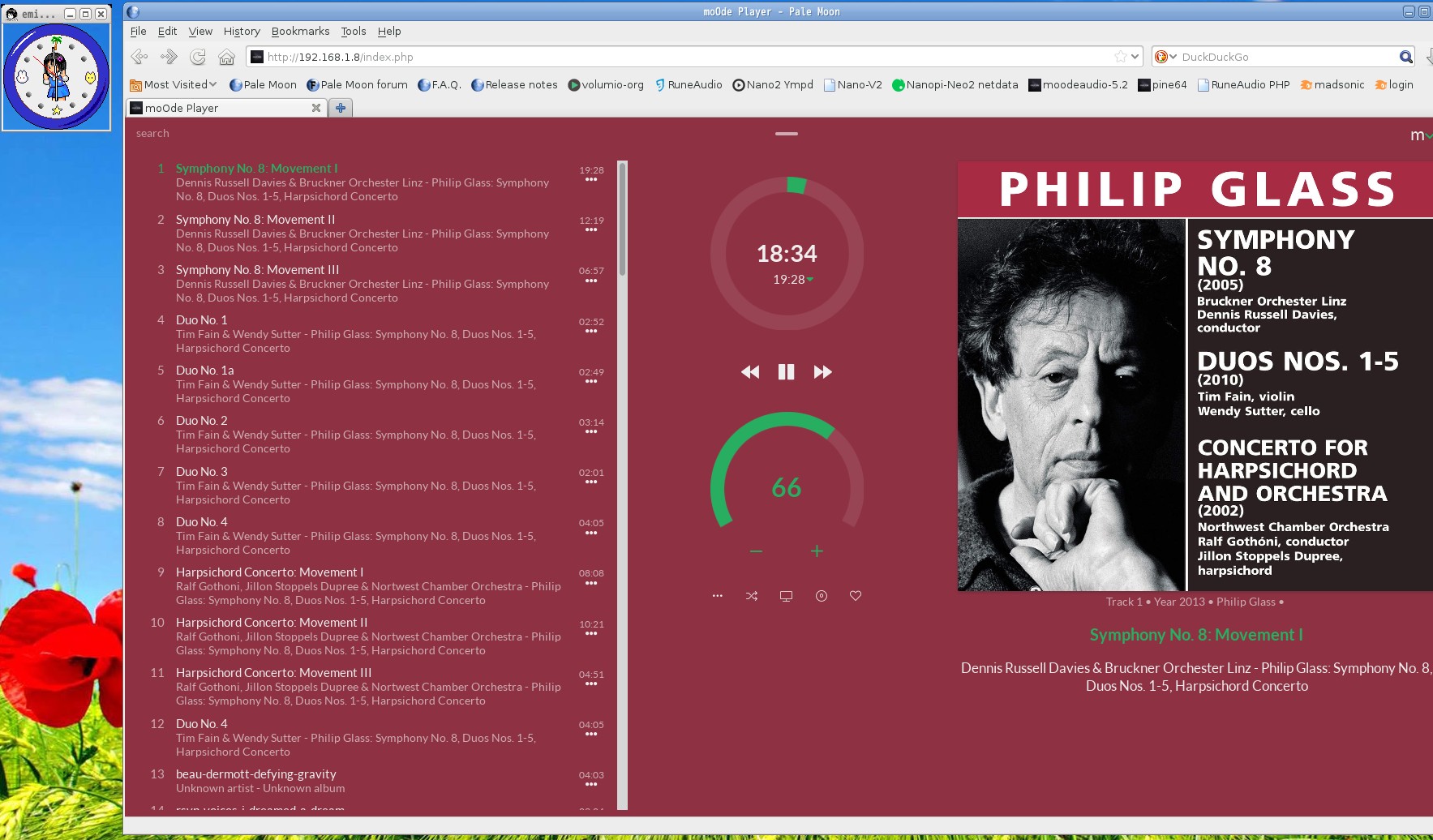

Moode Raspberry pi

sound is quite good and can play DSF too but can not access by ssh so just kind of music player for raspberry Pi much better RuneAudio

Both type of Volumio holy(Japanese) and moode are same family is not stable.can do reproduce DSD64 .this moment only 1.55 of Volumio is stable to use.

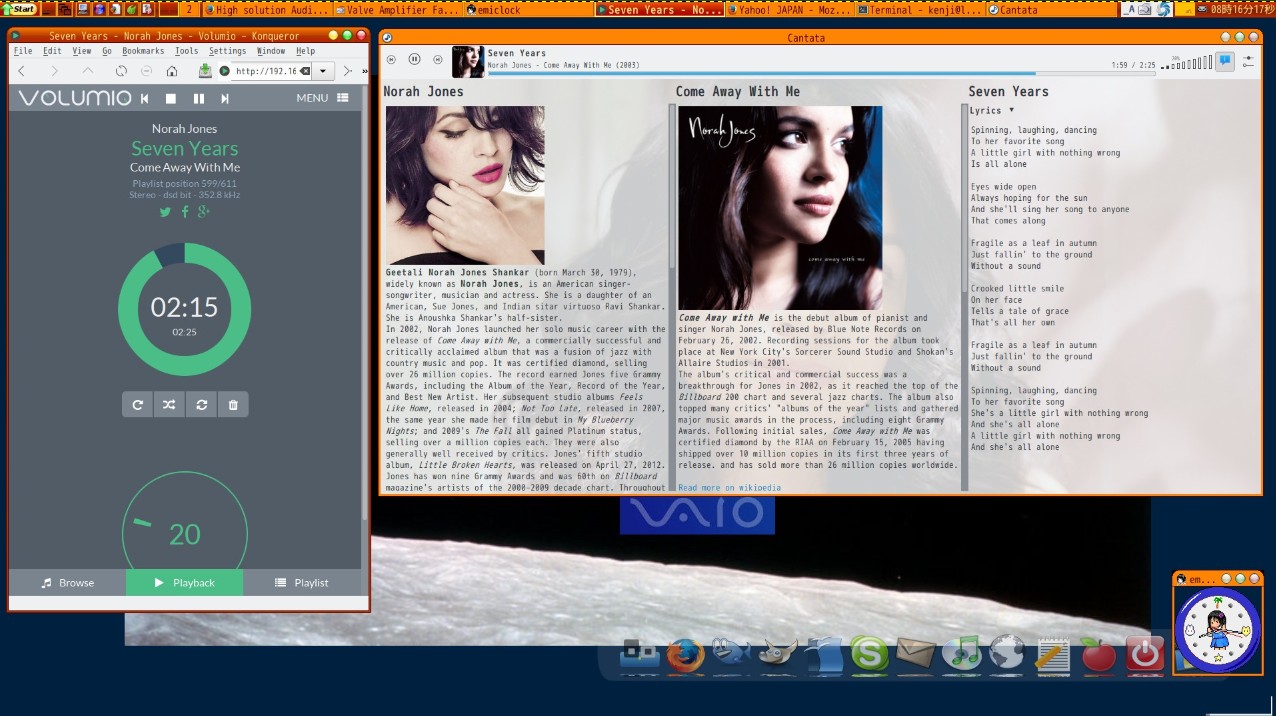

But these DSD are as under DoP(PCM) . DSD convert PCM(DoP).

moode old version

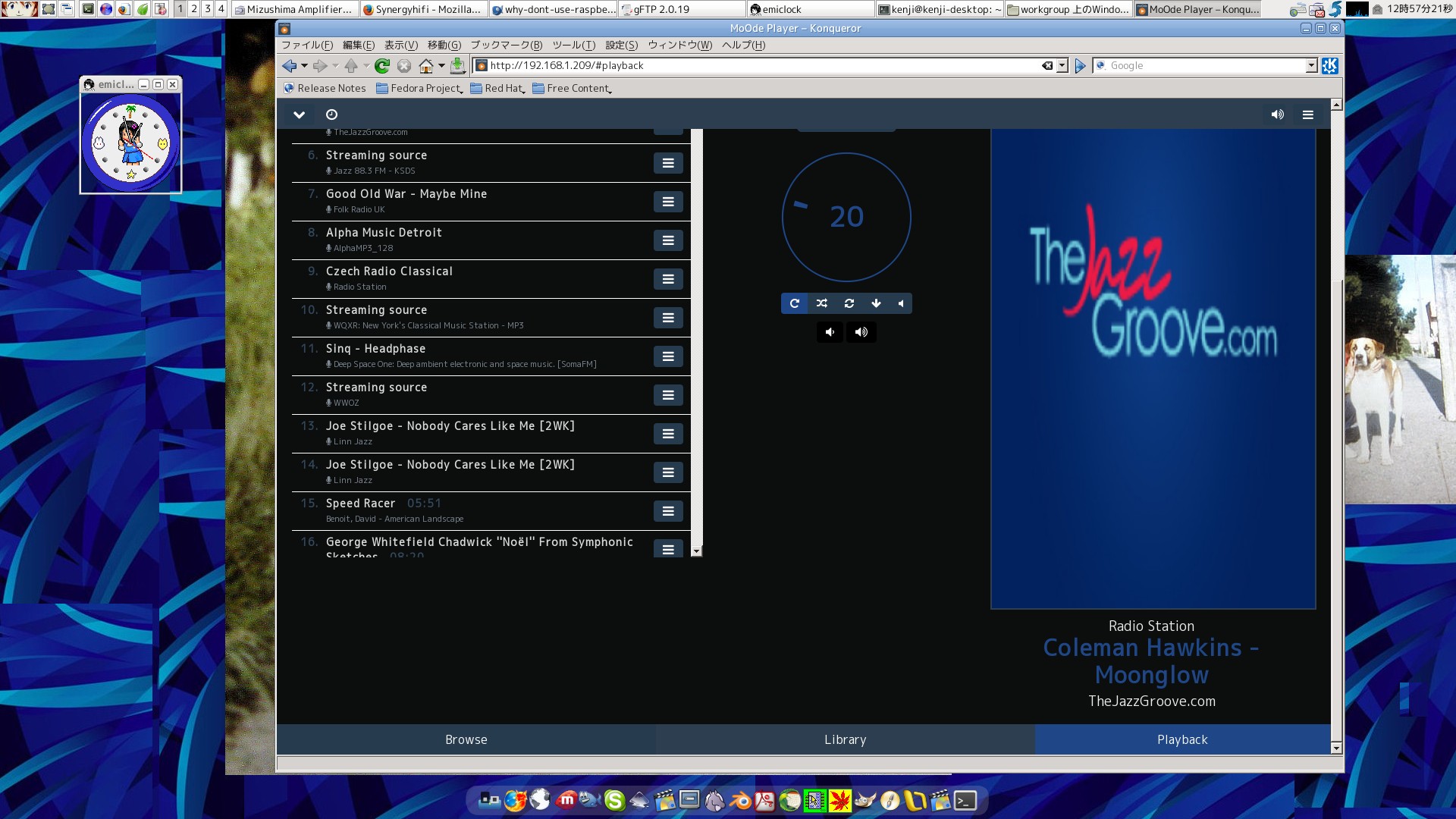

Old version of MoodeAudio 2 by Tim Curtis on 2015 June still work fine 2018

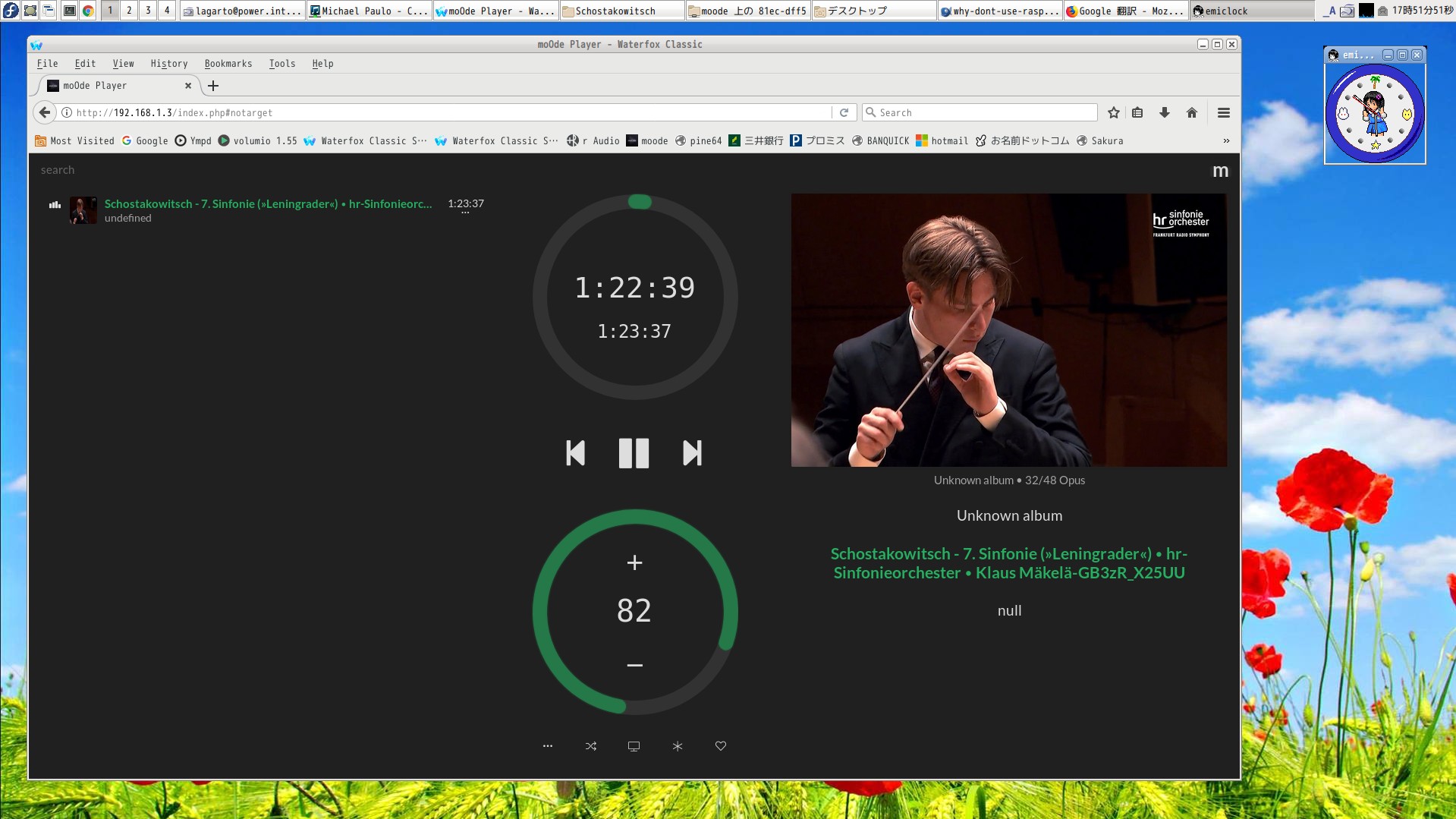

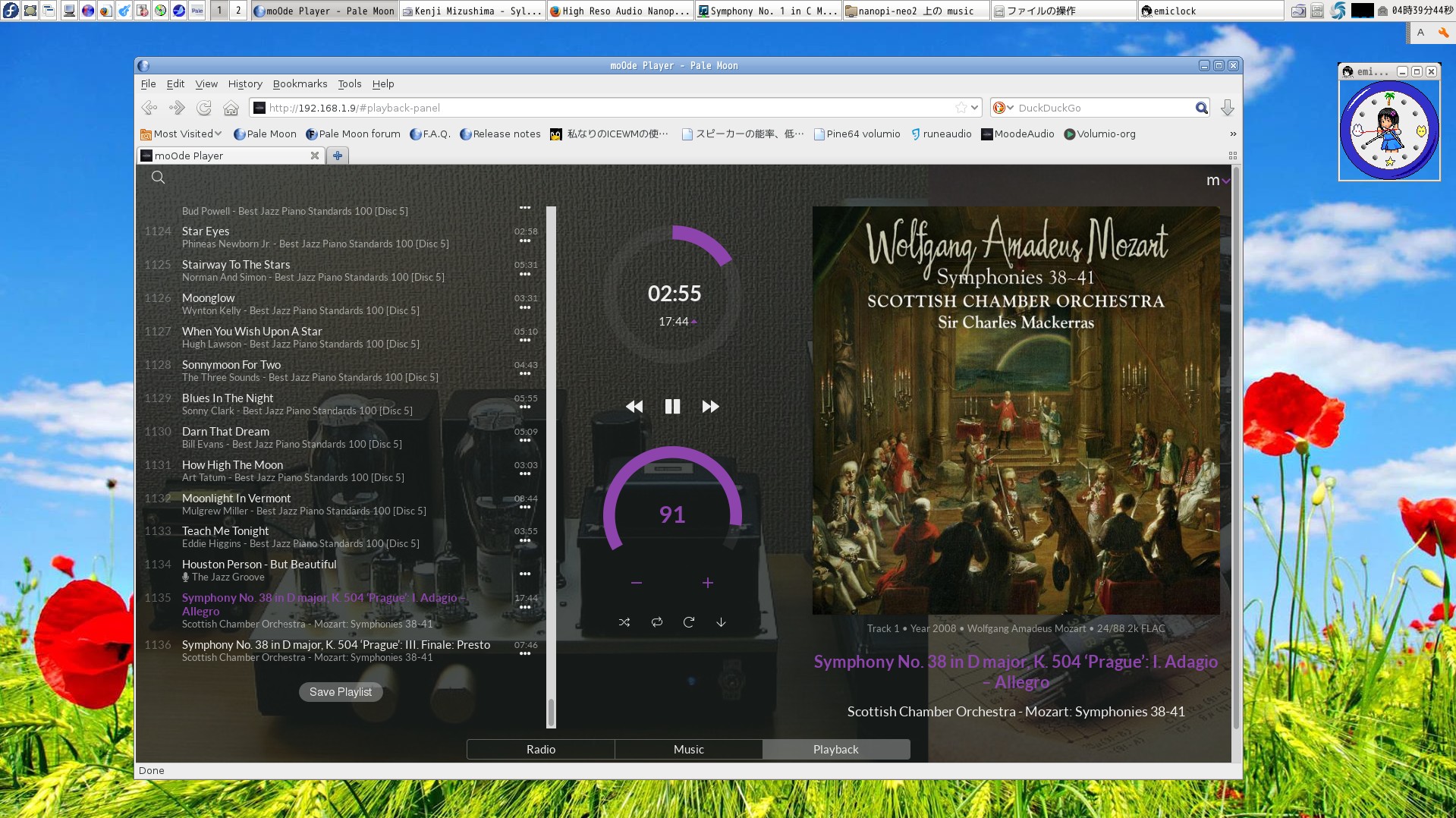

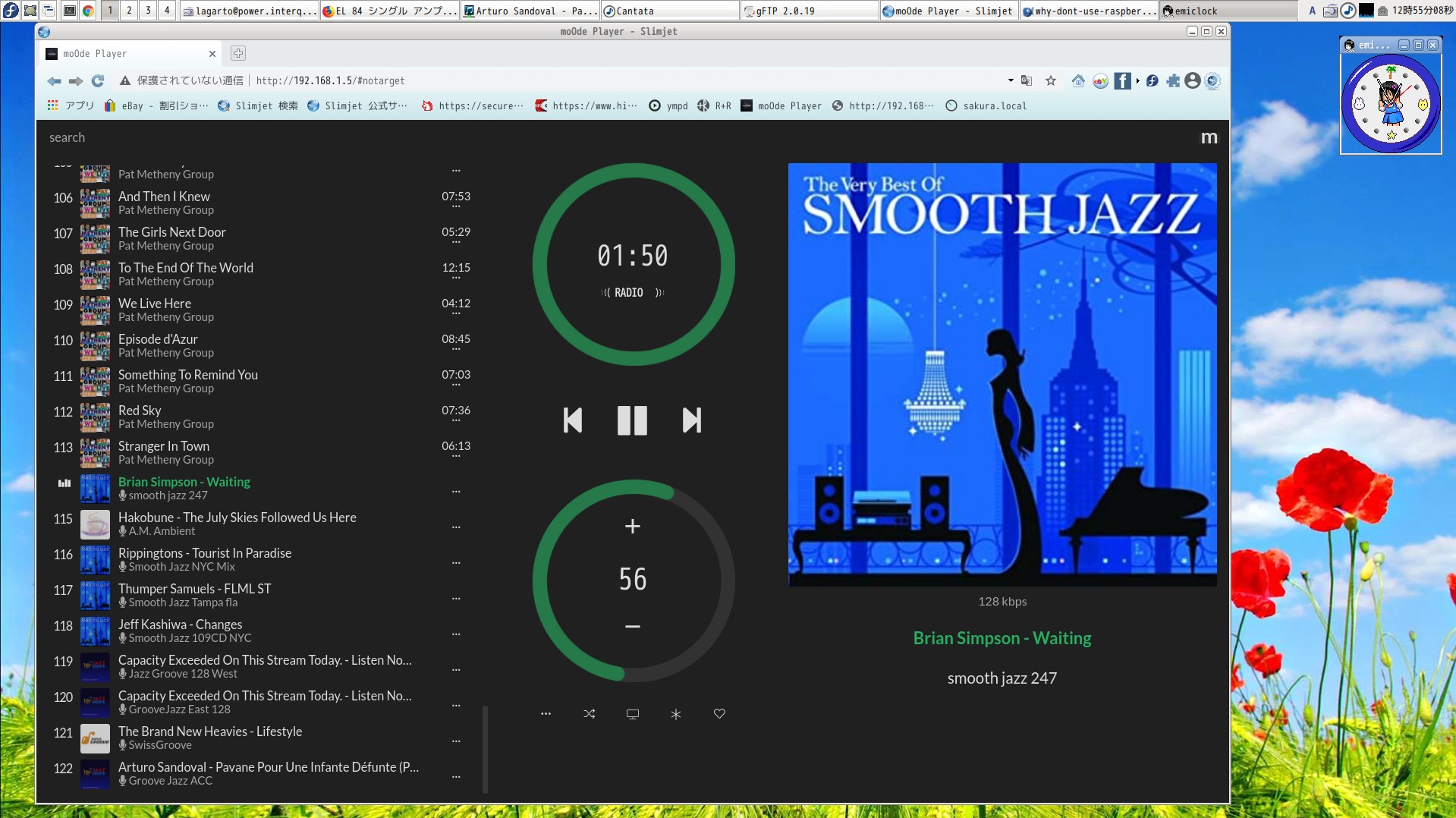

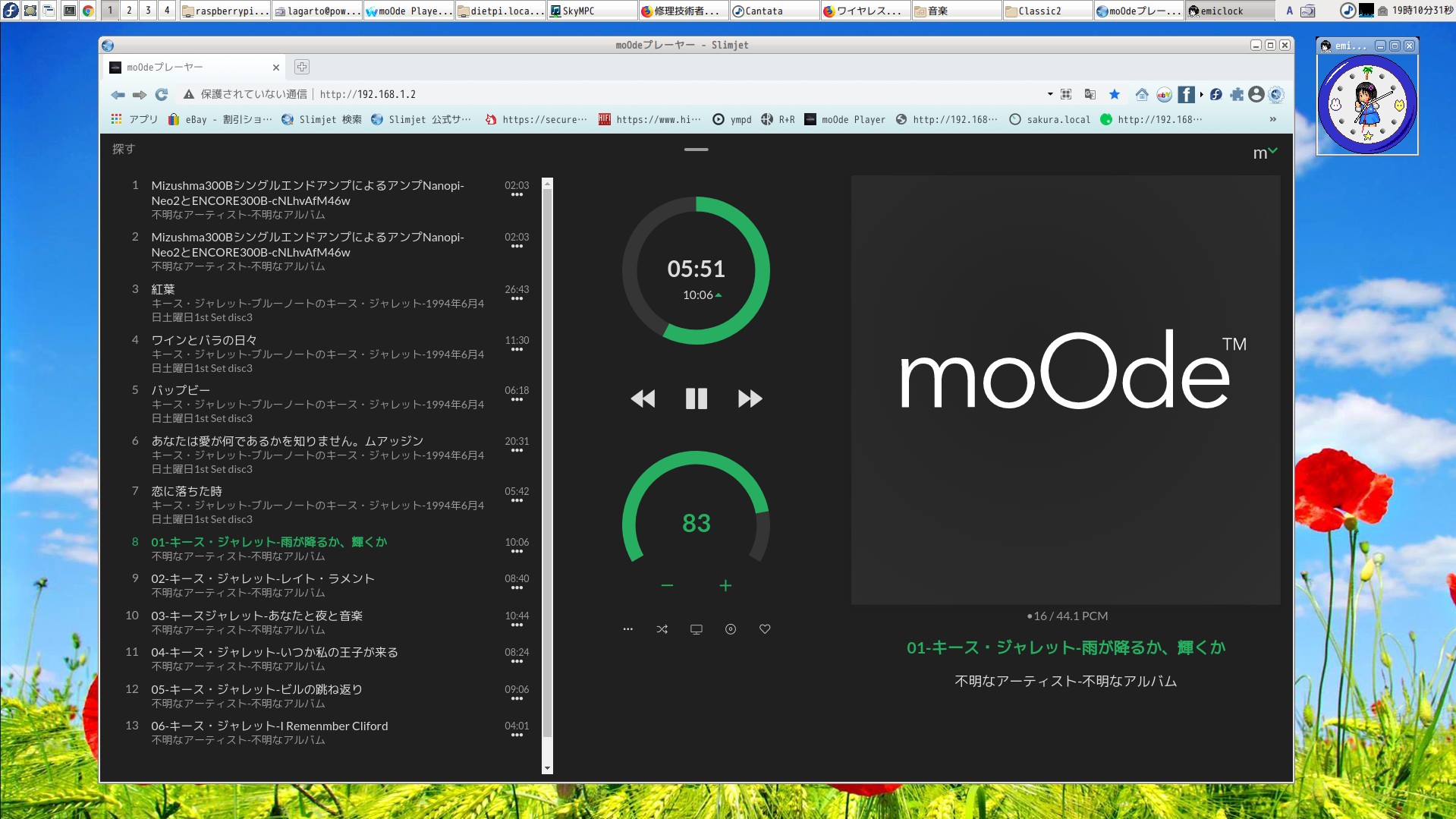

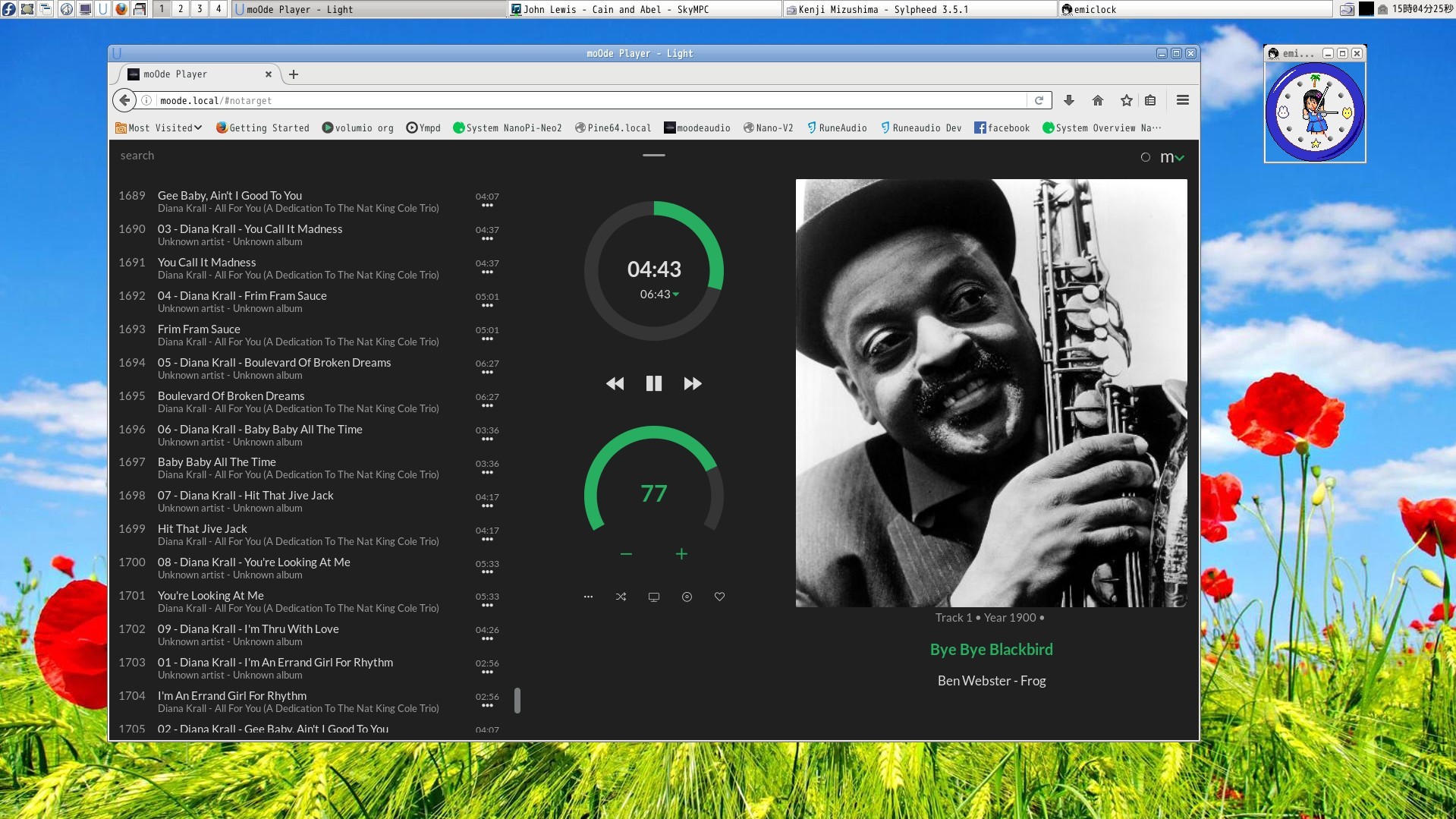

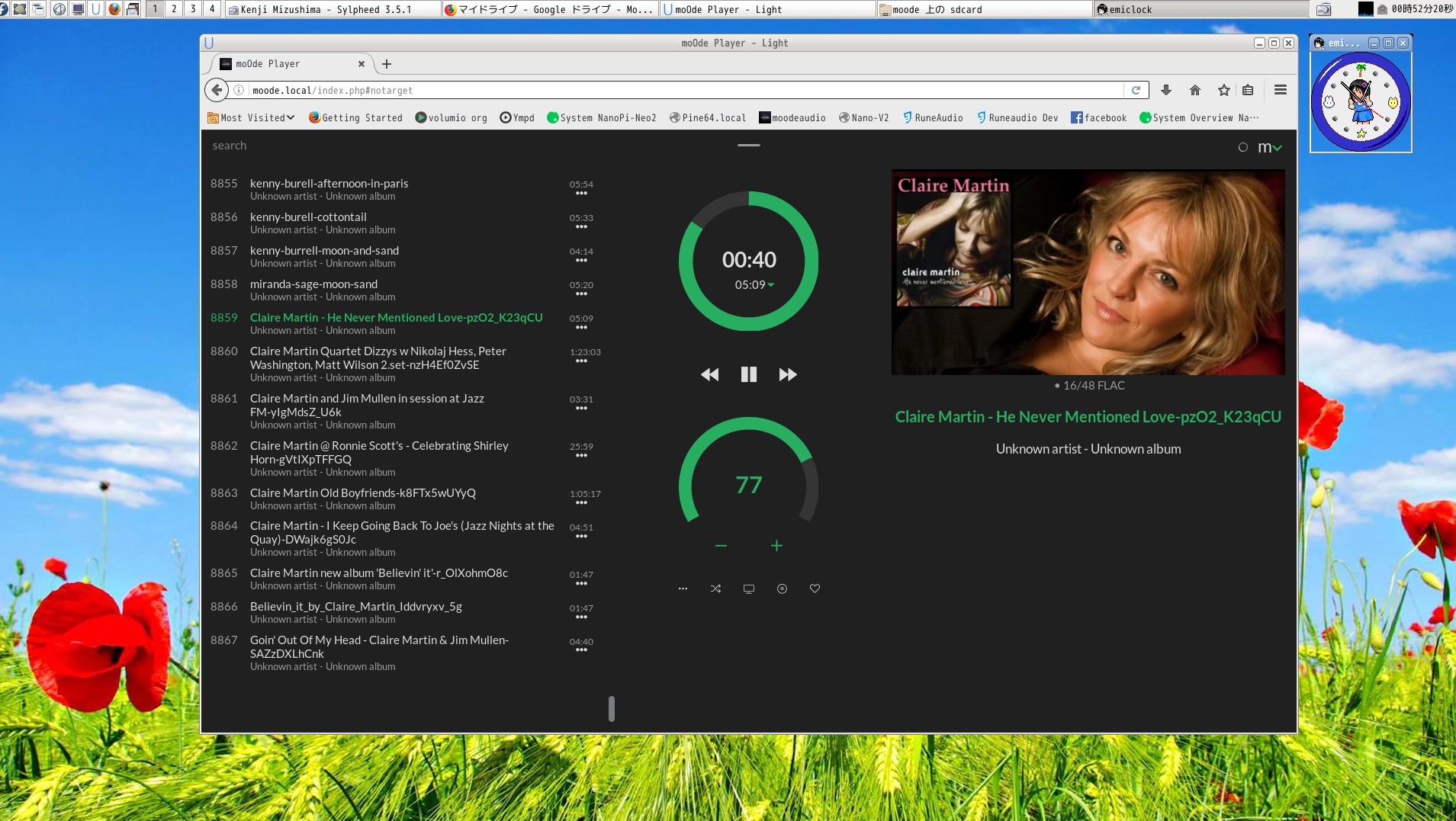

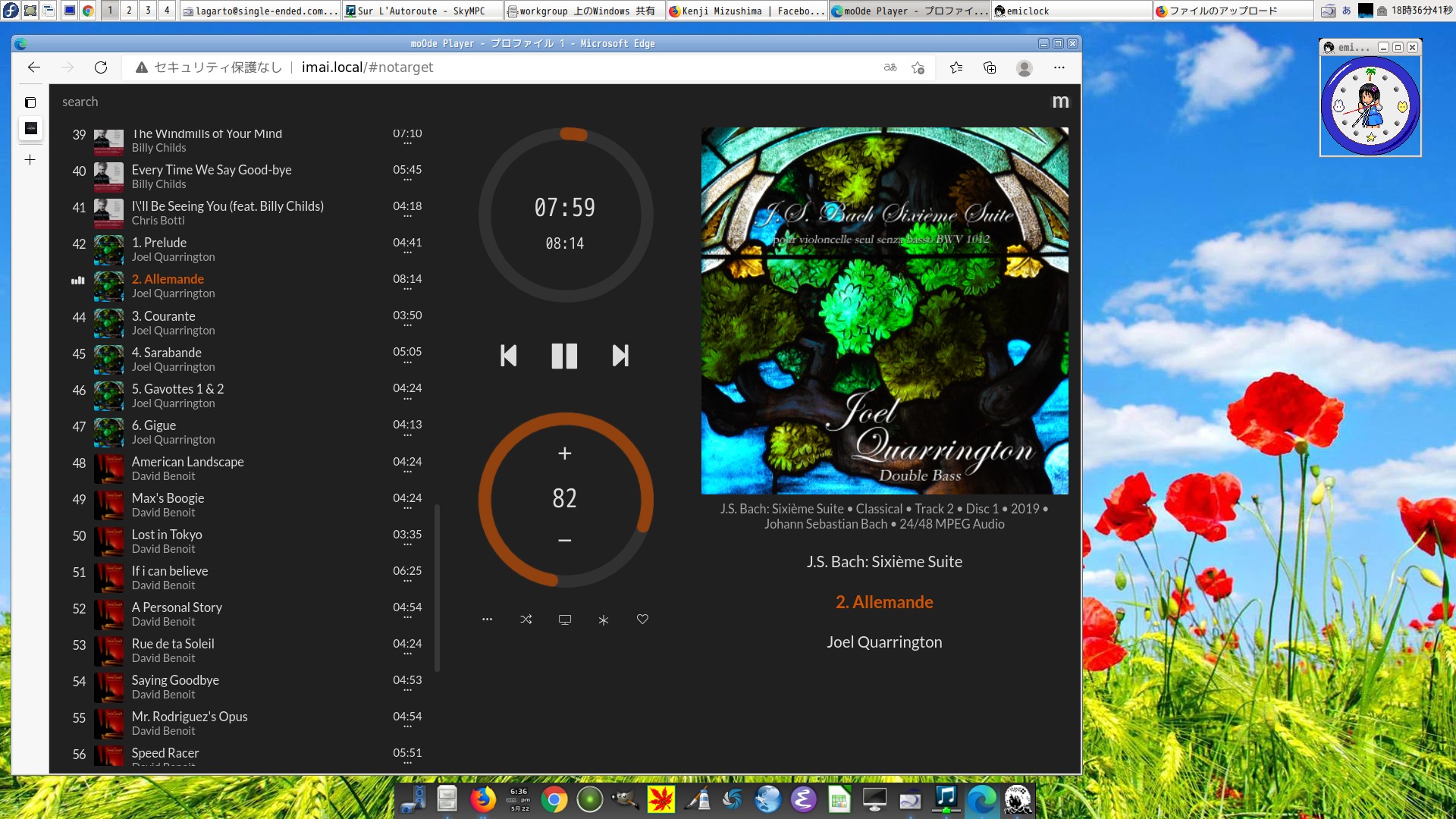

Moode Audio to get good sound on 2018 May
Moode Audio

To Get much more Good Sound



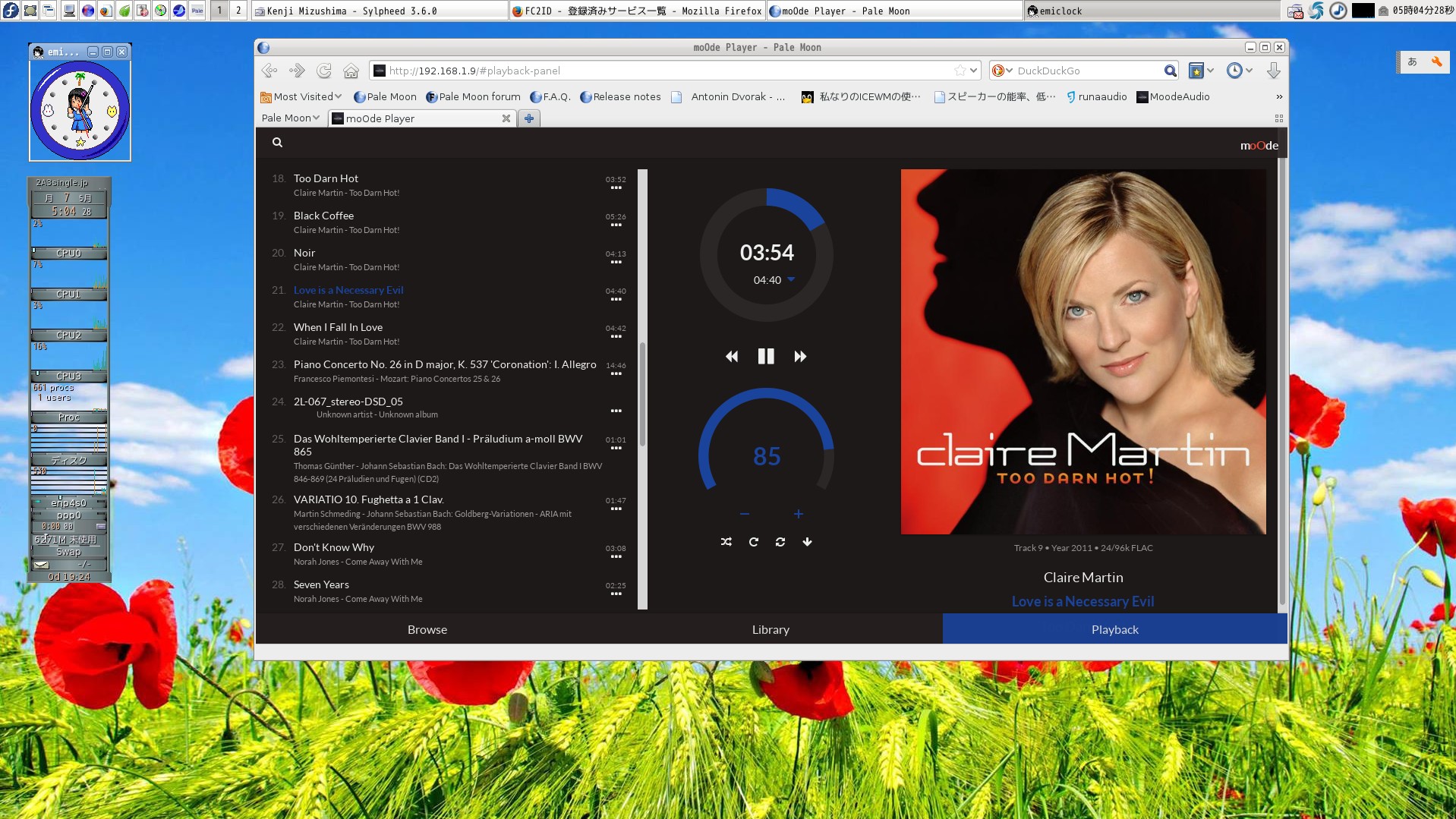

moodeaudio 4X 2018 May

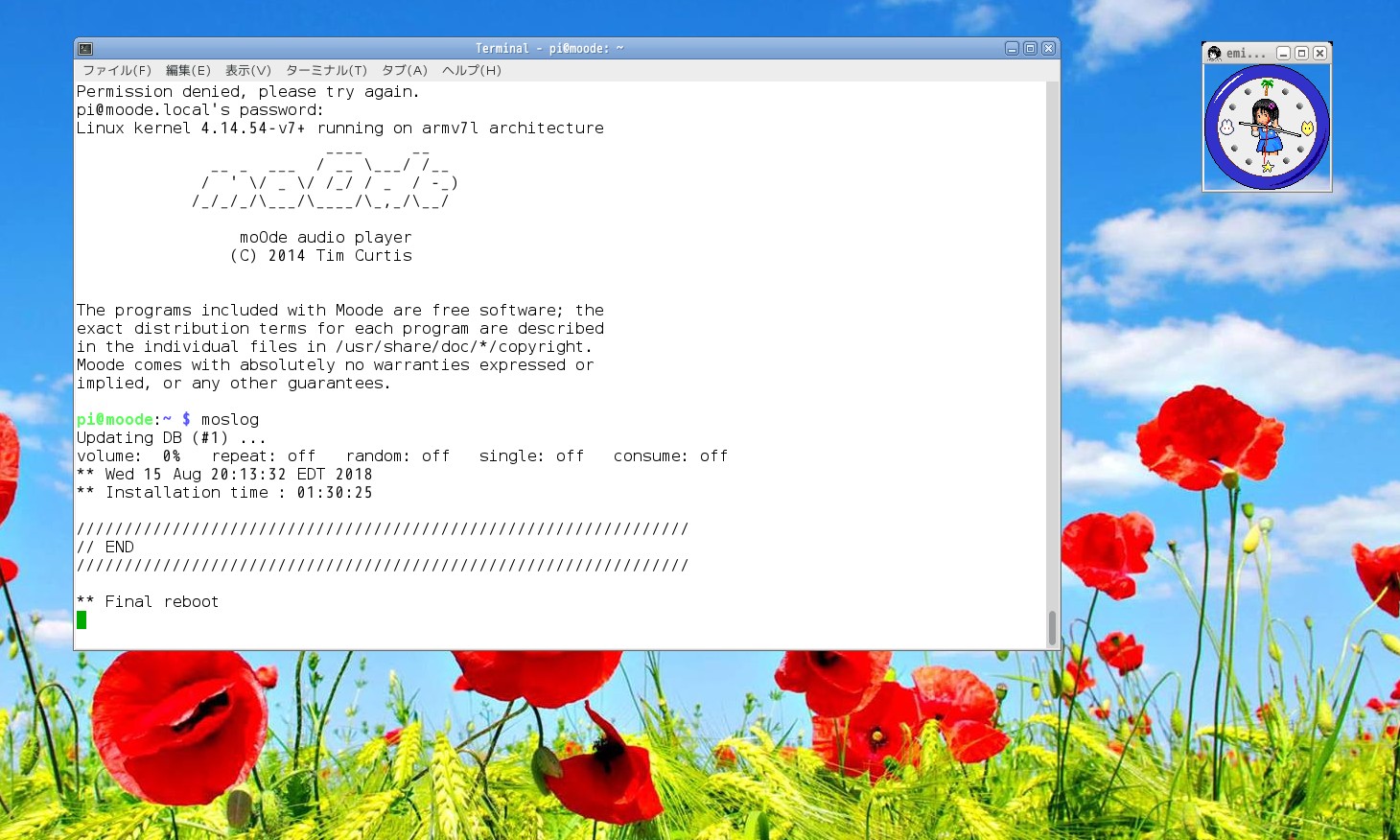

Install is quite easy but need a couple of hours for installation ,sound is just same as volumio2



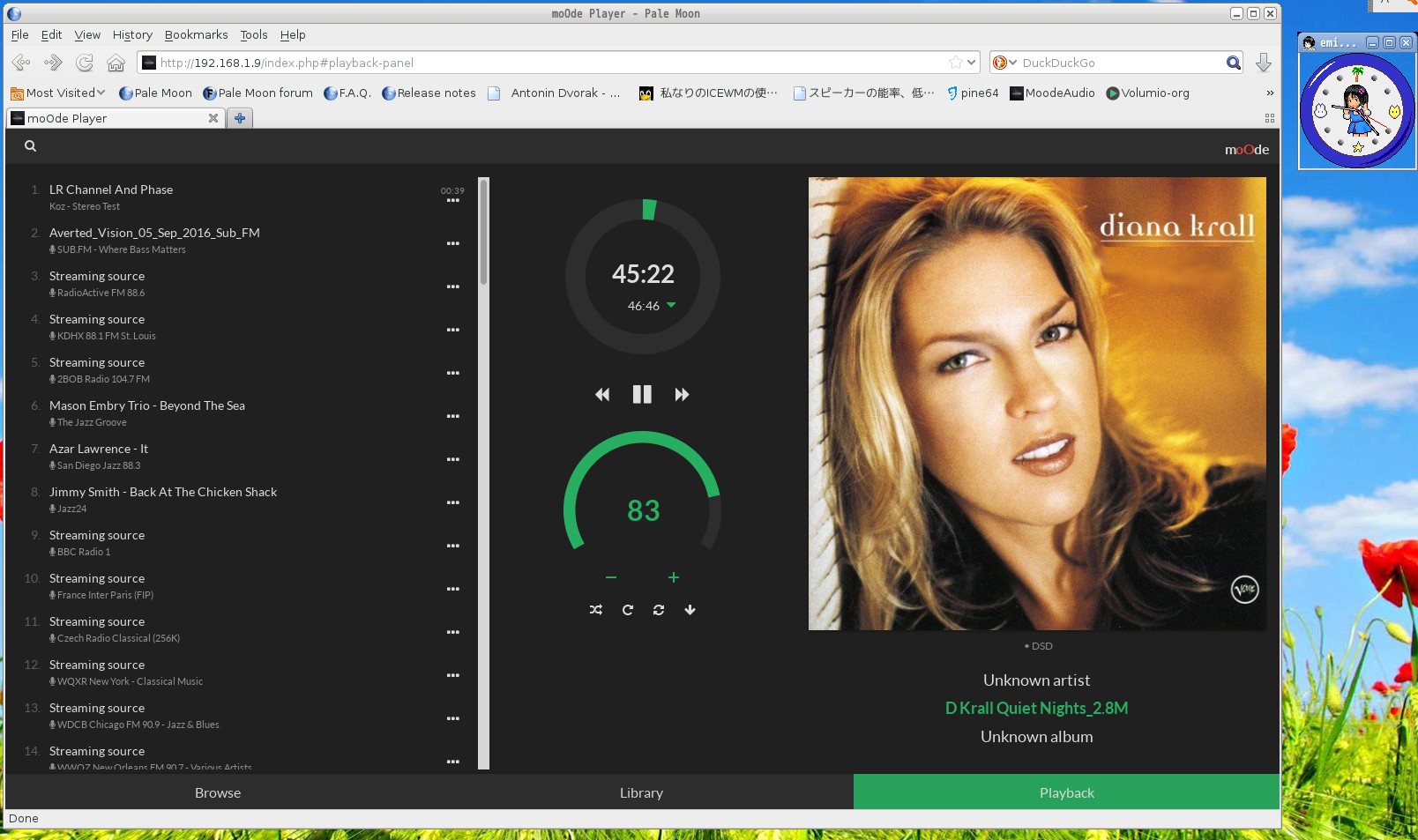

Play DSD -->> DoP

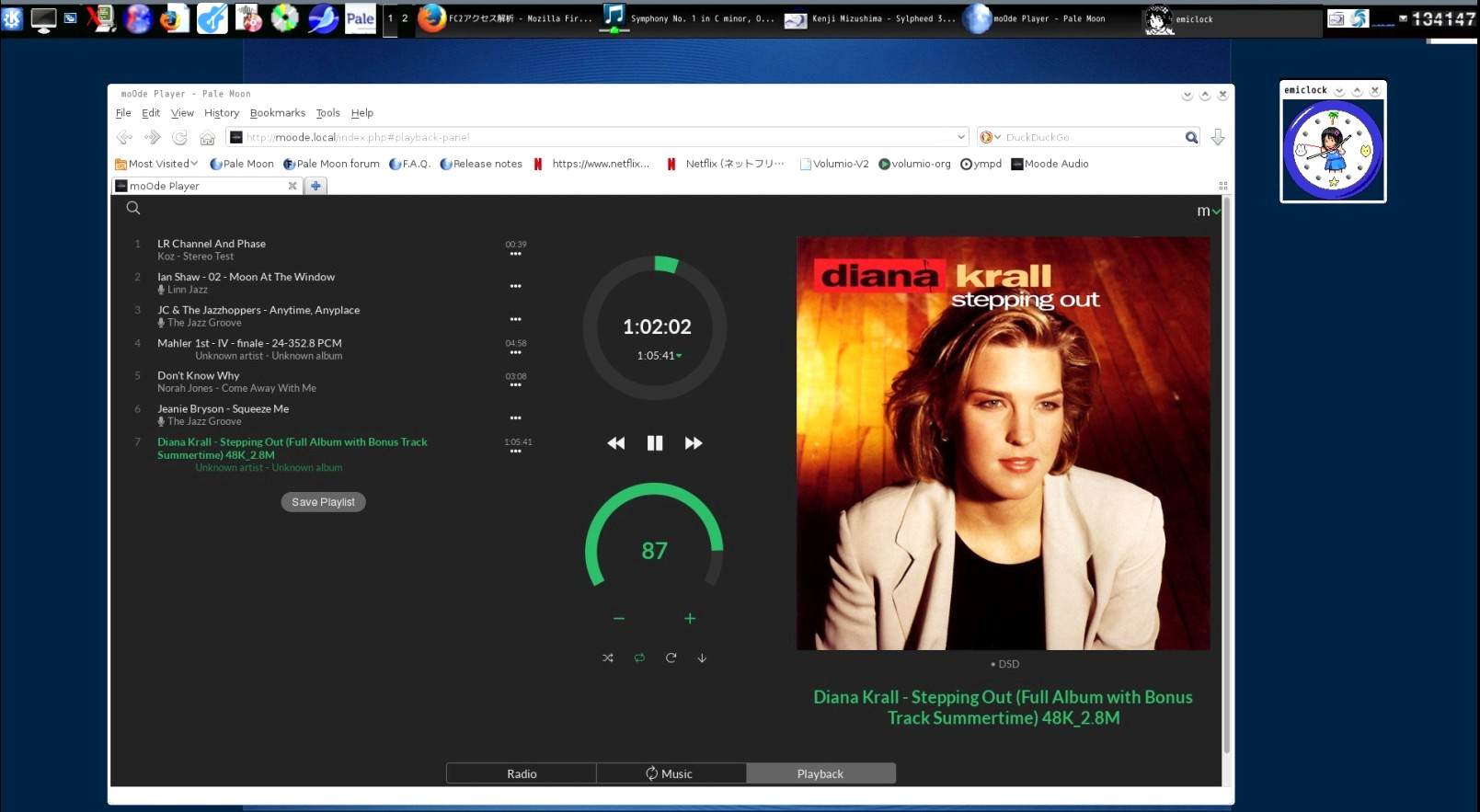

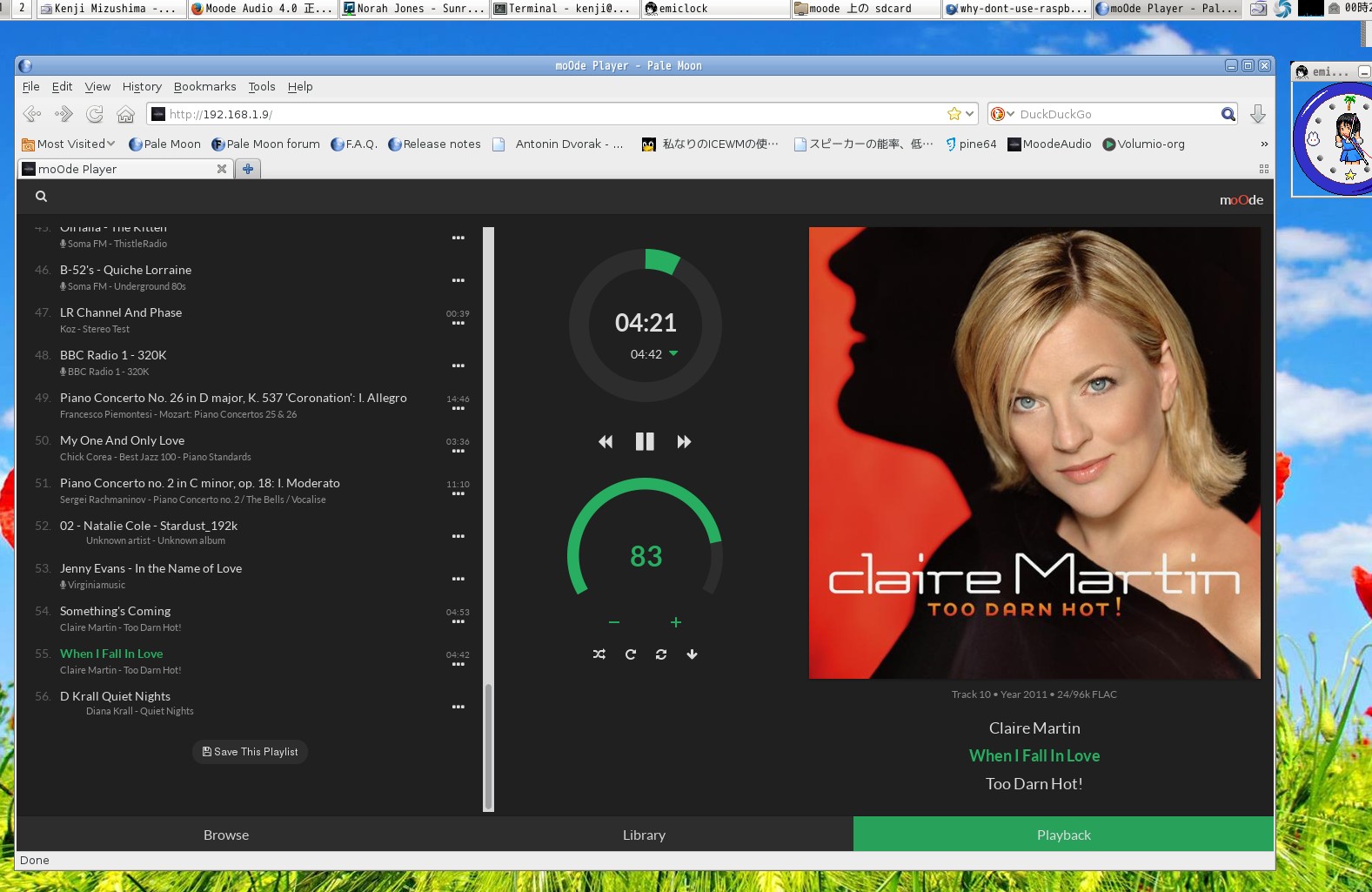

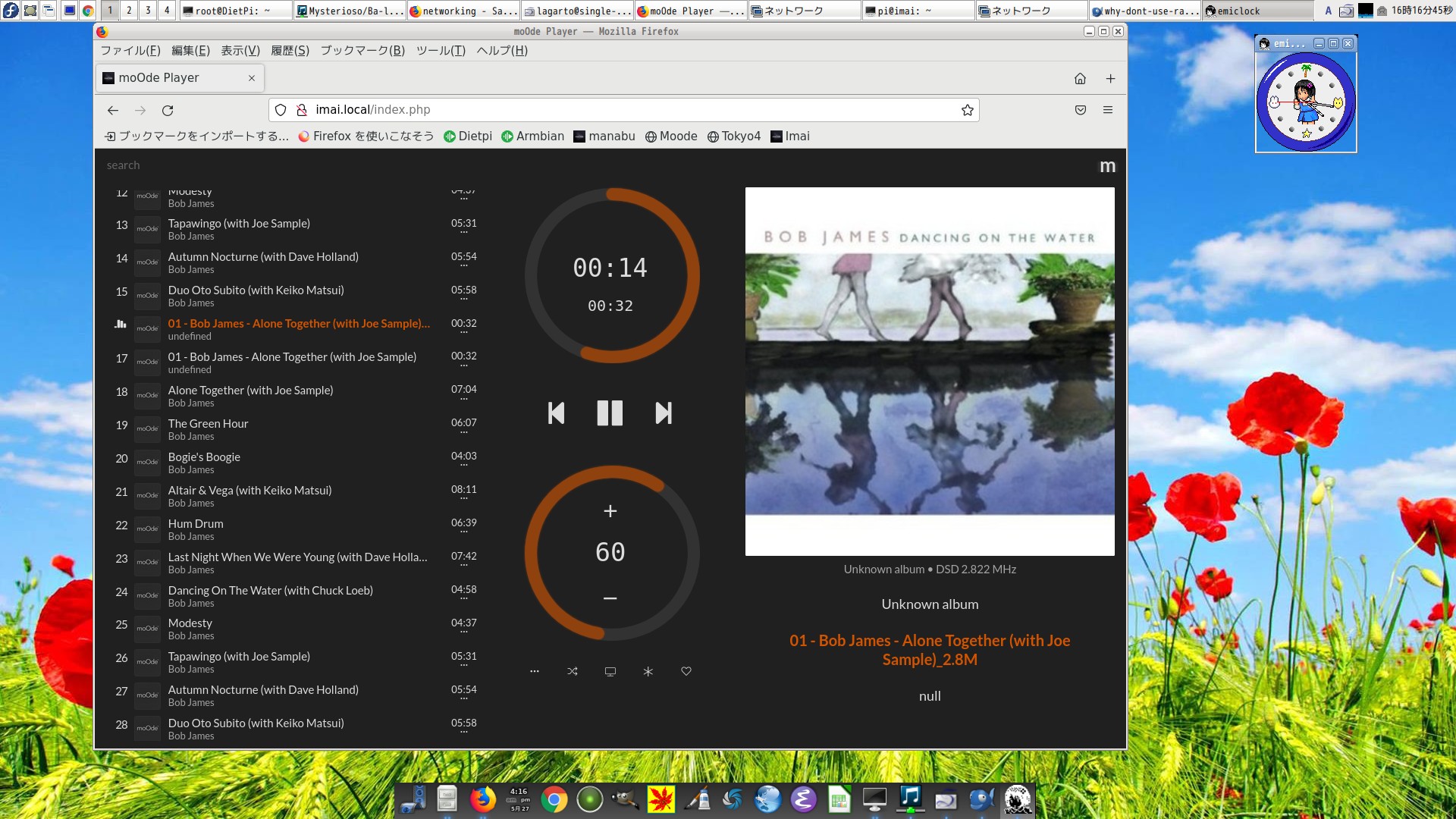

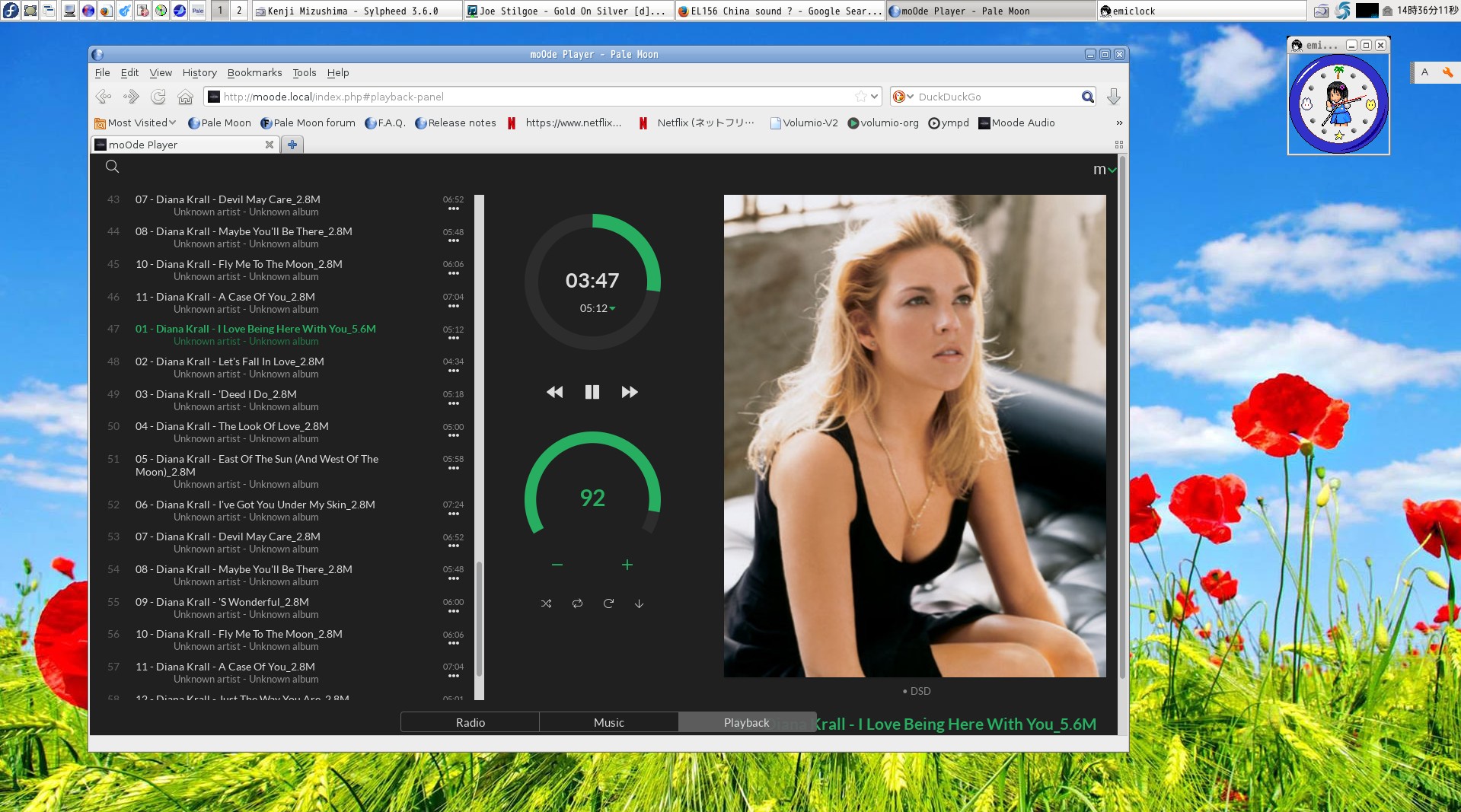

DSD as Dop Play by MoodeAudio 4.0 on 1st May 2018 ,,just fine depend on DAC




Note : if you can not mount NAS on MoodeAudio 4.0 please try to use next text line by command line by ssh on terminal
if do you have same on LAN line working some small Music Server or NAS is very important .MoodeAudio access to Volumio2 (small server)on same LAN.

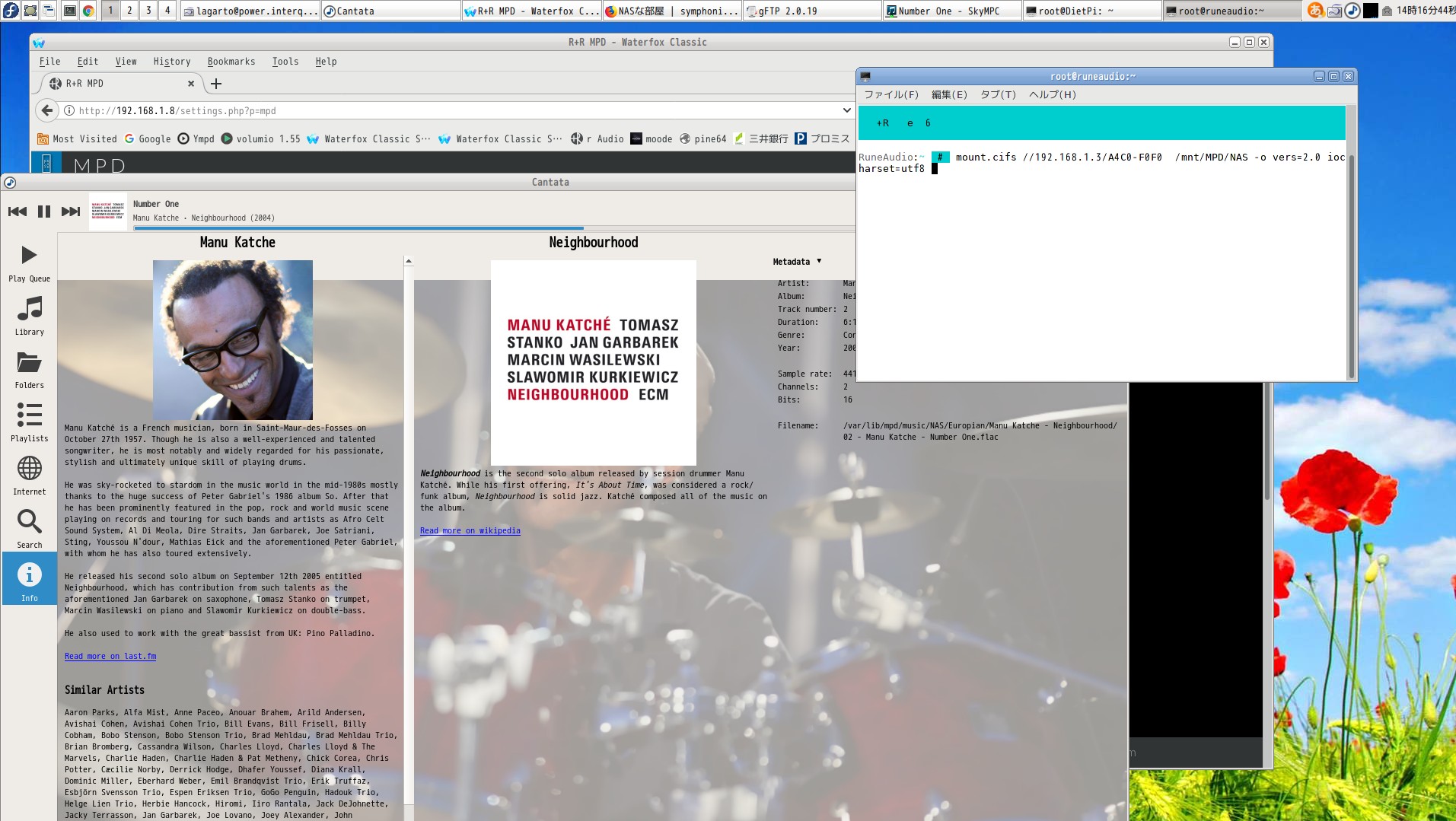

make write next line by ssh.

$ sudo mount.cifs //192.168.1.12/NAS /mnt/NAS -o iocharset=utf8


Above text , //192.168.1.12/NAS is small music server IP ,ex volumio2 or NAS server.

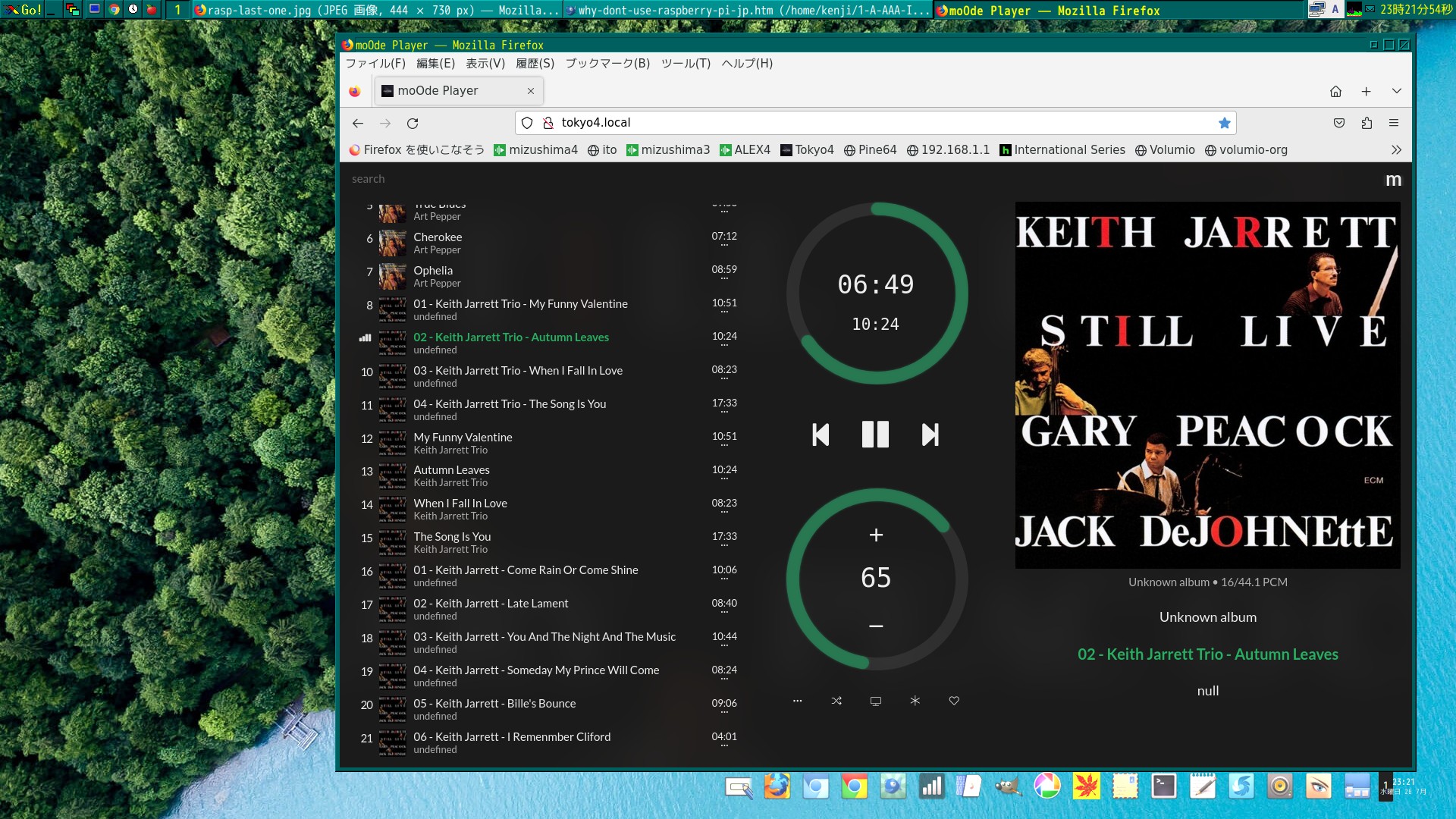

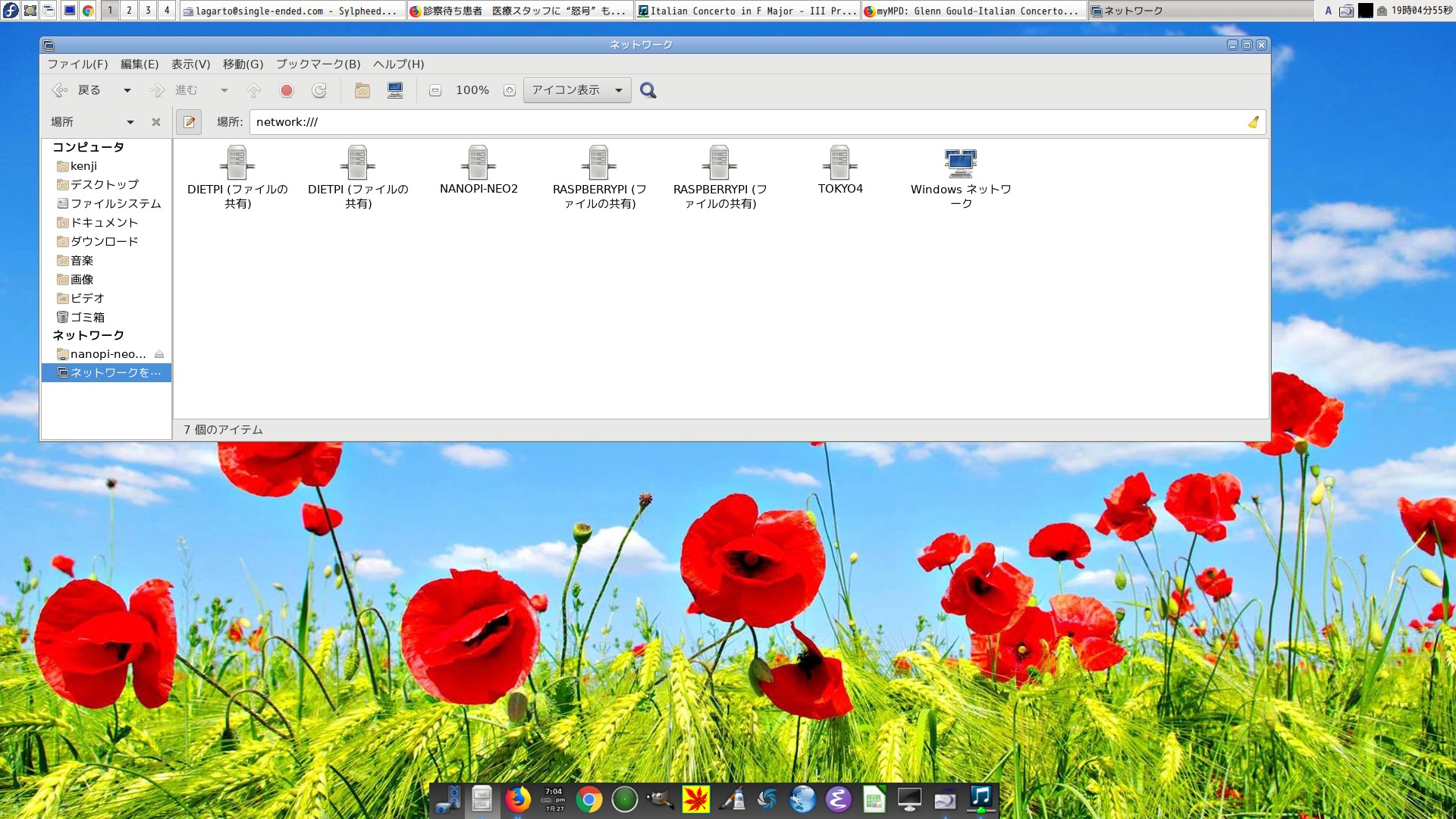

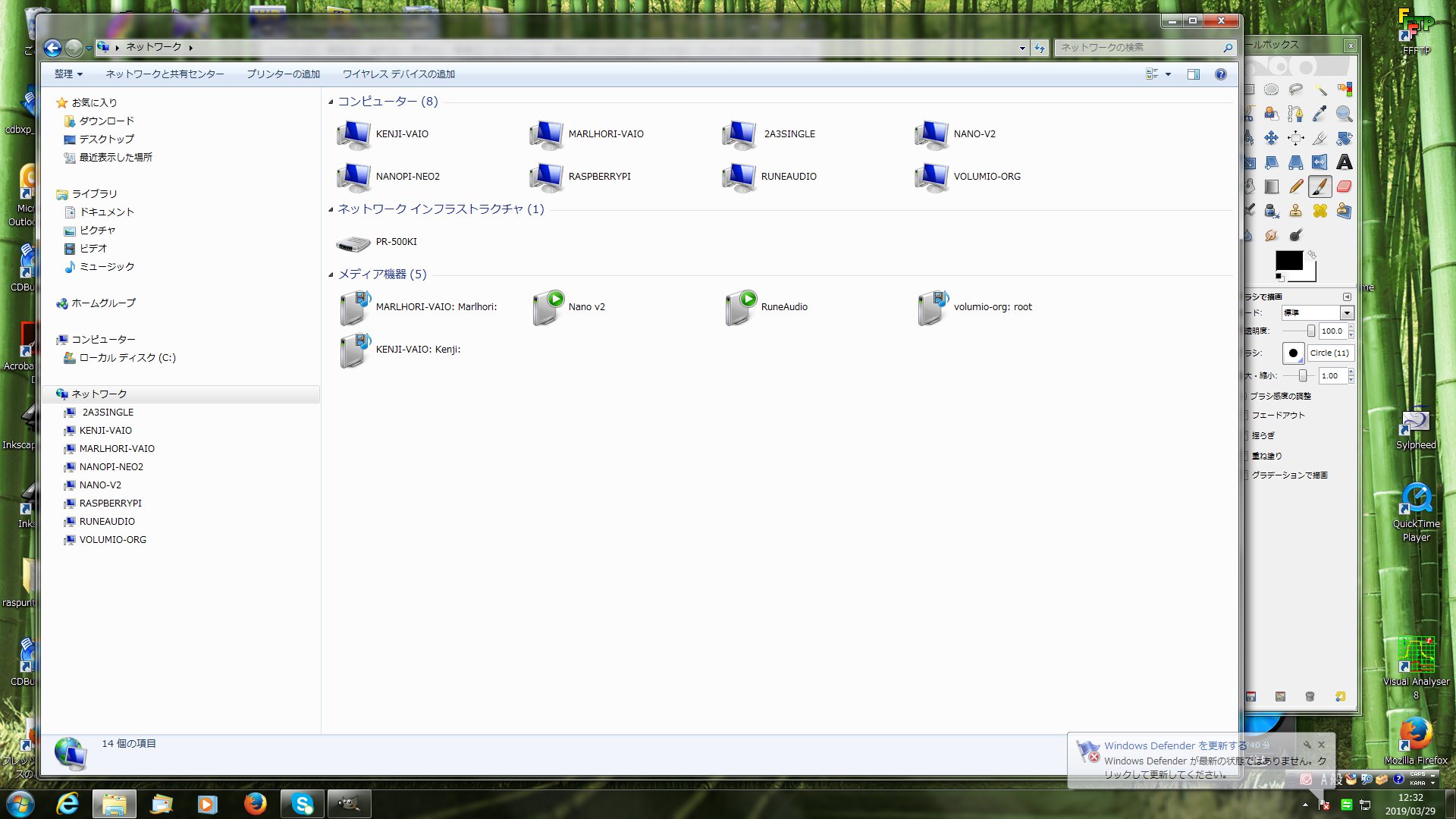

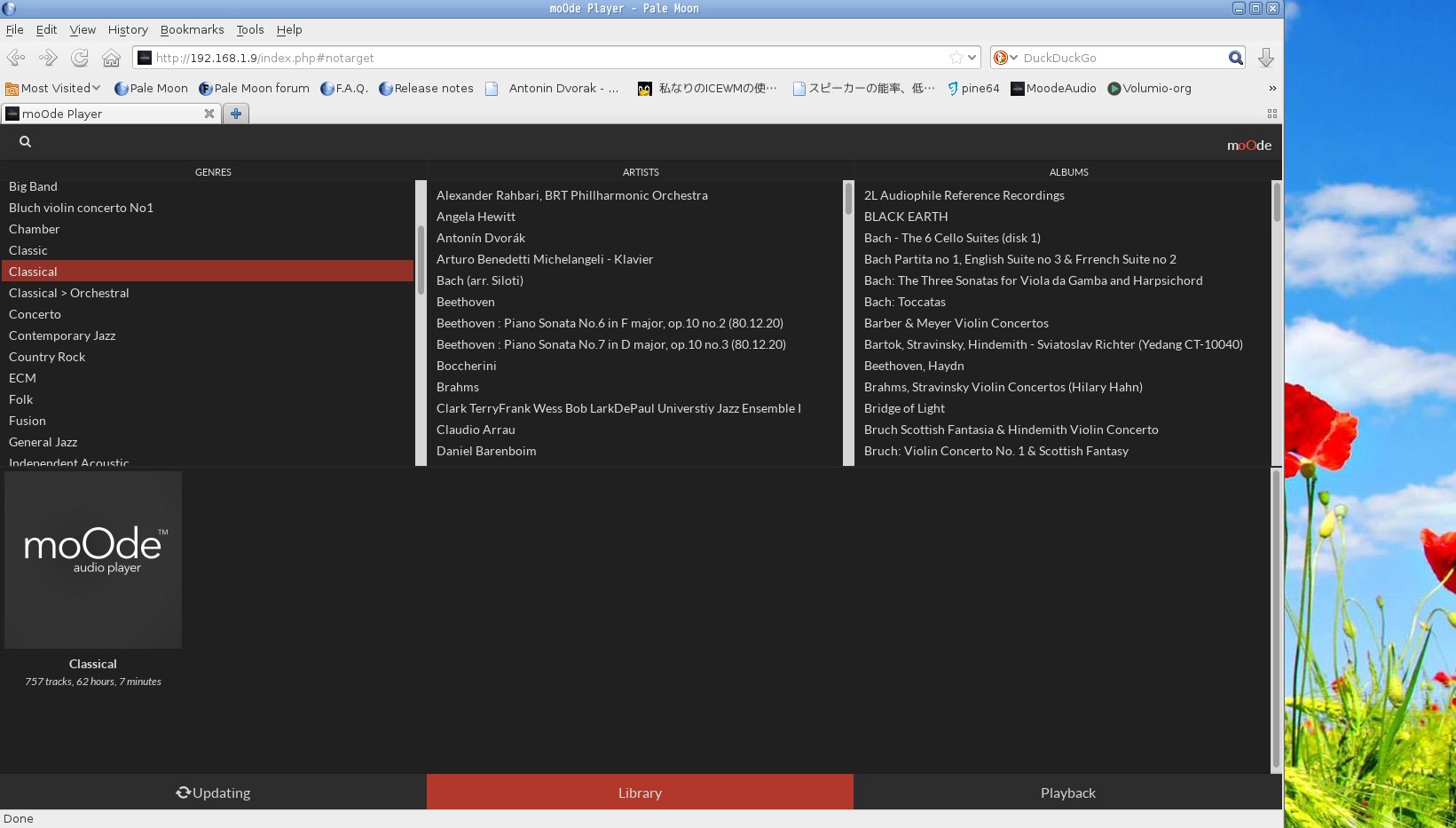

NAS mount

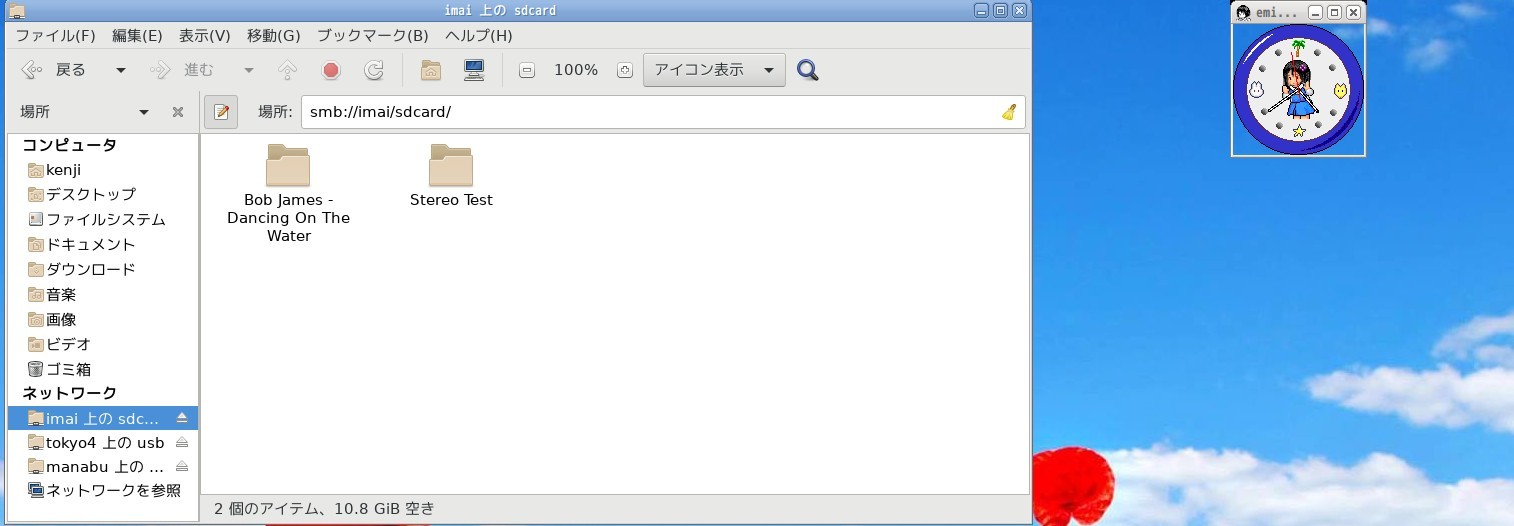

You can see Music File of other server music files.

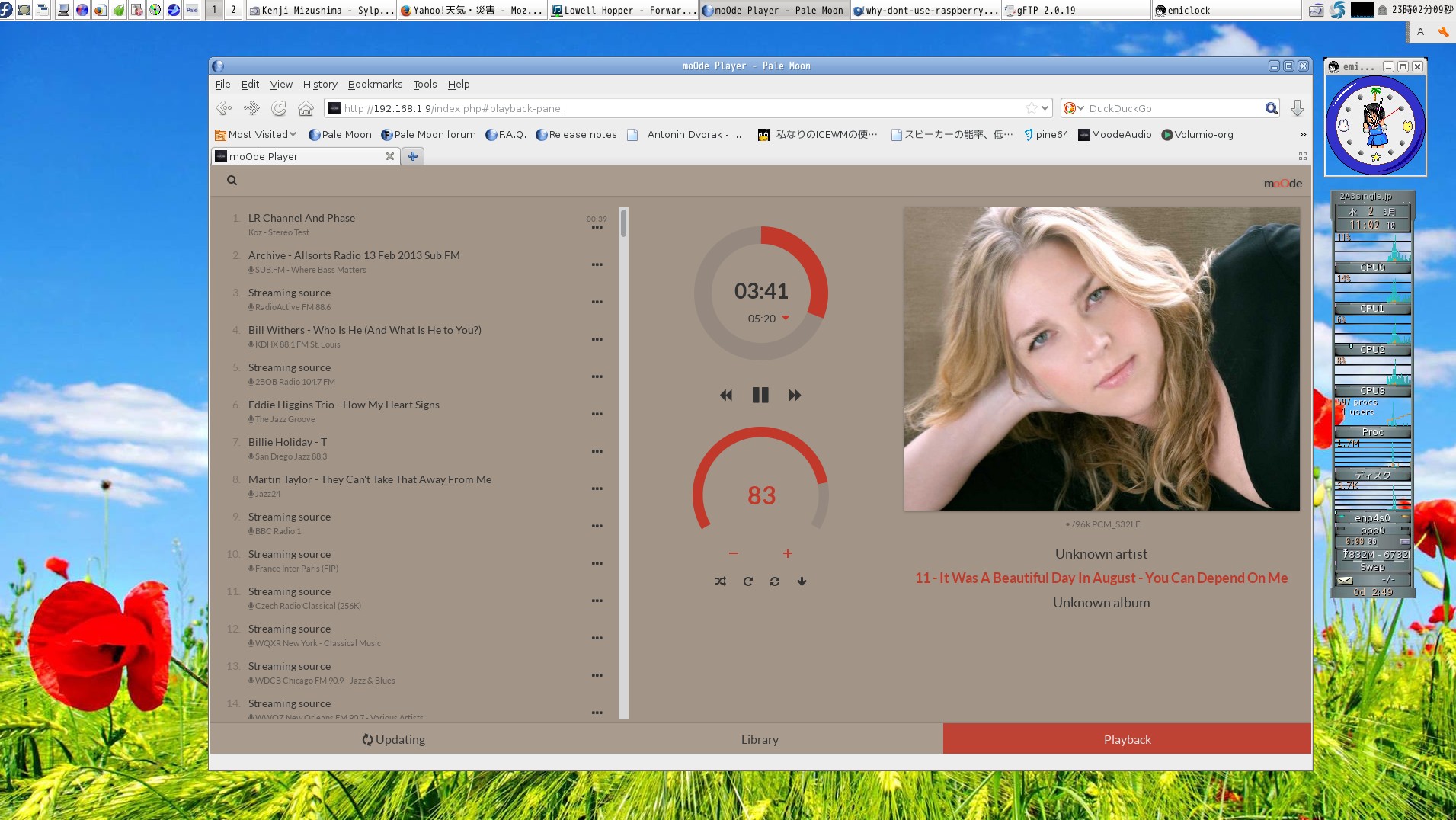

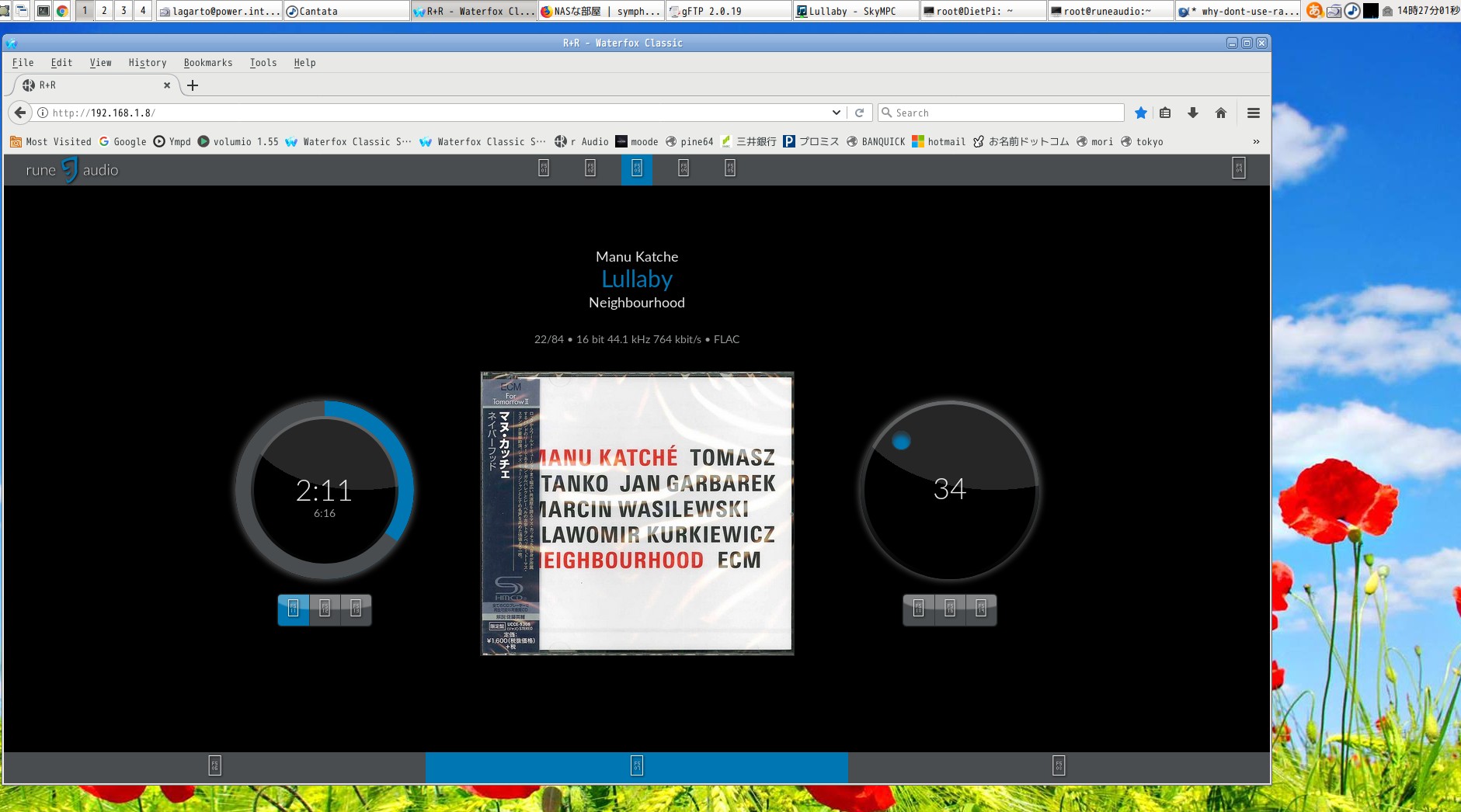

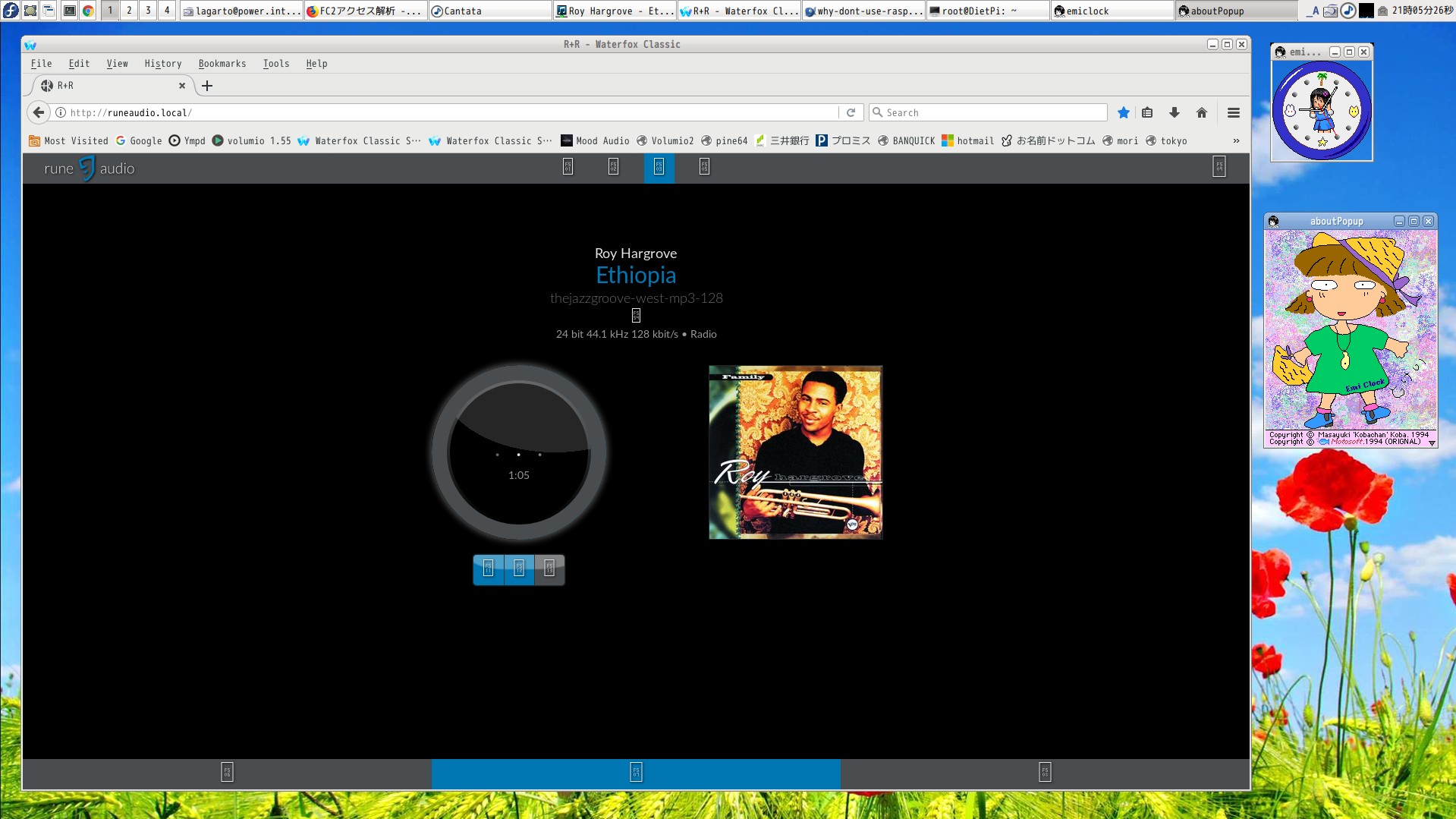

doing play from other NAS on 2018 May

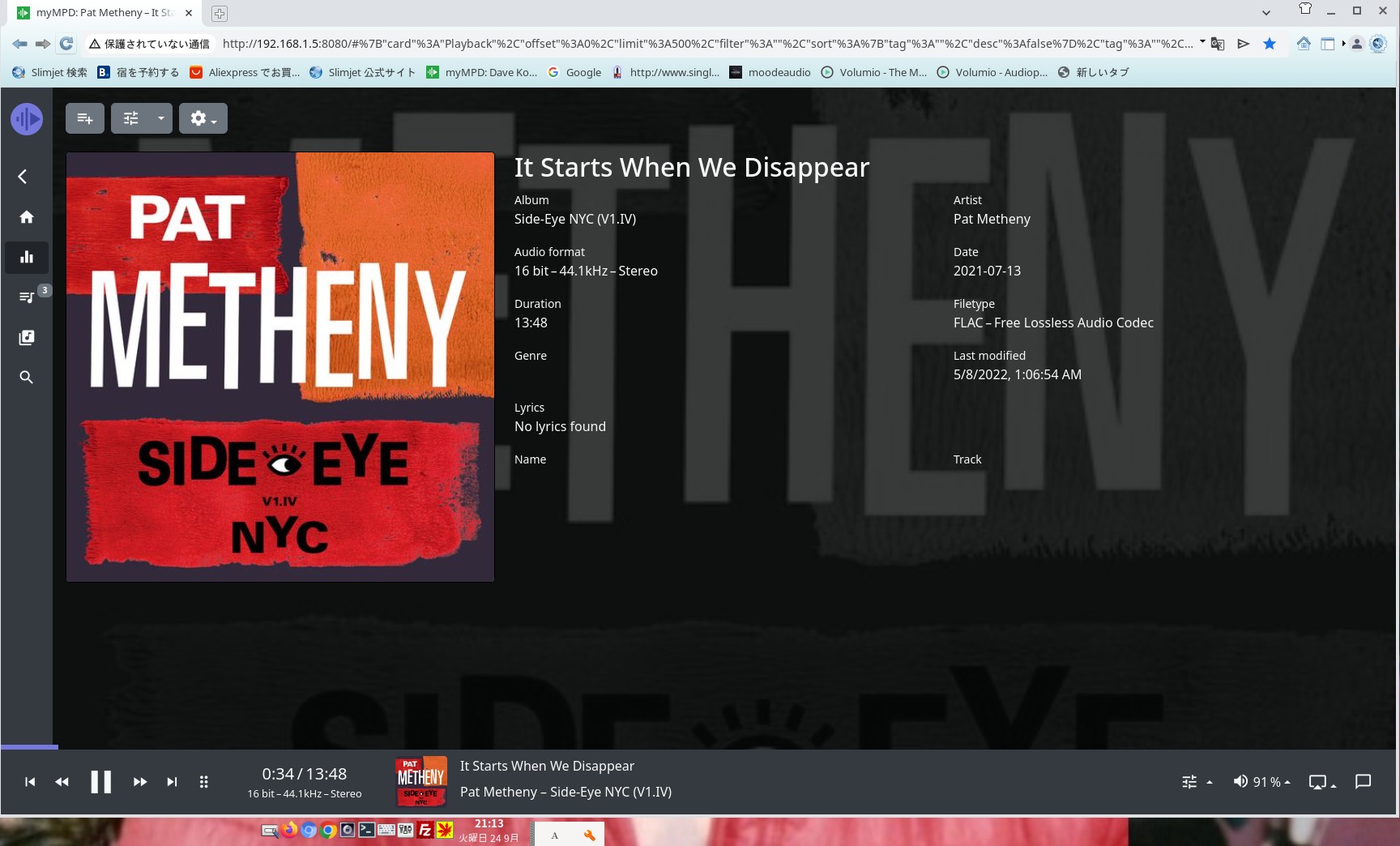

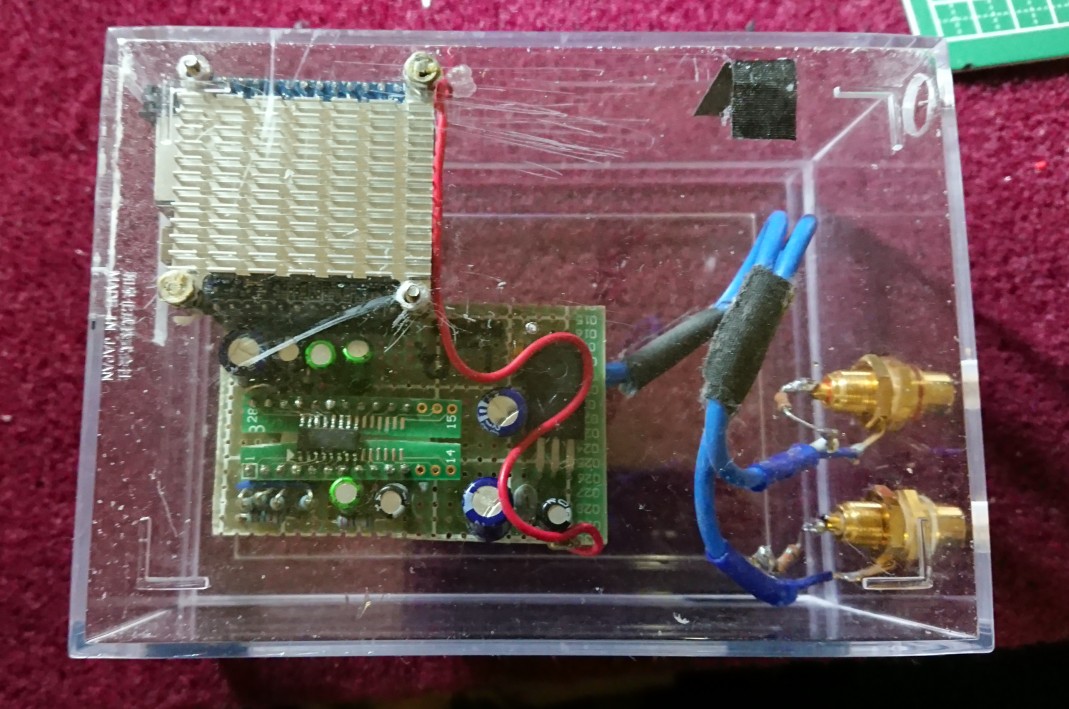

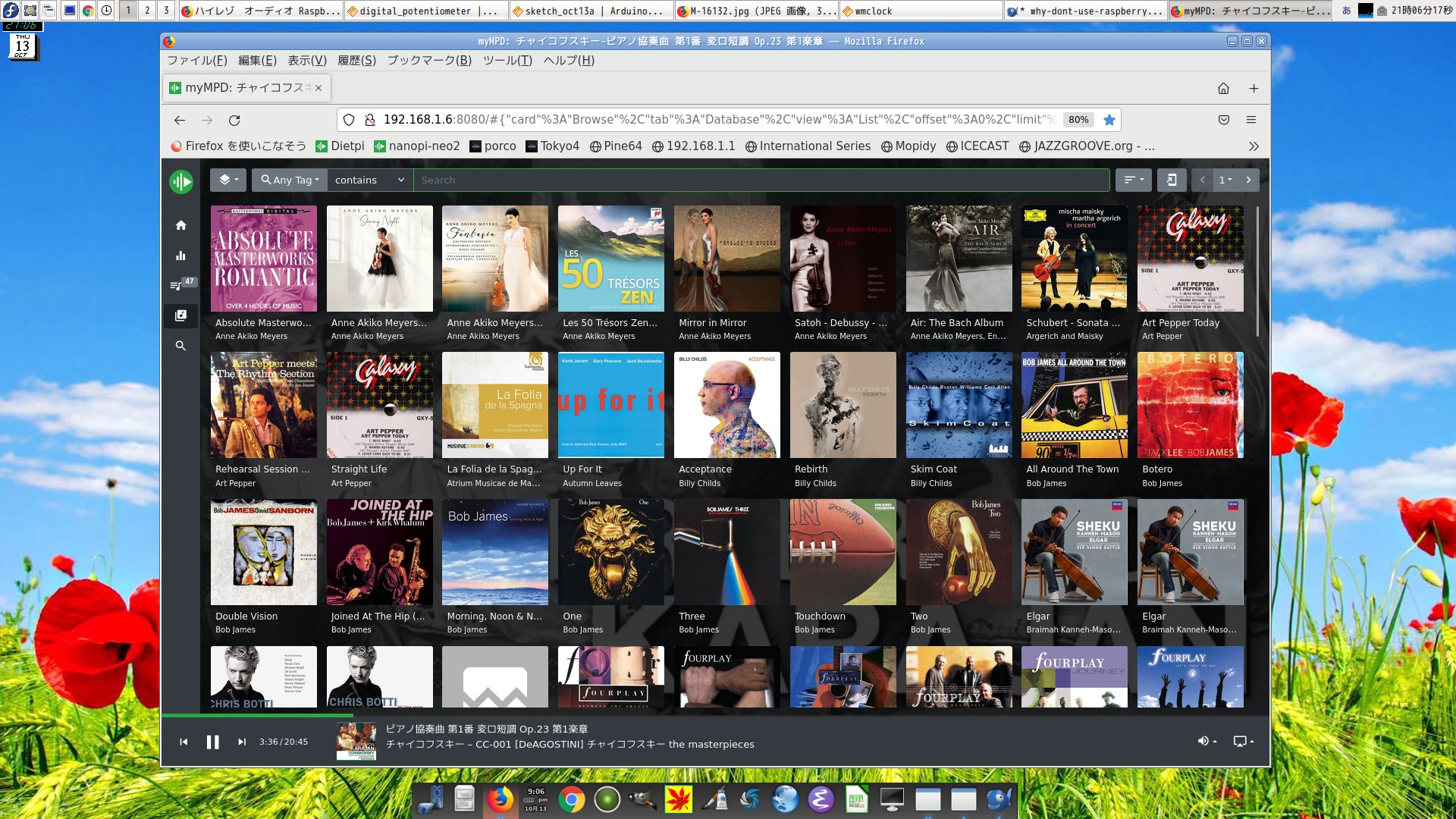

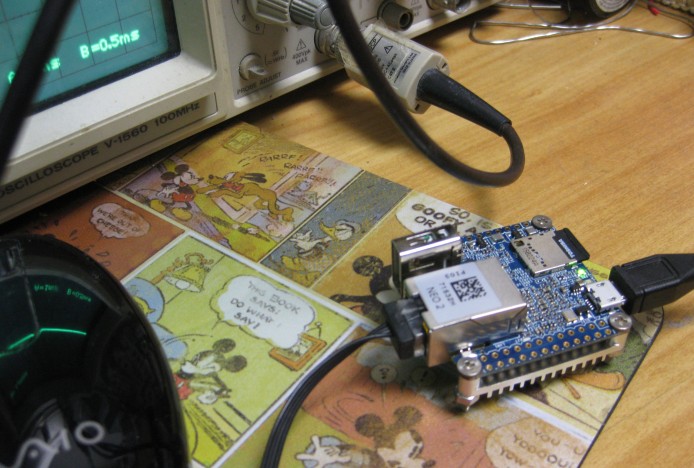

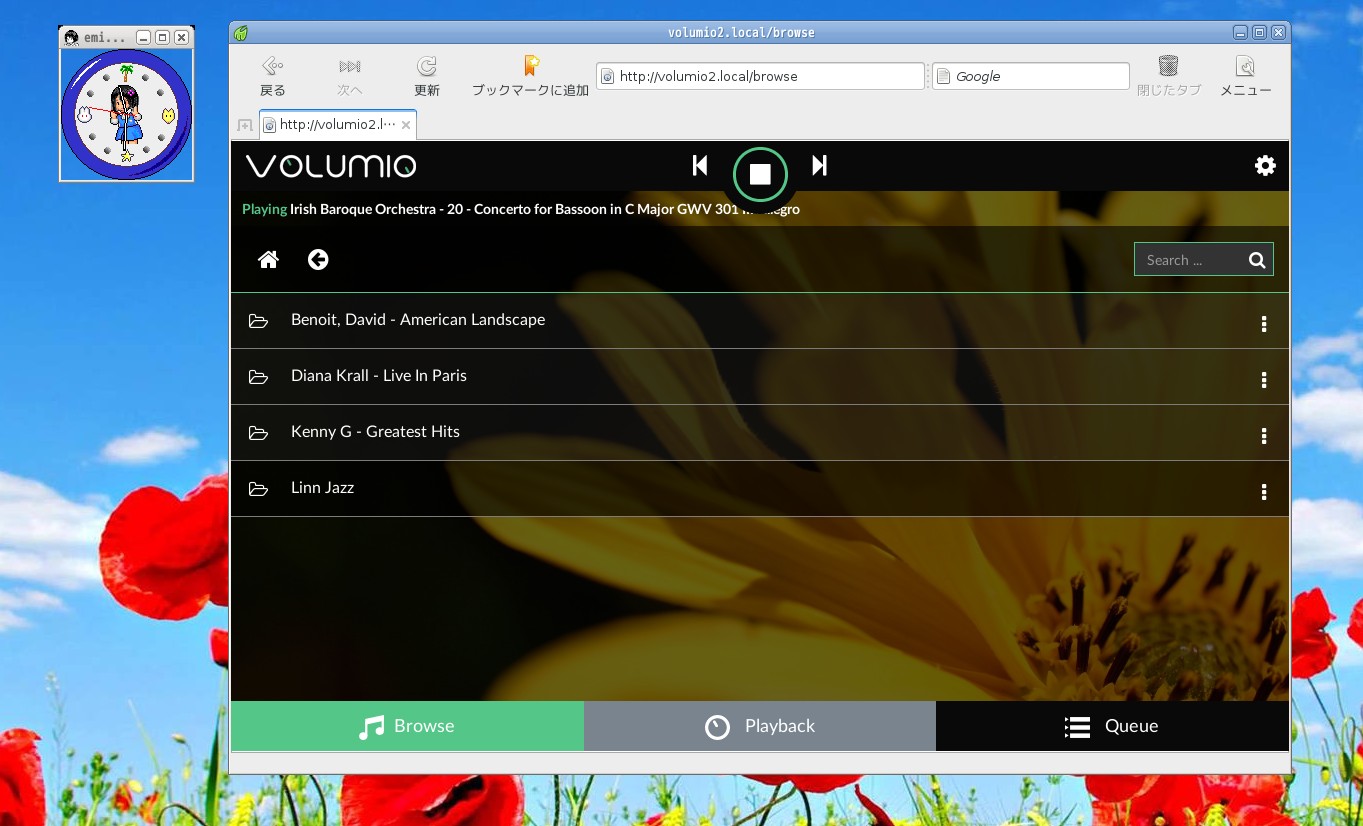

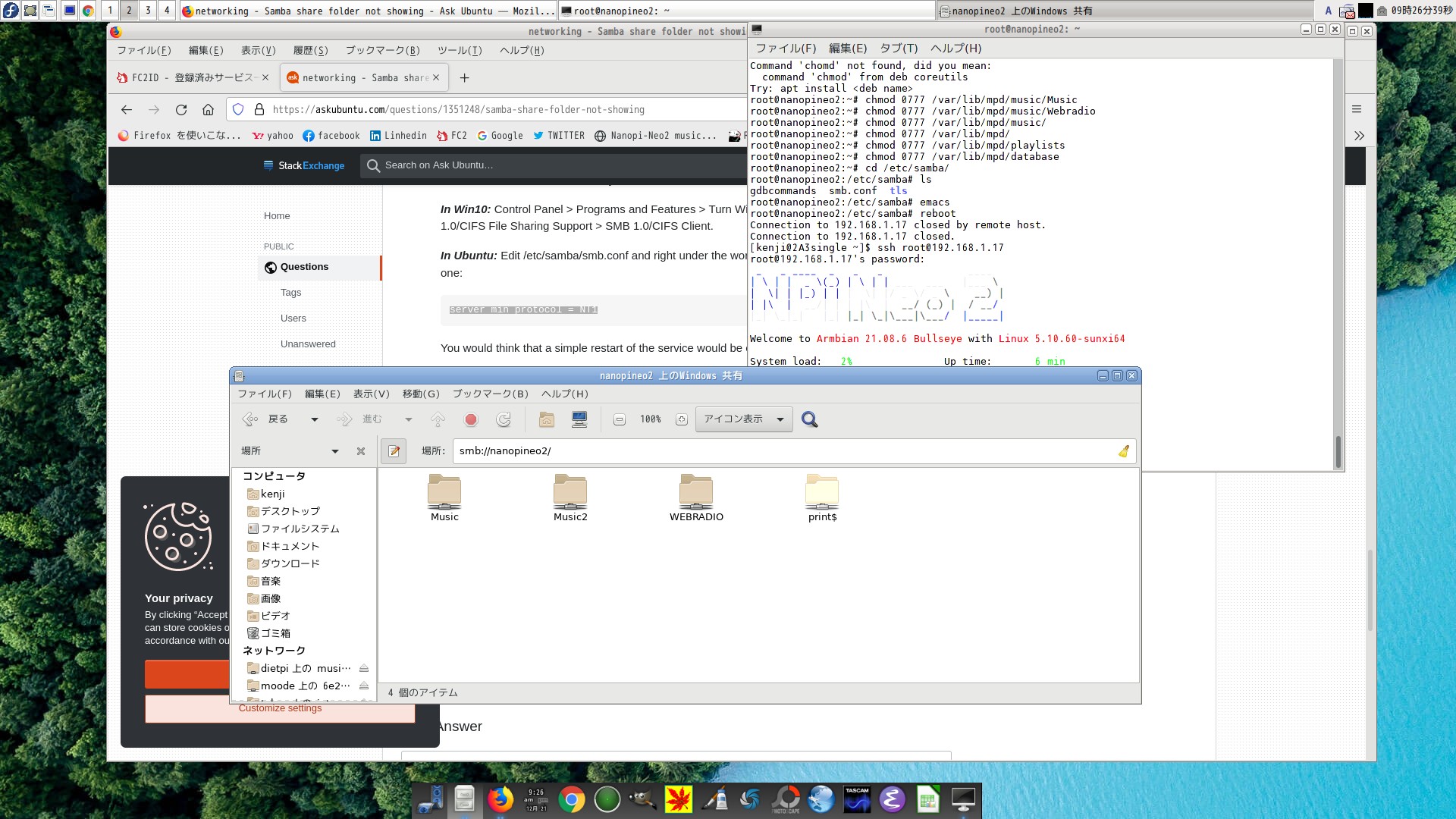

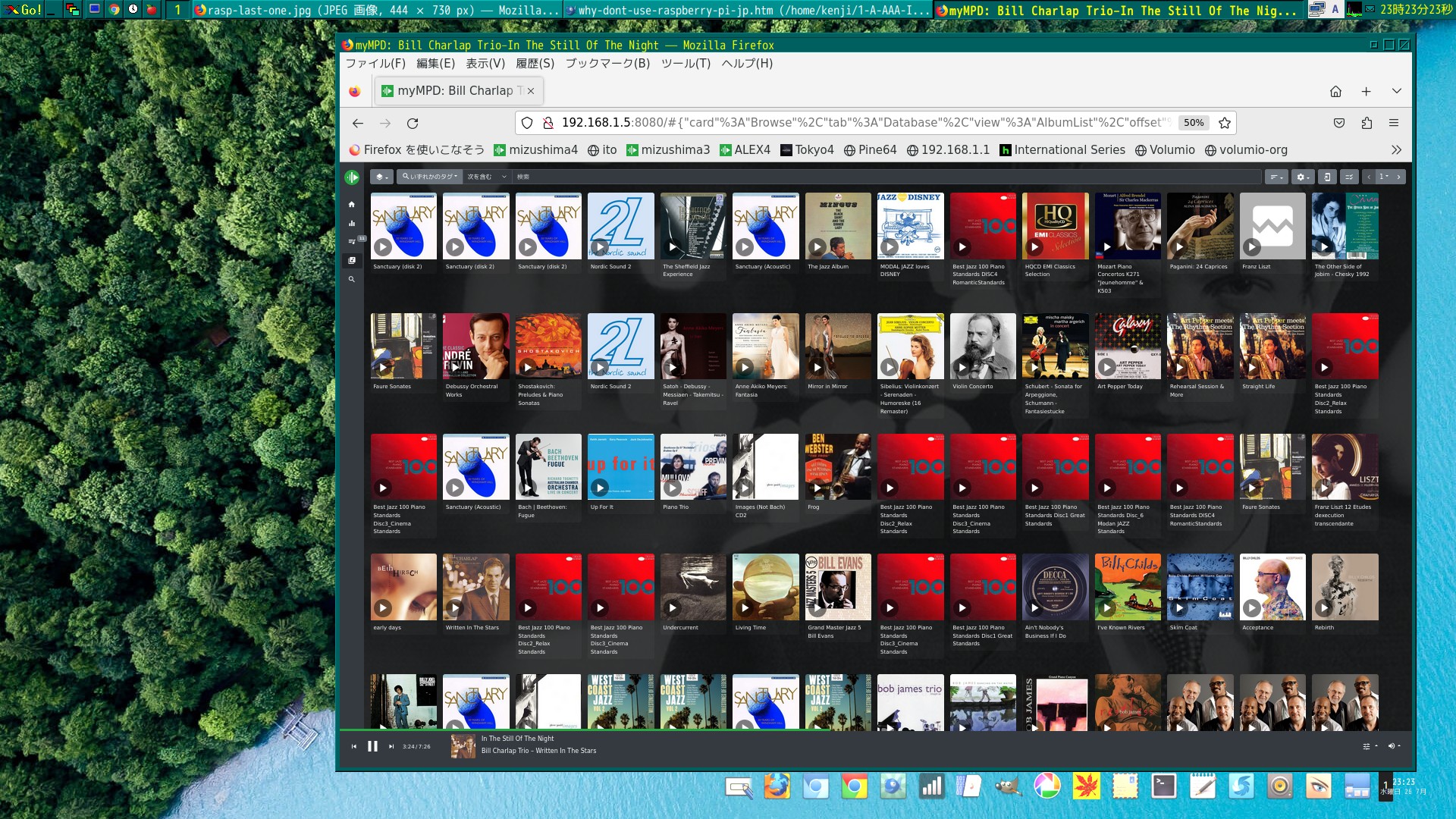

Play Music from data file of other server(volumio2 NanoPi-Neo2) on 3rd May 2018



MoodeAudio4.0 can adjust sound by equalizer set up control on menu.so getting very comfortable sound from my Amplifier.

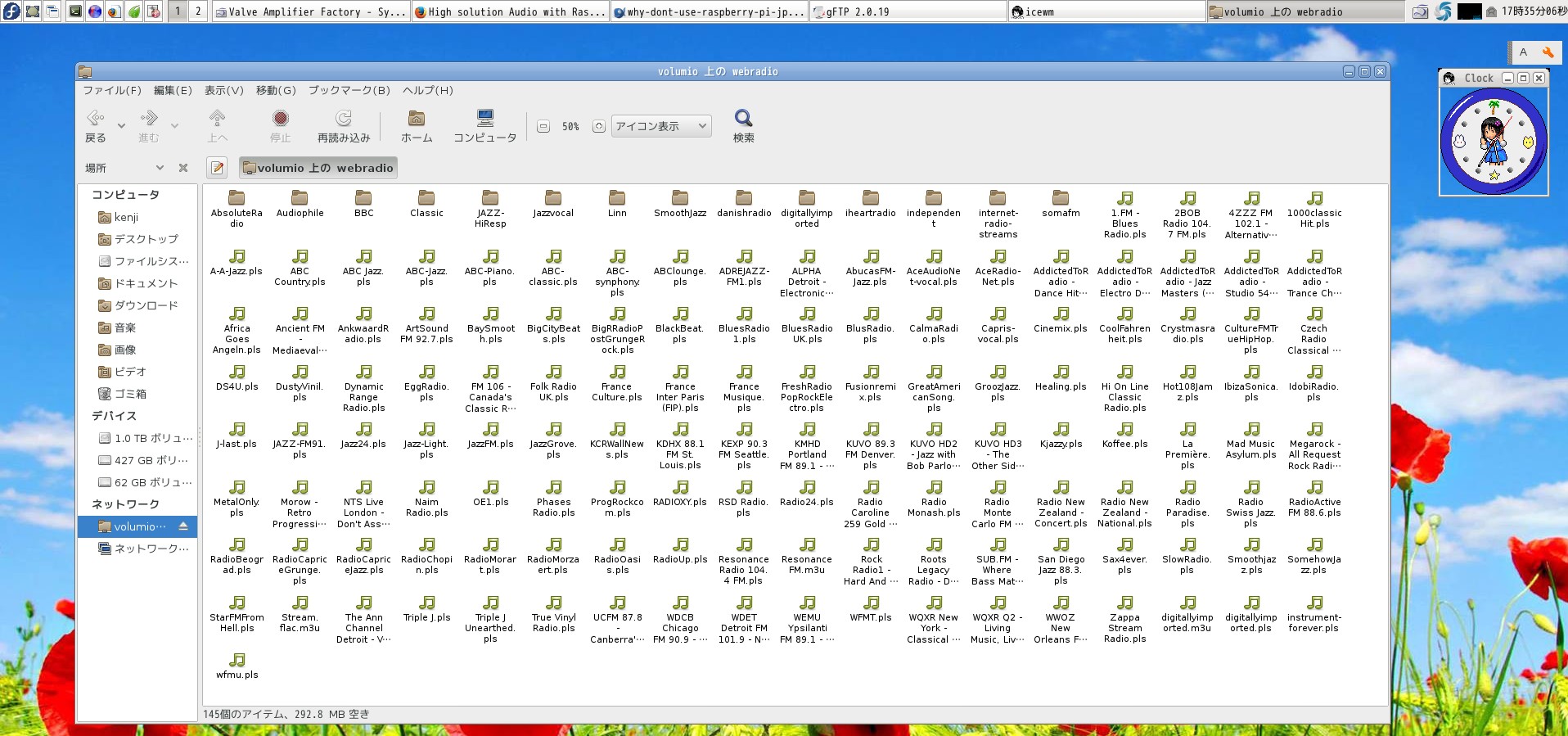

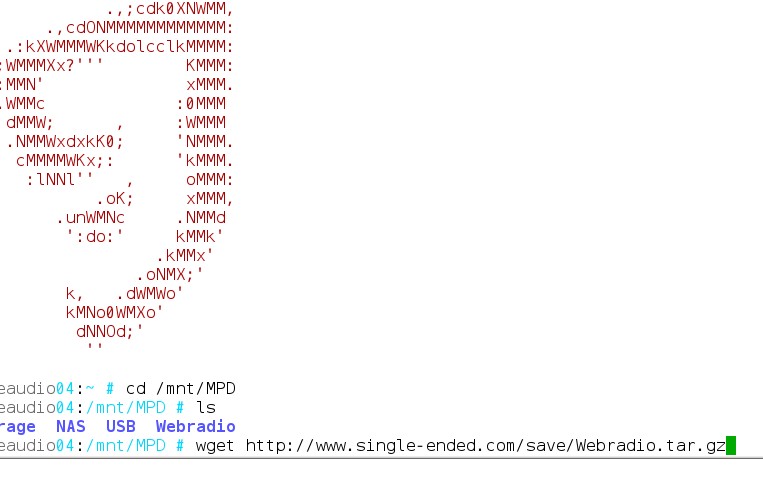

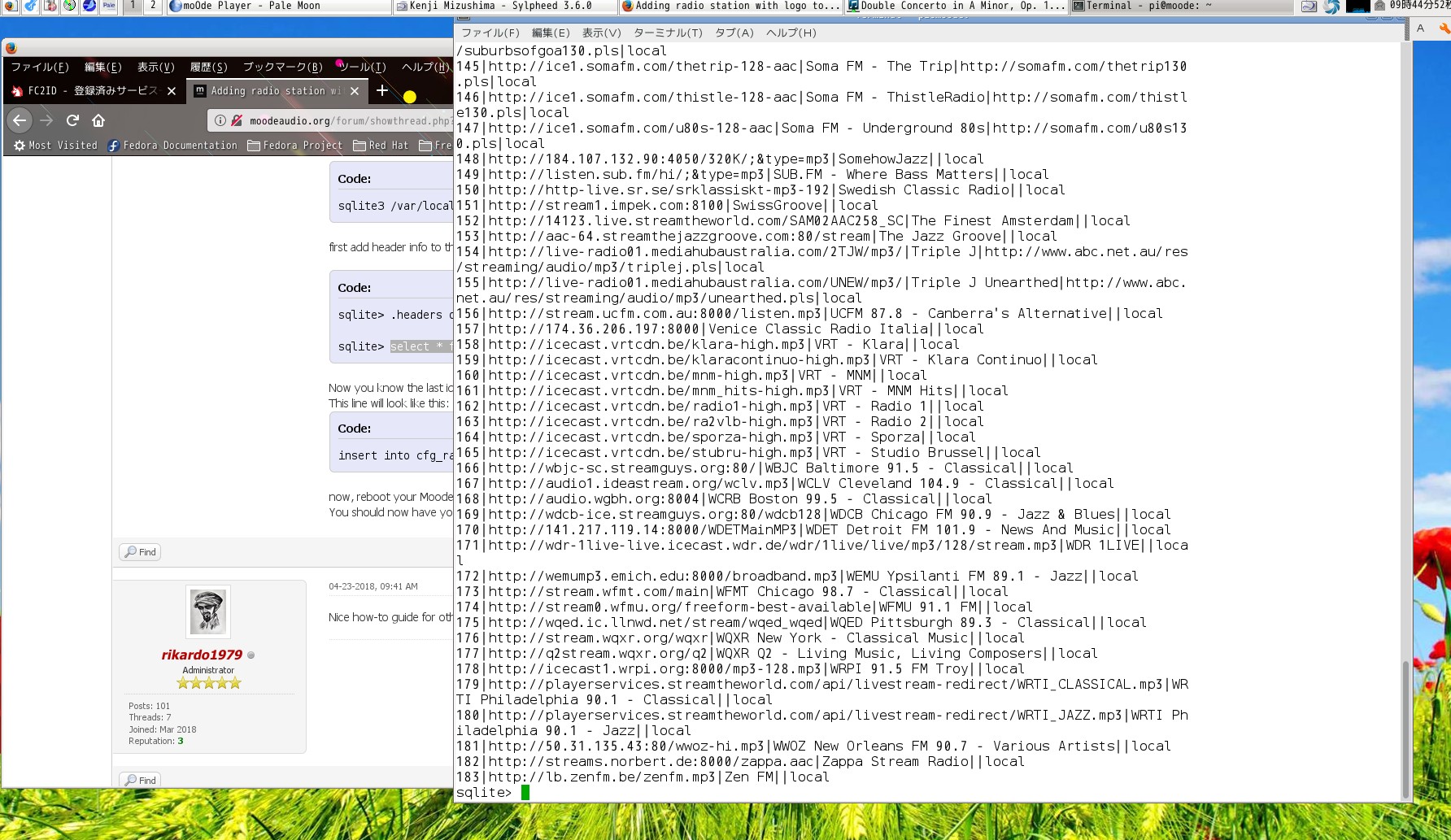

WEBRADIO : MoodeAudio is using same type of Volumio 1.55 , Funaudio and other type of MPD. so much better to use ,make one of floder of WEBRADIO
even RADIO .save xxx.pls ,mp3 ,flac etc inside of WEBRADIO at some place of NAS and same directly of MoodeAudio micro SD even USB Memory.
can access from moodeaudio player.if do you have a favorite internet radio station save into holder.then can access from moodeaudio.local
important is no save same directly of RADIO of MoodeAudio. because made up froze.sample show
wget http://www.single-ended.com/rasp/archive/WEBRADIO.tar.gz and "Do not open inside of MoodeAudio directry ".this is pls sample.if would like to use.


Nara Jones DSF

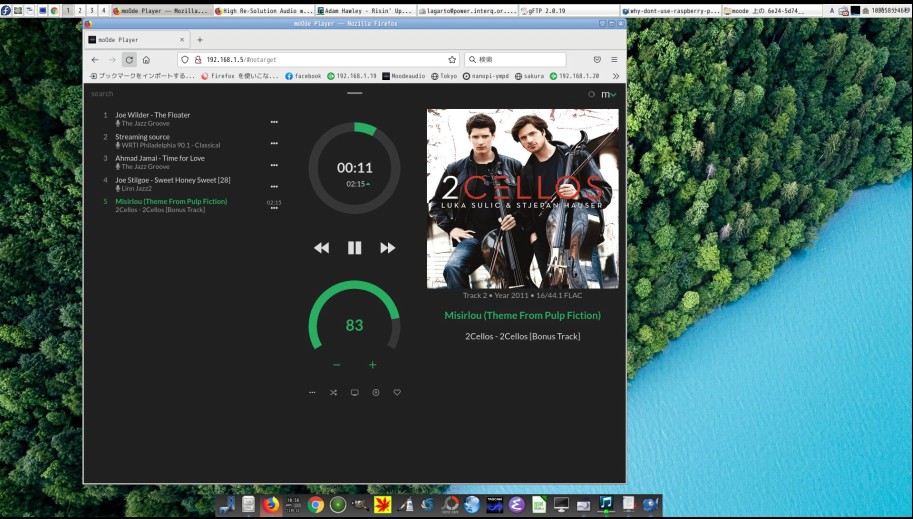

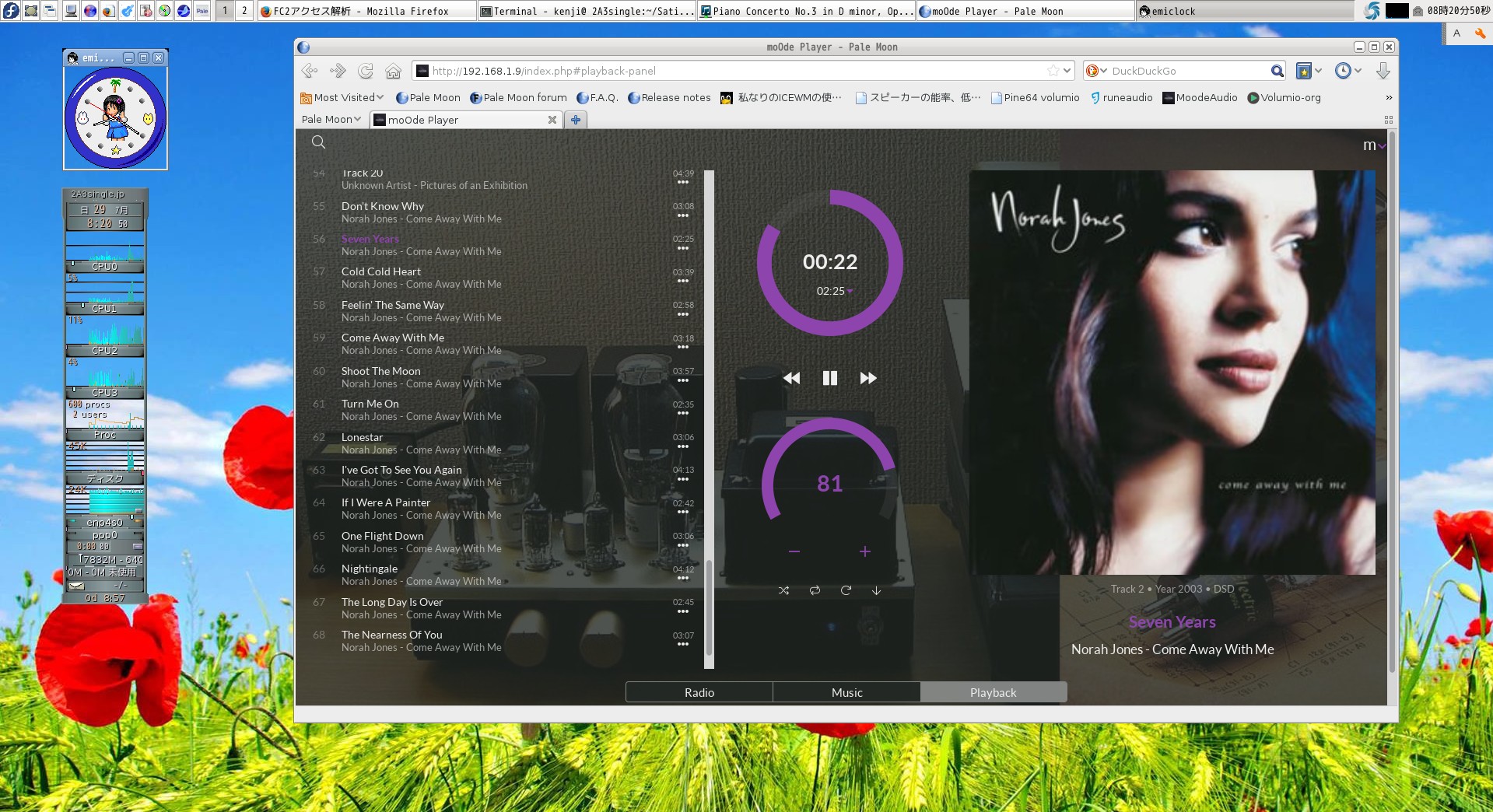

Nara Jones by Moode Audio 4.0 DSF



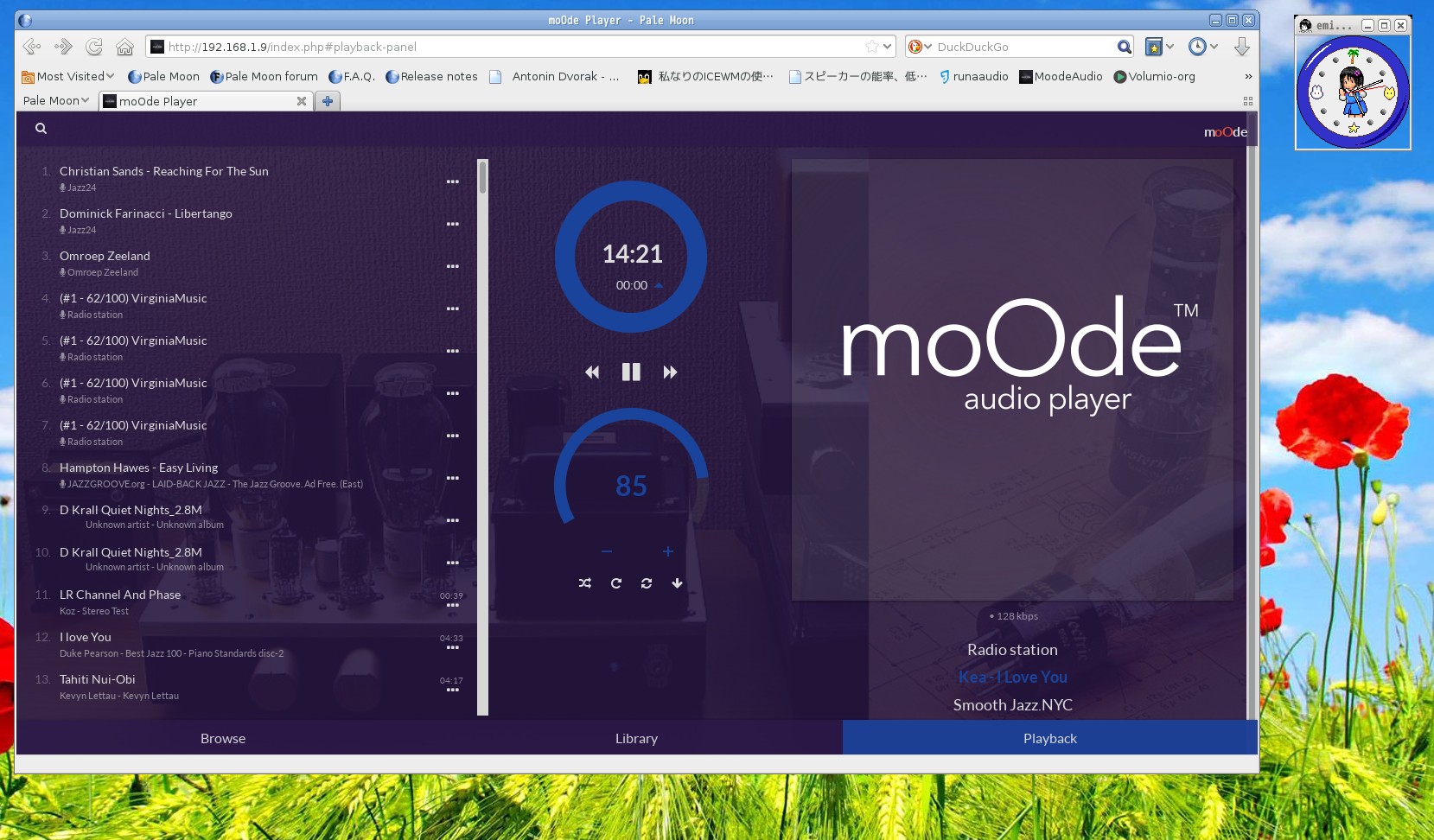

back ground can be replace

Wall paper can be replace

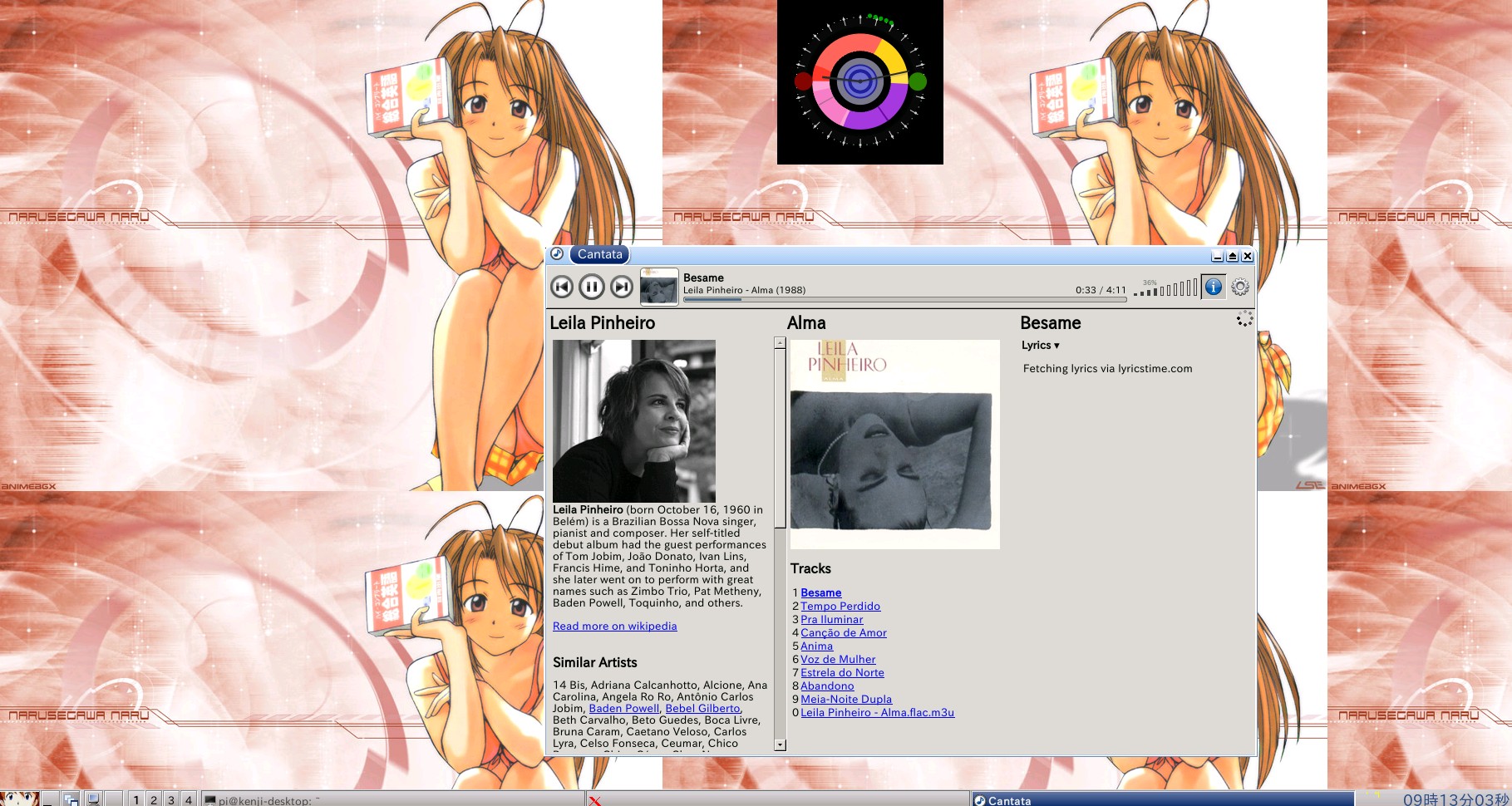

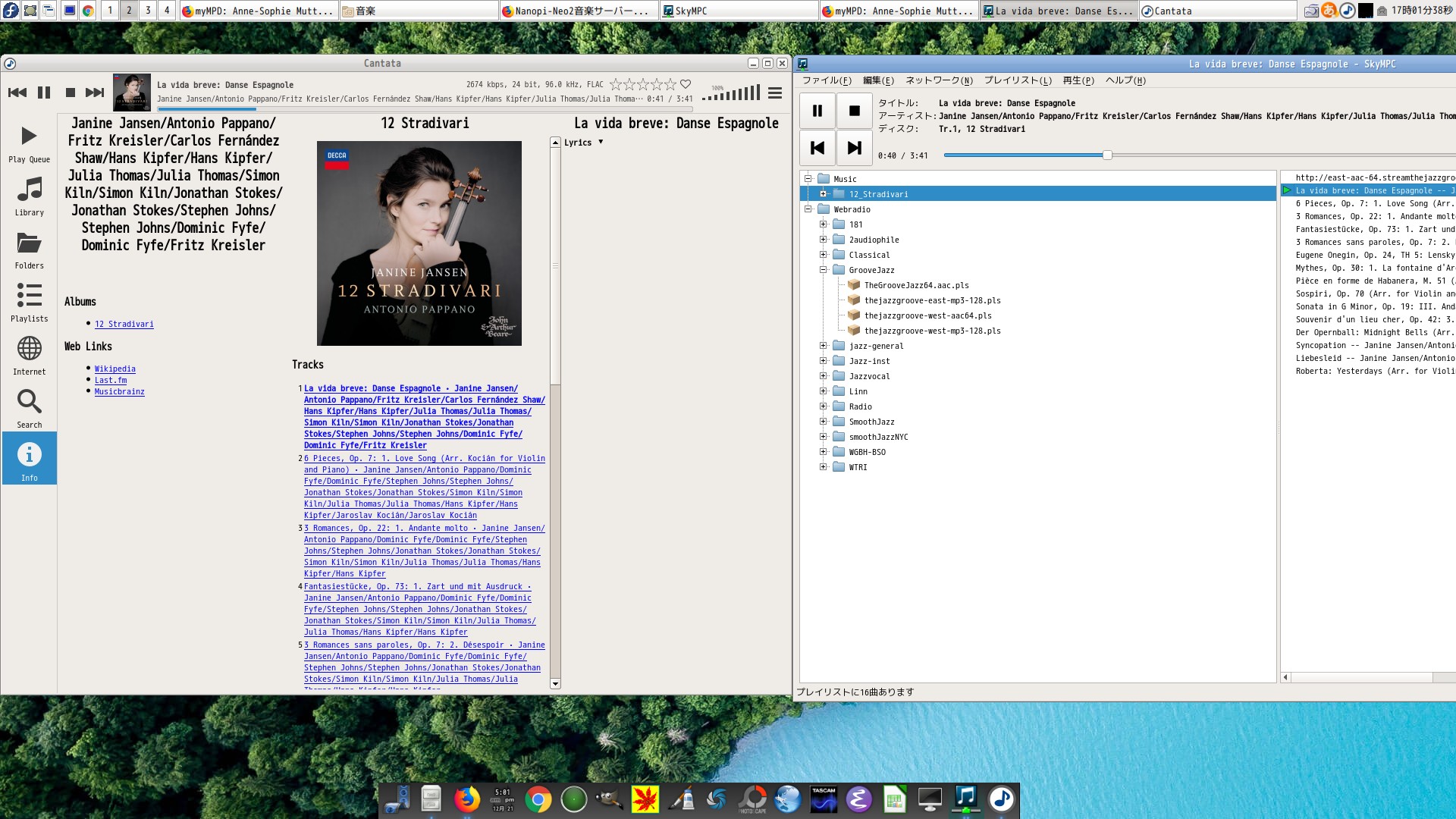

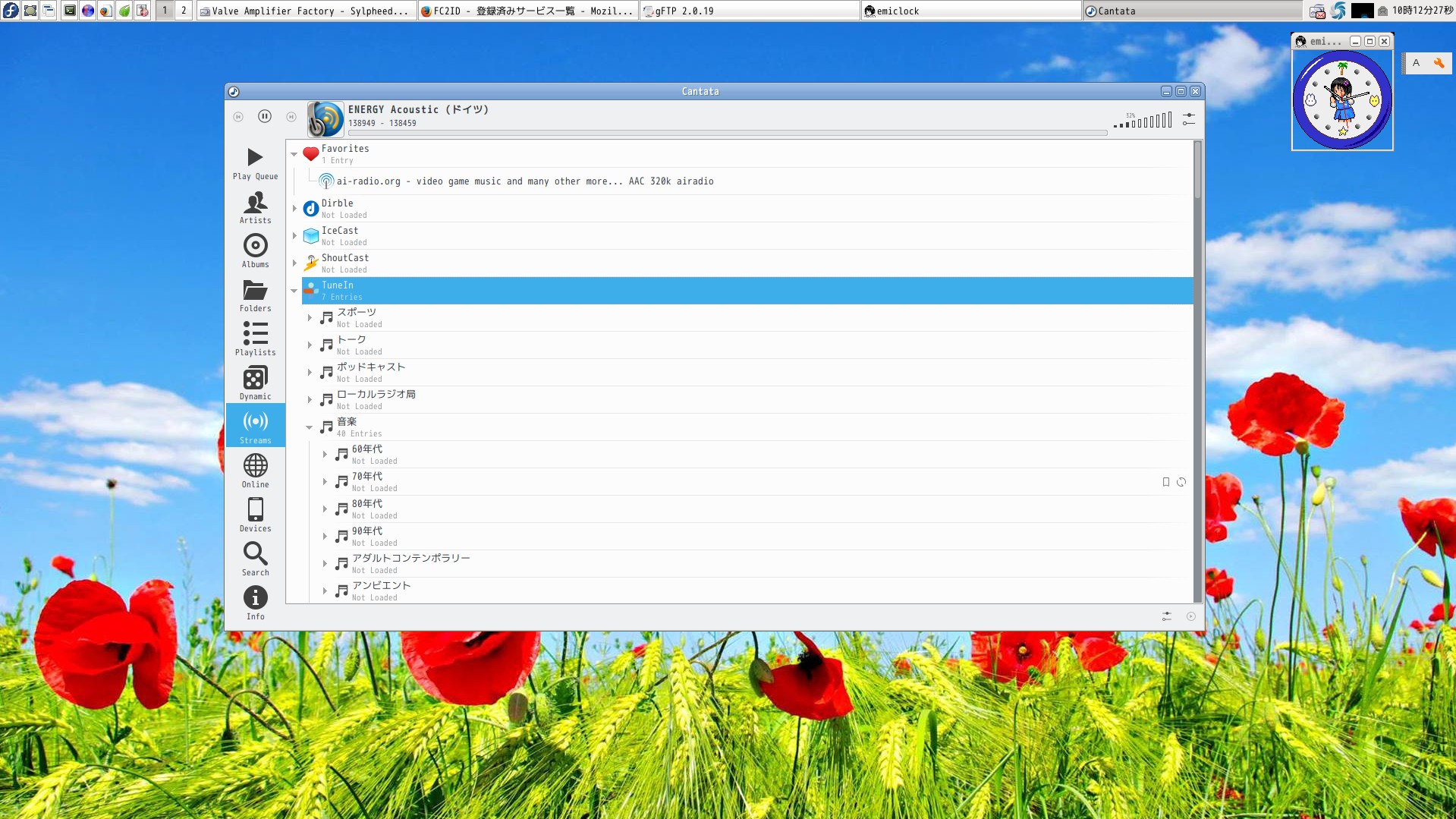

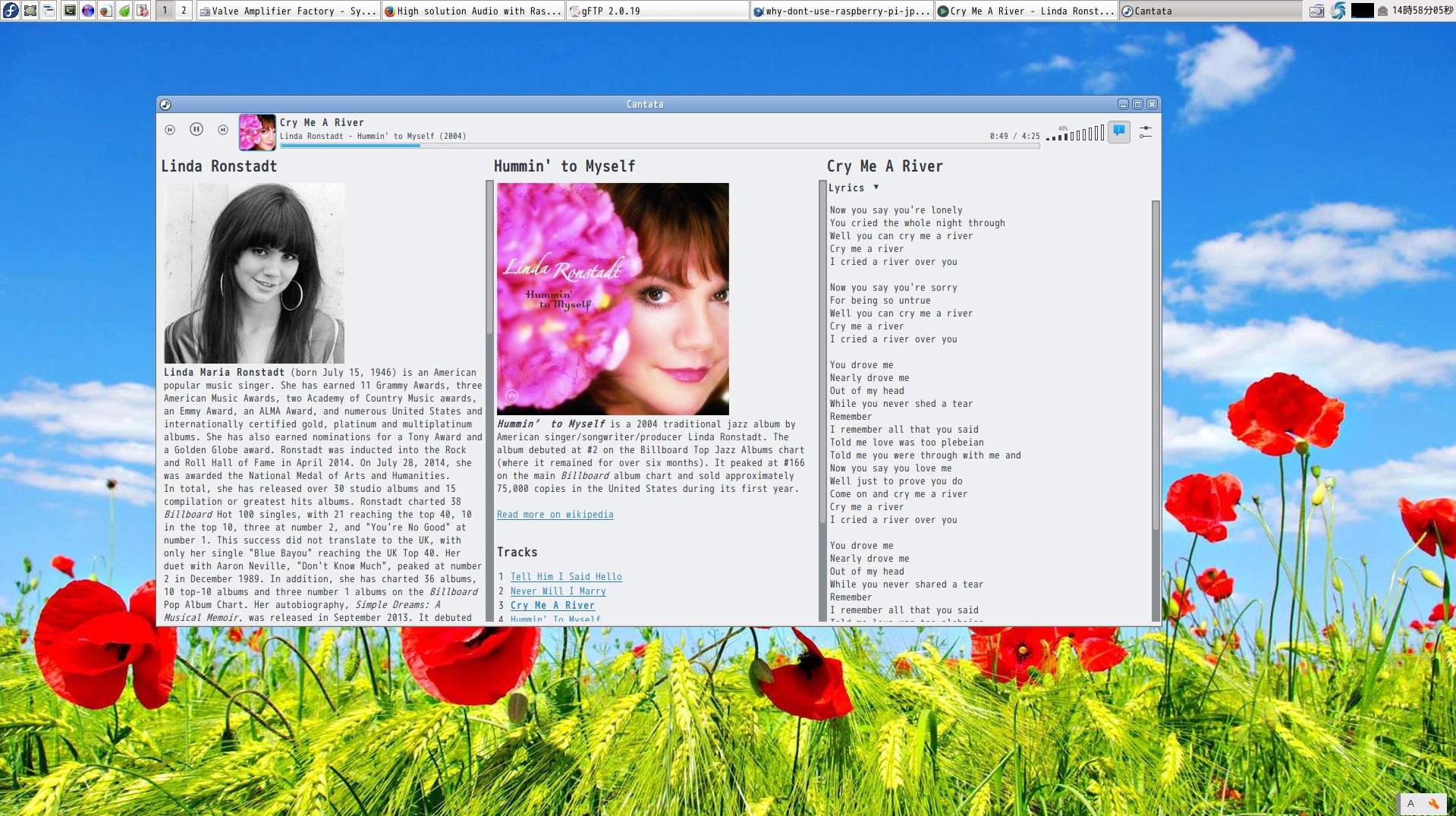

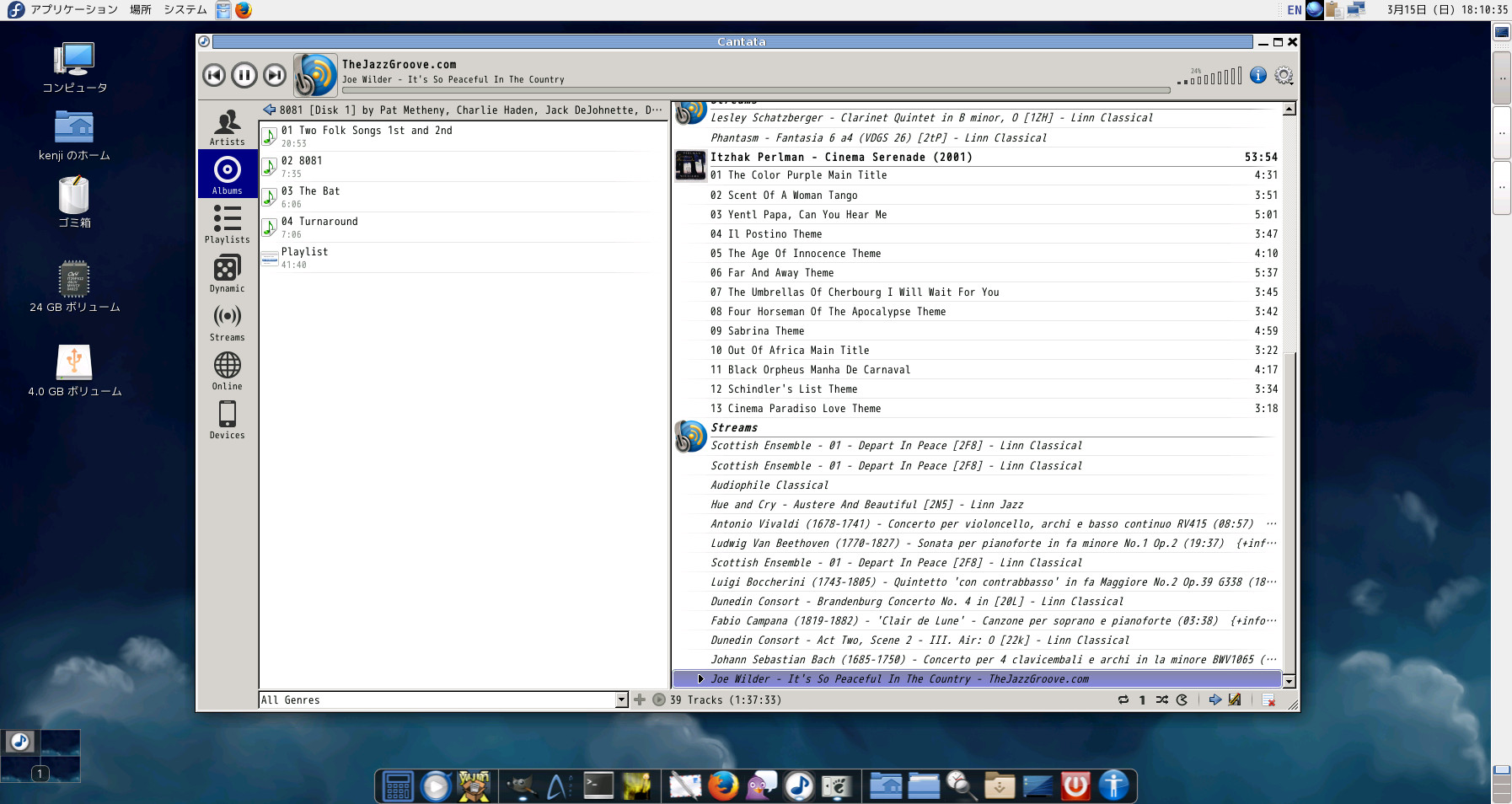

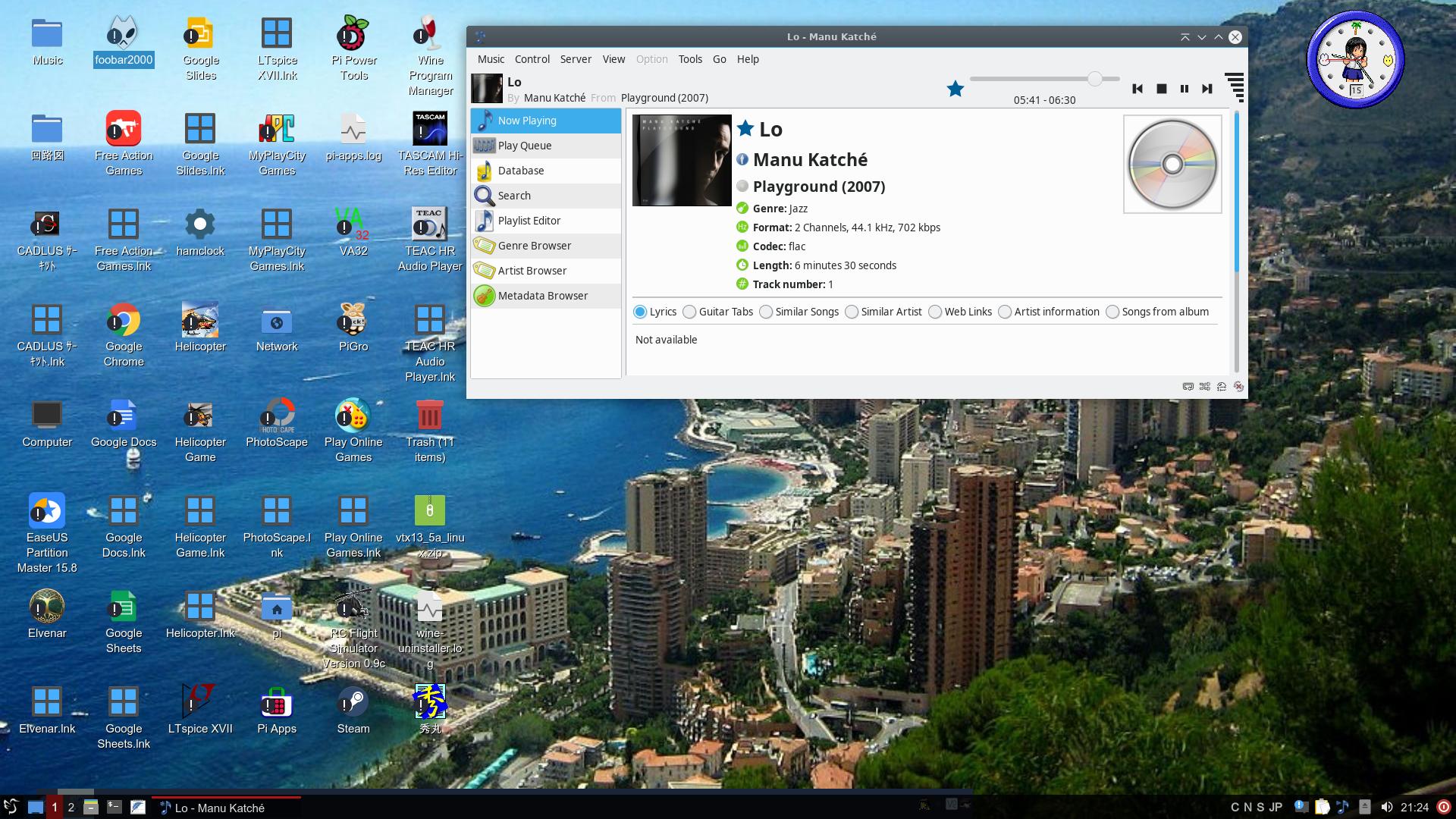

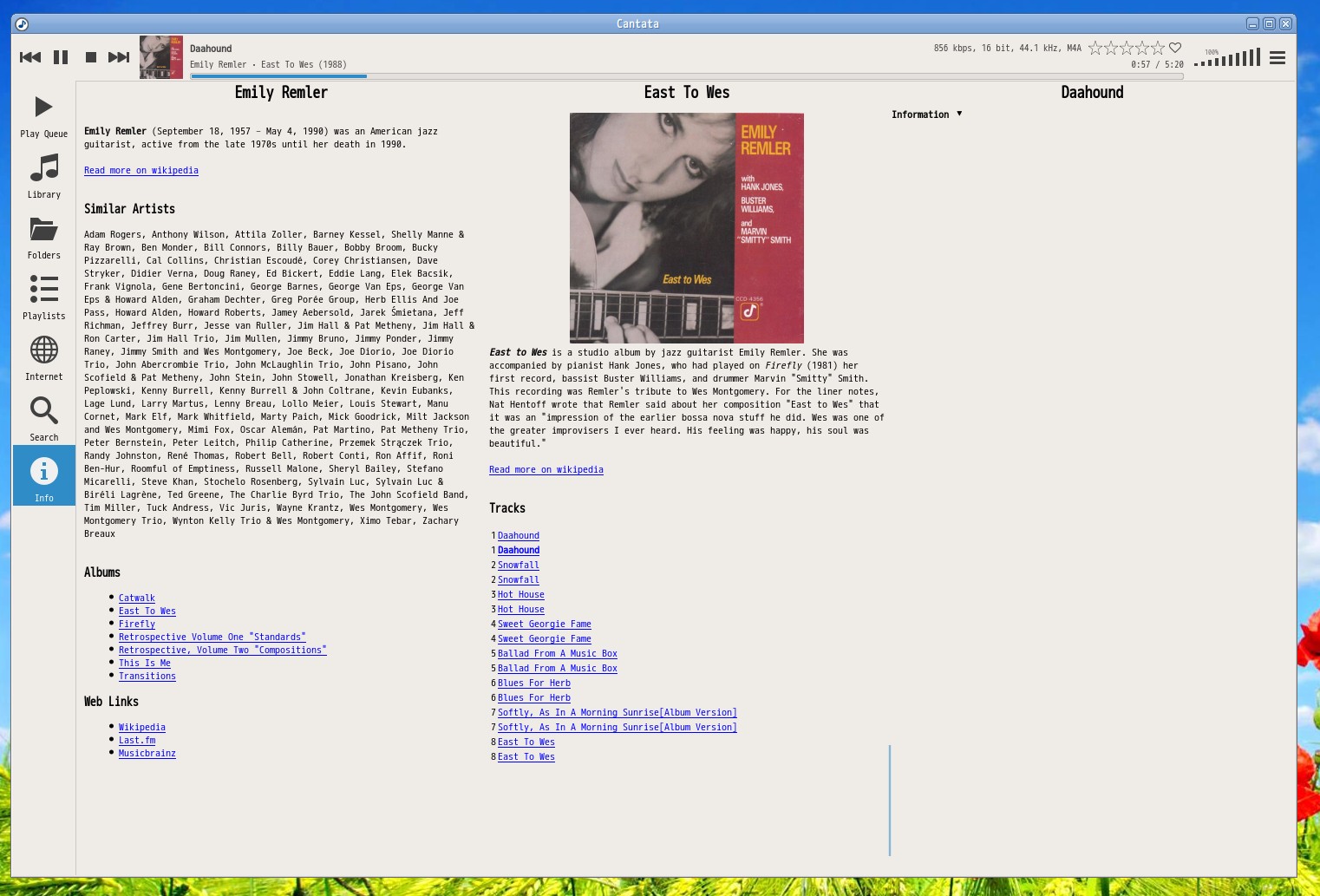

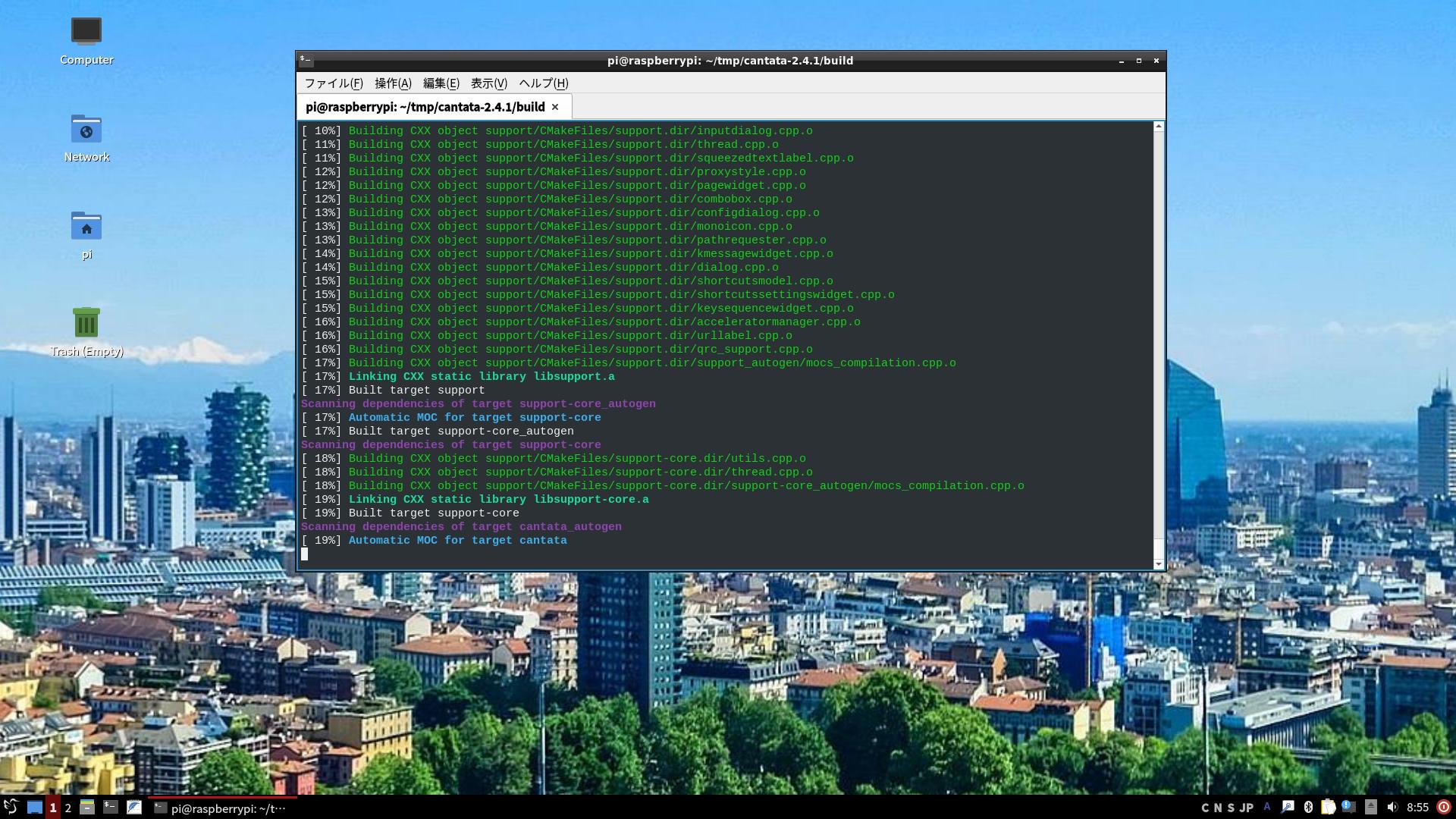

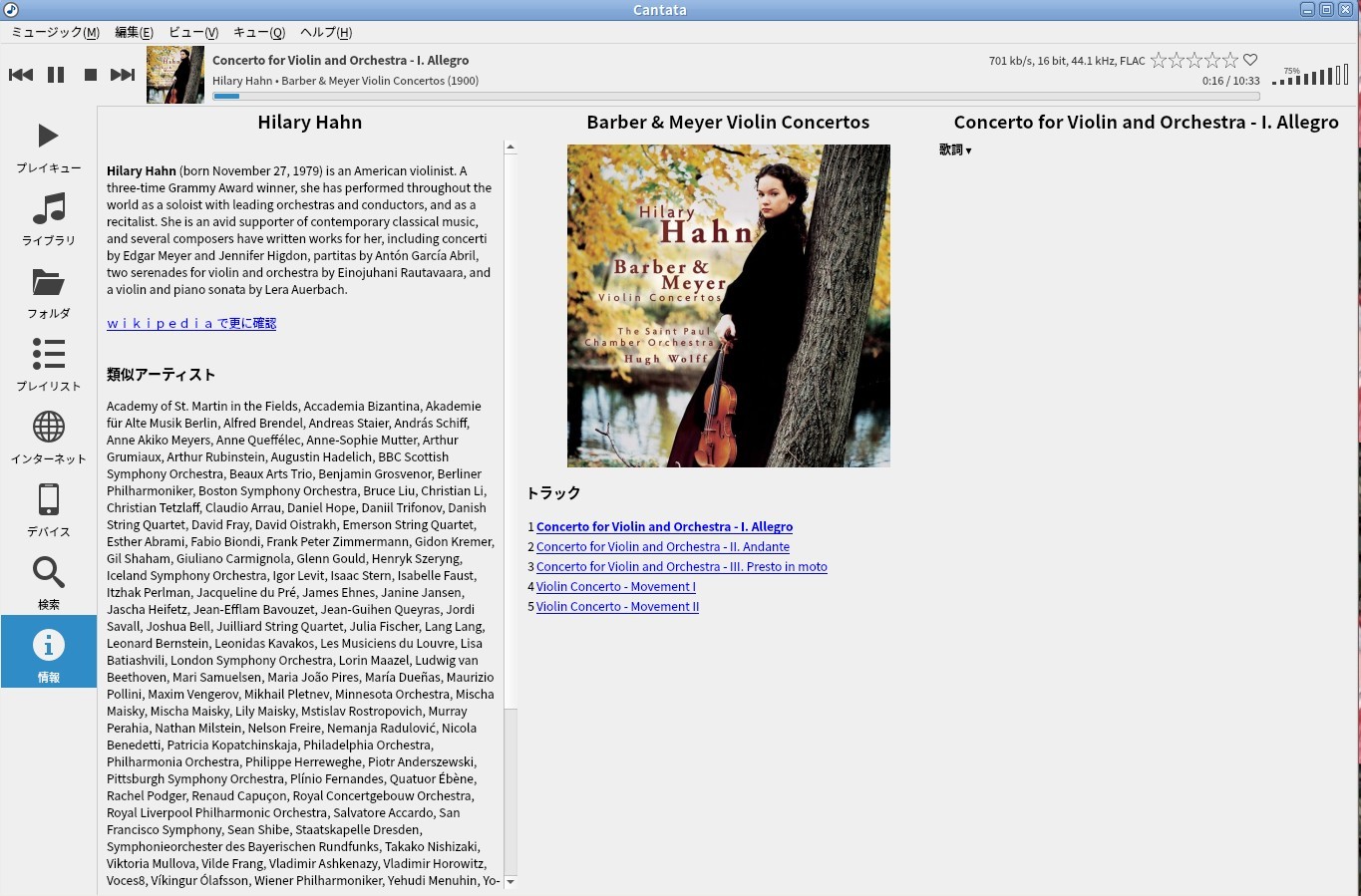

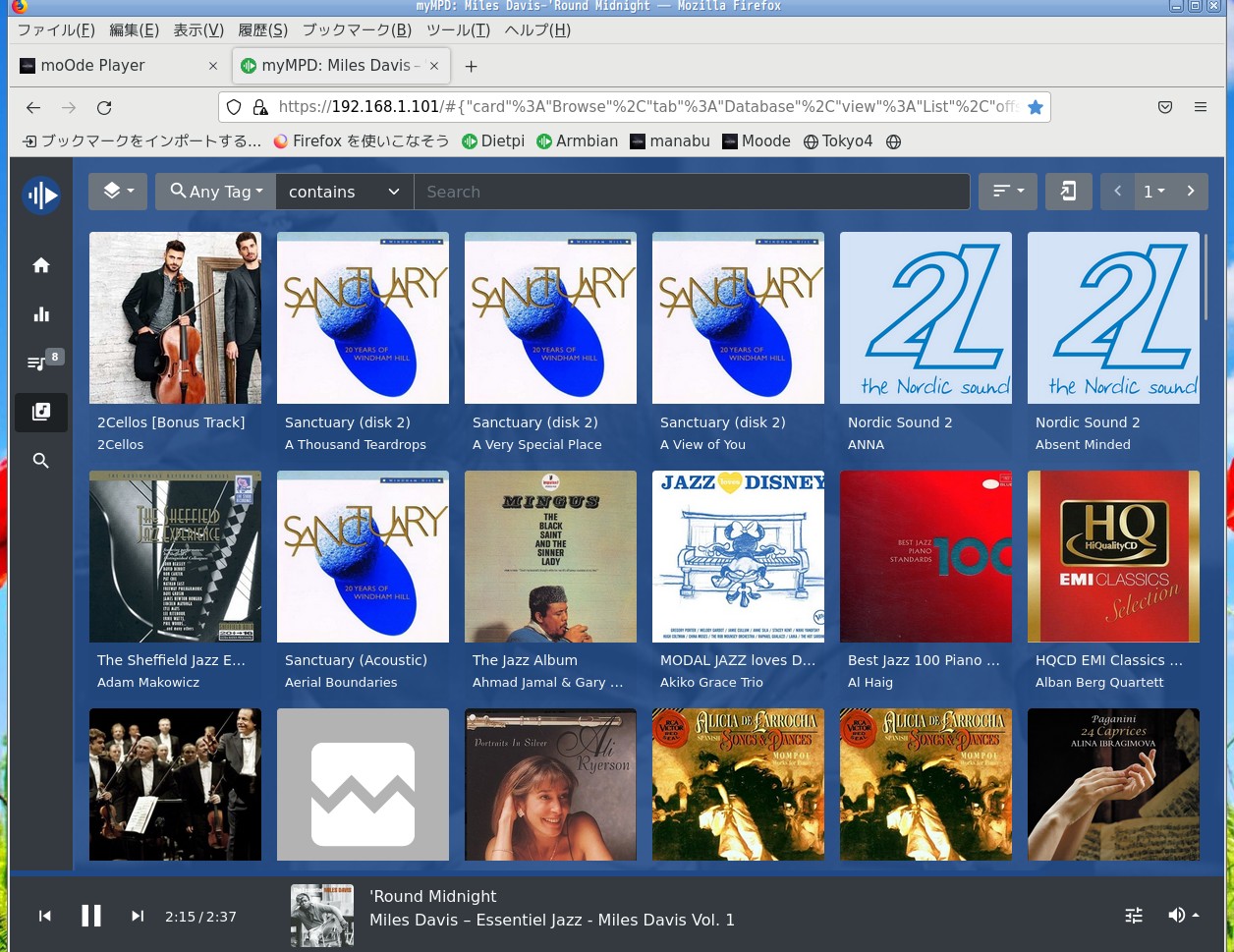

The Front End of MPD and Mopidy

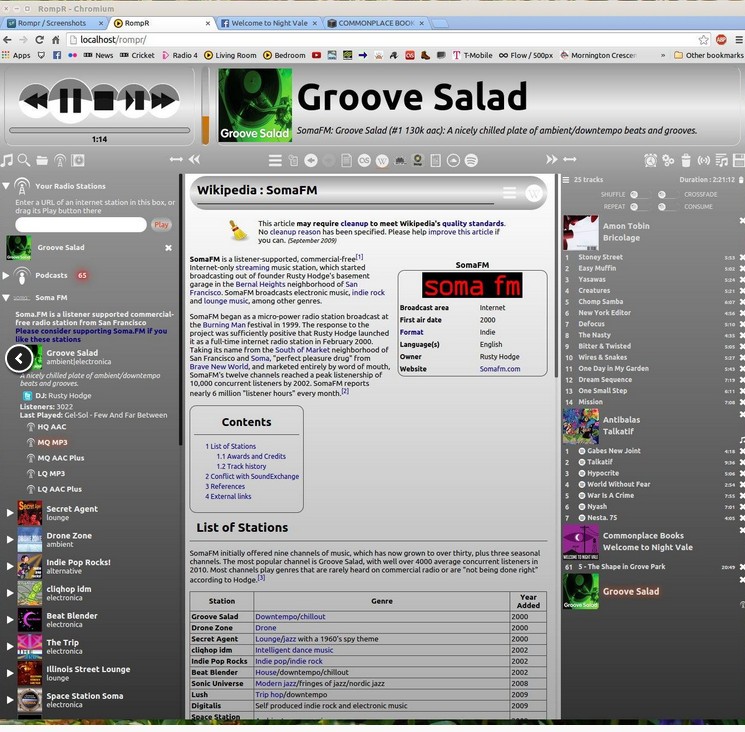

Rompr

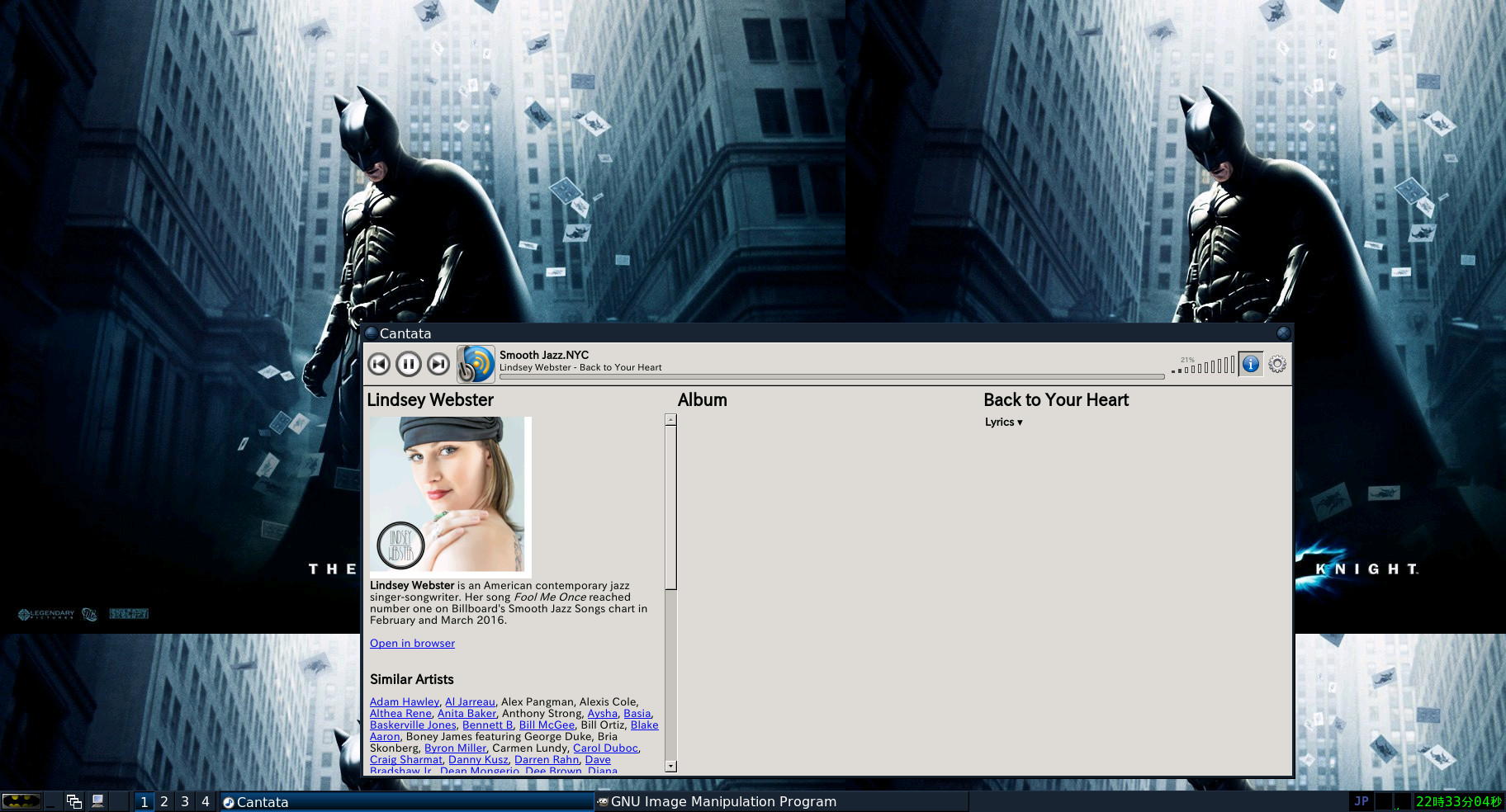

The Front End MPD and Mopidyjust like cantata and GMPD

asigne

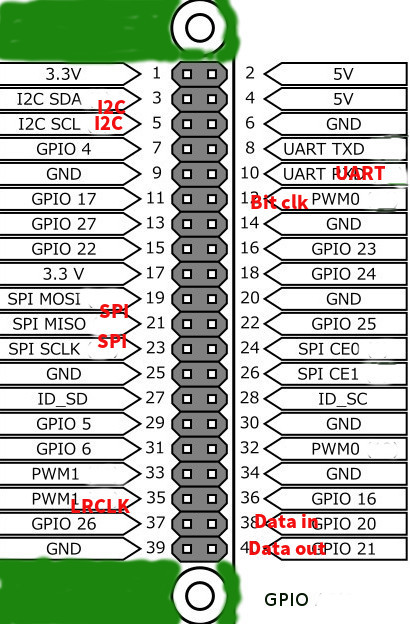

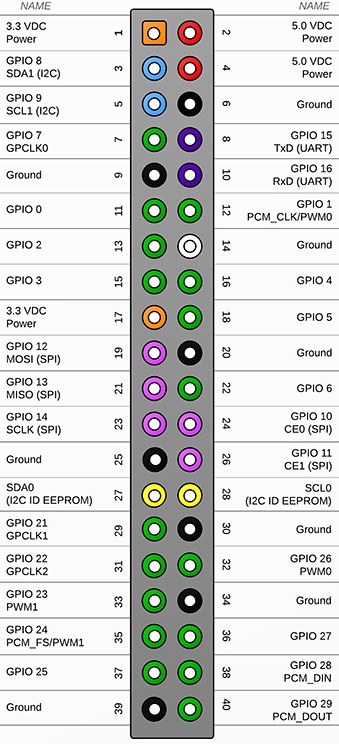

Assignment of GPIO raspberry PiB+

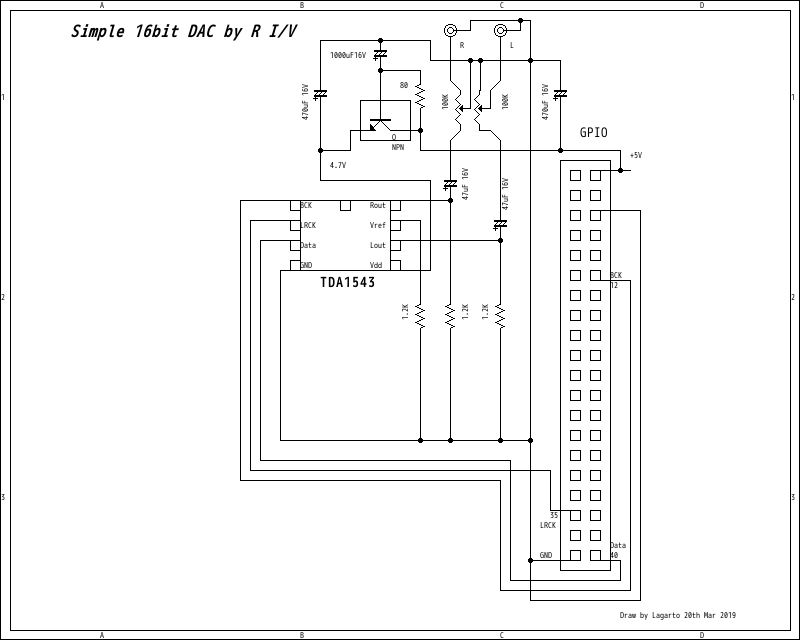

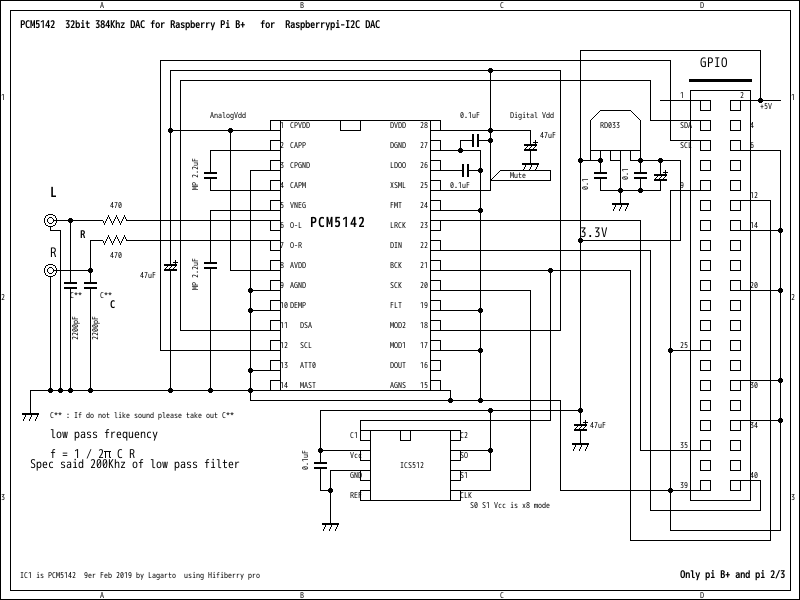

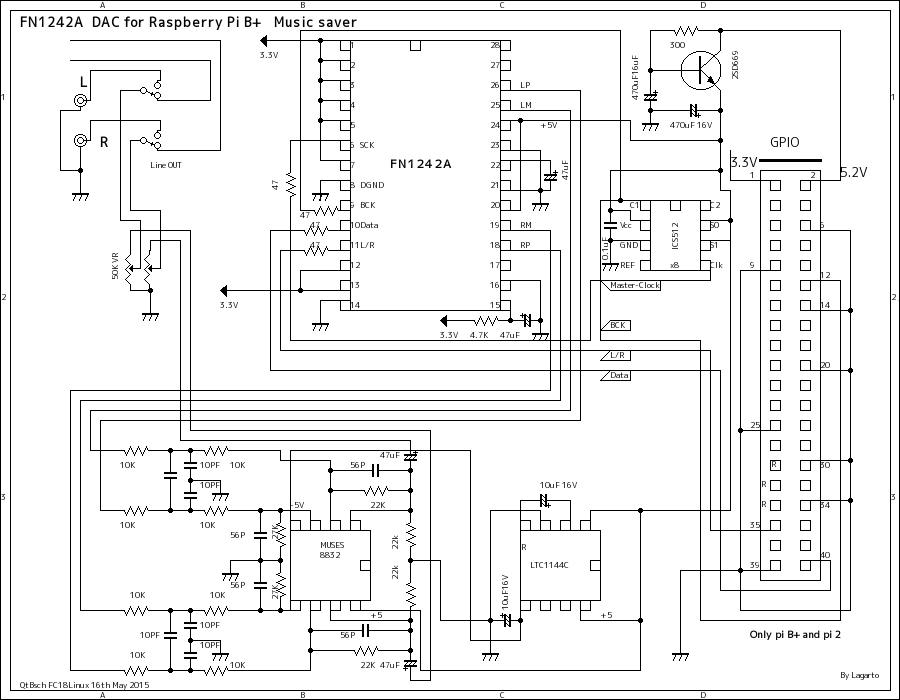

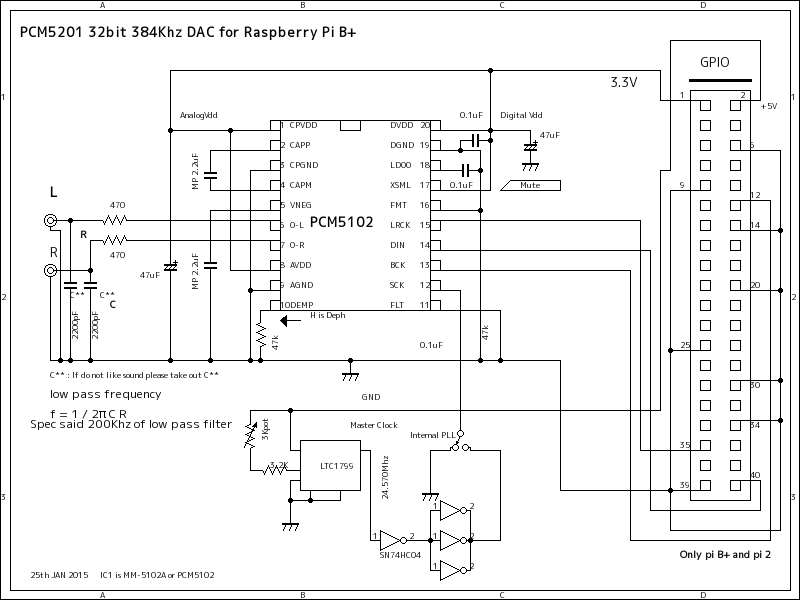

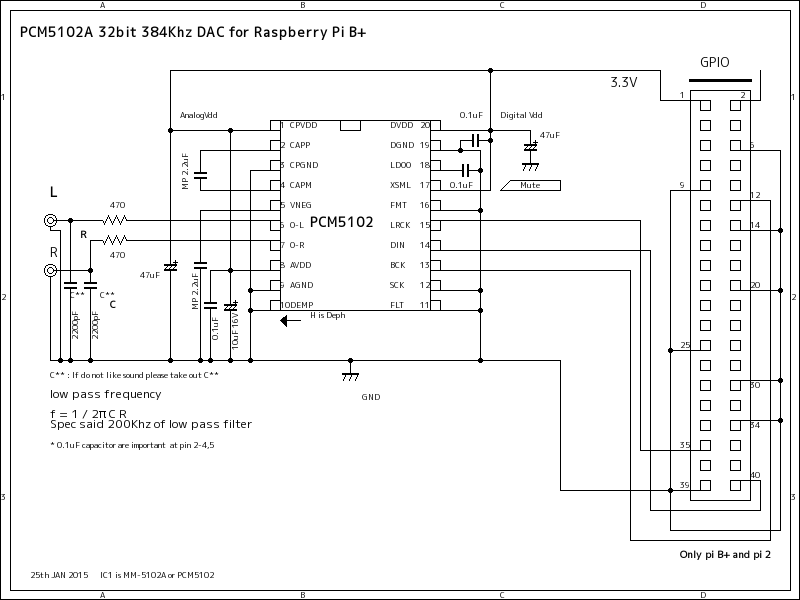

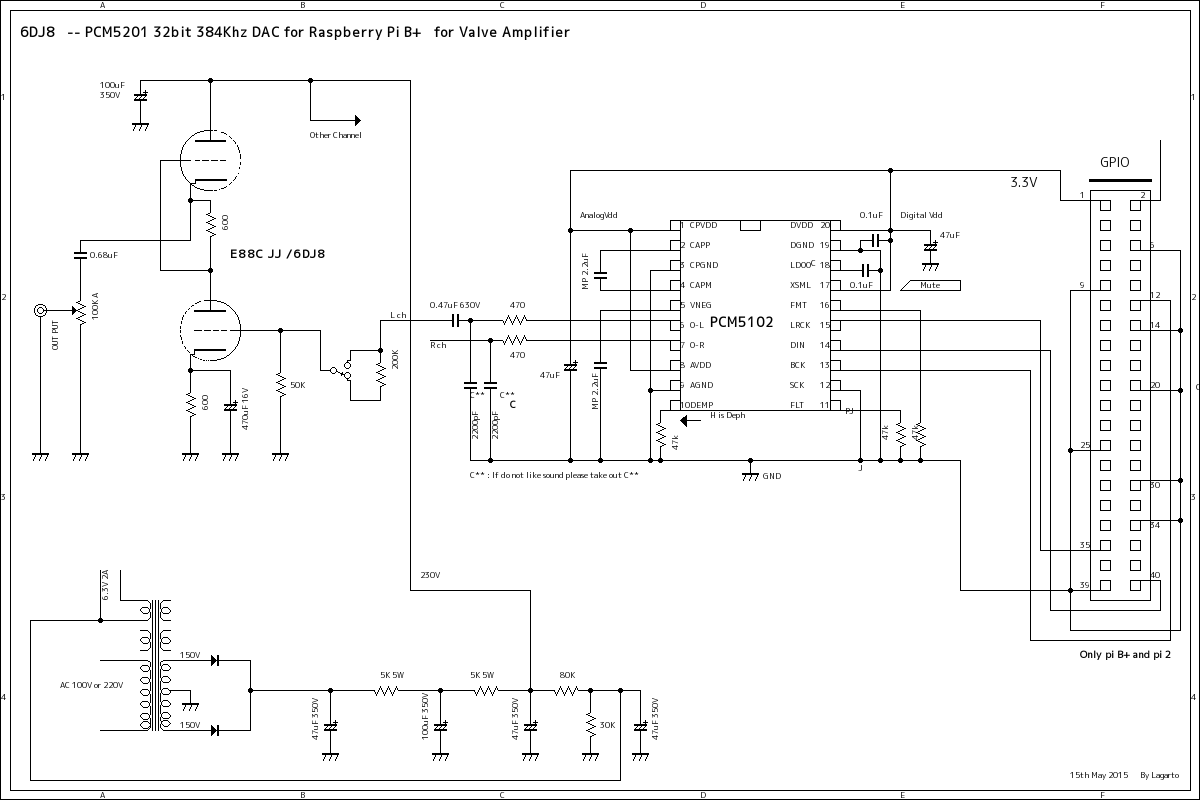

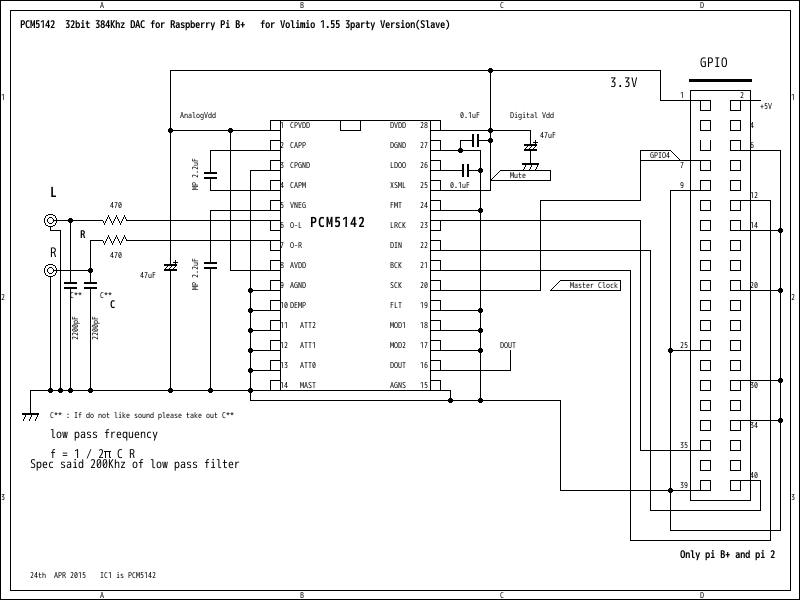

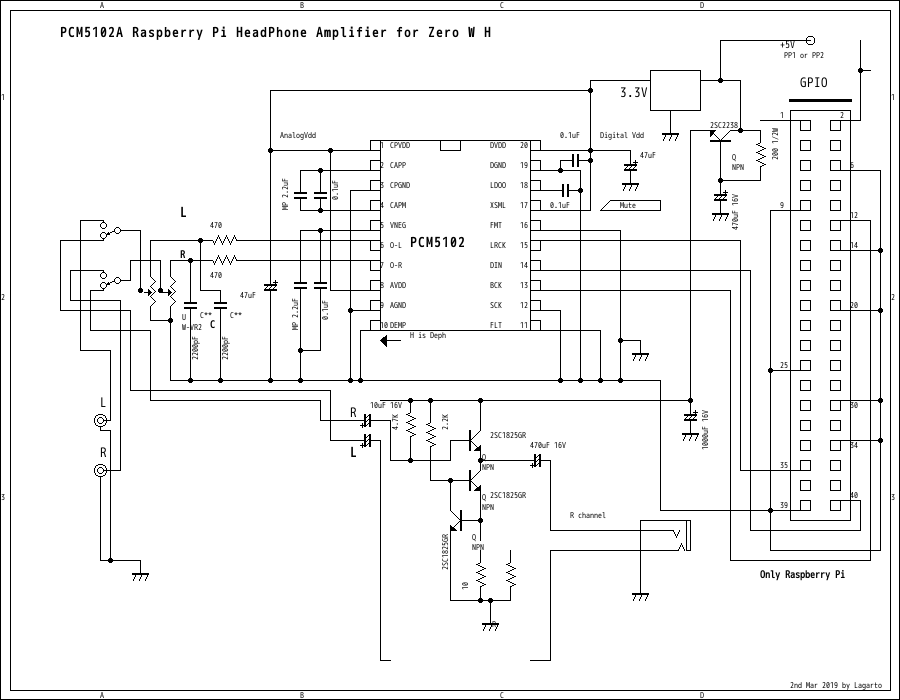

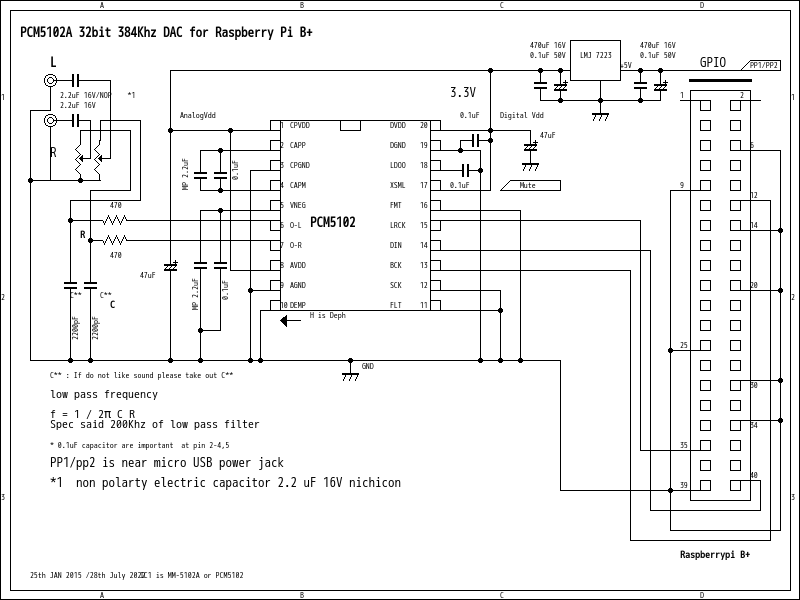

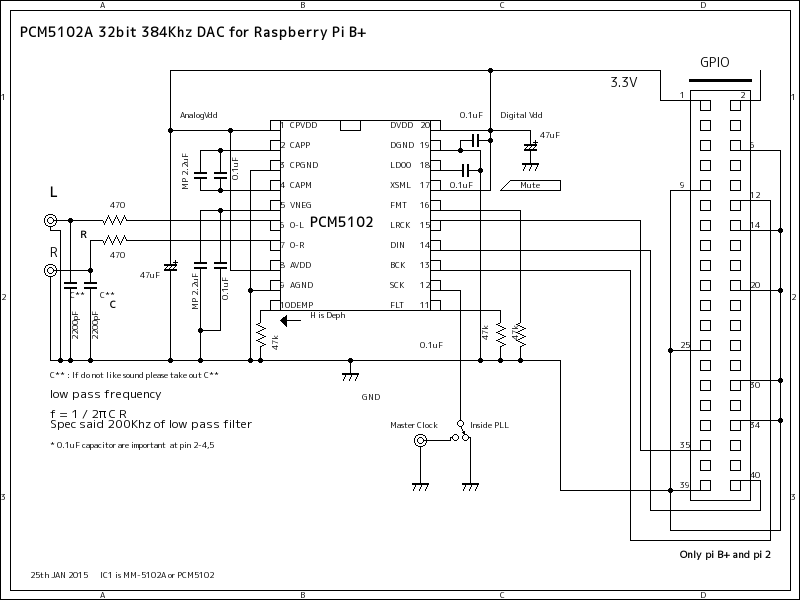

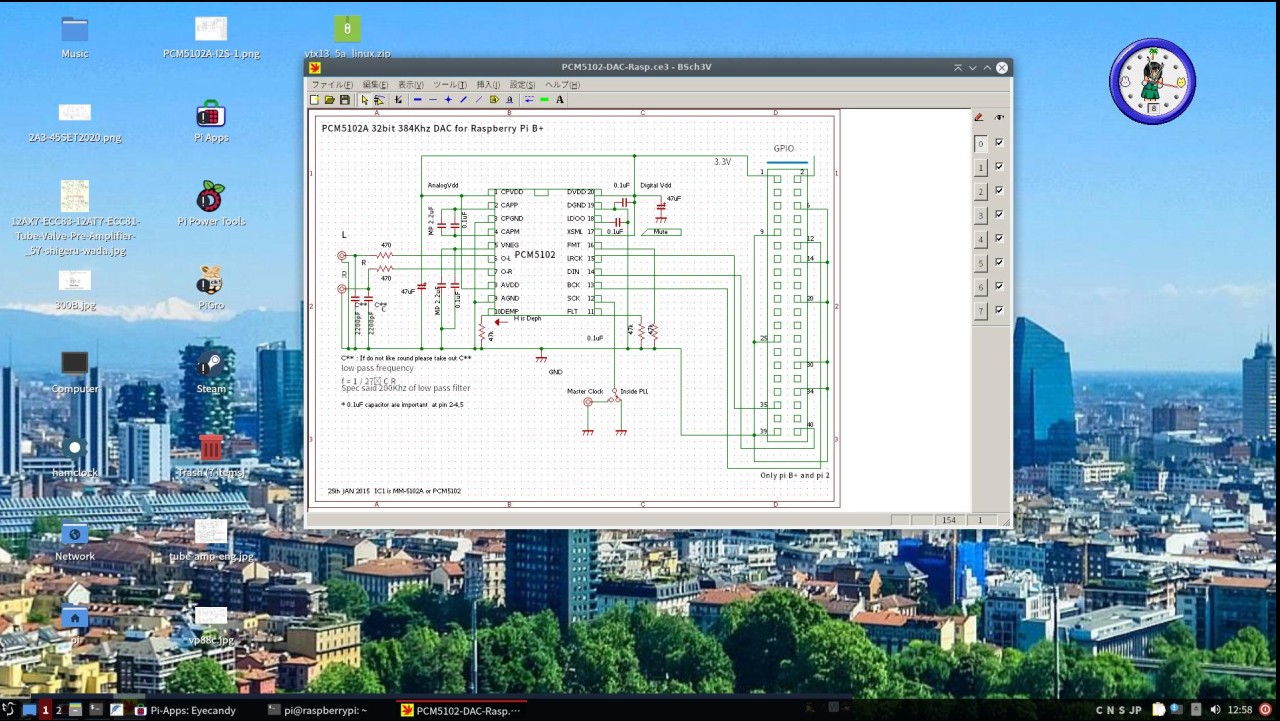

Schematic Diagram is next ,single IC mode

DAC for Raspberry Pi B+

Circuit is very simple and easy to get sound ...how about ?



One thing ,one of big problem of Raspberry Pi B+ is does not have Master-clock(SCK) signal so we can not use any kind of DAC IC,
SCK of PCM5102 must be connected with ground.

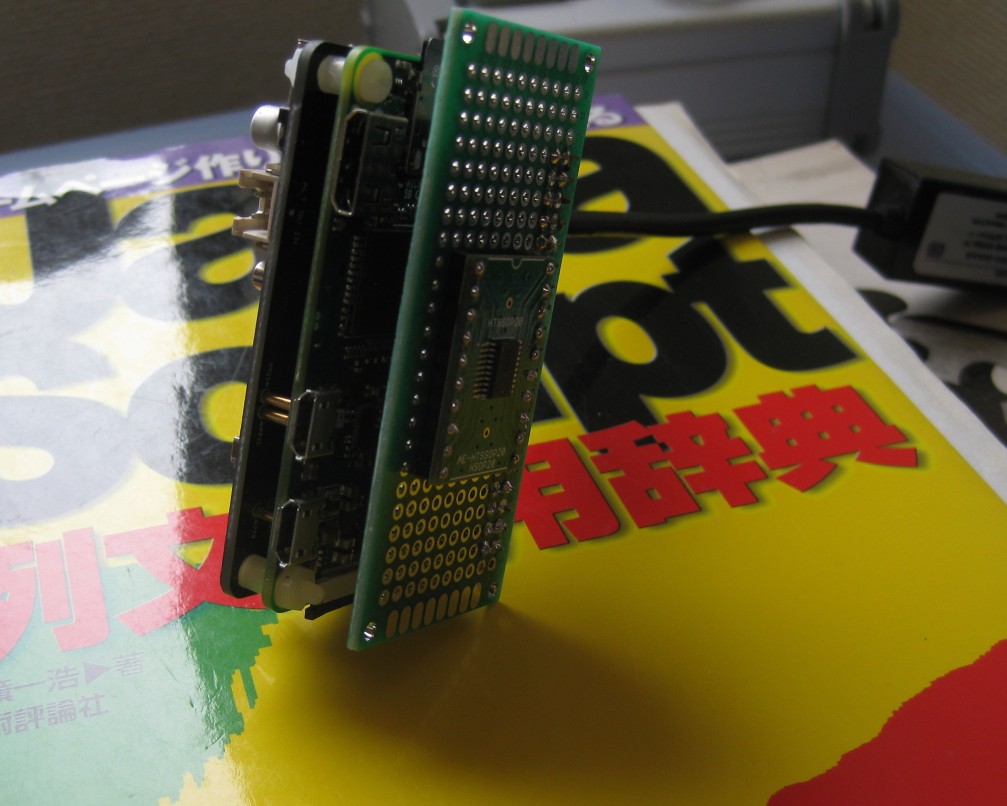

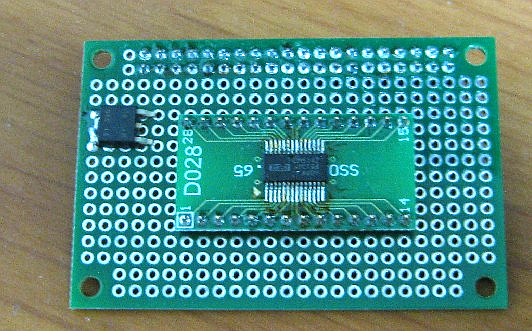

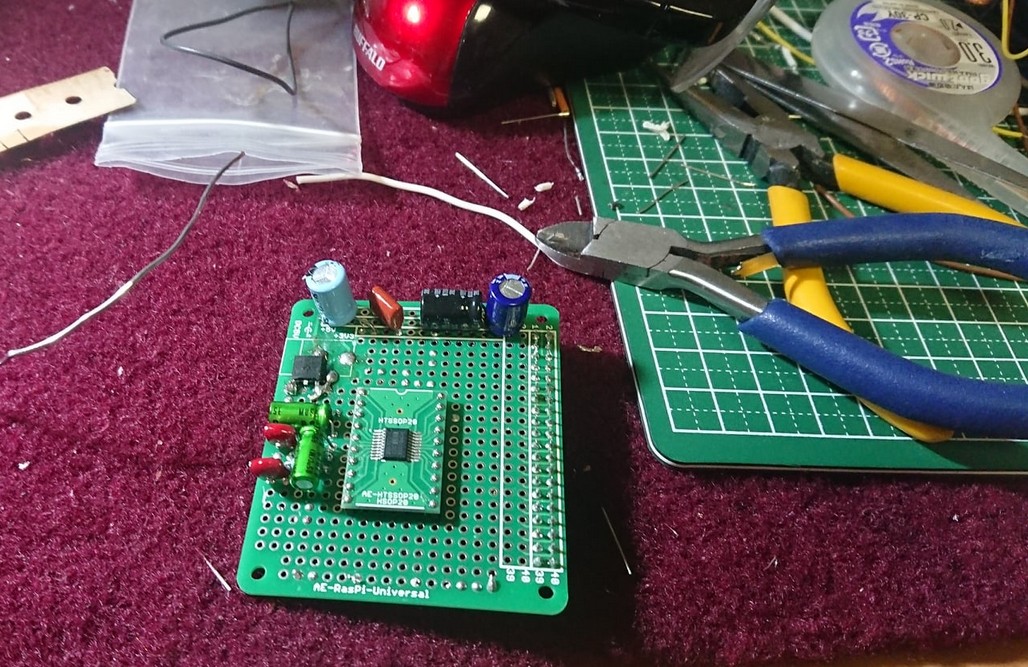

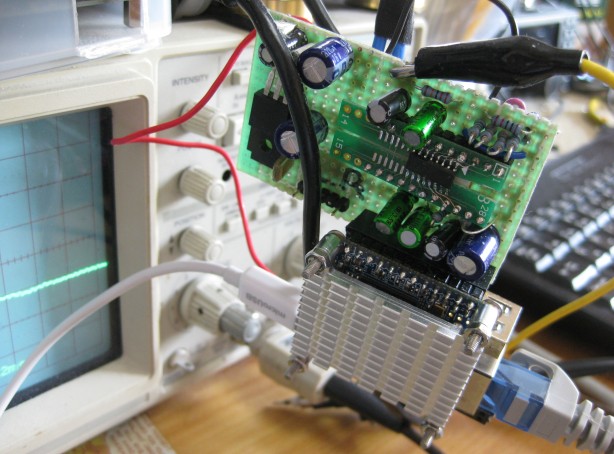

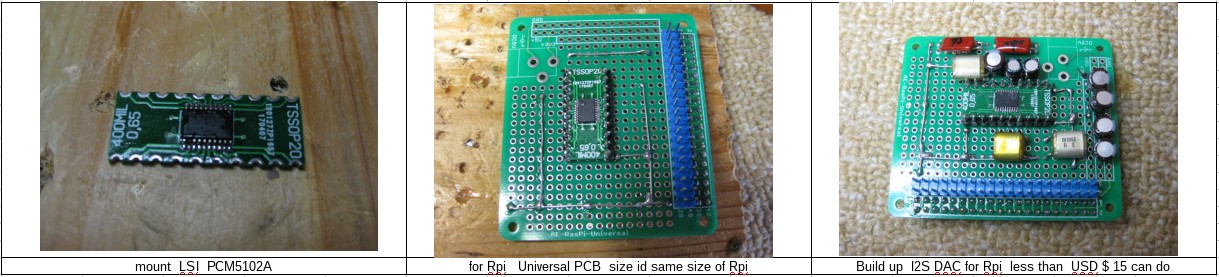

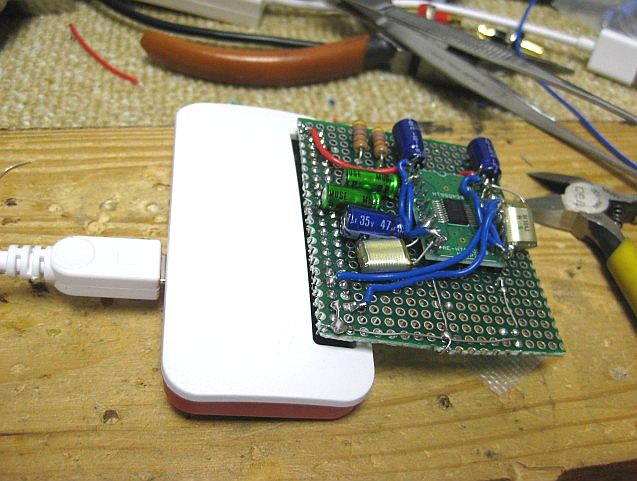

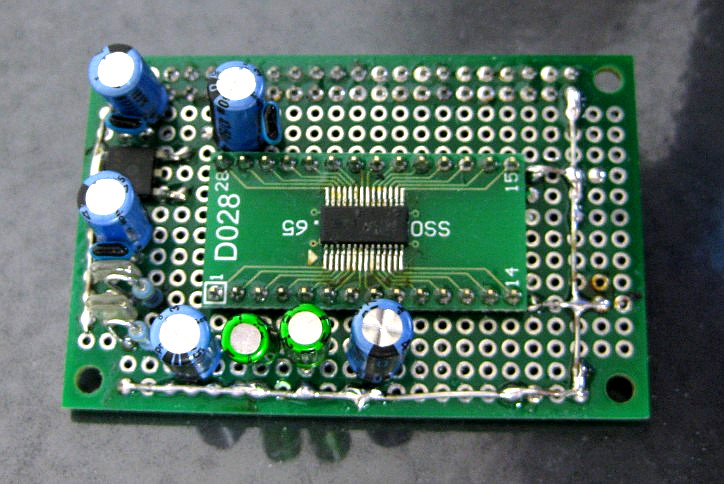

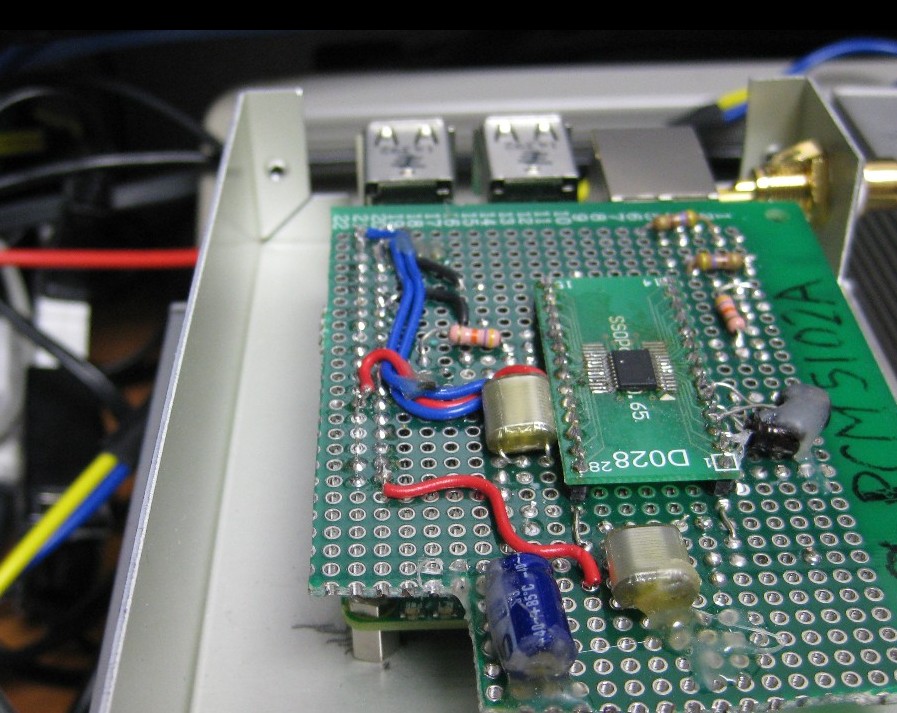

PCM5102A Inside ,,Raspberry Pi B+ DAC

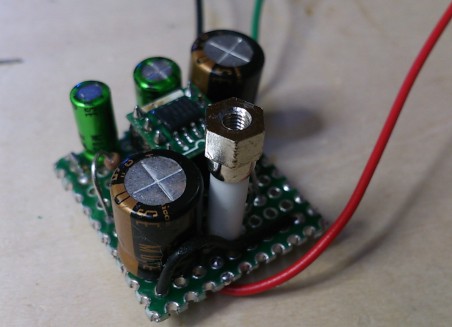

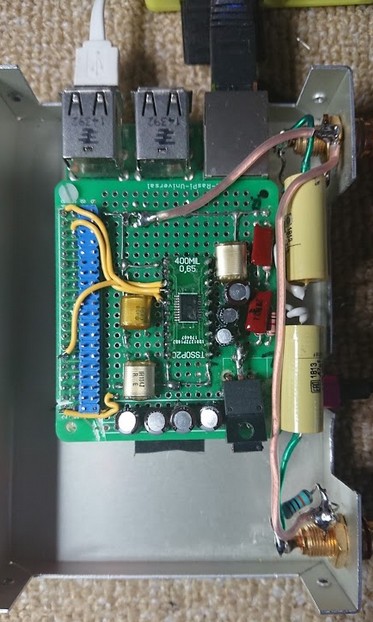

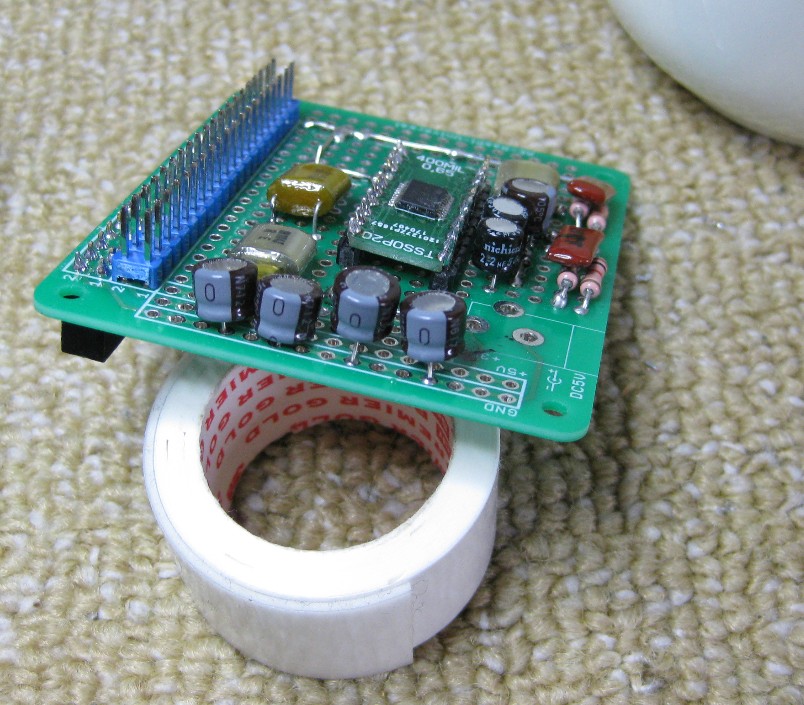

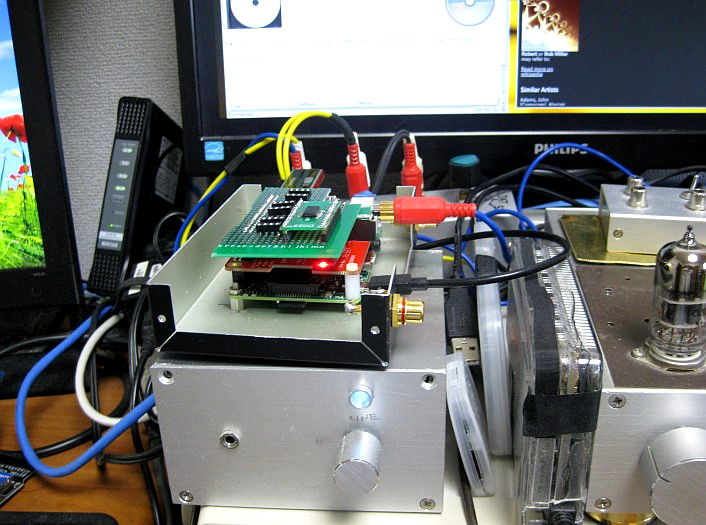

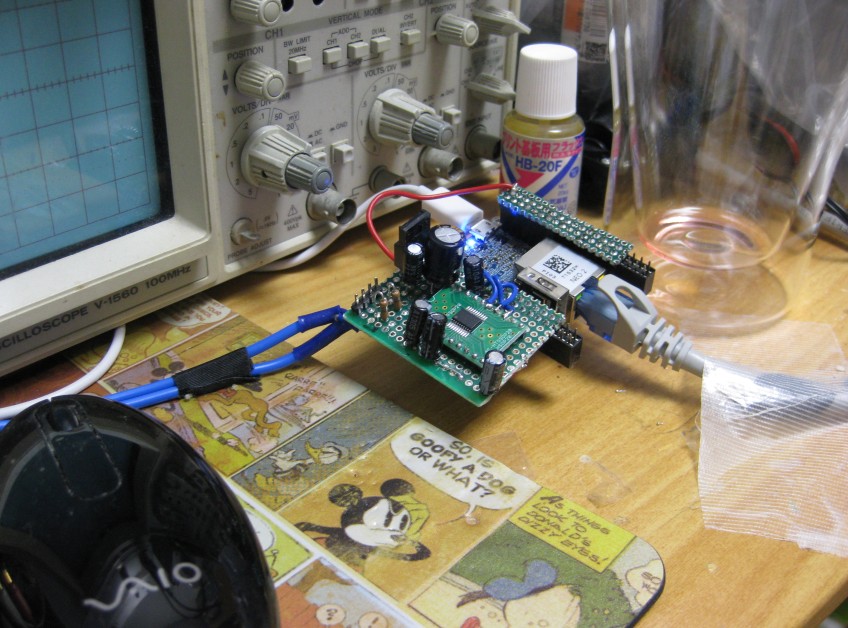

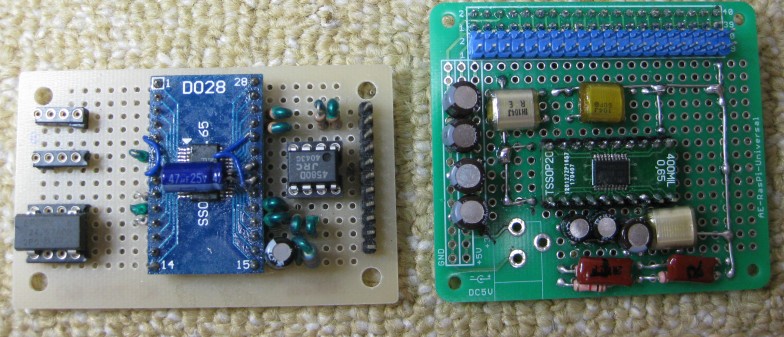

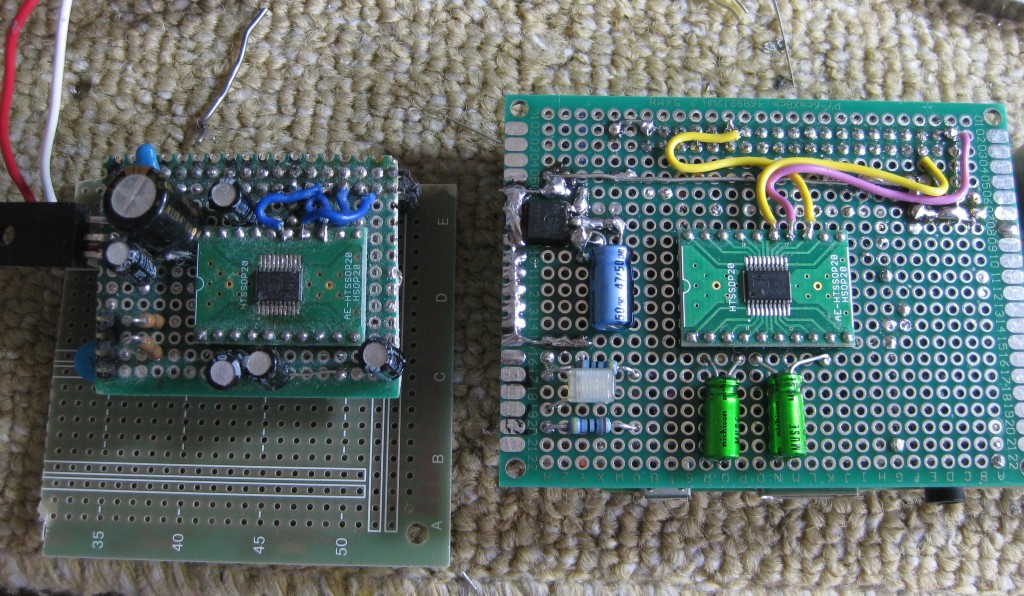

built up 2 of them ,,,very budget DAC because DIY and sound is great ,cost is around USD $20 dollars



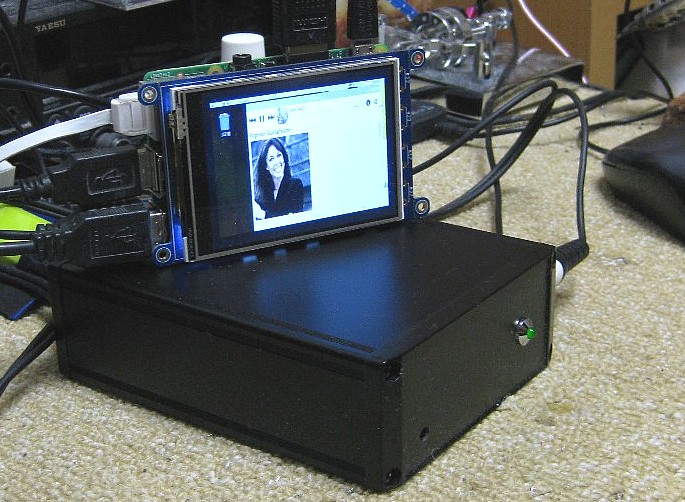

raspberry pi B+ とDAC

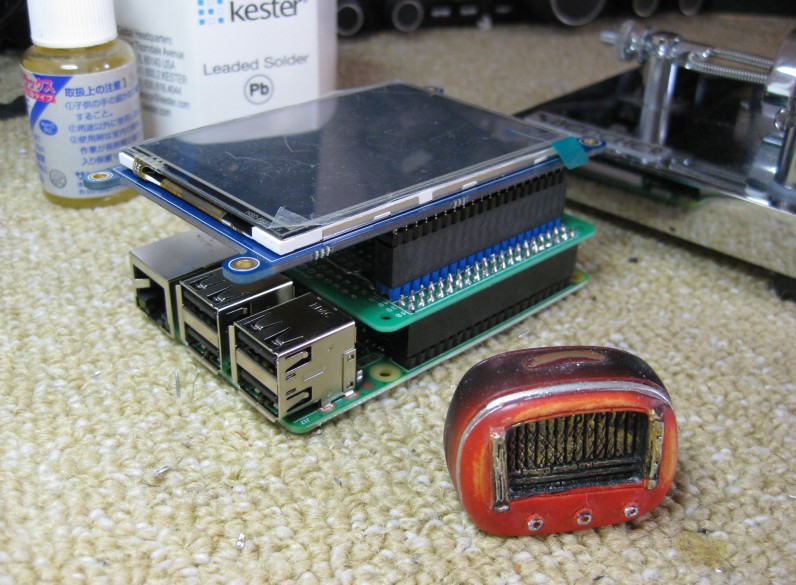

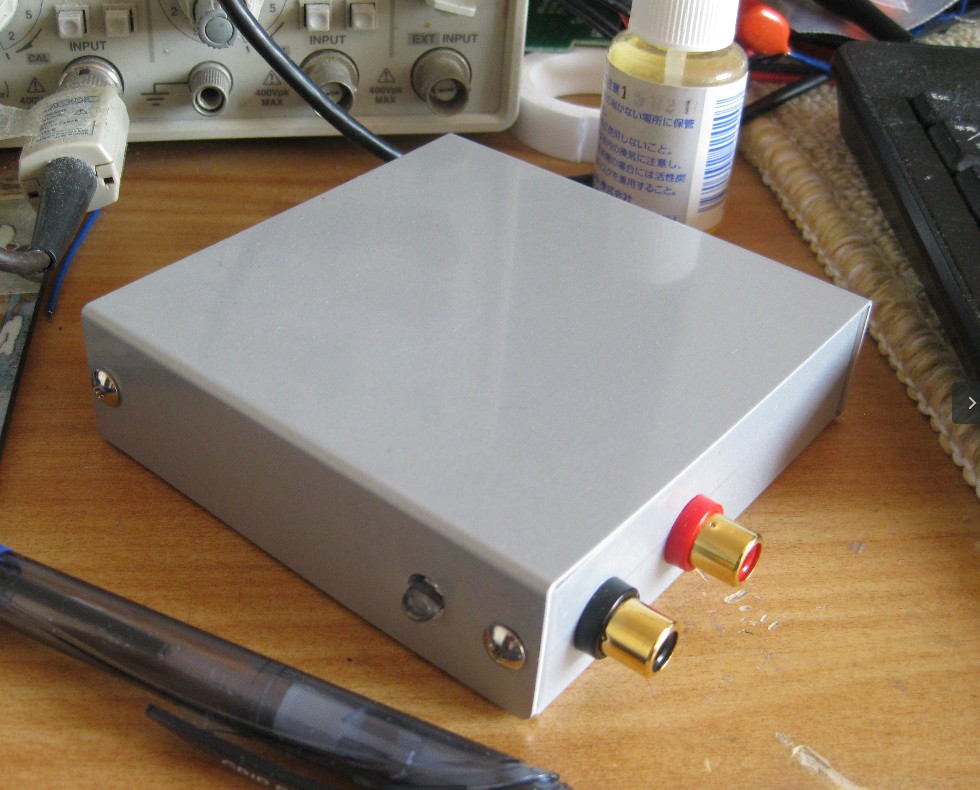

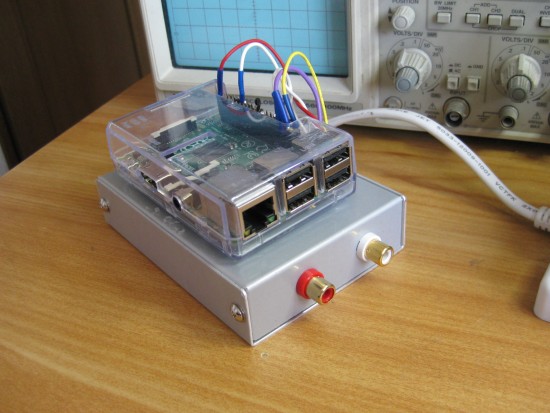

DACと、Raspberry Pi B+ hook up ,,very small Music Server



Raspberry Pi B+ とDAC

DAC and Raspberry Pi B+ will be working for Music Server.



much better use PCM5102a for Raspberry Pi family. very much stable to get good sound and can be change sound connected coupling capacitor.
with out put of PCM5102a and direct to input of an amplifier.

If would like to use Raspberry Pi 2 or Pi B+ etc. what is need for use ?


(1)Raspberry Pi 2 B type or Pi B+ (this is small arm architectur board PC)as you know (RS Components can buy)
(2) DAC USB type DAC has USB input if you do not have one,, please build up DAC by PCM5102a TI easily to build up. even DAC has DSD much better.

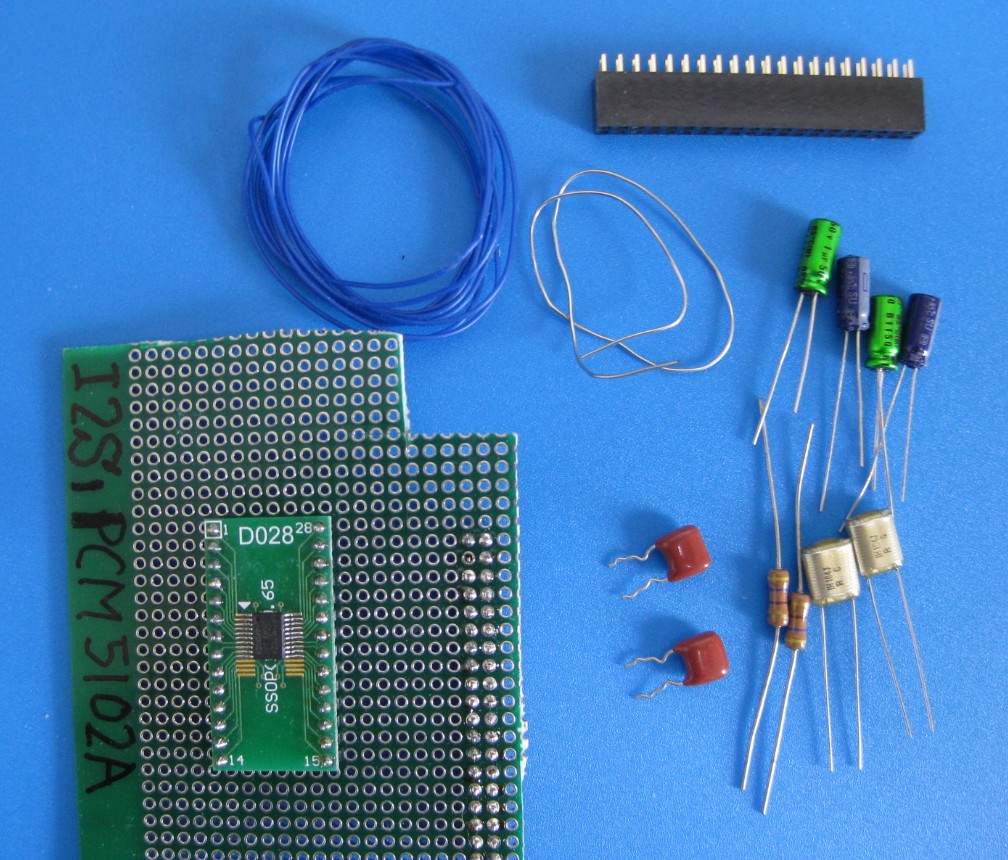

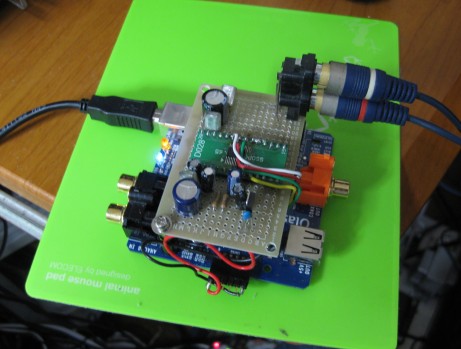

PCM5102a small DAC is very easy to build up and will be get good sound.you can by Digikey and RS component any where in the world.
(3) micro SD card (less than 16 giga byte),much better use 32 Giga Byte.
(4)PC Main PC any OS of PC for access by ssh (Main PC is Windows,MAC, Linux etc )
(5)Power supply of 5V 3A with micro USB connector with cable.
(6)if do you have SATA USB HDD or NAS ,if does not have those elements, need one of USB memory big much better for ex less than 64 G byte.
my case is using SATA HDD 1 tere byte with USB BOX.USB box adapter can be use SATA HDD to USB Memory on-line as just like NAS.
even you can use old PC with LAN for NAS .
(7)LAN cable and System of LAN in your house or your company.
(8)USB Cable
---------------------------------------------------------------------------------------------------option
(9)USB Key board(not necessary but if would like to use with HDMI monitor )
(10)Mouse
(11)Monitor HDMI
and Music Server application, there are Linux OS.Volumio or RuneAudio even Free NAS etc.Volumio or RuneAudio can convert High Quality sound passing trough
to your DAC or I2S type DIY DAC into your sound system. please try to build up PCM5102a small DAC. sound is good.!!!!!

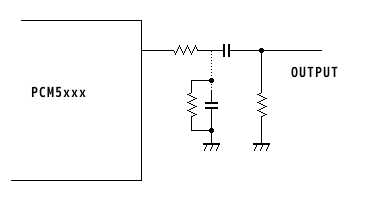

Note: Often does not get sound from DAC ,probably got damages LSI DAC then replaced PCM5 xxxx IC fixed,so what's meaning OUT PUT line of DAC have to connect
coupling capacitor then hook up some resistance like 47K ohm respect ground for load.then feed to Maim Amplifier or Pre Amplifier much better to use.

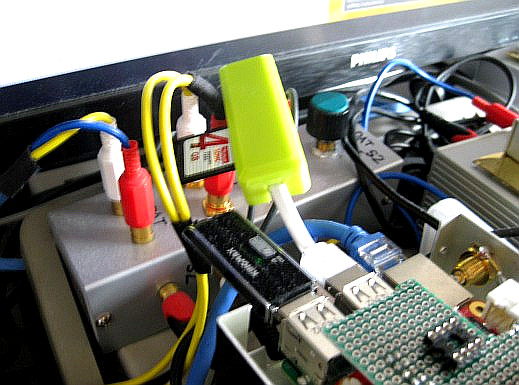

Note: Micro-SD flash memory must choose "Class 10".you can use any Micro SD but slow.so please use Class 10.a little bit high cost than regular Micro SD.
if Do you have Windows PC for install Linux into Raspberry PI need 2 of applications for help.

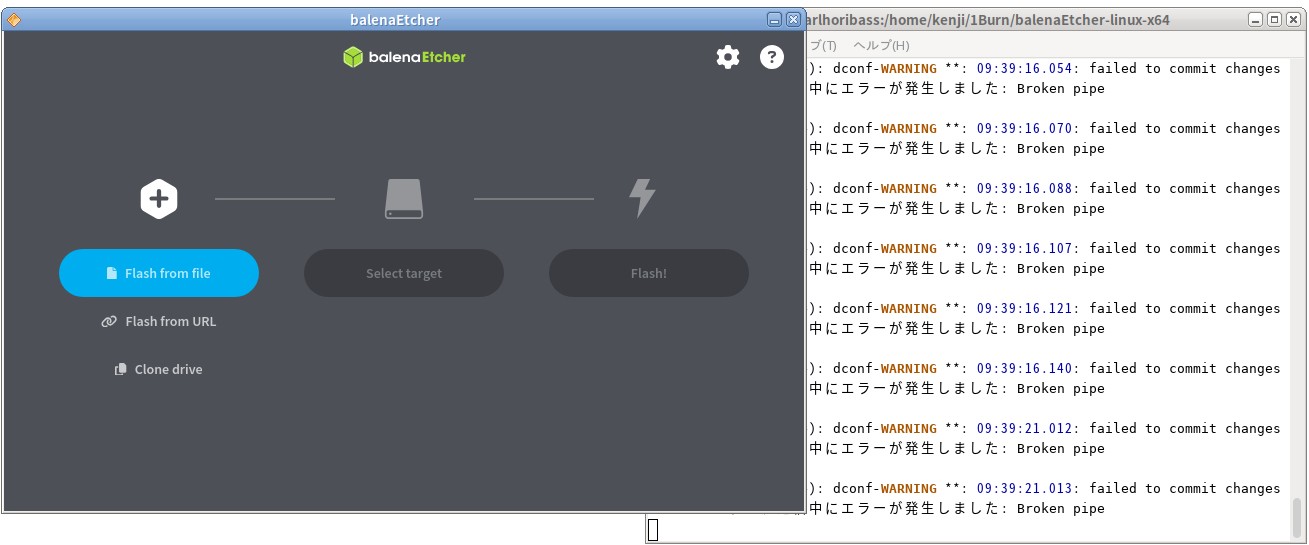

A) format application.>>>>>Micro SD FormatMicro SDFormatter application from SD Association
B) image installer....>>>>>Win32Disk Imager Imager File Siteto show
You need 2 application for to get OS and install image to micro SD for Raspberry PI.
so not difficult.even If do you have Linux workstation or Linux Terminal ,you can format and install by command line.as you know.

DAC 出力


connection

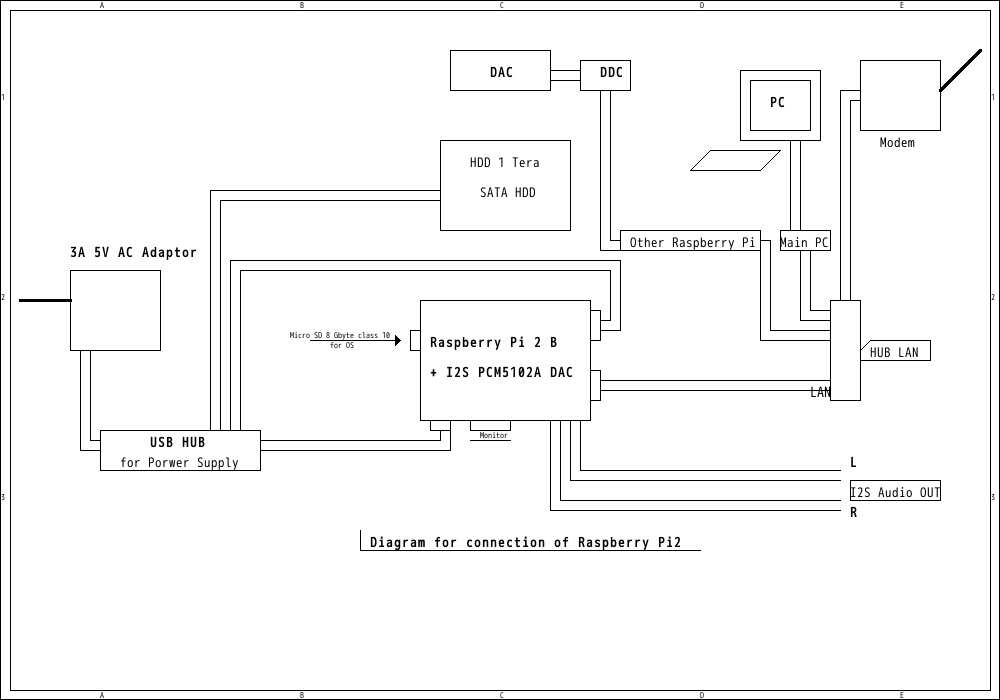

Connection of Raspberry Pi2 by Volumio at home



Add Master Clock to general DAC

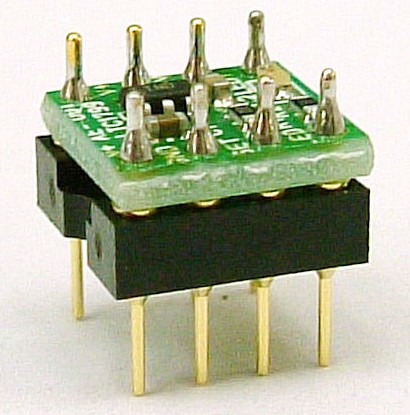

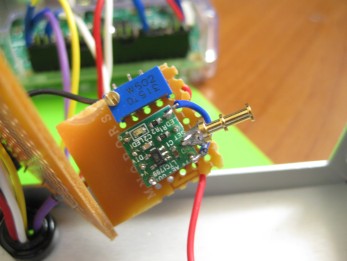

LTC1799 module

very small unit osclate for Master Clock,,,may be...



Master Clock

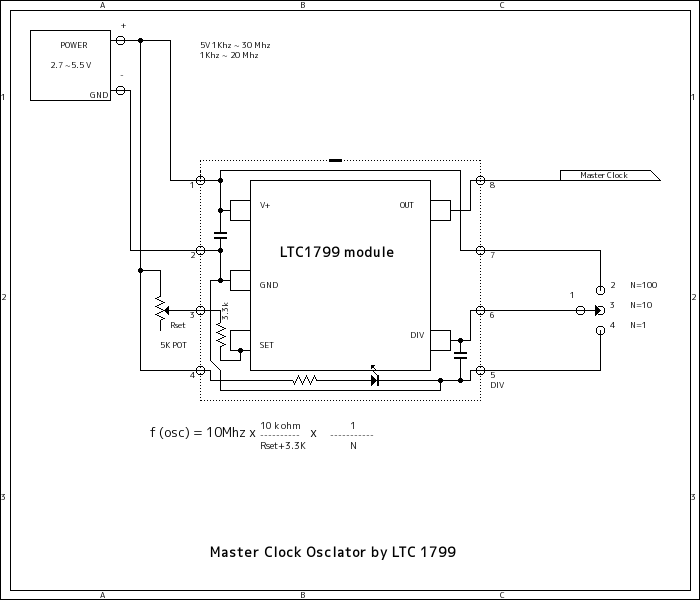

Master Clock OsclatorLTC1799-SPEC


Best simple Mastar Clock OSClator in the world.Just try to make Master clock for other DAC PCM1794 ,PCM5124, FN1242A ........

24.5760 Mhz = 48Khz,96Khz,192 Khz and
22.5792 Mhz = 44.1Khz,88.2Kz ,176Khz will be make Master Clock for DAC.
Spec of LTC1799 PDF file
can make time base clock and can divide 1/10 and1/100 with 3 position of switches.if power supply is +5V can be use until 30 Mhz
and can be use until 20 Mhz when power supply is +3V. frequency is just show around 24 Mhz so must be use +5V Vcc.
Data 1: +5V Set R must be use 5K pot.for 24M hz and if possible to use some buffer or LC transformer.

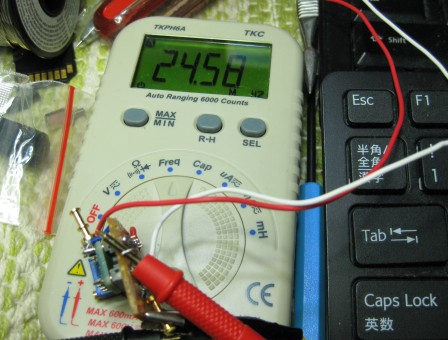

1799 osc

24 Mhz frequency very stable on 5th Apr 2015


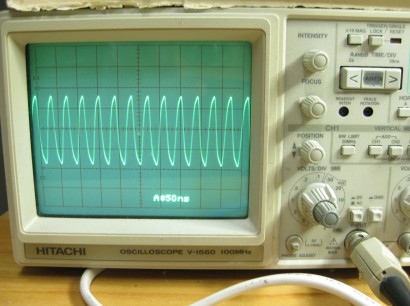

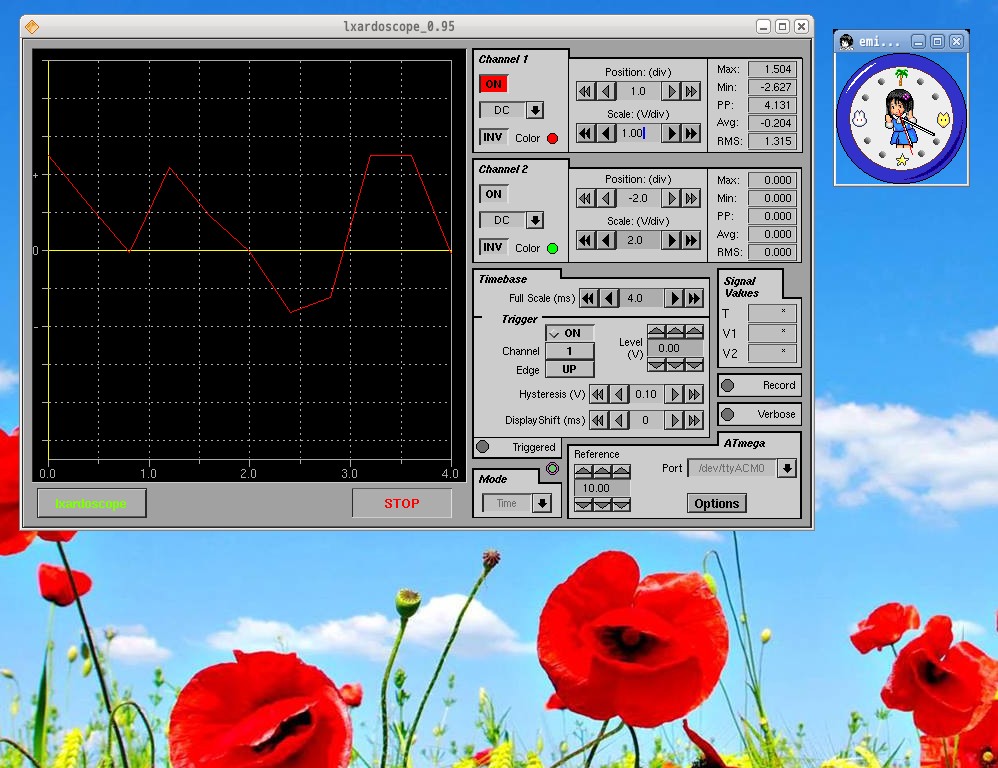

波形 1799

triangle wave ,,just not sine wave ...to see


Master Clcok

Just doing test by Master Clock ,,with LTC1799 OSC ,actually does not need frequency counter for adjust correct frequency.just turn screw of pot by screw
driver like tune frequency with radio dial.frequency is 24.576 Mhz.POT is 3K ohms .sound is a little bit more clear and getting a little bit more bass.but some time get
noise.like pi! but sound is really good than before . more widely and good bass ,,only some time to get noise.noise like scrach,,,on LP.
much better use Xtal module more useful and more cheaper.

modules

simple circuit ,module and potentiometer 3K ohms


Xtal

instead of LTC1799 much Stable and more useful

Then,,,, but some time getting noise from OSCilater

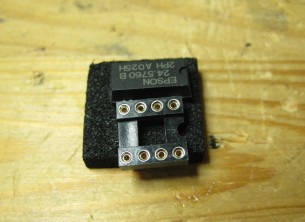

Epson PLL Xtal


秋月

programable crystal osc unit 1Mhz to 125 Mhz


SG-8002DC/DB by Epson Japan.
Jitter 250 ps/output load=15pF Max indicated on Spec and actually 2 type of power supply 3.3V and 5V .can be program by special tool of them.
osc is from 1Mhz to 125Mhz.very cheap and consumption power is quite low.



So,,, added buffer with TTL IC....circuit is next one

schematic diagram add buffer circut 10th Apr 2015

Then Tested .....with buffer stage ,,does not get some noise ....and using internet Radio high resoulution ,,sometime got noise from line condition.
with Master Clock ,,very low level of noise are getting but often.much better than before.and does not get noise from Master Clock oscilator any more.

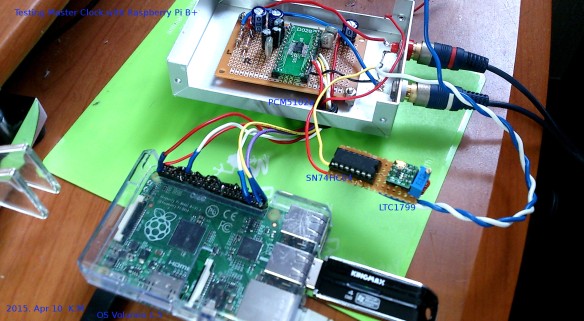

Testing Master Clock 10th Apr 2015

Just testing InterNet Radio with Master Clock,,sound is much better than before.10th Apr 2015



DAC master clock

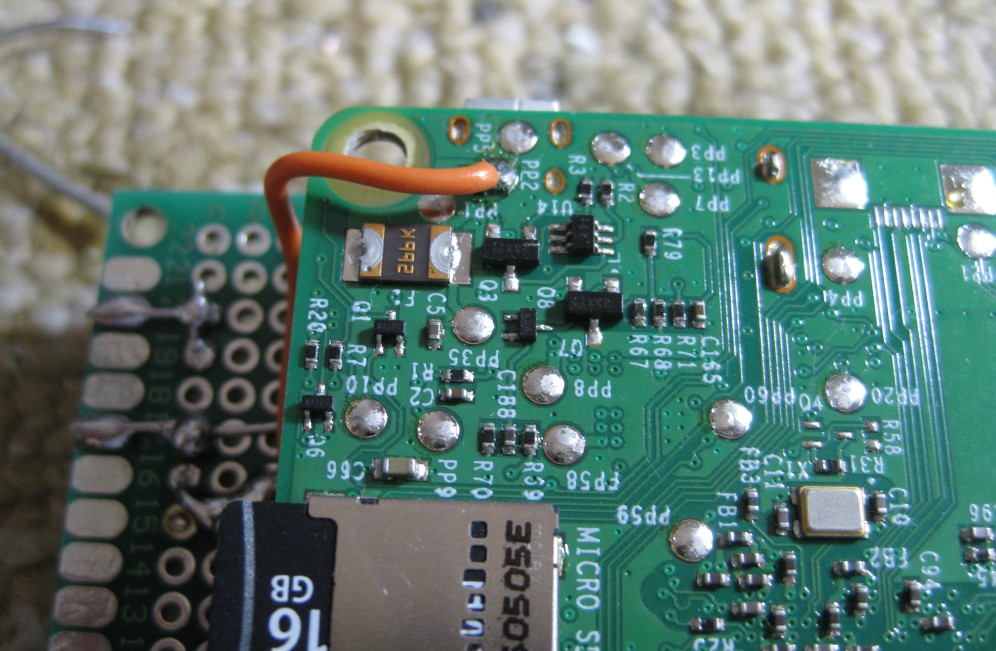

Xtal using for Master Clock ,,problem of noise was capacity of power supply then right now get small noise getting
when start Raspberry Pi DAC.then right now fine.this is good DAC and simple is good


Manualy can do
24.5760 Mhz = 48Khz,96Khz,192 Khz and
22.5792 Mhz = 44.1Khz,88.2Kz ,176Khz one of switch can switch by manual.in general InterNet Radio made up 24bit 44.1 Khz so need 22.579 Mhz Master Clock.

These kind of DAC does not need Master Clock. contain PLL Mater inside of PCM51XX DAC. if would like to add please use Master Clock with sync.because get some noise.
or no master clock.

How about Mr Horly's Volumio 1.55 3rd version archive


3rd Party Volumio with Master Clock.

Show you 3rd party Volumio 1.55 modificated by Mr Horliy ,circuit is show above.GPIO 4(Pin 7 is GPIO 4) connected direct with SLCK of PCM5142.
a little bit has noise.but not so bad.
I can use any DAC without Master clock. Maste Clock came from Raspberry Pi B+ with his archive ,Volumio 1.55 horly version. using internal clock for
remote control clock. please try it. Mr Holriy 's Archives3rd Party Volumio 1.55 with Master Clock
works quite good. sound is very clear too please try to use...recommend.


so what to do,,,, still I am getting noise from with Master Clock .....master clock have to make sync with internal signal of DAC.many case use LRclock or Bit Clock.
then ,,, I made order multiple IC like ICS570 or ICS512 for will be get synclonize master clock. with use any DAC.

So 、I got 2 of ICS512 $4 dollars each in Japan.to get 3.072 Mhz signal from BCK into crystal pin as pin1、S0,S1 are pull up ,connected directly Vcc Multipulier works as X 8.
Volumio 1.51 how was work....does not get any noise .works fine.so I will make some slave DAC with Raspberry Pi,.PCM1794 or FN1242A ,PCM1716 etc.because I do not any
stock in my parts box.plays quite good with PCM5142.muy bien,,,,
still if do you have some noise please check RCA cable .good cable need.
will show you pictures.(2nd May 2015)

テスト中

Testing ICS512 and I2S DAC..SPEC ICS512



Ref

Schematic is same as PCM5102A same just different pin of IC



24.5760Mhz

I got 24.5760 Mhz pin 8 of ICS512 and let' me show you circuit.



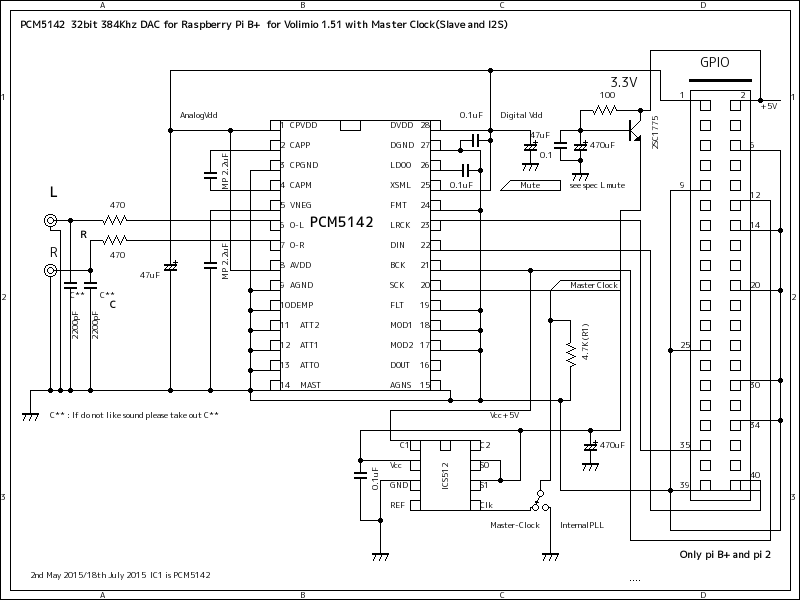

circuit diagram Master clock....

Sound is very clear and does not get any noise like before.so Master Clock is good for DAC. but these kind of DAC does not need Master Clock any way.
so I will start build up ,slave D A C using other type of DAC IC with Master Clock.and assignment of IC is next.

patern


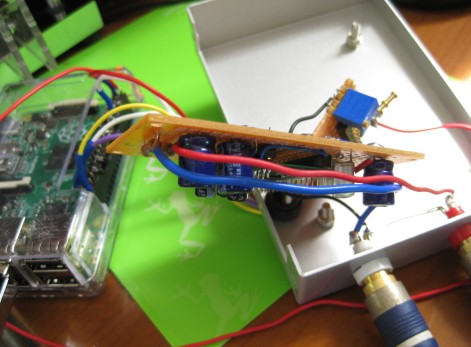

with Master Clock

Mounted Master Clock from BCK ,good work



Re-Locker and Piano I2S DAC from Volumio

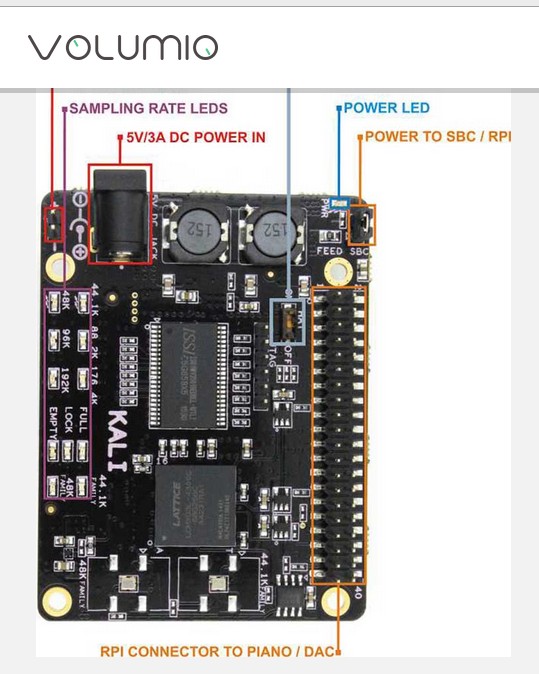

Volumio ReLocker on Oct 2016

Volumio recommend Re-Locker and Piano DAC(ES9023 SABRE )


Next One PCM5102A L/R Separate DAC

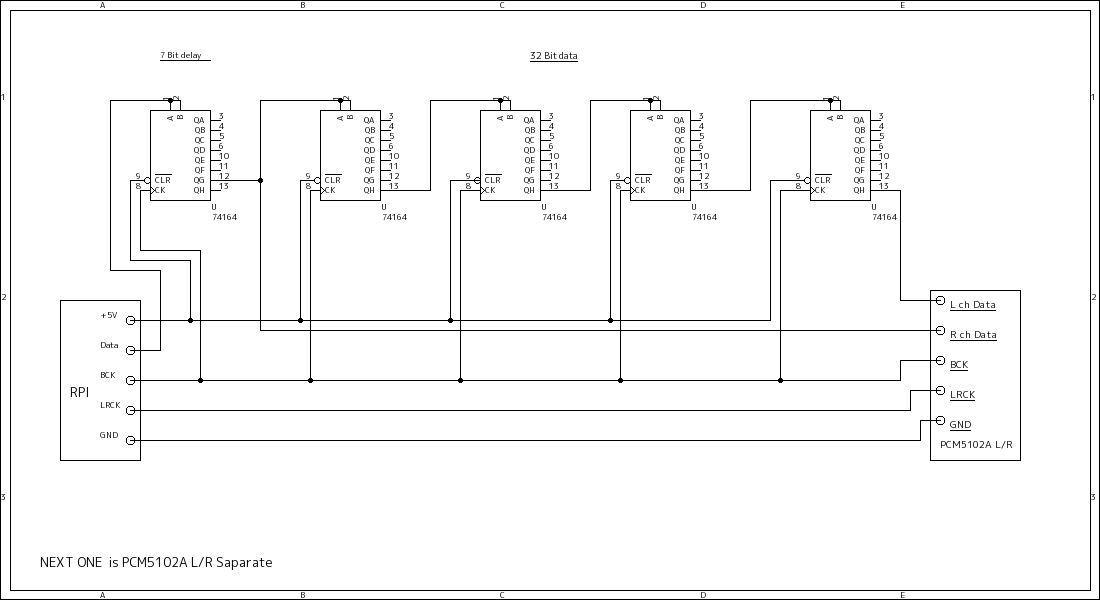

Sparate Circuit PCM5102

As you know PCM5102A single DAC is good enough ,but how about separate each other Left and Right channel.
circuit show above ..just only time base circuit for 32 bit delay at left channel data.right now I will build up 2 channel DAC and using 2 of PCM5102a
circuit is copy of some circuit got from online.SN74164 is using and there are Shift register IC(TTL),,you can use any kind of shift register TTL.
much better use with PCM1794 mono mode .

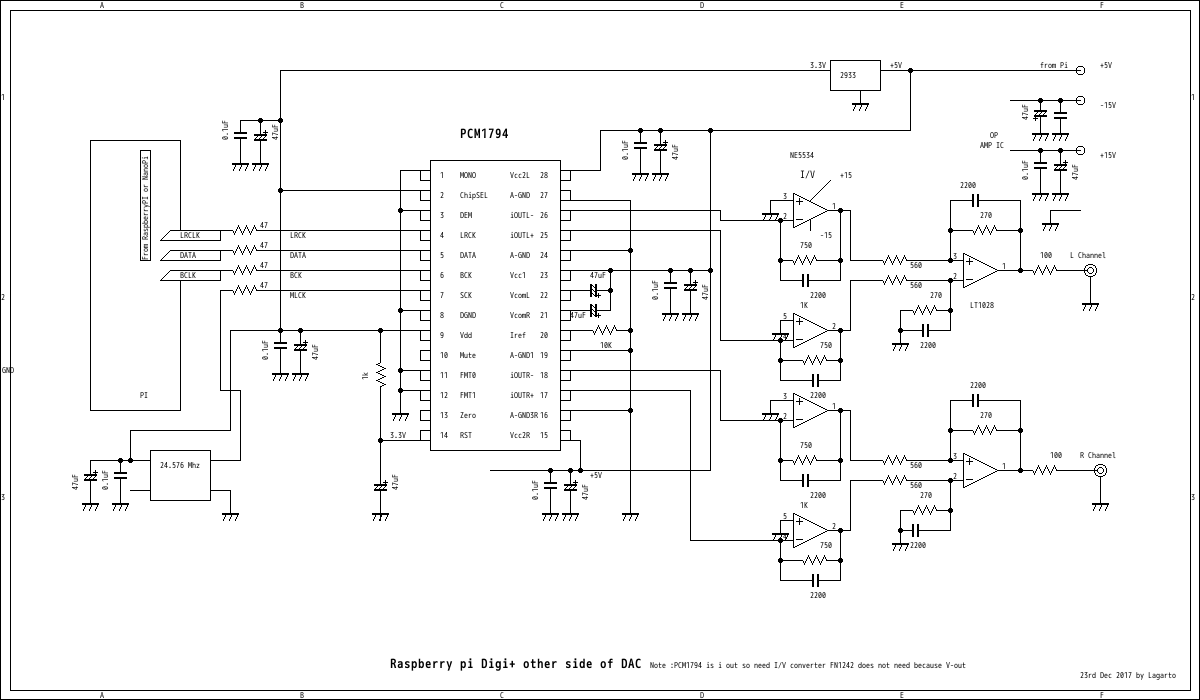

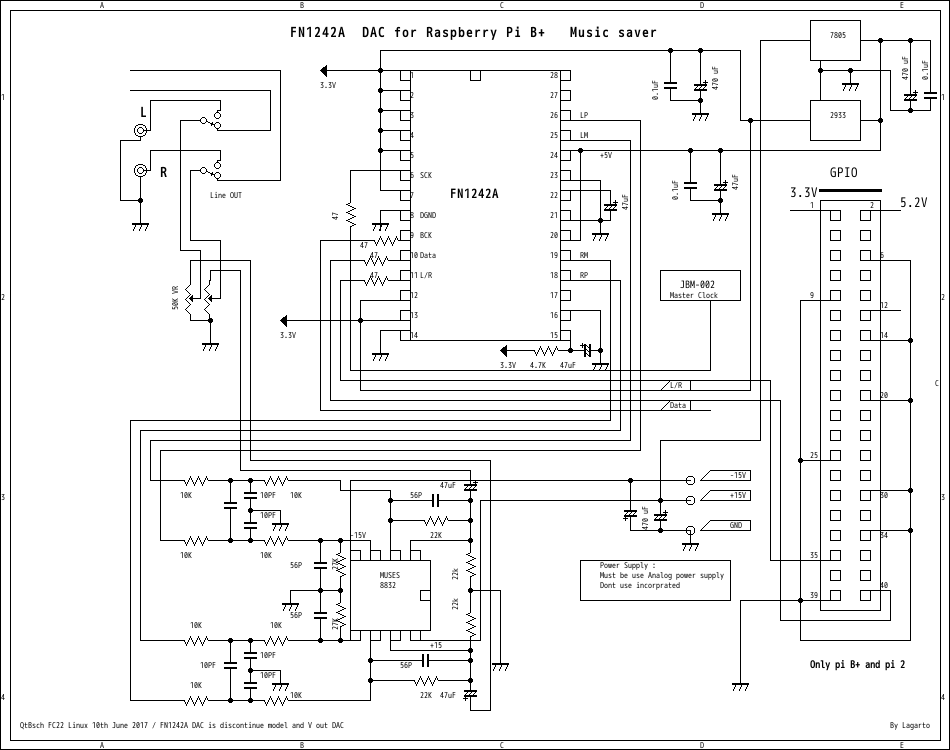

general DAC

for General DAC if would like to use,this case is FN1242A 24bit 198 Khz DAC


Tested Again on  2016 .Dec 22

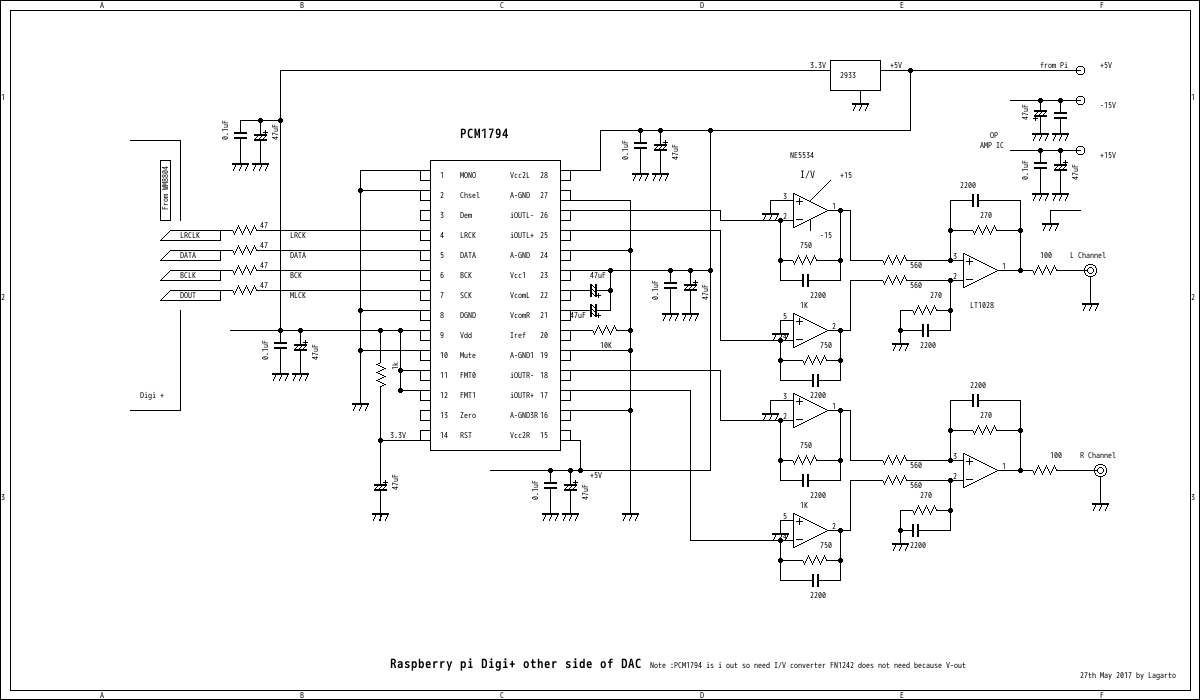

Rasp I2C

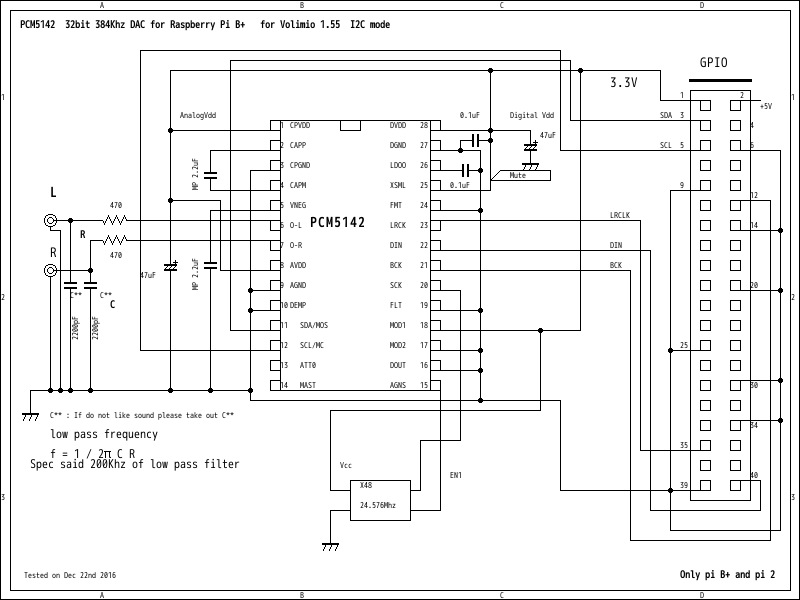

I2C DAC raspberry Pi B+ + Volumio of Schematic diagram

This is correct circuit of DAC for I2C , it is not I2S. this circuit is only 48 Khz sampling and 192Khz because can not get correct crystal for 44.1Khz
Just same circuit of HifiBerry and can be use for other DAC need Master Clock.like PCM 1974, FN1242A etc.
22nd Dec 2016


If does not get sound from DSF file etc


If does not get sound from DSF ,Diff etc about DSD files but not DSD with I2S signal. please try #raspi-config Update show next



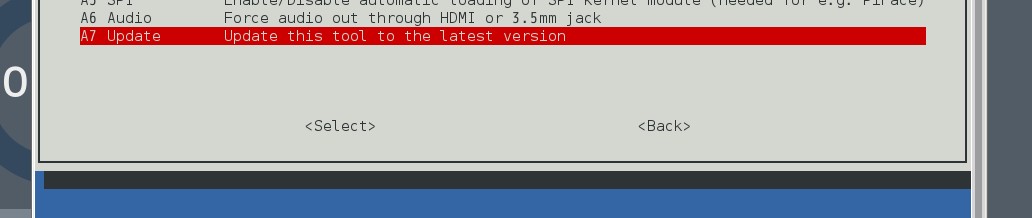

Update

then next photo



Update2

Automatically Update data then you can get with Diff,Dsf and aiff files from MPD 0.19.10



If would like to install LCD indicator


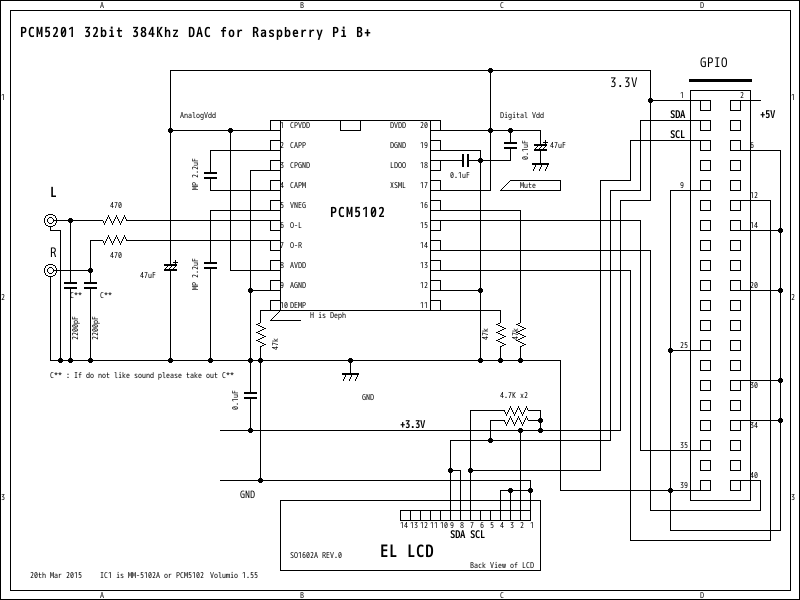

LCD indicator

Circuit diagram show above 2 line 16 charactor LCD(EL) for Music Albums etc


Directly can not indicate ,necessary to install some program under Linux using .py using ssh or HDMI output connect with monitor .have to know
Linux.

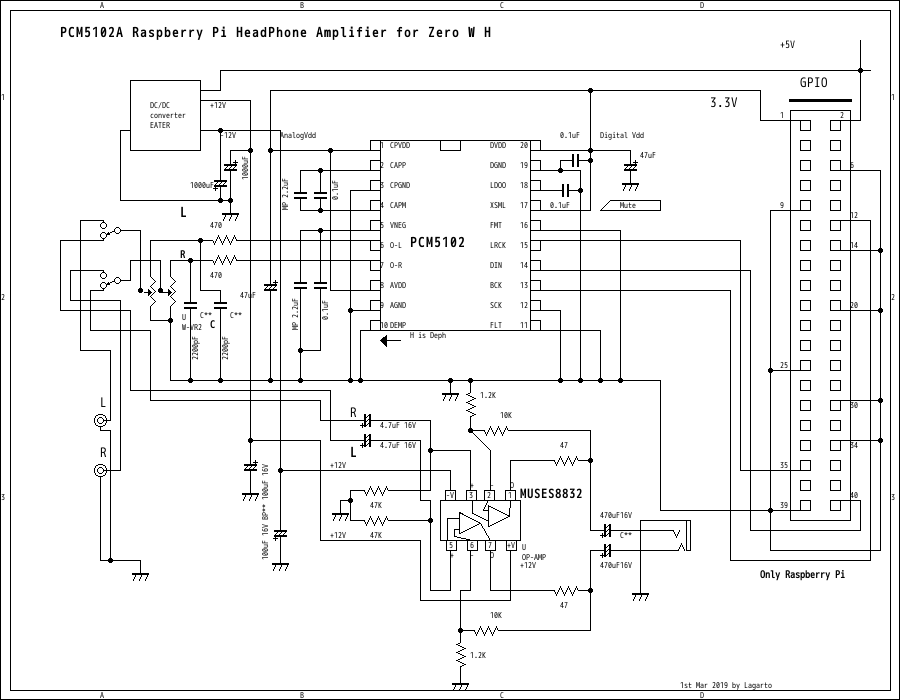

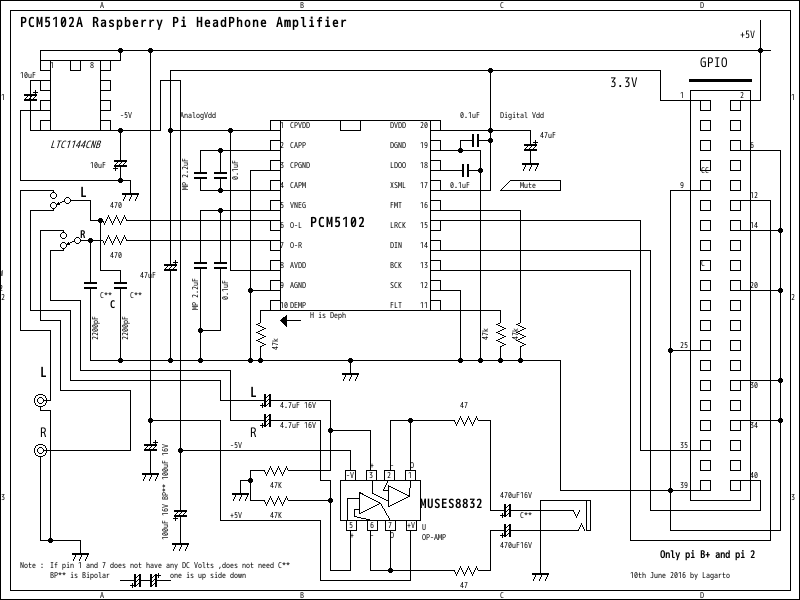

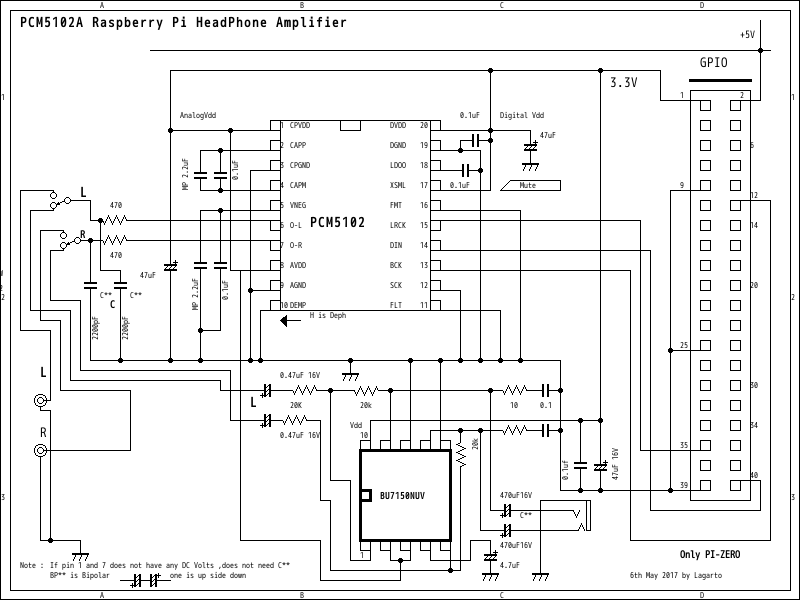

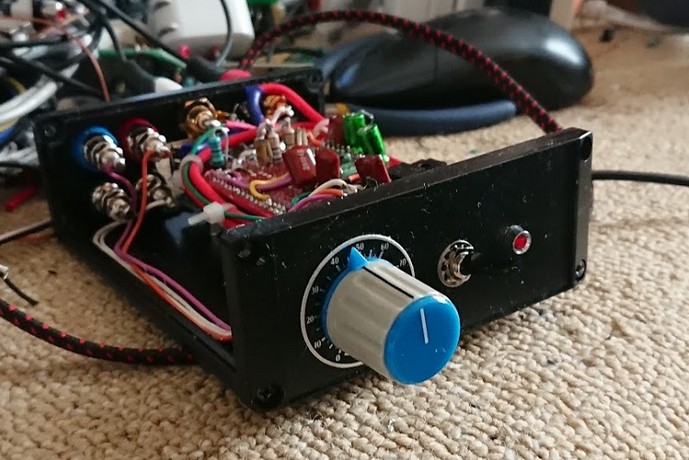

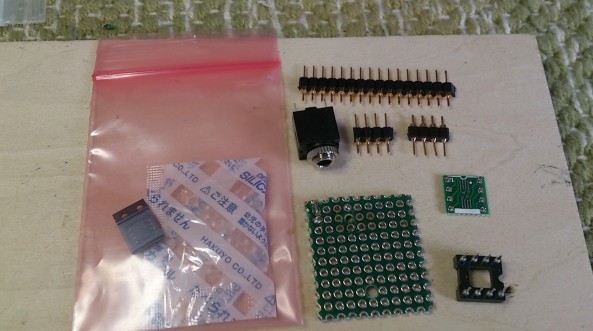

Head Phone Amplifier with Raspberry Pi B+ just show you circuit


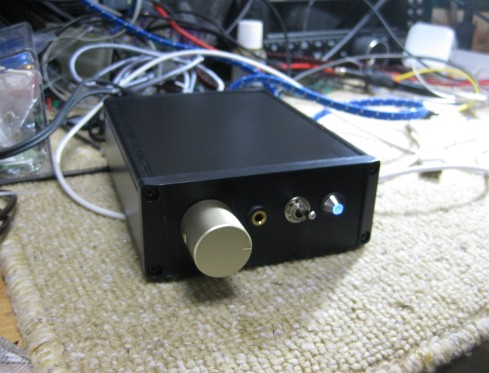

Head Phone Amplifier Raspberry Pi B+

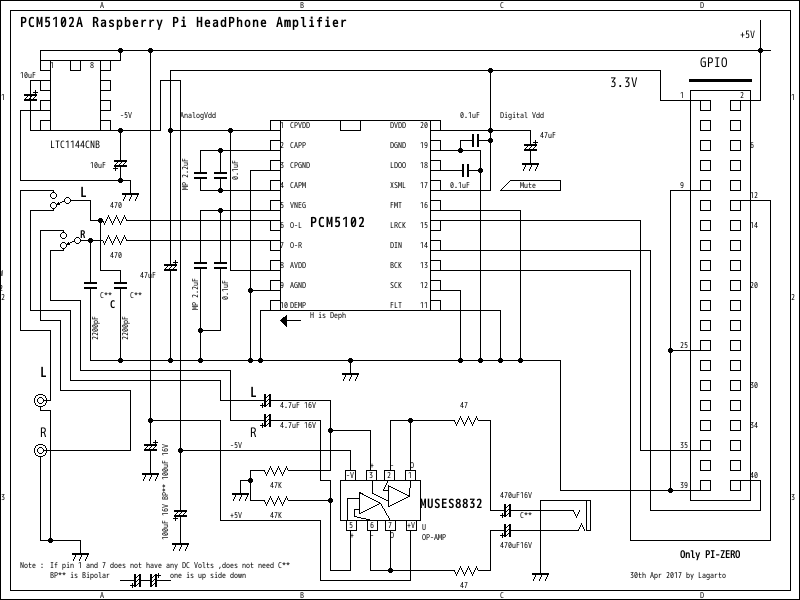

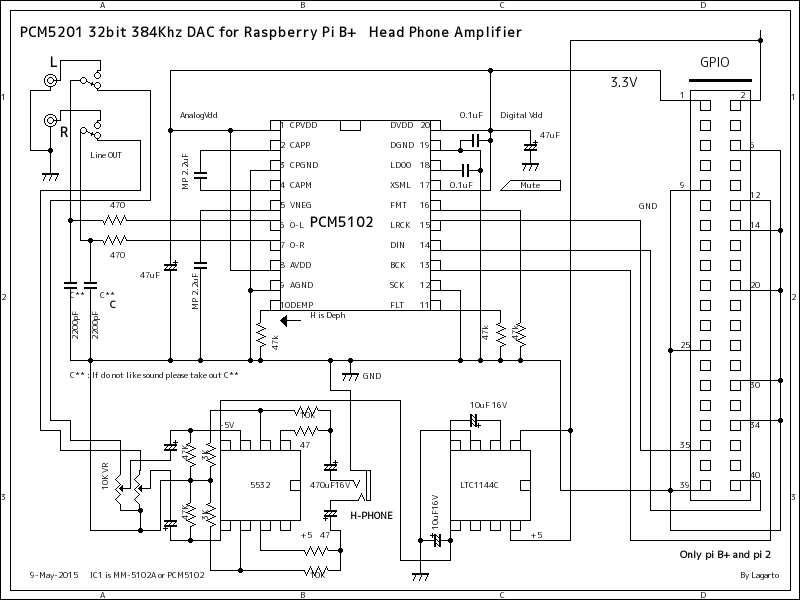

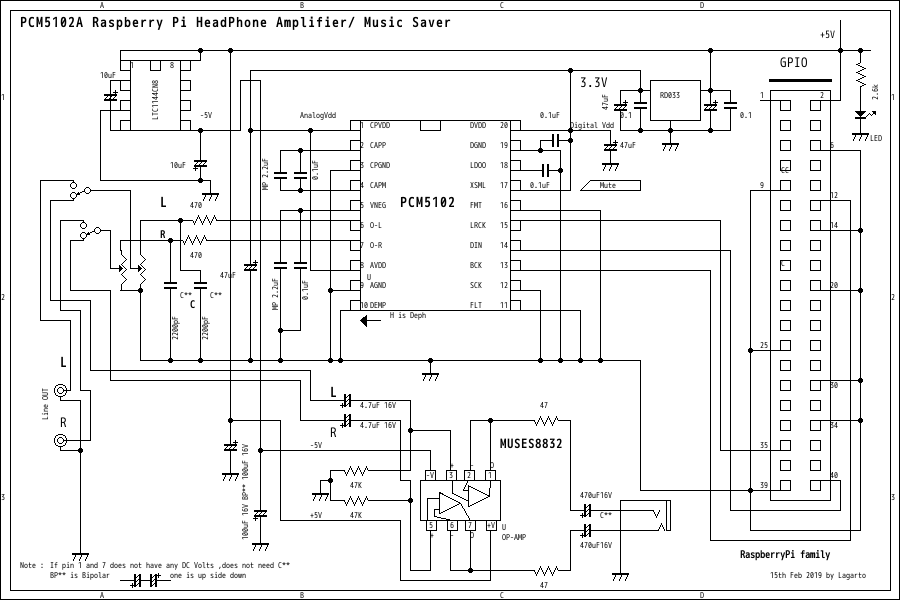

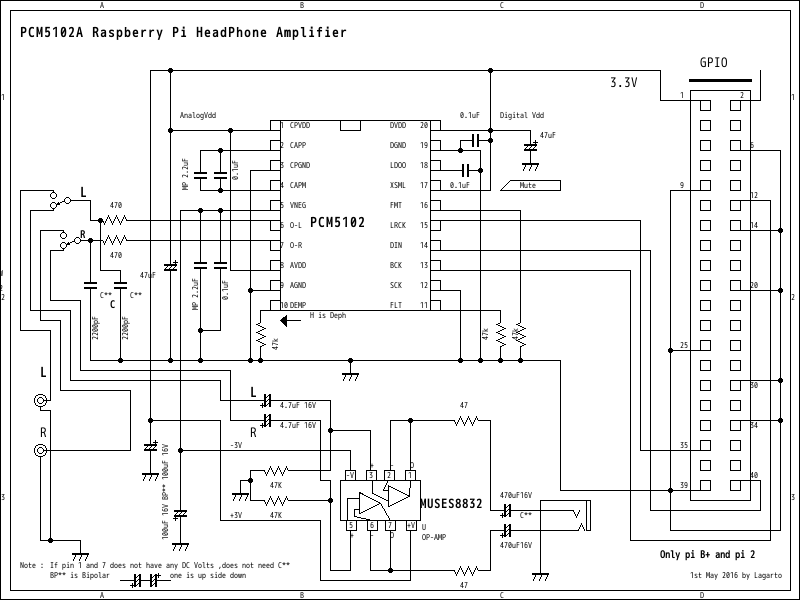

Schematic Diagram for Head phone Amplifier



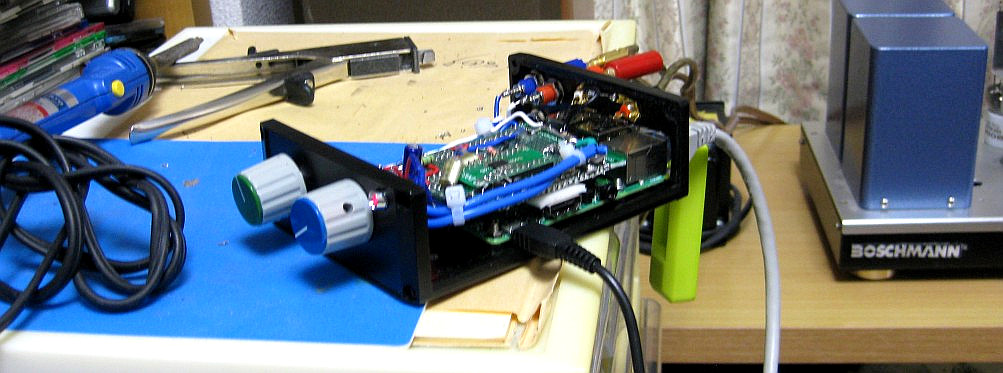

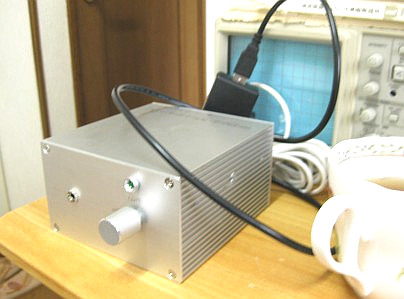

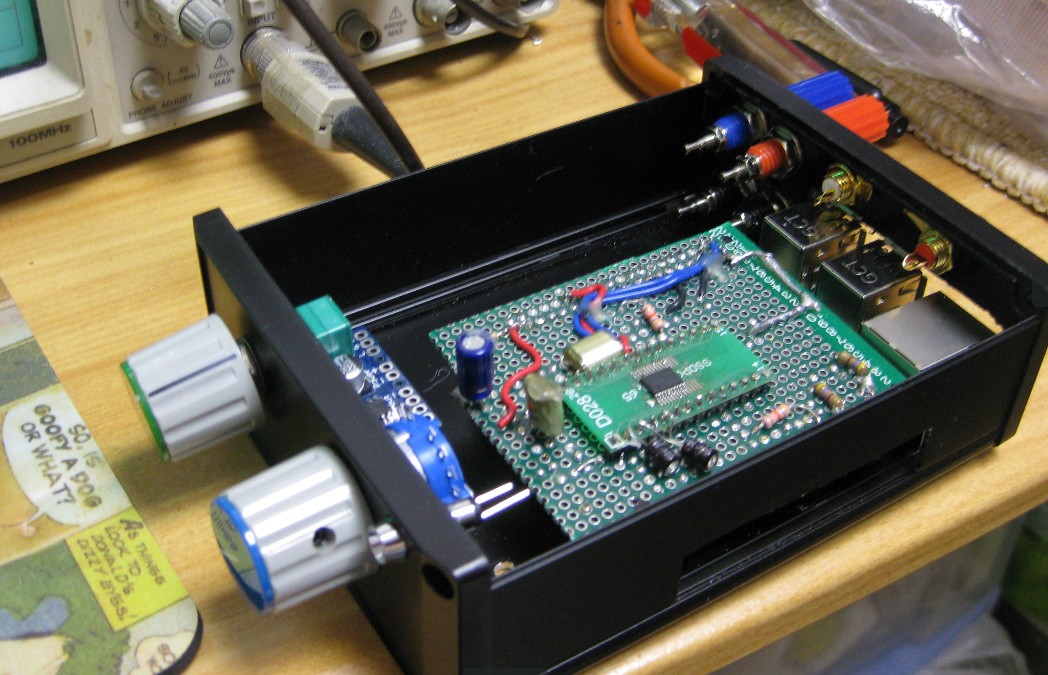

Head Phone Amp Raspberry PI

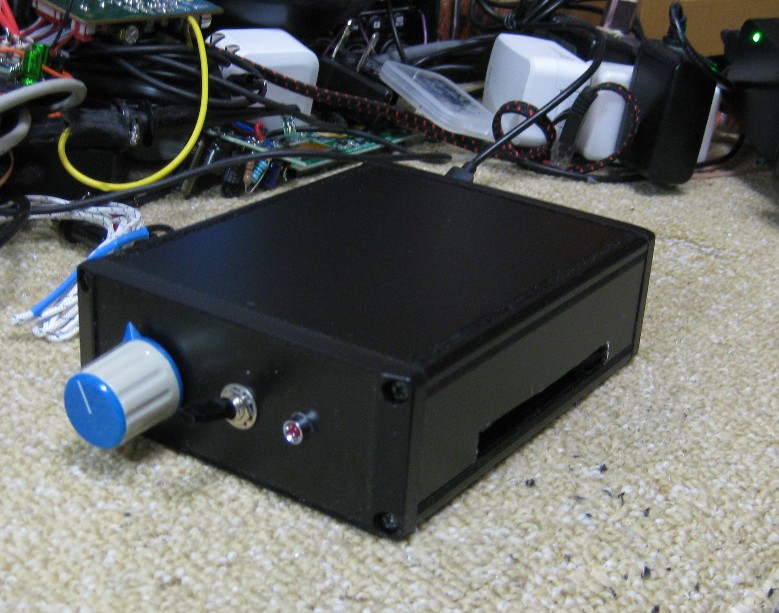

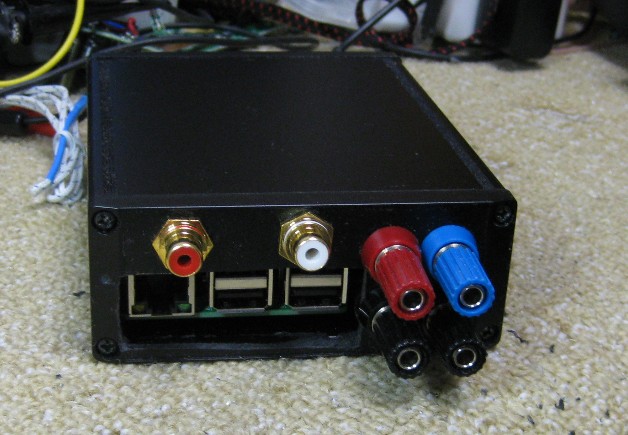

RPI Headphone and Music Server Volumio 1.55 on 23rd May 2015


play Volumio 1.55


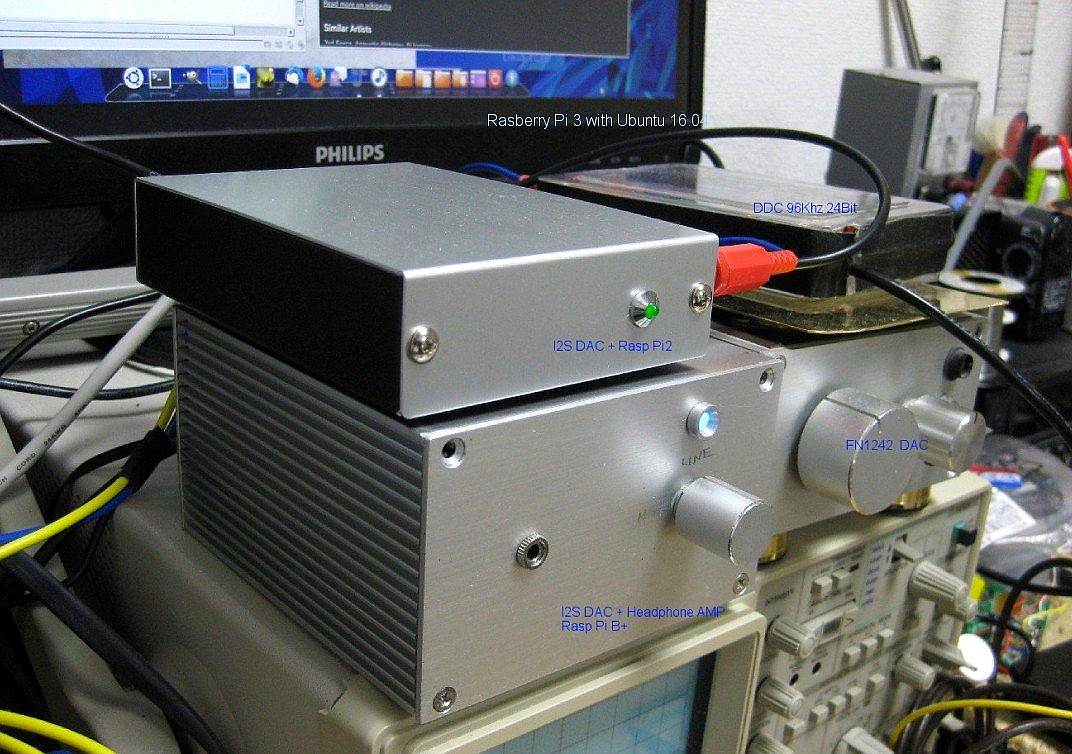

Raspberry Pi B+ I2S DAC and external DAC FN1242A

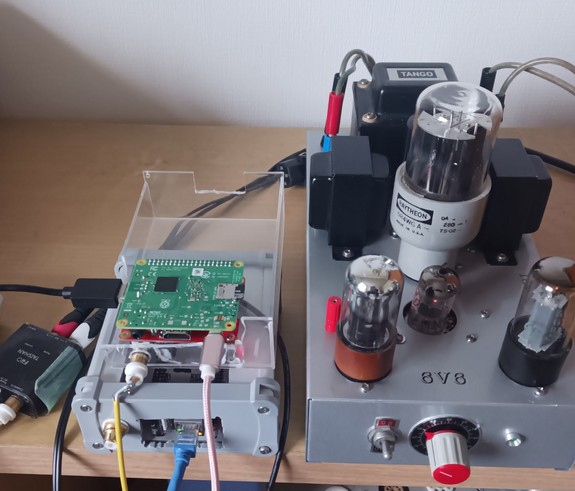

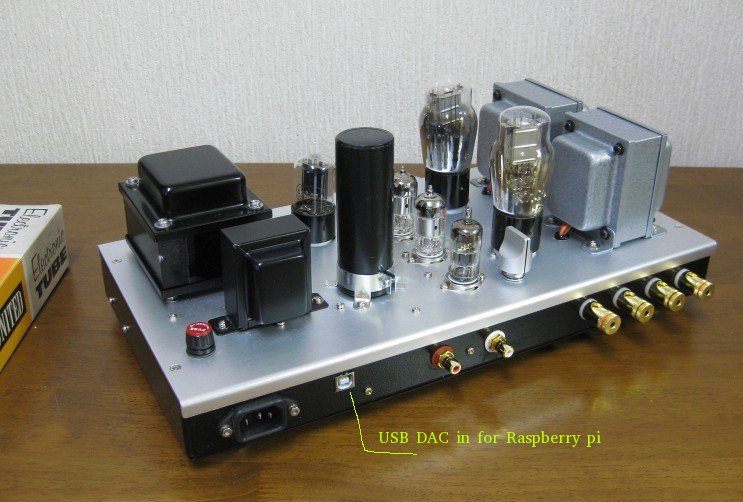

Main Amplifier 300B Single Ended Amplifier and Raspberry PiB+ I2S DAC 2015 Dec 18th



Finally going to 6DJ8 Valve Buffer with Raspberry Pi B+ DAC


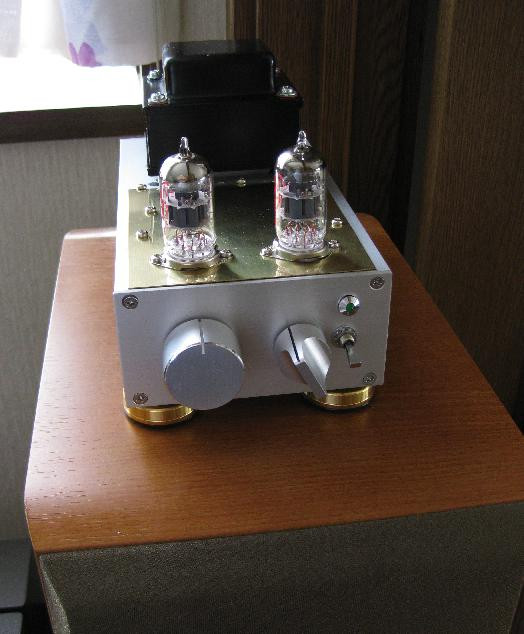

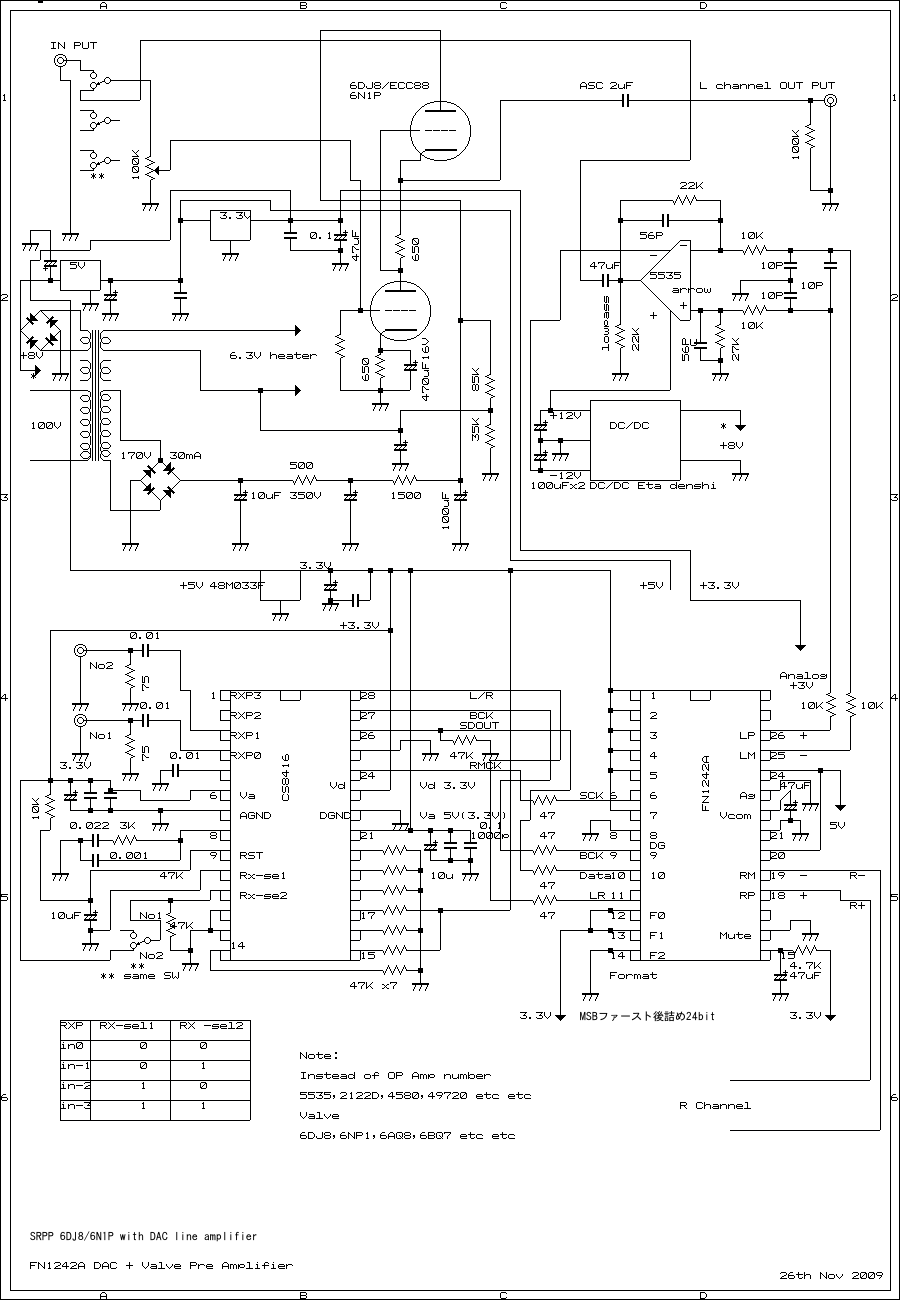

DAC 6DJ8 Raspberry Pi B+

Finally will build up 6DJ8 I2S DAC with Raspberry Pi B+ MUsic Server




Raspberry Pi B+ 6DJ8

Images like this.....6DJ8 DAC






If does not get sound from your Raspberry Pi I2S DAC


first you must learn how to use nano editor.even you can use emacs ,vi editor for Linux.
if already login into Volumio then
# cd /etc/
# ls -a or # ls -l
you can see directory /etc directory and choose modules by nano editor.
# nano modules
so right now you can edit file modules.text is next to see.
first time open nano ,you can see modules on nano editor.
to edite then Cont + O for save.
then Enter
Cont + x for get out from editor.
then reboot.reboot is
# reboot
or
# shutdown -r now
which ever same work for Linux command .



Please try to re-write name of driver at /etc/modules
# /etc/modules: kernel modules to load at boot time.
# This file contains the names of kernel modules that should be loaded
# at boot time, one per line. Lines beginning with "#" are ignored.
# Parameters can be specified after the module name.
#snd-bcm2835
snd_soc_bcm2708
bcm2708_dmaengine
snd_soc_pcm5102a
snd_soc_hifiberry_dac



few case if "snd_soc_pcm5102a" does not find please add this line of name of driver.and
please try to add /etc/asound.conf by root
# touch /etc/asound.conf
then
#vi /etc/asound.conf
some time nano ,emacs instead of vi for write script by ssh access.
file is



pcm.!default {
type hw card 0
}
ctl.!default {
type hw card 0
}




then
pi@raspberrypi ~ $ aplay -l
**** List of PLAYBACK Hardware Devices ****
card 0: sndrpihifiberry [snd_rpi_hifiberry_dac], device 0: HifiBerry DAC HiFi pcm5102a-hifi-0 []
Subdevices: 1/1
Subdevice #0: subdevice #0

if did you get above sentence ,will be fine to get I2S DAC.

Easy to up date mpd 0.19.9 now from Volumio Site



sudo apt-get update
sudo apt-get install libmikmod3
wget http://repo.volumio.org/Packages/Mpd/mpd_0.19.9-2_armhf.deb
sudo dpkg -i mpd_0.19.9-2_armhf.deb
sudo apt-get -f install

then reboot.
Just access and try to install mpd of version up.from herefor update.
and then reboot ,try to use
$ mpd -V
then will be get mpd 0.19.9
right now will get 0.19.9 mpd. off course use under ssh.
sound is a little bit bright than before.if good quality of sound please use NAS and HDD with USB. sound not from USB flash memory.
you can play DSD sound but DoP PCM from Native DSD source .

mpd 0.19.9


Note: If one's using Volumio2 by ssh ,sometimes can not accept passwd from volumio2 . please try to use $ ssh root@192.168.xxx.x -l volumio
then try to access by ssh. then make volumio passwd. and sometimes can't accept ssh by Linux please try to delete .ssh $ rm -R .ssh then make access by ssh on Linux command line.


how to access raspberry pi with out monitor
my case .... I am using Fedora Core Linux long time. so my case is ,,using by terminal from comand line.
$ arp
you can get IP on terminal ...so find Raspberry pi IP in your house(LAN).if does not have Linux terminal please try to use any OS terminal
from any OS. teraterm is very famous in Japan for MS Windows.
so let's try to access from other PC.
$ ssh root@192.168.1.5
then if did you connect with Raspberry Pi they ask pass word so just strike key pass word "Volumio"
you can get login into Raspberry Pi ... so try to re write script of driver. editor is emacs ,long time using emacs so much easily than
any editor for me. you can use vi ,nano etc. have to learn "how to use Linux with comand line" first.
that's all.

About ssh.. in general ,ssh can access from other Linux(Unix)terminal under terminal(xterm,kterm,gnome-terminal etc) if one's using MS windows.
can be use teraterm , putty .for English much better use putty for telenet.putty is just like same as Linux terminal if you are using Windows please
make down load for PUTTY can use same as Linux terminal under ssh.
so does not need HDMI monitor.



So Raspberry Pi B+ can be use for Music Server and getting good sound .She can play DSD (still not but) sound and High Resoulution Audio.
have to try.
let's me see,,,, show you by picture...next

Raspberry Pi how to

then ,,,,,

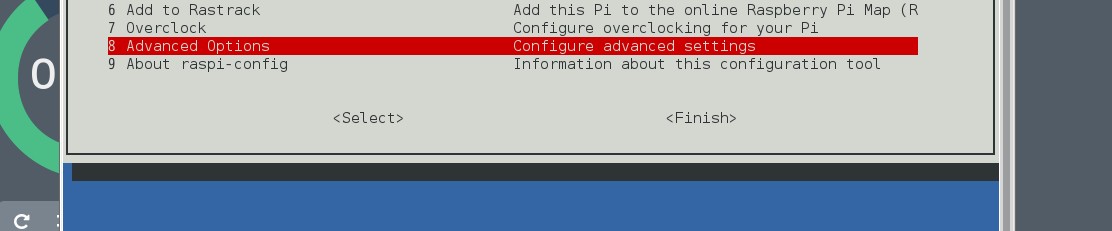

Raspberry Pi configration


Raspberry Pi configration

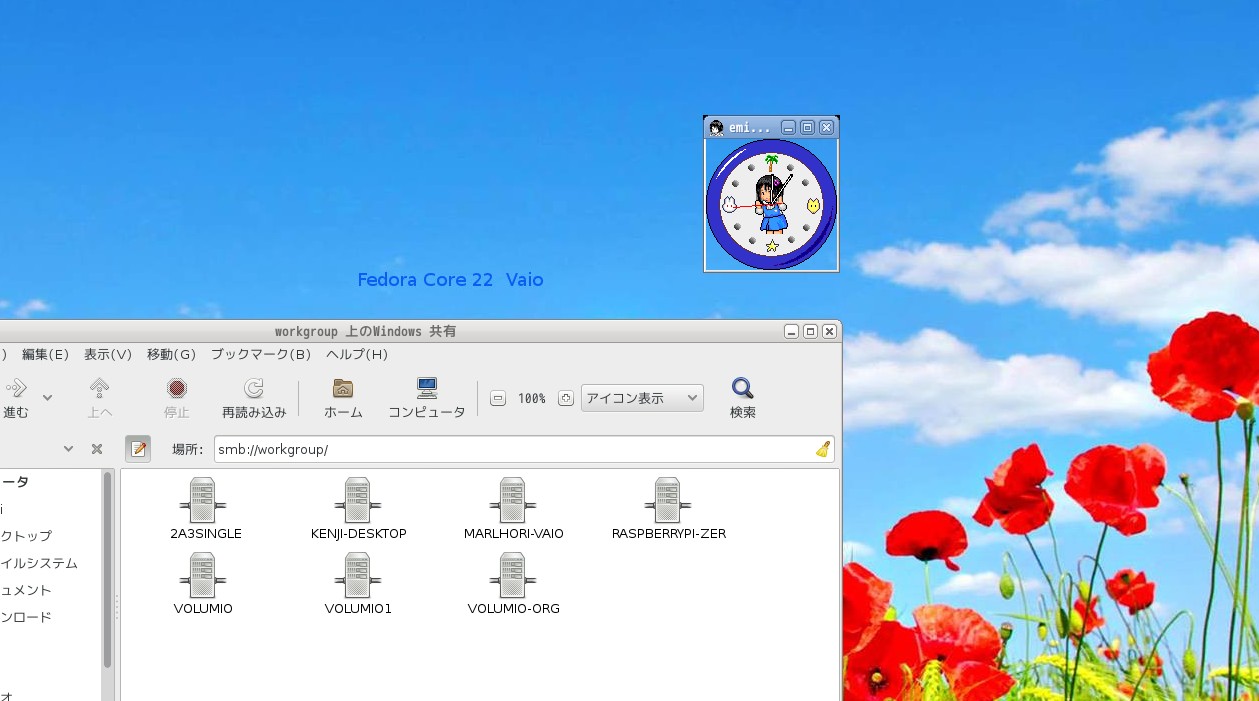

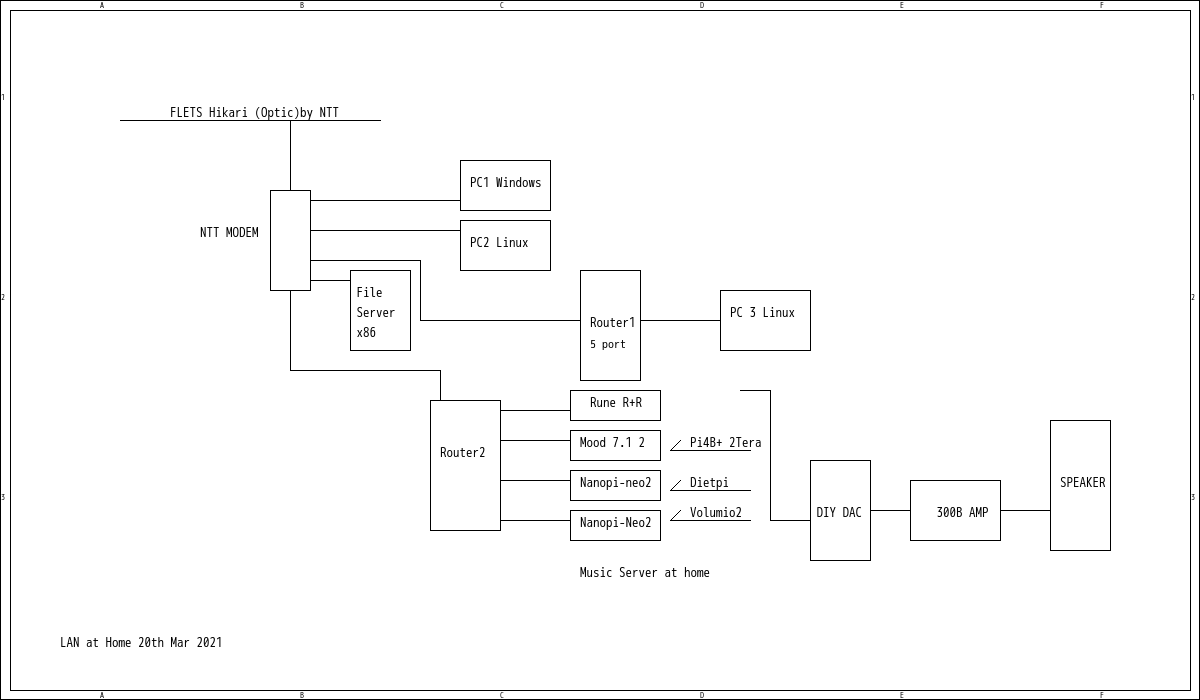

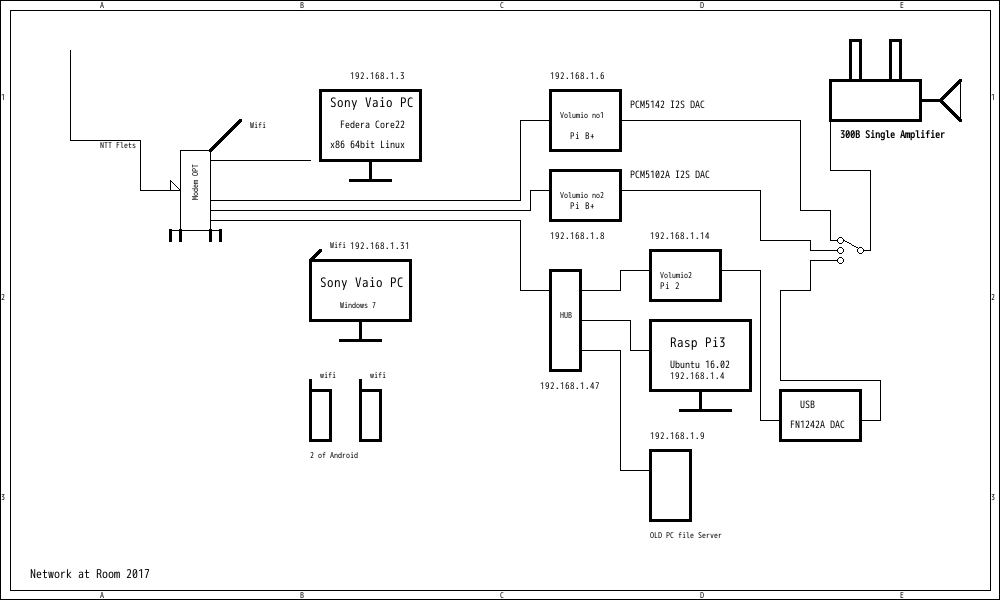

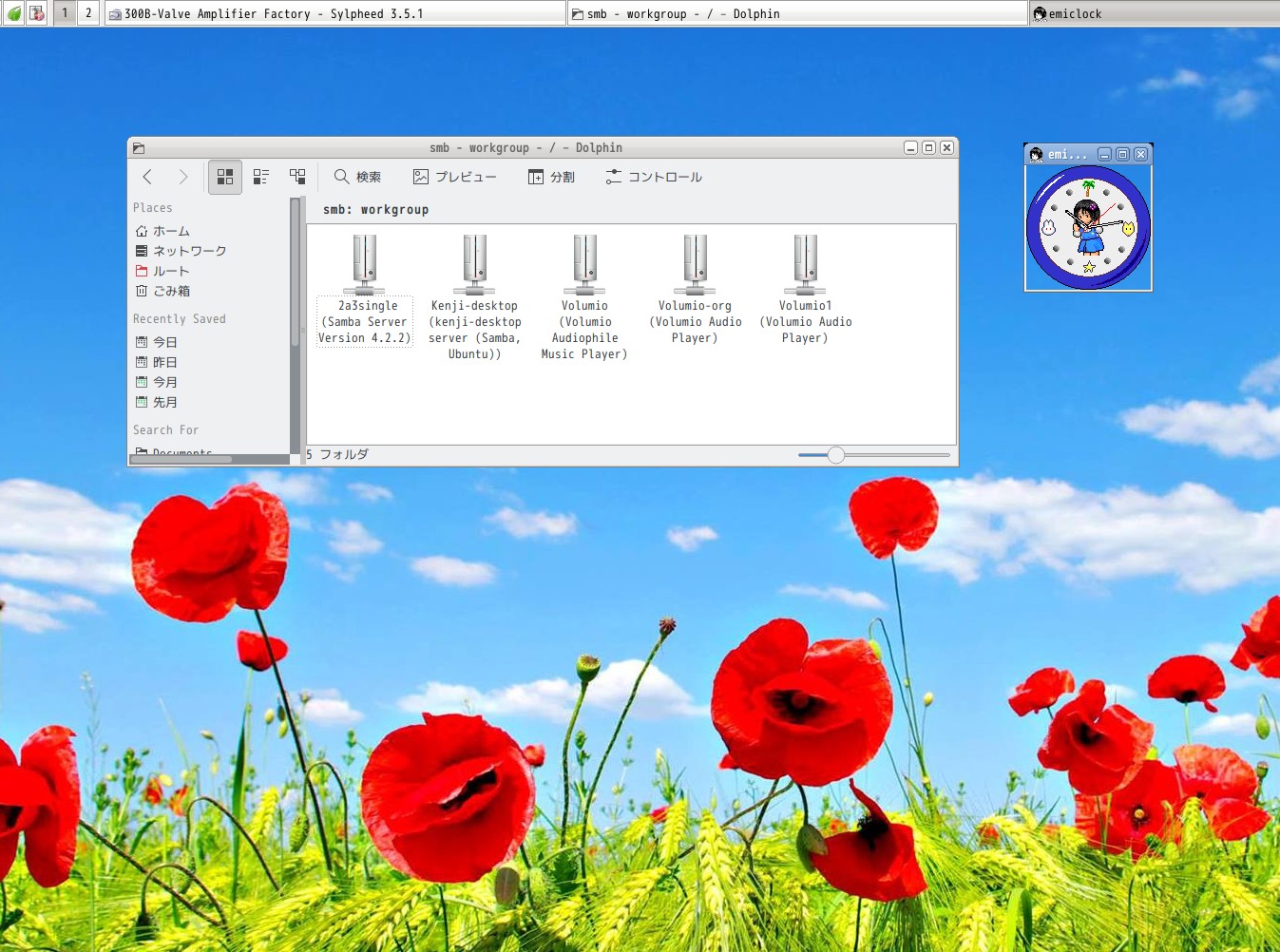

my house net work

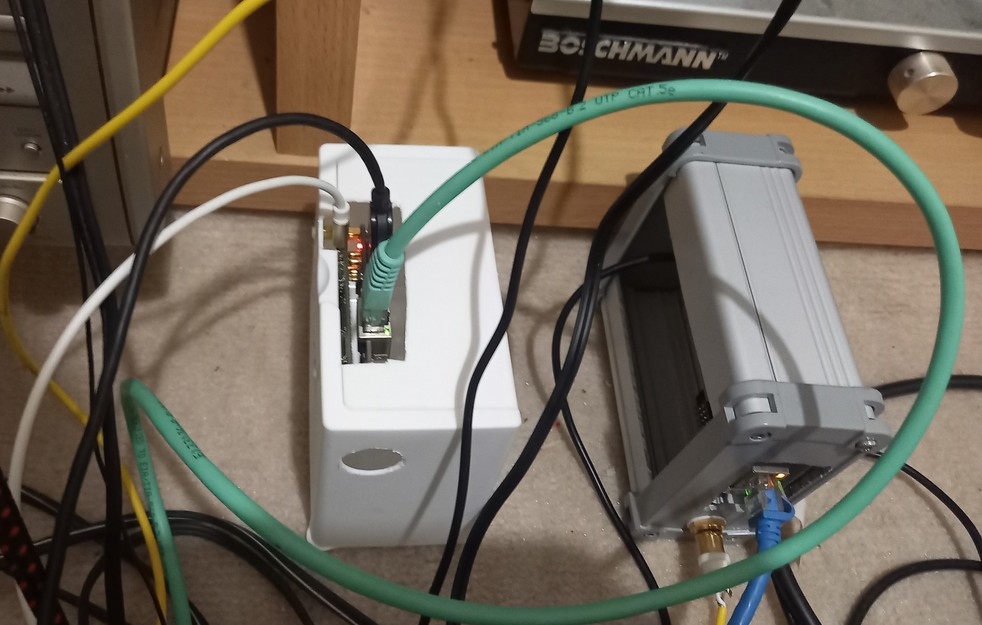

Sound getting from Raspberry Pi B+ and NAS



My System

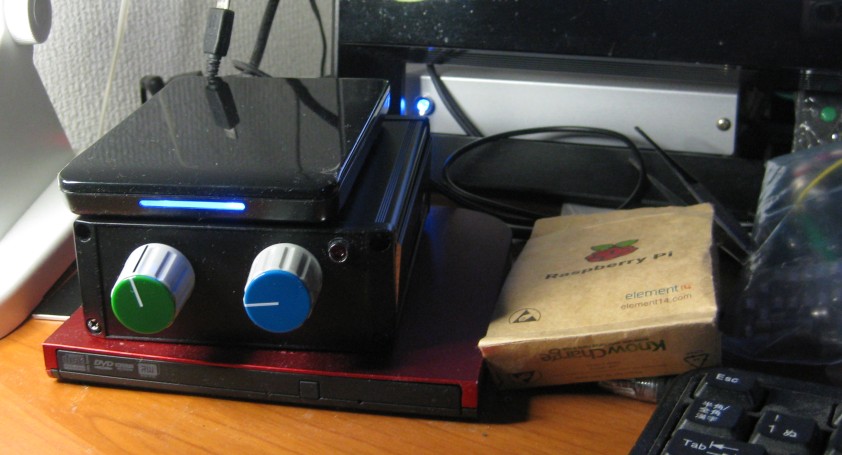

Using as Music Server ,small server but very good for you



PCM5102A Data


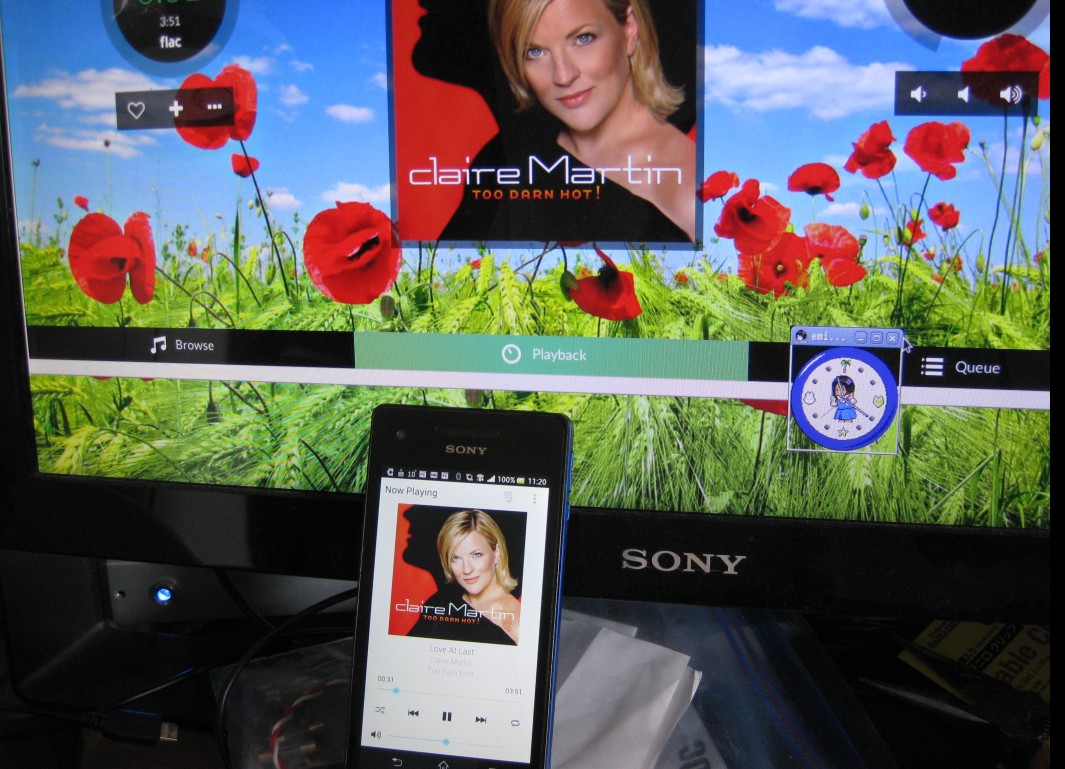

Raspberry pi + sony ericsson


Androido Volumio 1.51


konqueror + Terminal

Konqueror can do by ssh with browser



Can watch into Volumio under MPD by Linux Terminal


Then into box on FT450D Yaesu Radio


Ham Station for HF

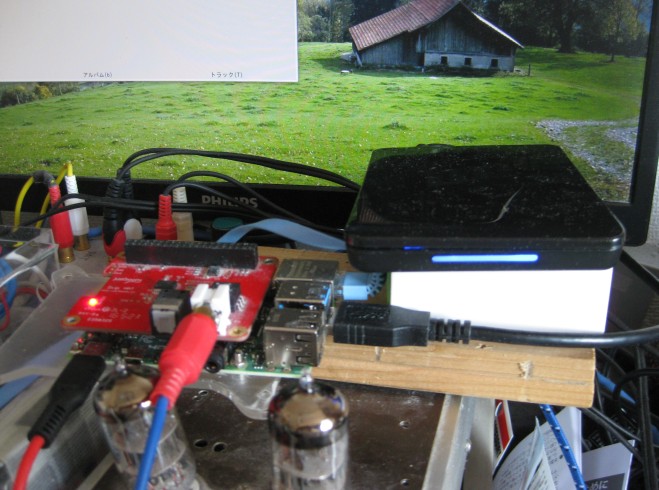

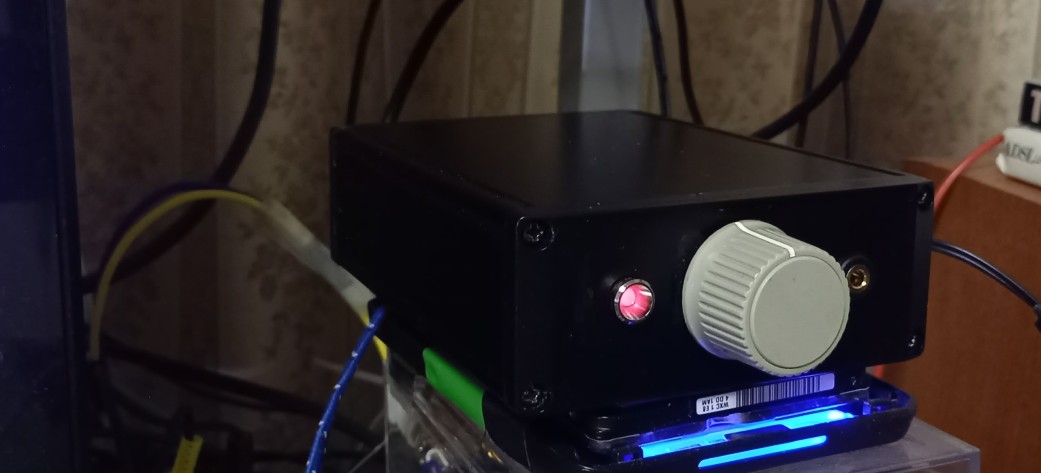

SATA USB 1 Tera HDD with Raspberry Pi B+ DAC for Music server 2nd Mar 2015


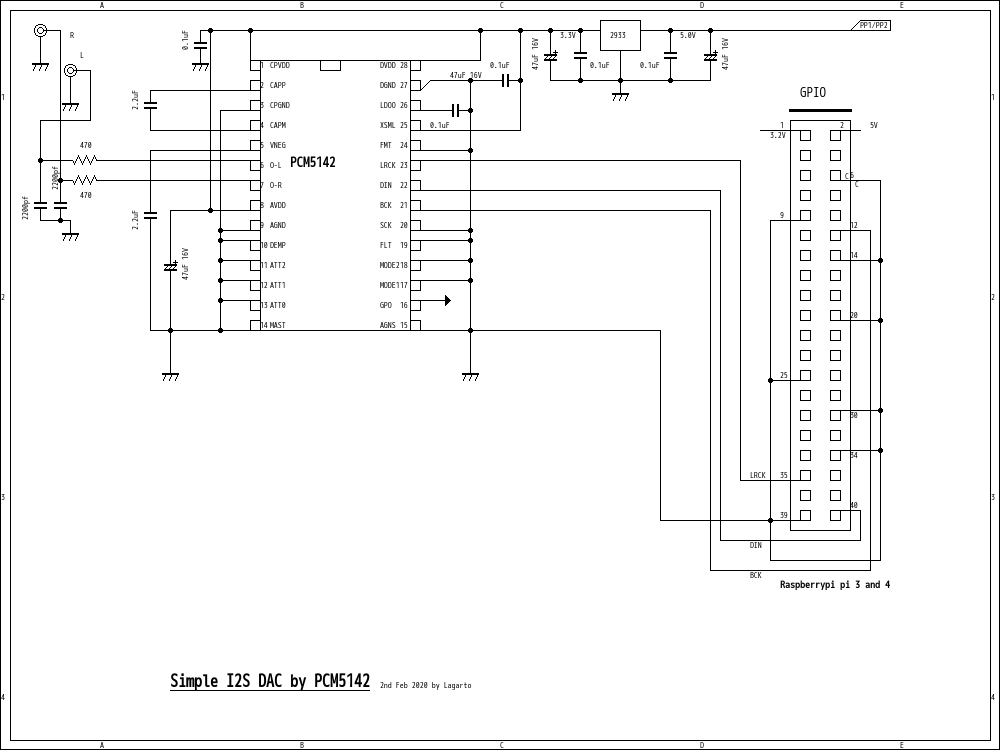

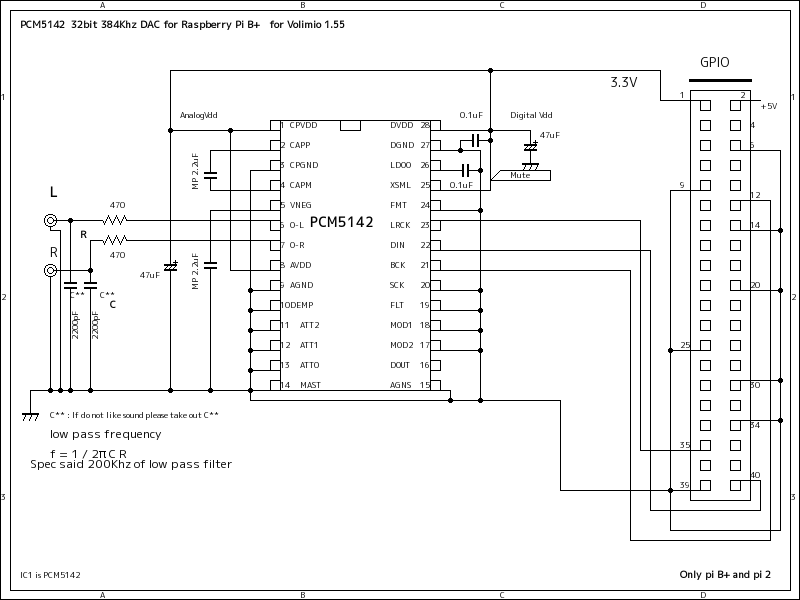

Raspberry PI B+ PCM5142 DAC


version up 2015 18th July

small version up of PCM5124 DAC



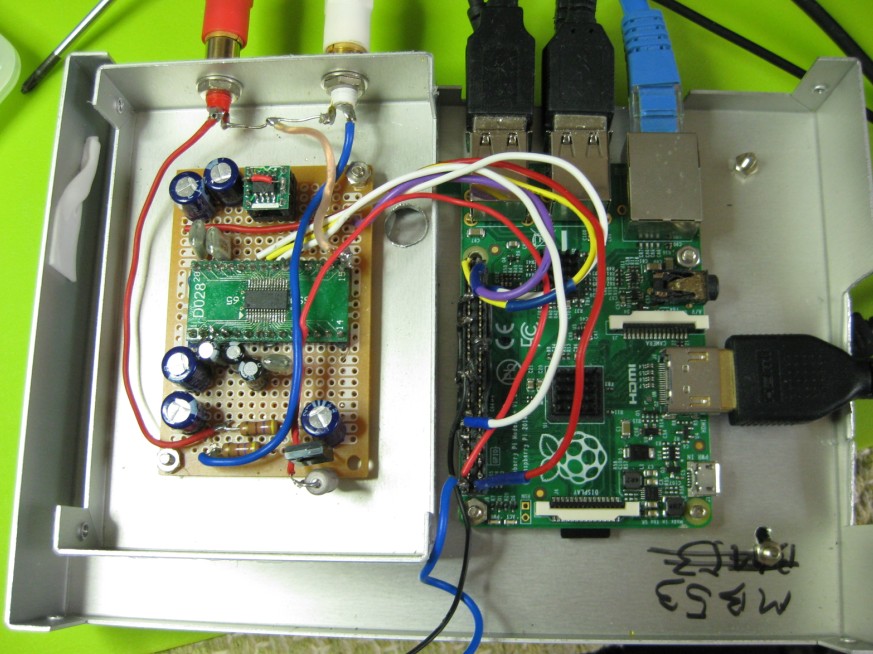

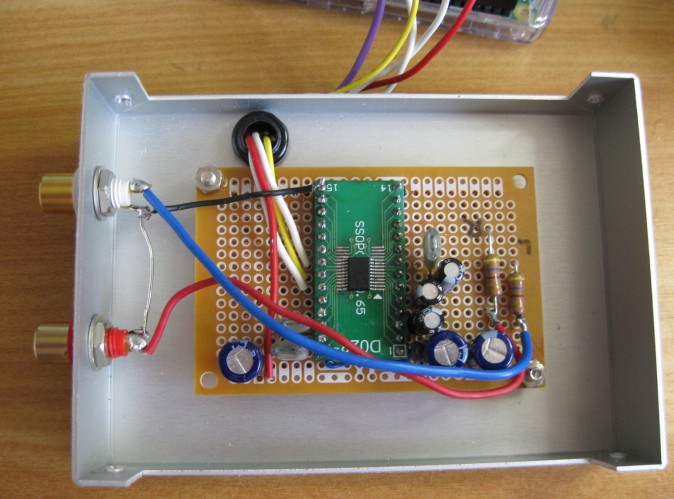

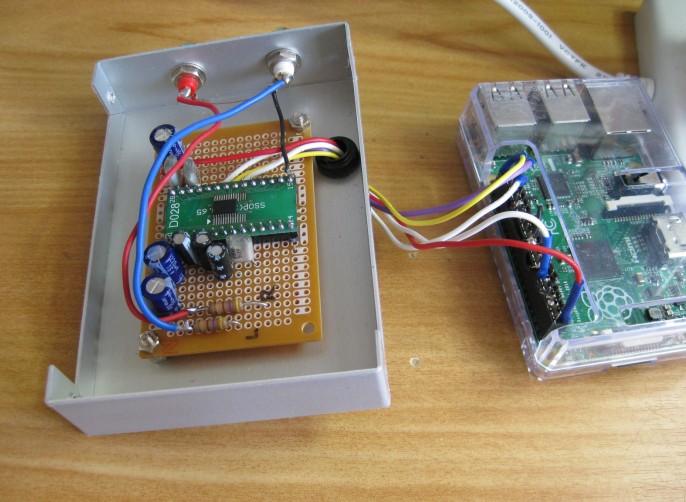

inside of DAC and server 1


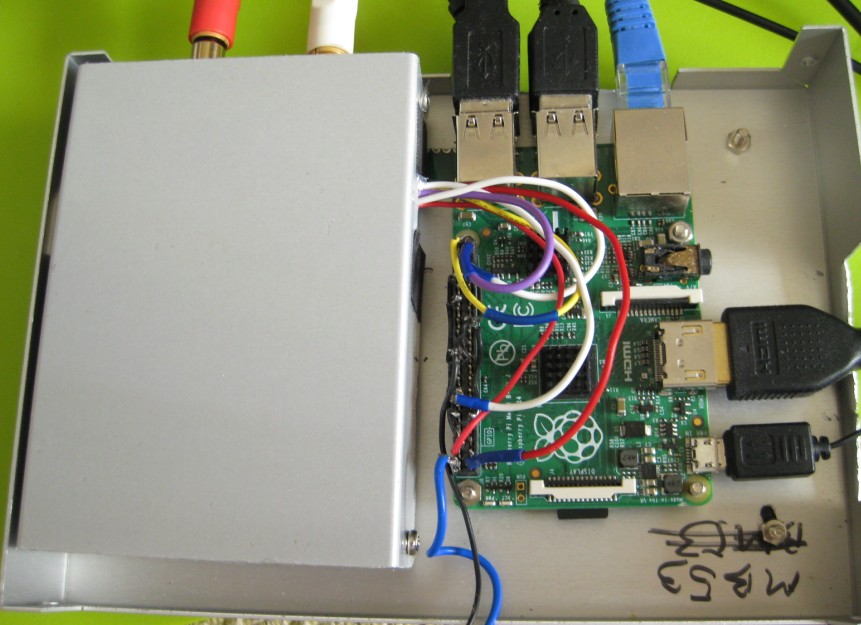

inside 2 of Raspberry pi DAC

Inside of Music server + Raspberry Pi B+ I2S DAC



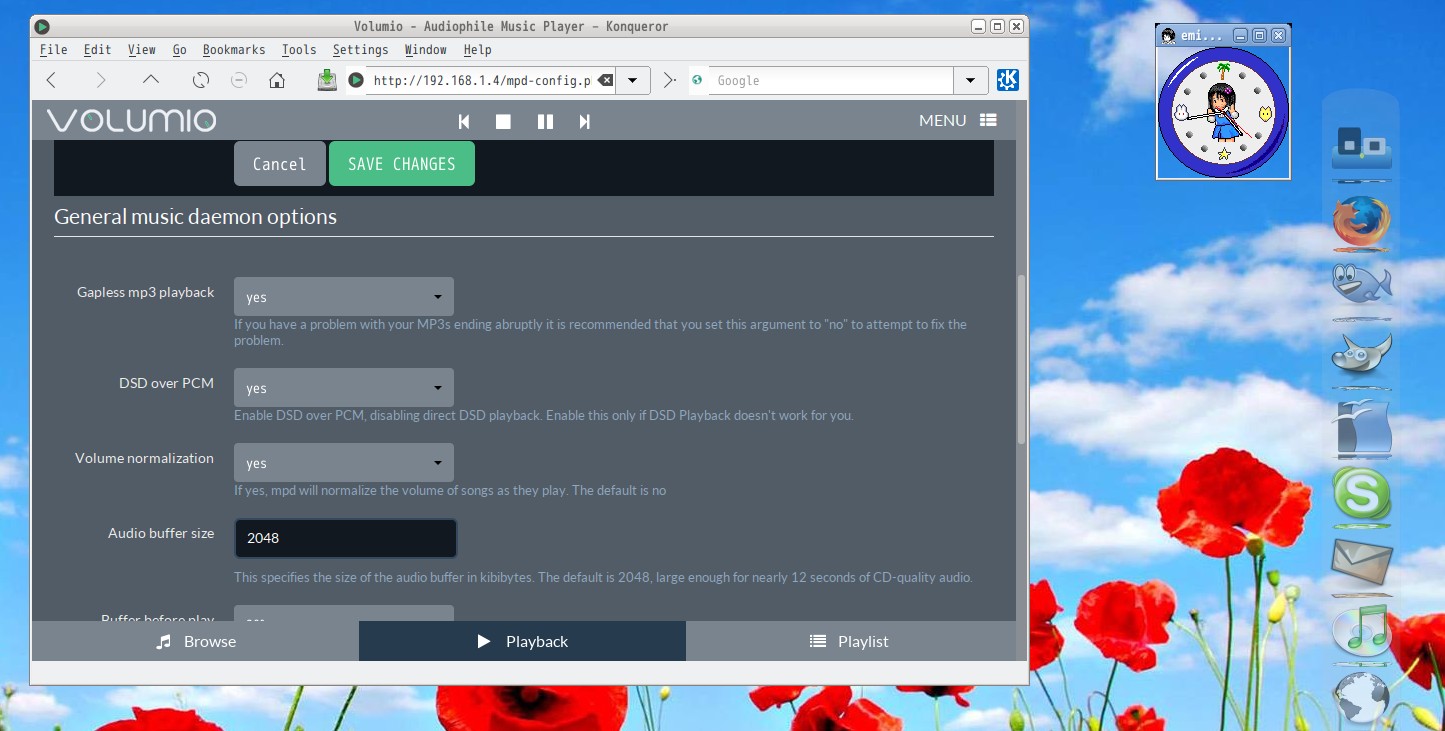

Dop setup at Volumio

Dop setup,,then you can play DSD Native as Dop PCM ,,,,DSD converted to PCM


If do you have Native DSD player(DAC)and has USB input ,you can connect with each other Raspberry Pi B+ with USB cable and play
Native DSD from your DSD DAC.same page of Volumio has position of type of Audio OUT PUT select your DSD DAC driver.

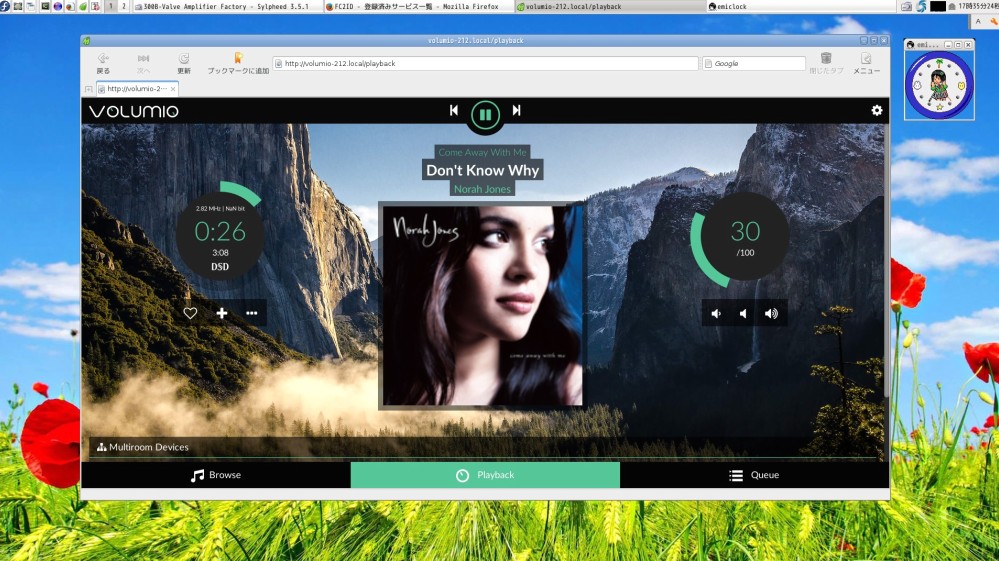

DoP PCM Play raspberry Pi B+ Volumio

352.5Khz DSF/DoP plays by Narah Jones



How to set up FIX IP (Static)

In general, these kind of Music Server ,PC at home are using DHCP. automatically set up IP. but Often can not connect Home LAN.
so much better use fixed IP. like 192.168.1.8 etc.first search your Modem IP .if IP of Modem is 192.168.1.1 can setup fix IP for each Music Server.
Volumio Case is as root or $ sudo cd /etc/network/ then edit interfacs of file by editer like vi, emacs and nano. which do you like.
you can see $ cat /etc/network/interfaces like next frase/ so if you know IP of modem in your house. please edit correct IP.
gateway is your modem IP and address is Raspberry Pi Volumio 's IP.which ever you like.then $ sudo reboot.you can connect LAN automatically.
much more good for Music Server.if moved place of server. never lost again.next file is located /etc/network/interfaces .

auto lo
iface lo inet loopback


auto eth0
iface eth0 inet static
address 192.168.1.5
netmask 255.255.255.0
gateway 192.168.1.1
nameserver 192.168.1.1

How is sound from Raspberry Pi B+ with DAC PCM5142

Does not have any noise from LAN and even "Breath-in phenomenon" now .ICS512 is good for use Master Clock.slightly more bright sound getting now.

Volumio 1.55 with Raspberry PiB+ can do play DSF ,DFF file until 2.8Mhz but sound is not Native either can play DSD file.sound is good enough with volumio 1.55


Top of FT450D Yaesu


how to add WEBRADIO Stations. more than 50 Stations good.from Volumio repositry


This case is add a lot of stations from Volumio repository source.from ssh comand line through on line.
first access by SSH with some terminal like xterm ,mate-terminal, putty for windowa and teraterm for windows.etc my case is ,Volumio's IP is 192.168.1.6
then open terminal from other PC.
#ssh root@192.168.1.6
#passwd volumio
#cd /var/lib/mpd/music/WEBRADIO
#apt-get install git
#git clone https://github.com/jprjr/internet-radio-streams.git
#cd internet-radio-streams
#./make_links /var/lib/mpd/music/WEBRADIO/ pls
#./make_links /var/lib/mpd/music/WEBRADIO/ m3u

that's all, you can get more than 50 Radio Station for InterNet.Reff Site
and、if do you have Cantata,can add many Internet Radio,Cloud etc by GUI from other PC(Windows,MAC,Linux etc)and easy to supervise your Music .
Note***: This version is for Volumio 1.4 so can not make correctly install each directly of stations holder.but you can get install .pls into WEBRADIO.
if does not like ,pls files have to move each holder.with command of Linux(Unix),problem is made only empty holder.and does not get m3u files.many be some BUG.
and if use #git clone http: ~ instead of https ,much more station will be get.forum does not indicated change position of command.so you can try #pwd
you can know where stay command line... then #cd /var/lib/mpd/music/WEBRADIO then please try install pls and m3u files.will be get more than 50 stations good music.
much more fun.!!!
if does not function #apt-get install git please try to update as #apt-get update then #apt-get install git probably get good result.
this archive is inside of my volumio's WEBRADIO List'sTAR.GZ files can see inside if would like to use.
even can down load by $wget http://www.single-ended.com/rasp/archive/Radio-List.tar.gz on terminal of Linux.

More Stations for WEBRADIO

Web Radio Stations List on Volumio ,Added from Volumio.org more than 50 Stations.




WEBRADIO of Volumio's radio station are, some of stations are does not play....how to fix and add new stations


Because ,,IP is different with original site of stations so please check IP address then replace IP or URL came from Music.or check Shoutcast Site.
SHOUTCastShout Castthen check each site then get pls .m3U files.which do you like.
much better use SSH by other PC then save WEBRADIO on Volumio.、when down load files always files are"tunein-station.pls" so please replace name of file then
copy into Volumio WEBRADIO directly.so easy to get many station which do you like.
then Access by SSH Volumio.
#cd /tmp
then
#wget http://www.single-ended.com/rasp/archive/WEBRADIO.tar.gz

#tar xvzf WEBRADIO.tar.gz -C /var/lib/mpd/music/

#rm WEBRADIO.tar.gz
#cd
#pwd
#reboot
you can get more than 2000 stations 、have a fun. !!! make sure ,,, much better get original files from SHOUTCast.Radiomy
WGBH Boston of Classic 's quality is good.volumio indicated 24bit 48Khz ans sound is very pure and clear.include WEBRADIO.tar.gz
also located WEBRADIO.zip same directly of my site.if would like to use zip file too.off curse have to use unzip.

Some Station can play then goes off ,no sound. ex ABC Radio, ABC Piano etc

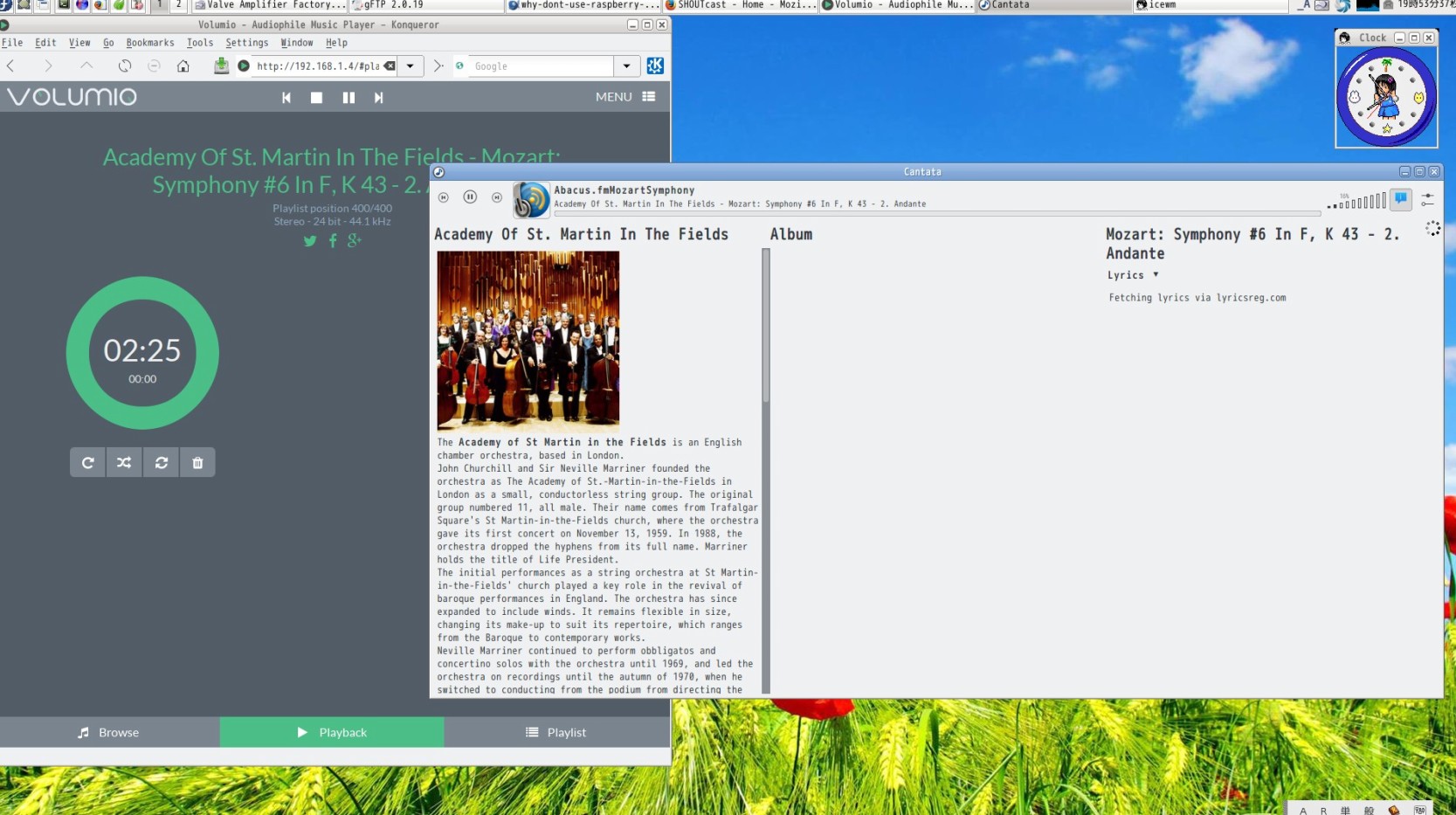

WEBRADIO Volumio

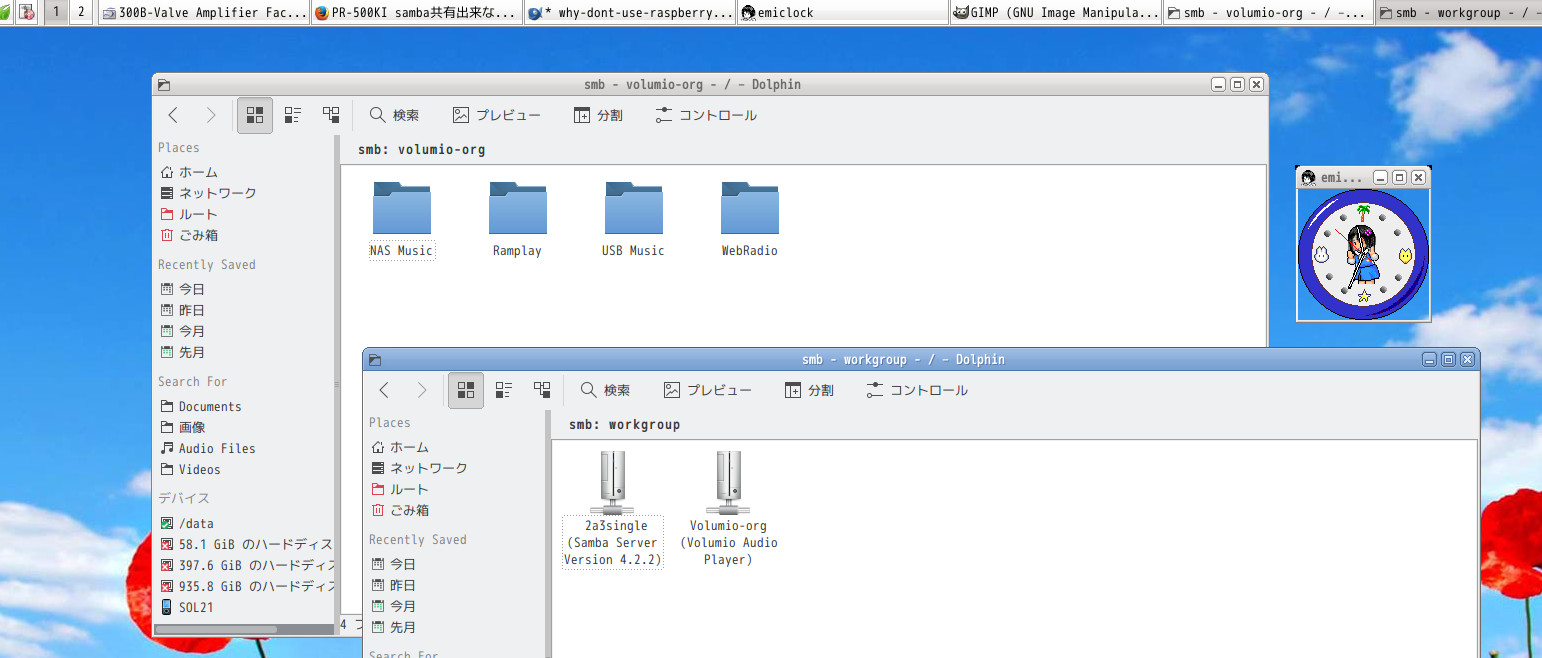

Add WEB Radio Stations into Volumio



above list show by other Linux PC's file manager using and see inside of volumio.using samba.off course can do cut out some of file and add files too.
not necessary to use command line ssh.but only can see inside of directly of samba(share)


How to remove(delete)play list on WEBRADIO in Volumio

This is not only Volumio. because Volumio is Linux so please use command of Linux(UNIX),# rm xxxxxxxxx.pls which ever abcdef.mp3 etc.. are one of file name
#rm abcdef.mp3 that's all. you can remove one file which indicated. either if you have some file manager like on Main PC then you can see and delete by mouse.
simple way is access volumio by ssh by other terminal.then delete file.which would like to delete.please see 2 of picture.

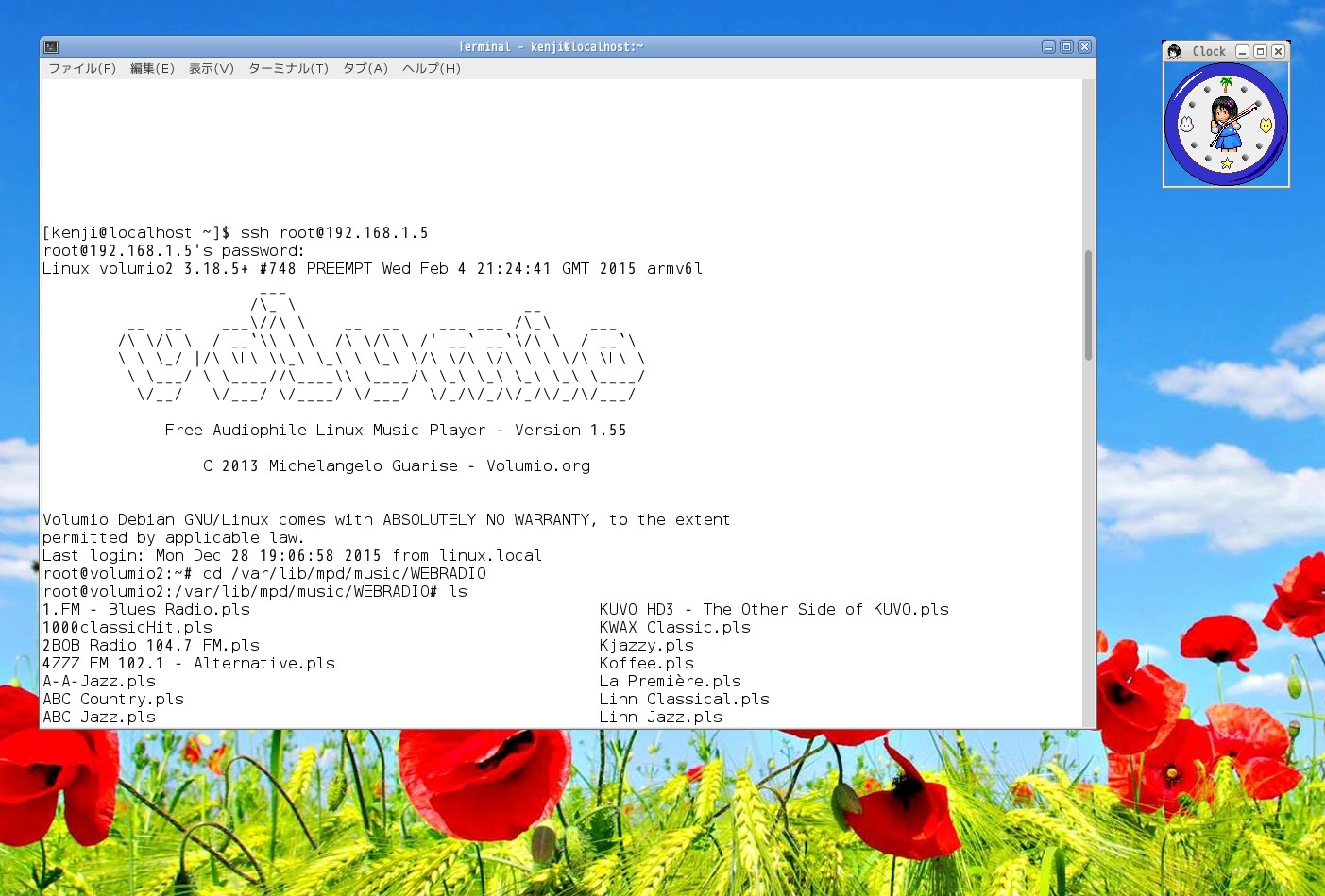

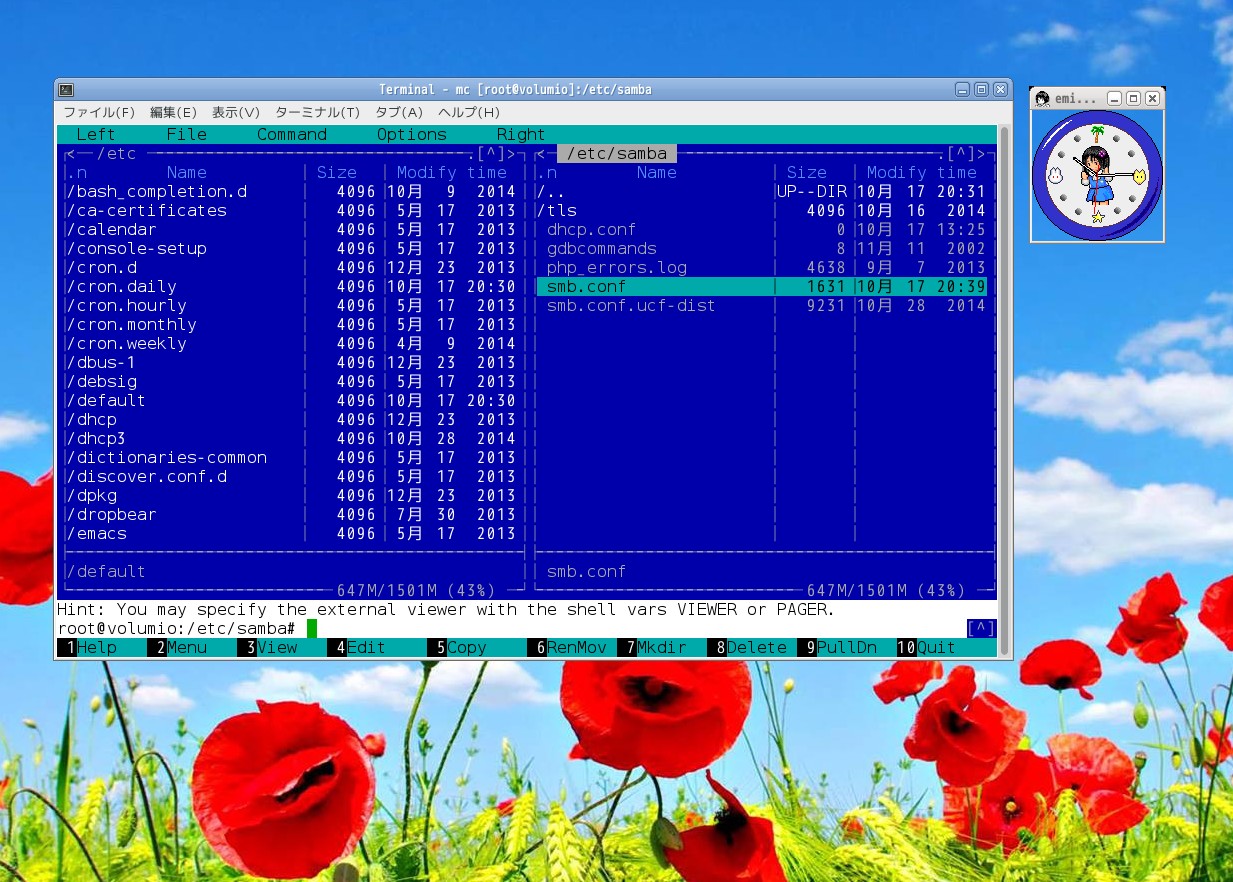

ssh using access Volumio

Access by SSH then move to directly



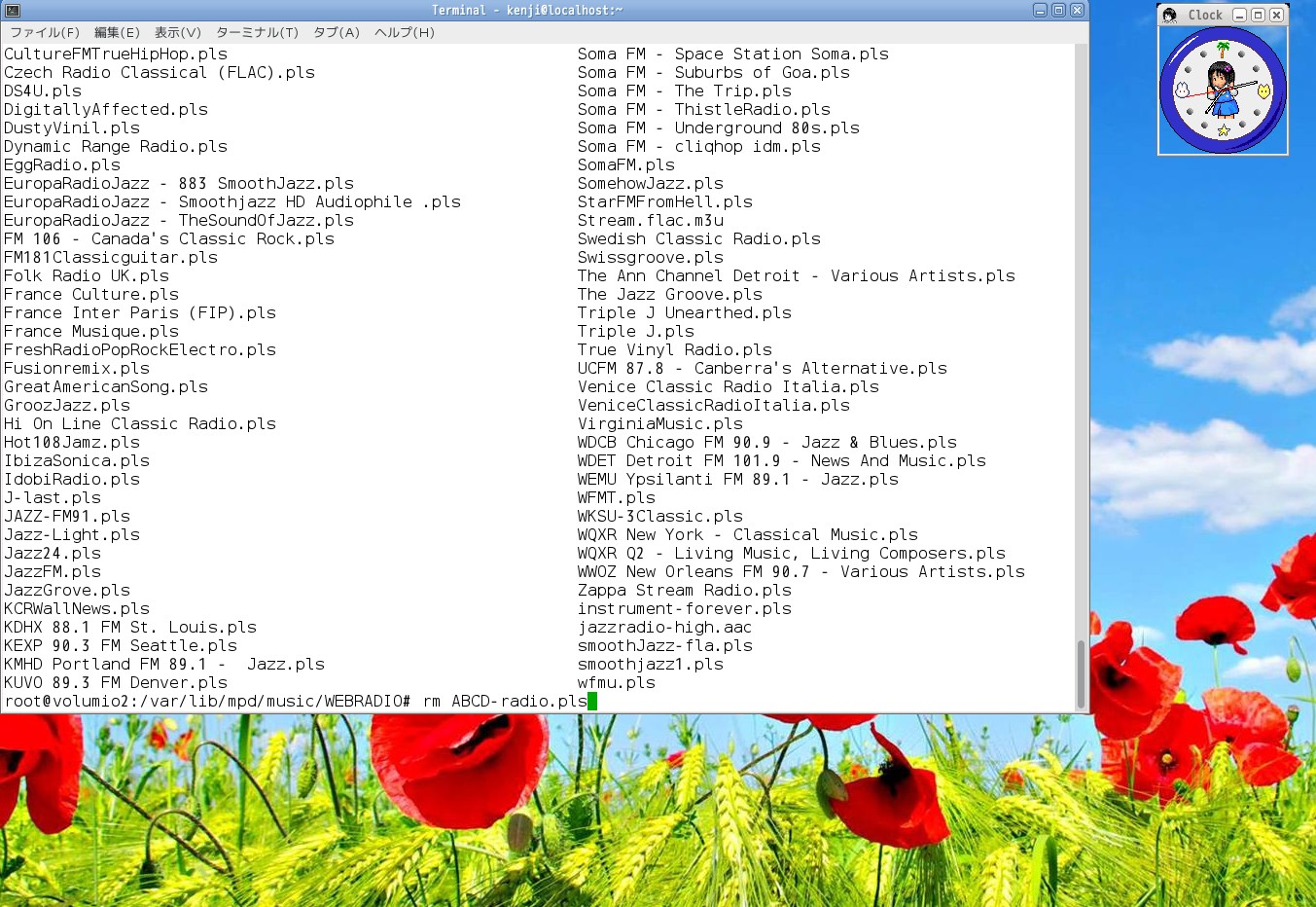

delete file using Linux command

Delete file by command of Linux. very easy


# rm can you remove only one file. so # rm abc-radio.pls if one of holder name is Jazz-vocal , # rm -R Jazz-vocal remove all of holder.



Sound from Raspberry Pi B+


6DJ8 Valve 24 bit 196 Khz DAC D.I.Y


Basic I2S DAC list of components

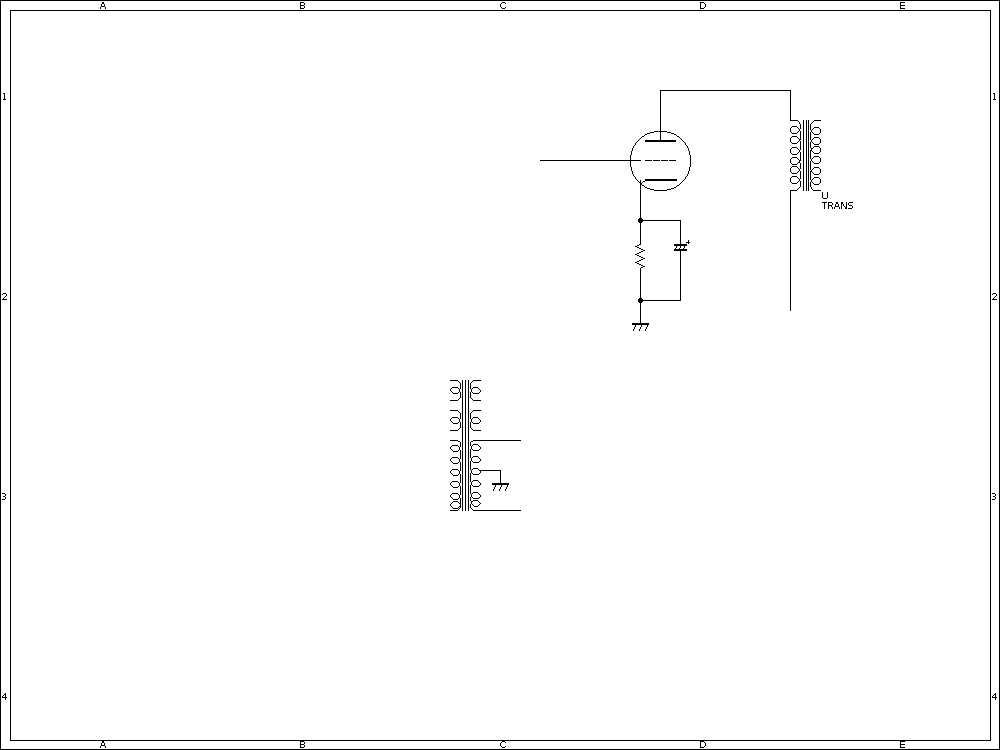

Basic Circuit DIY I2S DAC

and components list is show next

Component
component name
Quantity(QTY)
IC I2S DAC
PCM5102A BB by TI
1
Headder soket see No1
Headder for Raspberry pi B+ 40 pins
1
LSI pcb mount see No2
20 pins dual inline pins for PCM5102A
1
Capacitor film
0.1 uF 16V film
3~4

2200 pF
2 (depend on sound)
resistance carbon
470 ohm 1/4 W
2
Capacitor non polar
2.2 uF 16 V
2
Electric Capacitor
47 uF 16V
2 or more

10uF 16V
1
small universal PCB
5cm x 7cm
1
small LSI PCB for PCM5102A
see No3
1
Wire for backside PCB
Wire
around 10m

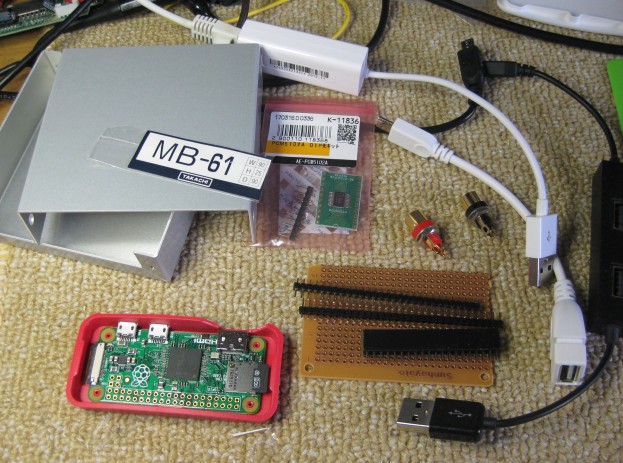

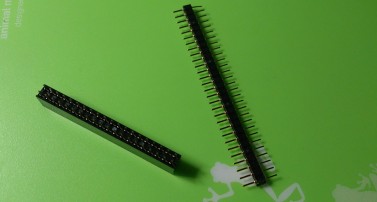

headder pins
see picture
some
RCA out put
RCA connector for output
2
LED blue
LED Blue
1
Chassis(box)
box any type by aluminium









backside of PCB wire

back side is just like above and           wire for wiring


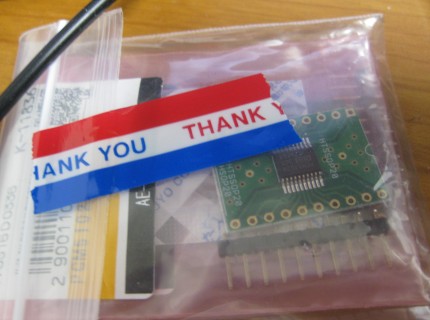

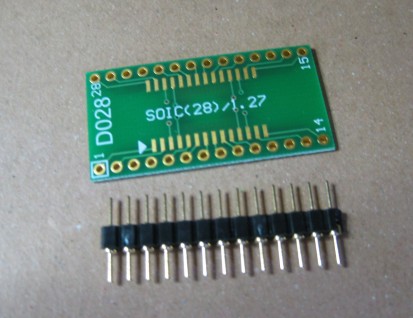

adaptor and headder Headder and pins

Adaptor PCB for LSI SSOP No3 and            40pins Headder connector and headder pins for addapt


So you can easy to build up I2S DAC less than 30 dollars ,box you can use any kind of box. chocolete box...candy box etc but much better use metal box.
simple circuit but will be get high reso sound from Raspberry Pi B+ .flac,Wav, mp3 , any kind of archive of sound.until 358 Khz 32bit.
you can get from Digikey and RS components any where of local shop.very much simple circuit but will be get High Reso sound.
one thing very impotant,,, winter season some problem getting, one of problem is broken LSI , sometime.I think cause of does not have coupling capacitor.
so does not get sound from I2S DAC, replaced LSI then getting sound. please be careful to use around outside of audio out put circuit.


How to record Music from WebRadio Stations on Volumio


First , make access by ssh raspberry pi server(Volumio) and install application for recode music
then on command line change position using keyboard.
#apt-get install streamripper
then , try to make #streamripper then something to get script ? means OK.
then
#cd /var/lib/mpd/music/RAMPLAY
#mkdir mysong ---> this part is any name you can write. which ever save-music etc.this case use "mysong"can make any name you like.
#cd mysong

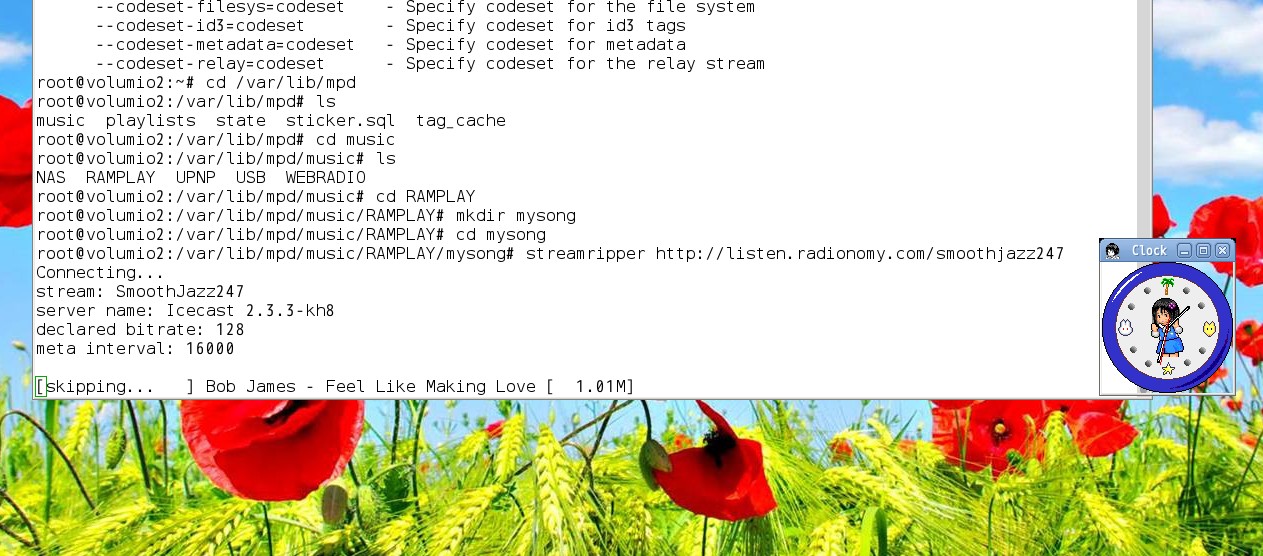

#streamripper http://listen.radionomy.com/smoothjazz247
right now you can record some music from stream.but must be write correct URL after #streamripper please use carefully because RAMPLAY does not have much memory.
you can play music some day if recoded. next show photos.Music must be save in USB memory much better.#Cont + C can stop recoder on Volumio .
one thing ,,smoothjazz247 can listen music all country. only USA and by smartphone app.any way can recode.
streamripper http://185.33.22.15:11230
above line is for
stream: 1.FM - Bay Smooth Jazz Radio
also one of good WEBRadio Station.

install application on volumio 1.55

Install Streamripper on Volumio use #apt-get install streaamripper



recording for Raspberry pi server.

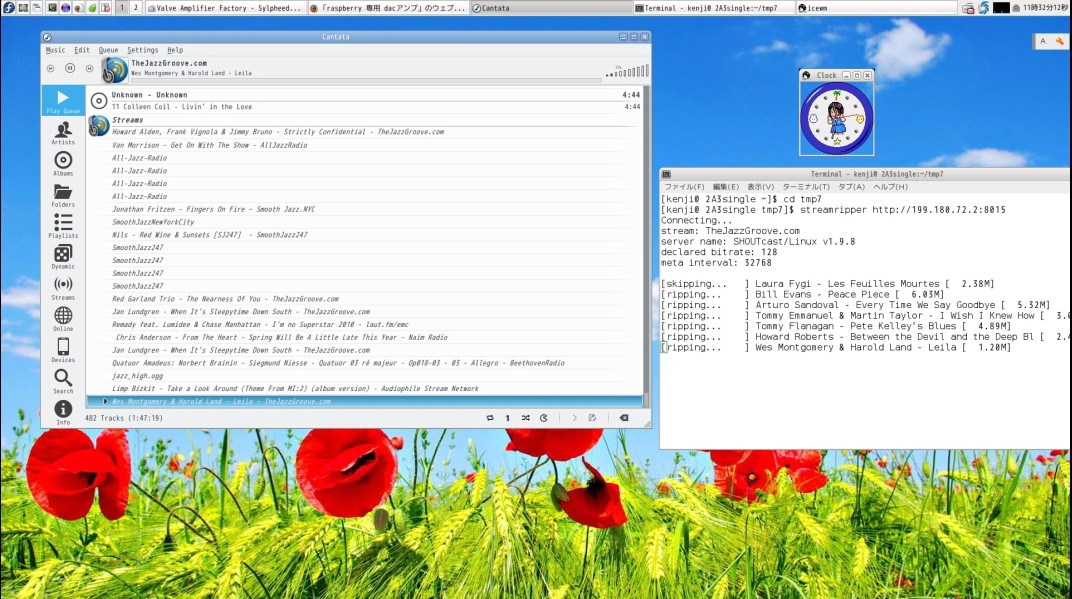

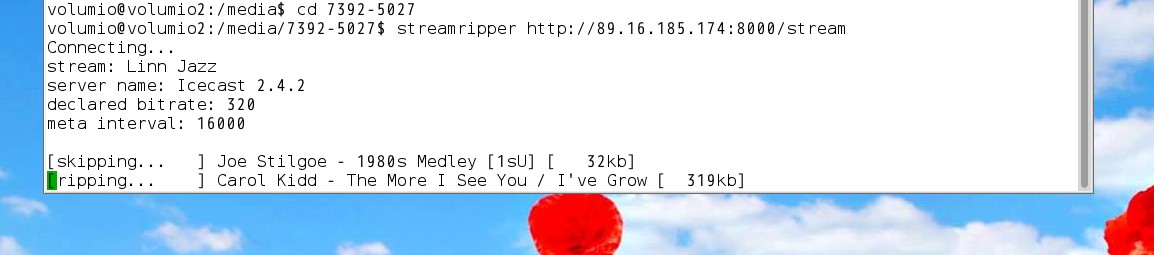

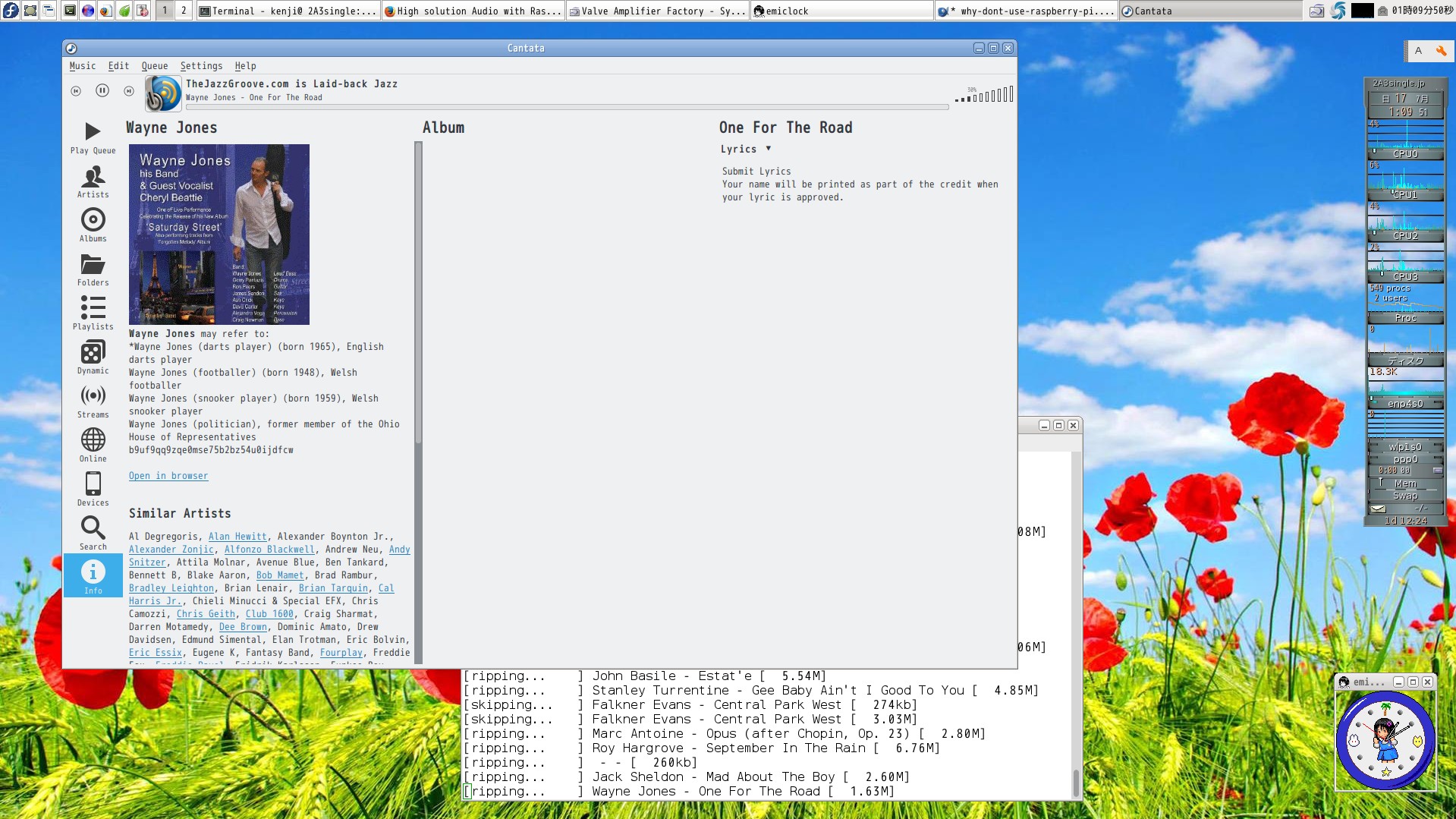

Recording The Jazz Groove.com by another terminal on Linux




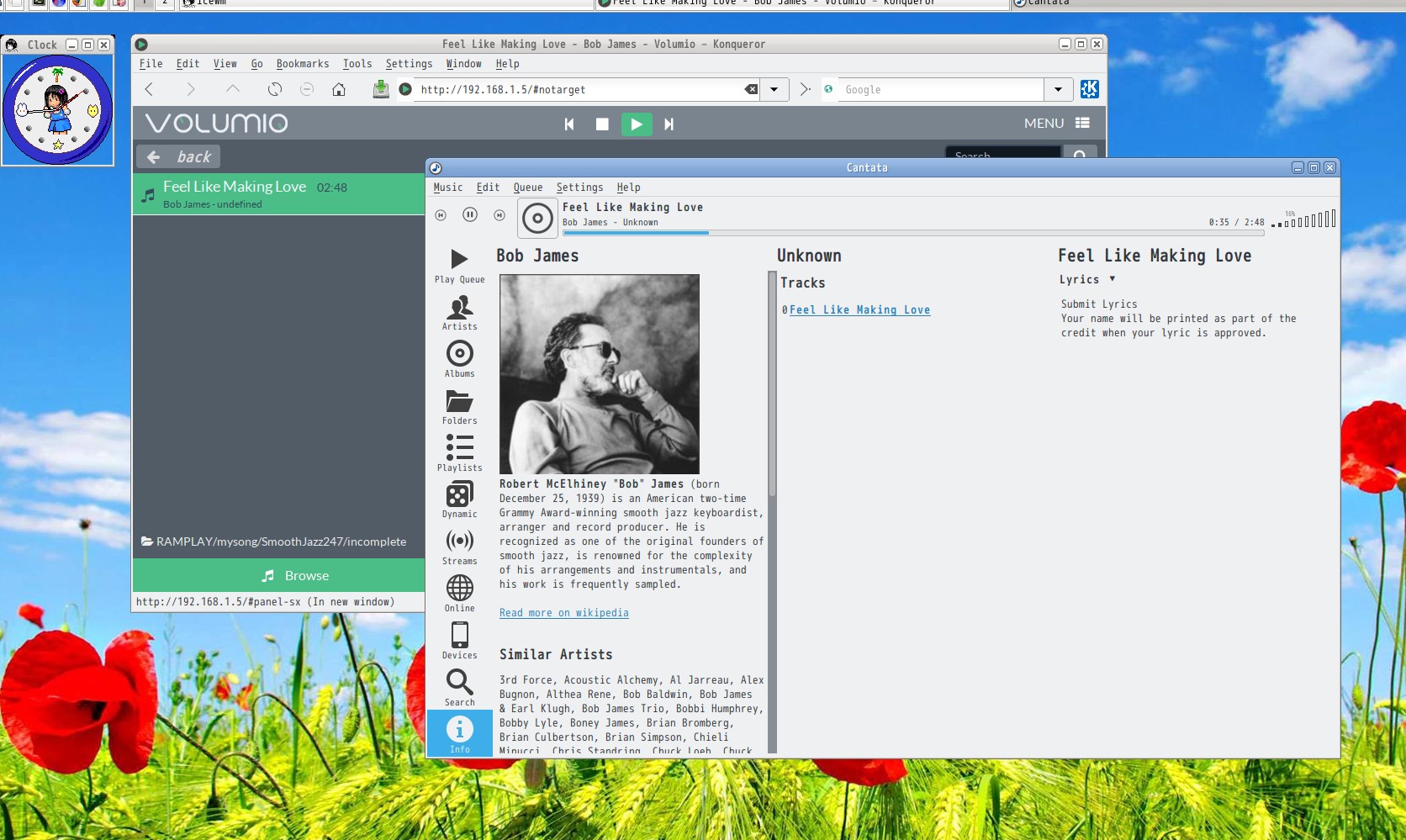

re play music from Volumio,.

Just re play Music from Ramplay on Volumio



How is Raspberry Pi 2 EL14 ?

6 Times rapid than Raspberry Pi B+ ..... ? last week I bought one of brand new one of P2 but,,,actually I do not think does not get much speed than B+.
I think ,,,, lie........ please wait buy new Raspberry Pi 2 ,,,,,,, I am using 3 year old Sony Vaio with Fedora Core 18 ,,,50 times rapid than Raspberry Pi 2.
I think Windows 10 can not function... with Rasp Pi 2........ What will be ? where going to Raspberry Pi 2 ? but depend on correct window manager make it fast.

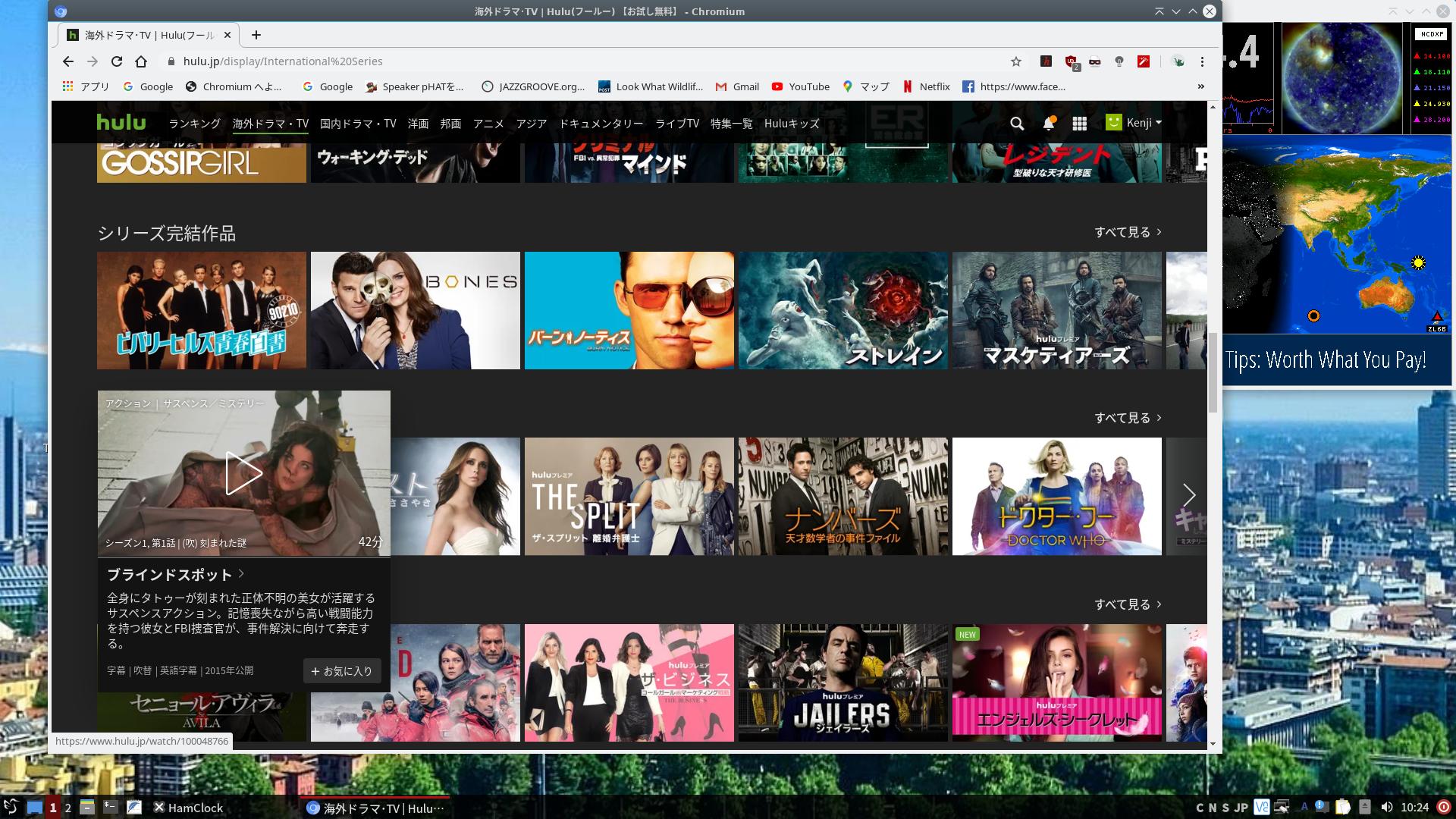

I did try watch Hulu but still just like toy PC. we have to wait Windows 10 for Raspbery Pi 2 ????

Fedora 21 Remix install ----on 8th Mar 2015

Actually I do not like Ubuntu(Debian)family of Linux ,,,either I am using Fedora Core 18 Linux on my Vaio VPCJ2 working fine.
just would like to install Fedora into my Raspberry Pi 2 Btype .so I did get archive from Fedora core Remix 21
each version of window manager need around 10 G byte of micro SD. original archive is around less than 1 Giga byte but necessary install on micro SD of around at least 32 G Byte.
first I got xz file from Digital Dream Time UK site. they has 4 type and see detail on Site.
please try to install ,,, then if does not make log in. please try on command line as Cont + Alt + F2 can do command line, as root and passwd is fidora.
then make user # adduser name-of-handle then # passwd name-of-handle
then # reboot you can do grafical login .if would like to upgrade please try #yum update and #yum ugrade.for up grade of Fedora Rimix.
Fedora Core Linux is much faster than Debian and Ubuntu Linux I knew.using until Windows 10 brand new.Wrote 8th Mar 2015 I am so sorry bad english to wrote.!!!
I think ,,,,Raspberry Pi 2 is weak.100 % does not work Windows 10.

One thing Raspberry Pi does not have hard time clock so can not adjust time so some time need adjust like
# timedatectl set-timezone Asia/Tokyo in my case...in Tokyo Japan... so your country is other thing.
please install # yum install ntp too....

Other thing,,,FreeNASfor Raspberry Pi can as NAS.how about...

About Volumio 2


Please Volumio site,
Volumio2 you can get Beta1 Volumio2 right now.please try it's.


$ ssh of Volumio 2 is
just show you next figure.
$ ssh volumio@your IP then Passwd is "volumio".
very much stable to use.I am using under line of IPv6 line but nothing problem .a month ago moved new place and this place using IPv6 and Ipv4 both of
protcol.almost one month does not play good and had been problem so replaced Volumio2.right now no problem to use.

SSH Volumio 2

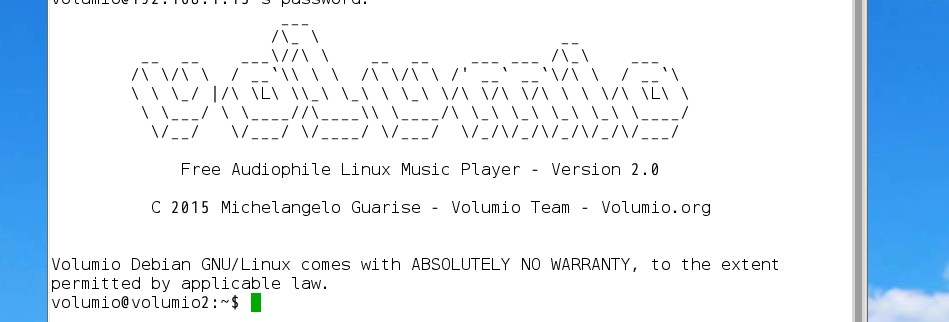

Volumio 2 by ssh access on 15th Oct 2016




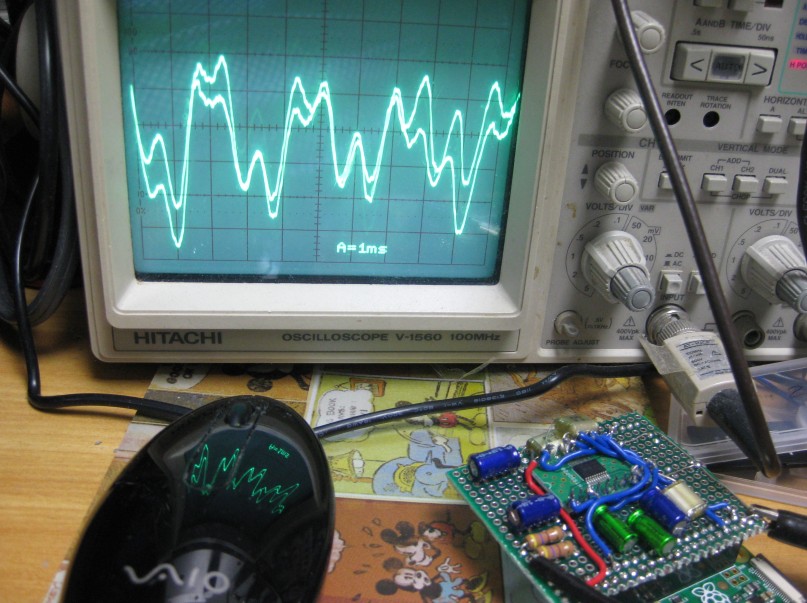

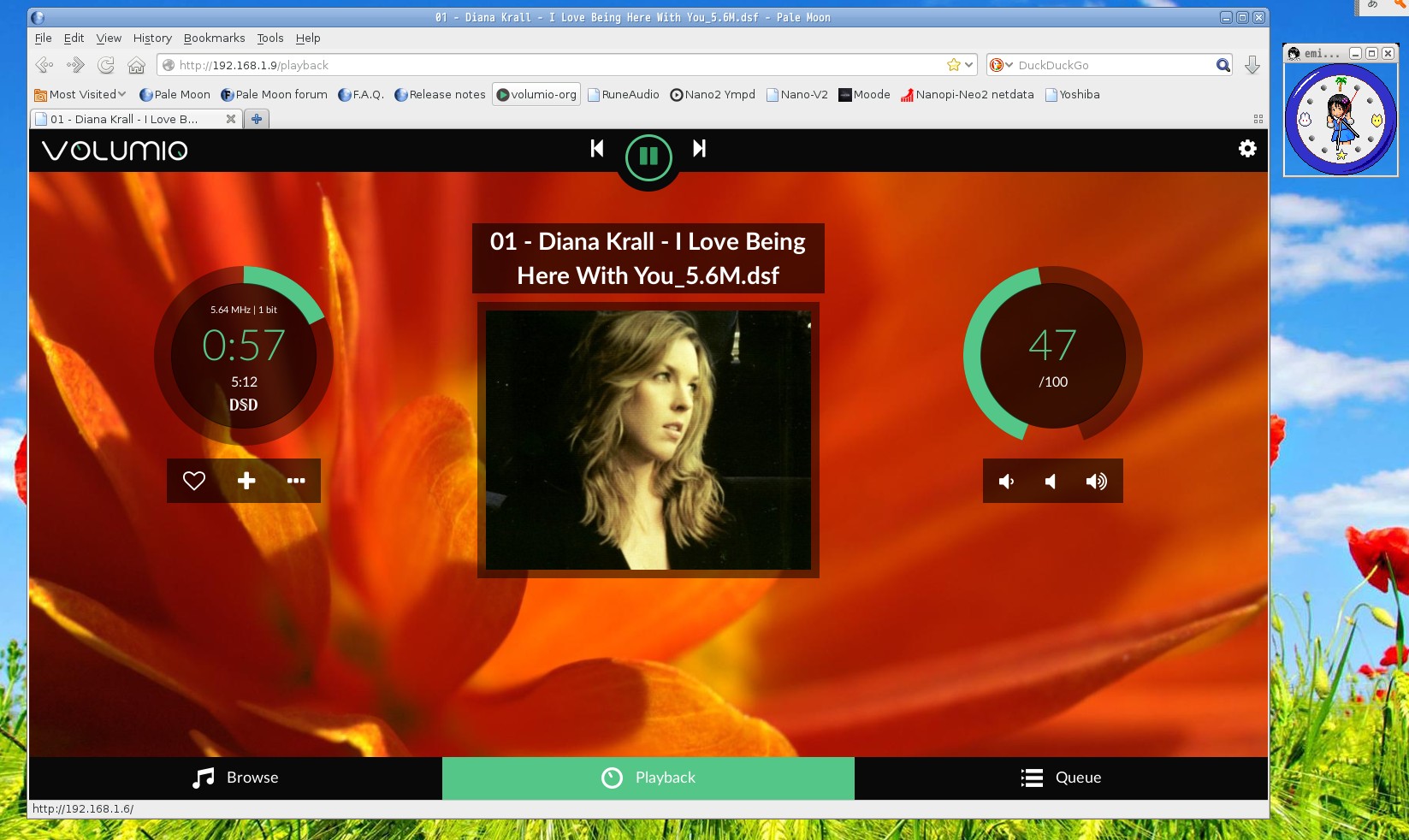

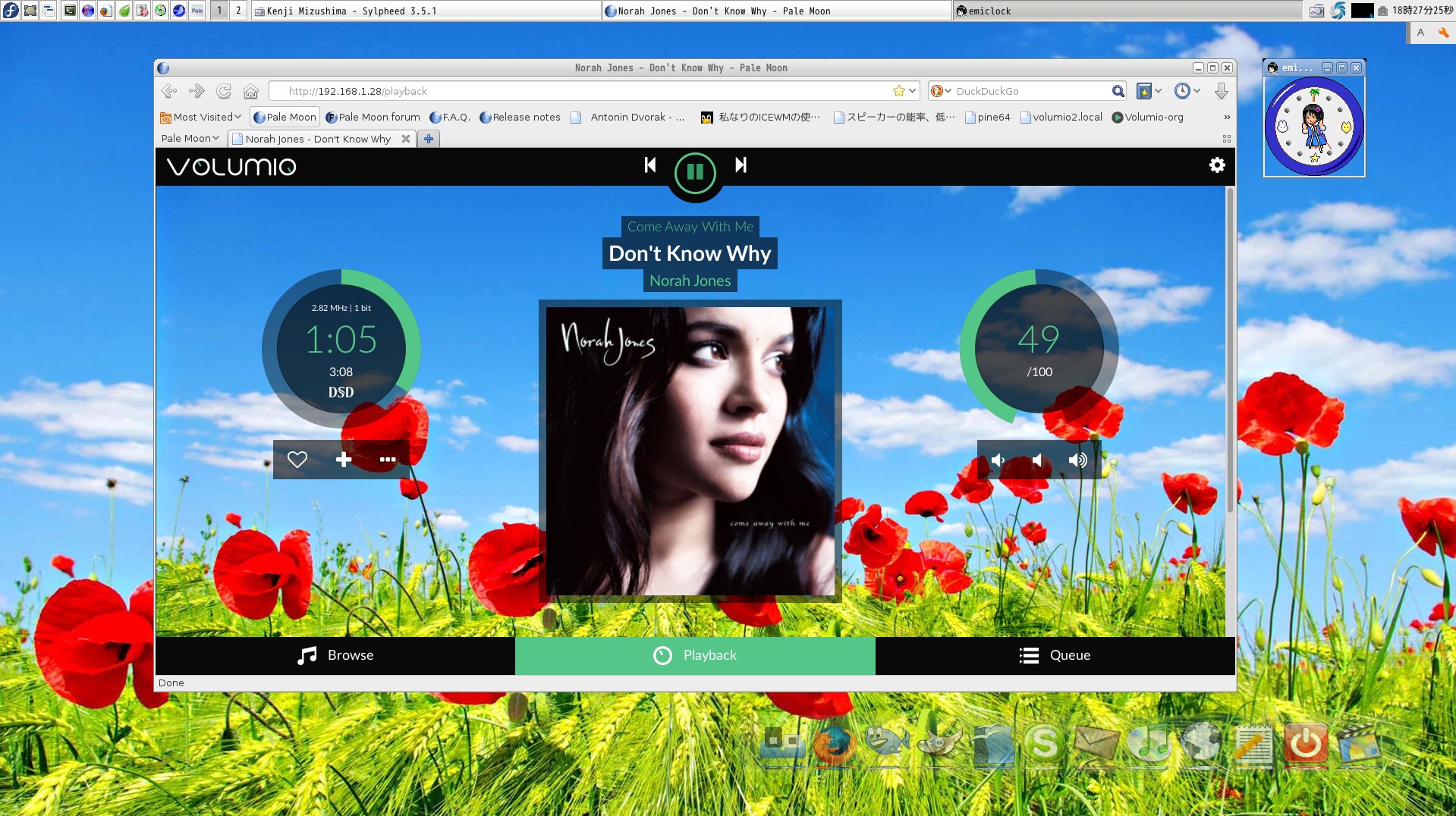

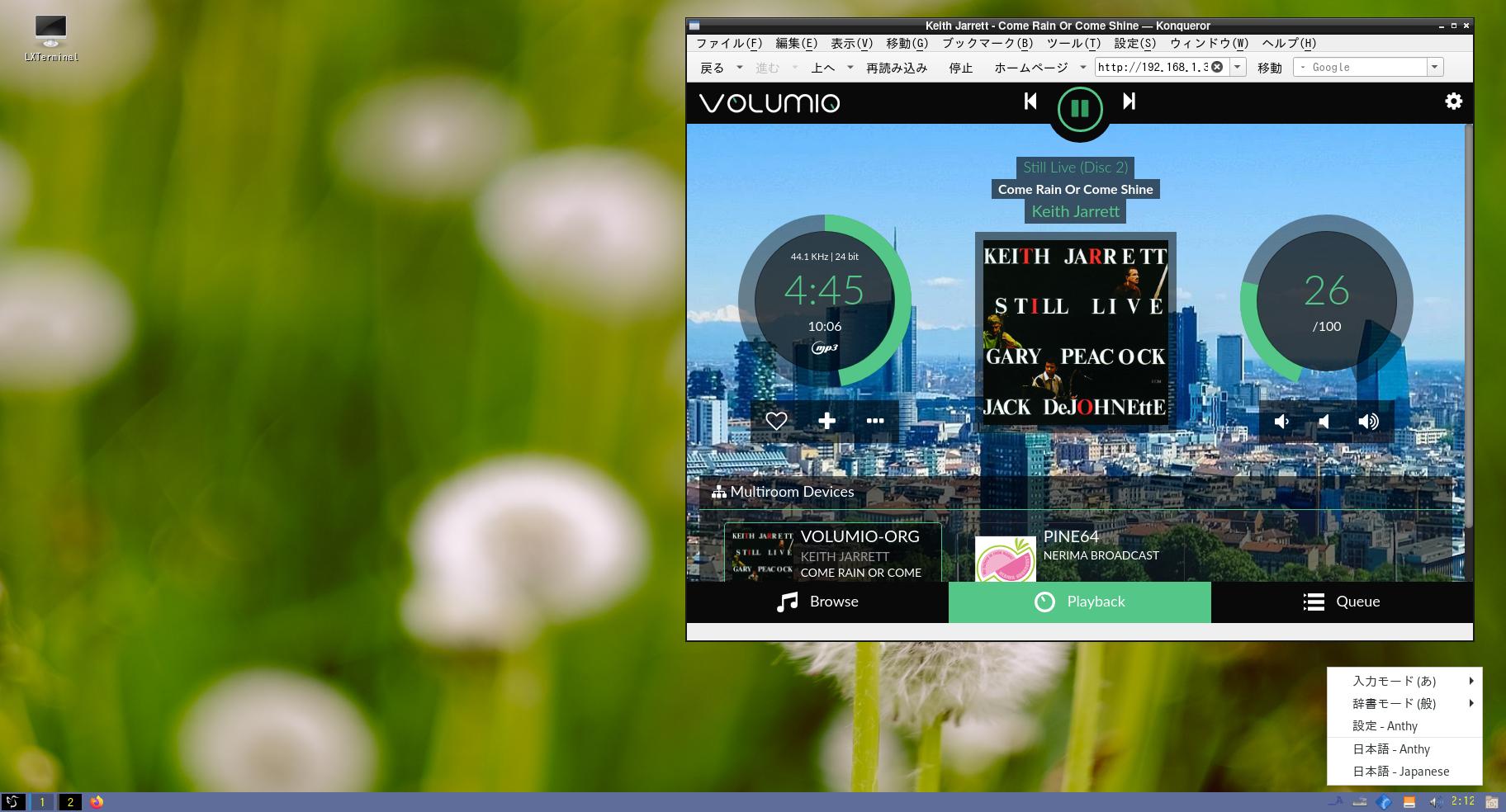

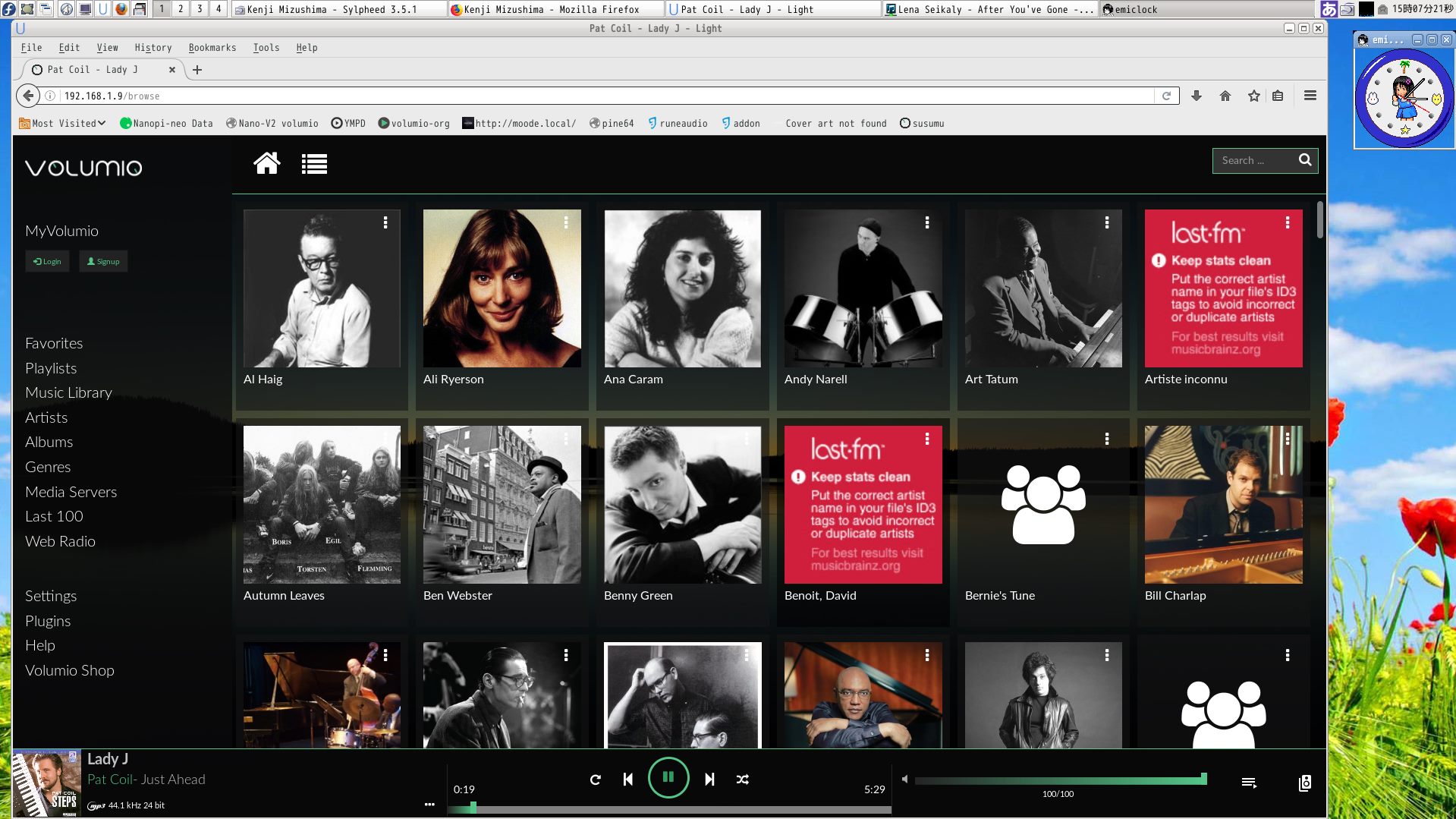

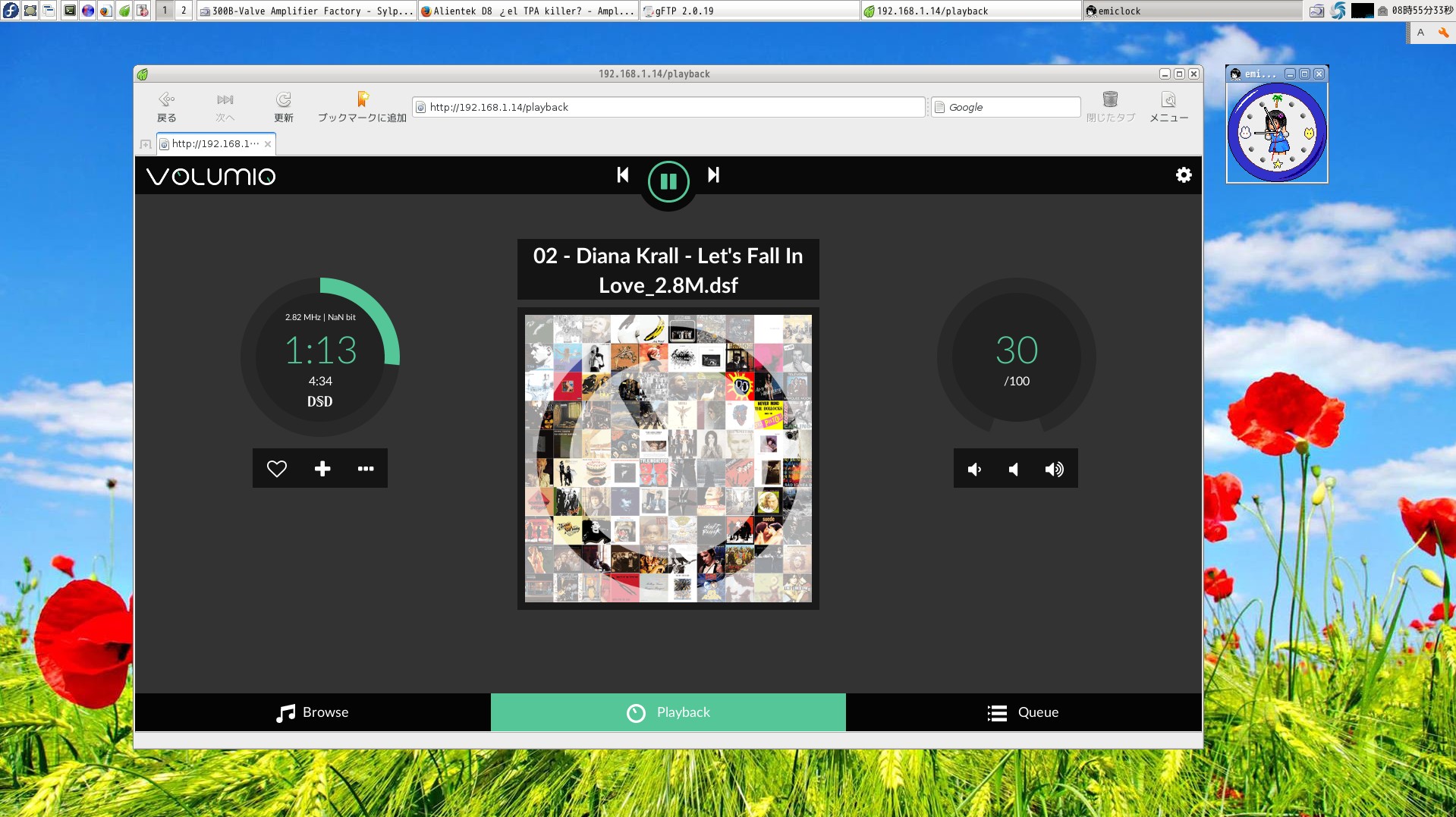

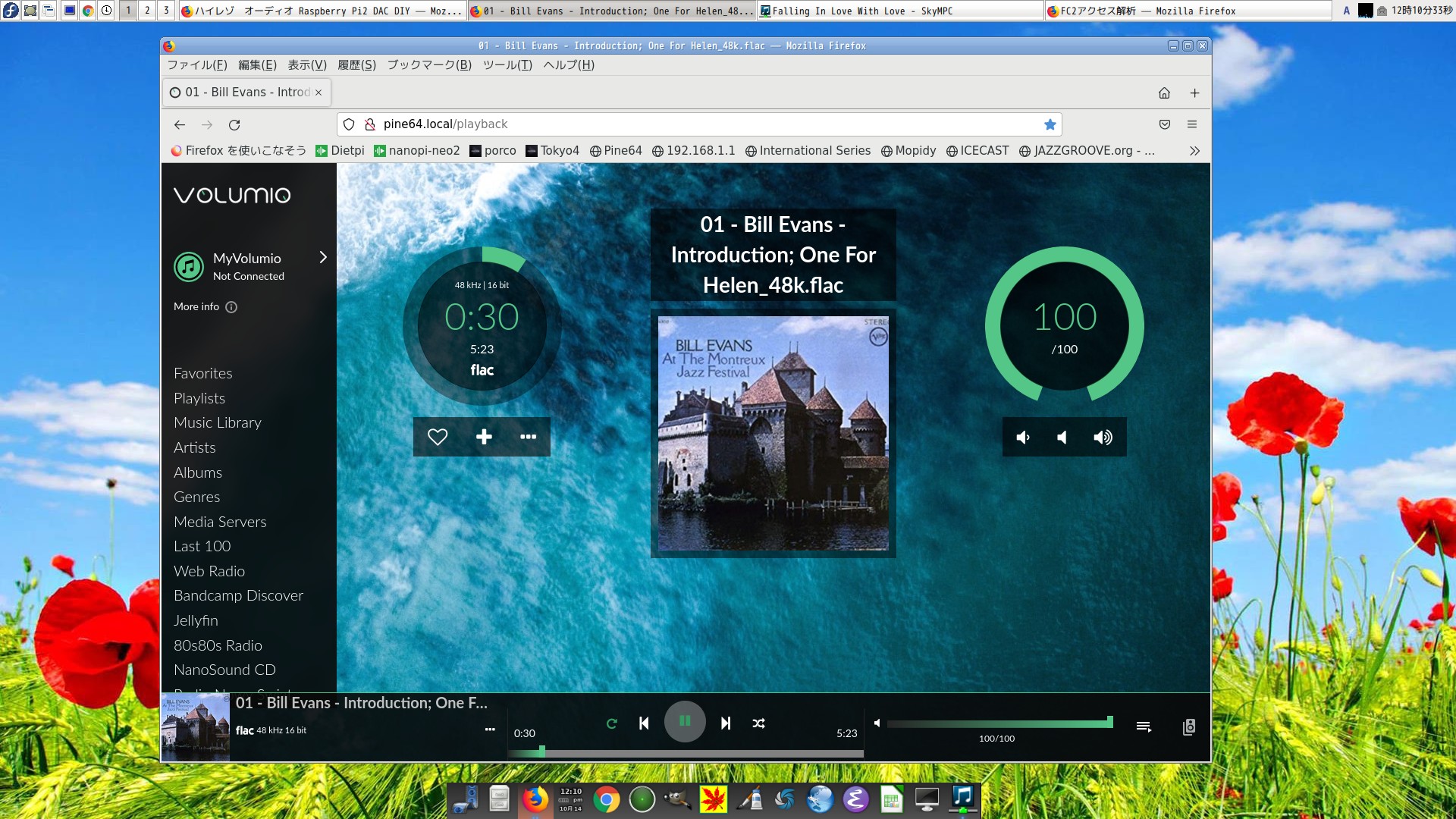

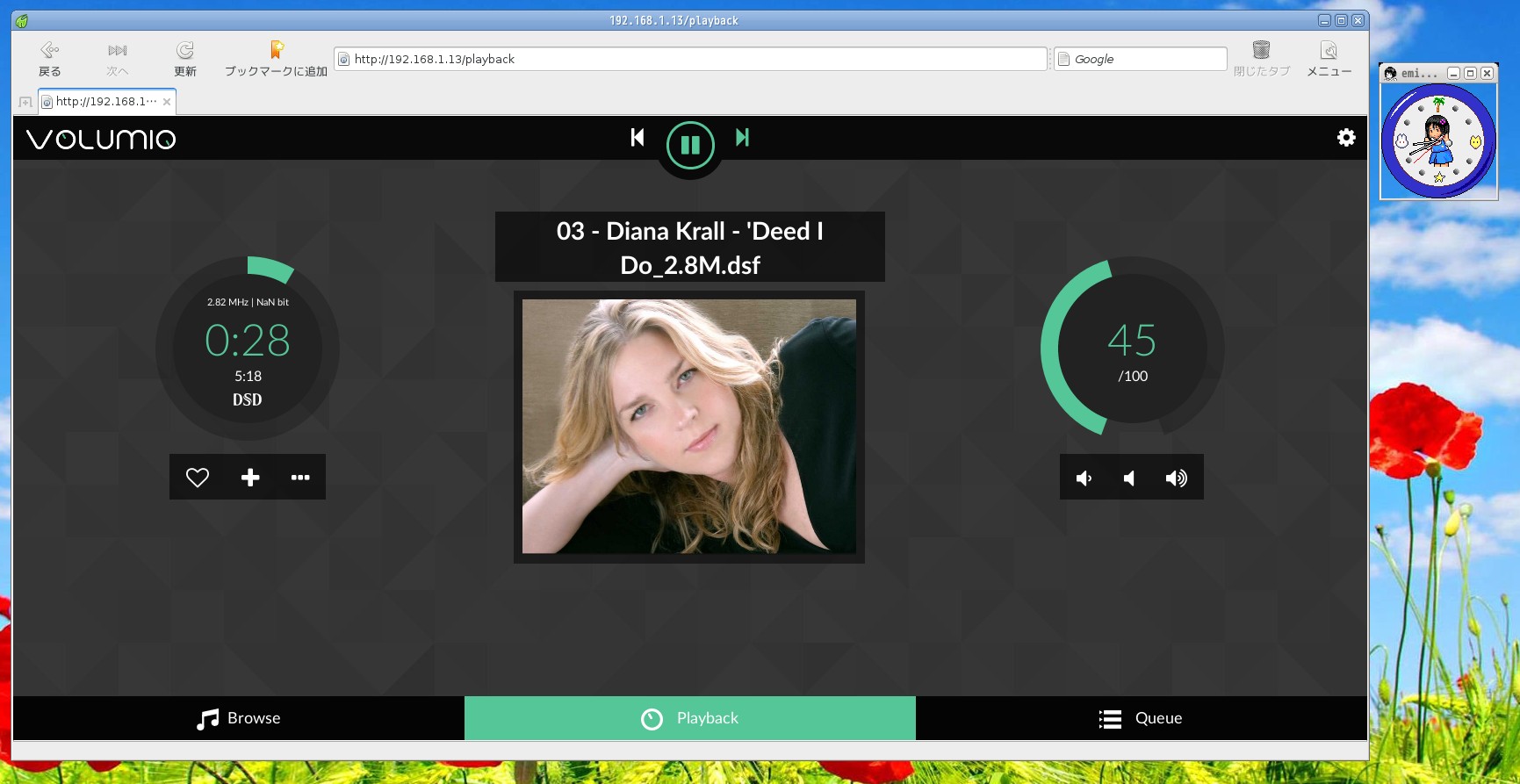

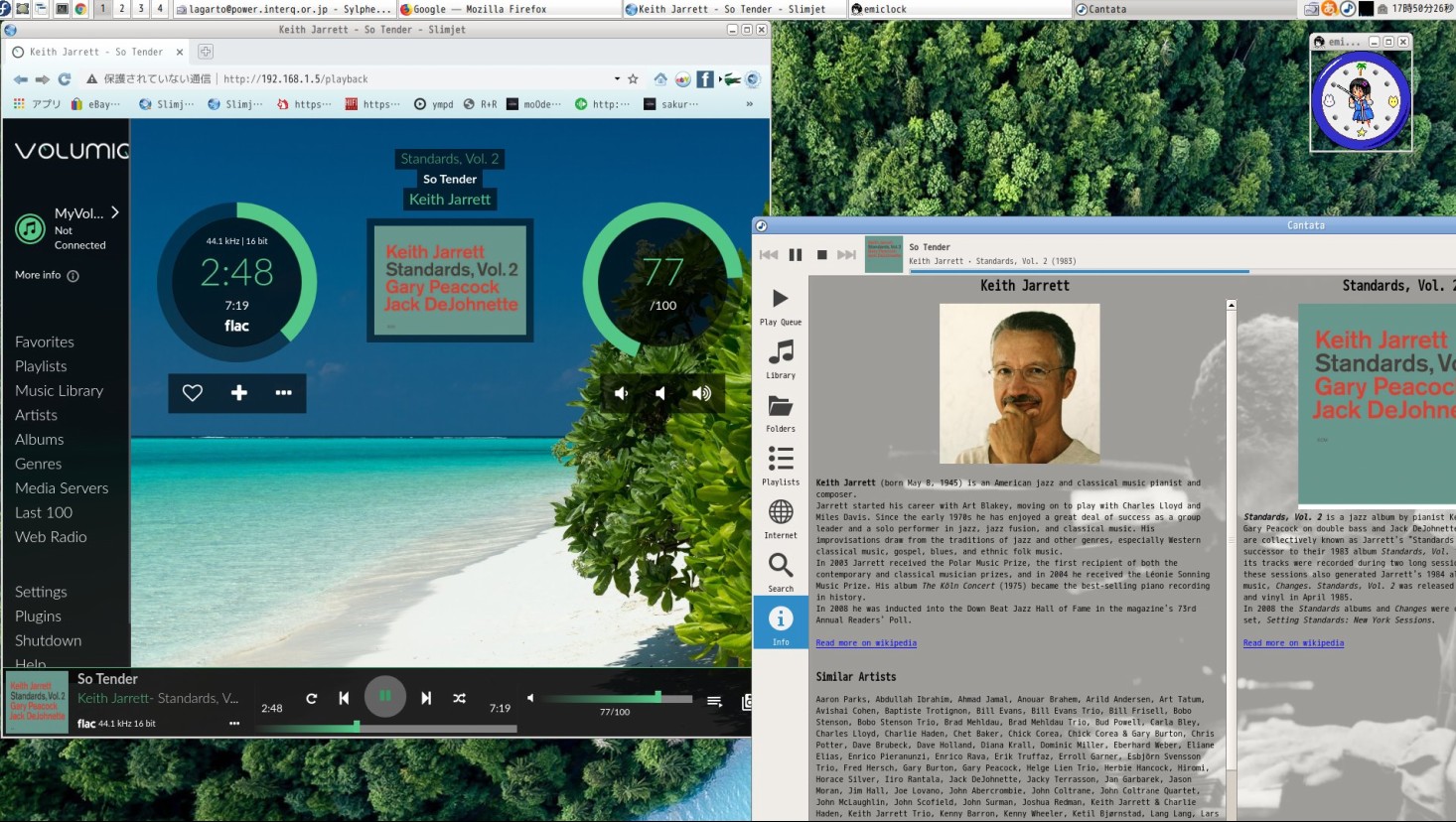

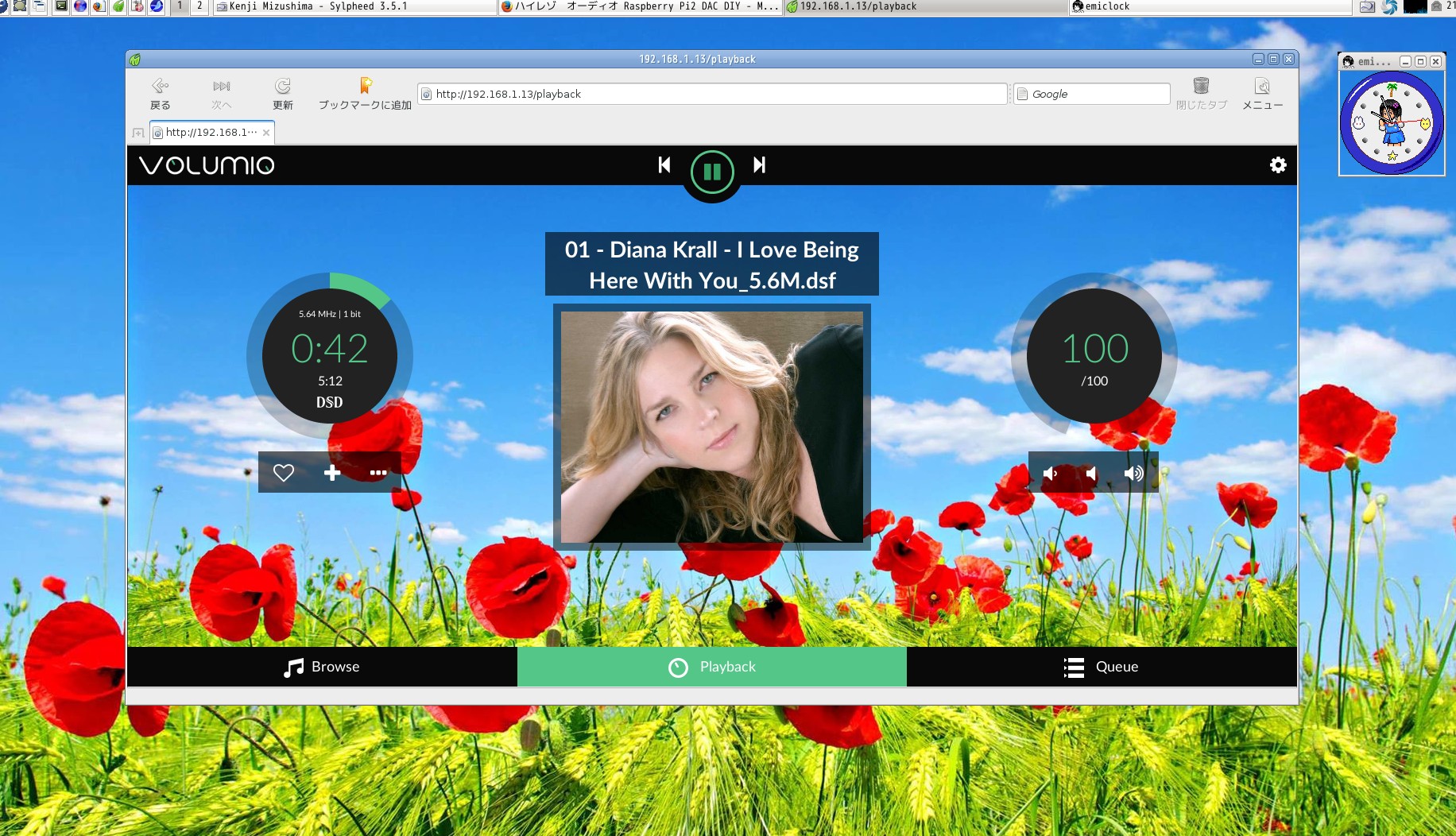

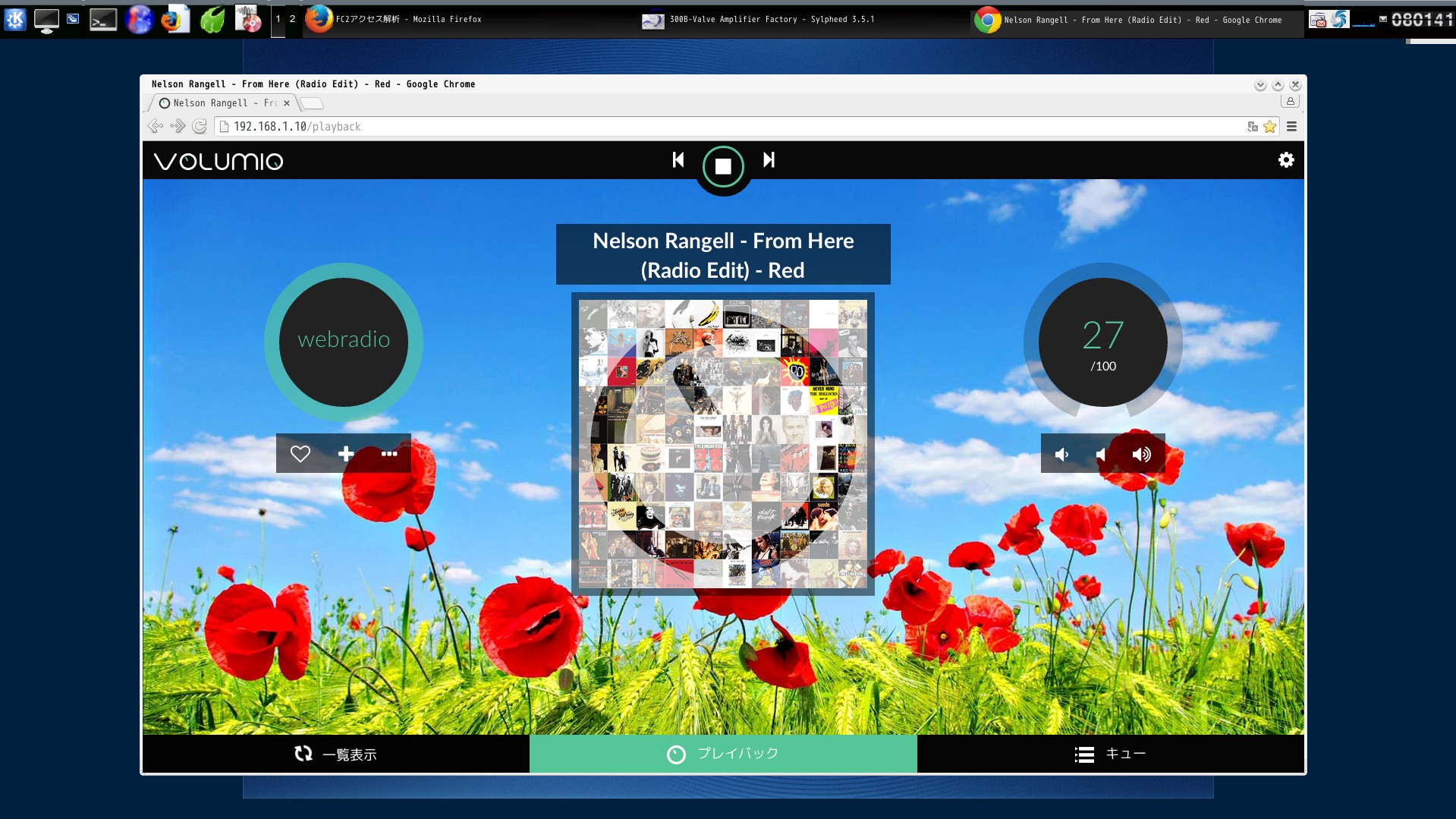

Volumio 2

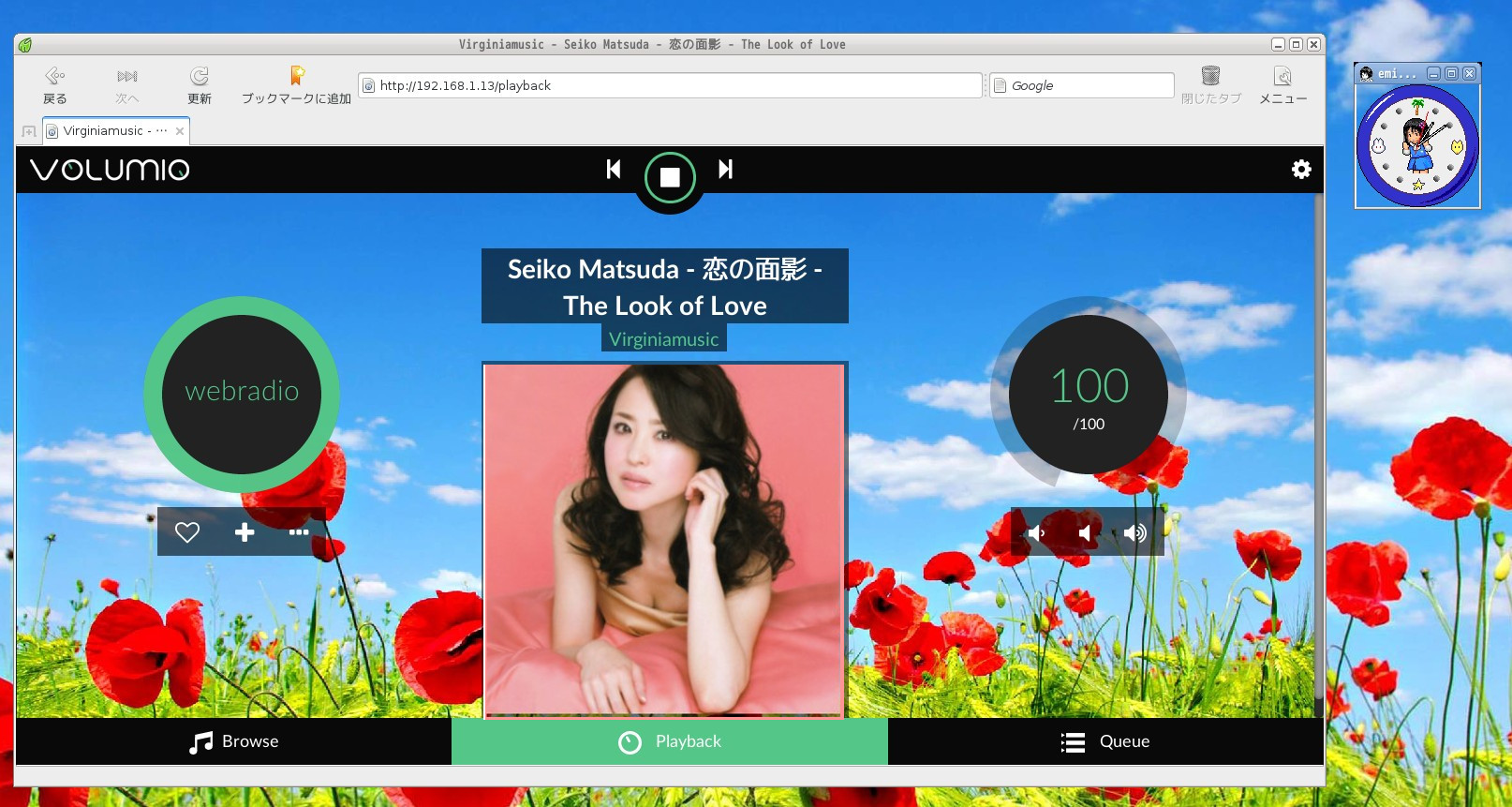

Back Images can replace any images Volumio 2


Still using Debian family Linux,but limited version.asignment of memory is caluculated much better than before.but not detect USB HDD Memory.
sound is not so good than before.I guess. on 15th Oct 2016.



Remix Fedora core 21 arm 2015 RP2

Remix Fedora 21 ARM with Mate under Raspberry Pi 2 B type on 11st Mar 2015



Fedora Remix 21 for Raspberry pi 2

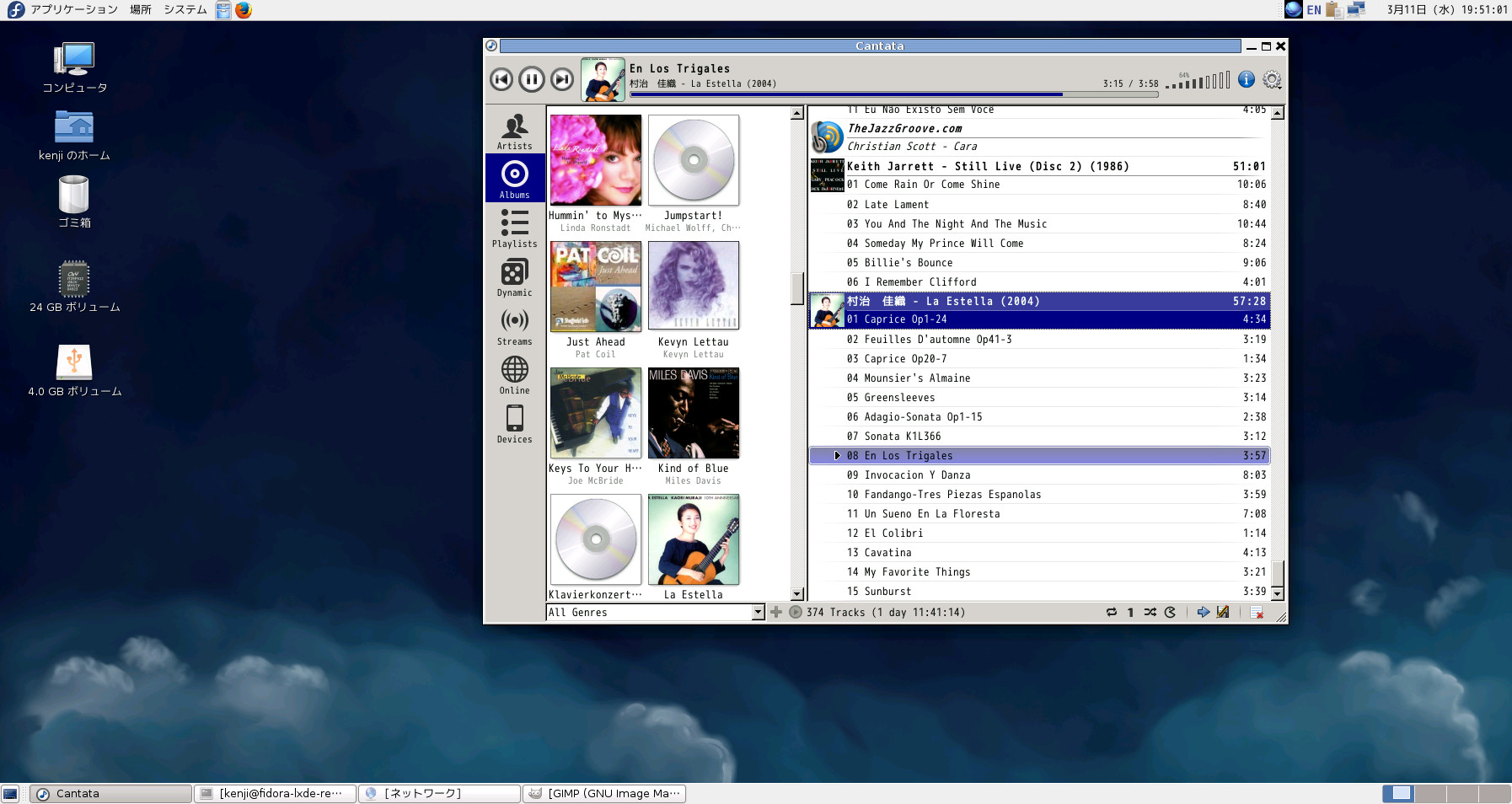

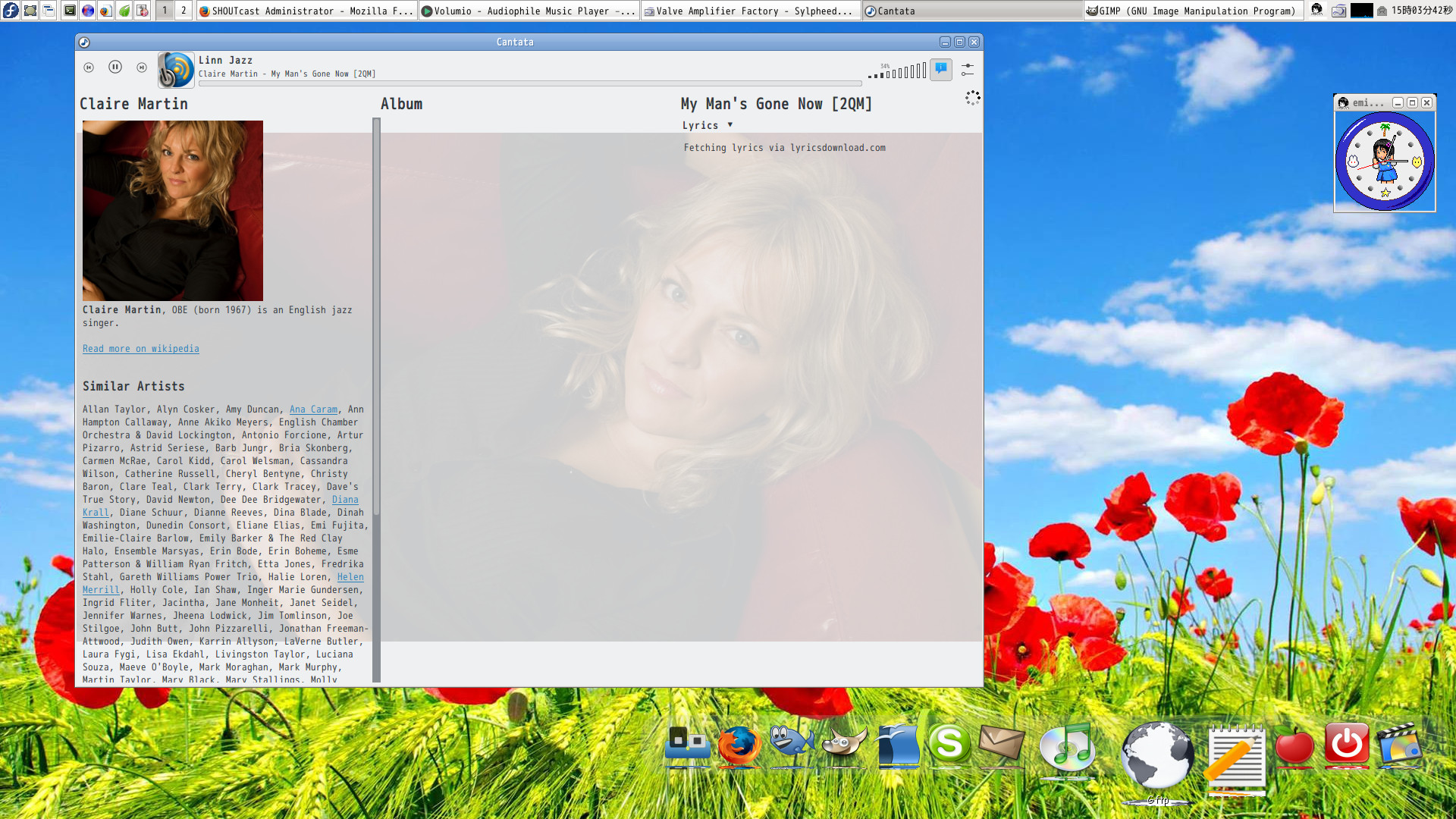

Fedora Core 21 Remix ,MATE for Raspberry PI2 on 12nd Mar 2015 with Cantata MPD



MATE DC21 Remix Raspberry Pi2 2015 Mar

Fedora Core Remix 21 under Arm Raspberry Pi 2 .... on Mar 2015 MATE Cairo-dock



FC21 Raspberry Pi +B 2 Mar 2015

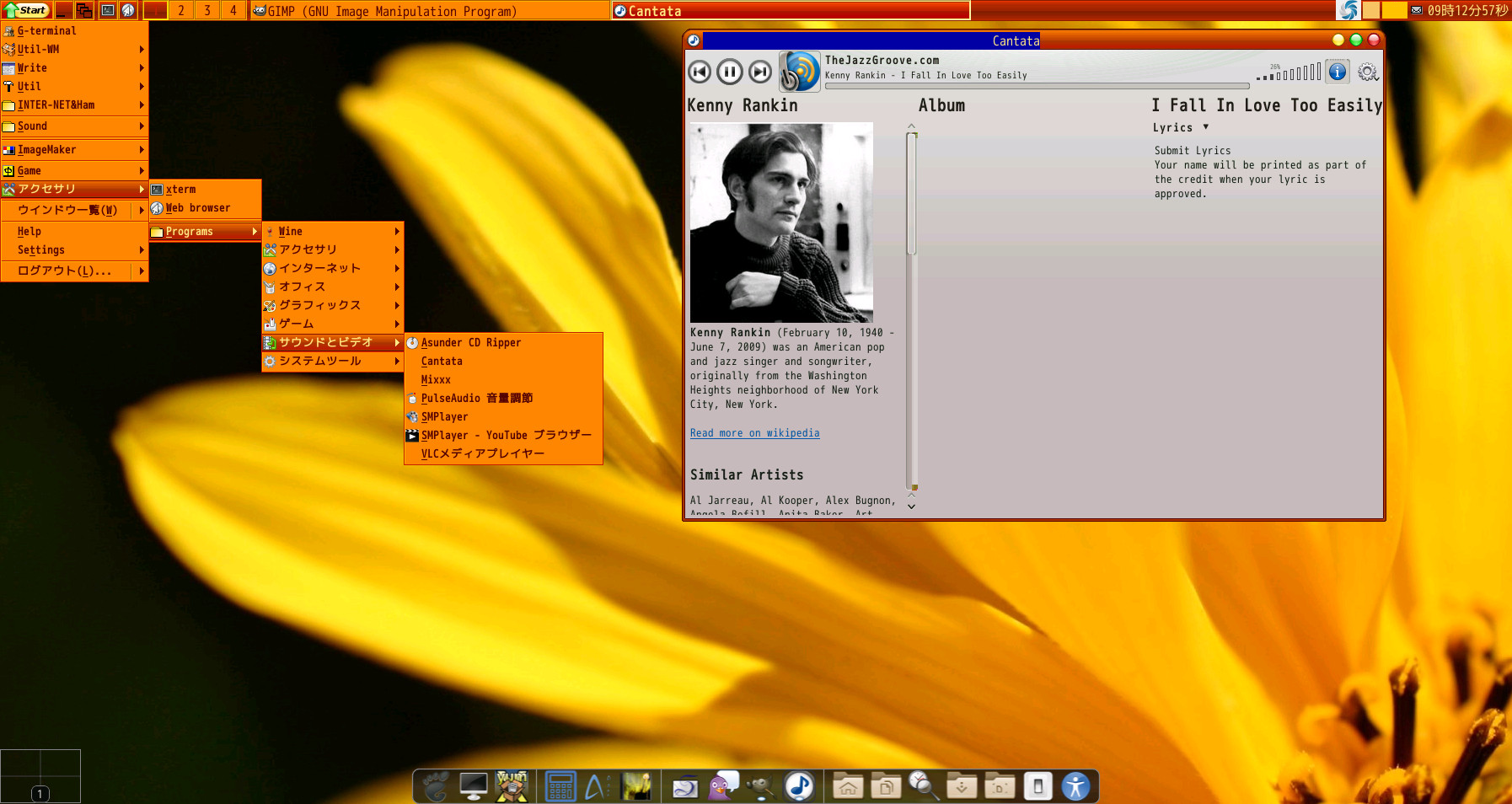

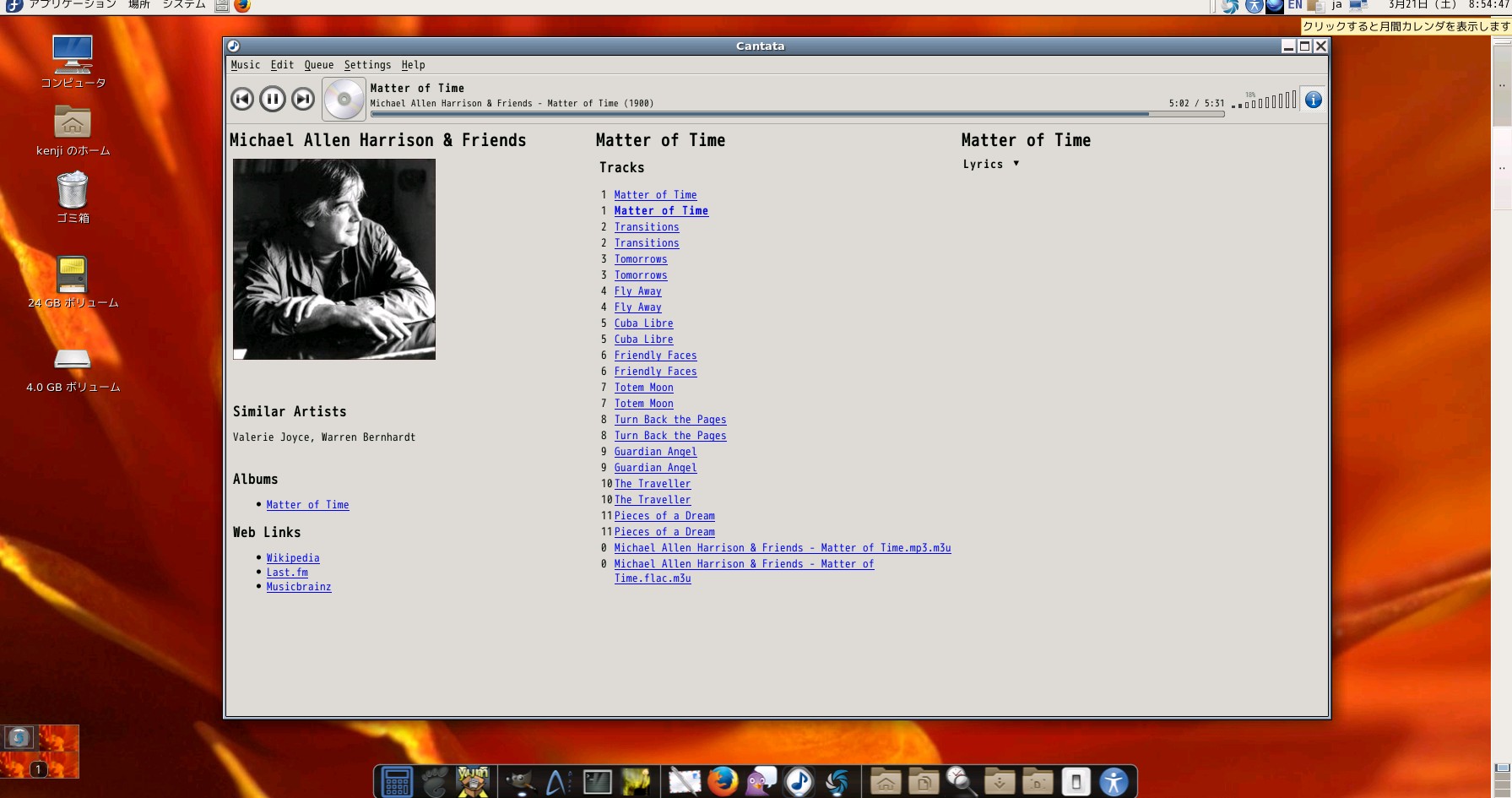

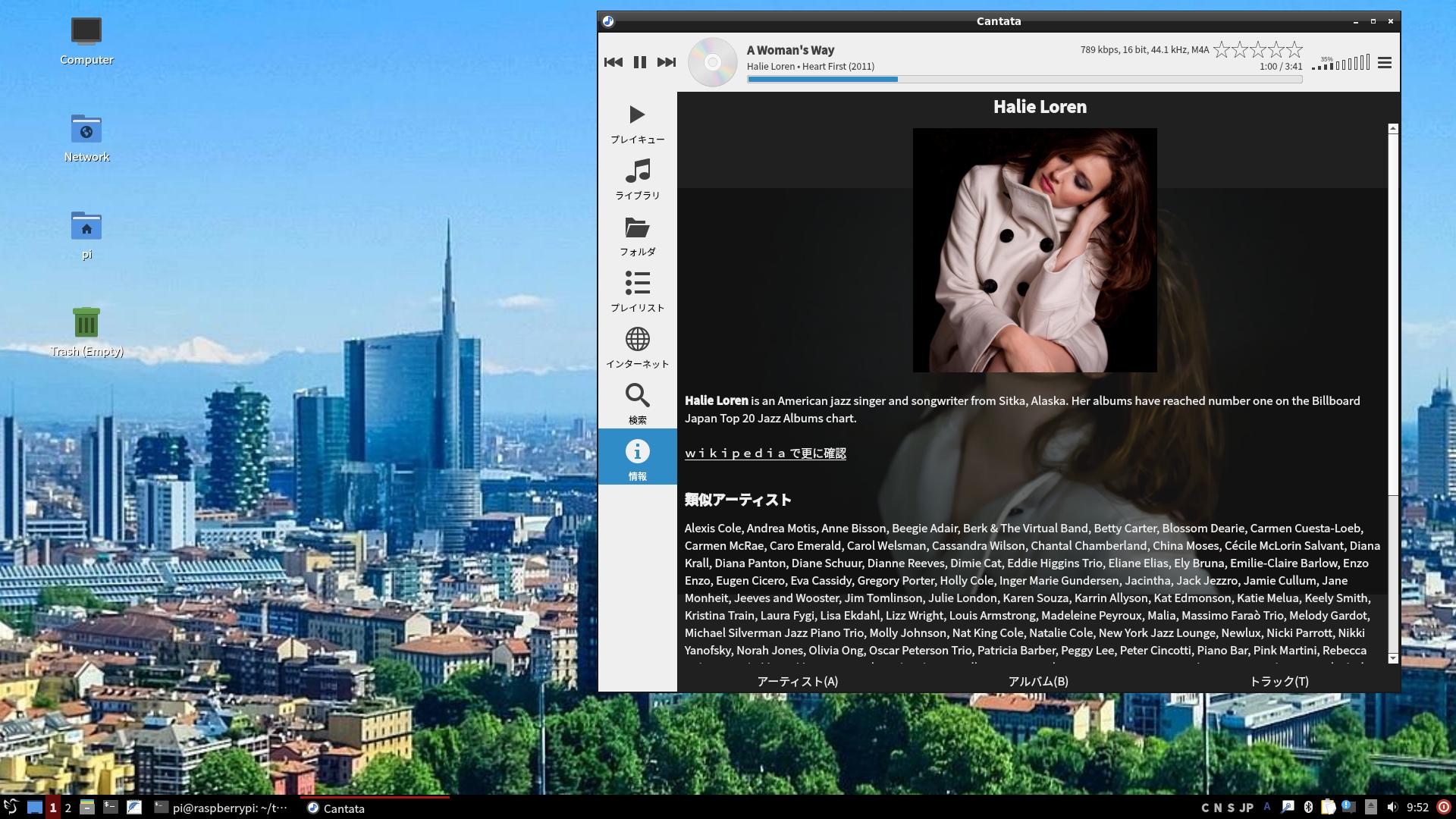

Raspberry Pi 2 work-station FC21 Remix with Cantata indicated show Alubums from Volumio



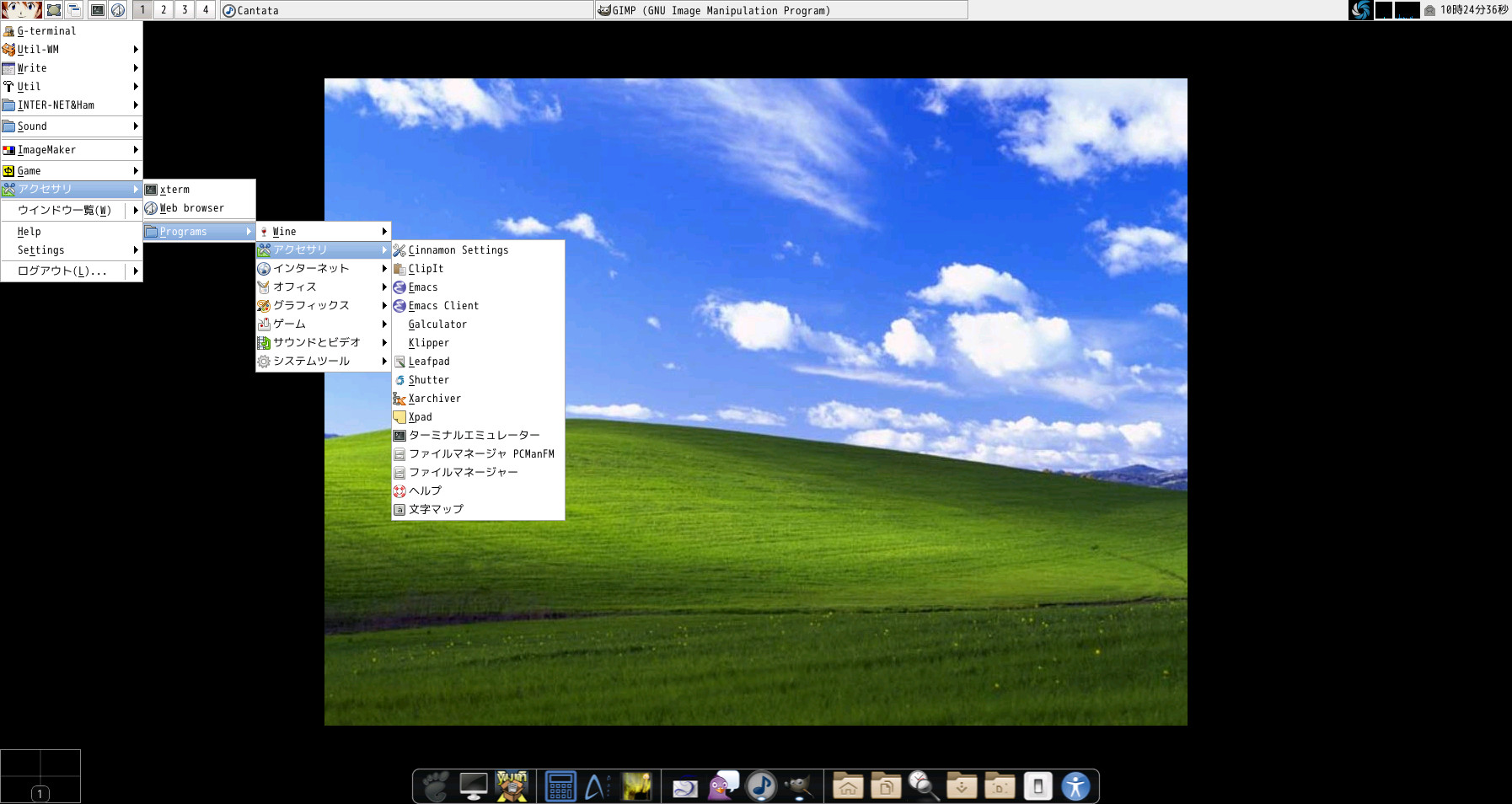

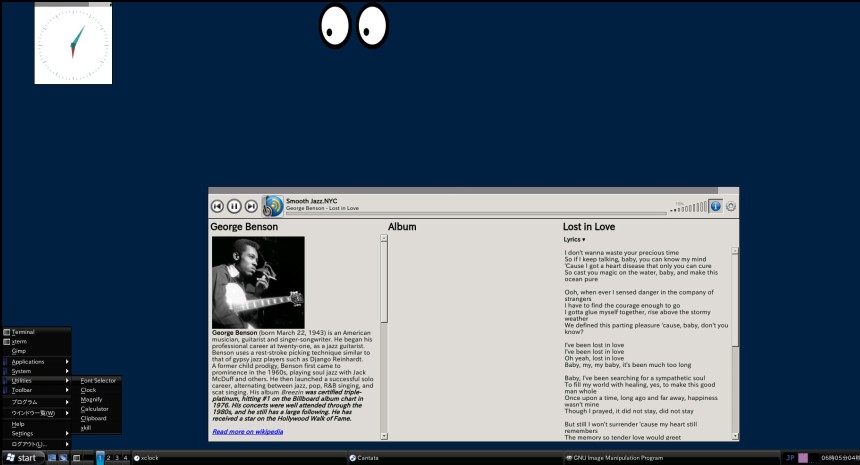

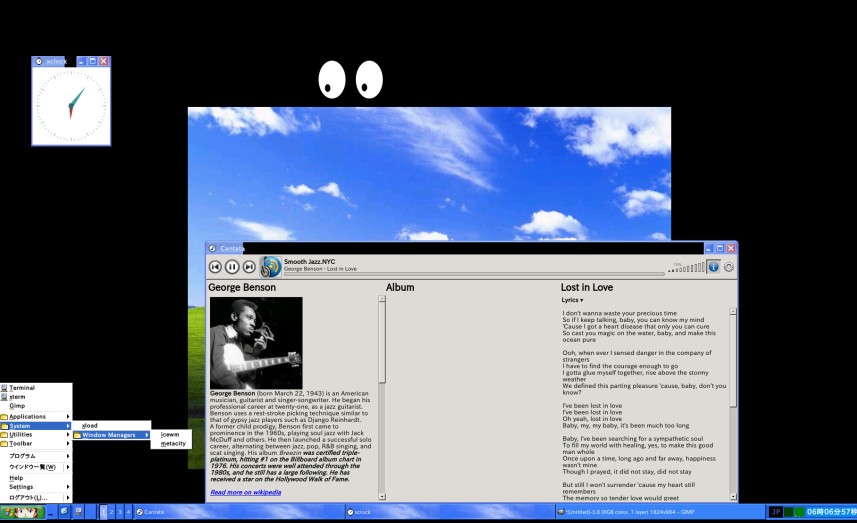

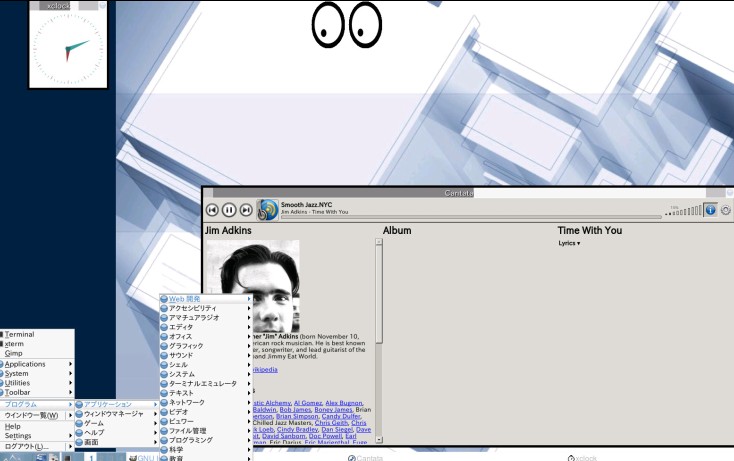

ICEWM FC21 Remix Raspberry Pi2  2015 May

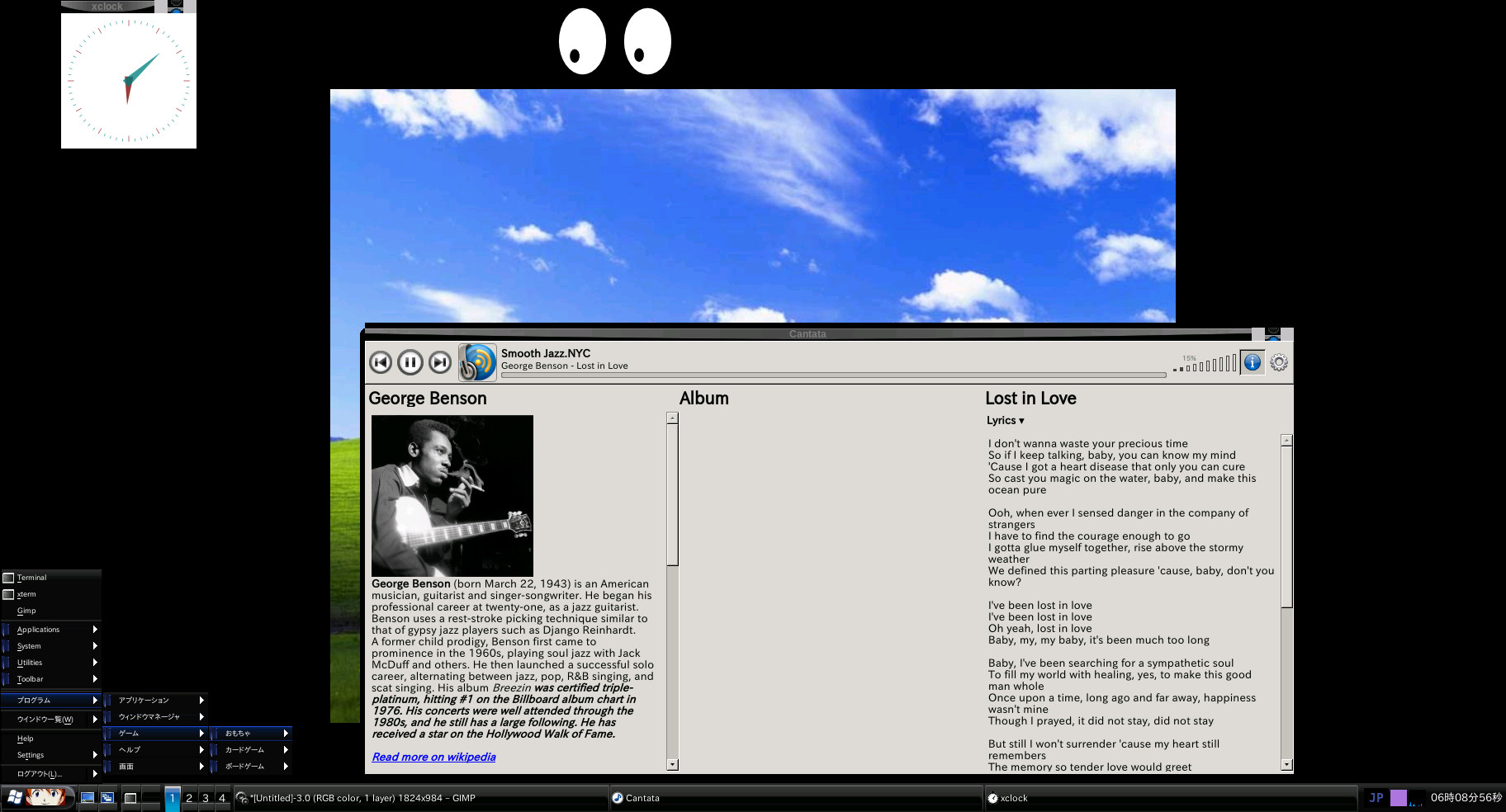

ICEWM under Fidora Remix 21 on 23rd May 2015 ,,more light weight window manager for Linux



ICEWM Raspberry Pi2 2015 May

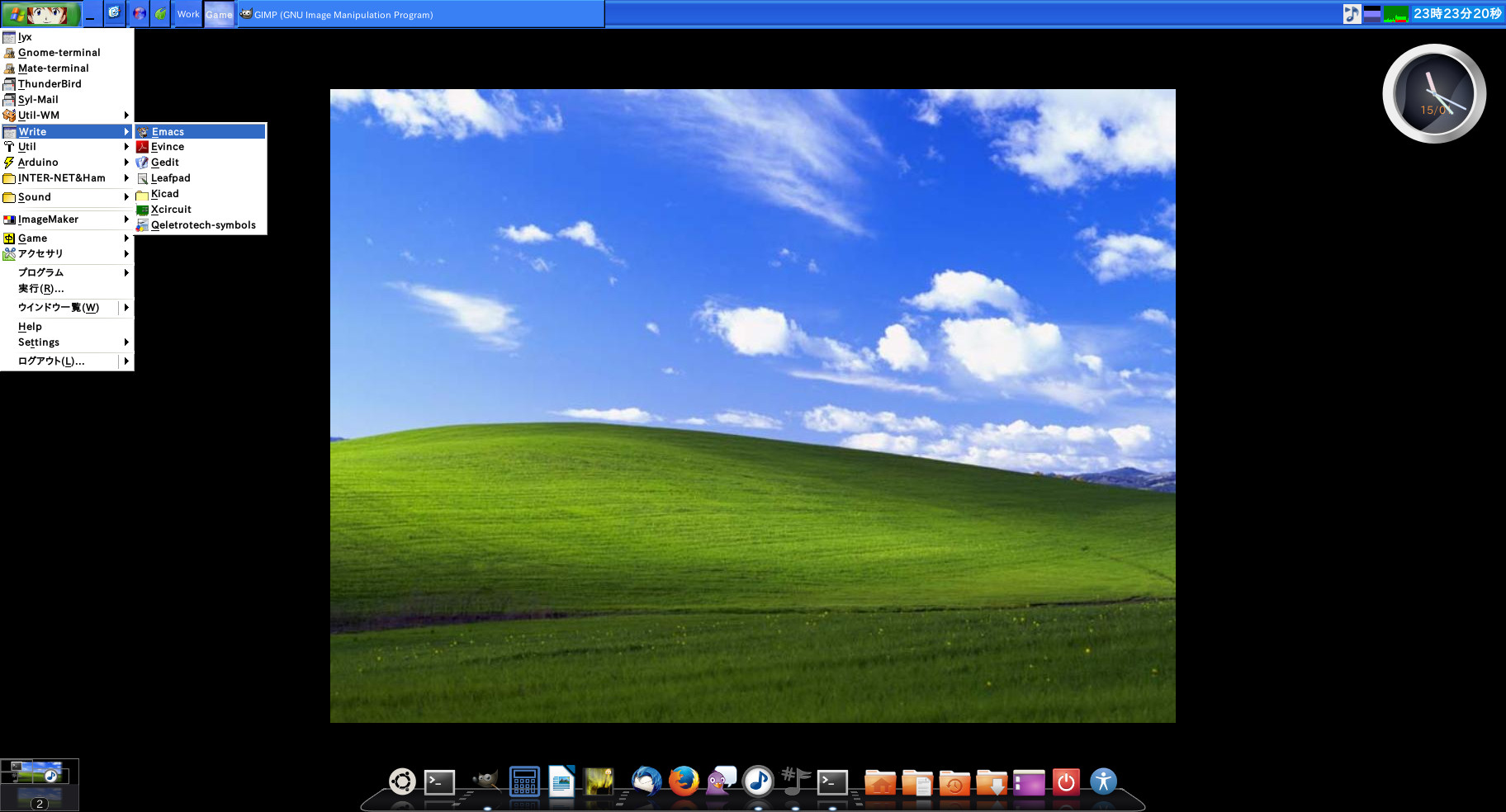

ICEWM Fidora 21 Remix Raspberry Pi2 Armv7 +Cairo-dock much Better than Windows 10





Small Chines DDC PCB using USB I2S DAC DIY


USB DAC I2S 2015 Mar 29

Chinese small PCB DDC using USB I2S DAC



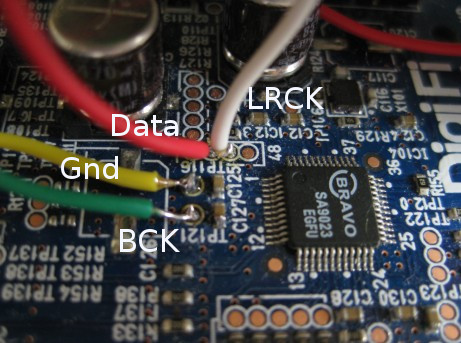

DigiFi15




RS components

Raspberry Pi 2 is can buy at RS compnents in your country



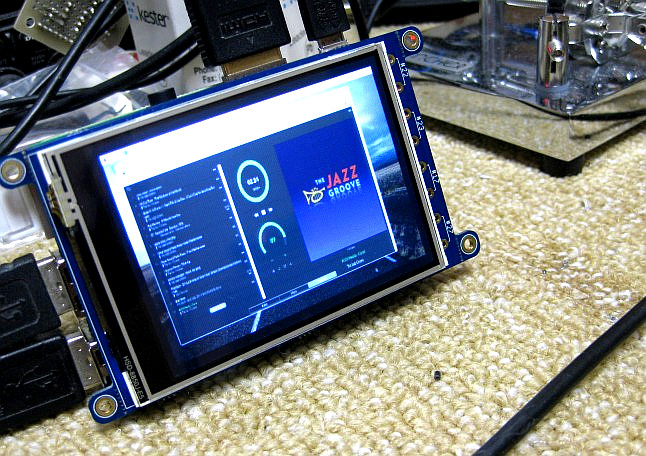

Sound from Rasspberry Pi B+ PCM5102a from The Jazz Groove.com




Plays Jazz by Raspberry Pi B+ I2S PCM5102A DAC on 1st June 2015 from USB 1 Tera HDD




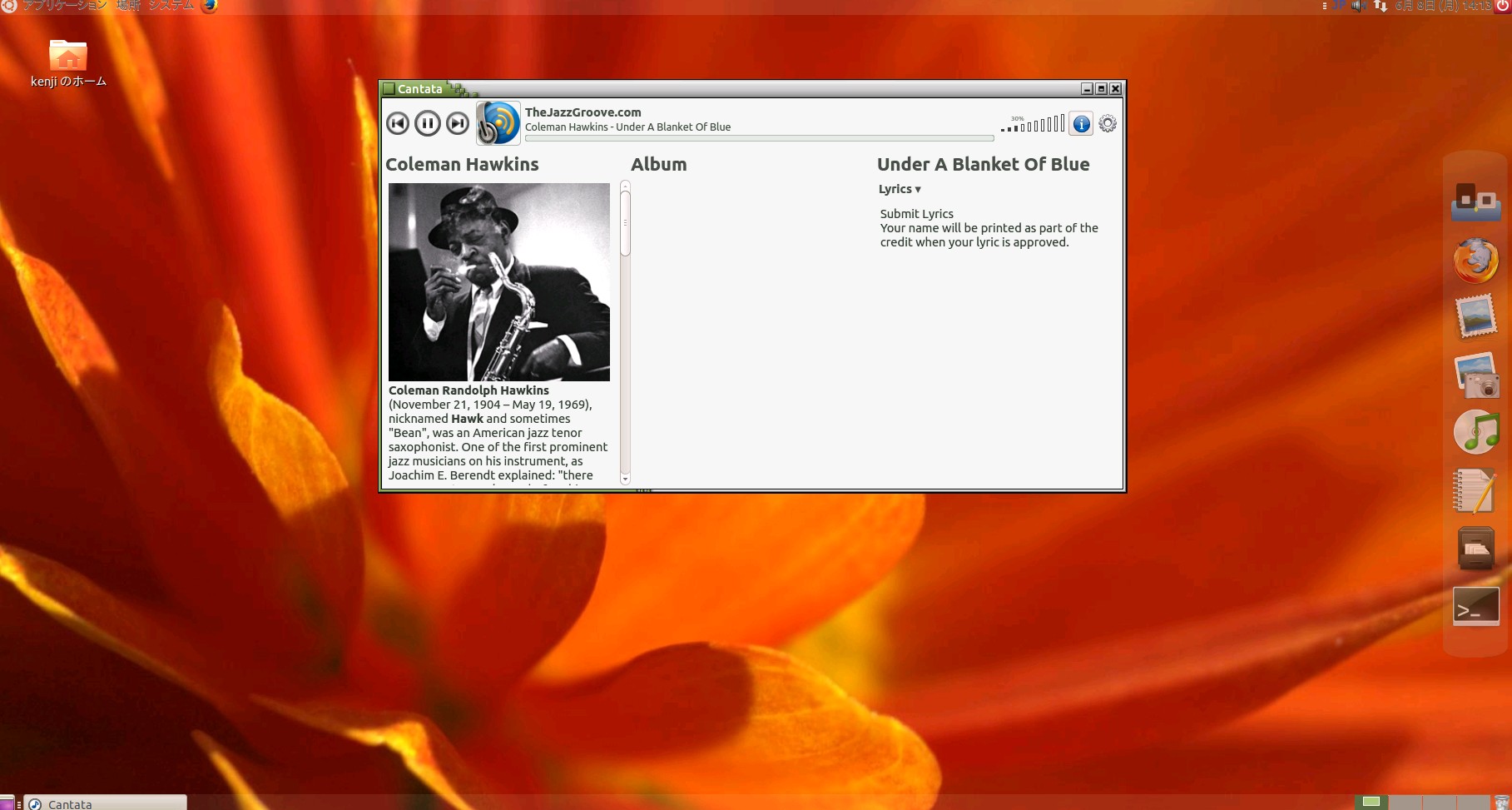

Ubuntu-Mate for RP2

Ubuntu Mate Version for RP2 Expand micro USB to 32 G Byte,, 7th June 2015


N01 : in general using 16 G, 32 G byte micro SD memory but always need memory .original partation is very small. fill up soon his micro SD memory.
so expand up to 29 G byte. actually moved /usr and /var are moved into other sector of memory. not difficult and this part can use as NAS too.

No2 :Formal way :
choose to root ,by some terminal from comand line su or sudo then
#fdisk /dev/mmcblk0
then delete 2nd part of line like
Command (m for help): p

Device Boot Start End Blocks Id System
/dev/mmcblk0p1 8192 122879 57344 c W95 FAT32 (LBA)
/dev/mmcblk0p2 122880 3788799 1832960 83 Linux
delete red line then n for make one expand sector.

Command (m for help):
Command (m for help): d
Partition number (1-4): 2

Command (m for help): n
Partition type:
p primary (1 primary, 0 extended, 3 free)
e extended
Select (default p): p
Partition number (1-4, default 2):
Using default value 2
First sector (2048-15351807, default 2048): 122880
Last sector, +sectors or +size{K,M,G} (122880-15351807, default 15351807):
Using default value 15351807
------------------------------------------------
each value is depend on case of memory.this case is 8 gByte of micro USB using.

Command (m for help): w
The partition table has been altered!
--------------------------------------------------------------------
Then ,,# reboot and check how to got partation .
very important comand is
#resize2fs /dev/mmcblk0p2
above comand meke realize expand Partition of memory on maicro SD.
if choose final of sector ,,will be use unitl end of memory.if do you have 32 G byte can be use until end of memory like 29G byte.
please try it's.good for you small your PC Raspberry Pi2 with Linux.if does not get expand partition will you try to reboot then make
#resize2fs /dev/mmcblk0p2 again then reboot , check again with $ df -h can to see partition. this way to expand partition use very carefully to do.

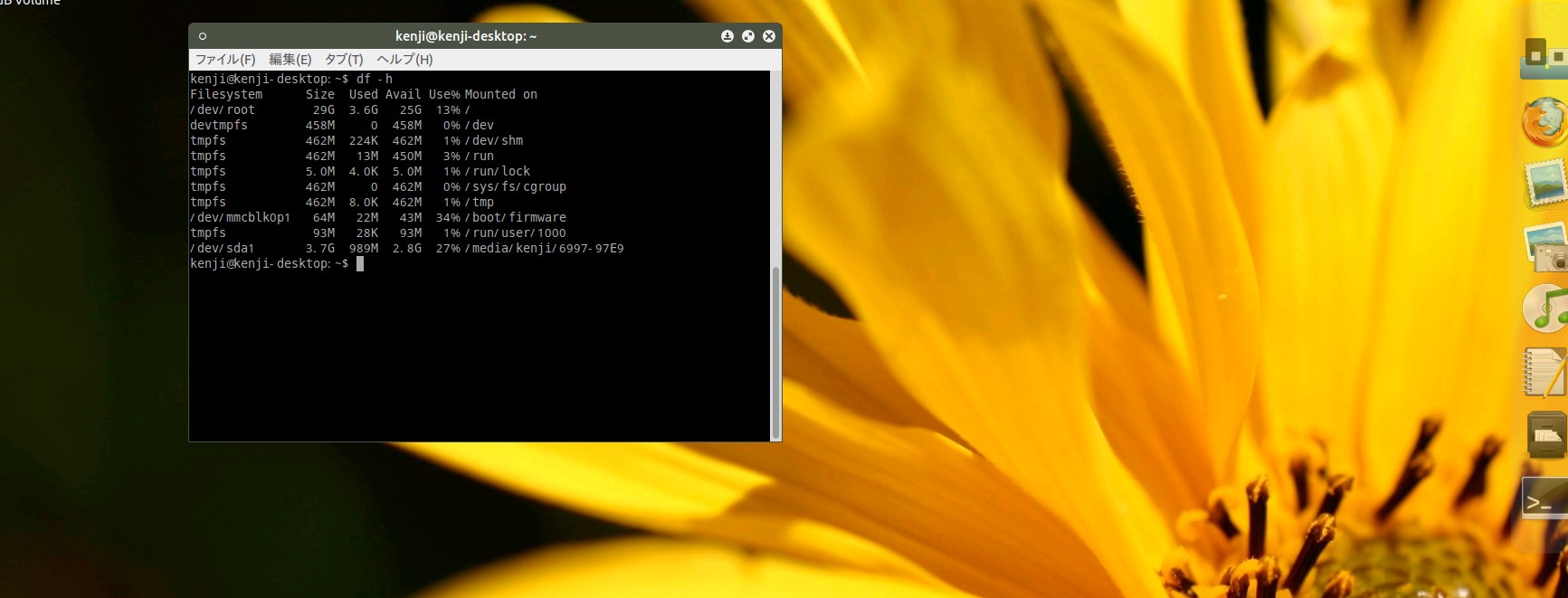

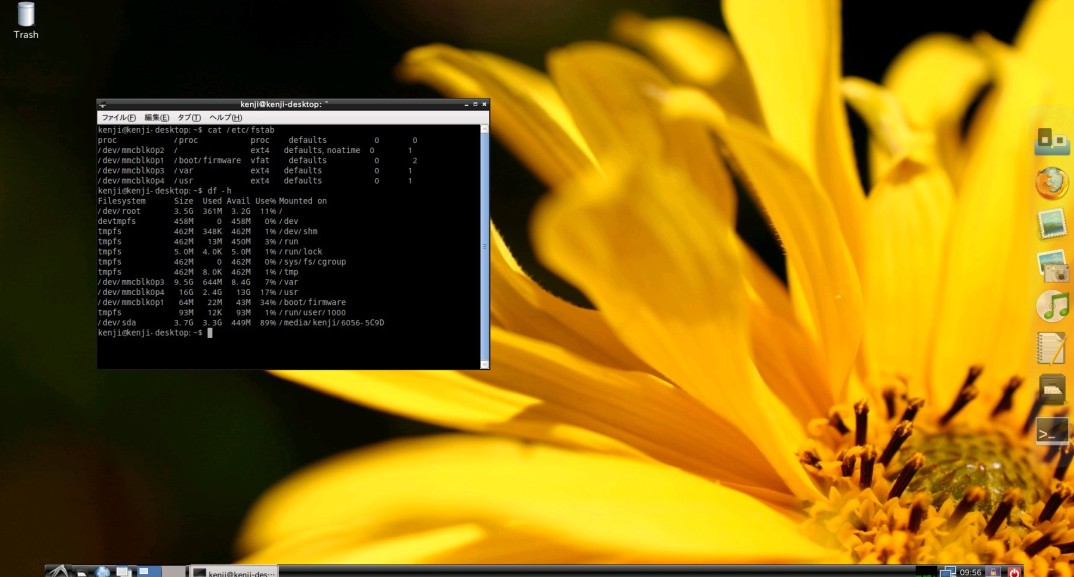

DF-H

indicated by df -h and you can see already up to 29Gbye


Easy Way to Expand ReSize Memory


If are you using Fedora Core or Ubunti family(Debian),please try to install "gparted"
$ sudo apt-get install gparted or $ sudo dnf install gparted
then su or sudo
start gparted
you can see "resize" on /dev/mmcblk0p4
moves resize to end of memory on which means if are you using 32 G Micro SD, Linux OS using around 4 G Byte so still you have
28 G byte on Micro SD.end of memory is /dev/mmcblk0p4 as a "/ " so this partation will be move to final of sector.untill 28 G byte.
then
#resize2fs /dev/mmcblk0p4
# reboot
you can get more memory on Raspberry Pi Linux OS.this is one case of Fedora Core 25 on Raspberry Pi.any way easy to expand memory.

Gparted

Gparted ,easy to expand memory of Raspberry Pi Linux OS this is for Fedora Core 22 Linux



Now you canuse space of memory as NAS mount volumio menu which is libraly.
first must be edit /etc/samba/smb.conf show next

[Share]

comment = Share
path = /var/samba/share
read only = no
public = yes
follow symlinks = yes
wide links = yes

this parts are use as samba directly.after mounted as NAS and IP is same as Volumio's IP.
then you can use around 25 Gbyte as internal memory for keep Music.Volumio can see as NAS.it's enough Music server.
can keep around 500 music of flac.even a couple of DSD Native archive.how about ? I think good idea.!!!

NAS

NAS inside of Volumio

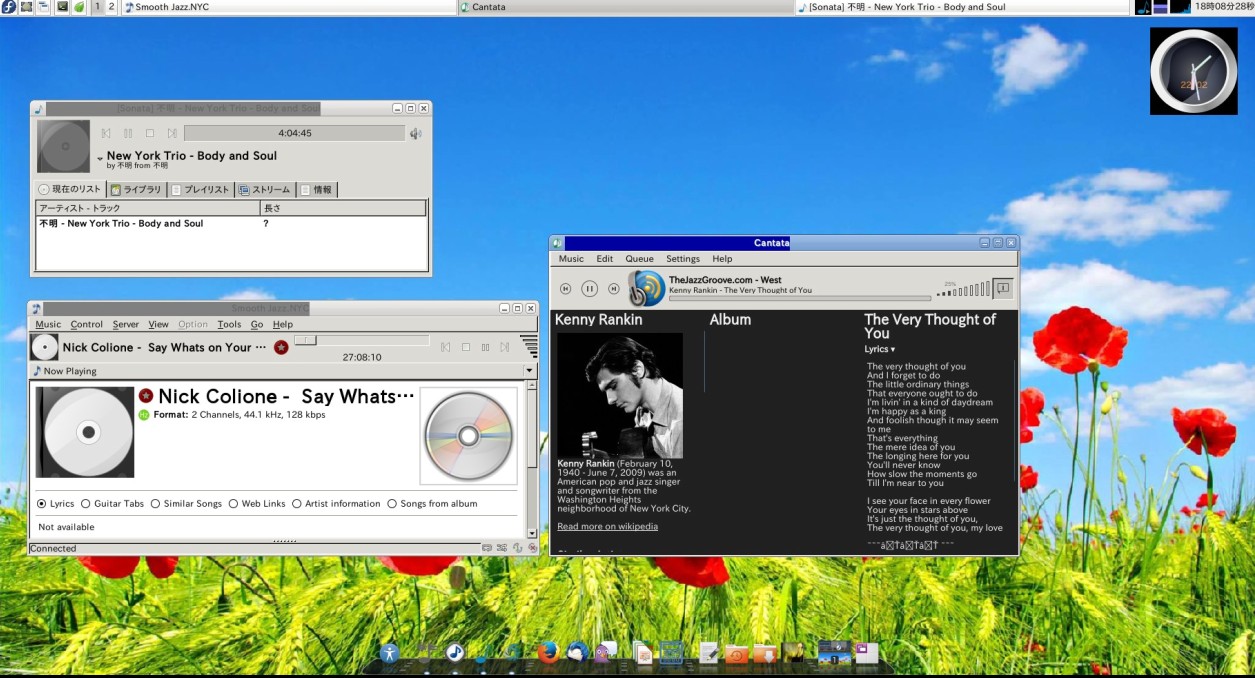

ICEWM Rasp Pi2 under Mate

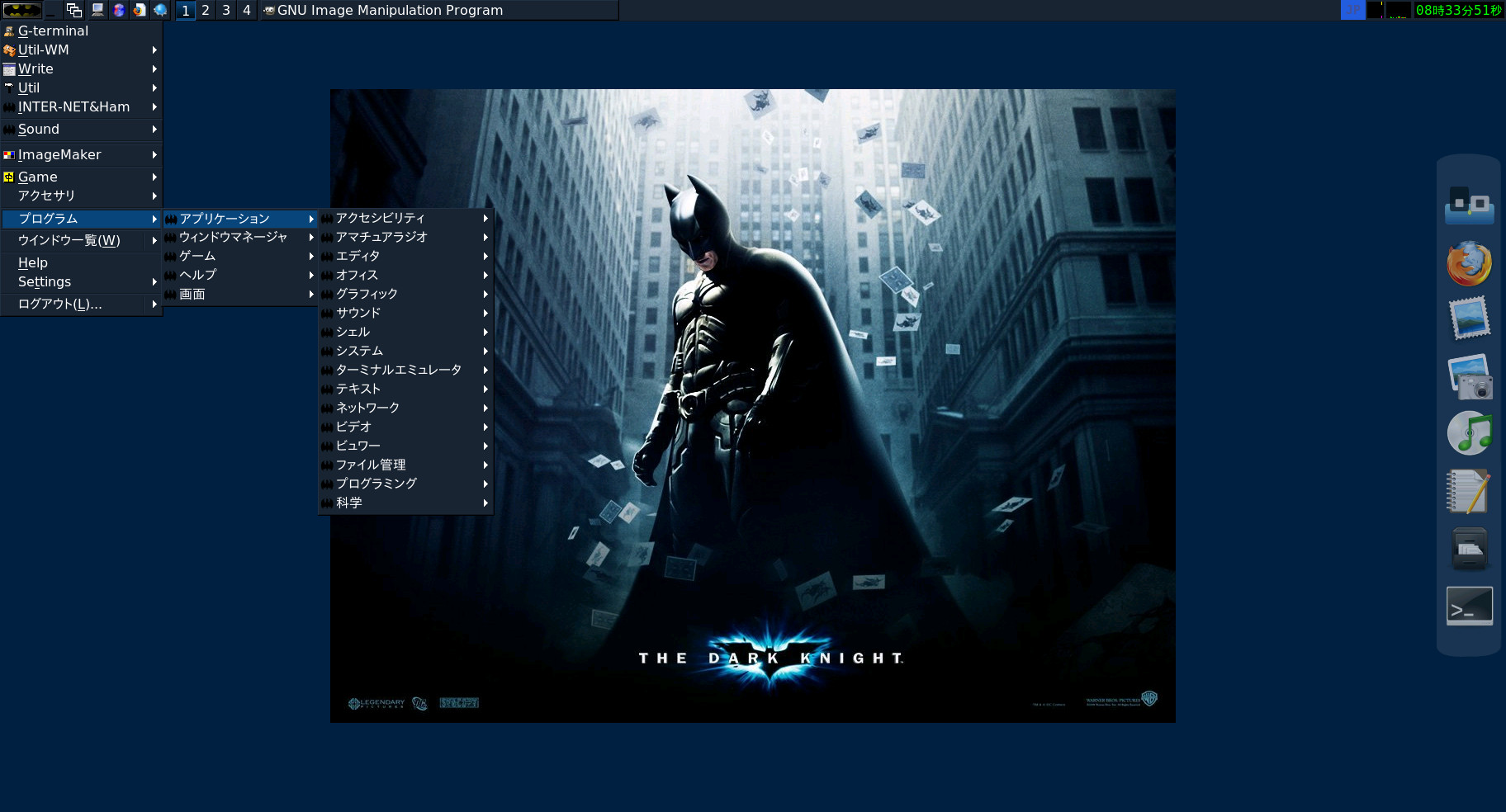

Ubutu Mate Ver ICEWM Batman theme



MATE UBUNTU RPI2

Ubuntu Mate Raspberry Pi 2



How to use flash movie in Ubuntu Mate with Raspberry Pi 2


gnash can use instead of flash plugin with firefox when if using Raspberry Pi 2 with Ubuntu Mate.
just type
$ sudo apt-get install gnash
$ sudo apt-get install browser-plugin-gnash

then you can use flash movie on firefox.even you can install adobe flash.so .

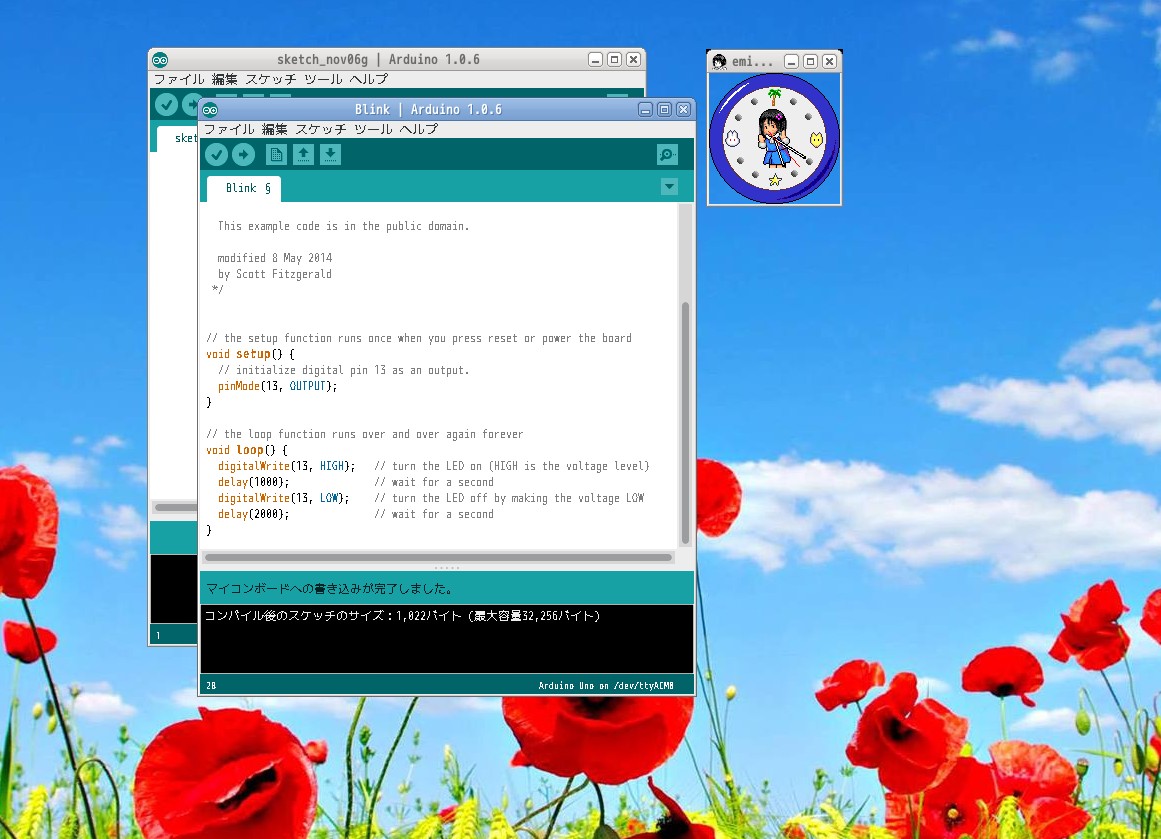

Marutu Arduino uno clone

Small PC Arduino Testing



Arduino Uno

What can I do ? 2016,11st Nov



oscilo scope

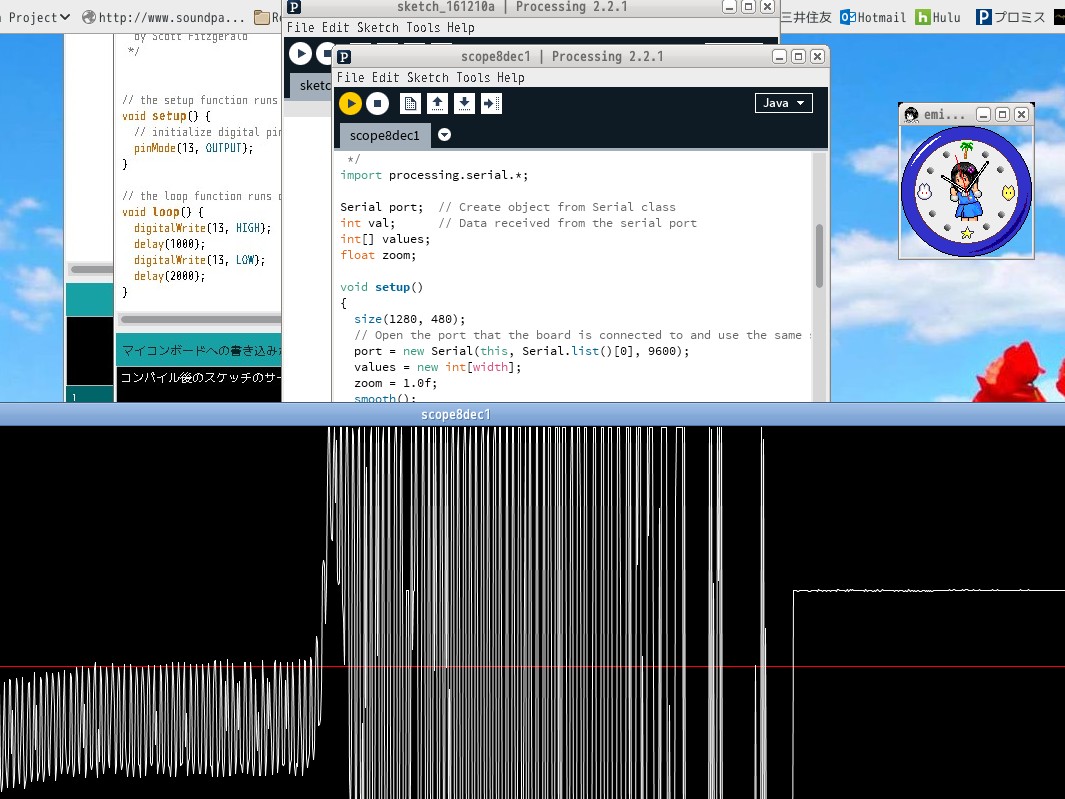

でProcessing on Linux Osciloscope Poor Man Oscilo

Arduino osilo

Oscilo Scope by Arduino

Lxardoscope on Linux

Lxardoscope Linux by Arduino

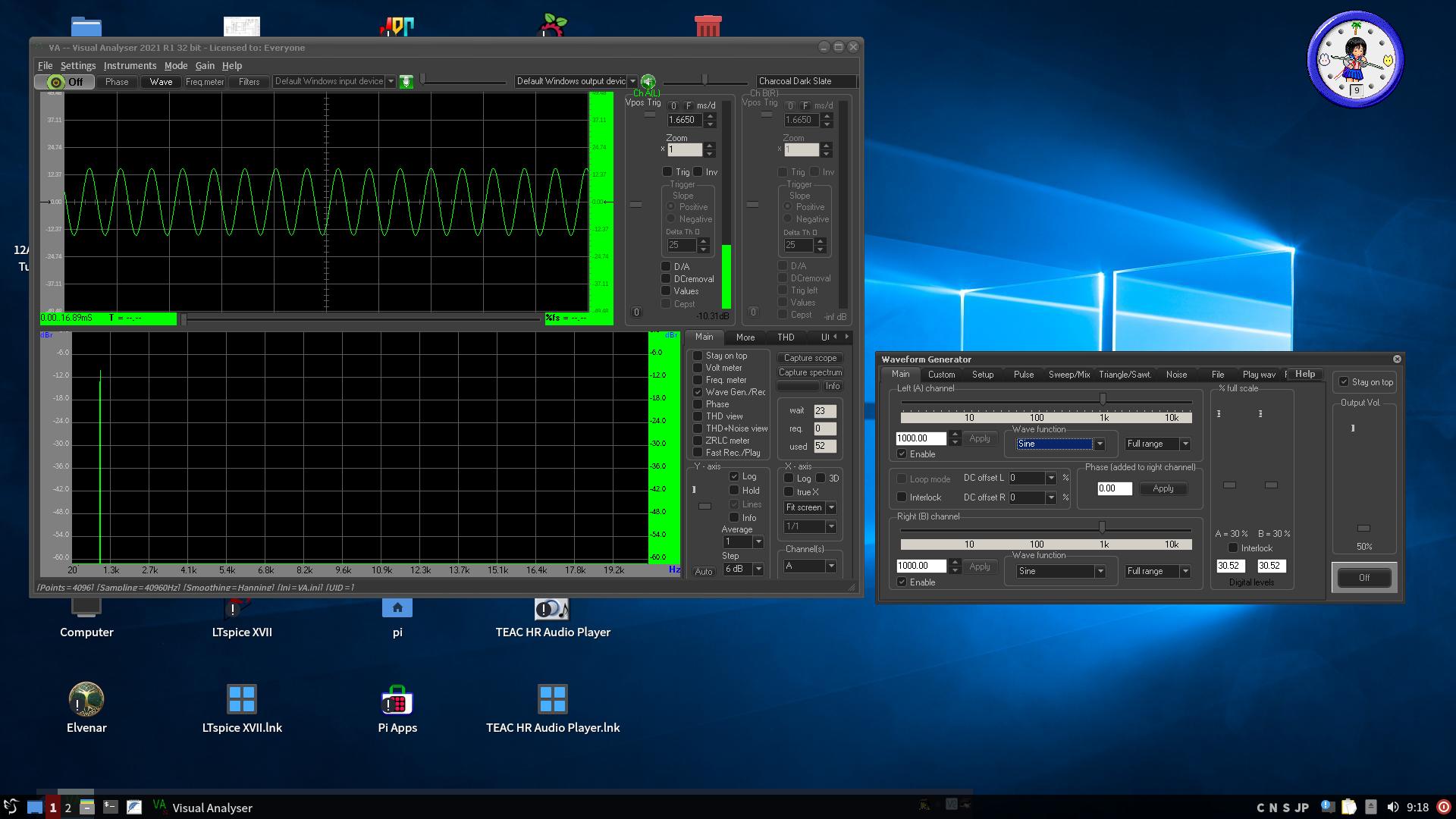

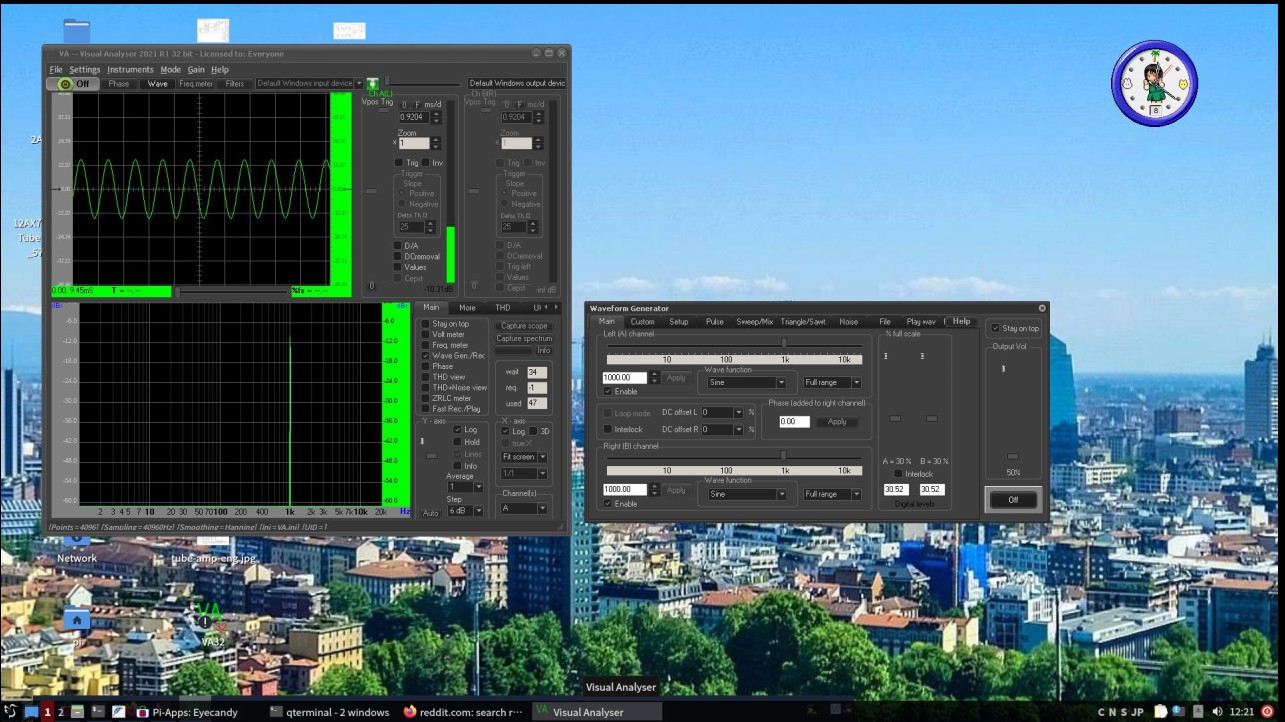

Visual Analyser 1.8

But this one is Best for Windows.
--Visual Analyser 8.1 down load--
if would like to install and if do you have windows PC please try to install good for workshop and hobby.


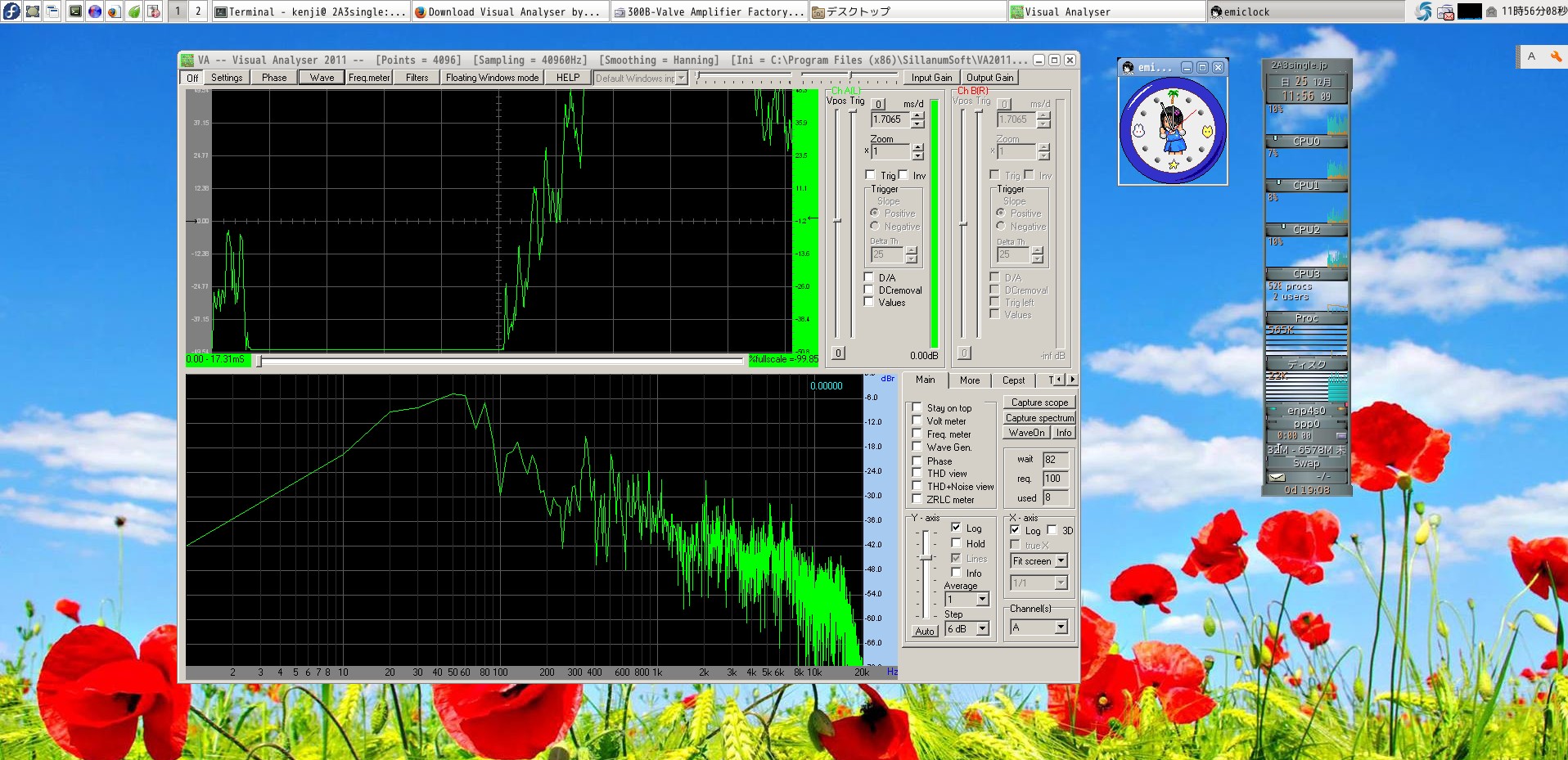

VA  wine

Visual Analyser under Wine Linux Fedora Core 22 x86 64bit



Many my friends using and recommend to use and easy to get sound.HifiBerry
Schematic diagram of Hifiberry pro

my friend said get good sound from Hifiberry Pro,so recommend to use ,,,,actually this DAC use as I2S and I2C control.2 xtals for master clock




and ,,,You can get sound of DSD by kit with Raspberry PiDIYINHK DAC KIT

They has many kit's for Digital Audio


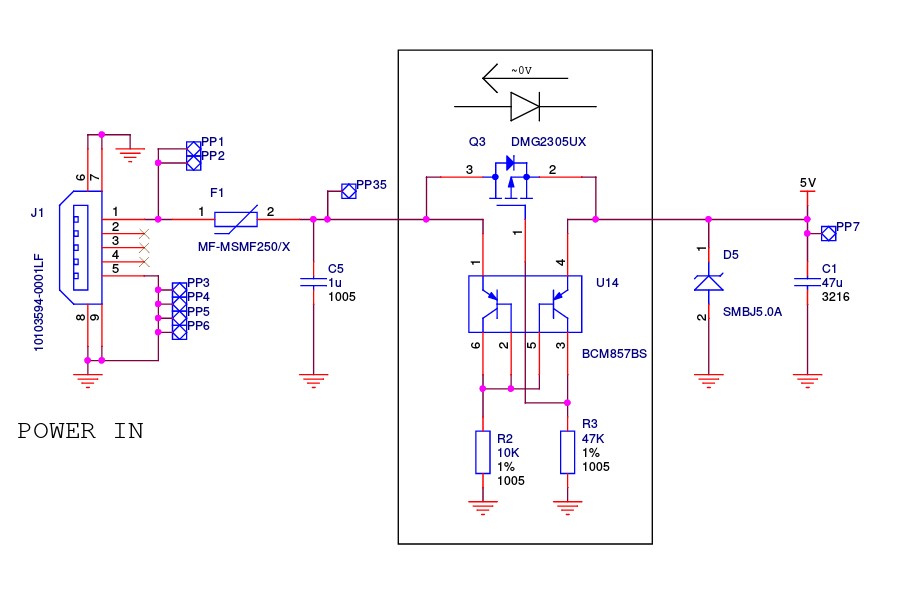

raspberryPRaspberry Scematic diagram
Circuit diagram all shematic diaram is here/Raspberry Pi 1-3

Circuit diagram of Raspberry Pi family---Schematic Diagram---

Manual for VolumioCourtesy of Mr Michelangelo Guarise on 11st Oct 2016

Switch Science Japan/Takajin DACSwitch Science Japan

Idea of DAC for Raspberry PiDIY Site from PAVOUK

DAC DIY SiteWWW.DDDAC.COM

Raspberry Pi DAC A to Z TJAEKL.COM

isi's hobby site (Only Japanese)

My Site Access in a day

Easy Audio Kit Japan(only Japanese)

High Soulution Sound Samplefor Down Load from 2L

Free DSD sample down load from dsdmaster.blogspot.jp

Make---Make

Other side of Arm PC....call it's APC Paper

Hifi Statements Net Free Down Load DSF

6DJ8 SRPP DAC DIY

Sound converter Linux and Can do re-sampling 32bit

Internet Jazz links

Pi π Music Box

MOPDIY

Raspberrry Pi R2 Scematic Diagram

from Eurpa www.listenlive get pls file

from USA Shout Cast to get pls file

Internet Radio.com to get pls filesト

181 FM

UK Radio Station WebCast

Raspberry Pi Zero and other tip from HongKong

if did you find xxx.pls then copy and drug into some directly of rasbberry pi on Micro SD memory or same folder of
Ramplay .you can add special web-radio and then can be use as web radio.


3 of List of WEB Radio Stations for High bit rate


High End Audio Internet List

More than 1000 WEBRadio can you add in your Volumio.from radionomy.com and AbaucasFMBest Good Site

RedMP3Free Music MP3 down load / any kind of Music enjoy!!!

sometimes change domain please watch on net


Sound quality is very good and very clear.I recommend to add your webradio of Volumio other Music server(Raspberry Pi family)



And to get more High Bit Rate Stations data for Volumio.


HibitRate Stations fromradiobit.50webs.Com

Get Good Sound from BSOBSO Boston Sympjony Orchestra

# wget http://www.single-ended.com/rasp/archive/WGBH-BSO.tar.gz
can get sound from Volumio ,only Classic 24bit 48Khz sound from them

Change position of GPIO webiopi how to install WEBIOPI install by command line

Free Cine and TV

Free Cine and TV Dramas if do you have good line for Internet



My System : 300B Single Ended Amplifier and 2A3 Single Ended Amplifier. valve Pre RIAA for SL1200 ,CD Player was broken last year(2014.Dic)
Speaker is 91dB Vertical Twin,DAC is 6DJ8 Valve FN1242A DAC connected SPDIF with USB Interface 24bit and Raspberry pi B+ PCM5102a I2S DAC.
and Pioneer DAT D-06.Main PC is Fedora Core 18 Linux(Vaio VPCJ2)for work station. 2 of Linux file server using old PC.
High Res source means ,,you have to use Valve Single Ended Amplifier because almost good semiconductor amplifier's frequnecy response are
10Hz to 20Khz (nominal 30Khz ) how can you listen music high reso music from SS Amplifier.valve single ended amplifier made reproduce until 100Khz.
or more high frequency.how about ?


my amp 2015

my amplifier's for Music



Raspberry Pi DAC Amplifier

USB DAC input(71A Single Ended Amplifier),96Khz 24Bit DAC inside




Main PC

My Main PC Fedora Core 18 Linux under ICEWM with Vaio Intel inside on July 2015


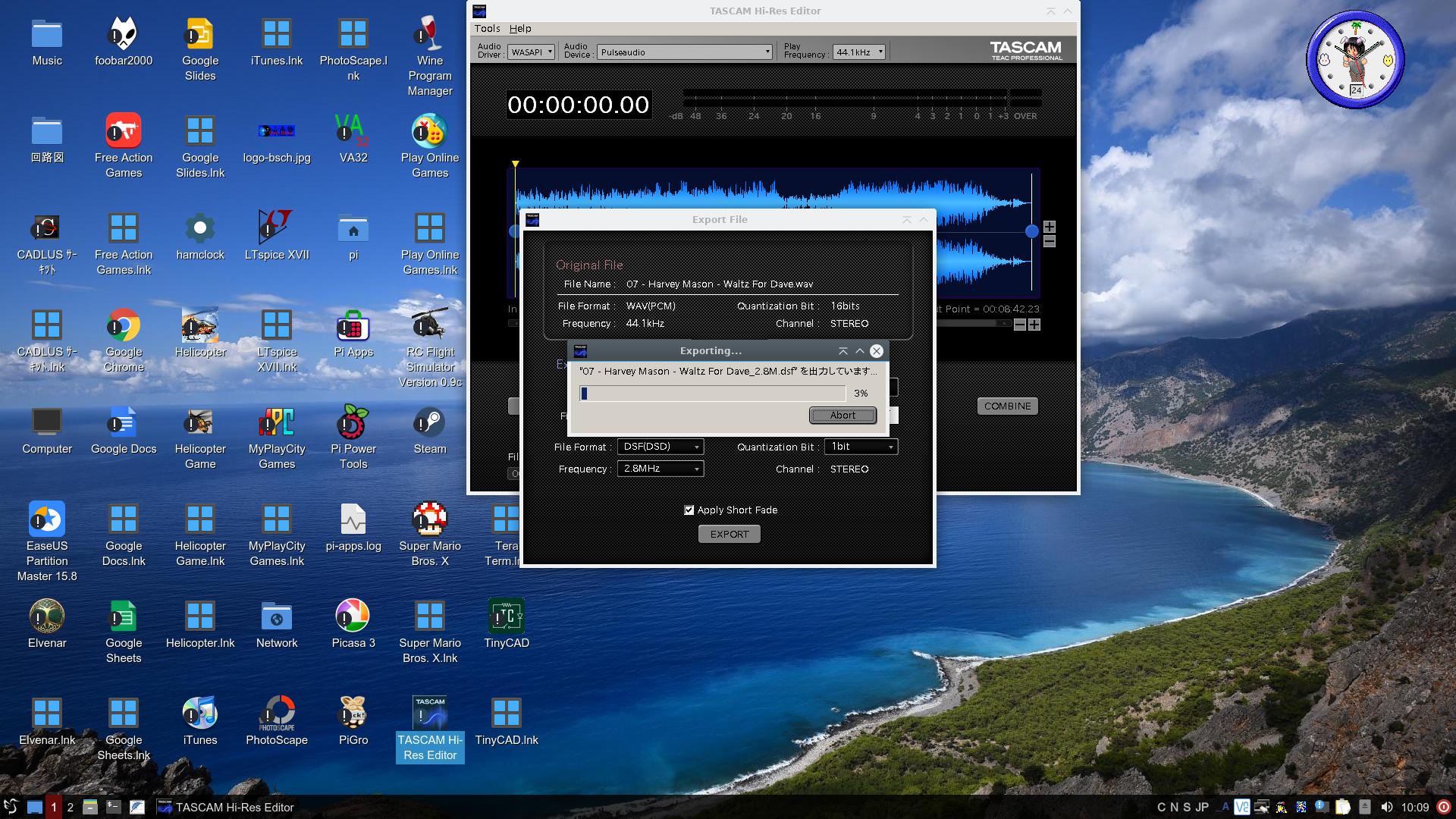

DSD(DSF) from PCM  :TASCAM Free Application using for get DSD file


Using TASCAM free application very nice

TASCAM free application using for convert sound wav to DSF this one using under wine Linux


TASCAM Free Sound Editorfor PCM to DSD ,,,,
and easy to install your PC even using Linux ,can be install by wine, nothing problem. very good one for you.
this application contain wasapi so need addtional farm ware. please try to seek asio ,can be use asio4all for ASIO.
for convert PCM to DSF.any way you can listening music PCM sound directly from DSD source with DoO.
one thing you can play until 2.8 Mhz DSF from CD Wav -->> Convert -->> DSF into Raspberry PiB+ then I2S DAC (PCM5102A).
for first step you have try to use ripping which using some kind of ripper and save as WAV file then convert DSF file.
if do you have Native DSD DAC much better.

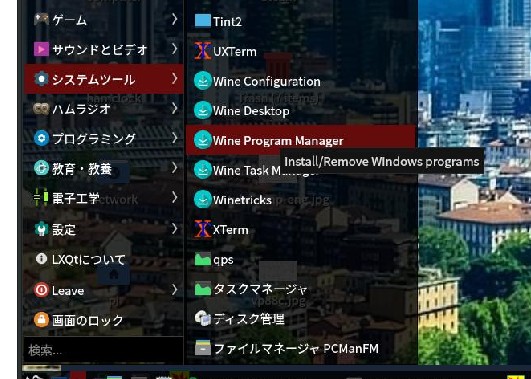

Wine + x86 64bit Linux play Windows

MS Applications on Native x86 64bit FC22 Linux (Sony Vaio)

If you have Intel PC ,you can install Linux and same way you can use Windows Applications on Linux under Wine Linux.if Raspberry Pi 2 can do x86 Linux
easy to install Wine and play windows applications.I am using Linux more than 10 years, nothing problem with wine.if you can use wine by Raspberry Pi 2
off course you can use Windows XP's applications.only x86 Linux can do.


Note: PCM5102A I2S DAC does not get 24bit automatically.16bit 384Khz PCM either indicated DSD or 24bit on Volumio but actually 16bit high samplinng frequency sound.
Still are you ,would like to use Raspberry Pi Music Server I2S .please use ES9018 family DAC and ES9023 DAC can do DSD >> DoP >>PCM ,24bit high sampling frequency
sound.with I2S.

root@volumio2:~# cat /proc/asound/card0/pcm0p/sub0/hw_params
access: RW_INTERLEAVED
format: S16_LE
subformat: STD
channels: 2
rate: 44100 (44100/1)
period_size: 4410
buffer_size: 22050
24,32bit sound with I2S does not play as correct format by Raspberry Pi I2S DAC.

What do you think ? Raspberry Pi I2S DAC and Raspberry Pi is kind of Toy ?
please seesee problem
so Toy is Toy ?still Toy. Dop Playback from USB memory has problem ,getting noise etc but same source from USB HDD can play with Dop play.
if would like to play Music please try to use USB HDD memory.HDD means Hard Disc Drive,SATA with USB adapter.



any way Sound is good

EH 300B Single Ended Amplifier SPL 91dB/m/w (using fladance mp player)sound from Raspberry Pi B+ I2S

32bit 96Khz up sampling by sound-converter Linux PCM WAV file


Song by Linda Ronstadt



Cantata indicated

shown by Cantata on Fedora Core Linux 22 x86 Vaio



Testing New 300B Amplifier on 2016 May 1st


Very modern sounding from Raspberry Pi B+ I2S DAC



Testing.. 300B Amplifier Apr 2016

Testing new 300B Single Ended Amplifier on Apr 2016



This is not Raspberry Pi B+ ,,Main PC is Vaio with Fedora Core 22

ICEWM + Emiclock Fedora Core 22 2015

Fedora Core 22 and emiclock,Wbar with Sony Vaio 2015 ,I'm using for ripping sound from CD



Linn Jazz

Linn Jazz watch by Cantata FC22 Linux



Cantata can do anything from terminal

Cantata Can do control volumio server directly, even can play any Internet Radio



HeadPhone Amplifier with Raspberry Pi

head phone amplifier 2016 1st May

Just show you schematic diagram for Head phone Amplifier on 1st May 2016MUSES8832.pdf

As you know,Raspberry Pi +B family has -3V negative voltages. so you can play with OP amp IC's .like MUSES8832 .this kind of OP IC
works from 1.75 V to 14V power supply.not too much enough but can be use negative voltages from Raspberry Pi.how about ? I will try to
test as soon as possible....may be within one month ......


components

just all of component are above,and add few CR too



head phone amp

show small headphone amp for Raspberry Pi I2S

This time use internal power supply of +3.2V and -3.2V from Raspberry Pi B+ at PCM5102A or PCM51XX family DAC. .
if possible to get +7V and -7V power supply. much better to get good sound.
but if can you get LTC1144C switched capacitor IC can get +5V and -5V power supply from internal Raspberry Pi B+ from USB +5V.
if would like to use Negative Voltage at pin 5 of PCM5102A ,please use BP (bipolar capacitor nichicon BP etc)but often use
2 capacitor connected series one of up side down like figure.2 of 100uF 16V = 50uF 32V instead of one BP. why ?
when out of lock music .pin5 will be get 3.2V then changes to -3.2V when came signal from server. so need BP capacitor.
make sure ..please BP capacitor for safe.
finally use as buffer for Headphone amplifier.but effect is very much great.circuit is very simple and getting good sound from hiend headphone.
Evenbudget headphone singing very nice from this part.this buffer for high impedance to low for Headphone impedance.
and you can use any OP IC.if does not have same IC,you can use any IC like 4580 etc but no connected negative power supply just connected ground pin 4
OP IC.if can you get same audio buffer MUSES8832 can connected with Negative voltages.

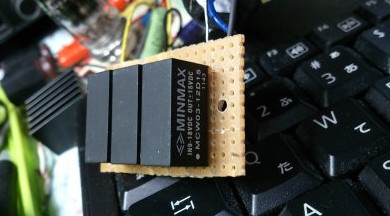

DC/DC converter

If would like to get more dinamic range must be use DC/DC converter like above MCW03-12D15



Raspberry Pi B+ HeadPhone Amp

This is up date circuit for Raspberry Pi Headphone Amplifier on 10th June 2016


It's enough to use as a Music Server RPi B+ and PCM5102A I2S DIY DAC and DSD,DSF by DoP and any PCM sound
If would like to use DSF file must be get data from HDD(SATA) from USB PORT.to get very much fun, Can play anything.

And Extarnal USB--SPDIF--Home Made DAC

DAC DIY

My DAC on Nov 2009 Using FN1242A 24bit 198 Khz DAC

6DJ8 /FN1242A DAC DIY

I am using external DAC with the other Raspberry Pi connected USB/SPDIF converter(made in china)to DAC show above photo.
this DAC is using FN1242A DAC 24bit 198Khz fuluency DAC but DAC Chip is dicontinous model so can not get any more now.
but you can use any kind of DAC chip like PCM1794 ,etc.build up no difficults and easy to get good sound.
first thing is find good and cheap "USB >> SPDIF converter" SEC is 24bit 32bit at least 198 Khz Sampling Frequency.



Cantata MPD

Ripping(recoding) sound stream by command line on terminal



After almost one year,I am using Volumio 1.55 ,very enjoy Music from Volumio 1.55, but I did try to update and upgrade by ssh.
I thought,memory has 56% of total memory of root.as
$ df -k
0 % memory so nothing to do.what's happen ,
I have to install Volumio 1.55 again. please do not make easy to thinking " update or upgrade " after one year use.
Volumio 1.55 is best than Volumio 2 .because Volumio 2 does not play DSF DSD file. still not on 16th Oct 2016.
and Client MPD does not have volumu control.so from Cliant MPD can not control sound.how about ?? :)Volumio 2 is unstable.
WEBRADIO is not listed in Volumio 2. get from http://api.dirble.com/ ~ so if does not connected Internet can not get any Radio Station.
this is not kind of Linux Debian.is small version of Linux. Volumio 2 .have to use Pi3.prpbably.....I have 3 of these RP so can not buy
any more.some day will buy Edison x86 or may be RP 3.some day...

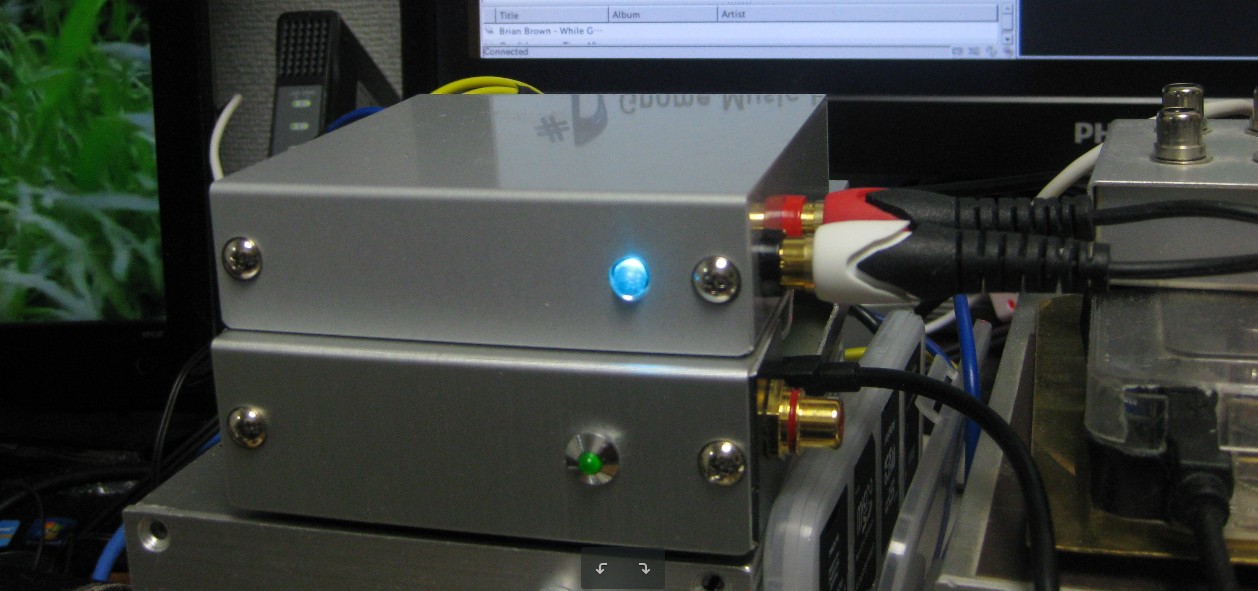

Volumio2  piB+

Play mp3 with Good sound by Volumio2



Raspberry Pi with Linux Light Window Manager: Best one is ICEWM

If are you using Fedora Core, Ubuntu ,Debian Linux any Linux distribution can be use light weight Window Manager and
Most best one is ICEWM as you know.this Window Manager works background of gnome, Mate ,KDE etc but they are very heavy
so difficult work with Arm processor.ICEWM is very light weight.show next images just like Vista ,XP, more than 100 face has.

ICEWM RP2

ICEWM RP2


Archives is here of Themes, so $ wget http://www.single-ended.com/rasp/archive/themes.tar.gz
you can get more than 100 themes of ICEWM ,
cd tmp then
$ wget http://www.single-ended.com/rasp/archive/themes.tar.gz

icewm can get
$ sudo apt-get install icewm
$ sudo apt-get install icewm-devel
when you are using Ubuntu/Debian family OS. and if using Fedora Core family
# dnf install icewm
if you can get ICEWM window manager please try to install ICEWM themes into your home directly.
cd $ tmp
tar xvzf themes.tar.gz -C /home/papagayo/.icewm
papagayo is depend on user directly.if your name is bob may be /home/bob/.icewm
if User Name is pi ,/home/pi/.icewm so on .
then you can get useful "ICEWM" .ICEWM is most light weight Window Manager for Linux.
please try.

ICEWM screeshot more than 200 themes and depend on your skill

easy to edit ~.icewm of home directly
$ cd /usr/share/icewm
/user/share/icewm $ ls
show all files at icewm directly.
indicated all files so all files must be copy into ~.icewm/ at your home directly
then $ ls
$ icons ledclock menu startup theme toolbar keys mailbox preferences taskbar themes winoptions
if start up ICEWM at home directly automatically made .icewm
this is only empty directly so above files copy into .icewm
then you can use many of themes of ICEWM . so show you some of themes exsample next.any one can do ICEWM and very light weight.
if does not have .icewm please make directly
$ mkdir .icewm
almost set up ICEWM is preferences and menu files must edit.using nano, emacs ,gedit etc etc.

708090 theme

Like XP

ICEBOX

icenine

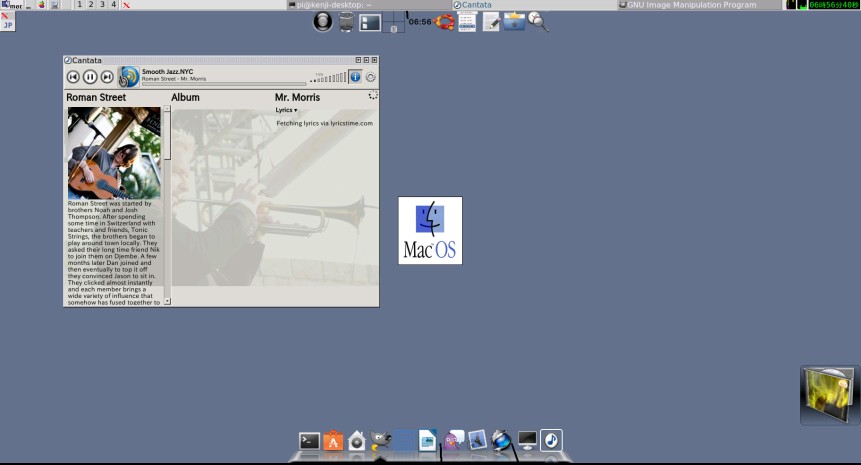

Like MaC OS

icenine

Vista

More than 200 thems on your RP2 by ICEWM


If would like to indicate fancy clock please try to install cairo-dock and cairo-clock . like next Ubuntu can easy to install.

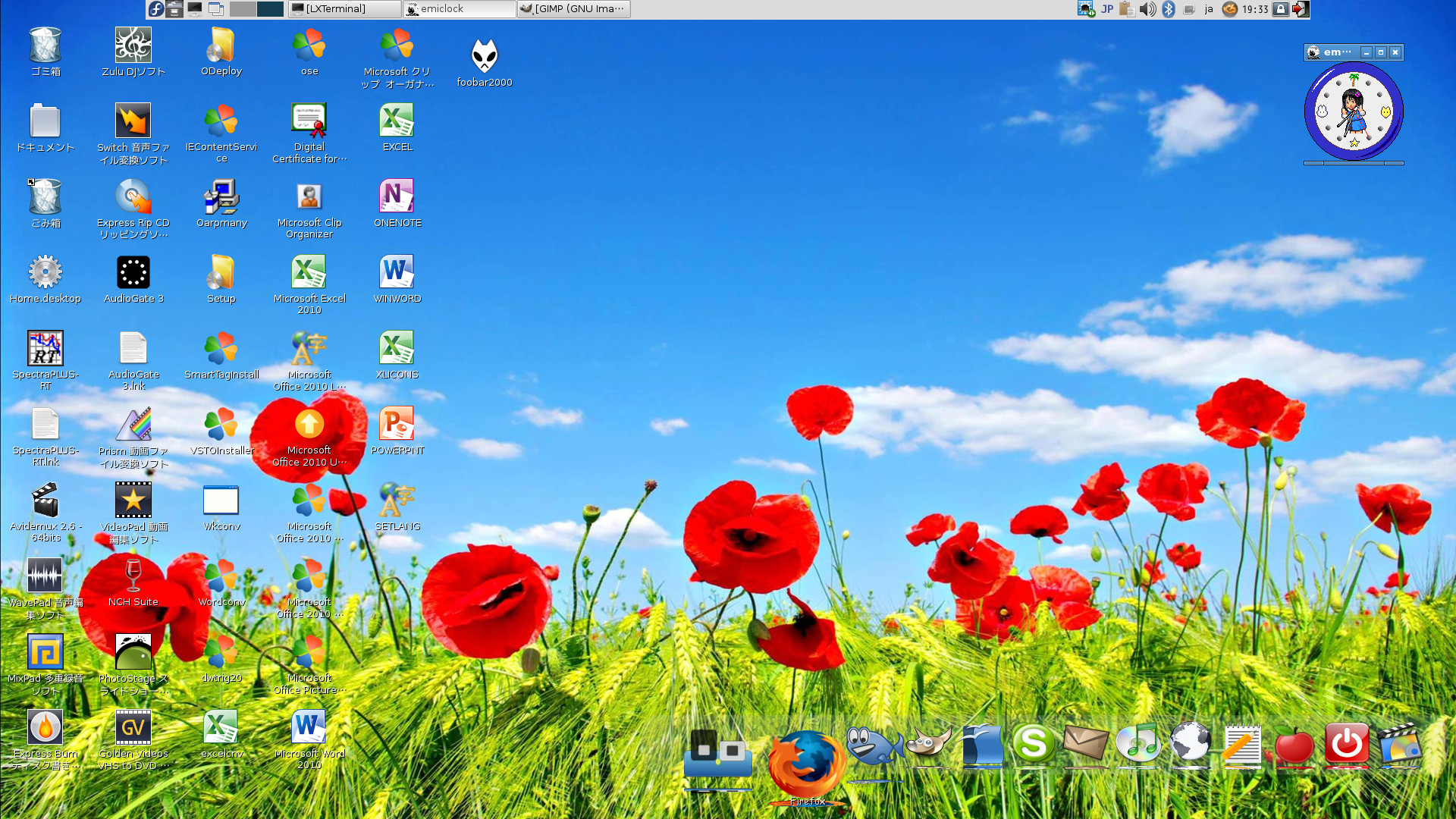

Cairo Clock under Ubuntu RP2

ICEWM themes Naru with Cairo Clock RPi2



MC install Mid Night commander

This is one of viewer for Linux without X terminal.so helpful for move inside of Linux command line. Linux user knows ,very antic viewer.
# apt-get install mc or $ sudo apt-get install mc
if your Linux terminal has good enough of memory. please install emacs.
for edit any file.much better than Vim Vim nano etc.
$ sudo apt-get install emacs or # apt-get install emacs
this time using nano for editor inside of Volumio.show next figure.

Mid Night commander

Mid Night Commander for Volumio 1.55 even Volumio 2 by ssh


One month ago I moved my old apartment to old apartment but IPv6

first day I hooked up my Volumio to Opctic modem IPv6 and Ipv4 both modem.but I could not see share directly from other PC Linux.
I did many thing,, but nothing to make . only one thing Volumio2 can accept Samba Share. Volumio2 is something different than Volumio 1.55
now samba not use "Share" of word.one was problem is do not use "Share".
so idea get smb.conf from my Main Linux work Station.just some copy of them.
root@volumio-org:~# cat /etc/samba/smb.conf
#======================= Global Settings =======================

[global]

# netbios name = Volumio
workgroup = WORKGROUP
server string = Volumio Audio Player
dns proxy = no
log level = 0
syslog = 0

security = user
passdb backend = tdbsam
guest account = root
#map to guest = bad user
#map untrusted to domain = yes
load printers = no
domain master = no
local master = no
preferred master = no


#======================= Share Definitions =======================

directory mask = 0777
create mask = 0777
then from here are same as Volumio. finally I got fine now.

samba conf volumio

right now I can see Share directly at Volumio 1.55:)



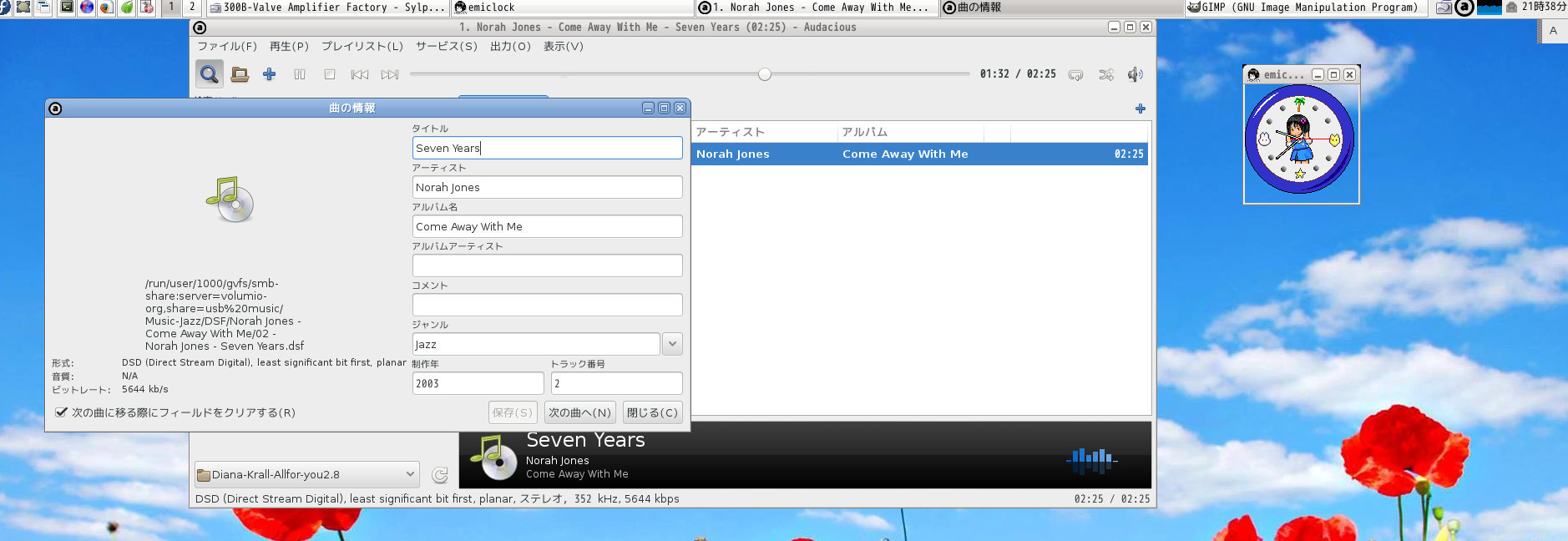

DSD Plays by Audacious FC 22 Linux

Play DSD by Audicious FC 22 Linux x86 64bit Music Server is Volumio 1.55



Play Diana K by Raspberry Pi B+ and Volumio 1.55 ,DAC is I2S PCM5102A and 300B Single Ended Amplifier by Lagarto

DSF 2.8 Mhz into Dop (PCM)



Note :Finally does not work Volumio 2 issue 12.12 version under Raspberry Pi+B.
if would like to interesting on my WEBRADIO please try to install.
$ cd tmp
$ wget http://www.single-ended.com/rasp/archive/Volumio155-webradio.tar.gz
$ sudo tar xvzf Volumio155-webradio.tar.gz -C /var/lib/mpd/music/WEBRADIO
but if are you using Volumio 1.55 more than 3000 WEB Radios Stations listed will be get but.make sure if does not work is not my problem.
just try to down load list then copy to WEBRADO directly.much better. Have a enjoy Raspberry Pi Music Server.
actually working 4 Pi for Music at home.

ICEWM Ubuntu 16.10  2017 Jan

Raspberry Pi 3 with Ubuntu 16.04 ICEWM version 1st Jan 2017..very light WM



Raspberry pi3 Ubuntu 16.04 TLS and ICEWM



ICEWM Cairo on 15th Jan 2017

ICEWM Raspberry Pi 3 Ubuntu Mate 16.04 tls under ICEWM + Cairo



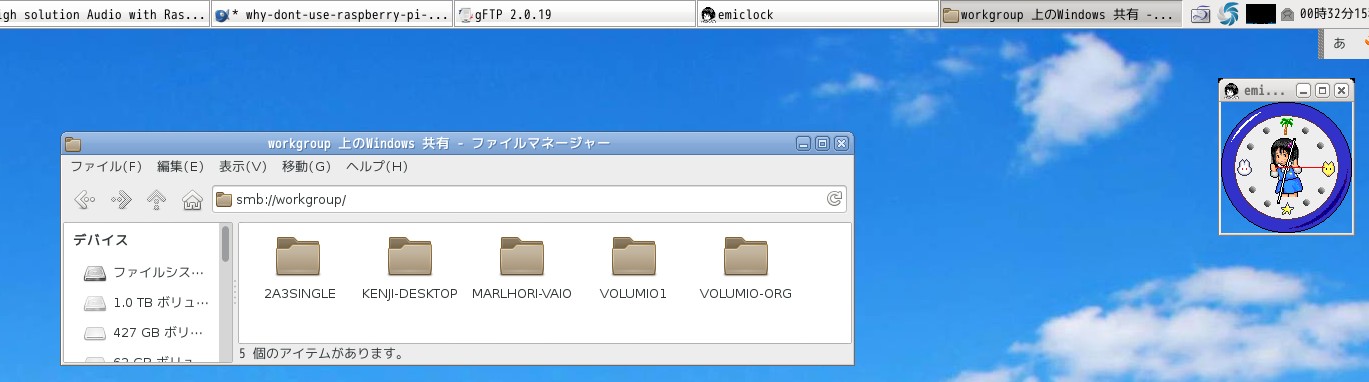

Rasp pi3 with samba ,Ubuntu 16.04

Raspberry Pi3 with Samba /Ubuntu Mate 16.04 on Rapberry Pi3 and FC 22 x86 Linux


If do you have some problem with samba under Ubuntu 16.04
please install $ sudo apt-get install system-config-samba
so easy to configure and quickly edit file because this tool can find error part of smb.conf
then make enter
$system-config-samba
will be get some error. if did you get please make
# touch /etc/libuser.conf then # system-config-samba you can get gui window for samba configue
my smb.confof Raspberry pi 3 with Ubuntu Mate samba.

ICEWM batman Raspberry Pi 3 samba

samba under Raspberry Pi 3 Ubuntu Mate 16.04 with ICEWM Batman themes micro SD is Class10



2017 ,,,doing I2S again 3rd Jan 2017

I2S for Raspberry Pi 2 and B+ on 3rd Jan 2017 making other one for Test


Basic I2S DAC

Just need these component ,may be can buy local shop.but suppose be by KIT much better? or not



I2S DAC

super easy.. DIY I2S DAC-


So ,,, Have to use more small component, does not need big capacitor too, 4 resistance 5 small capacitior enough !!!
good job of Volumio 2 with Raspberry Pi 2 even Pi 3 too.sound is good USB and I2S DAC.and can use Raspberry Pi3 Ununtu Mate 16.04 TLS.
as NAS.

new I2S DAC inside simple

small RC have to use and not necessary to use high grade component.



Using DAC

Volumio2 and Raspberry Pi2 I2S DAC inside on Jan 2017



I2S DAC on 2017

working I2S DAC inside is RASP Pi3 in small aluminum box by Takachi box



please see this site and you can get any kind of good termination of BOX.
Takachi BOX (Takachi Electronic Industrial Co.Ltd)

-Special BOX-
for Electronics.


Still does not work good Volumio2 ,,,, on 22nd Jan 2017,"Raspberry Pi F" why does not use x86 version ? Arm processor has limited.must be use Intel x86.
But do you have old MAC or PC are x86can be use as Raspberry Pi but x86 ,even may be use with Volumio2.
Here to go "PIXEL for PC and Mac"Make me a happy.I guess...
all of intel PC chip has 「PAE and Anti PAE 」so all of old PC does not install this archive please seek by google " PAE and Anti PAE PC"
if your old PC has XP ,may be you can use but windows 98 ,95 does not work depend on architecture of Intel
Until Raspberry Pi3 ,,,still Kind of Toy. must be make Raspberry Pi 4 x 86. No more Arm Processor.
We are waiting x86 Raspberry Pi . May be Raspberry Pi 4 is x86 ????????



inside of  DAC Yaha

DAC Yaha inside




Yaha Digital Jan 2017

16bit DAC with Yaha AMP on 22nd Jan 2017 Yaha Amp by only Japanese



Raspberry Pi 2 + Volumio2 under Testing (doing Play by Yaha DAC)


play with Volumio2 Raspberry pi2

Play Volumio2 + Raspberry Pi 2



Volumio2

Aitendo USB cheap 16bit DAC with Volumio2



volumio2 configure

volumio2 + cheap DAC 16bit by Tube headphone Amplifier



Raspi 3 + Ubuntu 16.02

Sound getting from Raspberry Pi B+ and Pi3(for monitor and Audacious ) ,4 Raspberry pi using



RP3 is 64 bit machine as you know

Raspberry Pi 3 is x11 64 bit Machine as you know ..Open SUSE on 8th Feb 2017



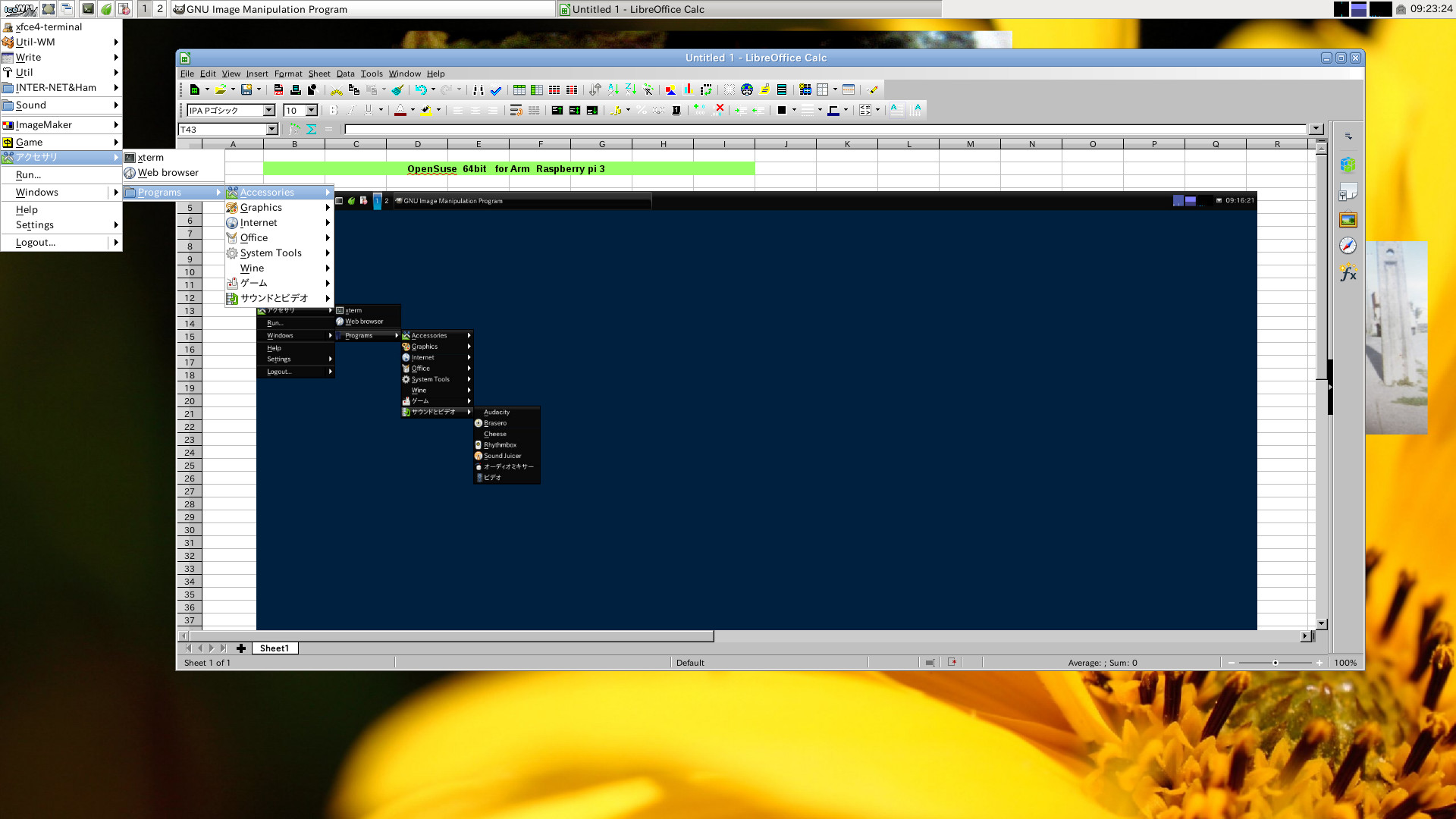

OpenSuse 64bit Rasp3 Feb 2017

64 bit Arm OS OpenSuse under ICEWM on 10th Feb 2017 using 64 G Byte microSD


Just any kind of OpenSuse Arm 64 are not useble for WorkStation because kind of archive of Server.nothing to do.
even can not login user.and repository is old so can not install applications for general Linux such as Fedora and Ubuntu.
these are kind of Arch64 Linux.

icewm Ubuntu 16.02 Volumio x 3

Volumio x3 are working as Music server and Monitor is RPi3



This is one mention from Internet ."Arm processor major supported by Intel and Texsas Instrument as you know ?...."


At my room ,network 4 raspberry pi for Audio,3 for Volumio and Ubuntu pi3 monitor, Work Station x86 64bit Vaio



network at my room

Network at my room on 2017



Raspberry pi 2 with USB DAC

Volumio2 and RPi 2 + USB DDC + Home Made DAC FN1242A double DAC play DSF to DoP



you can play by Ubuntu Pi

$ sudo apt-get install invader-clone Can play Invader much fun !!!



Very interesting build up Head phone amplifier by using Pi Zero -W . if I get Pi Zero -W as soon as possible if I have spare time.!!!



Start on 4th Mar 2017



300B Single Ended Amplifier for Raspberry pi I2S DAC Sound Test



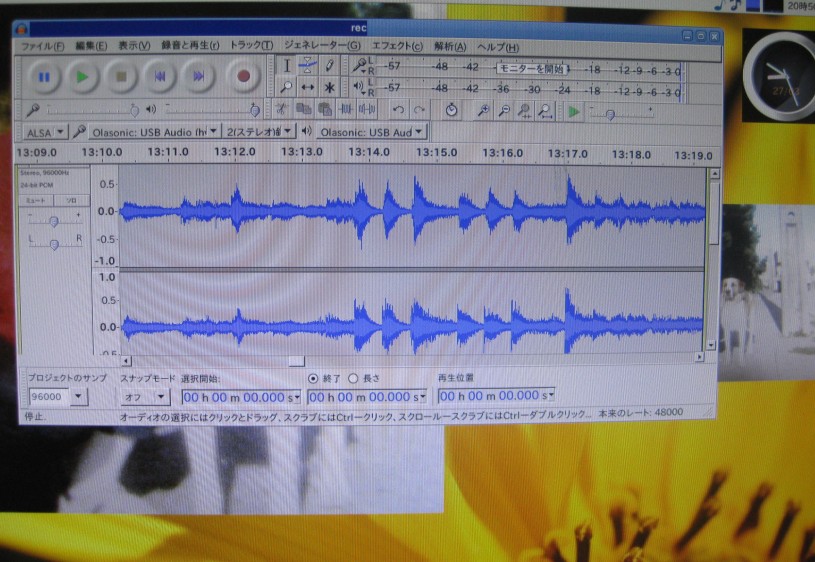

Audacity rec

Raspberry pi3 tip by Ubuntu,doing REC from DAT


Play DSF 2.8Mhz

Play DSF 2.8 Mhz by FN1242A DAC


Some one said ,Pi Zero can connect with only one of USB cable with PC(Windows,Mac,Linux etc)
PI 2 Made in Japan by Sony 2017

Pi Zero has only 2 micro USB and HDMI small port so I am thinking need HUB for USB ,Pi Zero W is add Bluethooth and Wifi but when can we get here,
Pi Zero can play and Operate by one of USB cable hook up with Your main PC like windows ,Mac and Linux please see next URL for instruction.
with out LAN connect Here and try to connect ssh and VNC etc.

Pi Zero

Pi Zero ON the Pi2


"Raspberry foundation" will be make ? --------------Raspberry Pi3 -Zero-----------------------------------should be make Raspberry Pi3 -Zero Pi-Zero is not bad idea but must be produce one of product of Pi3 -Zero with LAN base because WIFI is not convenient to use so must with LAN port. and not automatically connect by Wifi under Linux.but Lan is just hook up wire ..then connect .kind of "Benkei no yoseatsume" is Pi-Zero.

BENKEI NO YOSEATUME is Raspberry Pi-Zero

kind of "person of soft ware" is always easy way to choose ..so why using Wifi..Wifi is slow than Metal Cable.I think who made Pi-Zero or Pi-Zero-W ? does not under stand electronics. only know about software..what do you think ? But Pi-Zero is very much good for "Personal Music player" by Hand Made. -------Raspberry Pi Zero is ArmV6 not ArmV7 -----and only can install old archive like Rasbian old.what's mean ? "scam" estafa ... "Must Be Use Arm 7 and same price of USD $ 5.

at home LAN and Wifi

LAN/Wifi almost Raspberry Pi and Linux x86 64bit



Raspbian Pi-Zero

Working for monitor of Music Server using RPi Zero



Volumio2 by Pi-Zero

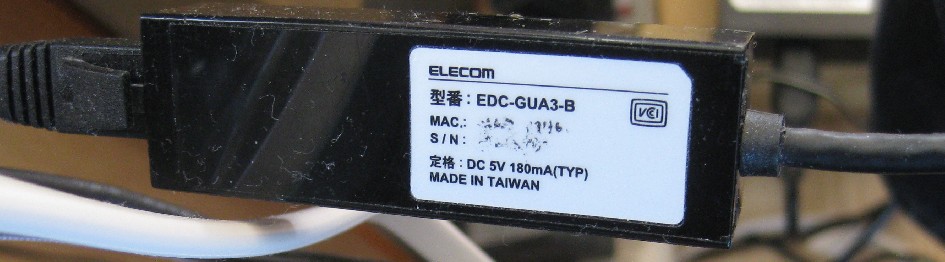

USB DAC and USB HUB , LAN Adapter Power from Smartphone power supply by Pi Zero



volumio2-pi-zero

Pi-Zero Plays by USB DAC on 18th Apr 2017



$4 dollars kit

we can get USD $ 4 dollars DAC kit for RASP Pi Zero in Tokyo Akihabara-kit



Let's try to build up micro music server by Pi Zero


all main parts are here. for Volumio2



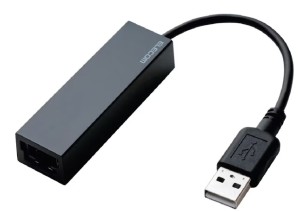

is not difficult build up one of micro music server,just need one of LAN Adopter,USB HUB, I2S DAC few of header.small PCB.
Not recommend to use Wifi because Wifi not fast than LAN metal cable.Pi-zero put together with small alminium case. just made before....with volumio2.show before.later I will inform here.please cut out plastic case of pi. be cause does not fit when using HDMI general connector.show just like photo.practically does not need monitor for Volumio2. but if has some kind of problem with under Linux function so need monitor for watch comand line of without X Linux.if has problem does not make solution of problem by ssh. just need Keyboard, mouse and monitor. I2C DAC is more stable but difficult get crystal so using I2S DAC.left justfi
much better.and any kind of DAC may use but problem is crysatal.if using this kind of DAC DIY can get good Music Server less than USD $50. by Pi Zero, how about ?

I2S DAC simple

Show schematic diagram ,very simple


gpio

That'a all !!!



I2S DAC DIY

component are big so difficult mounted on small PCB but it's all right for DIYer

then


wave form out put of I2S DAC

OUT PUT is OK from I2S DAC then



Volumio 2 play with Pi-Zero

Very nice sound getting from Pi-Zero I2S from NAS (RaspberryPi NAS)


plays quite good and very small Music server getting sound from Local NAS Server and Web Radio this case is getting sound from NAS music server by Rasp + USB HDD. I2S is very nice sound getting.and small size of Music Server
so you can play any where at home and same machine can use your office.too


3 Music server

Raspberry pi-zero with I2S DAC by volumio2-129-2017-0323-pi.img



play anything by NAS

Play by NAS (raspberry pi B+ +HDD)



USB Music

Music from USB HDD by Volumio 1.55 RP B+

Volumio2 3.23 2017 can do any thing and getting information from other Music Server like old Volumio 1.55 Music Server. list of WEB Radio and recorded Music Files from other Music Server on Internal home LAN. old Volumio 1.55 + Rasp B+ MusicServer has USB HDD and hold more than 2000 Music and more than 2000 webradio stations saved.the information saved on the hard drive is automatically organized and orfanizad by each category. This wonderful. to say.....this is Volumio 2 3.23 2017 when if make a click "Genre", just try it's.
Pi-Zero does not work fine with Volumio2 4-21 .but PI2 working very fine but Dop does not work.some diff files work fine.

Note:can not log in by ssh volumio2 it's means can not accept passwd .please try to use like next
$ ssh root@192.168.1.X -l volumio this problem is with same LAN line has same kind of other volumio server.

inside

as a small music server

as a Small Music Server 90mm x 90mm alminum box



Pi-Zero Music Server

As a Small Music Server with headphone out put



Head phone sony

Not so bad



Volumio2 4-21 ver by RP2

Network connectivity is very fine.by PR2 but Pi-Zero is not good.



DSD play DoP by Pi2 + external USB DAC

Pi2 + Volumio-2-12.12 + USB External DAC FN1242A



SPDIF :I am using Small 24bit 96 Khz DDC but you can use WM8804 for Digital OUT to any Home Made DAC


SPDIF out from Raspberry Pi

You can make SPDIF out from directly to your DAC

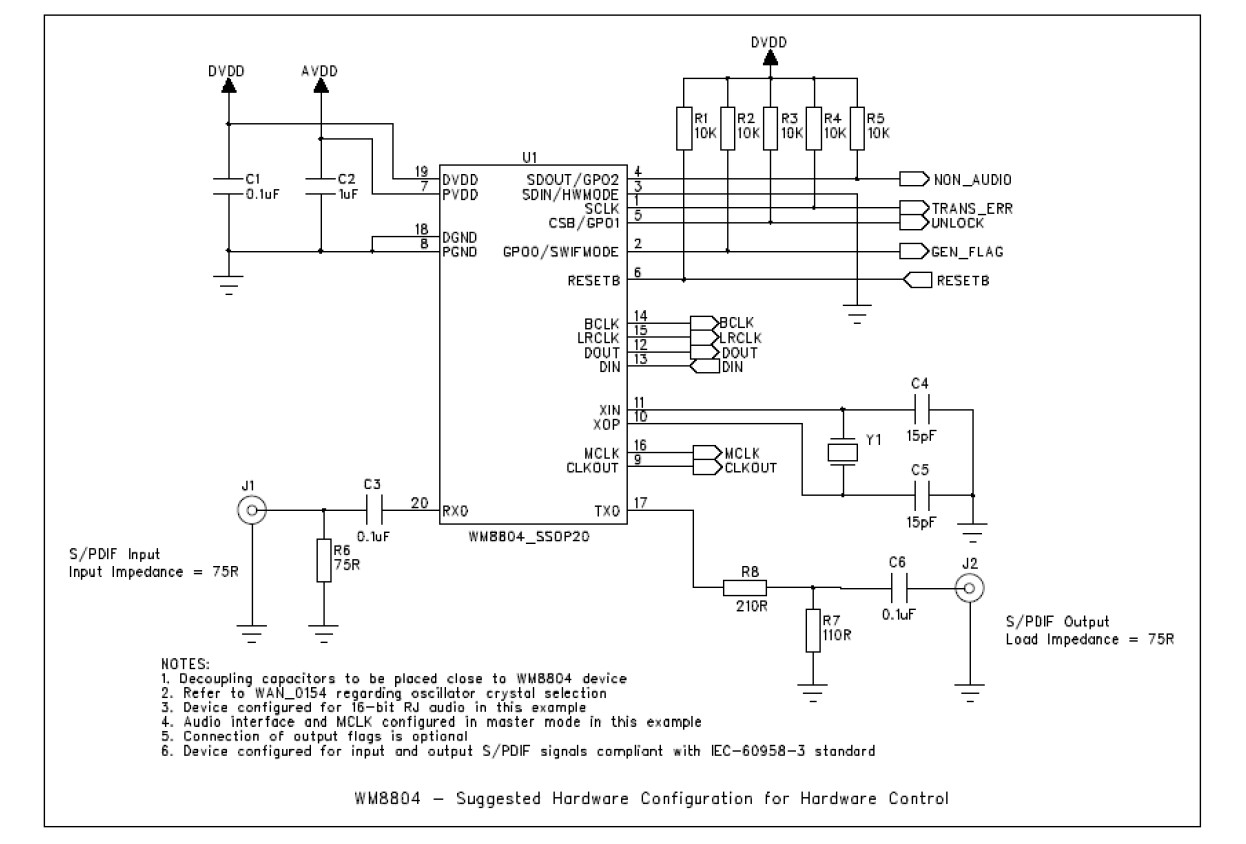

WM8804 Data

But you can buy few product from local shop.either you can build up SPDIF interface by DIY.so you can use any kind of DIY DAC. if DAC has inter-face of SPDIF.
SPDIF : Sony Philips Digital InterFace, Sony and Philips invent this system long time ago for High End Audio communication. in general Optic out and Metal cable.Metal out put is mare fast than Optic cable.you can use kind of SPDIF interface Hifiberry Digiplus

DIY DAC exsample FN1242A but PCM1794 can be use instead of FN1242A

DAC DIY

watching volumio2

Can do control from out side of room ...by smartphone



volumio images

if does not show image of album of Music.took photo of player them drop same directly of music file


How to clean up PCB (Print Circuit Board)

I do not know the exact name of the resist solution to clean the substrate, but when I was in Sony 45 years ago, I purchased the following resist solution with a resist solution like Matsuya (Matsuyani Pine Resin) at a pharmacy, To make a resist solution and clean the substrate. I think that it is good to produce liquids of various densities. Purchase solder suction wires outside the shielded wire and copper wire, soak in resist liquid, dry it in the sun. Please refer to the image. Easy! It is! It is! If you need a lot, I will do it like this. Let's keep it in a plastic bag with a small chuck because the solder suction line "catch a cold". If you do not use the solder suction line purchased at the store as well, I think that it is better to put it in a plastic bag. If you catch a cold (oxidize), sucking of the solder worsens.

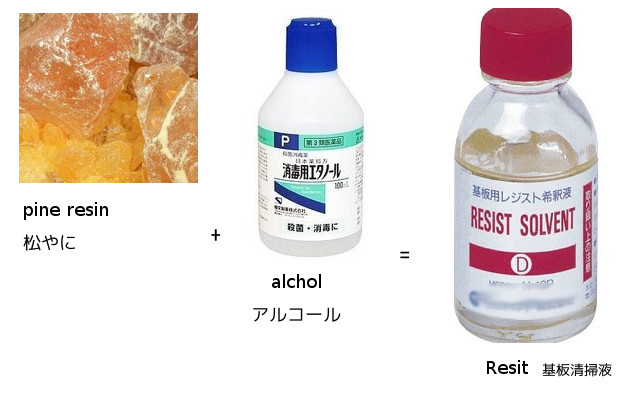

process


wikit

Just Like these ,, let's try and very easily to make one good



Pi Zero Headphone Amp

Pi-Zero  headphone Amp

Using BU7150 Audio Amplifier with Pi-Zero


Finally bought Justboom equivalent Hifiberry digi+ , same circuit same component using but does not get DSF play from DAC. so still using DSF getting USB to SPDIF converter(Olasonic) into my DAC. both play DSF 5.6 Mhz fine.

My DDC (SPDIF from USB on Raspberry Pi2,Pi3 or B+)

Olasonic DDC

Olasonic DDC from USB to SPDIF can do play DSF ,DAC is FN1242A Single DAC DoP

This unit can record 96Khz 24bit from Analog signal . from your analog source.Tape deck,LP player ,even Tuner etc



Play DSF by DAC

It's enough sound ,DSF 2.8Mhz to DoP PCM by home made DAC by Volumio-2

Works good with Olasonic DDC + Home made DAC by Volumio .
Justboom Digi HAT JBM-002 works fine but does not get software volume control at volumio2.


5.6 Mhz DSF to Dop by Home made DAC

Justboom Digi HAT JBM-002 plays Diana K 5.6Mhz DSF to DoP getting good sound



my system on 21st May 2017

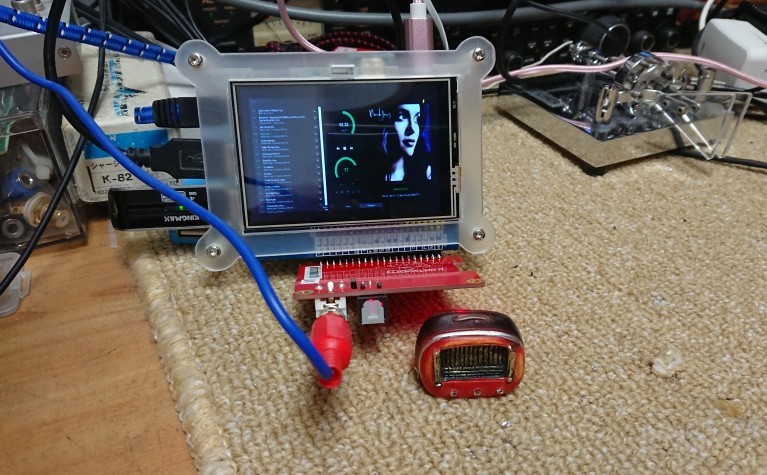

Using Justboom JBM-002



Just boom


SPDIF out

Does not need expensive DDC any more.enough use JBM-002

But this kind of "Shield" is not reach till 384Khz by PCM. only 198 Khz by metal cable and Toslink(Optic)is only 98Khz. therefor much better use PCM51XX DAC directly as Raspberry pi Shield.SPDIF has limited.JBM-002 and Hifiberry digi+ are using
as I2S DAC on Raspberry pi setup.
Note :Toslink is Toshiba patented. on 1983 for PCM.

Next one DAC

Next one DAC DIY for Raspberry Pi

and


PCM1795 Single DAC


DAC NOS DAC for Raspberry Pi 2

FN1242A is NOS DAC discontinue model in Japan this DAC is V out





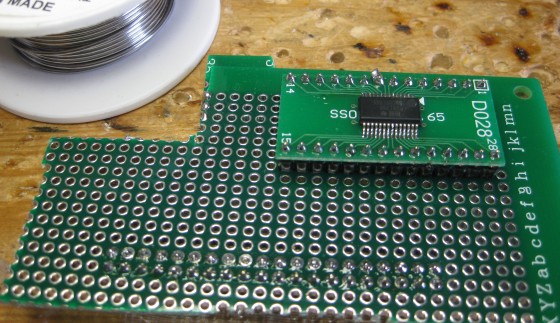

Shield DAC PCM1795

Doing build up DAC for Raspberry pi2 by PCM1795



DAC addtional

Other DAC 32bit 198KHz


How to record into SD Card by USB

SD to USB Adaptor

I got SD to USB Adaptor made in China ,just USD $ 1 at local shop,we call 100 YenShop


Next connected Volumio2 by ssh from other side of PC ,please see next picture.


step1

step2

you can see 2 of media.1AE7-4E5F is USB memory and 7392-5027 is SD memory so move to 7392-5027 directly like a $ cd 7392-5027
then ripping from WEB Radio.if your volumio2 does not have $streamripper must be install .
then you can do record into SD card.off course you can play same time by volumio2 and then you can re-play same music.

step3

So you can record any WebRadio Station into your micro SD , SD ,USB memory.then you can play actually re-play Music by smart phone and any equipment .even your Volumio 2 Music server.how to stop stream ripper. ? $ Ctrl + c at command line of volumio ssh.

just see directly

You can see SD Card as USB in Volumio2 Music server... Volumio 2 is 64bit ?? means good for RP3 suppose be...


WEBRADIO Links

http://west1-mp3-128.streamthejazzgroove.com:80
Groove Jazz West

http://east1-mp3-128.streamthejazzgroove.com:80/
Groove Jazz East

http://89.16.185.174:8000/stream
Linn Jazz

http://89.16.185.174:8004/stream
Linn Classical

http://89.16.185.174:8003/stream
Linn Radio Music

http://listen.ai-radio.org:8000/320.opus?cc=JP&now=1461464901.198&
AI Radio
http://149.210.172.114:9160/
Virginia Music

http://8.38.78.173:8093/stream
Classic Audiophile

http://8.38.78.173:8210/stream
Jazz Audiophile

http://radiart.eu:2199/tunein/canaljazz.pls
Canal Jazz

http://174.36.206.197:8000
Venice Classic

http://stream.srg-ssr.ch/m/rsc_de/mp3_128
Swiss Classic

http://streaming308.radionomy.com:80/SmoothJazzNewYorkCity
Smooth Jazz NYC

http://198.58.106.133:8144/
CD101.9 NYC Smooth Jazz

Chill Out Hirscmilch

CD101.9 NYC Smooth
is very good webradio station ,I love. new type of Fusion.

Note: if do would like to record by streamripper ,If Virginia Music does not get Music. please try next line
$streamripper http://149.210.172.114:9160/listen.pls -u 093800 -r -R 2 149.210.172.114:9160
IP got by Nightingale Linux Version and using Short Cast.

Not only Ubuntu on Raspberry Pi 3

Not only UbuntuFor Solaris ,FreeBSD etc


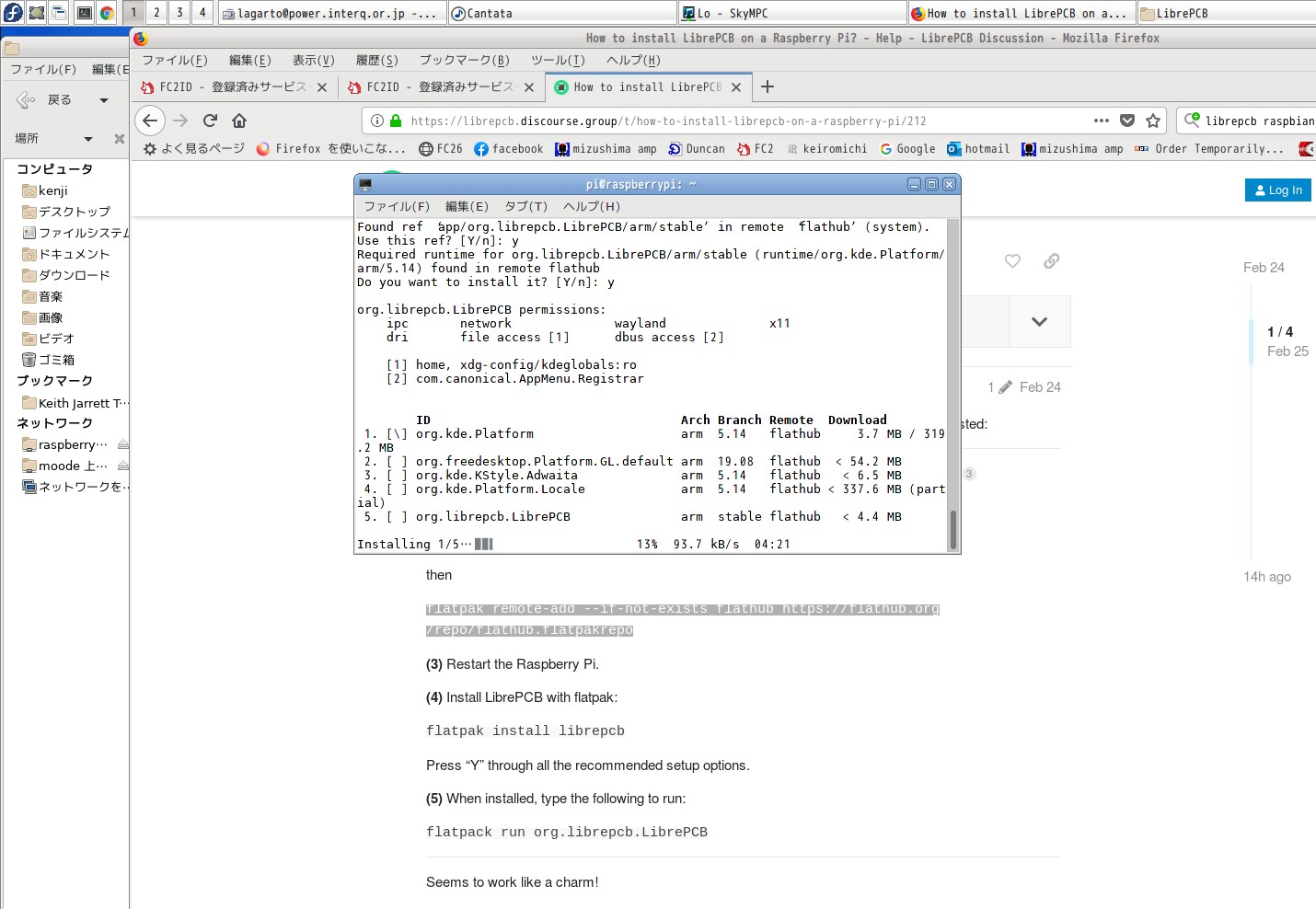

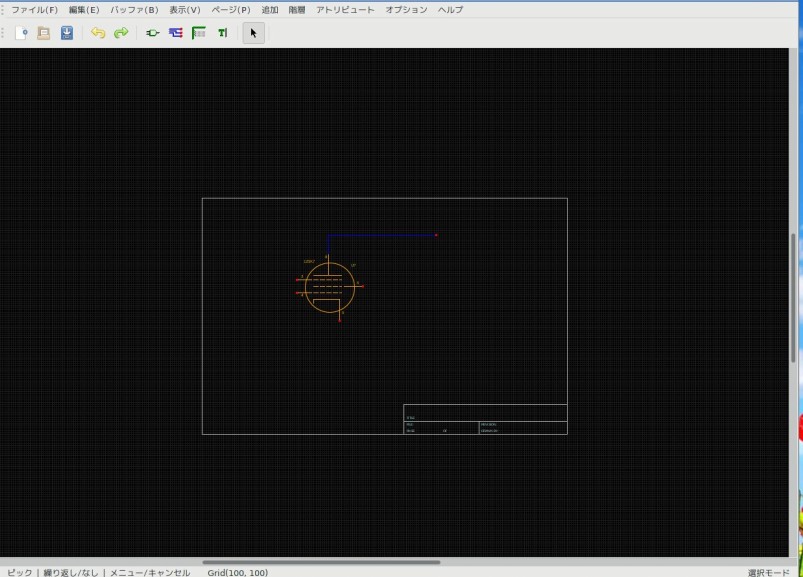

Circuit CAD for Arm OS like Ubuntu

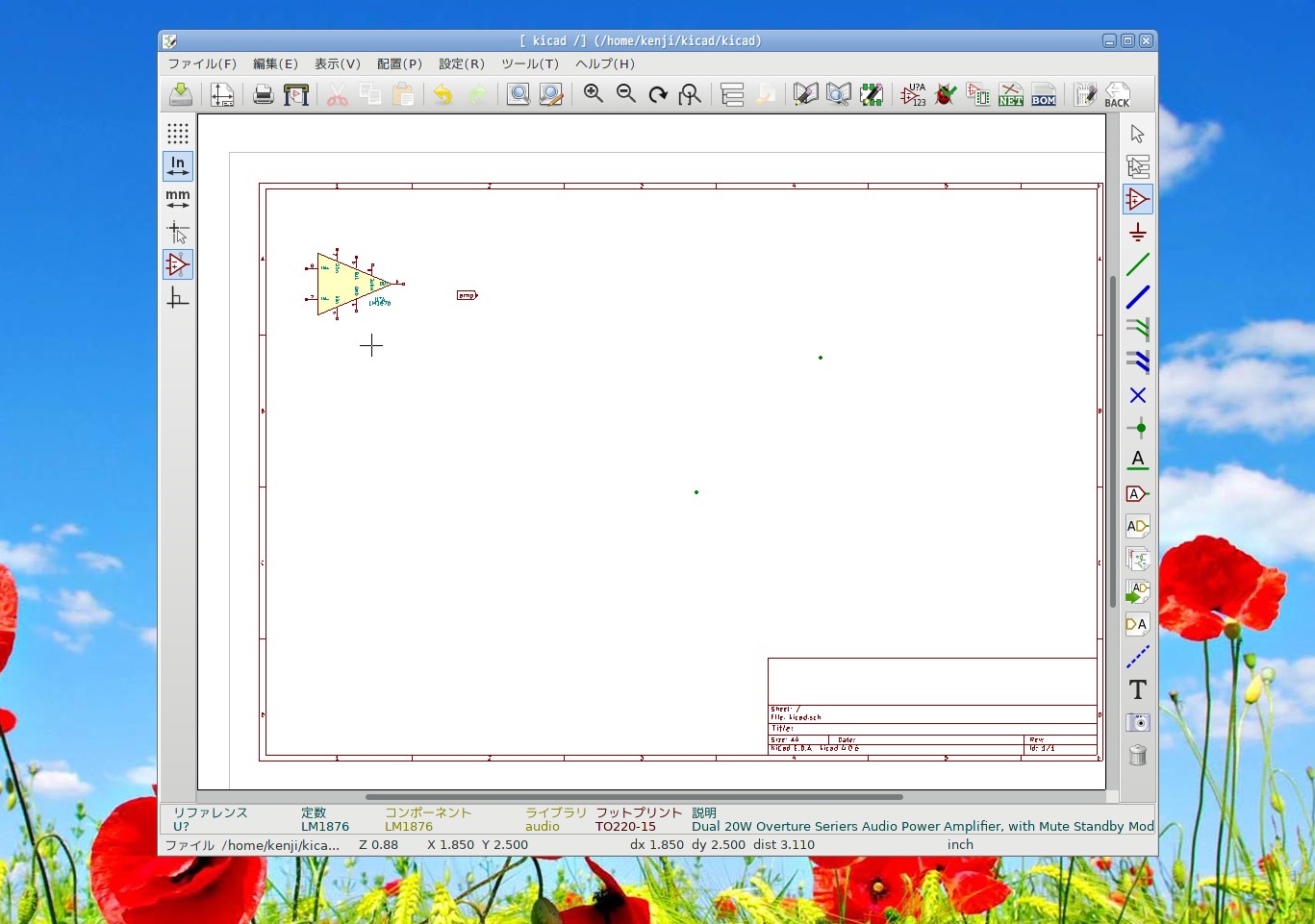

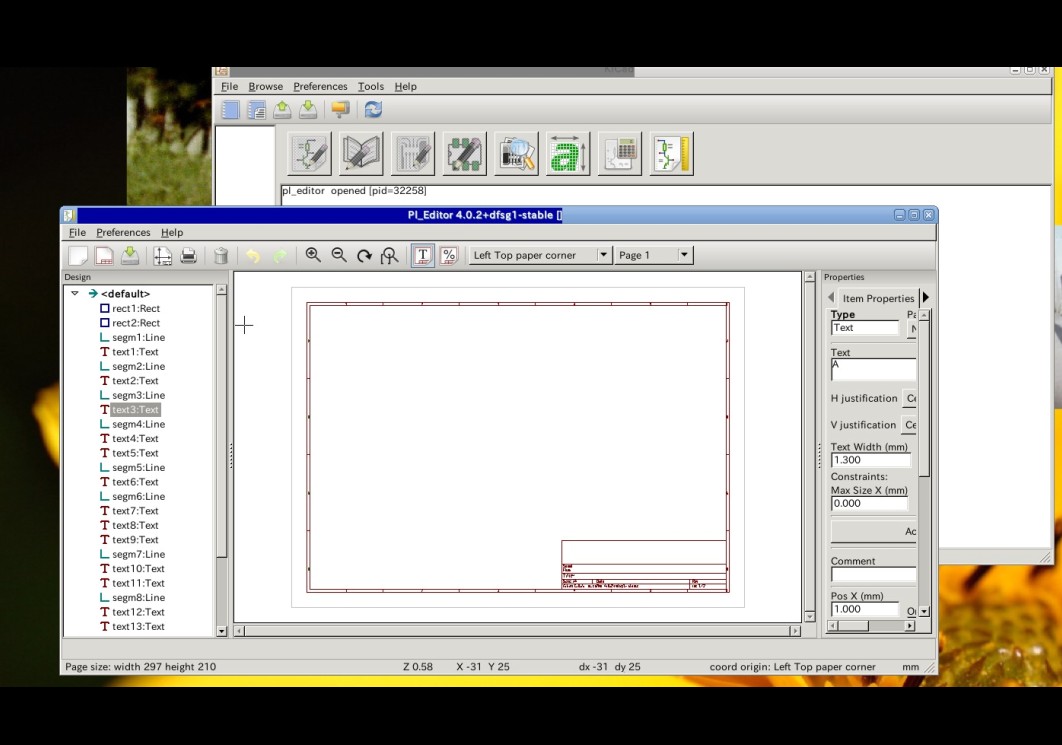

Kicad for Arm OS

show Kicad for Arm Linux like Ubuntu


Arm Linux does not have many tool for write circuit(Schematic)like for x86 Linux.show one of good tool for design PCB and write circuit diagram
KICAD is name.if are you using Ubuntu(Debian Linux)by RP3 .can install easily .
$ sudo apt-get install kicad
if does not install kicad , please do before install. $ sudo apt-get update then try to install ,kicad is good for Arm Linux instead other type of CAD.

Volumio 2.201

Volumio 2.185-2017-06-03-pi.img very nice connectivity and using pi2, does not need big capa of uSD,sound is good

But does not make access by ssh in this version ???


So 6/3 ver and 6/13 ver both of Volumio 2 are ,can not make access by ssh.and NAS can not read server name. so can not use.
so back to 5/16 version of Volumio2 .I am waiting next update.DSF 5.6 Mhz is good.But .....
Note: from 1.9xxxx version ssh is desable they said for security.so what to do ? so have to use Volumio-2.185-2017-6-03.zip
when if you can not use "Latist version of Volumio2".

then ,,connected HDMI monitor and keyboard , mouse then start up command line....
$ sudo apt-get update
$ sudo apt-get raspi-config raspi-config is needed and setup SSH then "Enable" OK then reboot.
that's all nothing to do more then I connected by ssh from other PC. if you can not make access from other PC(Linux) try to delete .ssh file
$ rm -R .ssh (But can not make connect NAS and USB etc ...)some thing problem with raspi-config .
then access by ssh. and can log in by ssh -l root volumio.local
Volumio 2.201-2017-06-13-pi.img is
This version of Volumio 2.2xxx can not read(indicate just shown "-") DSD file name and many file name could not read file name.even japanese file name too,
Have to back to Volumio 2.185-2017-06-03-pi.img to get fine.if would like to update ,,must be careful.

Seiko Matsuda sing song Jazz


Matsuda seiko sing Jazz

Seiko Matsuda Sing Jazz 2017 June


Raspberry Pi2 + justdoom + SPDIF D.I.Y DAC with Valve 6DJ8



raspberry connect

Anything about Raspberrypi around programing ,how to use,about Ubuntu(Debian)Linux



Sky MPC for Raspberry pi

This is one of Client of MPD you can use any platohome of PC please see SKYMPCMain Site of SKYMPC
but only in Japanese.

SKY MPC

This is version for Linux 64bit x86 Linux but you can install any plat home of PC But need QT for RP 1-2-3


get QT for Raspberry Pi

Get QT5 binary for Raspberry pi 1-2-3



MPDroid by Android celler

MPDriod by Android Celler can control Volumio Music Server ,very much util app



Volumio2 28 July 2017

Menu of Volumio2 by volumio-2.245-2017-07-28-pi.img.zip



DSD play

DSD Play by Volumio2 volumio-2.245-2017-07-28 but can not make ssh,software volume is enable now

Still can't access by ssh but nothing problem because do not use.
connectivity is very good.DSD plays good by DoP and slightly heavy than before.I think.and can use software volume control again.

plays 5.6 Mhz by SPDIF DAC volumio2

Plays 5.6 Mhz dsd file from SPDIF to home made DAC



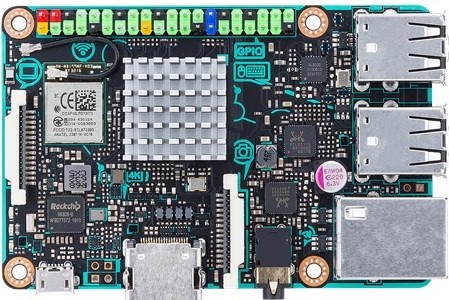

Thinker Board

Tinker Board is twice of speed of Pi3 "They Say". By ASUS

ASUS said much better than low spec of x86. but I think does not exist low spec x86. Arm is Arm and ASUS TinkerBoard does not have many future.
just like Pi3. Pi3 is possible by use 64bit , but ASUS can not use 64bit. if use old karnel and old x86 PC using Linux about speed is much better than ASUS.

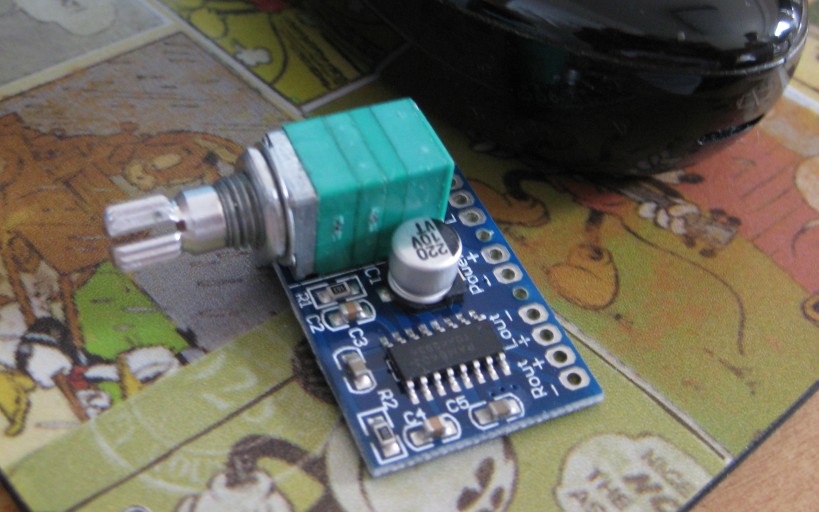

small digital amplifier 3W

Small Digital 3W Amplifier mult use ,PAM8403 for anythings

PAM8403 You Can buy hereif would like to use



Rasp 2 + Amplifier

Raspberry pi 2 + 3W Amplifier ,quite Good. 2017 Aug


amp with RP2

3W Amplifier and line out with RP2


volumio-2.246-2017-07-31-pi.img update of Volumio2 on 31st July issue does not get any sound so be careful to install
does not indicates dsd file just indicated "-" .why does not indicated "unstable".soft volumum and hard does not get sound.
so back to volumio-2.185-2017-06-03-pi.img better because from volumio-2.245-2017-07-28-pi.img. version does not indicated dsd files just indicated "-".
said "undefined" so "undefined" does not indicate name of files.from volumio-2.2XX-2017-XX-XX-pi.img. which are dsd,dsf,aiff etc.

small amp with Rasp2

91dB/m/w Speaker  can get sound enough,very nice sound getting


About Volumio 2 Developer Position

http: volumio2.local/dev Open the IP of Volumio 2 from the browser and just add /dev, the developer position opens. SSH setting first opens so please enable SSH. After that, it will be displayed as follows. You can do the same by creating an empty ssh file in the / boot directory


dev position


ssh volumio2

one's would like to access by ssh to volumio 2, first make thhp://volumio.local/dev
then make click ssh "enable" then you can access to volumio2 by ssh on terminal .
$ ssh root@192.168.x.x -l volumio
if you can not get rout of communication. terminal said " no have connection route "
$ rm -R .ssh then $ ssh root@192.168.x.x -l volumio again.
some time asking " Are you sure you want to continue connecting (yes/no)? yes then you can connect by ssh.


out side of Raspberry pi family


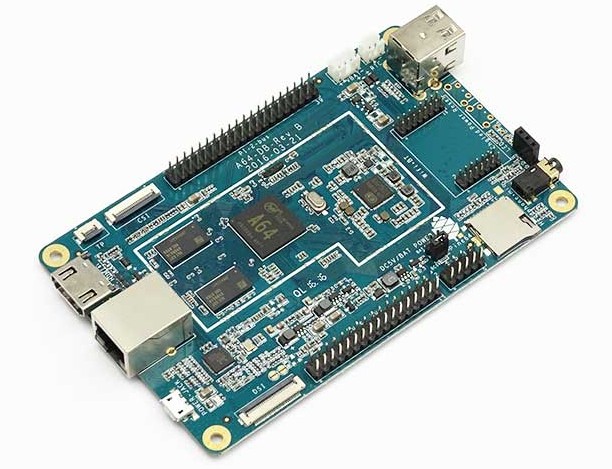

pine 64

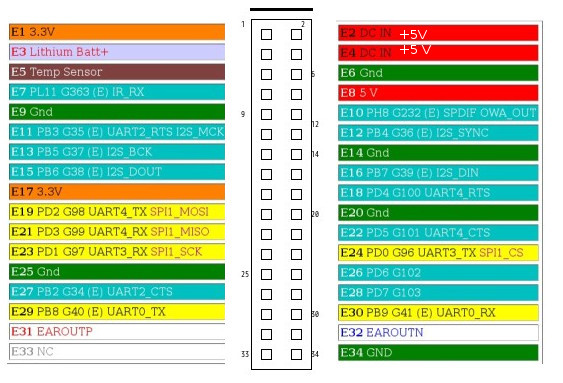

Pine64 Arm 1.2G quad core Cortex A53 64Bit

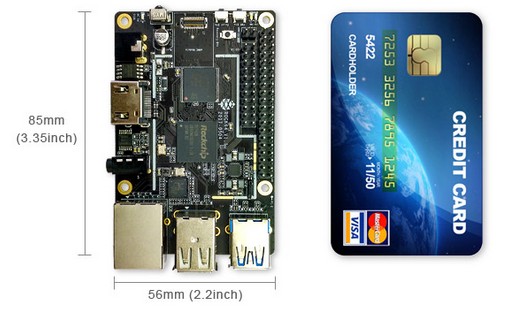

rock 64

Rock64 is familly of Pine64 Spec is Rockchip RK3328 Quad-Core ARM Cortex A53 64-Bit Processor


they has Rock64 highend model .not very much different with Pine64 but good for mulutimedia and works Linux.
So Raspberry pi4 or pi5 are " I can predict that it will be the highest level Arm PC."or Should be...

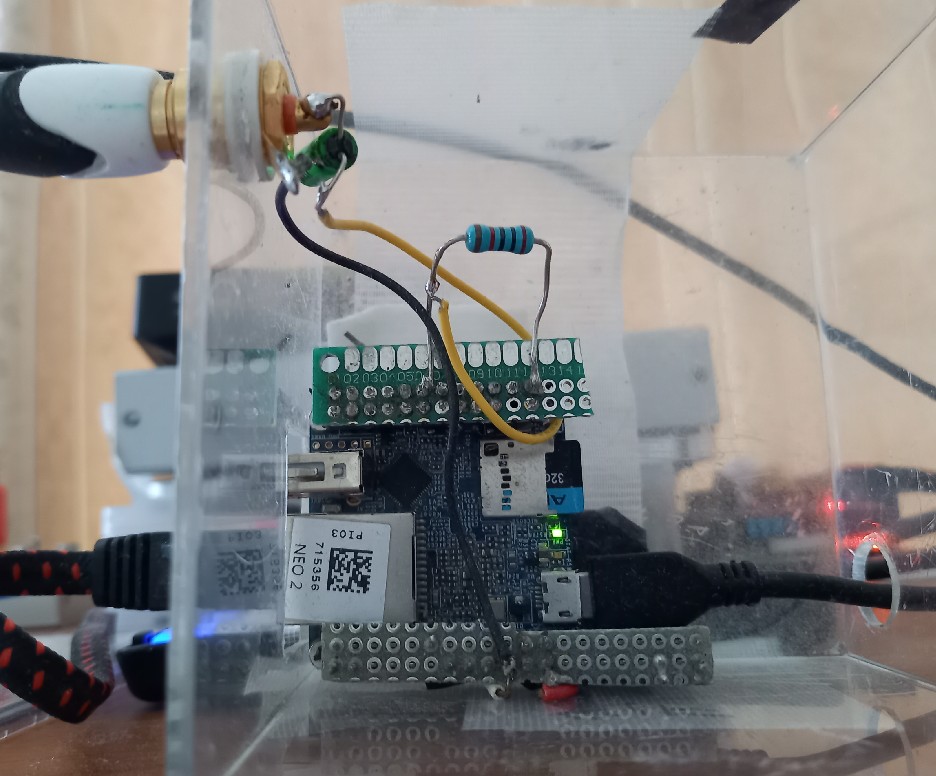

Most Smallest D.I.Y Music Server by NanoPi-Neo2


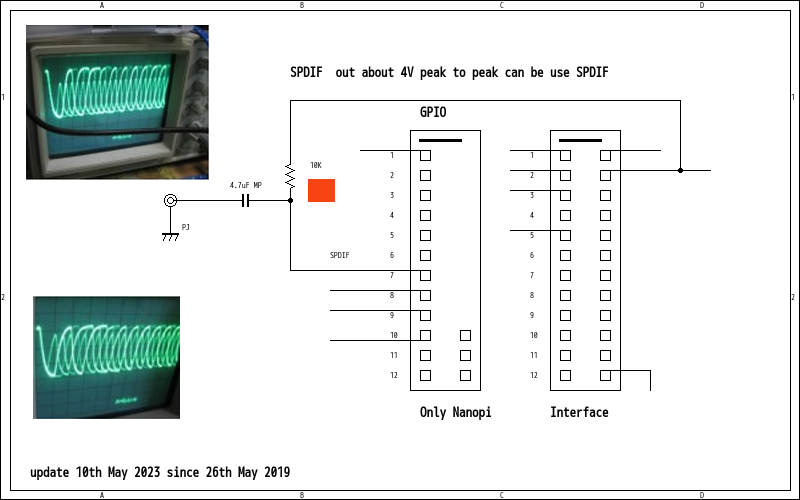

Nanopi neo2

Nanopi

Arm Cortex A53 64bit is same as RP3 Nanopi



Neopi2

DAC DIY

Very Smallest Music Server,you can build up and inexpensive DIY :) if would like see click above Link



Testing I2S DAC

No more USB DAC by NanoPi-Neo2 Any one can do small server play DSD as DoP too、:)




DSF by NanoPi-Neo2 Volumio2

Sound is very clear and very good musical sound getting from NanoPi-Neo2 by Volumio2 Beta



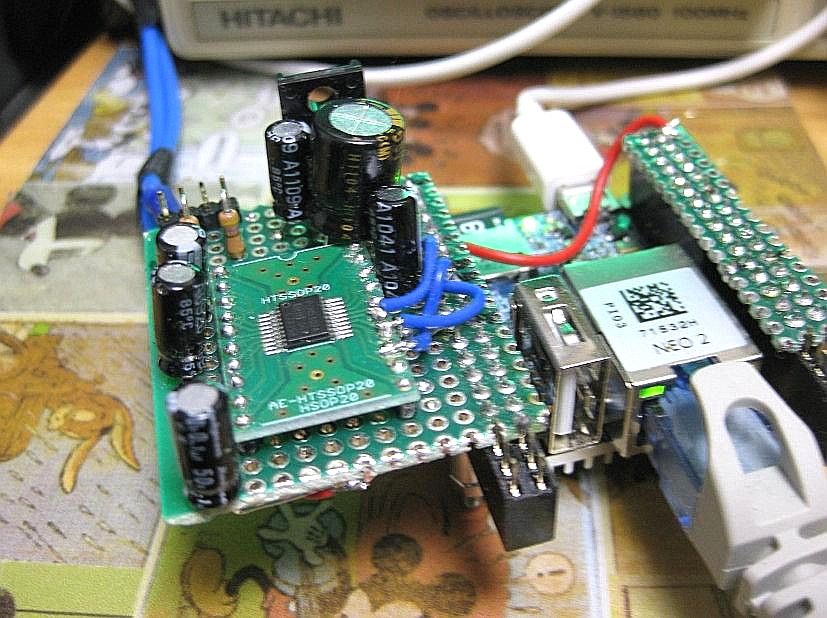

ES 9023 I2S DAC

ES 9023 I2S DAC for NanoPi-Neo2



ES 9023 DAC DIY

Play and Testing I2S DAC by NanoPi-Neo2 on NoV 2017



schmetic diagram ES9023 for NanoPi-Neo2

ES 9023 I2S DIY DAC for NanoPi-Neo2 detail is shown on Nanopi-Neo2 Music Server DIY





I do not know which is good but using 64bit processor.both of Cortex A53 64bit.pine64 is very similar one board PC of Pi3.
Nanopi Neo2 can connected ssh and USB port.Cortex A53 64bit is using,Raspberry pi3,Think board and Pine64.what's will be
Raspberry pi3 and pi2 are very much flexisible for experimenter's and DIY'er.because has many port.many information.
Raspberry Pi Foundation if would like to ,will be make new product as Raspberry Pi 4 ,,must be support 1000 M LAN and Wifi,BL
Pine64 is just like piece of Junk" please do not buy.cost down product means something bad and bad support.
and Memory is more than 2 G Byte.add kind of Rock Processor. we like Raspberry Pi so ,,what to do ? We like raspberry pi.
By Raspberry pi Foundation I would like you to manufacture Raspberry Pi 4 even better.
I think that it is funny that one user has Raspberry Pi as well. But Pi3 is Best performance ...Pine64 is bad quality.
if one's would like to buy one of them please wait until Raspberry pi 4 much better.
But new type of One Board PC has SPDIF out put and Master Clock so probably good for Music Server using minimal system.


Burner for Multi Plat Home(PC any OS)

Burner for img file by any plat home OS


Mozilla/5.0 (X11; Linux x86_64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/46.0.2490.76 Safari/537.36 Pine64 is working as
x86 Machine.show above from log,so Android is some kind of x11 x86_64bit .but actually very very slowly.impossible to watch Netflix and
any kind of movie by Pine64 2 G...finally I have to use some kind of Music server.off course can use from SPDIF and I2C DAC.

on 7th Sep 2017 : back from work ,Pi B+ was down ,very hot around 3.3V Regurator,so suppose be Pi B+ was broken,if CPU is good
I will try to replace 3.3V regurator.on Pi B+.be careful hot in the summer does not have heat sink or fan around Pi.I have 3 of them
one of 3 Music server was down.have to use Pine64 for Volumio2 A.S.A.P.
finally Raspberry pi B+ was broken so Next photo is Pine64 +2G and Volumio2.using DDC and DAC.
recently PC are going move system of 32bit to 64bit PC.why ? cause of problem of MR Dennis MacAlistair Ritchie and Mr Kenneth Lane Thompson
who invented UNIX. and must know problem of 2038 . we say " problem of 2038 " how to Avoidance from 2038 problem.even windows, iphone any
PC are working under UNIX right now.who are great MR Dennis MacAlistair Ritchie and Mr Kenneth Lane Thompson in the world ,,,you must know.

Very important note: Do not buy Pine64 and Pine64 family.because not compatible with raspberry pi.even they has port of PI2 40pins
but not enable.and does not get any information .I said Do Not Buy and Pine64 and Pine Family are "Garbage."because they does not give any information hardware by software.

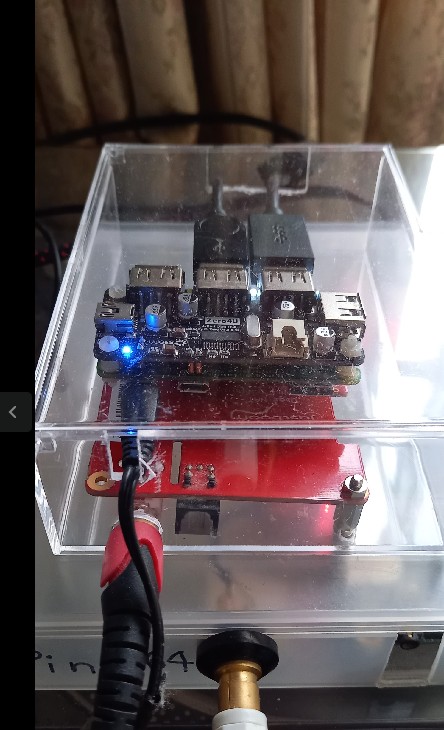

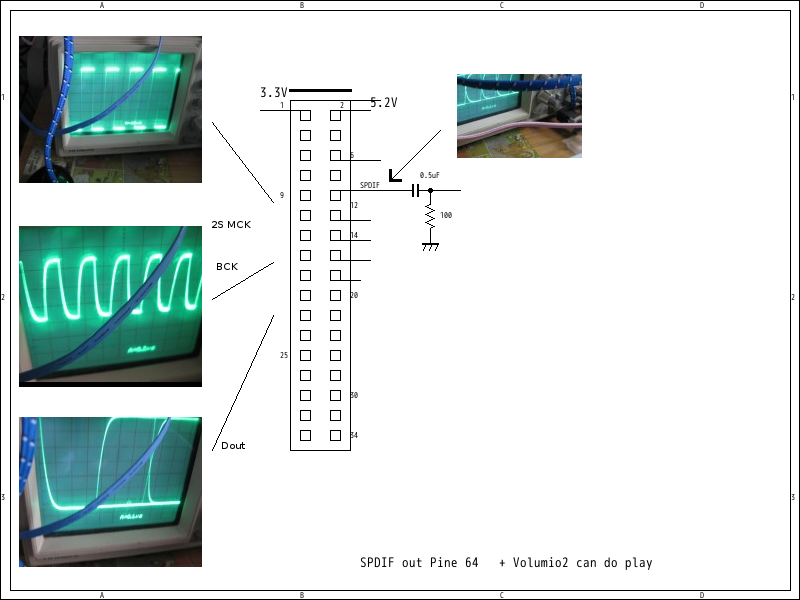

pine64 + Volumio2

Volumio2 + Pine64 +A64 2G now play by USB DAC on 10th Sep 2017 But can not use I2S "Ref"

ssh root@192.168.1.27 -l volumio ip is depended on your set up


Plan of Sabre ES 9023 I2S DAC for DIYer



ES9023 D.I.Y DAC sound from 300B Single-Ended Amplifier on 25th Nov 2017 Play by NanoPi-Neo2


I2S DAC diy


PCM1974 DAC for Pi I2S

24bit 192Khz I2S DAC Diy for any Pi



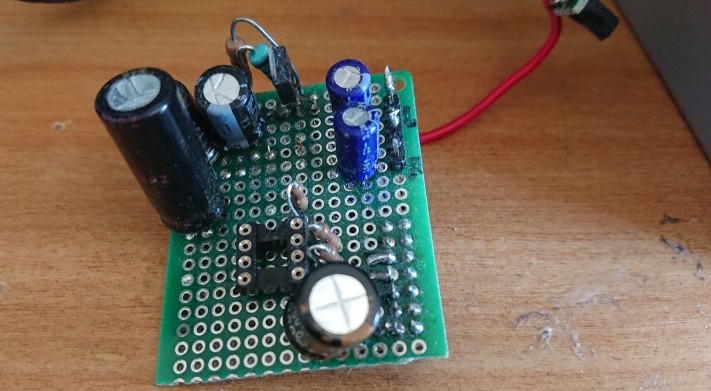

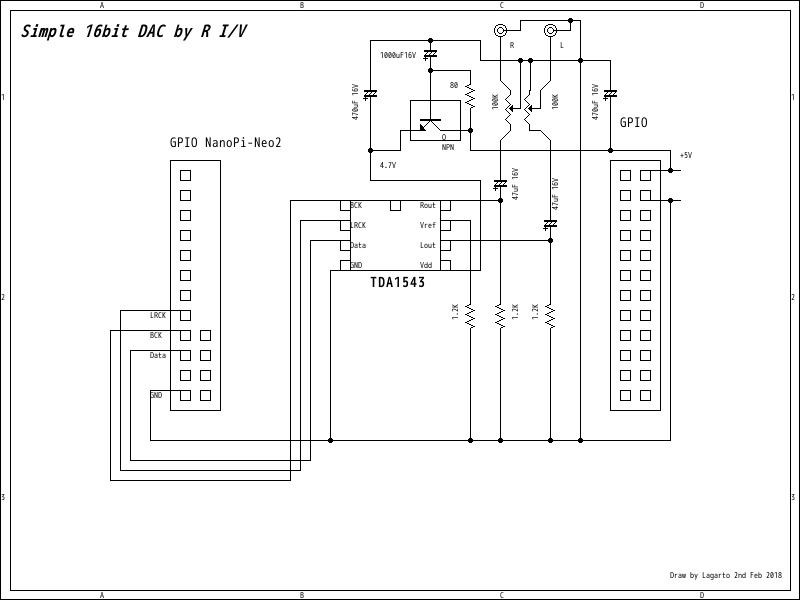

I2S easy DAC

NOS I2S DAC easy DAC for any one see NanoPi-Neo2




pi for ham

FreeBSD



dymponi-mpd

Specially for RP3 Japanese MPD but only in Japanse ,sound is High End Audio


light mpd

light MPD(lightmpd) introduce ,can play music by many one borad PC as Music Server but sound from NAS


Note : If your home LAN using both of IPv6 and IPv4 please rewrite /etc/mpd.conf a part of
# For network
#bind_to_address "localhost"
bind_to_address "0.0.0.0"

then #reboot or
#systemctl stop mpd
#systemctl start mpd
for connectively under IPv6 and IPv4.have to choose IPv4 for Music Server for sometimes stop Music Server.
so have to edit /etc/mpd.conf of any mpd server like Raspberry Pi etc too.



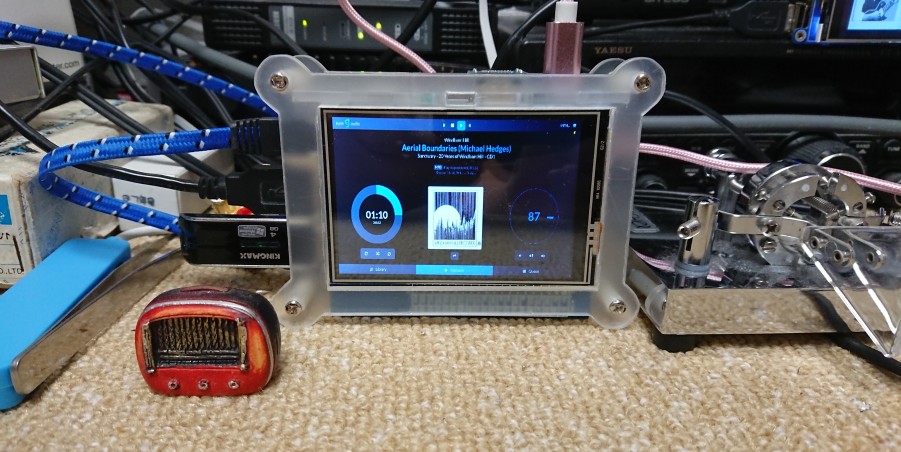

runeaudio 0.4

RuneAudio 0.4 mpd 0.20.18 on May 2018 plays DSF



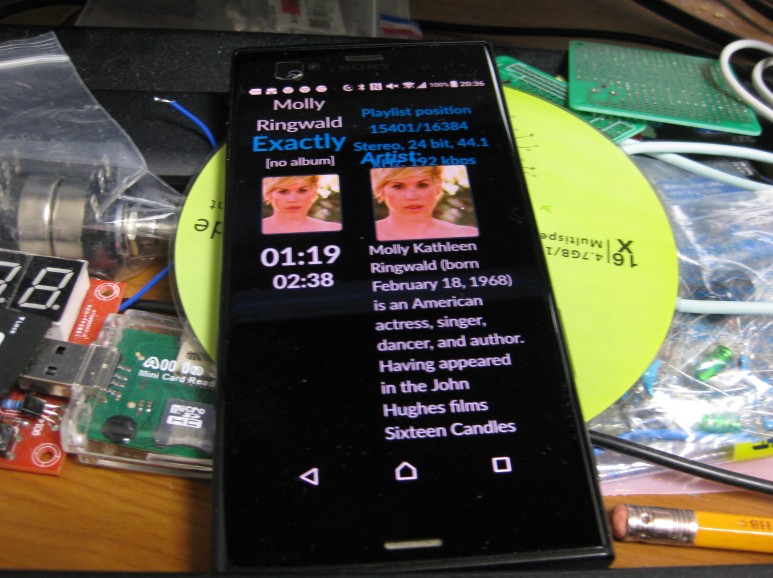

runeaudio 0.4

RuneAudio mpd 0.20.20-1 on June 2018 play DSF 2.8Mhz as DoP sound is fine




moodeaudio 4.0

MoodeAudio 4.0 work very fine and sound is good too but depend on DAC on 3rd May 2018

Sound Quality is quite good , because MoodeAudio has EQ control set up.




Volumio is stable

on May 2018 ,very stable ,play anything format of Music, sound clear


Version 2.389 Volumio2




service broowser

Service Browser/Androido you can find IP in your home LAN



zero Conf

Zero Conf /Android also you can find IP in your home LAN



Pi music server

Pi Music Box







This past few weeks May - June 2018 Smooth Jazz, Virginia Music A lot of Internet radio has gone, what happened?
After this Music Server was made, it was not possible to receive unless there were plenty of internet radio charges charged or it was not Smart-Phone like i-phone etc during a short time since I entered this world.
I think that this is a warning bell in a sense. Abolition has started from internet radio. Let's all think.These are also meaningless dirty business, are not they?
Let's think about Globalization but I think it is a narrow idea.
but A Spotify can do play Music from Smooth Jazz.
But....
We have bunch of Smooth Jazz around USA. all of free.
http://94.75.227.133:8000/ Smooth Choice.com
http://144.217.158.59:5024/stream Smooth Jazz MIX NYC (This same as Smooth Music NYC)
http://192.99.35.215:5294/stream Smooth Jazz Tampa Bay
http://144.217.158.59:5105/stream Smooth Jazz florida HD
http://144.217.158.59:5120/stream Smooth Jazz florida
http://199.180.75.116/stream Smooth Jazz Global
http://144.217.180.30:8099/ Smooth Jazz and more
http://64.95.243.43:8002/stream Best Smooth Jazz UK London
http://185.33.21.112/smoothjazz_mobile_mp3 Bay Smooth Jazz(Japanese)
http://158.69.7.149/stream SmoothJazz.com Global
http://listen.streamonomy.com/sjfplus Smooth Jazz florida Plus
http://149.56.183.178:8020/stream Smooth Jazz Radio KJAC.DB
http://listen.shoutcast.com/smoothjazzcd1019newyork Smooth Jazz Cd101.9 New York
http://listen.radionomy.com/lovesmoothjazzcom LoveSmoothjazz.com
http://listen.radionomy.com/SmoothJazzBox SmoothJazz Box
http://streamingV2.shoutcast.com/SmoothJazzNewYorkCity?lang=ja%2cjv%3bq%3d0.8%2cen-US%3bq%3d0.5%2cen%3bq%3d0.3 Smooth Jazz NYC
Smooth Jazz pls<<<<---- Smooth Jazz tar ball zip
My-Radio<<<<---- InterNet Radio List tar ball zip
2018 Radio List<<<<---- InterNet Radio List tar ball zip
Virginia Music was gone but right now find just like same station Name is Satin Jazz / broadcasting from Torontocast

Satin Jazz

satin Jazz


Note: if would like to use streamripper for record(save)music from them. directly can not use streamripper. please use next line.
$ streamripper http://144.217.253.136:8539/stream -u 093800 -r -R 2 144.217.253.136:8539
then you can save music into your PC.but family of Linux. even you can save Music inside of micro SD and USB Memory too.



DSF 5.6 MMhz Diana Krall ,doing play Music by MoodeAudio 4.0



Moode Audio 4.2 by RP2

DSF 2.8 Mhz Narah Jones , by MoodeAudio 4.2 but does't show logo of MoodeAudio ?



Depending on the frequency of re-sampling, the sound is distorted, especially at a low level position, it becomes rough sounds, but this also consists of a specific frequency. Although readjustment is necessary,
I feel that sound of NanoPi-Neo 2's MPD 0.20.20 is better from compile source version. MoodeAudio 4.2 's mpd 0.20.20 ,but same kind of sound stage.
WEBRADIO is RADIO but it is hard to use, it is easier to use WEBRADIO on the NAS side.and does't show logo of MoodeAudio.
Let's me know ? and only my case.
Special Usage: Mounting as a NAS does not work well, using cifs-utils to copy the contents of two NanoPi-Neo 2 (MPD Ubuntu) and NanoPi-Neo 2 (Volumio 2) in the same home LAN It loads.
NanoPi - Neo 2 Volumio 2 is an intermediary for other servers. It is a server of role to obtain music information from NAS. This is because connectivity is good. This and the shared part of NanoPi-Neo 2 (MPD Ubuntu)
I collect holders of my favorite RADIO stations from WEBRADIO and make holders as MY_RADIO. This information is read in MoodeAudio. With this, you can choose my only Internet radio station you like freely.
Although this method has become a result, I am using the point that it is easy to operate from the simplicity of only MPD Ubuntu's music server. MoodeAudio has a structure that can not recognize the directory, so via NAS
I am getting free operation. Raspberry pi 2 + MoodeAudio 4.2 has become a user-friendly music server by using home LAN together.

moode audio forum

MoodeAudio Forum please visit to get many information



sqlite show webradio list

sqlite3 show webradio list and logo of radio station and how to add logo > ADD LOGO


But need add applicatione of sqlite into MoodeAudio OS.
$ sudo apt-get install sqlite
then start configure moodeaudio radio station addtional .


fine music by Moode Audio 4.2

fine music by MoodeAudio 4.2 on 10th Aug 2018




re install aug 2018

Suddenly clumping started, it has stopped moving and was reinstalled 16th Aug 2018



re install Moodeaudio into RPi2

Install again MoodeAudio 4.2 on 16th Aug 2018



Moodeaudio 4.2 play DSD

Play DSD by MoodeAudio 4.2   Work Station is Fedora Core 22 x86 64bit



Next Project


I2S DAC DIY

for Rasberry Pi I2S DAC ,we can build up less than USD $ 15. PCB is Universal PCB for RPi



side view I2S DAC DIY

Side View I2S DAC



PCM 5102 A is on the conversion board on the left side. The conversion board is made by some replacement parts company from china.
The DAC board is a universal board dedicated to pie and is sized to be attached to raspberry pie. I obtained it in Tokyo.
The price is 150 yen. Similar boards are now relatively readily available. The header is the one of Aitenou.
The blue pin is scheduled to be attached with TFT liquid crystal touch panel (Adafruit) here. It will be a bit thick
With this I will make it with a stand-alone high resort terminal. I'm going to put it in a box of crates and equipped with a lithium battery for USB and carry it.
Even on the desk I will try to use it.I guess a lot of people have already been tried in the example below. Adafruit 3.2 inch PITFT monitor. Parallel operation with the HDMI monitor is also possible. I think that it is a monitor with few failures anyone can do. These Adafruit PITFT have several types of LCD.
Just follow the link below using SSH and you can get images with few failures to anyone. In my case it is 3.2 inch TFT, but 2.8 inches seems to be popular. However, only Raspbian
I can not install it. Playing the live of Diana Kral of Youtube with USB DAC, it is not bad picture. The sound depends on the DAC.

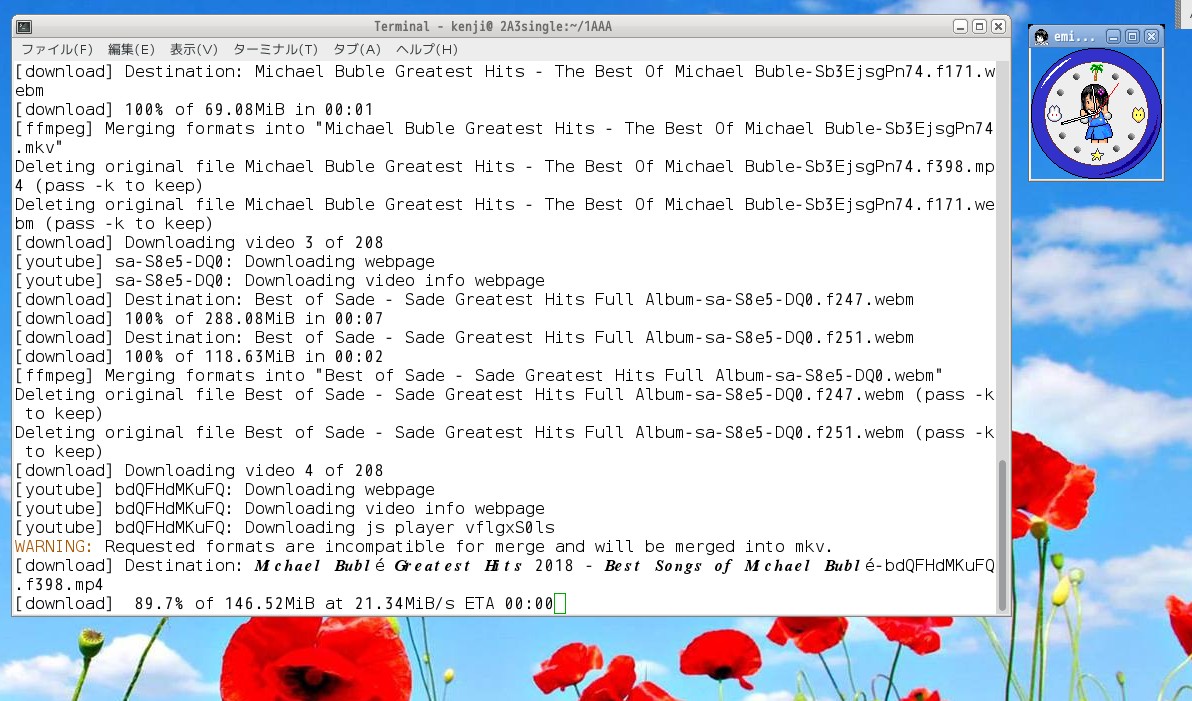

In addition, I use Clipgrab Linux version for saving movies from youtube .
ClipGrabDown load from youtube movie.

Adafruit PITFT 3.2 inch install


RPi + I2S + LCD

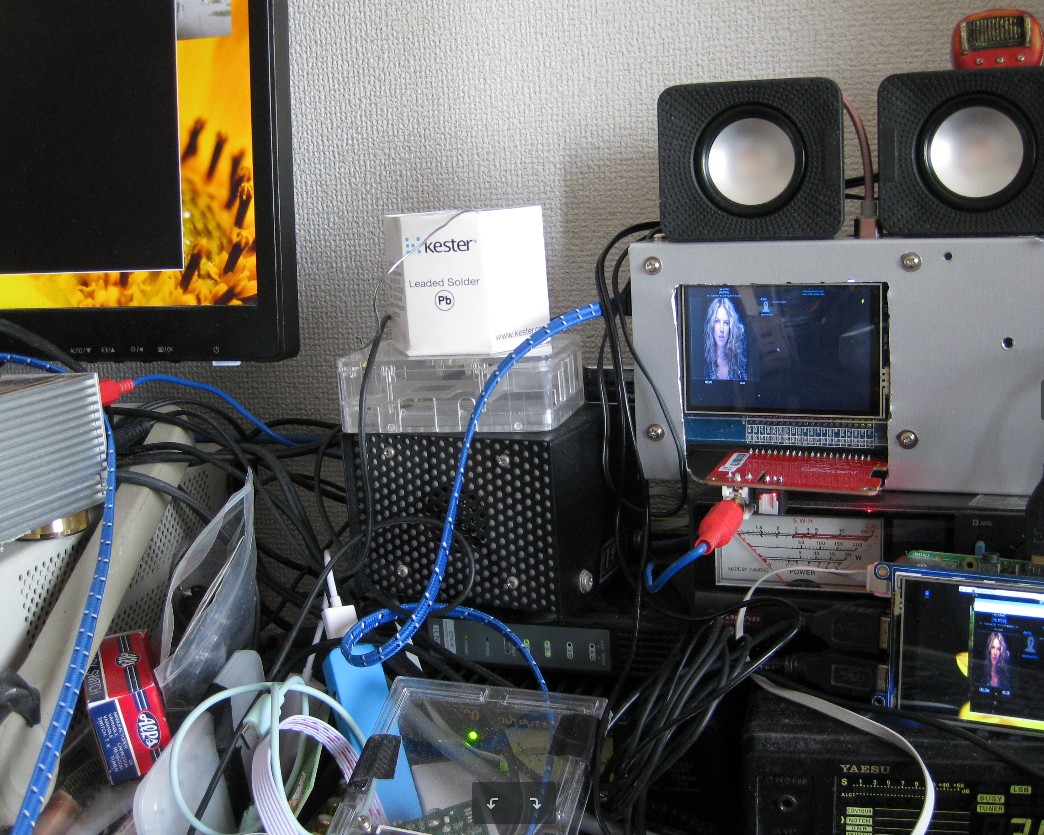

Adafruit TFT touch panel -LCD with RP3



Adafrui 3.2 inc TFT

Adafruit 3.2 inch + Raspberrypi 3 ,just show as monitor



raspberry pi 3 + adafruit

Plays Diana Krall source from share part of Raspberry pi3 by USB DAC DIY



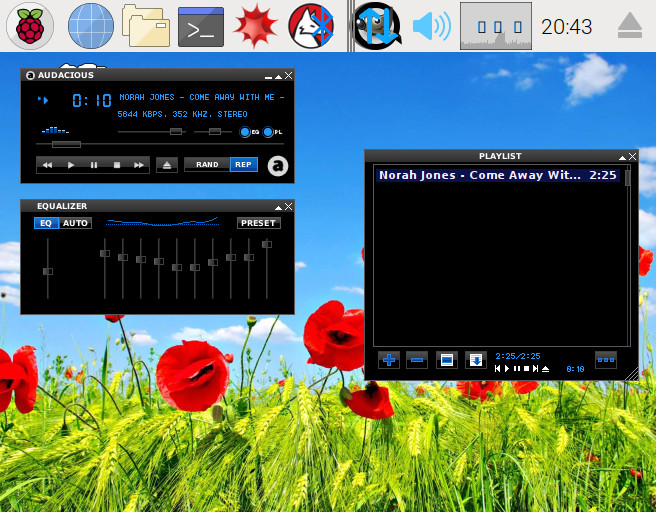

play DSF by Audacious Rasbian

Play DSF(Dop) by Audacious on Rasbian $ sudo apt-get install audacious




I2S DAC DIY

DIY I2S DAC Mount on Rapberry Pi 3 B



simple I2S DAC DIY


2 I2S DAC

Left is FN1242A DAC for RPI and Left is PCM5102A DAC but can be use as I2S for NanoPi-Neo2

SPDIF input24 bit DAC DIY


Play DSD 5.6 Mhz

MoodeAudio 4.2 Play DSF 5.6 Nhz as Dop on 22nd Sep 2018



new one volumio2 sep 2018

Quite good new sep 2018 version of Volumio2 by PCM5102A DIY DAC



simple DIY DAC

DIY Simple I2S DAC but sound is great on 13th Oct 2018



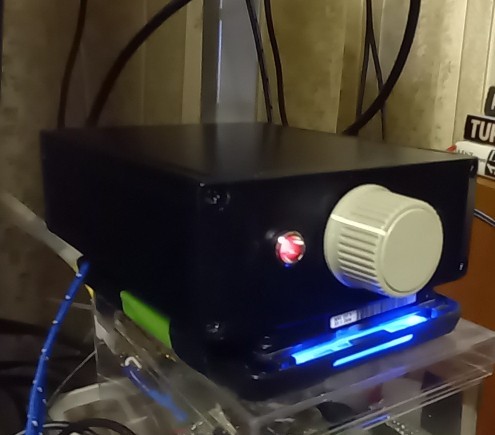

into black box I2S DAC with raspberry pi2

Raspberry Pi2 + I2S DAC Music Server on 14th Oct 2018



Rune Audio 0.4 mpd 0.20.20

RaspberryPi 3 with USB DAC by Rune OS 0.4 mpd 0.20.20 Sound is very sweet and clear made by Arch Linux



Stand alone RuneAudio 0.4 pi3

Rune OS 0.4 mpd 0.20.20 with HDMI monitor ,put together.as Stand Alone on Oct 2018



LCD + RP3 + Digi Hat

LCD + RP3 + Digi .Stand Alone by Moodeaudio 4.2 Monitor is Quimat (MPI3508) 3.5inch

from moodeaudio 4.3 we can get image file from MoodeAudio Org so easy to install now
But I do not know why, this version does not make expand memory. if one's using 32 Gbyte .micro SD used less than 4 G Byte.
have to expand memory as fdisk. 4.2 versing can you any size of micro SD like 32 G Byte.mpd is same of 4.2 version.
RuneAudio is broken OS by problem of update program from Arch Linux update if your RuneAudio is doing fine do not touch and keep last condition.
Be carefull.NO UP DATE RuneAudio and Arch Linux.on 1st NoV 2018.


The appearance of RuneAudio 0.5 Beta , on 2018 Sep


Looking at the forum, there is something called RuneAudio 0.5 Beta. First of all, please refer to the link there. Is it a third party? It is unknown whether it is genuine, but I think it is wonderful. By referring to the link
Please do.  rune audio 0.5
It is mpd 0.20.20. The sound of DSD is distorted in Dop, but I think that the processing method can be found. Please try using it. It is not bad, and the original Arch Linux sound is out. Two versions of the archive are featured.
NAS reading and fine setting is possible than anything. I think that it is wonderful because it is made making MoodeAudio conscious.
RuneAudio OS has 3 type for Raspberry Pi.

RuneAudio 0.5 2018 sept

Rune Audio Version 0.5 Beta for Rapberrypi B + and 2/3 Tested on 4th Nov 2018


runeaudio 0.5 Beta Tested on Nov 2018

Tested : RuneAudio Music Player 0.5 Bata for Raspberry Pi 3 on 4th Nov 2018



By LCD

HDMI monitor show Music Alumb /etc/mpd.conf add format "44100:24:2"



have to edit /etc/mpd.conf and add format "44100:24:2" a part of Audio Driver,
# chattr -i /etc/mpd.conf
# nano /etc/mpd.conf
# chattr +i /etc/mpd.conf

my DAC is using 192Khz 24 bit DIY DAC SPDIF input. /etc/mpd.conf show next.

audio_output {
name "snd_rpi_justboom_digi"
type "alsa"
device "hw:1,0"
dsd_usb "yes"
dop "yes"
auto_resample "no"
auto_format "no"
enabled "yes"
format "176400:24:2"
}
this one is only just in my case.please seeRuneAudio forum about mpd.conf

uname -a    runeaudio

uname- a by Raspberry pi3



Gparted by Linux

If one's have Intel PC like Windows7,8 etc you can make fdisk automatically by Gparted.Gparted is one of util application by Gnome Linux x86
so if are you using 16 G byte or 32 G Byte and using MoodeAudio and RuneAudio. can expand share area of SD memory easily by Gparted Live disk.
please try to expand memory by Gparted Gparted live disk
if would like to use Gparted by your PC please use carefully because delete your main PC OS.and Raspbian can do install gparted by apt-get install.


duke e

show artist information by RuneAudio


first have to ripping internet radio as
streamripper http://west1-mp3-128.streamthejazzgroove.com:80/ -u 093800 -r -R 2 http://west1-mp3-128.streamthejazzgroove.com:80/
ricently $ streamripper http:// IP can not save music so have to use above format for ripping.then listen Music by MoodeAudio ,RuneAudio.
you can get artist information from last fm.lyric .

android app

By Android app Specially for RuneAudio application



IP(rune audio):8080 you can see alsamixer by browzer

alsa mixer runeaudio


and add IP/dev can see deveroper position like volumio2. you can see php WEBUI condition and setup mpd. please see next images. and you can add "Addon" position on
Deveroper Position.Addon can add many options into RuneAudio OS.

dev position under runeaudio

Dev position for RuneAudio show just write IP/dev mpd Version 0.20.20



Add on position

Add Addon position at Devroper position




alpine

Alpine Linux for all of ARM and Intel PC



raspberrypiA+plus

Raspberrypi A + plus



Next project


next one project pi

Rapberry pi 3 + LCD























































----Important:Raspberry Pi Music Server If would like to(Install)and(use) at least need know--"how to use Linux" and lean Linux first !!----

[Currently owned one board PC is 3 RaspberryPi 3, Raspberry Pi 2 1, Raspberry Pi - Zero 1 (lender) and 2 NanoPi - Neo 2. It's all for experiments]


blue note


[ Audio System : RP2 + Justboom Digi Hat + SPDIF + Home brew FN1242 DAC and Power Amp is EL156 Single Ended Amplifier]


Let's listen to music more than things shapes and techniques


play pi

play raspberrypi as home control by smartphone(Celler phone) so far way from home



Fm Steram ORG

Station Finder



DAC etc---Show DAC DIY Site in Japan


Very Important :finally " Raspberry Pi 2-3" are very stable One Board PC for C/P and Good for "Experimenter" around OS, programing and hard skill etc .


How to install ICEWM into Raspberry pi Linux



How to use ICEWM by Linux x86 x11 only Japanese


You Tube for Tube Amplifier


Facebook


7th Avenue


since 15th JAN 2015 Raspberry Pi B+ Music Server how to last up date 9th Dec 2018

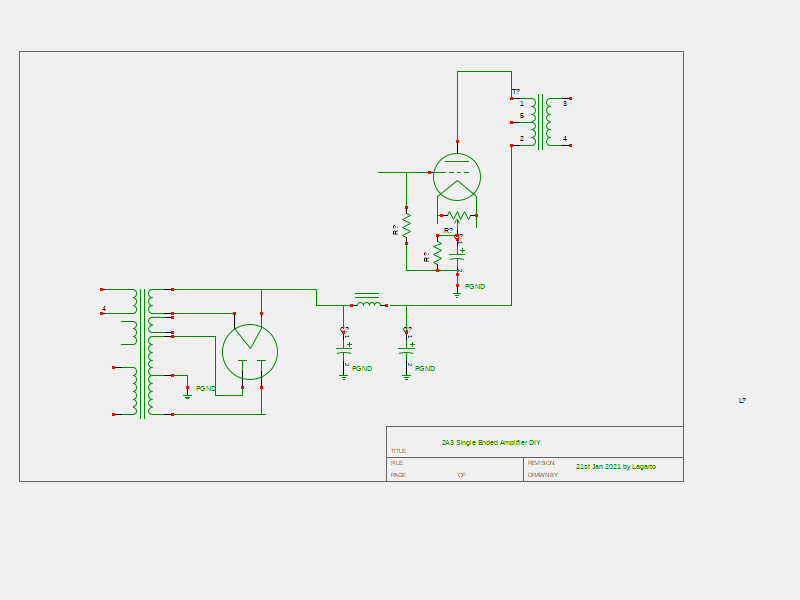

How to build up Amplifier Single Ended Amplifier 2018 Sakura Chiba Japan
